SPECIAL CAUTIONS AIR BAGS Refer to Procedure Explanation 29 for Supplemental Restraint/Air Bag Special Cautions. HYBRID SYSTEM The Hybrid Model Durango is powered by both electricity and gasoline. When performing repairs that involve contact with High Voltage or Hybrid components, verify that the system has been Disabled. Manufacturer warns that High Voltage Safety Procedures must be followed before initiating any diagnostic or service procedure. SUSPENSION Manufacturer advises that some new fasteners must be used whenever old fasteners are loosened or removed. PAINT CODE LOCATION Located on left front door frame. CLEAR COAT IDENTIFICATION All colors are clear coat. INFORMATION LABELS Label, A/C 55056198AB $6.50 Label, Belt Routing 53030960 $3.25 Order by Application Label, Brake Fluid Caution 52128784AA $14.35 Label, Emission 3.7L Eng 04-08 52022084AA $4.30 09 52014910AA $5.40 4.7L Eng 04-08 52022085AA $8.30 09 52014911AA $5.40 5.7L Eng 04-08 52022086AA $8.30 09 52014916AA $5.85 Label, Transfer Case Caution 52853043AC $4.00 Order by Application Label, Air Bag Warning 04 4595748AA $5.85 05-09 5108000AA $1.80 Label, Side Air Bag 04 R 4664279AD $4.35 L 4664279AD $4.35 05-06 R 4664280AD $4.60 L 4664280AD $4.60 07-09 R 5108000AA $1.80 L 5108000AA $1.80 Label, Roll Over Warning 55352825AA $2.10 Label, Child Safety R 5056072AA $2.85 2004-2009 Dodge Durango Page 1 of 193

L 5056072AA $2.85 Label, Warning (On Liftgate) 4716878 $5.00 FRONT BUMPER Use Procedure Explanations 1 and 28 with the following text. 2004-06 Refinish Bumper Cover 2.3 R&I Bumper Cover #1.5 O/H Bumper Assy (Includes R&I) #2.0 #Includes R&I Grille & R&I/R&R Combination Lamps Add to R&R or O/H Front Bumper Cover w/Fog Lamps .4 NOTE: All Parts in this section are included in overhaul unless noted otherwise. 1 Cover, Front Bumper w/Fog Lamps Black 5HP18TZZAB $272.00 #2.0 Paint to Match 5HP18TZZAB $272.00 #2.0 w/o Fog Lamps Black 5HP21ZSPAC $220.00 #2.0 Paint to Match 5HP21ZSPAC $220.00 #2.0 #Includes R&I Grille & R&I/R&R Combination Lamps Rivet, Bumper (6) 6500911 $5.75 2 Absorber, Bumper 04 55077564AD $123.00 IOH 05 55077564AE $126.00 IOH 06 55077564AG $149.00 IOH Bolt, Bumper (2/Side) R 6504324 $1.25 Page 2 of 193

L 6504324 $1.25 3 Reinforcement, Bumper 04-05 55077497AC $159.00 #.4 06 55077497AD $202.00 #.4 #w/Front Bumper Cover Removed, Not Included in O/H 4 Bracket, Bumper R 55077780AA $8.75 #.3 L 55077780AA $8.75 #.3 #w/Bumper Reinforcement Removed, Not Included in O/H Dam, Air XD14XXXAC $130.00 .3 Screw, Air Dam (6) 04 6506615AA $4.95 05 6507008AA $4.35 06 6508183AA $4.60 Clip, Air Dam (7) 6503221 $1.50 Hook, Tow R 52113439AA $70.50 #.3 L 52113439AA $70.50 #.3 Plate, Stud R 52855301AD $18.20 #.3 L 52855301AD $18.20 #.3 Bracket, Tow Hook R 52855201AB $13.95 #.3 L 52855201AB $13.95 #.3 #R&R One Side Complete, Included in R&R Bumper Bracket, w/Bumper Reinforcement Removed, Not Included in O/H 5 Sensor, Ambient Temp 56042395 $32.30 #.2 #Not Included in O/H 2007-09 Refinish Front Bumper Cover 2.5 R&I Front Bumper Cover 1.0 O/H Front Bumper (Includes R&I) 1.5 Add to R&R or O/H Front Bumper Cover w/Chrome Insert .2 Page 3 of 193

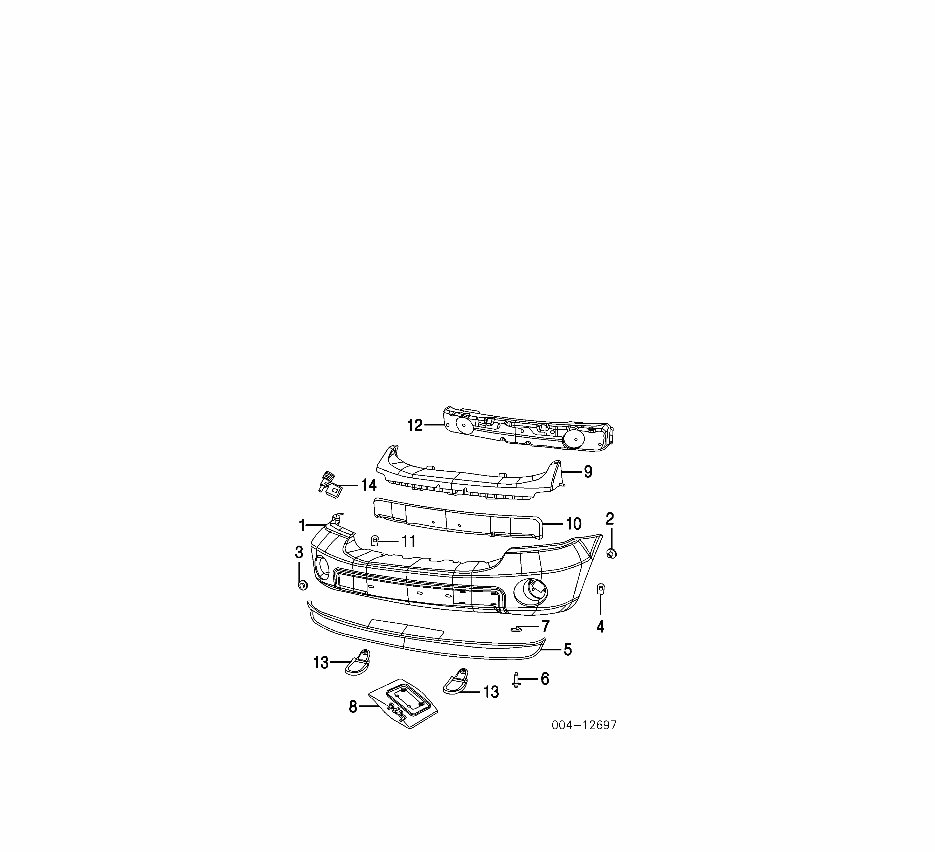

w/Fog Lamps .4 NOTE: All Parts in this section are included in overhaul unless noted otherwise. 1 Cover, Front Bumper Gray w/Tow Hooks 07-08 1FJ901D7AB $284.00 1.5 09 1FJ901D7AC $284.00 1.5 w/o Tow Hooks 07-08 1FJ911D7AB $272.00 1.5 09 1FJ911D7AC $274.00 1.5 Paint to Match w/Chrome Insert w/Tow Hooks 07-08 68002900AB $475.00 1.5 09 68002900AC $480.00 1.5 w/o Tow Hooks 07-08 68002919AB $465.00 1.5 09 68002919AC $470.00 1.5 w/o Chrome Insert w/Tow Hooks 07-08 68002912AB $465.00 1.5 09 68002912AC $470.00 1.5 w/o Tow Hooks 07-08 68002920AB $455.00 1.5 09 68002920AC $462.00 1.5 2 Screw, Cover (14) 6508315AA $4.00 3 Screw, Lower (4) 6506579AA $0.60 4 Nut, Cover (6) 6507559AA $3.10 5 Dam, Air 68002901AA $92.00 .3 6 Screw, Air Dam (9) 6508315AA $4.00 7 Nut, Air Dam (9) 6507559AA $3.10 8 License Kit 07 55364761AB $8.75 .2 08-09 55364761AC $8.00 .2 9 Support, Front Cover 68002903AA $124.00 IOH 10 Insert, Cover 68002902AB $260.00 .2 11 Nut, Insert (4) 68004187AA $4.00 12 Reinforcement, Bumper 07 55364673AD $225.00 #.4 08-09 55364673AE $250.00 #.4 #w/Front Bumper Cover Removed 13 Hook, Tow R 55398121AA $82.50 #.3 L 55398121AA $82.50 #.3 #w/Bumper Reinforcement Removed, Not Included in O/H 14 Sensor, Ambient Temp 56042395 $32.30 #.2 #Not Included in O/H GRILLE 2004-06 Page 4 of 193

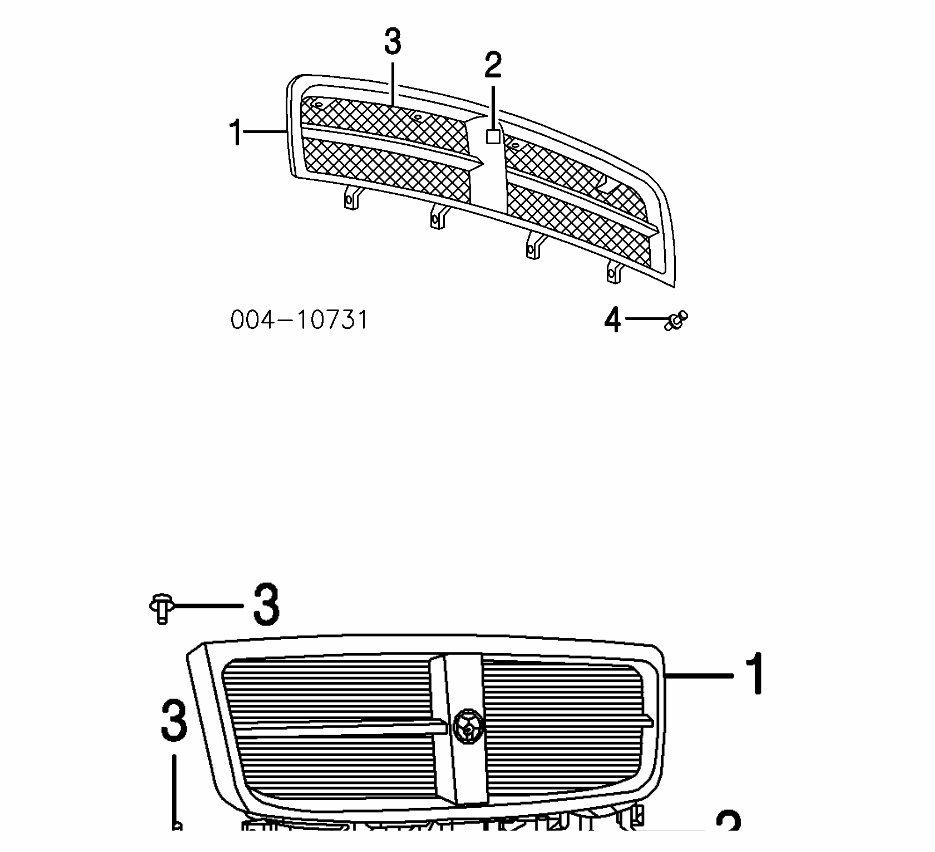

R&I Grille #.5 #Includes R&R Air Deflector 1 Grille 04-05 55077723AB $282.00 #.6 06 55077723AC $320.00 #.6 #Includes R&R Air Deflector 2 Emblem, Ram's Head (Adhesive) 55077717AB $42.35 .2 3 Screen, Grille R 5114518AB $46.00 #.6 L 5114519AB $46.00 #.6 #R&R Complete, Includes R&R Air Deflector, Included in R&R Grille 4 Retainer, Grille (8) 6507669AA $4.00 Clip, Grille (2/Side) R 5114517AA $4.85 L 5114517AA $4.85 2007-09 Page 5 of 193

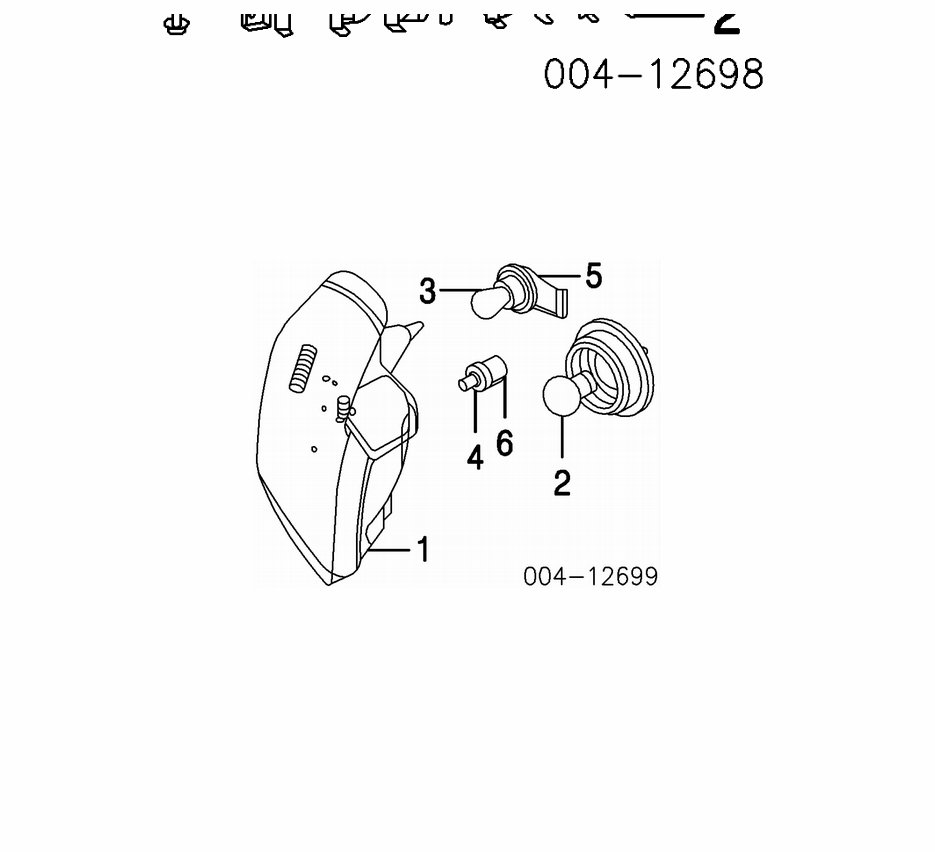

R&I Grille #.5 #Includes R&R Air Deflector 1 Grille 55078015AD $292.00 #.6 2 Bracket, Grille 55364744AA $42.35 #.6 #R&R Complete, Includes R&R Air Deflector 3 Screw, Grille N.A. As Required FRONT LAMPS COMBINATION LAMP Aim Lamps .4 R&I Combination Lamp R .3 L .3 R&R Bulbs Complete R #.2 L #.2 #Included in R&I/R&R Combination Lamp NOTE: R&R Does Not include aim lamps. 1 Lamp, Combination 2004 To 10-13-03 R 55077720AB $240.00 .3 L 55077721AB $240.00 .3 From 10-13-03 R 55077720AC $312.00 .3 L 55077721AC $312.00 .3 2005 R 55077720AD $325.00 .3 Page 6 of 193

L 55077721AD $325.00 .3 2006 R 55077720AE $325.00 .3 L 55077721AE $305.00 .3 2007 R 55078017AG $255.00 .3 L 55078018AG $255.00 .3 2008-09 R 55078017AH $270.00 .3 L 55078018AH $255.00 .3 2 Bulb, Headlamp (2/Side) R L0000H13 $22.20 #.2 L L0000H13 $22.20 #.2 3 Bulb, Park/Signal Lamp R L0003457AK $3.60 #.2 L L0003457AK $3.60 #.2 4 Bulb, Side Marker R L0000194 $1.10 #.2 L L0000194 $1.10 #.2 #R&R One Side Complete, Included in R&I/R&R Combination Lamp 5 Socket, Park/Signal Lamp 04-06 R 4857327AA $3.60 L 4857327AA $3.60 07-09 R 5139886AA $4.25 L 5139886AA $4.25 6 Socket, Side Marker 04-06 R 4857378AA $11.00 L 4857378AA $11.00 07-09 R 68003492AA $3.35 L 68003492AA $3.35 Retainer, Headlamp 04 R 55077613AB $0.95 L 55077613AB $0.95 Nut, Mounting 04 R 6104708AA $0.70 L 6104708AA $0.70 Harness, Front Lamp-See Front Fender Section FOG LAMP Page 7 of 193

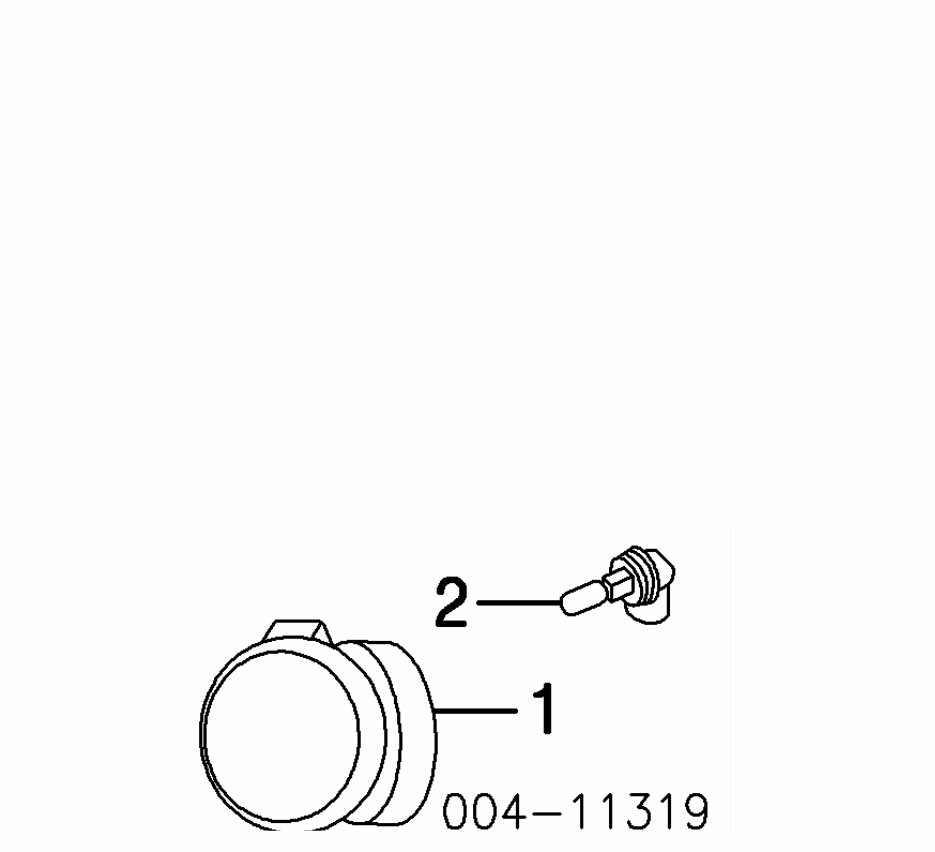

Aim Fog Lamps .4 R&I Fog Lamp R #.2 L #.2 #w/Front Cover Removed, Included in R&R/O/H Front Bumper NOTE: R&R Does Not include aim lamps. 1 Lamp, Fog 04-06 R 55077470AB $77.60 #.2 L 55077470AB $77.60 #.2 07 R 4805859AA $117.00 #.2 L 4805859AA $117.00 #.2 08-09 R 4805859AB $32.25 #.2 L 4805859AB $32.25 #.2 #w/Front Bumper Cover Removed, Included in R&R/O/H Front Bumper 2 Bulb, Fog Lamp 04-06 R L0009006 $14.25 #.2 L L0009006 $14.25 #.2 07-09 R L0009145 $16.20 #.2 L L0009145 $16.20 #.2 #Included in R&I/R&R Fog Lamp HOOD Use Procedure Explanations 4 and 28 with the following text. Refinish Hood Outside 2.9 Add for Underside 1.5 Refinish Hood Hinge R .5 L .5 R&I Hood Assy .5 Page 8 of 193

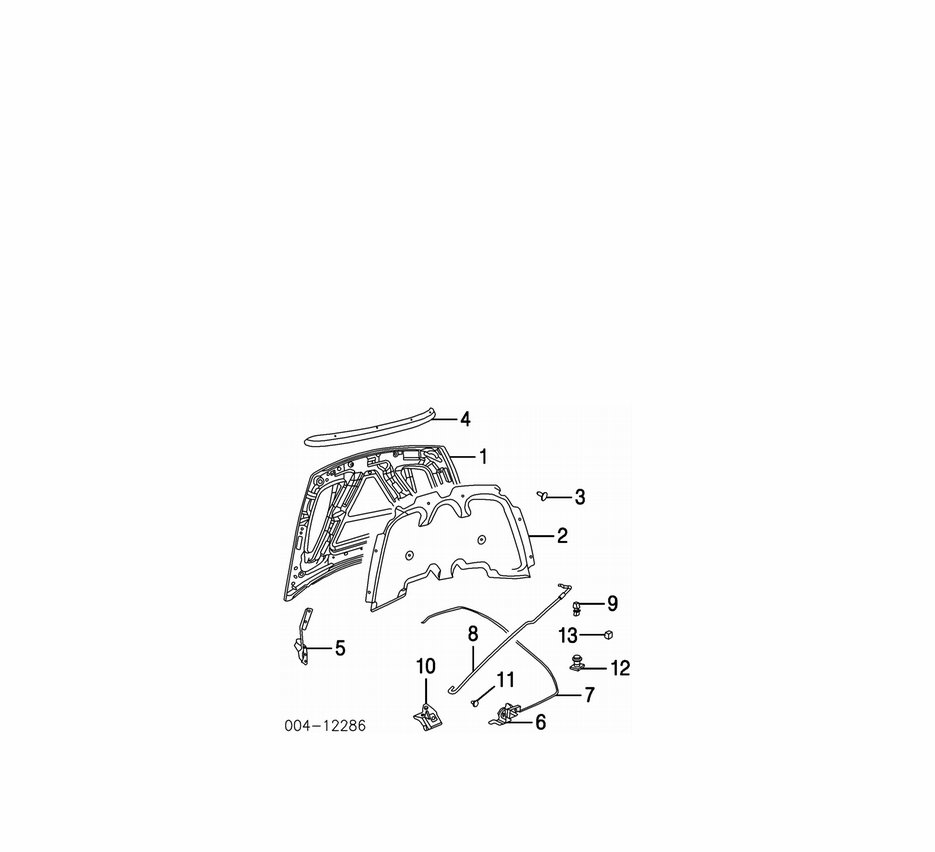

R&I Washer Nozzle R #.2 L #.2 #Included in R&R Hood R&I Air Deflector #.4 #Not Included in R&R Hood 1 Hood 04-06 55362314AB $404.00 1.2 07-09 55364542AB $439.00 1.2 2 Insulator, Hood 04 55365025AB $87.35 .3 05 55365025AC $94.25 .3 06-07 55365025AD $94.25 .3 08-09 55361465AA $94.25 .3 3 Clip, Insulator (12) 6504135 $3.10 4 Deflector Kit, Air Dealer Installed 04-07 82208416AB $91.85 #.4 #Not Included in R&R Hood 5 Hinge, Hood 04-06 R 55362502AB $50.10 #.2 L 55362503AB $50.10 #.2 07-08 R 55364584AC $43.25 #.2 L 55364585AB $43.25 #.2 09 R 55364584AC $43.25 #.2 L 55364585AC $43.25 #.2 #w/Hood & Fender Removed 6 Latch, Hood 04-05 55362549AE $49.95 .3 06-09 55362549AG $49.95 .3 7 Cable, Release 55362551AB $40.35 .5 8 Rod, Hood 55364301AA $24.70 .2 Insulator, Rod 5008284AB $5.75 9 Holder, Rod J4007456 $15.70 10 Bracket, Rod 55364048AA $6.20 11 Bushing, Rod 4716486 $3.85 12 Bumper, Front Hood 04 R 55364470AA $7.25 .1 L 55364470AA $7.25 .1 05-09 R 55364470AB $7.35 .1 L 55364470AB $7.35 .1 13 Bumper, Rear Hood 04 R 55364465AA $1.25 L 55364465AA $1.25 05-06 R 55276578AA $5.10 L 55276578AA $5.10 07-09 R 5054227AA $3.85 L 5054227AA $3.85 Nozzle, Washer-See Windshield Section COOLING Use Procedure Explanations 5 and 28 with the following text. 2004-08 Page 9 of 193

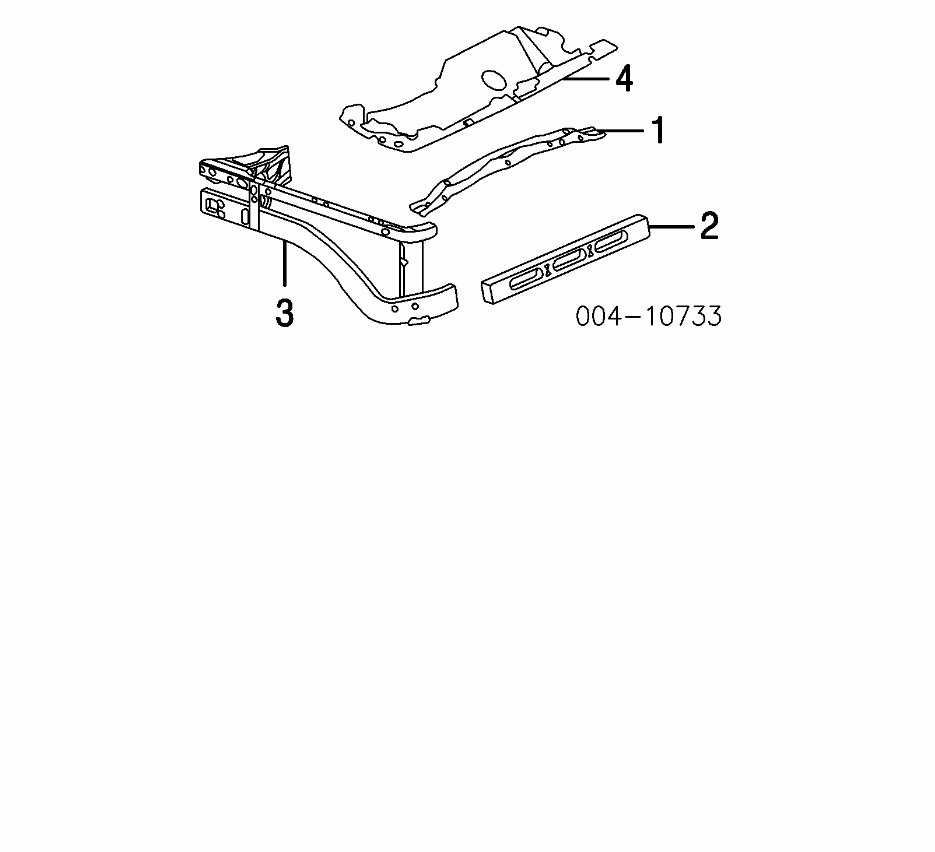

Refinish Upper Tie Bar .5 Refinish Lower Tie Bar .5 Refinish Side Rail R 1.0 L 1.0 R&I Radiator 1.5 Section Side Rail R #5.0 L #5.0 #See Manufacturer's Body Repair Manual for Sectioning Procedures 1 Bar, Upper Tie 04-07 55362294AB $49.60 #.5 08 55362294AC $52.75 #.5 #Includes R&R Hood Latch 2 Bar, Lower Tie 04 55362295AB $51.60 #4.5 05 55362295AC $53.20 #4.5 06-07 55362295AD $53.75 #4.5 08 55362295AF $62.95 #4.5 #w/One Side Rail Removed .5, w/Both Side Rails Removed .2 3 Rail, Side 04-05 R 55362306AB $180.00 #4.5 L 55362307AB $179.00 #4.5 06-07 R 55362306AE $180.00 #4.5 L 55362307AD $179.00 #4.5 08 R 55362306AG $217.00 #4.5 L 55362307AF $215.00 #4.5 #w/Hinge Reinforcement Removed 4 Deflector, Air 04 52029057AB $29.95 .2 05 52029057AD $31.95 .2 06 52029057AE $43.75 .2 07 55056751AC $32.95 .2 Page 10 of 193
