2002 Dodge Dakota AN Parts Catalog

SPECIAL CAUTIONS CAB & CHASSIS Cab & Chassis vehicles are supplied incomplete to aftermarket specialty manufacturers, which may have special options not available on regular production (complete) vehicles. Extra care should be exercised when estimating these vehicles. It may be necessary to consult the OEM dealer or particular specialty manufacturer for specific information. AIR BAGS Refer to Procedure Explanation 29 for Supplemental Restraint/Air Bag Special Cautions. PAINT CODE LOCATION Paint code located on left door pillar and cab back panel. CLEAR COAT IDENTIFICATION All colors are clear coat. INFORMATION LABELS Label, A/C Refrigerant 97-99 55036209 $6.70 00 55056034AA $3.10 01 55056130AA $3.10 02-03 55056130AB $4.10 04 55056130AA $3.10 Label, Air Bag 4595748AA $5.85 Label, Belt Routing 2.5L Eng 53010298 $4.10 3.9L, 5.2L, 5.9L Eng 53008745 $4.00 4.7L Eng 53030960 $3.25 Label, Emission 2.5L Eng 1997 Calif Emission 53031534AB $4.20 Federal Emission 53031533AB $4.95 1998 Calif Emission 53031804AA $4.80 Federal Emission 53031803AA $4.30 1999 Calif Emission 53031998AA $3.60 Federal Emission 53031996AA $4.20 2000 Calif Emission 53032335AA $3.45 Federal Emission 53032333AA $3.65 2001 52102923AA $3.55 1997-2004 Dodge Dakota Page 1 of 224

2002 52113755AA $2.45 3.7L Eng N.A. 3.9L Eng 53008745 $4.00 1997 Calif Emission 53031534AB $4.20 Federal Emission 53031533AB $4.95 1998 Calif Emission 53031804AA $4.80 Federal Emission 53031803AA $4.30 1999 Calif Emission 53031998AA $3.60 Federal Emission 53031996AA $4.20 2000 53032337AA $3.95 2001 52102924AA $3.85 2002 Calif Emission 52113756AB $0.85 Federal Emission 52113758AA $2.45 2003 52110428AB $0.50 4.7L Eng 2000 Calif Emission 53032345AA $3.95 Federal Emission 53032340AA $3.95 2001 52102926AA $3.85 2002 Calif Emission 52113760AA $2.45 Federal Emission 52113764AB $2.45 2003 52110430AB $0.50 2004 N.A. 5.2L Eng 1997 Calif Emission 53032560 $4.50 Federal Emission 53031537 $3.95 1998 Calif Emission 53031840AA $3.75 Federal Emission 53031841AA $4.00 1999 Calif Emission 53032032AA $4.20 Federal Emission 53032028AA $4.20 5.9L Eng 1998 Calif Emission 53031846AA $3.75 Federal Emission 53031848AA $4.00 1999 Calif Emission 53032034AA $4.20 Federal Emission 53032038AB $3.60 2000 Page 2 of 224

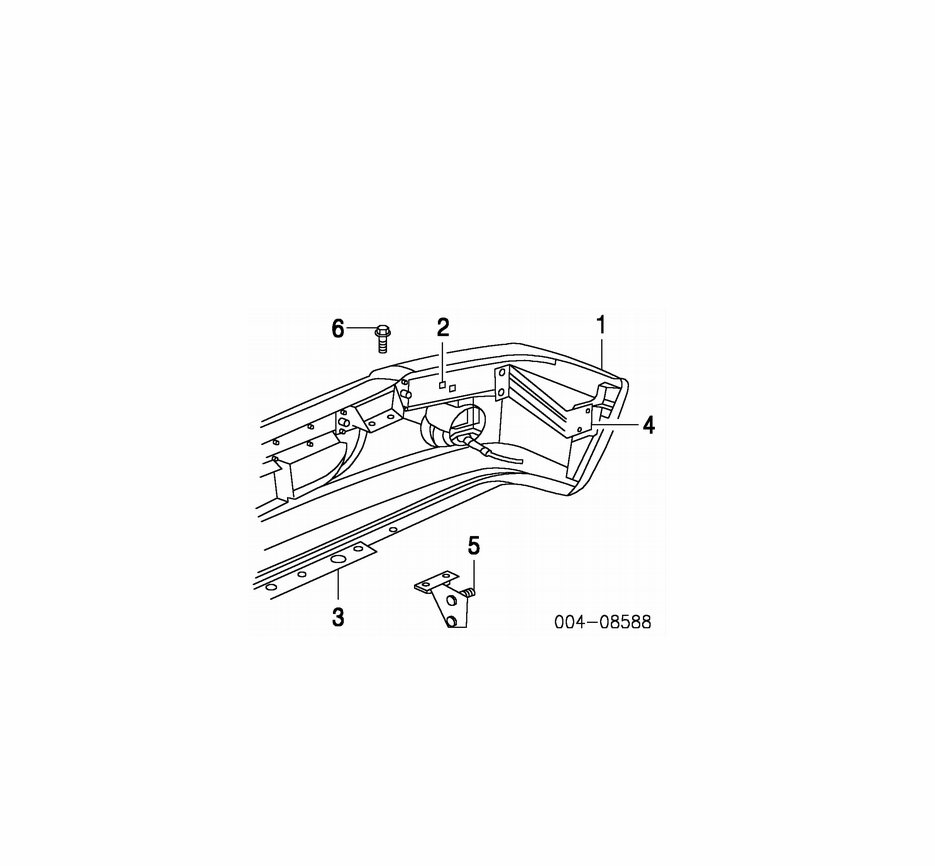

Calif Emission 53032352AB $3.95 Federal Emission 53032347AA $3.95 2001 52102930AA $3.85 2002 Calif Emission 52113776AA $2.45 Federal Emission 52113780AB $0.85 2003 52110424AB $0.85 Order by Application Label, Jack Storage 52019655 $6.20 Label, Unleaded Fuel 4206059 $5.10 FRONT BUMPER Use Procedure Explanations 1 and 28 with the following text. 1 PIECE 1 PIECE 2001-04 Refinish Bumper Fascia 2.3 Refinish Bumper Cladding 1.2 R&I Bumper Assy .5 O/H Bumper Assy (Includes R&I) 1.4 Add to R&R Bumper Fascia or O/H Bumper Assy w/Fog Lamps .3 w/Bumper Cladding .6 NOTE: All Parts in this section are included in overhaul unless noted otherwise. 1 Fascia, Bumper 2001 Page 3 of 224

w/Fog Lamps w/ R/T Model Black 5083107AA $454.00 1.4 Blue UH50VB3AA $422.00 1.4 Champagne 5083107AA $454.00 1.4 Dark Charcoal 5083107AA $454.00 1.4 Red 5083107AA $454.00 1.4 White 5083107AA $454.00 1.4 w/o R/T Model USA Champagne 5GX86XV3AA $437.00 1.4 Paint to Match 5073221AA $444.00 1.4 Canada Black N.A. 1.4 Blue N.A. 1.4 Champagne N.A. 1.4 Dark Charcoal N.A. 1.4 Red N.A. 1.4 White N.A. 1.4 w/o Fog Lamps USA Black 5GX85DX8AA $387.00 1.4 Champagne 5GX85XV3AA $392.00 1.4 White 5073022AA $392.00 1.4 Paint to Match 5073022AA $392.00 1.4 Canada Black N.A. 1.4 Blue N.A. 1.4 Champagne N.A. 1.4 Dark Charcoal N.A. 1.4 Red N.A. 1.4 White N.A. 1.4 2002 w/Fog Lamps Atlantic Blue 5083107AA $454.00 1.4 Black 5083107AA $454.00 1.4 Chrome 55076531AC $469.00 1.4 Dark Charcoal 5083107AA $454.00 1.4 Graphite 5083107AA $454.00 1.4 Red 5083107AA $454.00 1.4 White 5083107AA $454.00 1.4 w/o Fog Lamps Chrome 55076871AC $455.00 1.4 Paint to Match 5073022AB $410.00 1.4 2003-04 w/Fog Lamps Page 4 of 224

Chrome 55076531AC $469.00 1.4 Textured 5JN74ZSPAA $234.00 1.4 Paint to Match 5073221AA $444.00 1.4 w/o Fog Lamps Chrome 55076871AC $455.00 1.4 Textured 5JN72ZSPAA $285.00 1.4 Paint to Match 5073022AB $410.00 1.4 Order by Application (P) Paint to Match 2 Beam, Bumper 01-02 55077256AB $142.00 IOH 03-04 55077256AC $145.00 IOH 3 Deflector, Inner Air 55076409AB $103.00 4 Bracket, Side R 55077270AA $42.35 L 55077271AA $42.35 5 Bracket, Inner 01-02 R 55077202AA $37.35 # L 55077203AA $37.35 # 03-04 R 55077202AB $51.85 # L 55077203AB $51.85 # #Not Included in O/H 6 Bolt, Bumper (4) 6504531 $6.60 Bracket, License 01 55076597AB $32.50 .2 02 55076597AC $32.50 .2 03-04 55076597AD $34.95 .2 Cladding, Front Bumper Atlantic Blue 5JL00TZZAA $782.00 .6 Black 5JL00TZZAA $782.00 .6 Dark Charcoal 5JL00TZZAA $782.00 .6 Graphite 5JL00TZZAA $782.00 .6 Red 5JL00TZZAA $782.00 .6 White 5JL00TZZAA $782.00 .6 2 PIECE Page 5 of 224

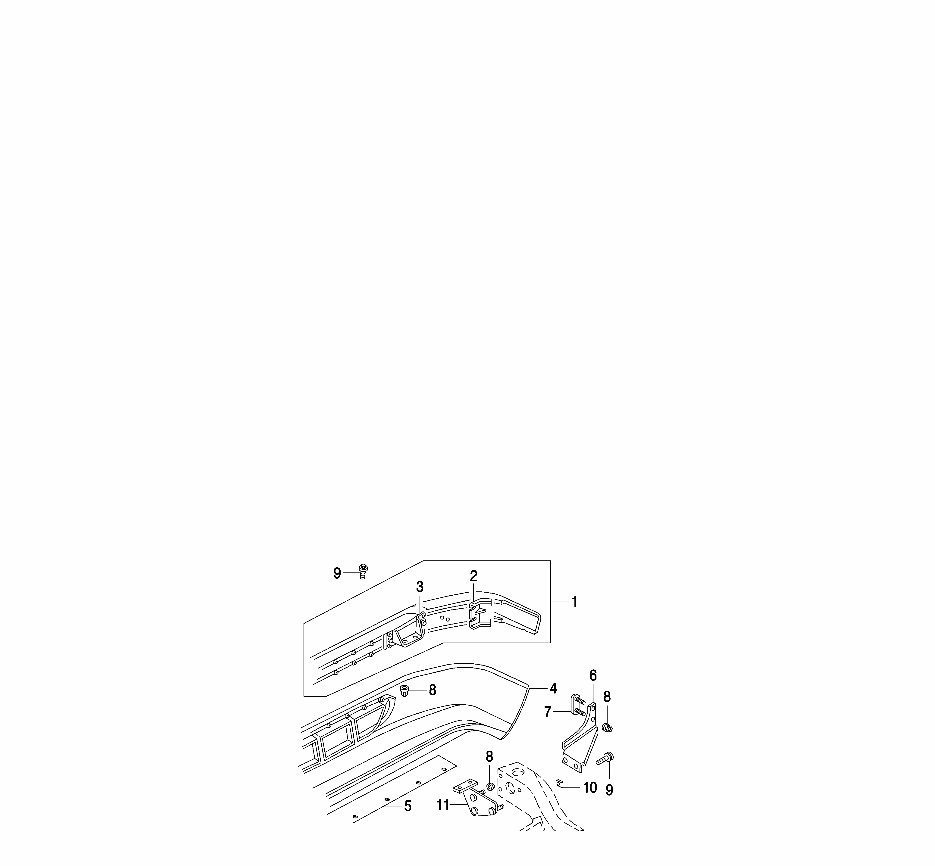

Refinish Face Bar 1.2 Refinish Lower Fascia 2.0 R&I Bumper Assy .5 O/H Bumper Assy (Includes R&I) 1.4 Add to R&R or O/H Bumper Assy w/Fog Lamps .3 NOTE: All Parts in this section are included in overhaul unless noted otherwise. 1 Bar Assy, Face Argent 97-98 55255845 $392.00 1.4 Chrome 55255844AB $462.00 1.4 Paint to Match 99-00 55255845 $392.00 1.4 2 Bracket, Outer Bar R 55076530AB $96.25 L 55076530AB $96.25 3 Bracket, Inner Bar R 55076528 $71.10 L 55076529 $71.10 Included w/Face Bar Assy 4 Fascia, Lower Smooth Finish (P) 1997 4897588AB $294.00 #.8 1998-00 w/Fog Lamps 5013071AB $342.00 #.8 w/o Fog Lamps 4897588AB $294.00 #.8 Textured Finish w/Fog Lamps 97-00 55076531AB $417.00 #.8 01-04 55076531AC $469.00 #.8 w/o Fog Lamps 97-00 55076871AB $437.00 #.8 01-04 55076871AC $455.00 #.8 (P) Paint to Match #Includes R&I Bumper Assy 5 Deflector, Inner Air 55076409AB $103.00 6 Bracket, Bumper/Frame 97-01 R 55255026AC $46.75 IOH L 55255027AC $46.75 IOH 02-04 R 55077274AC $45.95 IOH L 55077275AC $45.95 IOH 7 Plate, Bracket Mtg R 6504144 $19.20 L 6504144 $19.20 8 Nut, Mounting (7/Side) R 6100055 $4.60 L 6100055 $4.60 9 Bolt, Brkt (4/Side) R 6504531 $6.60 L 6504531 $6.60 10 Nut, Clip (6/Side) R 6506279AA $7.85 L 6506279AA $7.85 11 Bracket, Bumper 97-01 R 55077202AA $37.35 # L 55077203AA $37.35 # Page 6 of 224

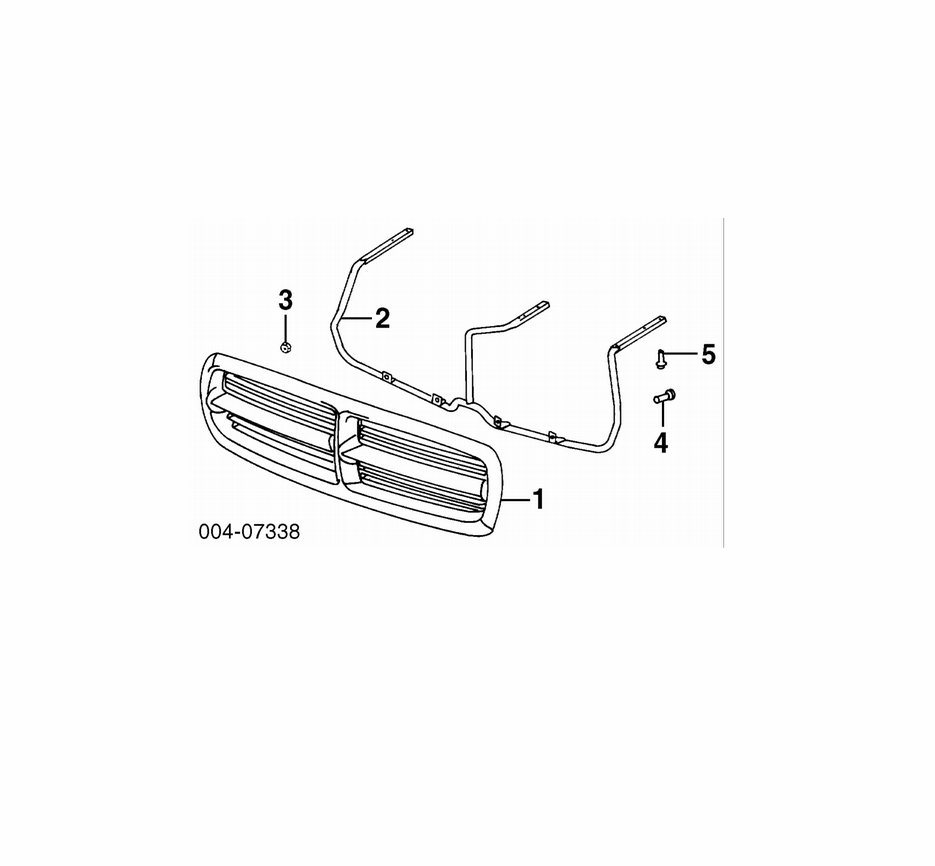

02 R 55077202AB $51.85 # L 55077203AA $37.35 # 03-04 R 55077202AB $51.85 # L 55077203AB $51.85 # #Not Included in O/H Reinf, Lwr Cover R 5015852AA $15.60 L 5015852AA $15.60 Bracket, License 97-01 55076597AB $32.50 .2 02 55076597AC $32.50 .2 03-04 55076597AD $34.95 .2 GRILLE Refinish Grille 1.6 R&I Grille #.4 #Included in R&R Hood 1 Grille Chrome 55056092 $255.00 #.4 Argent 5179422AA $270.00 #.4 Amber Fire 01 5179422AA $270.00 #.4 Champagne 00-01 5179422AA $270.00 #.4 Atlantic Blue 02-04 5179422AA $270.00 #.4 Midnight Blue 04 5179422AA $270.00 #.4 Paint to Match 5179422AA $270.00 #.4 #Included in R&R Hood 2 Bracket, Mtg 97-03 55055210AC $72.50 #.6 04 55055210AD $106.00 #.6 #Includes R&I/R&R Grille, Included in R&R Hood 3 Nut, Grille Mtg (7) 6100046 $4.50 Page 7 of 224

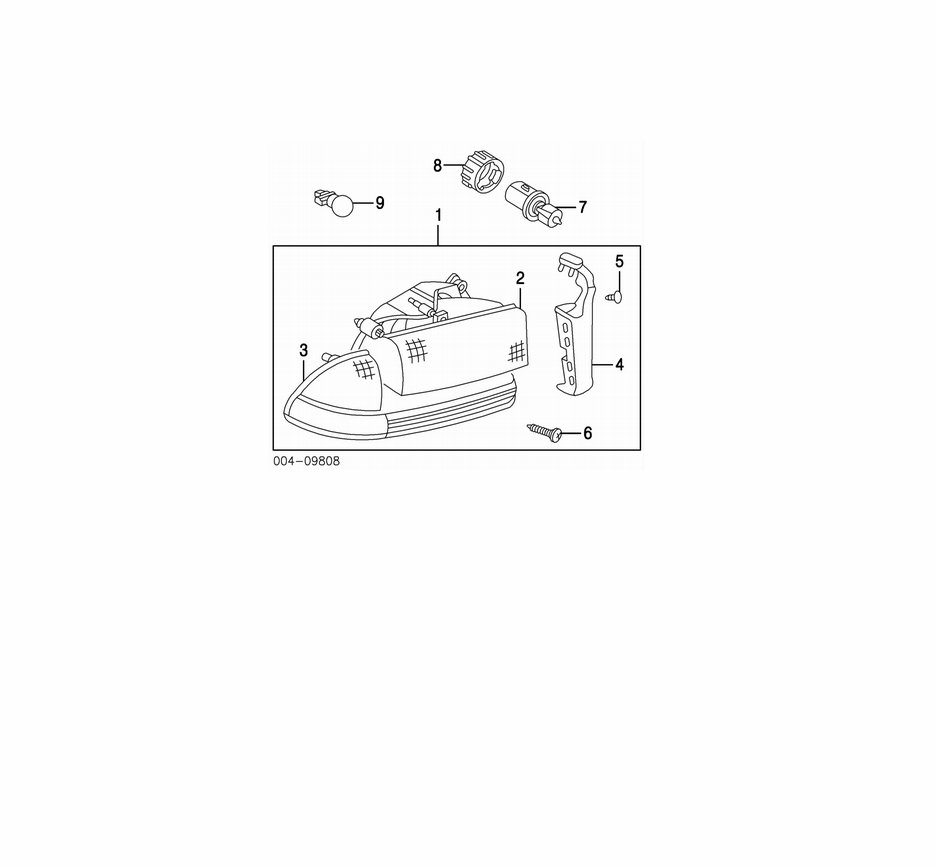

4 Screw, Grille Mtg (4) 97 6100544 $9.75 98-99 6505854AA $0.95 00-04 6101443 $2.85 5 Screw, Bracket Mtg (6) 6504288 $3.10 FRONT LAMPS COMBINATION LAMP Aim Lamps .4 R&I Combination Lamp Assy R .3 L .3 NOTE: R&R Does Not include aim lamps. 1 Lamp Assy, Combination 1997 R 5011406AA $289.00 .3 L 5011407AA $289.00 .3 1998-01 R 55055110AF $257.00 .3 L 55055111AG $249.00 .3 2002-04 R 55055110AH $249.00 .3 L 55055111AH $252.00 .3 2 Lens & Hsg, Headlamp 1997-01 R 55055170AD $184.00 .5 L 55055171AD $180.00 .5 2002-04 R 55055170AE $185.00 .5 L 55055171AE $185.00 .5 3 Lamp, Park/Signal 1997 R 5011410AA $155.00 #.2 L 5011411AA $159.00 #.2 1998 Page 8 of 224

To 8-18-97 R 5011410AA $155.00 #.2 L 5011411AA $159.00 #.2 From 8-18-97 R 55055172AD $154.00 #.2 L 55055173AD $154.00 #.2 1999-01 R 55055172AD $154.00 #.2 L 55055173AD $154.00 #.2 2002-04 R 55055172AD $154.00 #.2 L 55055173AD $154.00 #.2 #Included in R&R Headlamp Lens & Hsg 4 Seal, Lamp/Grille R 4882724 $60.10 .1 L 4882725 $60.10 .1 5 Retainer, Seal R 4882723 $5.00 L 4882723 $5.00 Retainer, Lamp R 4882727 $5.00 L 4882727 $5.00 6 Screw, Lamp Mtg (3/Side) R 6504289 $4.00 L 6504289 $4.00 Included w/Combination Lamp Assy 7 Bulb, Headlamp 97-00 R 154824 $12.95 #.2 L 154824 $12.95 #.2 01 R L0009007QL $17.50 #.2 L L0009007QL $17.50 #.2 02-04 R L0009007QL $17.50 #.2 L L0009007QL $17.50 #.2 8 Retainer, Bulb R 55077046AA $13.20 L 55077046AA $13.20 9 Bulb, Lamp Park/Signal R L0003157 $2.95 #.2 L L0003157 $2.95 #.2 Side Marker 97-00 R L0000194 $1.10 #.2 L L0000194 $1.10 #.2 01-04 R L0000168 $1.20 #.2 L L0000168 $1.20 #.2 #R&R One Side Complete, Included in R&I/R&R Combination Lamp Assy Module, DRL Control Canada 97-98 N.A. .3 99-00 N.A. .3 01-04 N.A. .3 FOG LAMP Page 9 of 224

R&I Fog Lamp R #.3 L #.3 #Included in R&R Bumper Fascia or O/H Bumper Assy 1 Lamp, Fog 97-99 R 55076792 $118.00 #.3 L 55076793 $118.00 #.3 00 R 55077266AA $109.00 #.3 L 55077267AA $106.00 #.3 01-03 R 55077320AB $93.60 #.3 L 55077320AB $93.60 #.3 04 R 55077320AD $98.75 #.3 L 55077320AD $98.75 #.3 #Included in R&R Bumper Fascia or O/H Bumper Assy Bulb 97-00 R 5015448AA $24.50 #.2 L 5015448AA $24.50 #.2 01-04 R 154874AA $8.95 #.2 L 154874AA $8.95 #.2 #Included in R&I/R&R Fog Lamp Bracket, Fog Lamp 1997-00-Serviced w/Fog Lamp 2001-04 R 55077548AA $8.50 L 55077549AA $12.25 HOOD Use Procedure Explanations 4 and 28 with the following text. Page 10 of 224
