1987 - 1996 Dodge Dakota Parts LIST CATALOG

SPECIAL CAUTIONS CAB & CHASSIS Cab & Chassis vehicles are supplied incomplete to aftermarket specialty manufacturers, which may have special options not available on regular production (complete) vehicles. Extra care should be exercised when estimating these vehicles. It may be necessary to consult the OEM dealer or particular specialty manufacturer for specific information. AIR BAGS Refer to Procedure Explanation 29 for Supplemental Restraint/Air Bag Special Cautions. PAINT CODE LOCATION Paint code located on underside of hood. CLEAR COAT IDENTIFICATION All colors are clear coat. INFORMATION LABELS Belt Routing 53008745 $4.00 Emissions 87-92 5277163 $3.20 93-96 53031200 $2.75 Jack Storage 87-92 52058782 $12.70 93-96 52058782 $12.70 Light Bar Warning 55034034 $7.45 Unleaded Fuel Only 4206059 $5.10 Order by Application FRONT BUMPER Use Procedure Explanations 1 and 28 with the following text. 1987-1996 Dodge Dakota Page 1 of 134

Refinish Face Bar 2.1 R&I Bumper Assy .5 O/H Bumper Assy (Includes R&I) 1.2 Add to R&R or O/H Bumper Assy w/Impact Strip .2 w/Fog Lamps .4 NOTE: All Parts in this section are included in overhaul unless noted otherwise. 1 Face Bar Black 87-90 52006327 $224.00 1.4 91-96 4482848 $302.00 1.2 Chrome w/Strip Holes 87-90 4249726 $148.00 1.4 w/o Strip Holes 1987-90 4352136 $312.00 1.2 1991-96 Base Model 55034316 $345.00 1.2 Sport Model 4482850 $384.00 1.2 Painted (P) 87-90 52006327 $224.00 1.4 91-96 4482848 $302.00 1.2 Order by Application (P) Paint to Match Bolt, Bumper (6) Black 6033982 $17.45 Chrome 6031614 $7.00 2 Strip, Impact 87-90 4335162 $76.08 .3 3 Bracket, Bar 87-90 R 4334178 $38.20 IOH L 4334179 $48.54 IOH 91-96 R 55076690 $44.10 IOH L 55076691 $44.10 IOH 4 Brace, Outer 87-90 R 4334176 $29.24 .2 L 4334177 $19.00 .2 91-96 R 55076424 $42.35 .2 L 55076425 $27.95 .2 5 Dam, Air Base Model w/Fog Lamps 87-90 4482830 $197.20 #.7 91 5BE80KSD $285.00 #.7 92-96 5BE80LX9 $252.00 #.7 w/o Fog Lamps 87-90 4335157 $189.00 #.3 91 5BB36KSD $197.20 #.3 92-96 5BB36LX9 $204.00 #.3 Page 2 of 134

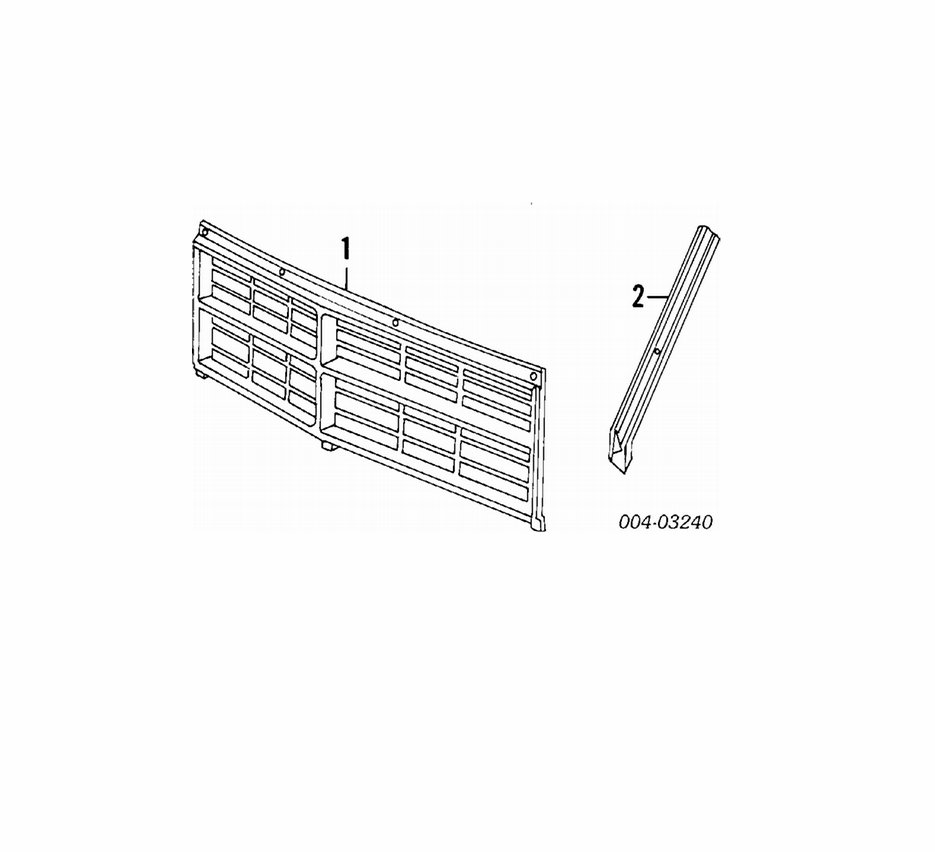

Shelby Model 4504468 $385.00 #.7 #w/Bumper Removed, Includes R&R Fog Lamps Retainer, Dam/Bumper (8) 5BB14LX9 $6.00 Retainer, Dam (4) 6501067 $4.45 6 Seal, Air Dam 87-90 55029329 $10.46 #.3 Deflector, Lower Air 55055538 $31.35 #.4 #Not Included in R&R or O/H Front Bumper Retainer, Deflector (4) 6501067 $4.45 GRILLE 1987-90 Refinish Grille 1.5 R&I Grille Assy .3 1 Grille Black 4482624 $123.00 .4 Chrome 87 4335141 $85.10 .4 88 4482390 $148.00 .4 89-90 4482545 $284.00 .4 Silver 4335140 $53.10 .4 2 Support, Center 55346037 $28.20 #.2 Nameplate "Dodge" 87-88 4352137 $23.90 #.4 89-90 4482543 $14.55 #.4 "Shelby" White 4504431 $26.25 #.4 Red 4504432 $28.00 #.4 #Included in R&R Grille Page 3 of 134

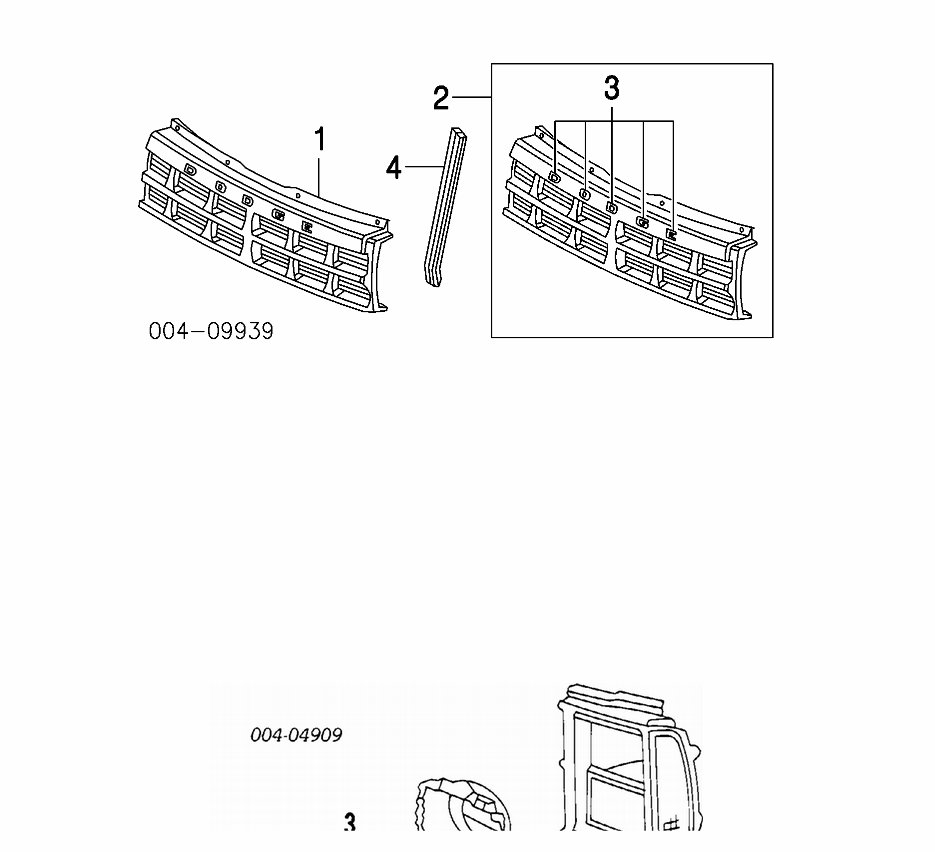

1991-96 R&I Grille Assy #.5 #Includes R&I Headlamp Bezels 1 Grille Black (a) 5BB76KX8 $194.00 #.5 Order by Application (a) Grille Emblem Painted On 2 Grille Assy Chrome 56003352 $219.00 #.5 #Includes R&I Headlamp Bezels 3 Nameplate Kit (Adhesive) "DODGE" w/Chrome Grille 4637501 $30.95 .6 Included w/Chrome Grille Assy 4 Support, Center 55346037 $28.20 #.2 #w/Grille Removed FRONT LAMPS COMBINATION LAMP COMBINATION LAMP 1987-90 Page 4 of 134

Aim Lamps .4 Refinish Bezel R .5 L .5 R&I Bezel R .2 L .2 NOTE: R&R Does Not include aim lamps. 1 Bezel Base Model Chrome 87-88 R 4352128 $75.85 .2 L 4352129 $77.35 .2 89 R 4482380 $97.95 .2 L 4482381 $108.63 .2 90 R 4522036 $92.95 .2 L 4522037 $117.00 .2 Paint to Match 87-88 R 4352126 $53.70 .2 L 4352127 $51.09 .2 89-90 R 4522040 $117.00 .2 L 4522041 $108.63 .2 Sport Model 89 R 4482628 $72.55 .2 L 4482629 $81.18 .2 90 R 55025374 $100.00 .2 L 55025375 $89.85 .2 Shelby Model R 55025374 $100.00 .2 L 55025375 $89.85 .2 Includes Side Marker Lamp 2 Retainer, Headlamp R 4270937 $9.20 #.3 L 4270937 $9.20 #.3 3 Sealed Beam R L00H6545 $18.20 #.3 L L00H6545 $18.20 #.3 #R&R One Side Complete, Includes R&I/R&R Bezel 4 Ring, Mounting R 3868926 $28.00 #.4 L 3868927 $21.85 #.4 #Includes R&R Sealed Beam 5 Housing, Park/Signal Amber R 4352132 $63.35 #.2 L 4352132 $63.35 #.2 Clear R 4482590 $63.35 #.2 Page 5 of 134

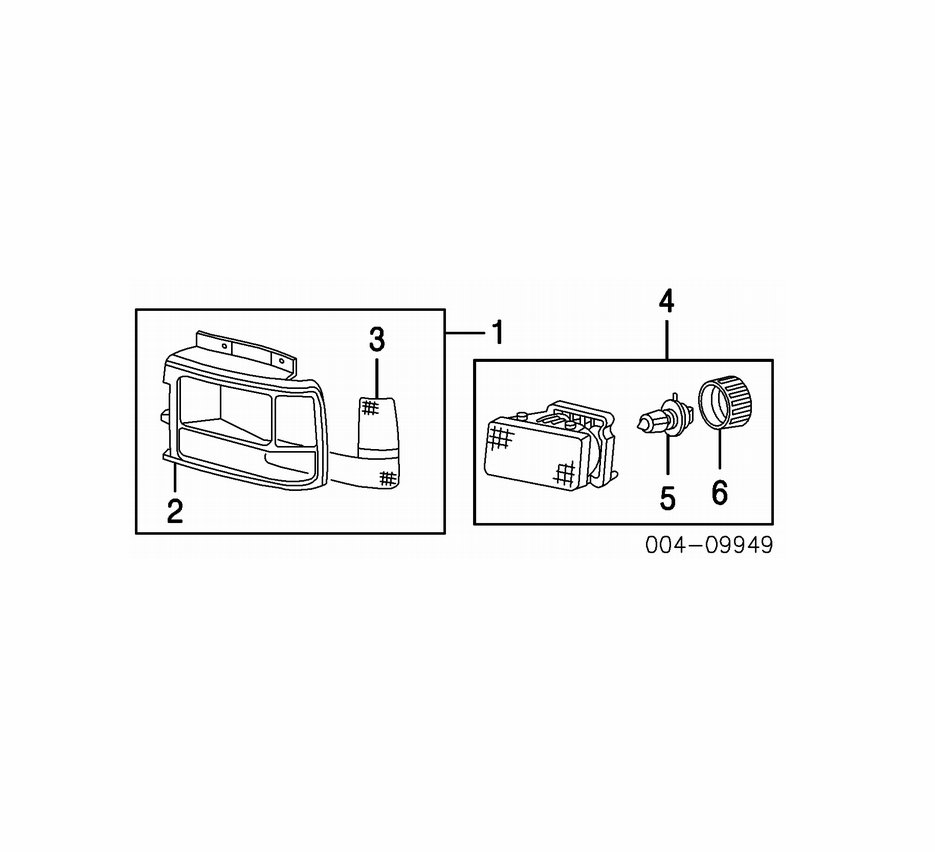

L 4482590 $63.35 #.2 #Included in R&I/R&R Bezel Socket, Park/Signal (2/Side) R 3843432 $27.50 L 3843432 $27.50 Bulb, Park R L0000168 $1.20 #.2 L L0000168 $1.20 #.2 Bulb, Signal R L0002057 $1.35 #.2 L L0002057 $1.35 #.2 #R&R One Side Complete, Included in R&I/R&R Bezel COMBINATION LAMP COMBINATION LAMP 1991-96 W/AERO PKG Aim Lamps .4 Refinish Lamp Bezel Assy R .5 L .5 R&I Lamp Bezel Assy R .2 L .2 NOTE: R&R Does Not include aim lamps. 1 Bezel Assy, Lamp Chrome R 56003350 $160.00 #.2 L 56003351 $157.00 #.2 Paint to Match-Serviced by Components 2 Bezel, Lamp Chrome R 56003362 $108.00 #.2 L 56003363 $130.00 #.2 Paint to Match R 83506612 $91.95 #.2 Page 6 of 134

L 83506613 $96.60 #.2 3 Lens, Park/Signal Chrome R 56004316 $99.88 #.2 L 56004317 $97.95 #.2 Paint to Match R 56004316 $99.88 #.2 L 56004317 $97.95 #.2 Included w/Lamp Bezel Assy #R&R One Side Complete 4 Headlamp Assy R 55054714 $190.00 #.3 L 55054715 $187.00 #.3 #Includes R&I/R&R Lamp Bezel Assy 5 Bulb, Headlamp R 154824 $12.95 .2 L 154824 $12.95 .2 6 Ring, Bulb Lock R 56003773 $14.75 L 56003773 $14.75 Insert, Lamp Adjust R 56003776 $3.70 L 56003776 $3.70 Screw, Adjusting (3) R 4451481 $2.75 L 4451481 $2.75 Seat, Lamp Mtg 91-93 R 5201334 $14.60 L 5201334 $14.60 94-96 R 3868926 $28.00 L 3868927 $21.85 Included w/Headlamp Assy Cable, Lamp Adjust R 56003796 $67.80 .3 L 56003796 $67.80 .3 Socket, Park/Signal (2/Side) R 3843432 $27.50 L 3843432 $27.50 Bulb, Park/Signal R L0002057 $1.35 #.2 L L0002057 $1.35 #.2 #Included in R&I/R&R Lamp Bezel Assy COMBINATION LAMP COMBINATION LAMP 1991-96 W/O AERO PKG Page 7 of 134

Aim Lamps .4 Refinish Lamp Bezel Assy R .5 L .5 R&I Lamp Bezel Assy R .2 L .2 NOTE: R&R Does Not include aim lamps. 1 Bezel Assy, Lamp Chrome R 55054514 $215.00 .2 L 55054515 $215.00 .2 Paint to Match R 55054710 $130.00 .2 L 55054711 $133.00 .2 2 Bezel, Lamp Chrome-Serviced w/Lamp Bezel Assy Paint to Match R 56003360 $107.44 #.2 L 56003361 $95.30 #.2 3 Lens, Park/Signal R 56004312 $103.00 #.2 L 56004313 $103.00 #.2 Included w/Lamp Bezel Assy #R&R One Side Complete 4 Retainer, Headlamp R 4270937 $9.20 #.3 L 4270937 $9.20 #.3 5 Sealed Beam R L00H6545 $18.20 #.3 L L00H6545 $18.20 #.3 #R&R One Side Complete, Includes R&I/R&R Lamp Bezel Assy 6 Ring, Mounting R 3868926 $28.00 #.4 L 3868927 $21.85 #.4 #Includes R&R Sealed Beam 7 Screw, Adjust (4/Side) R 55054655 $4.60 L 55054655 $4.60 Socket, Park/Signal (2/Side) R 3843432 $27.50 L 3843432 $27.50 Bulb, Park/Signal R L0002057 $1.35 #.2 L L0002057 $1.35 #.2 #Included in R&I/R&R Lamp Bezel Assy FOG LAMP FOG LAMP 1988-89 Page 8 of 134

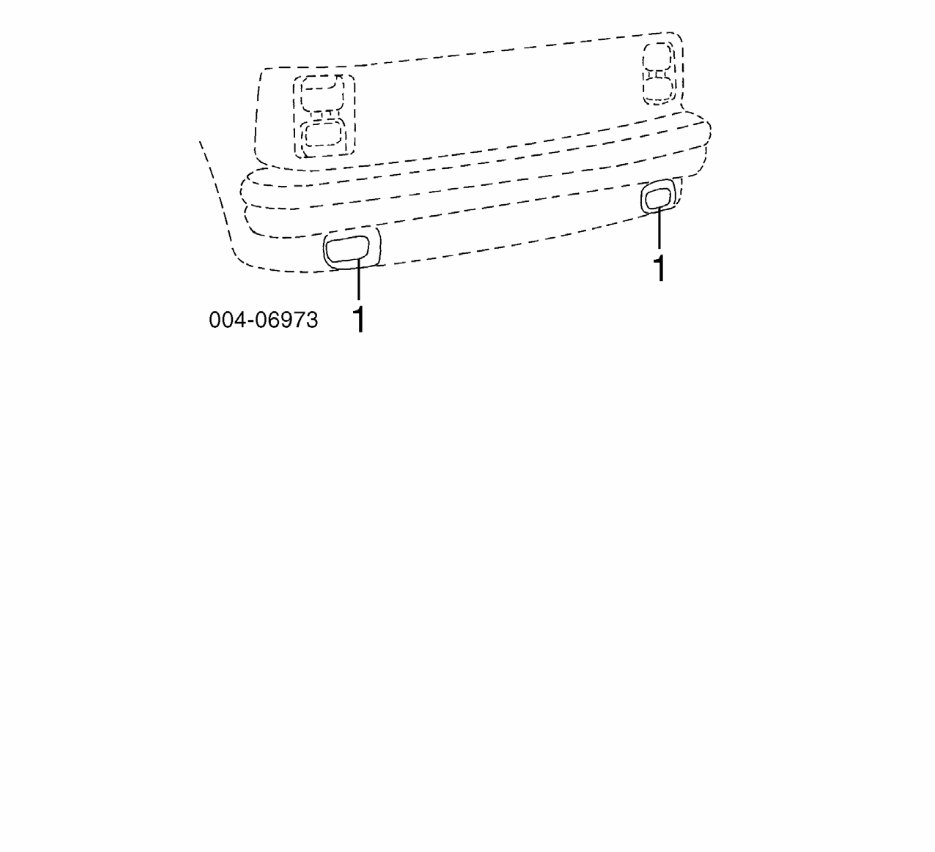

1 Lamp Assy, Fog R 4504803 $70.25 .3 L 4504803 $70.25 .3 Cover R 4482726 $10.75 L 4482726 $10.75 Bulb R L01255H3 $7.50 .2 L L01255H3 $7.50 .2 Included w/Fog Lamp Assy FOG LAMP FOG LAMP 1990 1 Lamp Assy, Fog R 4504803 $70.25 .3 L 4504803 $70.25 .3 Bracket, Mount (2) R 55024598 $21.75 .3 L 55024598 $21.75 .3 Bulb R L01255H3 $7.50 .2 L L01255H3 $7.50 .2 Included w/Fog Lamp Assy Cover "Dakota" R 4482726 $10.75 L 4482726 $10.75 "Mopar" R 4443266 $7.20 L 4443266 $7.20 FOG LAMP FOG LAMP 1991-96 1 Lamp Assy, Fog R 55055140 $122.00 .3 L 55055140 $122.00 .3 Bracket R 56003863 $10.95 Page 9 of 134

L 56003863 $10.95 Lens R 56004699 $68.45 .2 L 56004699 $68.45 .2 Housing R 56004698 $25.75 #.4 L 56004698 $25.75 #.4 #Includes R&R Cover & Lens Bulb R L01255H3 $7.50 .2 L L01255H3 $7.50 .2 Grommet R 56004702 $3.45 L 56004702 $3.45 Seal R 56004701 $4.50 L 56004701 $4.50 Included w/Fog Lamp Assy Cover R 56003864 $28.20 L 56003864 $28.20 SPORT BAR LAMP NOTE: See Sport Bar & Lamp Section at the end of the Pickup Bed section. COOLING Use Procedure Explanations 5 and 28 with the following text. Refinish Radiator Support 1.5 Add to R&R Radiator Support To R&I/R&R Base Model Mechanical Components #.3 #Includes R&I/R&R Air Bag Sensors Add to R&R Radiator Support w/ A/C #.7 Page 10 of 134
