SPECIAL CAUTIONS
AIR BAGS
Refer to Procedure Explanation 29 for Supplemental Restraint/Air
Bag Special Cautions.
SUSPENSION
Manufacturer advises that some new fasteners must be used
whenever old fasteners are loosened or removed.
WELDING
Manufacturer advises before using electric welder, disconnect
negative (-) battery cable to avoid damage to the vehicles
electrical components.
Manufacturer Advises that Laser Welding is Used on Some
Welded Panels in the Manufacturing Process of this Vehicle.
Please see Manufacturer's Body Service Manual for Specific
Repair Instructions.
PAINT CODE
LOCATION
Paint code located on drivers side door.
CLEAR COAT
IDENTIFICATION
All colors are clear coat. Ivory Pearl (Codes JWD & PWD) and
Phantom Black Pearl (Codes LXT & PXT) are three stage.

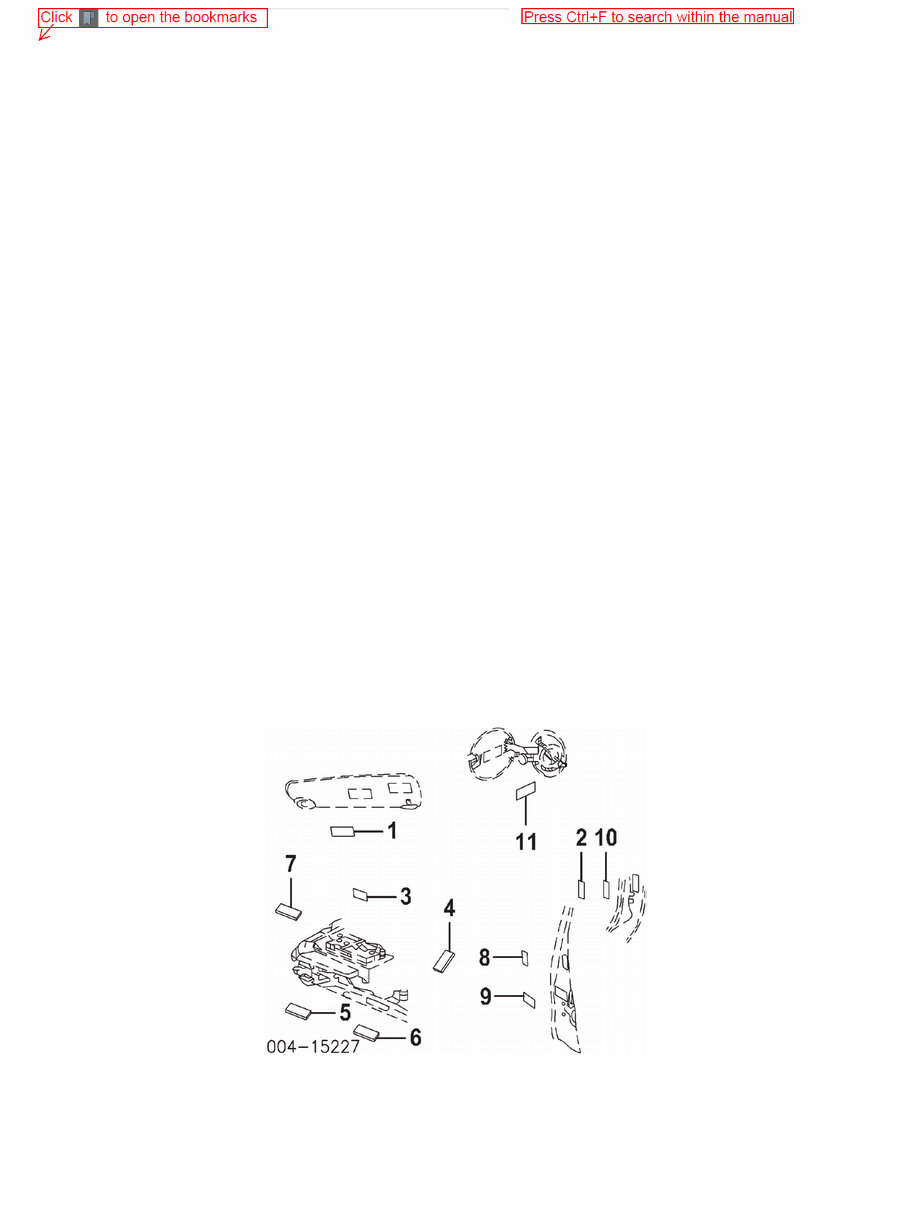

INFORMATION LABELS
Label, Air Bag Warning
1 On Visor R 5170020AA $4.50
L 5170020AA $4.50
2 On Pillar 11-12 R 68091520AA $1.95
L 68091520AA $1.95
13-14 R 4680610AA $5.00
2011-2014 Dodge Charger
Page 1 of 127
L 4680610AA $5.00
3 Label, Emission
3.6L Eng
w/Flex Fuel 47480084AA $4.85
w/o Flex Fuel 47480083AA $5.00
5.7L Eng 47480085AA $4.85
6.4L Eng 47480087AA
Order by Application
4 Label, Battery 4606799AA $5.60
5 Label, Belt Routing 4596521AE $5.75
6 Label, Brake Caution 52128784AA $14.35
7 Label, A/C System 55037967AA $10.10
Order by Application
8 Label, Mercury Disposal 5020527AC $2.45
9 Label, Tire Pressure 5056245AB $6.70
10 Label, Child Protection 4680556AB $2.30
11 Label, Fuel Door
w/Flex Fuel 4722003AA $1.75
w/o Flex Fuel 5152042AA $3.60
Order by Application

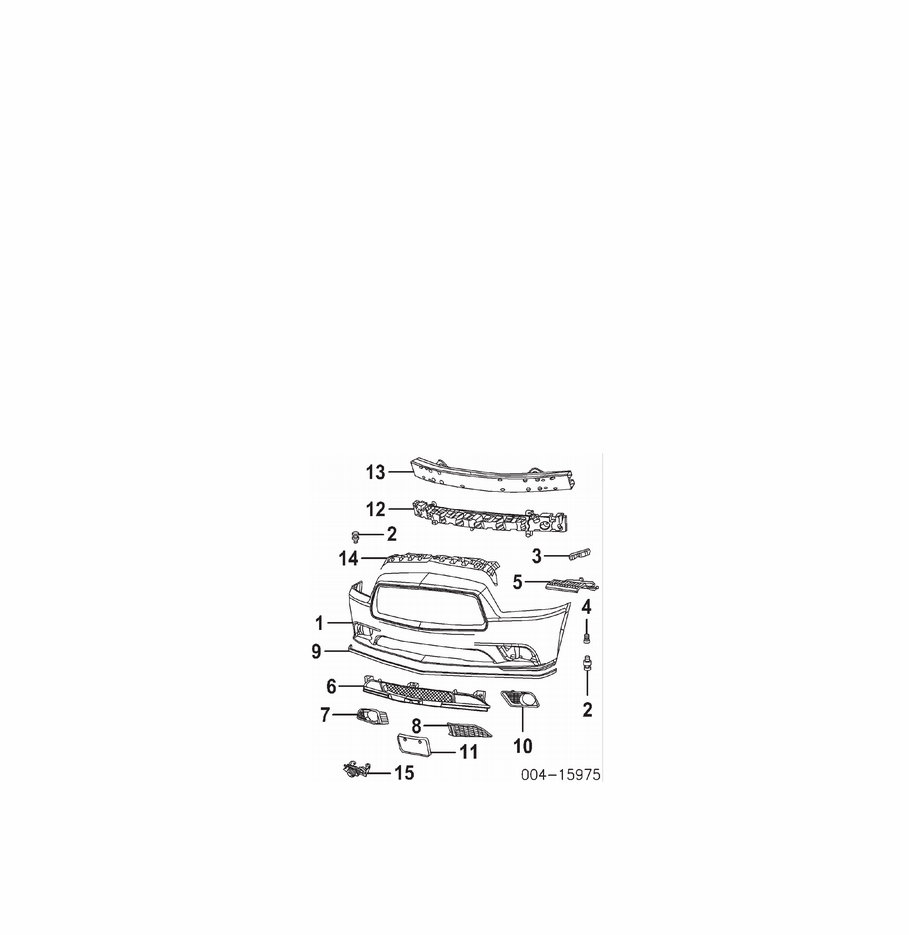

FRONT BUMPER
Use Procedure Explanations 1 and 28
with the following text.
R/T, SE, SXT MODEL
Refinish Bumper Cover 2.5
Refinish Bumper Reinforcement 1.0
R&I Bumper Cover #1.3
O/H Bumper Cover (Includes R&I) #2.6
#Includes R&I/R&R Cover Panels & Front Under Cover
Add to R&R or O/H Bumper Cover
w/Fog Lamps .4
Page 2 of 127
w/Front Spoiler .3
Add to R&R Reinforcement Bar
w/Adaptive Cruise Control Sensor #.3
#Does Not Include Aim and Calibrate Cruise Control System
NOTE: All Parts in this section are included in O/H unless noted
otherwise.
NOTE: Spot welds retaining the Impact Bar to the body rails are
not required for installation. Install new bolts.
1 Cover, Bumper (P)
w/Adaptive Cruise Control 68092597AA $329.00 #2.6
w/o Adaptive Cruise Control 68092596AA $320.00 #2.6
(P) Paint to Match
#Includes R&I/R&R Cover Panels & Front Under Cover
2 Pin, Push (a)
No. 1 6504521 $4.70
No. 2 6509590AA $1.10
As Required
(a) Order by Application
3 Bracket, Side R 57010286AC $4.75 #.1
L 57010286AC $4.75 #.1
#w/Bumper Cover Removed, Not Included in O/H, Included in
R&R Fender
4 Screw, Attaching (a) 6509481AA $0.95
As Required
(a) Order by Application
5 Bracket, Support-See Front Lamps Section
6 Grille, Bumper
w/Adaptive Cruise Control 68092606AA $85.10 #.3
w/o Adaptive Cruise Control 68092605AA $88.45 #.3
#w/Bumper Cover Removed
7 Bezel, Grille
w/Adaptive Cruise Control R 5182372AA $22.20 #.1
L 68092614AA $22.10 #.1
8 Cover, Front Hole R 68092570AA $22.10 #.1
L 68092571AA $22.10 #.1
#Included in R&R Bumper Grille
9 Dam, Air 5182282AA $84.00
10 Bezel, Fog Lamp-See Front Lamps Section
11 Plate Kit, License 68069345AA $18.95 .2
12 Absorber, Impact 57010464AA $118.00

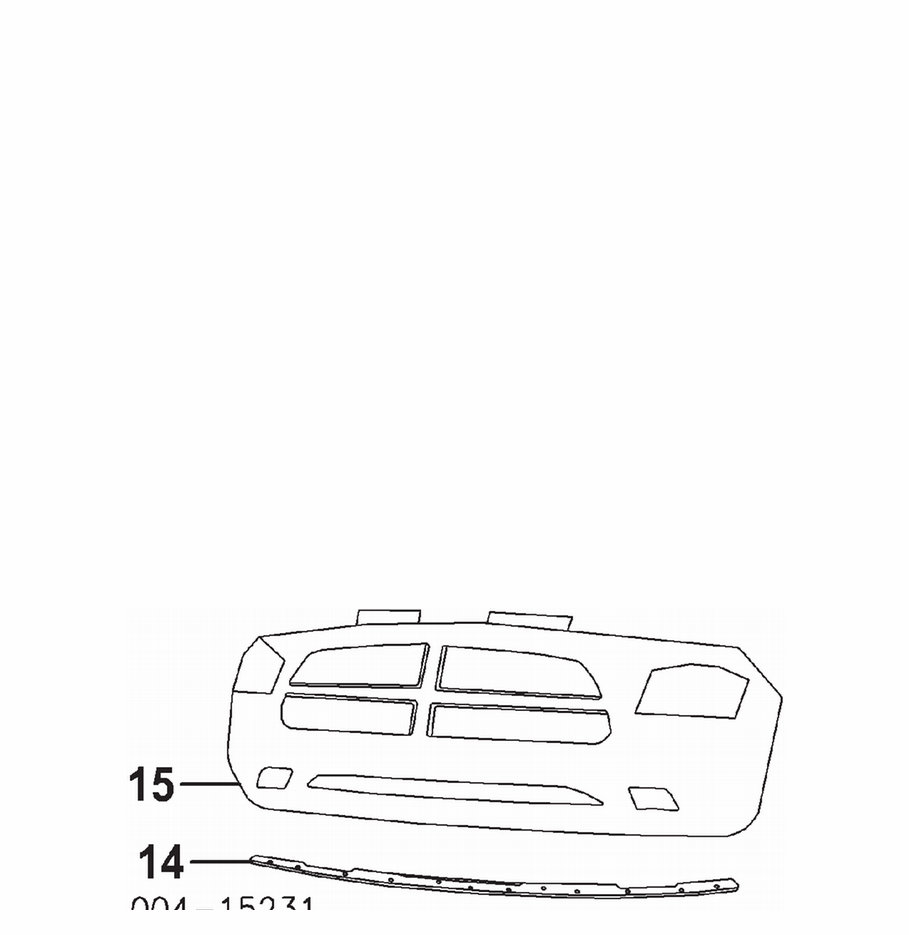

13 Reinforcement, Bumper (UHSS) 11-12 68100209AE $252.00 #.8
13-14 68100209AE $252.00 #.8
#w/Bumper Cover Removed, Not Included in O/H
14 Shield, Sight 68092604AA $111.00 .2
15 Sensor, Adaptive Cruise Control-See Front Inner
Structure Section
Page 3 of 127

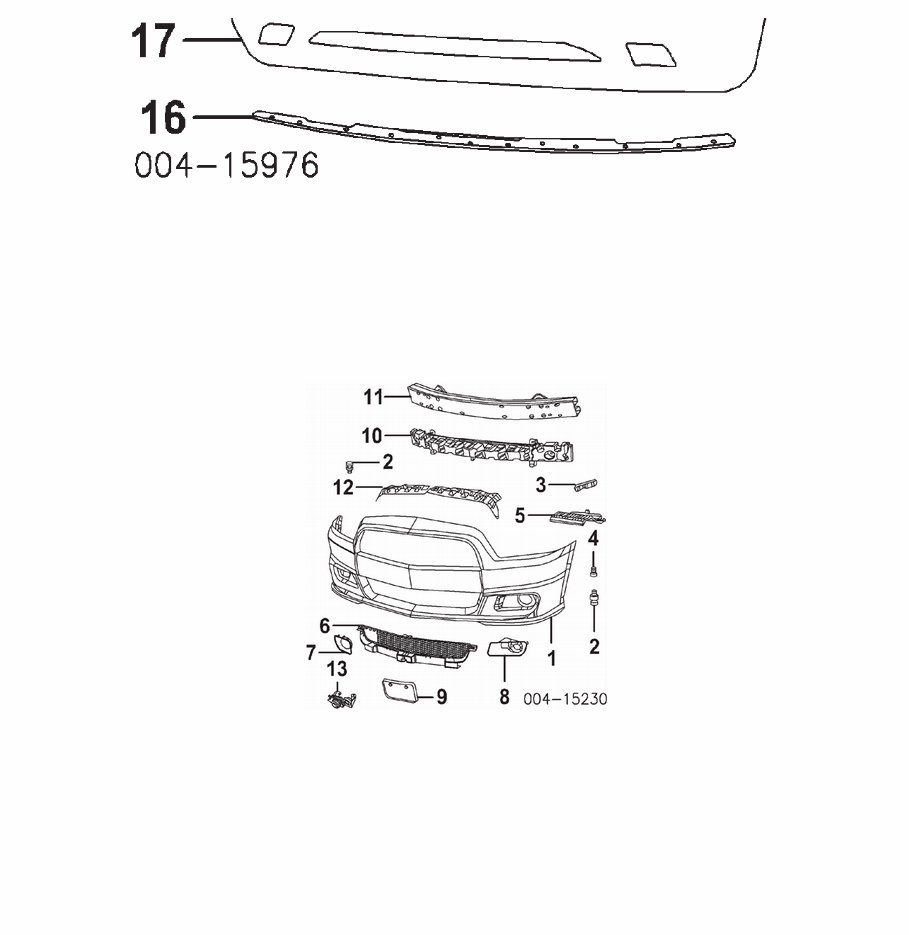

16 Spoiler, Front (b)
Dealer Installed 82212340 $151.00 #.3
17 Cover, Front Bra (b)
Dealer Installed 82212302 $181.00 #
(b) Contact Dealer for Price & Availability
#Not Included in O/H
SRT-8, SRT-8 SUPER BEE
MODEL
SRT-8, SRT-8 SUPER BEE
MODEL 2012-14
Refinish Bumper Cover 2.5
Add for 2 Tone 1.0
Refinish Bumper Reinforcement 1.0
R&I Bumper Cover #1.3
O/H Bumper Cover (Includes R&I) #2.6
#Includes R&I/R&R Cover Panels & Front Under Cover
Add to R&R or O/H Bumper Cover
w/Fog Lamps .4
w/Front Spoiler .3
Add to R&R Reinforcement Bar
w/Adaptive Cruise Control Sensor #.3
#Does Not Include Aim and Calibrate Cruise Control System
Page 4 of 127
NOTE: Spot welds retaining the Impact Bar to the body rails are
not required for installation. Install new bolts.
NOTE: All Parts in this section are included in O/H unless noted
otherwise.
1 Cover, Bumper (P) 68071974AB $522.00 #2.6
(P) Paint to Match
#Includes R&I/R&R Cover Panels & Front Under Cover
2 Pin, Push (a)
No. 1 6504521 $4.70
No. 2 6509590AA $1.10
As Required
(a) Order by Application
3 Bracket, Side R 57010286AC $4.75 #.1
L 57010286AC $4.75 #.1
#w/Bumper Cover Removed, Not Included in O/H, Included in
R&R Fender
4 Screw, Attaching (a) 6509481AA $0.95
As Required
(a) Order by Application
5 Bracket, Support-See Front Lamps Section
6 Grille, Bumper
w/Adaptive Cruise Control 68071982AA $126.00 #.3
w/o Adaptive Cruise Control 68071981AA $64.95 #.3
#w/Bumper Cover Removed
7 Bezel, Grille
w/Adaptive Cruise Control R 68072152AA $20.20 #.1
#Included in R&R Bumper Grille
8 Bezel, Fog Lamp-See Front Lamps Section
9 Plate Kit, License 68069345AA $18.95 .2
10 Absorber, Impact 57010464AA $118.00
Cover, Absorber 68144742AA $36.35
11 Reinforcement, Bumper (UHSS) 12 68100209AE $252.00 #.8
13-14 68100209AE $252.00 #.8
#w/Bumper Cover Removed, Not Included in O/H
12 Shield, Sight 68092604AA $111.00 .2
13 Sensor, Adaptive Cruise Control-See Front Inner
Structure Section
Page 5 of 127
14 Spoiler, Front (b)
Dealer Installed 82212340 $151.00 #.3
15 Cover, Front Bra (b)
Dealer Installed 82212302 $181.00 #
(b) Contact Dealer for Price & Availability
#Not Included in O/H

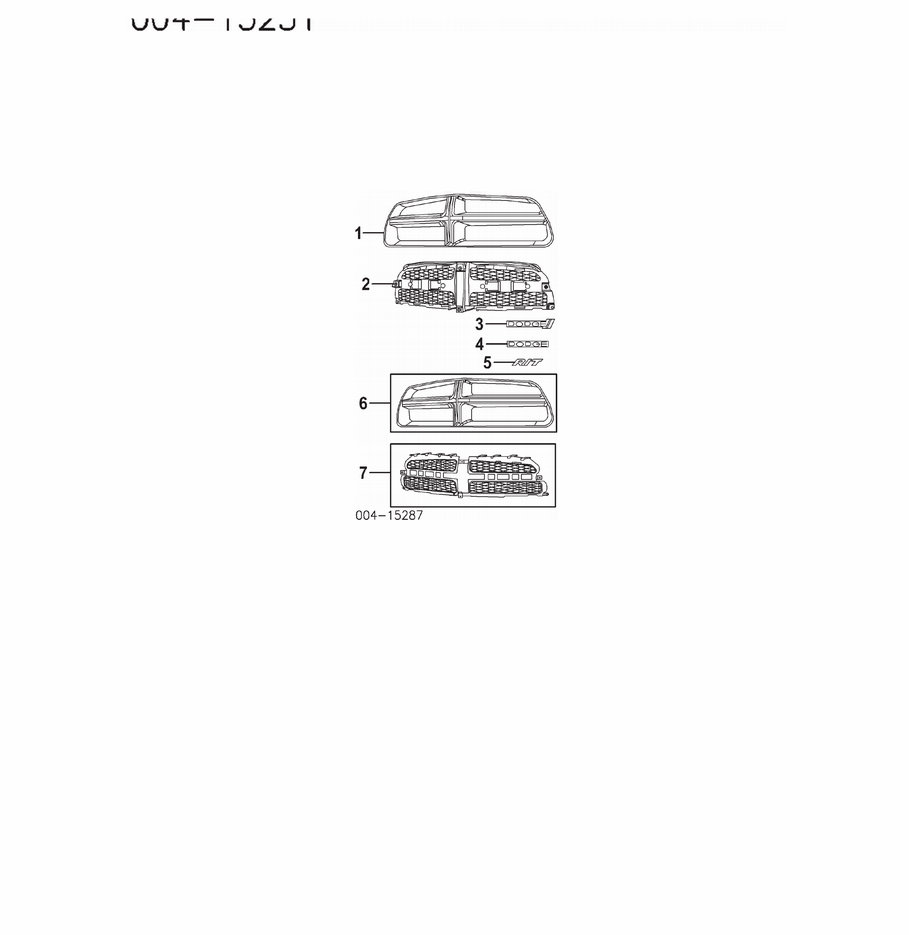

GRILLE
R/T, SE, SXT MODEL
Refinish Radiator Grille .6
R&I Radiator Grille Assy #.2
#w/Bumper Cover Removed, Included in R&R or O/H Bumper
Cover
1 Grille, Radiator
Black
w/Chrome 68092602AA $255.00 #.4
w/o Chrome 68104033AA $322.00 #.4
Paint to Match 68142922AA $322.00 #.4
2 Insert, Grille 68092613AA $94.60 #.4
#R&R Complete, w/Bumper Cover Removed
Nameplate
"DODGE"
3 w/Stripes 12-14 68146395AA $42.20 #.2
4 w/o Stripes 68092603AA $41.60 #.2
5 "R/T" 68104034AA $55.45 #.2
#Included in R&R Radiator Grille
6 Grille Kit
Dealer Installed
Chrome 82212422 $239.00 #.4
Paint to Match 82212421 $143.00 #.4
7 Insert Kit, Grille
Dealer Installed 82212376AB $511.00 #.4
Page 6 of 127
Contact Dealer for Price & Availability
#R&R Complete, w/Bumper Cover Removed

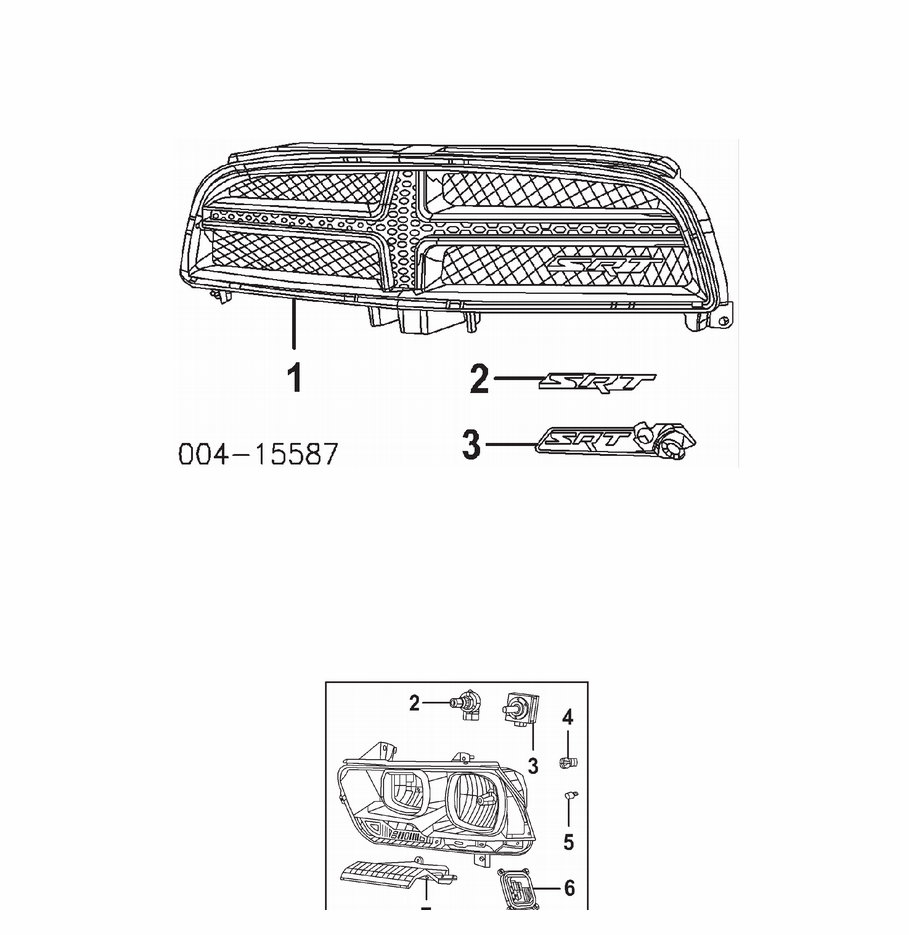

SRT-8, SRT-8 SUPER BEE
MODEL
SRT-8, SRT-8 SUPER BEE
MODEL 2012-14
R&I Radiator Grille #.2
#w/Bumper Cover Removed, Included in R&R or O/H Bumper
Cover
1 Grille, Radiator 1SF03DX8AA $520.00 #.4
#w/Bumper Cover Removed, Included in R&R or O/H Bumper
Cover
Nameplate
2 "SRT-8" 5030355AB $44.50 #.2
3 "SRT-8 Super Bee" 13-14 68156147AA $52.10 #.2
#Included in R&R Radiator Grille
FRONT LAMPS
COMBINATION LAMP
Page 7 of 127
Aim Lamps .4
R&I Combination Lamp R #.3
L #.3
#w/Bumper Cover Removed
NOTE: R&R Does Not include aim lamps.
1 Lamp Assy, Combination
Halogen R 57010410AE $252.00 #.4
L 57010411AE $252.00 #.4
HID 11 R 57010412AB $937.00 #.6
L 57010413AD $937.00 #.6
12-14 R 57010412AD $937.00 #.6
L 57010413AD $937.00 #.6
#w/Bumper Cover Removed
Bulb, Headlamp
2 Halogen 11 R L0000H11 $19.70 #.2
L L0000H11 $19.70 #.2
12-14 R L0009005 $18.60 #.2
L L0009005 $18.60 #.2
3 HID R L0000D3S $289.00 #.2
L L0000D3S $289.00 #.2
4 Bulb, Signal Lamp R L00003157A $3.45 #.2
L L00003157A $3.45 #.2
5 Bulb, Side Marker R L0000168 $2.70 #.2
L L0000168 $2.70 #.2
#R&R One Side Complete, Included in R&I/R&R Combination
Lamp
6 Ballast, HID
HID H/Lamps R 68138776AA $177.00 #.2
L 68138776AA $177.00 #.2
#w/Combination Lamp Removed, Included in R&R Combination
Lamp
7 Bracket, Support R 68138778AA $60.70 #.2
L 68138779AA $60.70 #.2
Included w/Combination Lamp Assy
#w/Bumper Cover Removed

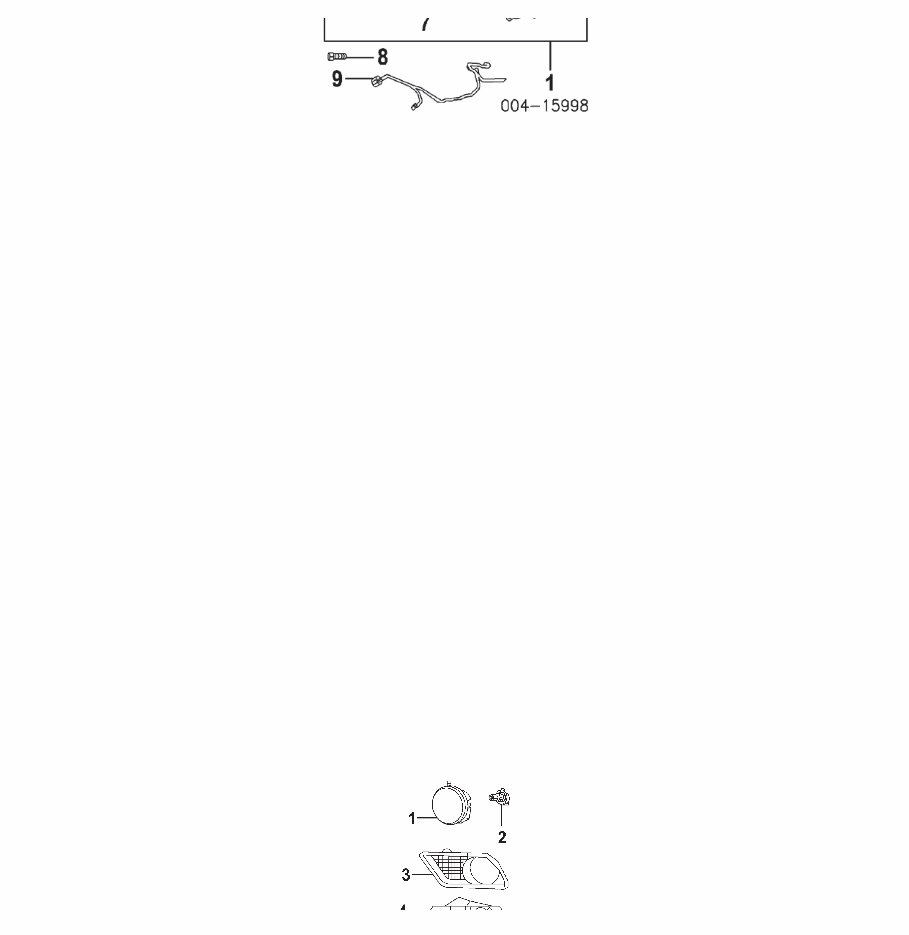

8 Screw, Mounting (a) R 6509758AA $1.35
L 6509758AA $1.35
(a) As Required
9 Harness, Lamp-See Front Inner Structure Section
FOG LAMP
Page 8 of 127
Aim Fog Lamps .4
R&I Fog Lamp R #.8
L #.8
R&R Fog Lamp R #.8
L #.8
#Includes R&R Front Under Cover, Included in R&R or O/H
Bumper Cover
1 Lamp, Fog R 5182026AA $43.00 #.8
L 5182026AA $43.00 #.8
#Includes R&R Front Under Cover, Included in R&R or O/H
Bumper Cover
2 Bulb, Fog Lamp R L000PSX24W $27.25 #.6
L L000PSX24W $27.25 #.6
#Included in R&I/R&R Fog Lamp, Includes R&R Front Under
Cover
Bezel, Fog Lamp
3 R/T, SE, SXT Model R 68092572AA $21.20 #.2
L 68092573AA $22.10 #.2
4 SRT-8, SRT-8 Super Bee Model 12-14 R 68072020AA $67.75 #.2
L 68072021AA $67.75 #.2
#Included in R&R or O/H Bumper Cover
5 Screw, Mounting R 6505887AA $1.75
L 6505887AA $1.75
6 Nut, Attaching R 6505468AA $5.50
L 6505468AA $5.50
As Required
7 Lamp Kit, Fog (a) (b)
Dealer Installed 82212323 $145.00 #
(b) Includes Right & Left
(a) Contact Dealer for Price & Availability
#See Headnotes for Labor Time

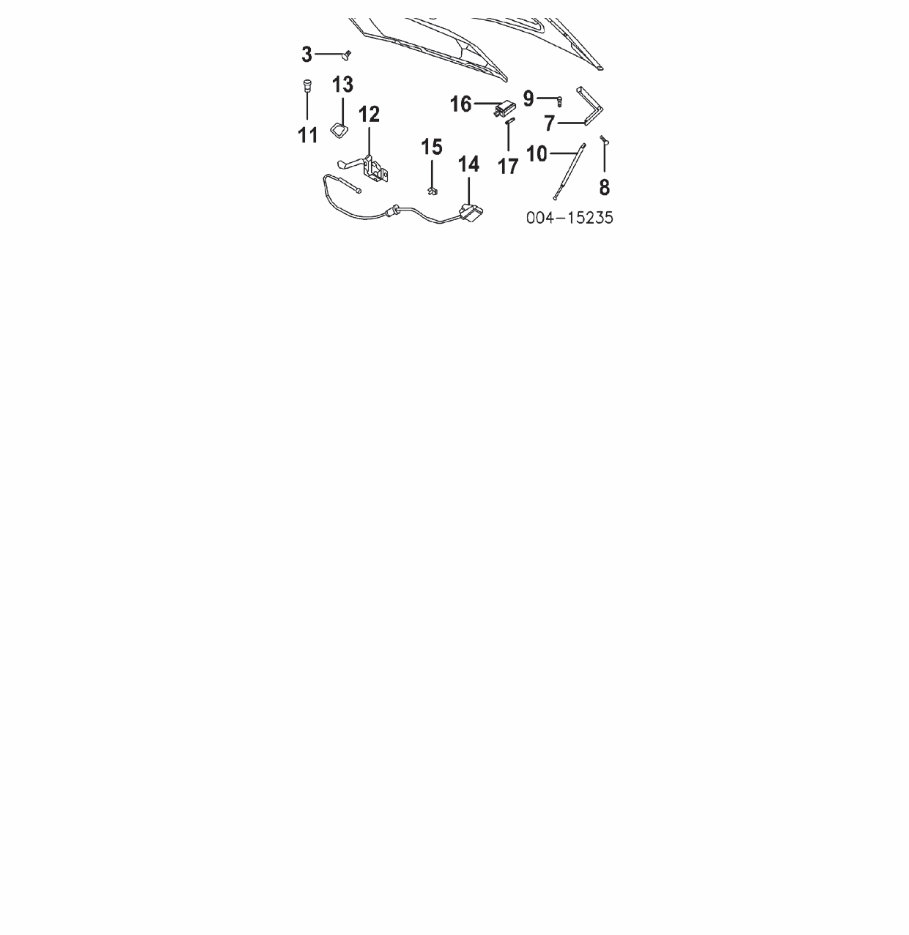

HOOD
Use Procedure Explanations 4 and 28
with the following text.
Page 9 of 127
Refinish Hood Outside 2.8
Add for Underside 1.4
Refinish Hood Hinge R .5
L .5
R&I Hood Assy .6
R&I Washer Nozzle R #.2
L #.2
#Included in R&R Hood
1 Hood (Alum)
2011 68089361AA $530.00 2.0
2012
R/T, SE, SXT Model 68089361AA $530.00 2.2
SRT-8 Model 68142359AE $1,015.00 2.2
2013-14
R/T, SE, SXT Model 68089361AA $530.00 2.2
SRT-8, SRT-8 Super Bee Model 55399340AB 2.2
2 Insulator, Hood
R/T, SE, SXT Model 55315127AA $54.35 .3
SRT-8, SRT-8 Super Bee Model 12-14 55399345AA $56.20 .3
3 Retainer, Insulator 4878883AA $6.35
As Required
4 Weatherstrip, Front 68040220AB $29.50 .2
5 Seal, Outer R 55000950AB $7.95
L 55000951AB $7.95
6 Bezel, Hood
SRT-8, SRT-8 Super Bee Model 12-14 55399341AC $47.50 #.2
#Included in R&R Hood
7 Hinge, Hood R 55113550AF $58.25 #.3
L 55113551AF $59.00 #.3
#w/Hood Removed
8 Screw, Hinge R 6509393AA $2.05
L 6509393AA $2.05
9 Screw, Retainer R 6505622AA $2.35
L 6505622AA $2.35
As Required
10 Prop, Hood R 55113776AA $26.50 #.2
L 55113777AA $16.60 #.2
#w/Hinge Removed Deduct .1
11 Bumper, Hood
Type 1 R 5054227AA $4.25
Page 10 of 127
