SPECIAL CAUTIONS
AIR BAGS
Refer to Procedure Explanation 29 for Supplemental Restraint/Air
Bag Special Cautions.
SUSPENSION
Manufacturer advises that some new fasteners must be used
whenever old fasteners are loosened or removed.
WELDING
Manufacturer advises before using electric welder, disconnect
negative (-) battery cable to avoid damage to the vehicles
electrical components.
PAINT CODE
LOCATION
Paint code located on left front door edge.
CLEAR COAT
IDENTIFICATION
All colors are clear coat.
INFORMATION LABELS
Label, Anti-Theft 5288120 $2.70
Label, Air Bag Warning R 5108000AA $1.80
L 5108000AA $1.80
Label, Emission 08 5038342AA $1.30
09-10 4726352AA $1.10
Order by Application
Label, Battery 4606799AA $5.10
Label, Tire Pressure 5056245AB $6.70
Label, Fuel Door 5152042AA $3.10
Label, Seat Belt 4680556AB $1.75
Label, Mercury Disposal 5020527AB $1.95
Label, Belt Routing 4596521AC $5.45
Order by Application
FRONT BUMPER
Use Procedure Explanations 1 and 28
with the following text.
2008-2010 Dodge Challenger
Page 1 of 99
Refinish Bumper Cover 2.7
Refinish Bumper Reinforcement 1.0
R&I Bumper Cover #2.0
#Includes R&R Fender Splash Shields
O/H Bumper Cover (Includes R&I) #3.4
#Includes R&I/R&R Grille & Fender Splash Shields
Add to R&R or O/H Bumper Cover
w/Fog Lamps .4
NOTE: All Parts in this section are included in O/H unless noted
otherwise.

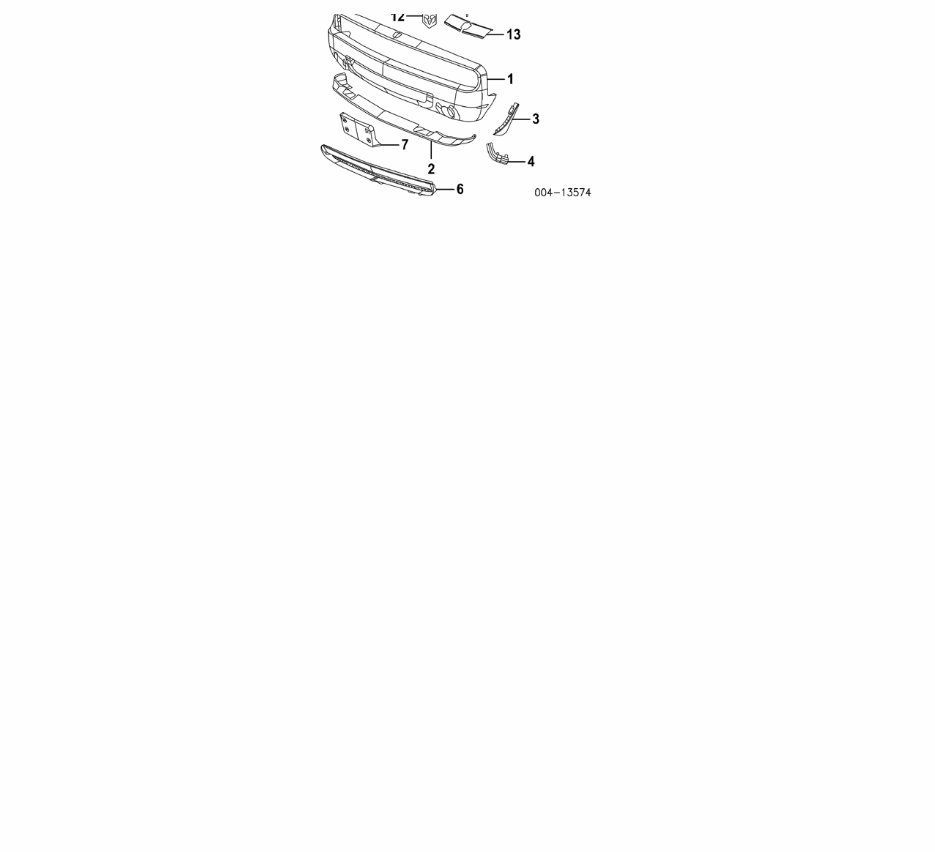

1 Cover, Bumper (P) 68043387AA $687.00 #3.4
(P) Paint to Match
#Includes R&I/R&R Grille & Fender Splash Shields
2 Panel, Lower Cover
2008 68043390AA $77.95 .2
2009-10
R/T, SE Model 68051388AA $54.75 .2
SRT-8 Model 68043390AA $77.95 .2
3 Extension, Frt Cover R 68043398AA $15.60 #.2
L 68043399AA $15.60 #.2
#w/Bumper Cover Removed, Not Included in O/H
4 Bracket, Cover R 68024342AB $14.25
L 68024343AB $14.25
5 Pin, Push (6) 5116530AA $3.10
Duct, Air
SRT-8 Model R 68051390AA $56.95
L 68051391AA $56.95
6 Grille, Lwr Bumper 68043389AA $27.10 .2
Panel, Closeout R 68051396AA $13.50
L 68051397AA $13.50
7 Bracket, License 68027815AA $10.00 .2
Sensor, Ambient 56042395 $32.30 #.3

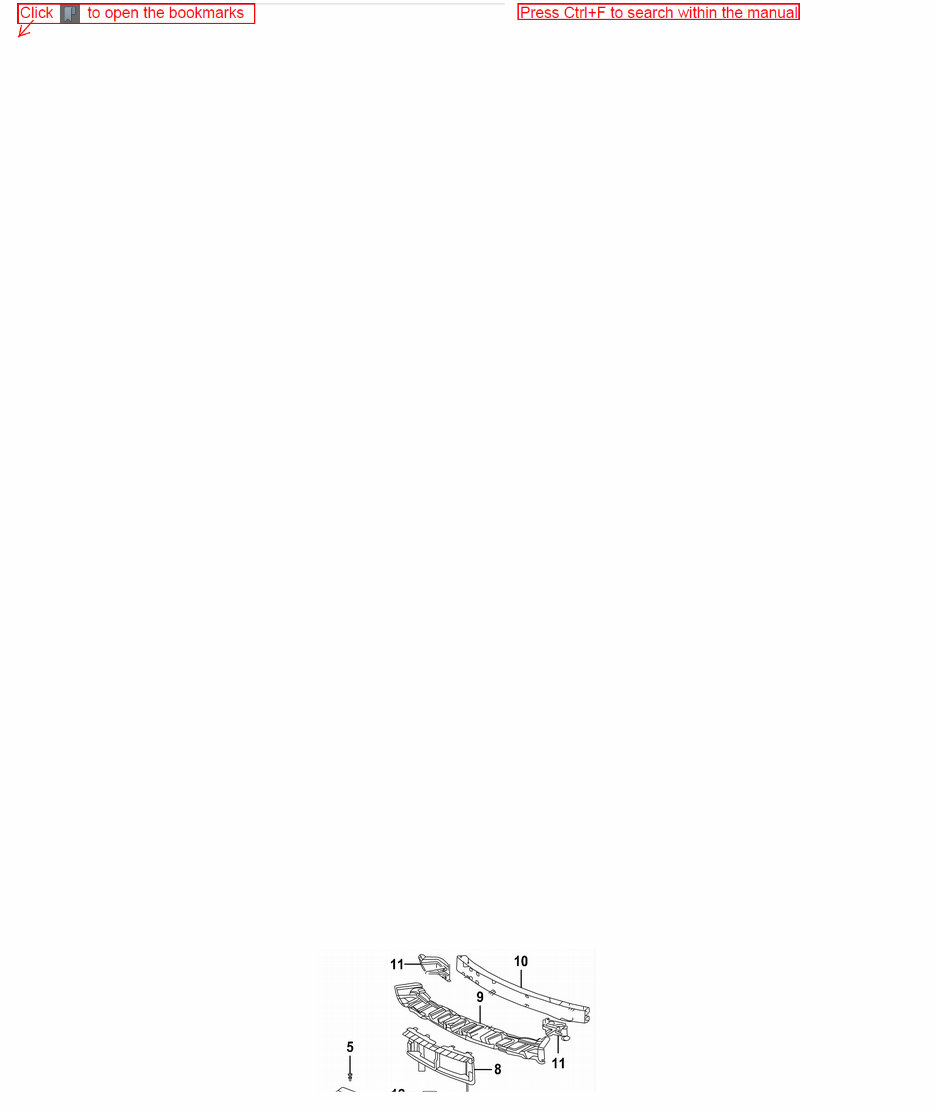

8 Support, Bumper Cover 68043965AA $111.00 #.2
#w/Bumper Cover Removed, Not Included in O/H
9 Absorber, Energy 5028810AB $279.00 #.2
#w/Bumper Cover Removed, Included in R&R Reinforcement,
Not Included in O/H
10 Reinf, Bumper (HSS) 4805726AC $141.00 #.7
Page 2 of 99
#w/Bumper Cover Removed, Not Included in O/H
11 Bracket, Extension R 68032706AA $39.85 #.1
L 68032707AA $32.50 #.1
#w/Absorber Removed, Included in R&R Reinforcement, Not
Included in O/H
12 Emblem (Adhesive) 5155674AA $40.70 .2
13 Decal, Front Bumper-See Stripe Tape Section

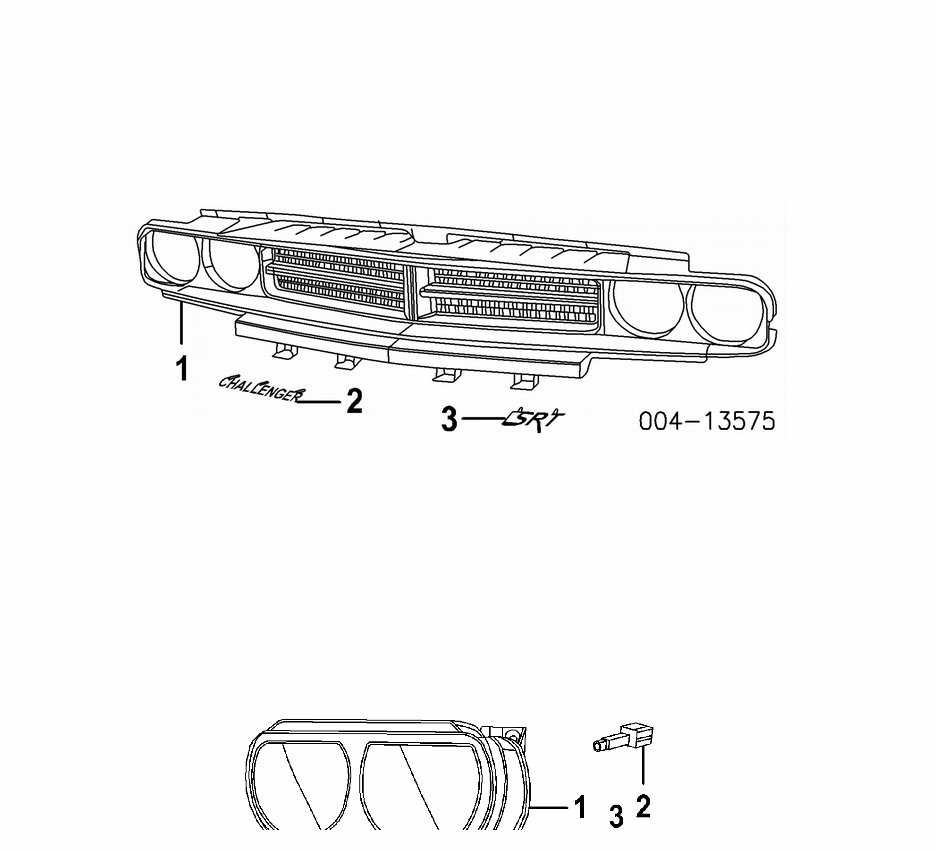

GRILLE
R&I Grille #.3
#w/Bumper Cover Removed, Included in R&R or O/H Bumper
Cover
1 Grille 68043388AA $664.00 #.3
#w/Bumper Cover Removed, Included in R&R or O/H Bumper
Cover
Clip, Mounting (3/Side) R 68019469AA $1.35
L 68019469AA $1.35
Emblem
2 "Challenger" 68047939AA $51.70 .2
3 "SRT" 5030355AB $46.75 .2
FRONT LAMPS
COMBINATION LAMP
Page 3 of 99
Aim Lamps .4
R&I Combination Lamp Assy R #.3
L #.3
#w/Bumper Cover Removed
NOTE: R&R Does Not include aim lamps.
1 Lamp, Combination
Halogen R 5028776AA $227.00 #.5
L 5028777AA $227.00 #.5
HID R 5028778AA $745.00 #.3
L 5028779AA $745.00 #.3
#w/Bumper Cover Removed
2 Bulb, Headlamp
Halogen R L0000H13 $22.20 #.2
L L0000H13 $22.20 #.2
HID R 4865941AC $189.00 #.2
L 4865941AC $189.00 #.2
3 Bulb, Signal Lamp R L004157NAK $4.00 #.2
L L004157NAK $4.00 #.2
#R&R One Side Complete, Included in R&I/R&R Combination
Lamp Assy

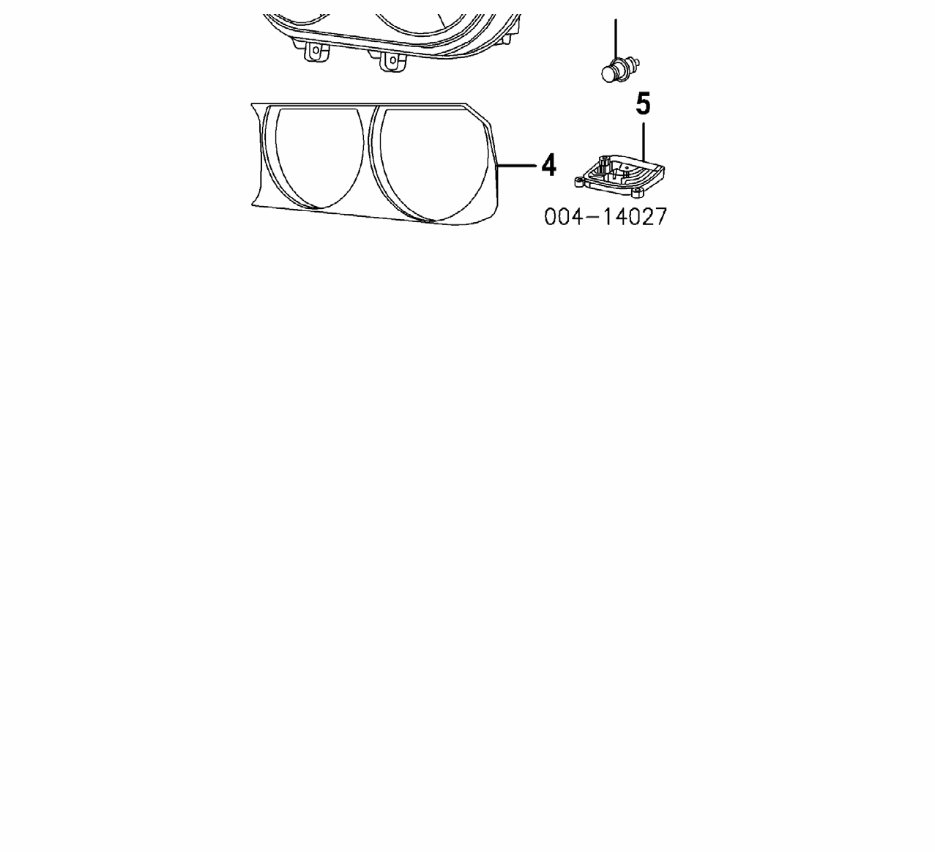

4 Bezel, Combination Lamp R 68051526AA $33.20 #.2
L 68051527AA $33.20 #.2
5 Ballast, HID R 68033739AA $141.00 #.2
L 68033739AA $141.00 #.2
#w/Combination Lamp Assy Removed, Included in R&R
Combination Lamp Assy
Harness, Lamp
SE, R/T Model 68051384AA $65.00
SRT-8 Model 68043391AA $54.60
SIDE MARKER LAMP
Page 4 of 99
R&I Side Marker Lamp R #.2
L #.2
#Included in R&R or O/H Bumper Cover

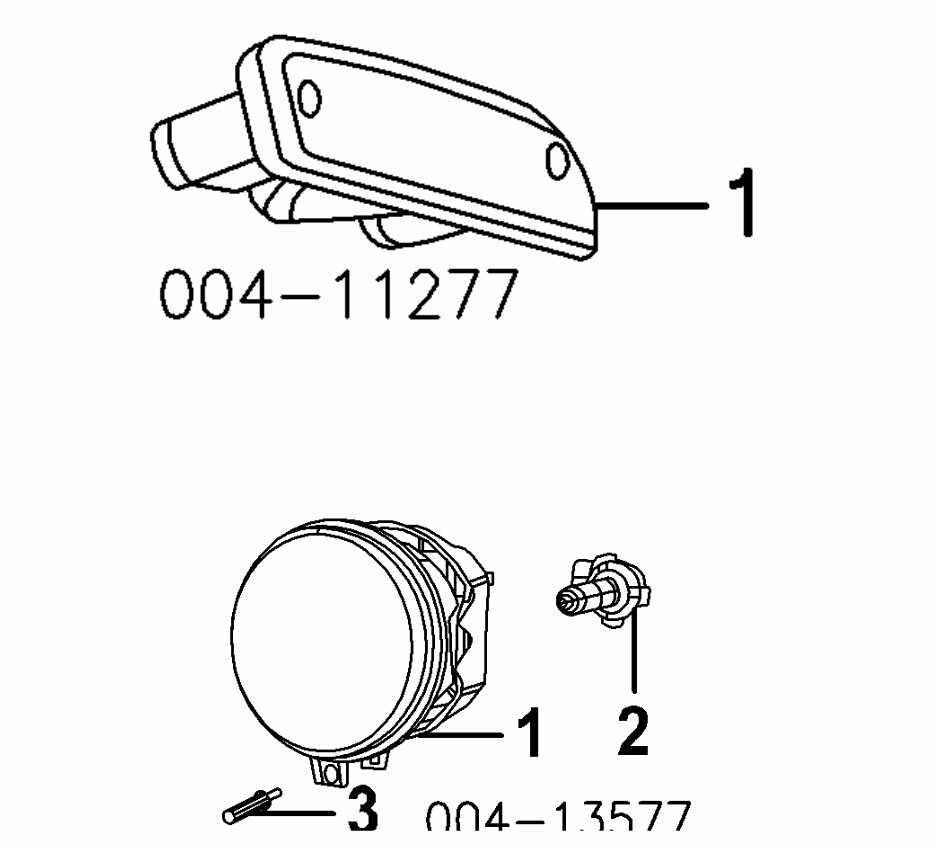

1 Lamp, Side Marker R 68043394AA $22.45 #.2
L 68043395AA $22.45 #.2
#Included in R&R or O/H Bumper Cover
Bulb, Lamp R L0000168 $1.20 #.2
L L0000168 $1.20 #.2
#Included in R&I/R&R Side Marker Lamp
FOG LAMP
Page 5 of 99
R&I Fog Lamp Assy R #.2
L #.2
#w/Bumper Cover Removed, Included in R&R or O/H Bumper
Cover
1 Lamp, Fog R 4805857AB $67.35 #.2
L 4805857AB $67.35 #.2
#w/Bumper Cover Removed, Included in R&R or O/H Bumper
Cover
2 Bulb, Fog Lamp R L0009145 $16.20 #.2
L L0009145 $16.20 #.2
#Included in R&R Fog Lamp Assy
3 Screw, Mounting R 6506579AA $0.60
L 6506579AA $0.60
HOOD
Use Procedure Explanations 4 and 28
with the following text.
Refinish Hood Outside 2.8
Add for Underside 1.4
Refinish Hood Hinge R .5
L .5
R&I Hood Assy .6
R&I Bezel R #.2
L #.2
R&I Washer Nozzle R #.2
L #.2
#Included in R&R Hood

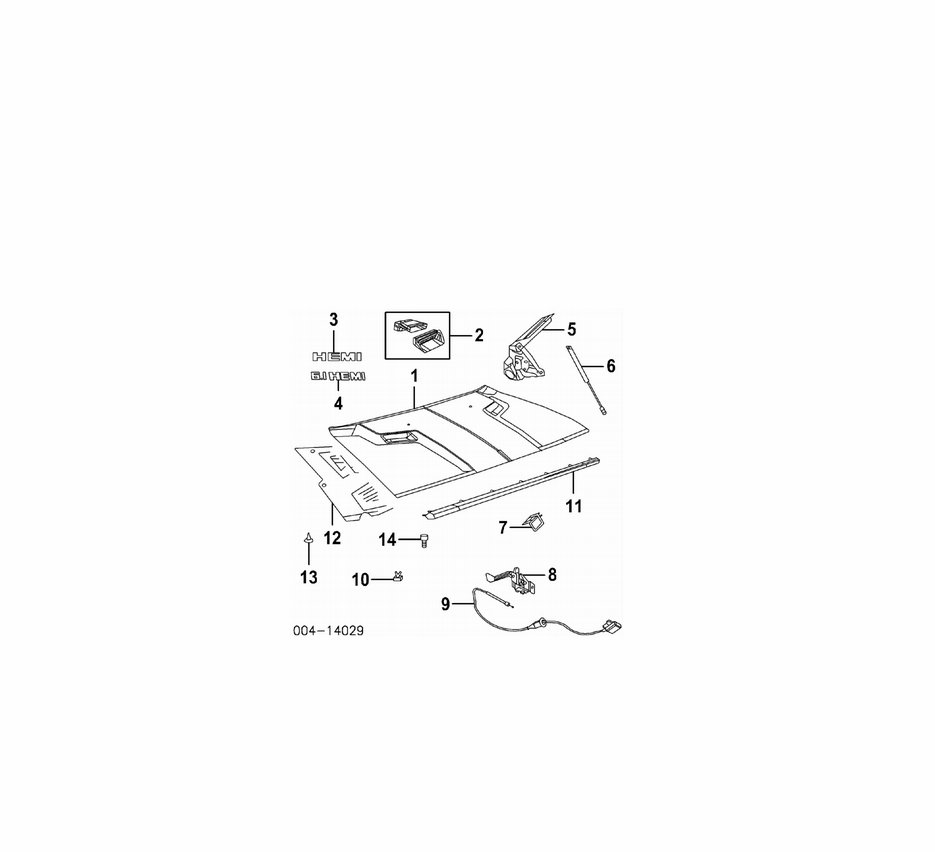

1 Hood (Alum) 08-09 68044225AA $725.00 1.8
Page 6 of 99
10 68044225AB $822.00 1.8
2 Bezel, Air Intake
2008 R 55399338AB $52.10 #.2
L 55399339AB $52.10 #.2
2009
Functional R 55399338AB $52.10 #.2
L 55399339AB $52.10 #.2
Non-Functional R 5028794AB $12.85 #.2
L 5028795AB $12.85 #.2
2010 R 55399338AB $52.10 #.2
L 55399339AB $52.10 #.2
#Included in R&R Hood
Nameplate (Adhesive)
3 "HEMI" 09-10 R 68028278AB $5.95 .2
L 68028278AB $5.95 .2
4 "6.1 HEMI" R 68029274AA $19.75 .2
L 68029274AA $19.75 .2
5 Hinge, Hood R 5065264AK $53.35 #.3
L 5065265AK $53.35 #.3
#w/Hood Removed
6 Support, Hood R 68035556AA $32.70 #.2
L 68035557AA $32.70 #.2
#w/Hinge Removed Deduct .1
Nozzle, Washer-See Windshield Section
Decal, Hood-See Stripe Tape Section
7 Striker, Latch 5065256AA $24.20 .2
8 Latch, Hood 4816182AA $19.25 .3
9 Cable & Handle, Hood Release
2008 5065522AE $35.25 .8
2009
Man Trans 5112931AB $57.35 .8
Auto Trans 5065522AE $35.25 .8
2010 5065522AE $35.25 .8
10 Retainer, Cable (3) 4814094 $1.20
11 Weatherstrip, Front Hood 5065322AC $19.95
Seal, Front Hood 68051392AA $35.60 .2
12 Insulator, Hood 5112970AB $60.35 .3
13 Retainer, Insulator (9) 4878883AA $5.75
14 Adjuster, Hood R 4696592 $5.70 .1
L 4696592 $5.70 .1
COOLING
Use Procedure Explanations 5 and 28
with the following text.
3.5L ENG
3.5L ENG 2009-10
Page 7 of 99
R&I Radiator 2.0

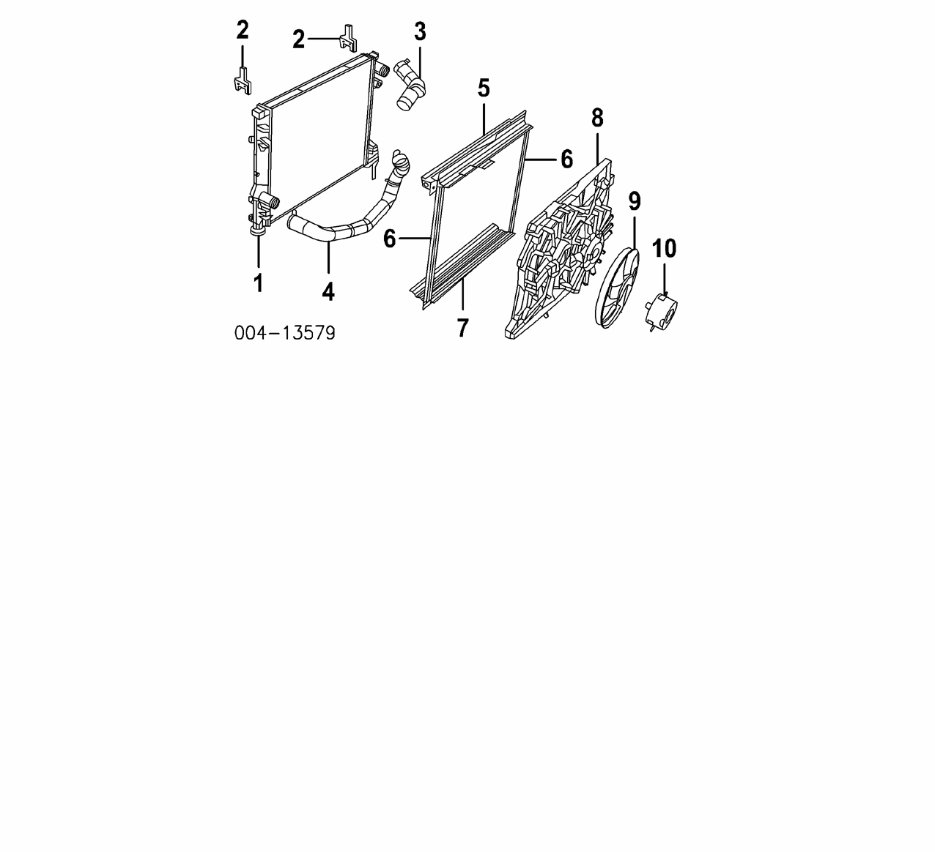

1 Radiator
Hvy Duty Cooling 68050126AA $360.00 2.0
Severe Duty Cooling 68050131AA $404.00 2.0
2 Insulator, Mounting R 4596474AD $4.20
L 4596474AD $4.20
Plug, Drain 4644269 $6.60
3 Hose, Upper Radiator 55038118AA $21.45 #.8
4 Hose, Lower Radiator 55038119AA $24.10 #1.0
#R&R Both 1.6
5 Seal, Upper 5170747AA $41.00
6 Seal, Side R 68026556AA $13.25
L 68026556AA $13.25
7 Seal, Lower 5112199AB $27.50
Module, Fan
Single Fan 09-10 68050129AA $397.00 #.8
Dual Fan-Serviced by Components
#w/Radiator Removed Deduct .5
8 Shroud, Fan
Single Fan-Serviced w/Fan Module
Dual Fan 5137717AB $99.45 #1.0
Order by Application
9 Fan, Cooling
Single Fan-Serviced w/Fan Module
Dual Fan R 5137713AA $25.00 #1.0
L 5137713AA $25.00 #1.0
10 Motor, Fan
Single Fan-Serviced w/Fan Module
Page 8 of 99
Dual Fan R 5072330AB #1.0
L 5137714AA $121.00 #1.0
#R&R Complete, w/Radiator Removed Deduct .6

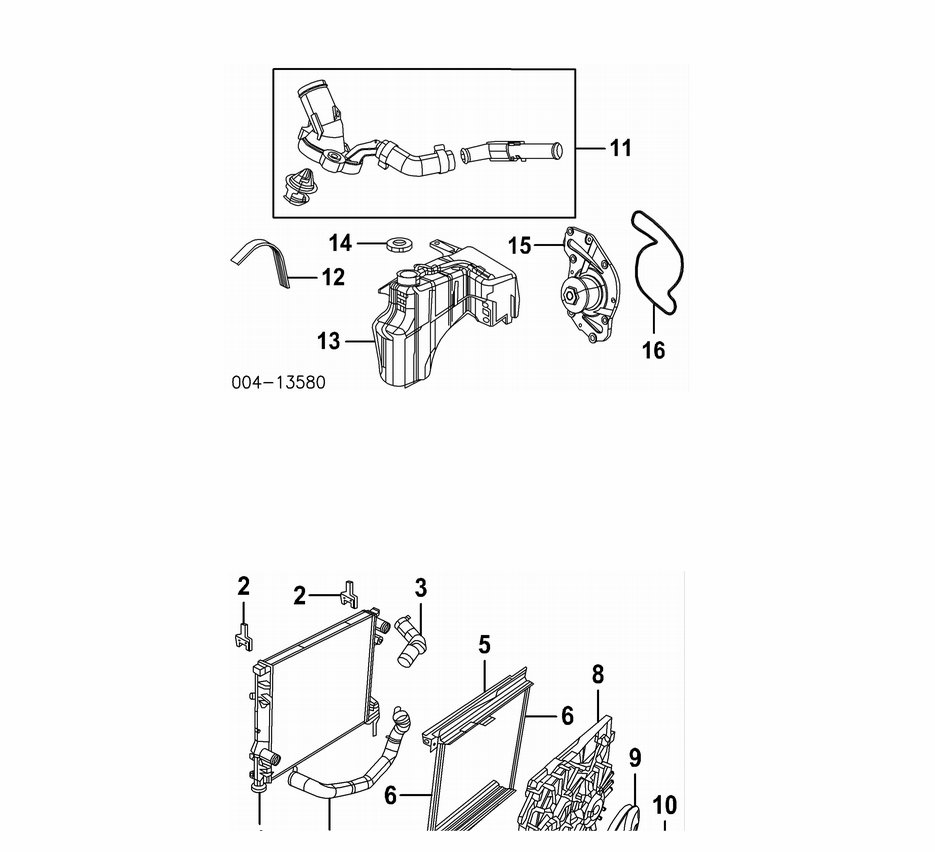

11 Housing, Water Inlet 4892312AC $63.20
12 Belt, Drive 4593684AA $44.75 .6
Tensioner, Belt 4861660AA $57.00 #.7
#Includes R&R Drive Belt
Pulley, Idler 4593848AA $32.10
13 Reserve, Coolant 4596466AF $60.50 .5
14 Cap, Reserve 55116897AA $27.50
15 Pump, Water 4792968AD $86.20 2.5
16 Gasket, Water Pump 4792982AA $11.45
5.7L, 6.1L ENG
Page 9 of 99
R&I Radiator 2.0
1 Radiator
2008 5170742AA $514.00 2.0
2009-10
Hvy Duty Cooling 68050126AA $360.00 2.0
Severe Duty Cooling 68050131AA $404.00 2.0
2 Insulator, Mounting R 4596474AD $4.20
L 4596474AD $4.20
Plug, Drain 4644269 $6.60
3 Hose, Upper Radiator
5.7L Eng 09-10 55038144AA $19.00 #.8
6.1L Eng 08 5290488AB $31.85 #.8
09 5039678AA $31.85 #.8
10 5039678AB $31.85 #.8
4 Hose, Lower Radiator
5.7L Eng 09-10 4598096AB $27.70 #1.0
6.1L Eng 08 5290489AD $32.95 #1.0
09-10 5039789AA $32.95 #1.0
#R&R Both 1.6
5 Seal, Upper 5170747AA $41.00
6 Seal, Side 08 R 5137726AA $12.45
L 5137726AA $12.45
09-10 R 68026556AA $13.25
L 68026556AA $13.25
7 Seal, Lower 5112199AB $27.50
Module, Fan
Single Fan 09-10 68050129AA $397.00 #1.0
Dual Fan-Serviced by Components
8 Shroud, Fan
Single Fan-Serviced w/Fan Module
Dual Fan 5137717AB $99.45 #1.0
Order by Application
9 Fan, Cooling
Single Fan-Serviced w/Fan Module
Dual Fan R 5137713AA $25.00 #1.0
L 5137713AA $25.00 #1.0
10 Motor, Fan
Single Fan-Serviced w/Fan Module
Dual Fan R 5072330AB #1.0
L 5137714AA $121.00 #1.0
#R&R Complete, w/Radiator Removed Deduct .6
Page 10 of 99
