2008 Dodge Caliber Parts Catalog

VIN PLATE DECODING INFORMATION 1 2 3 4 5 6 7 8 9 10 11 12 thru 17 Country Make Vehicle Type Other Line Series Body Style Engine Check Digit Model Year Assy. Plant Sequence No. The following table interprets the VIN Plate position shown above. Position Interpretation Codes = Description 1 Country of Origin 1 = Manufactured By DaimlerChrysler Corporation 2 Assembler B = Dodge 3 Vehicle Type 3 = Passenger Car 4 GVWR & Pass. Safety H = Restraint System Air Bags Front Next Generation Multi Stage Sales Code CG1 With Side Air Bags Sales Code CGS J = Restraint System Air Bags Front Next Generation Multi Stage Sales Code CG1 Without Side Air Bags Sales Code CGS D = Restraint System Without Air Bags Sales Code CGJ 5 Vehicle Line 3 = Caliber (FWD) (RHD) BUX B = Caliber (FWD) (LHD) U.S.,Canada, Mexico, BUX E = Caliber (AWD) (LHD) U.S., Canada, Mexico 6 Series 2 = Caliber SE D-L-49 U.S., Canada, Mexico 2 = Caliber SE D-L-49 BUX Less Sales Code ABB * = Caliber SE D-L-49 BUX With Sales Code ABB 2 = Caliber B-L-49 BUX Less Sales Code ABB * = Caliber B-L-49 BUX With Sales Code ABB 4 = Caliber SXT D-H-49 U.S., Canada, Mexico 4 = Caliber SXT D-H-49 BUX Less Sales Code ABB * = Caliber SXT D-H-49 BUX With Sales Code ABB 4 = Caliber SXT B-H-49 BUX Less Sales Code ABB * = Caliber SXT B-H-49 BUX With Sales Code ABB 6 = Caliber SRT4 D-S-49 U.S., Canada, Mexico 6 = Caliber SRT4 D-S-49 BUX Less Sales Code ABB * = Caliber SRT4 D-S-49 BUX With Sales Code ABB 6 = Caliber SRT4 B-S-49 BUX Less Sales Code ABB * = Caliber SRT4 B-S-49 BUX With Sales Code ABB 7 = Caliber R/T D-X-49 U.S., Canada, Mexico 7 = Caliber R/T E-X-49 U.S., Canada, Mexico 7 Body Style 8 = 4DR Hatchback Body Style - 49 8 Engine K = 2.4L I4 CYL 16V Dual VVT Gasoline (ED3) T = 2.0L I4 CYL 16V DOHC Diesel (ECE) B = 2.0L I4 CYL 16V DOHC Dual VVT Gasoline (ECN) A = 2.0L I4 CYL 16V DOHC Diesel (ECD) C = 1.8L I4 CYL 16V DOHC Dual VVT Gasoline (EBA) F = 2.4L I4 CYL 16V DOHC Turbo Gasoline (ED4) 9 Check Digit 0 = Check Digit 10 Model Year 8 = 2008 Model Year 11 Assembly Plant D = Belvidere 12 thru 17 Vehicle Build Sequence Model Year Assembly Sequence

Group - 2 Front Suspension 002-100 Front Suspension, Strut and Cradle 002-200 Front Stabilizer Bar Group - 2 Front Suspension Illustration Title Group-Fig. No. Front Suspension, Strut and Cradle Suspension, Front ............................................................................................................................ Fig. 2 - 105 Front Stabilizer Bar Stabilizer Bar, Front .......................................................................................................................... Fig. 2 - 205 2008 PM

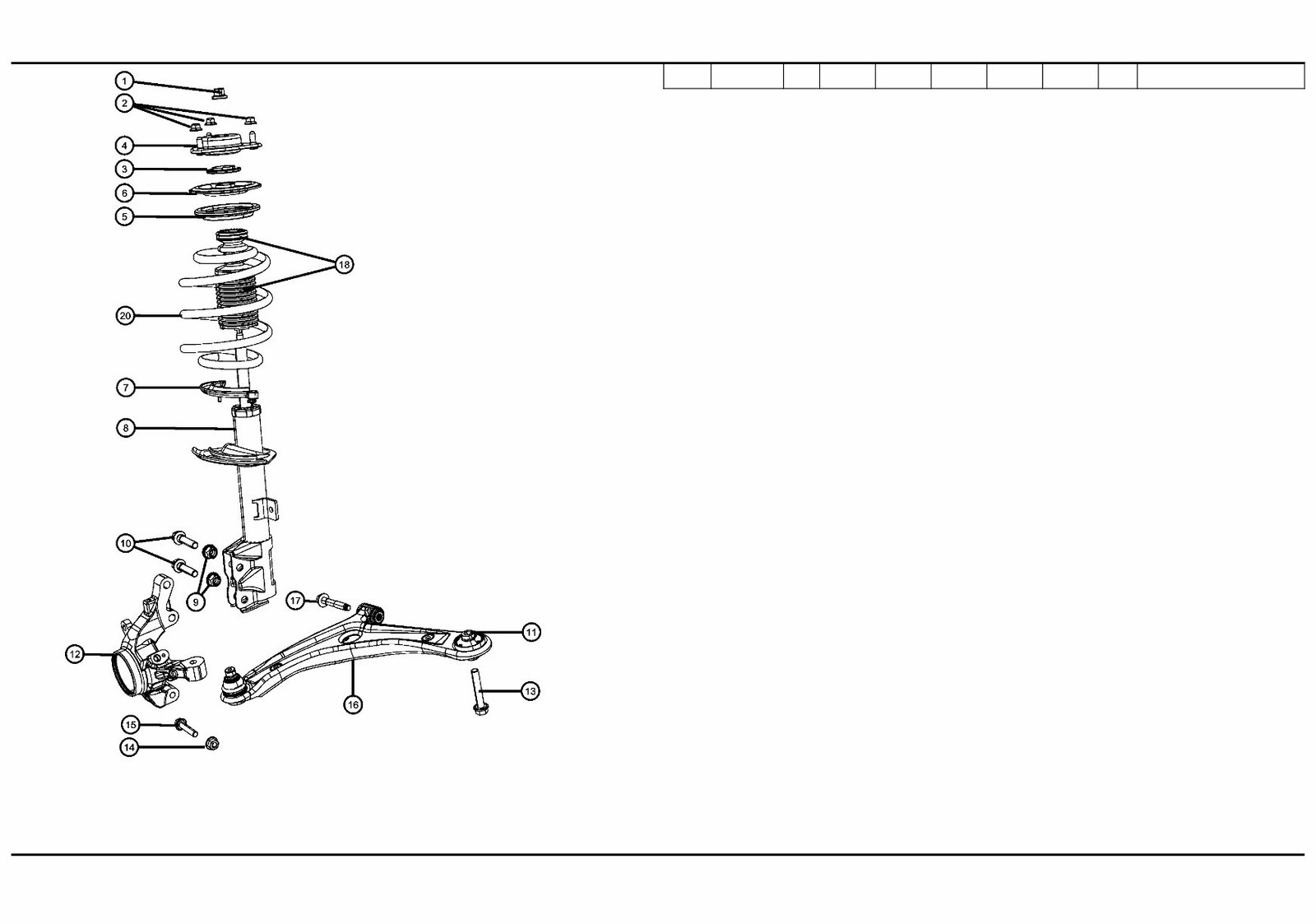

Suspension, Front Figure 2-105 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Suspension, Front 1 06508273AA 2 B, D, E 49 NUT AND WASHER, Hex 2 06503335 6 B, D, E 49 NUT, Hex, M10X1.25 3 05085458AA 2 B, D, E 49 BEARING, Strut Mount 4 05085461AB 2 B, D, E 49 MOUNT, Strut 5 05105822AA 2 B, D, E 49 ISOLATOR, Spring 6 05085403AD 2 B, D, E 49 SEAT, Spring 7 05085405AB 2 B, D, E 49 ISOLATOR, Spring 8 STRUT, Front Suspension 05105096AF 1 B, D, E 49 [SDE], Right 05105097AF 1 B, D, E 49 [SDE], Left 05105170AG 1 B, D, E 49 [SDC,SDA], Right 05105171AG 1 B, D, E 49 [SDC,SDA], Left 05105310AG 1 B, D, E 49 EBA, ECN, ED3 [SDF], Right 05105311AG 1 B, D, E 49 EBA, ECN, ED3 [SDF], Left 05105782AC 1 B, D, E 49 ECD, ECE [SDF], Right 05105783AC 1 B, D, E 49 ECD, ECE [SDF], Left 05181028AC 1 B, D, E 49 [SDX], Right 05181029AC 1 B, D, E 49 [SDX], Left 9 06505232AA 4 B, D, E 49 NUT 10 06508262AA 4 B, D, E 49 BOLT 11 06104719AA 2 B, D, E 49 NUT, Hex Flange Lock, M14x1.50 12 KNUCKLE AND HUB, Front 05085702AI 1 B, D, E 49 Right 05085703AI 1 B, D, E 49 Left 05085704AJ 1 B, D, E 49 [BRA], Right 05085707AJ 1 B, D, E 49 [BRA], Left 13 06104264AA 2 B, D, E 49 BOLT, Hex Flange Head, M14X1.5X80.0 14 06104711AA 2 B, D, E 49 NUT, M12 15 06104240AA 2 B, D, E 49 BOLT, Hex Flange Head CALIBER (PM) SERIES LINE BODY ENGINE TRANSMISSION H = HIGHLINE S = SPORT L = LOWLINE X = SPECIAL B = DODGE D = DODGE E = DODGE 49 = HATCHBACK TYPE #2 ECE = 2.0L 4 Cyl DOHC DPF Diesel Engine ED3 = 2.4L 4 Cyl DOHC 16V Dual VVT Engine ED4 = 2.4L 4 Cyl DOHC 16V Turbo Engine ECD = 2.0L 4 Cyl DOHC Diesel 16V Engine ECN = 2.0L 4 Cyl DOHC 16V Dual VVT Engine EBA = 1.8L 4 Cyl DOHC 16V Dual VVT Engine DAV = Continuously Variable Transaxle II DD7 = 5-Speed Manual T355 Transmission DEF = 6-Speed Manual Aisin BG6 Trans DEK = 6-Speed Manual Getrag DMT6 Trans AR = use ase required - = Non illustrrated part 2008 PM << RETURN TO GROUP INDEX

Suspension, Front Figure 2-105 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION 16 ARM, Lower Control, Front 05105040AB 1 B, D, E 49 Right 05105041AB 1 B, D, E 49 Left 17 06508844AA 4 B, D, E 49 BOLT, Hex Head 18 05105543AD 2 B, D, E 49 BUMPER, Jounce -19 05019074AA 4 B, D, E 49 BOLT PACKAGE, Camber Adjustment 20 SPRING, Front Coil 05105841AC 1 B, D, E 49 [SDE,SDF]+[ZEA,ZTA] 05105842AC 1 B, D, E 49 [SDE=SDF]+[ZEB,ZTB] 05105843AC 1 B, D, E 49 [SDE,SDF]+[ZEC,ZTC] 05105844AC 1 B, D, E 49 [SDE,SDF]+[ZED,ZTD] 05105845AC 1 B, D, E 49 [SDE,SDF]+[ZEE,ZTE] 05105846AC 1 B, D, E 49 [SDE,SDF]+[ZEF,ZTF] 05105847AC 1 B, D, E 49 [SDE,SDF]+[ZEG,ZTG] 05105848AC 1 B, D, E 49 [SDE,SDF]+[ZEH,ZTH] 05105849AC 1 B, D, E 49 [SDE=SDF]+[ZEJ,ZTJ] 05105851AD 1 B, D, E 49 [SDC=SDF]+[ZFA,ZUA] 05105852AD 1 B, D, E 49 [SDC=SDF]+[ZFB,ZUB] 05105853AD 1 B, D, E 49 [SDC=SDF]+[ZUC,ZFC] 05105854AD 1 B, D, E 49 [SDC=SDF]+[ZFD,ZUD] 05105855AD 1 B, D, E 49 [SDC=SDF]+[ZFE,ZUE] 05105856AD 1 B, D, E 49 [SDC=SDF]+[ZFF,ZUF] 05105857AD 1 B, D, E 49 [SDC=SDF]+[ZFG,ZUG] 05105858AD 1 B, D, E 49 [SDC=SDF]+[ZFH,ZUH] 05105859AD 1 B, D, E 49 [SDC=SDF]+[ZFJ,ZUJ] CALIBER (PM) SERIES LINE BODY ENGINE TRANSMISSION H = HIGHLINE S = SPORT L = LOWLINE X = SPECIAL B = DODGE D = DODGE E = DODGE 49 = HATCHBACK TYPE #2 ECE = 2.0L 4 Cyl DOHC DPF Diesel Engine ED3 = 2.4L 4 Cyl DOHC 16V Dual VVT Engine ED4 = 2.4L 4 Cyl DOHC 16V Turbo Engine ECD = 2.0L 4 Cyl DOHC Diesel 16V Engine ECN = 2.0L 4 Cyl DOHC 16V Dual VVT Engine EBA = 1.8L 4 Cyl DOHC 16V Dual VVT Engine DAV = Continuously Variable Transaxle II DD7 = 5-Speed Manual T355 Transmission DEF = 6-Speed Manual Aisin BG6 Trans DEK = 6-Speed Manual Getrag DMT6 Trans AR = use ase required - = Non illustrrated part 2008 PM << RETURN TO GROUP INDEX

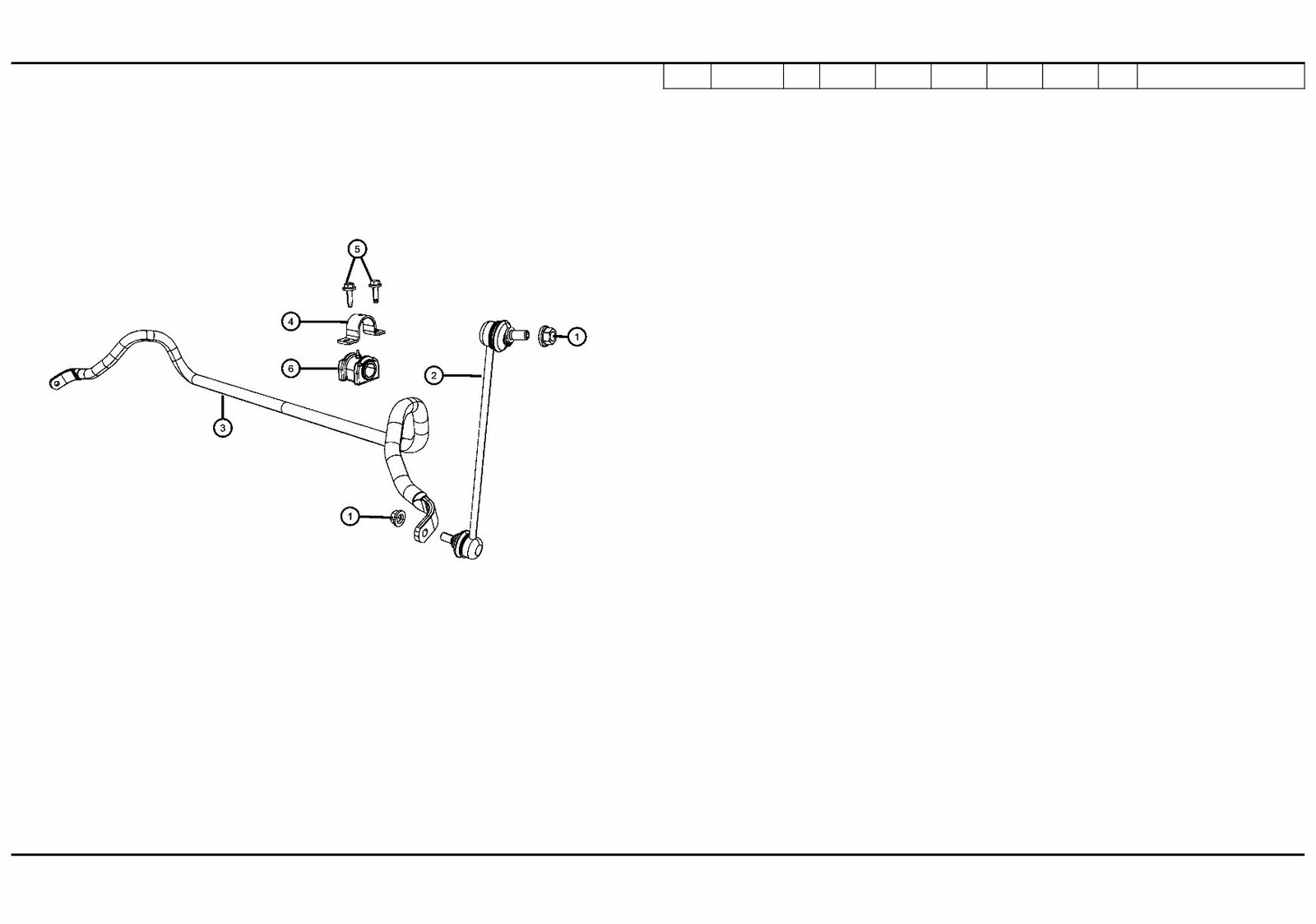

Stabilizer Bar, Front Figure 2-205 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Stabilizer Bar, Front 1 06508961AA 2 B, D, E 49 NUT & WASHER, Hex, M10 X 1.25 2 05174185AB 2 B, D, E 49 LINK PACKAGE, Stabilizer Bar 3 BAR, Front Sway 05105100AA 1 B, D, E 49 ECD, ECE 05105101AA 1 B, D, E 49 4 05105566AA 2 B, D, E 49 RETAINER, Stabilizer Bar Grommet 5 06104388AA 4 B, D, E 49 SCREW, Hex Head, M8x1.25x30 6 05105103AC 2 B, D, E 49 CUSHION, Sway Eliminator CALIBER (PM) SERIES LINE BODY ENGINE TRANSMISSION H = HIGHLINE S = SPORT L = LOWLINE X = SPECIAL B = DODGE D = DODGE E = DODGE 49 = HATCHBACK TYPE #2 ECE = 2.0L 4 Cyl DOHC DPF Diesel Engine ED3 = 2.4L 4 Cyl DOHC 16V Dual VVT Engine ED4 = 2.4L 4 Cyl DOHC 16V Turbo Engine ECD = 2.0L 4 Cyl DOHC Diesel 16V Engine ECN = 2.0L 4 Cyl DOHC 16V Dual VVT Engine EBA = 1.8L 4 Cyl DOHC 16V Dual VVT Engine DAV = Continuously Variable Transaxle II DD7 = 5-Speed Manual T355 Transmission DEF = 6-Speed Manual Aisin BG6 Trans DEK = 6-Speed Manual Getrag DMT6 Trans AR = use ase required - = Non illustrrated part 2008 PM << RETURN TO GROUP INDEX

Group - 3590 All Wheel Drive; Differential and Drive Line 003590-300 Front Axle Drive Shafts 003590-600 Drive Shaft 003590-700 Rear Axle Assembly 003590-800 Rear Axle; Housing, Differential and Vent 003590-900 Rear Axle Shafts Group - 3590 All Wheel Drive; Differential and Drive Line Illustration Title Group-Fig. No. Front Axle Drive Shafts Shafts, Front Axle ........................................................................................................................ Fig. 3590 - 310 Drive Shaft Shaft, Drive ............................................................................................................................... Fig. 3590 - 620 Rear Axle Assembly Axle Assembly ............................................................................................................................ Fig. 3590 - 705 Rear Axle; Housing, Differential and Vent Rear Axle Mounting ...................................................................................................................... Fig. 3590 - 880 Rear Axle Shafts Shafts,Rear,Axle ......................................................................................................................... Fig. 3590 - 905 2008 PM

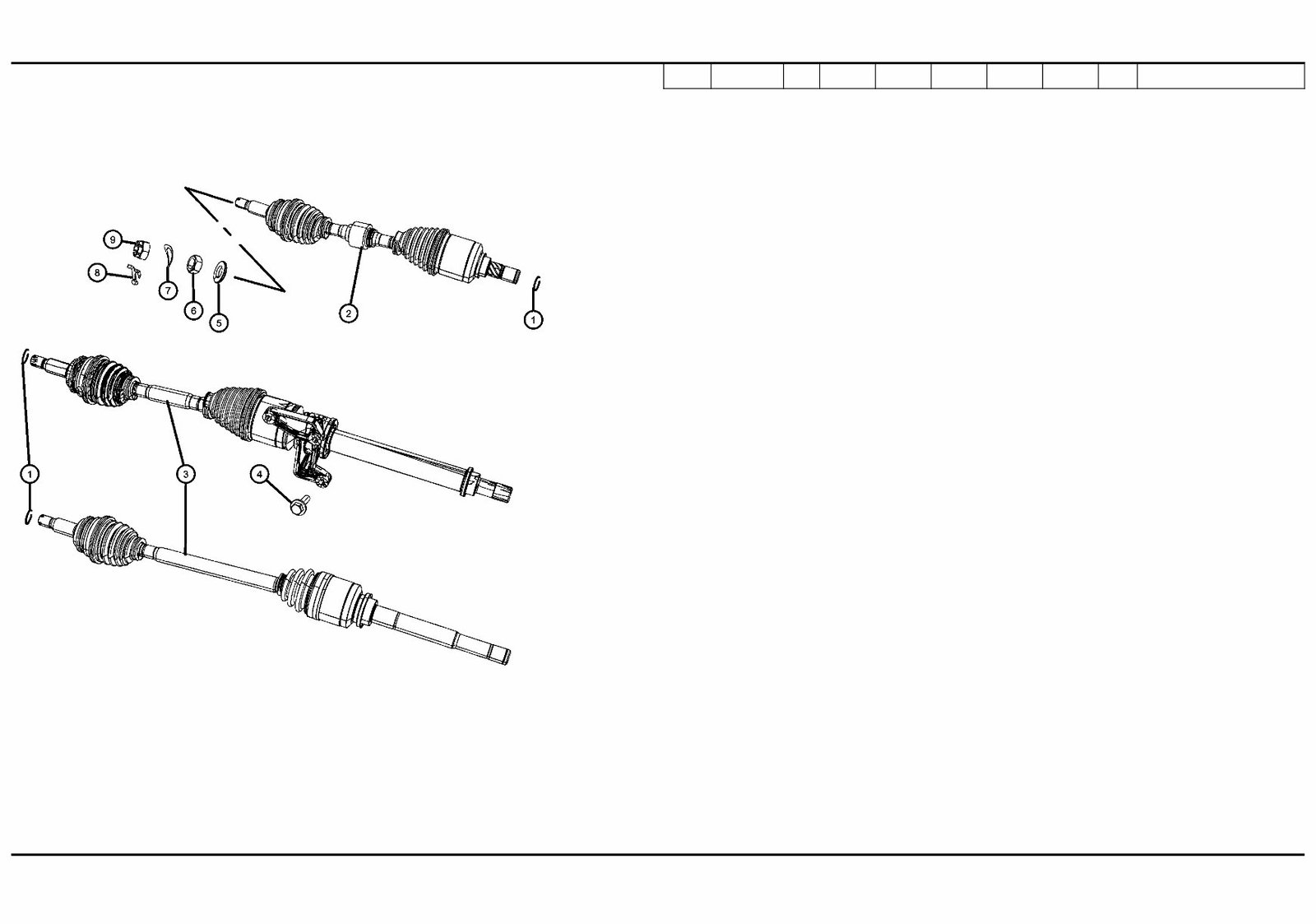

Shafts, Front Axle Figure 3590-310 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Shafts, Front Axle 1 05189156AA 1 B, D, E 49 CIRCLIP, Half Shaft 2 SHAFT, Axle Half 05085220AB 1 B, D, E 49 [EBA,ECN,ED3], Left 05085224AB 1 B, D, E 49 [ECD,ECE], Left 53010357AC 1 B, D, E 49 [ED4], Left 3 SHAFT, Axle Half 05105649AC 1 B, D 49 [EBA,ED3], Right 05105658AC 1 B, D 49 [ED3], Right 05105660AD 1 B, D 49 [ECD,ECE], Right 05273438AD 1 E 49 [ED3], Right 53010356AC 1 B, D, E 49 [ED4], Right 4 BOLT AND CONED WASHER, Hex Head, M10X1.50X40.00 06102210AA 3 B, D 49 3 B, D, E 49 5 06503352 2 B, D, E 49 WASHER, Flat, M23x38.0x405 6 06503685 2 B, D, E 49 NUT 7 05212684 2 B, D, E 49 WASHER, Wave 8 05212684 2 PIN, Cotter, 4x30, (NOT SERVICED) 9 05212525 2 B, D, E 49 LOCK, Hub Nut CALIBER (PM) SERIES LINE BODY ENGINE TRANSMISSION H = HIGHLINE S = SPORT L = LOWLINE X = SPECIAL B = DODGE D = DODGE E = DODGE 49 = HATCHBACK TYPE #2 ECE = 2.0L 4 Cyl DOHC DPF Diesel Engine ED3 = 2.4L 4 Cyl DOHC 16V Dual VVT Engine ED4 = 2.4L 4 Cyl DOHC 16V Turbo Engine ECD = 2.0L 4 Cyl DOHC Diesel 16V Engine ECN = 2.0L 4 Cyl DOHC 16V Dual VVT Engine EBA = 1.8L 4 Cyl DOHC 16V Dual VVT Engine DAV = Continuously Variable Transaxle II DD7 = 5-Speed Manual T355 Transmission DEF = 6-Speed Manual Aisin BG6 Trans DEK = 6-Speed Manual Getrag DMT6 Trans AR = use ase required - = Non illustrrated part 2008 PM << RETURN TO GROUP INDEX

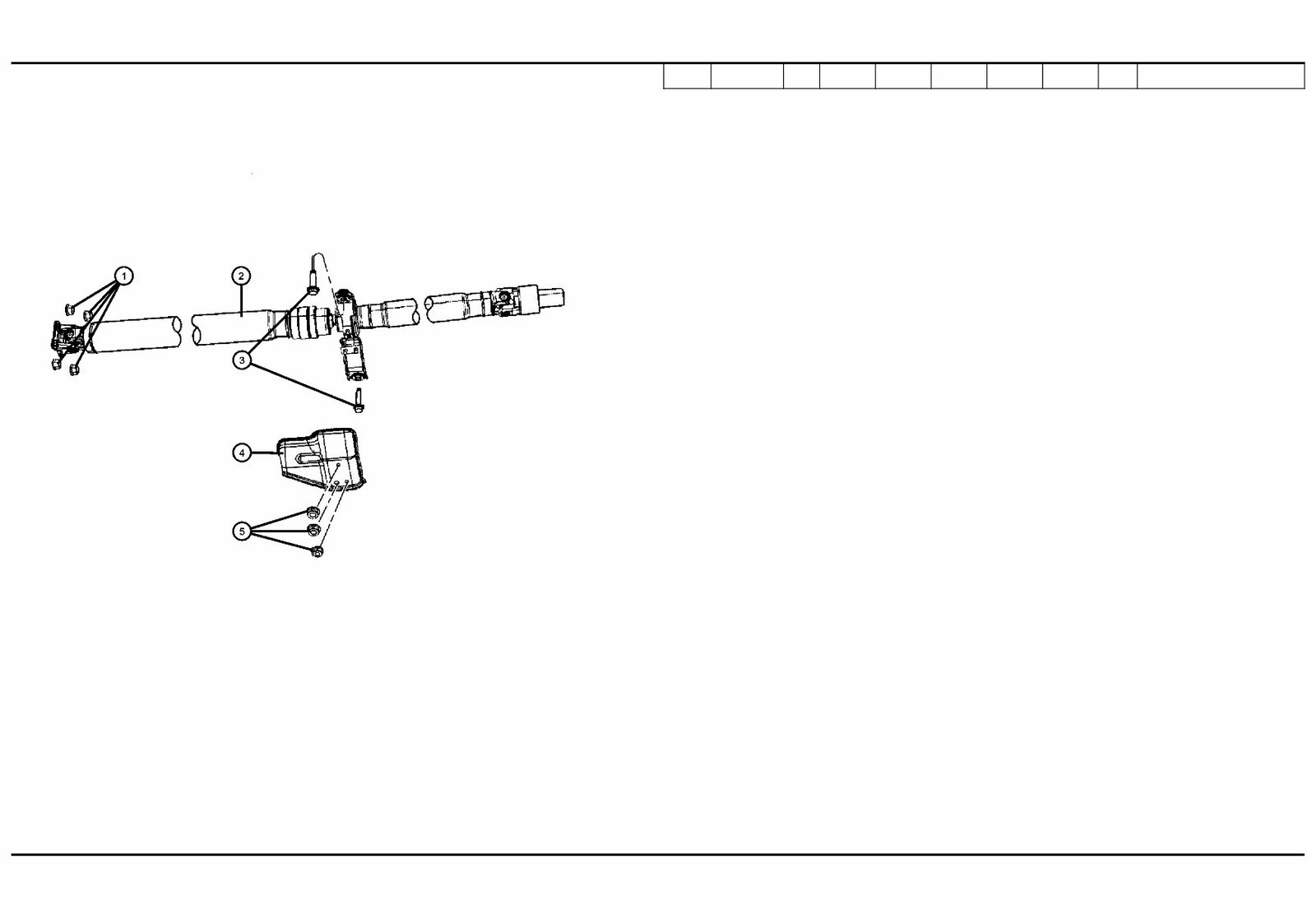

Shaft, Drive Figure 3590-620 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Shaft, Drive 1 05105715AA 4 E 49 NUT, Locking 2 05273310AB 1 E 49 SHAFT, Drive, Rear 3 06104422AA 2 E 49 BOLT AND WASHER, Hex Head 4 05105640AA 1 E 49 SHIELD, Heat 5 06104716AA 3 B, D, E 49 NUT, Hex Flange Lock, M8X1.25 CALIBER (PM) SERIES LINE BODY ENGINE TRANSMISSION H = HIGHLINE S = SPORT L = LOWLINE X = SPECIAL B = DODGE D = DODGE E = DODGE 49 = HATCHBACK TYPE #2 ECE = 2.0L 4 Cyl DOHC DPF Diesel Engine ED3 = 2.4L 4 Cyl DOHC 16V Dual VVT Engine ED4 = 2.4L 4 Cyl DOHC 16V Turbo Engine ECD = 2.0L 4 Cyl DOHC Diesel 16V Engine ECN = 2.0L 4 Cyl DOHC 16V Dual VVT Engine EBA = 1.8L 4 Cyl DOHC 16V Dual VVT Engine DAV = Continuously Variable Transaxle II DD7 = 5-Speed Manual T355 Transmission DEF = 6-Speed Manual Aisin BG6 Trans DEK = 6-Speed Manual Getrag DMT6 Trans AR = use ase required - = Non illustrrated part 2008 PM << RETURN TO GROUP INDEX

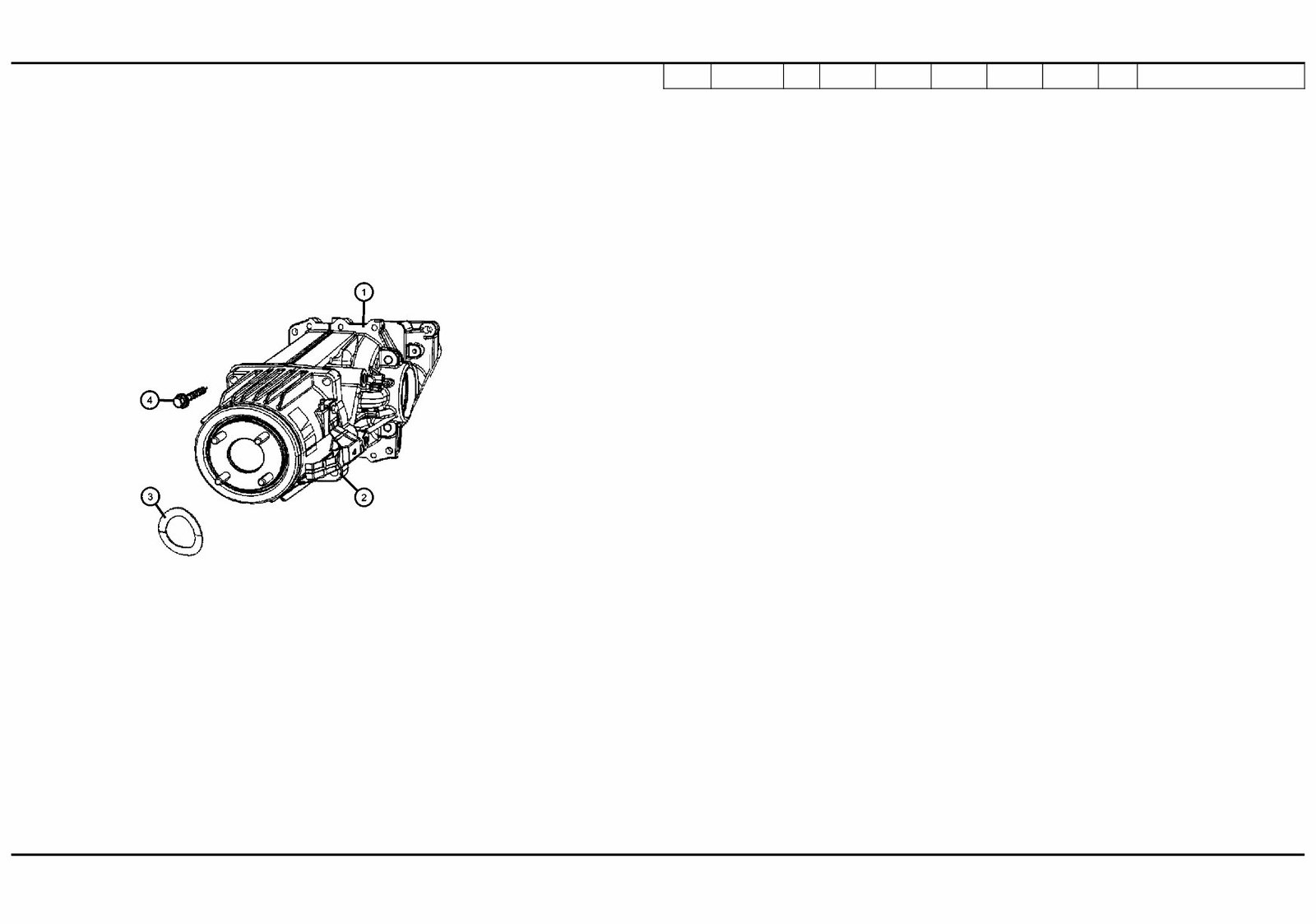

Axle Assembly Figure 3590-705 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Axle Assembly 1 3501A115 1 E 49 DIFFERENTIAL, Rear Axle 2 3570A007 1 E 49 COUPLING, Electric Clutch 3 05105681AA 1 E 49 WASHER, Differential 4 06508246AA 4 E 49 SCREW, Hex Flange Head, M10X1.25X40.00 CALIBER (PM) SERIES LINE BODY ENGINE TRANSMISSION H = HIGHLINE S = SPORT L = LOWLINE X = SPECIAL B = DODGE D = DODGE E = DODGE 49 = HATCHBACK TYPE #2 ECE = 2.0L 4 Cyl DOHC DPF Diesel Engine ED3 = 2.4L 4 Cyl DOHC 16V Dual VVT Engine ED4 = 2.4L 4 Cyl DOHC 16V Turbo Engine ECD = 2.0L 4 Cyl DOHC Diesel 16V Engine ECN = 2.0L 4 Cyl DOHC 16V Dual VVT Engine EBA = 1.8L 4 Cyl DOHC 16V Dual VVT Engine DAV = Continuously Variable Transaxle II DD7 = 5-Speed Manual T355 Transmission DEF = 6-Speed Manual Aisin BG6 Trans DEK = 6-Speed Manual Getrag DMT6 Trans AR = use ase required - = Non illustrrated part 2008 PM << RETURN TO GROUP INDEX

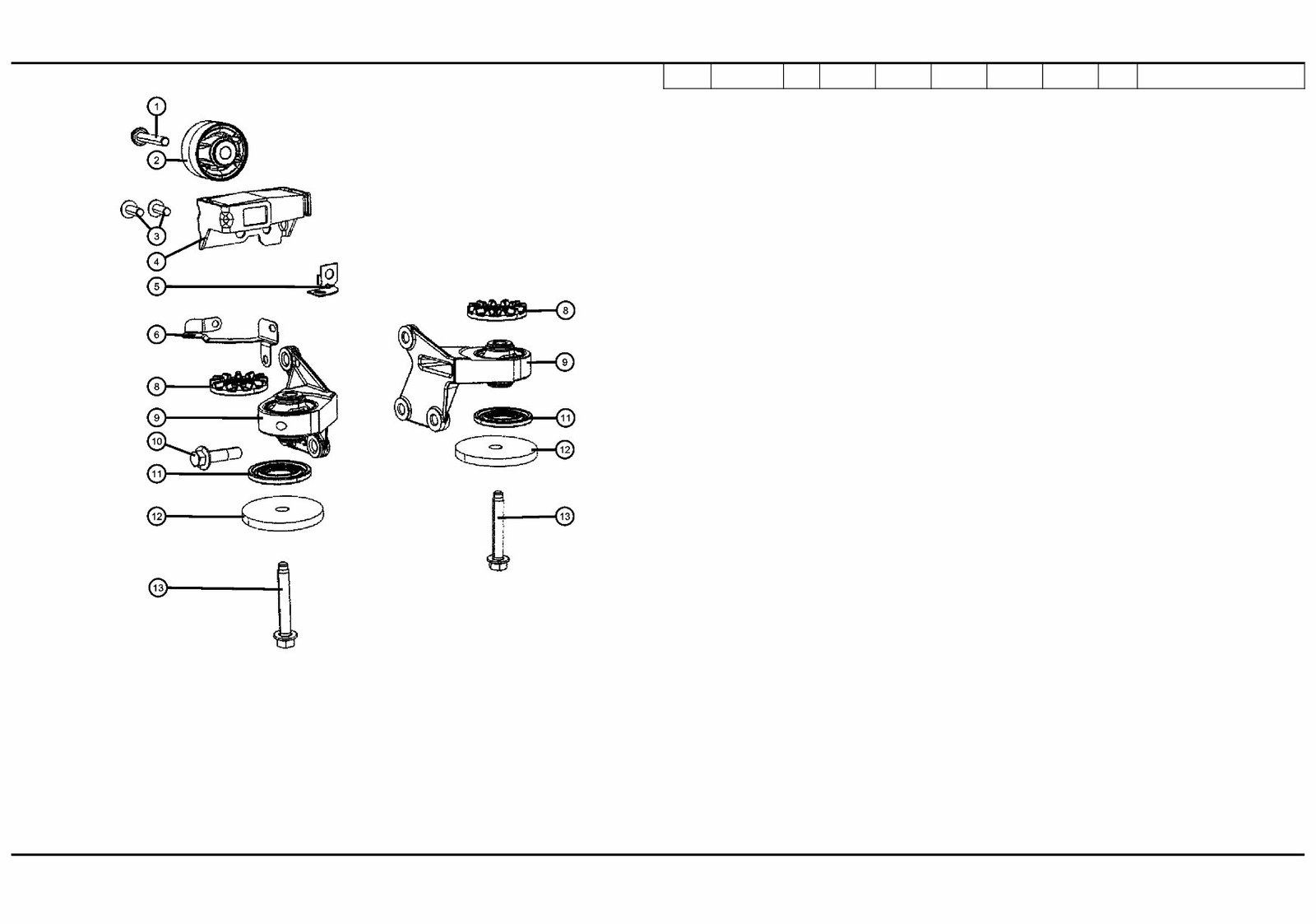

Rear Axle Mounting Figure 3590-880 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Rear Axle Mounting 1 06104265AA 1 E 49 BOLT, Hex Flange Head, M14x1.50x90.00 2 05105309AA 1 E 49 ISOLATOR, Rear Differential 3 06508185AA 2 E 49 BOLT, Hex Flange Head, M10x1.25x30.00 4 05273464AA 1 E 49 DAMPER, Axle 5 05273453AA 1 E 49 BRACKET, Wiring 6 05105670AA 1 E 49 BRACKET, Wiring -7 05073824AA 2 E 49 BOLT, Wiring Brkt 8 05105529AA 2 E 49 ISOLATOR, Rear DifferentialUpper 9 ISOLATOR AND BRACKET, Rear Differential 05273442AA 1 E 49 Front Right 05273443AA 1 E 49 Front Left 10 06508986AA 6 E 49 BOLT, Hex Head 11 05273448AA 2 E 49 CUSHION, Differential 12 05105833AB 2 E 49 CUSHION, Differential 13 06105085AA 2 E 49 BOLT CALIBER (PM) SERIES LINE BODY ENGINE TRANSMISSION H = HIGHLINE S = SPORT L = LOWLINE X = SPECIAL B = DODGE D = DODGE E = DODGE 49 = HATCHBACK TYPE #2 ECE = 2.0L 4 Cyl DOHC DPF Diesel Engine ED3 = 2.4L 4 Cyl DOHC 16V Dual VVT Engine ED4 = 2.4L 4 Cyl DOHC 16V Turbo Engine ECD = 2.0L 4 Cyl DOHC Diesel 16V Engine ECN = 2.0L 4 Cyl DOHC 16V Dual VVT Engine EBA = 1.8L 4 Cyl DOHC 16V Dual VVT Engine DAV = Continuously Variable Transaxle II DD7 = 5-Speed Manual T355 Transmission DEF = 6-Speed Manual Aisin BG6 Trans DEK = 6-Speed Manual Getrag DMT6 Trans AR = use ase required - = Non illustrrated part 2008 PM << RETURN TO GROUP INDEX
