SPECIAL CAUTIONS SUSPENSION Manufacturer advises that some new fasteners must be used whenever old fasteners are loosened or removed. AIR BAG Refer to Procedure Explanation 29 for Supplemental Restraint/Air Bag Special Cautions. PAINT CODE LOCATION Paint code located on left front door jamb. CLEAR COAT IDENTIFICATION All colors are clear coat. Inferno Red (Code PEL) is three stage. INFORMATION LABELS Label, A/C 5058631AA $5.45 Label, Starting Procedure 5140474AA $11.20 Label, Battery 4606818AA $4.35 Label, Emission 2.4L Eng 4578503AA $0.50 2.7L Eng 4578502AA $0.60 3.5L Eng 5085749AA $0.60 Label, Air Bag Warning Glove Box R 4595749AA $2.95 Door R 4595748AA $5.85 L 4595748AA $5.85 Visor R 4787437AB $8.75 L 4787437AB $8.75 Label, Child Protection 5056072AA $2.85 Label, Tire Storage 5273515AB $8.70 Label, Safety Caution 4680556AB $1.75 Label, Jack Warning 5056223AA $2.25 Order by Application FRONT BUMPER Use Procedure Explanations 1 and 28 with the following text. 2008-2010 Dodge Avenger Page 1 of 106

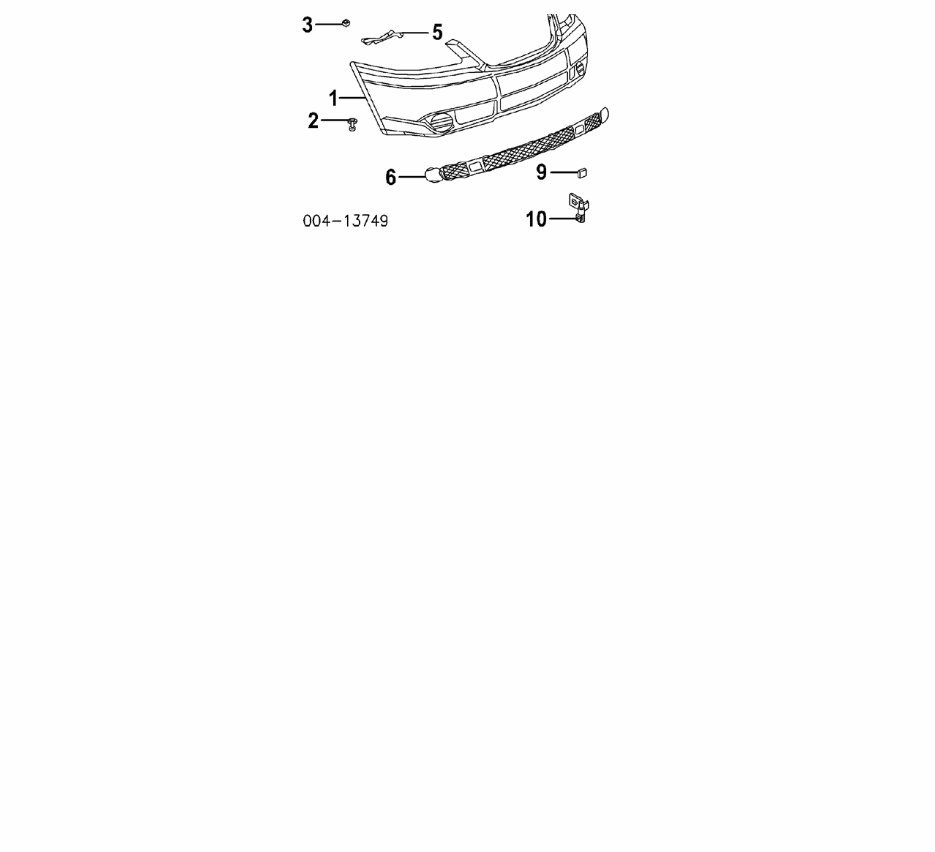

Refinish Front Cover 3.0 Refinish Tow Hook Cover .3 R&I Front Cover #2.0 O/H Front Cover (Includes R&I) #3.2 #Includes R&R Air Duct, Cover Panel, Fender Liners & Grille Add to R&R or O/H Front Cover w/Fog Lamps .3 NOTE: All Parts in this section are included in overhaul unless noted otherwise. 1 Cover, Front (P) w/Fog Lamps 68004697AA $414.00 #3.2 w/o Fog Lamps 68004703AA $409.00 #3.2 (P) Paint to Match #Includes R&R Air Duct, Cover Panel, Fender Liners & Grille 2 Pin, Push (2/Side) R 4389947AA $6.35 L 4389947AA $6.35 3 Clip, Mounting R 4806110AA $4.60 L 4806110AA $4.60 4 Screw, Attaching R 6105099AA $0.60 L 6105099AA $0.60 5 Bracket, Front R 5155836AB $18.45 #.2 L 5155837AB $12.20 #.2 #w/Front Cover Removed, Not Included in O/H 6 Grille, Lower w/Fog Lamps 5155642AA $69.50 .2 w/o Fog Lamps 5155643AA $70.95 .2 7 Absorber, Impact 5303892AA $59.85 IOH 8 Reinforcement, Frt Cover 5303700AB $225.00 #.4 #w/Front Cover Removed, Not Included in O/H 9 Cover, Tow Hook (P) R 1CF49TZZAA $28.60 .1 (P) Paint to Match Hook, Tow-See Wheel Section 10 Sensor, Ambient 5293138AA $8.30 #.2 #w/Front Cover Removed, Not Included in O/H GRILLE Page 2 of 106

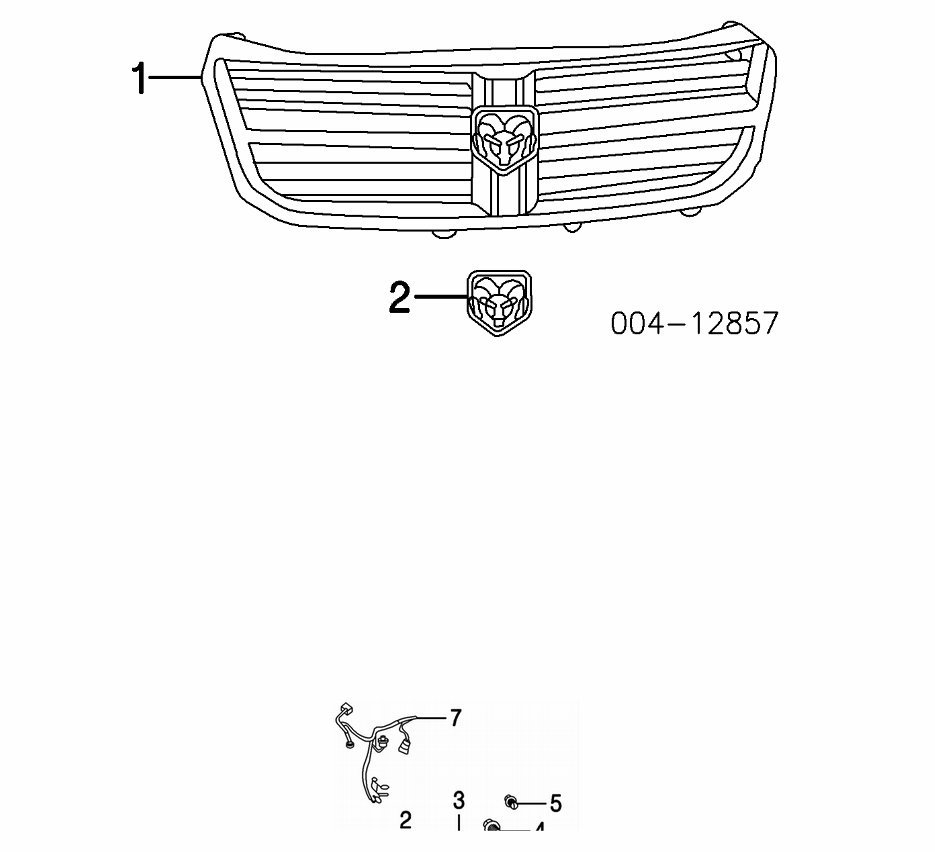

Refinish Grille 1.0 R&I Grille .3 1 Grille Chrome YW351XXAB $237.00 .3 Blue Pearl, (Code BS) 09-10 YW40GBSAB $166.00 .3 Bright Silver, (Code S2) YW40WS2AB $225.00 .3 Brilliant Black, (Code XR) YW40AXRAB $225.00 .3 Inferno Red, (Code RH) YW40ARHAB $225.00 .3 Marathon Blue, (Code BD) 08 YW40EBDAB $225.00 .3 Modern Blue, (Code BL) 08 YW40EBLAA $225.00 .3 Sandstone, (Code KG) YW40FKGAB $119.00 .3 Silver Steel, (Code A4) YW40DA4AB $225.00 .3 Sunburst Orange, (Code V6) 08 YW40DV6AB $225.00 .3 Stone White, (Code W1) YW40SW1AB $225.00 .3 Torred, (Code R3) 09-10 YW40ZR3AB $166.00 .3 White Gold, (Code WL) 09-10 YW40HWLAB .3 2 Emblem (Adhesive) 5155674AA $40.70 .2 FRONT LAMPS COMBINATION LAMP Page 3 of 106

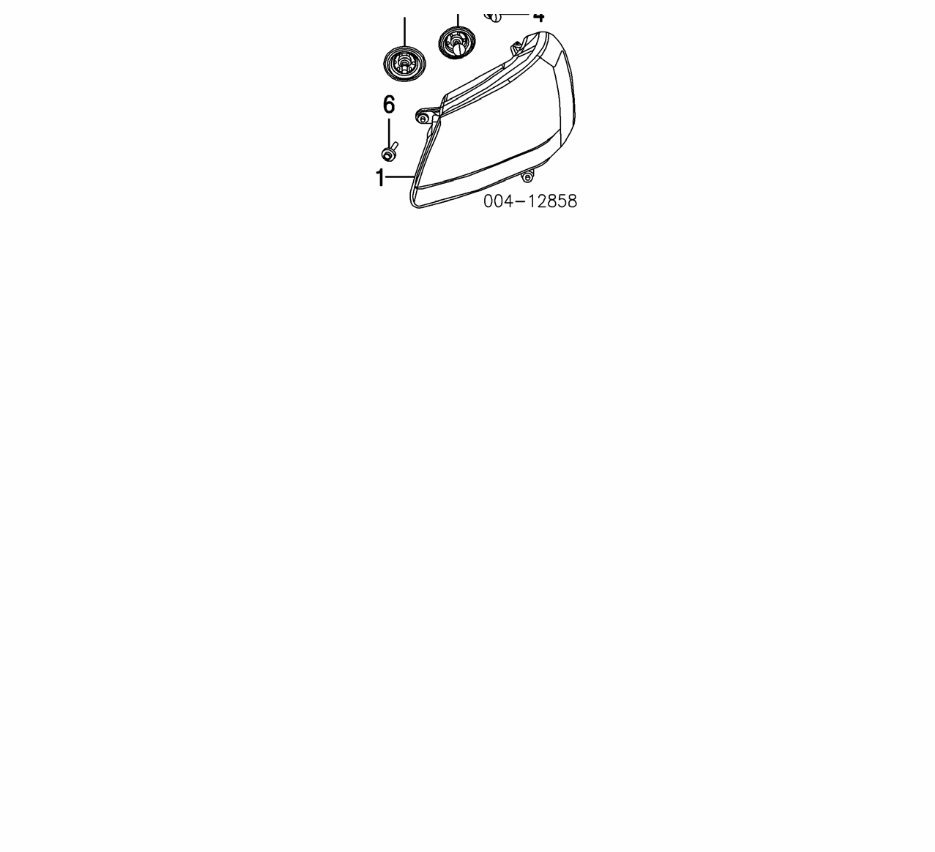

Aim Lamps .4 R&I Combination Lamp R #.3 L #.3 #w/Front Cover Removed NOTE: R&R Does Not include aim lamps. 1 Lamp, Combination SE Model 08 R 5116202AB $270.00 #.3 L 5116203AB $270.00 #.3 09 R 5116202AD $190.00 #.3 L 5116203AD $190.00 #.3 10 R N.A. #.3 L N.A. #.3 SXT Model 08 R 5116342AB $252.00 #.3 L 5116343AB $252.00 #.3 09-10 R 5116342AC $252.00 #.3 L 5116343AC $252.00 #.3 RT Model 08 R 5303744AB $230.00 #.3 L 5303745AB $230.00 #.3 09-10 R 5303744AC $275.00 #.3 L 5303745AC $275.00 #.3 #w/Front Cover Removed 2 Bulb, High Beam R L0009005 $14.95 #.2 L L0009005 $14.95 #.2 3 Bulb, Low Beam Type 1 R L0009006 $14.25 #.2 L L0009006 $14.25 #.2 Type 2 R L0000H11 $15.10 #.2 L L0000H11 $15.10 #.2 Order by Application 4 Bulb, Turn Signal R L0003757AK $4.00 #.2 L L0003757AK $4.00 #.2 5 Bulb, Side Marker R L002825W5W $2.35 #.2 L L002825W5W $2.35 #.2 Order by Application #R&R One Side Complete, Included in R&I/R&R Combination Lamp Page 4 of 106

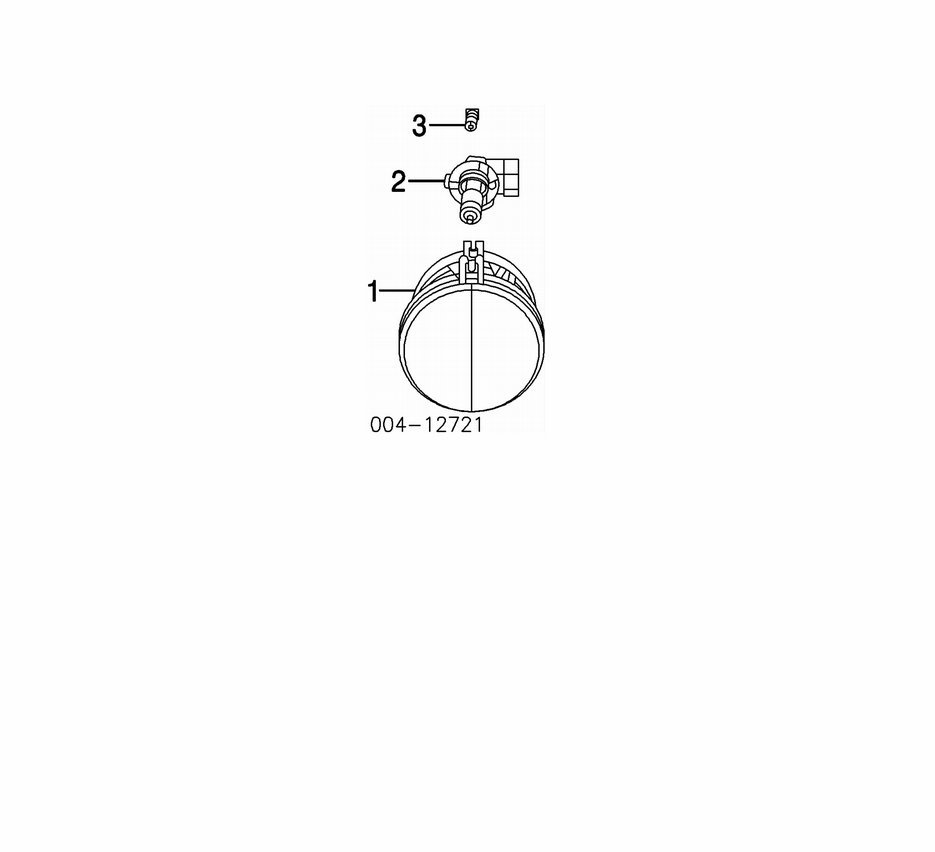

6 Screw, Mounting (3/Side) R 6508495AA $1.45 L 6508495AA $1.45 7 Harness, Front Lamp 5148233AA $114.00 Order by Application FOG LAMP Aim Fog Lamps .4 R&I Fog Lamp R #.4 L #.4 #Included in R&R or O/H Front Cover NOTE: R&R Does Not include aim lamps. 1 Lamp, Fog 08 R 4805857AA $67.35 #.4 L 4805857AA $67.35 #.4 09 R 4805857AB $67.35 #.4 L 4805857AB $67.35 #.4 10 R 5182025AA $38.75 #.4 L 5182025AA $38.75 #.4 #Included in R&R or O/H Front Cover 2 Bulb, Fog Lamp R L0009145 $16.20 #.2 L L0009145 $16.20 #.2 #Included in R&R Fog Lamp 3 Screw, Mounting (2/Side) R 6506579AA $0.60 L 6506579AA $0.60 HOOD Use Procedure Explanations 4 and 28 with the following text. Page 5 of 106

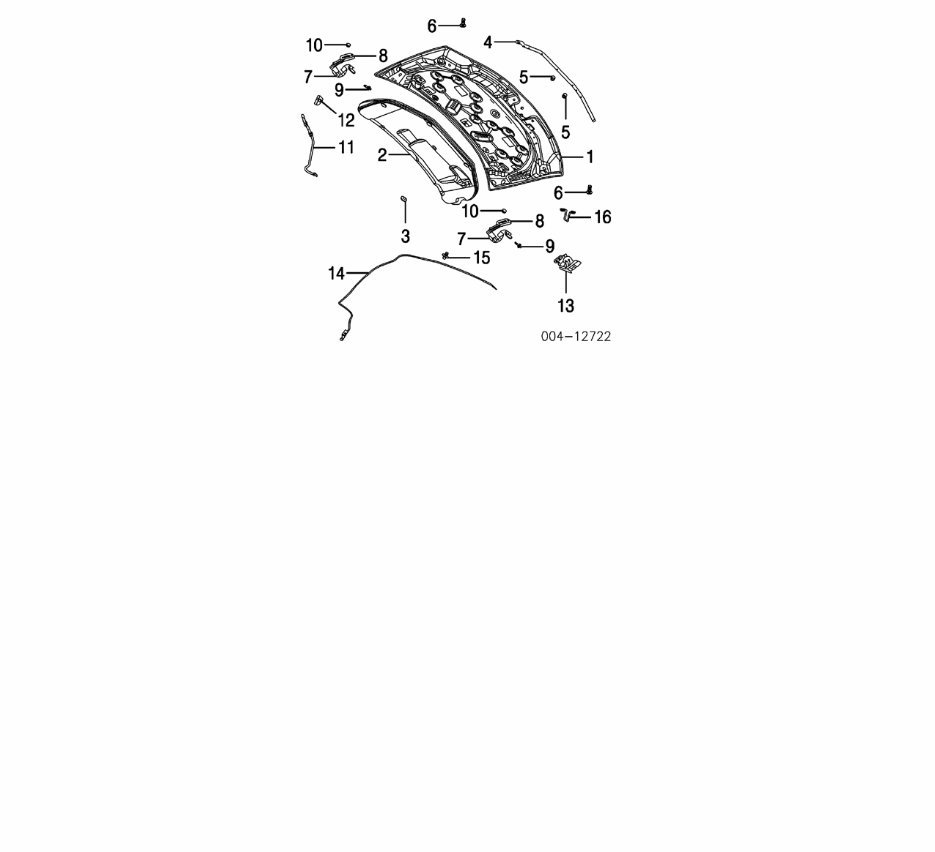

Refinish Hood Outside 2.8 Add for Underside 1.4 Refinish Hood Hinge Refinish Hood Side R .5 L .5 Refinish Fender Side R .5 L .5 R&I Hood .5 R&I Washer Nozzle R #.2 L #.2 #Included in R&R Hood 1 Panel, Hood 5008923AD $677.00 1.3 2 Insulator, Hood 5074506AB $58.85 .3 3 Clip, Insulator (4) 08 4878883AA $5.75 09-10 6504135 $3.10 4 Seal, Front Hood 5008936AA $27.75 5 Bumper, Hood (2) 5054227AA $3.85 6 Bumper, Adj R 4783223 $8.70 L 4783223 $8.70 Hinge, Hood 7 On Hood 08 R 5155470AC $20.50 #.3 L 5155471AC $20.50 #.3 09-10 R 5155470AD $30.60 #.3 L 5155471AD $30.60 #.3 #w/Hood & Cowl Grille Removed 8 On Fender R 5155812AA $22.00 #1.5 L 5155813AA $22.20 #1.5 #w/Hood, Fender & Cowl Grille Removed Page 6 of 106

9 Bolt, Mounting (2/Side) R 6508562AA $5.45 L 6508562AA $5.45 10 Nut, Mounting (2/Side) R 6104716AA $1.95 L 6104716AA $1.95 11 Rod, Prop 08 5008960AD $30.75 .1 09-10 5008960AE $30.75 .1 12 Grommet, Rod 6506223AA $6.20 13 Latch, Hood 4589190AC $31.45 .3 14 Cable, Hood Release 08-09 4389822AB $34.00 #1.0 10 4389822AC $34.00 #1.0 #Includes R&R Hood Latch 15 Grommet, Cable 4814094 $1.20 16 Striker, Latch 5155607AA $9.60 #.1 #Included in R&R Hood Nozzle, Washer-See Windshield Section COOLING Use Procedure Explanations 5 and 28 with the following text. R&I Radiator #1.5 #w/Condenser Removed 1 Radiator 08-09 68004049AA $220.00 #1.5 10 N.A. #1.5 #w/Condenser Removed Plug, Drain 52028466AB $8.60 2 Isolator, Upper R 5058136AB $10.50 L 5058136AB $10.50 3 Isolator, Lower R 68020480AA $13.10 Page 7 of 106

L 68020480AA $13.10 4 Bracket, Radiator R 5155810AA $9.85 L 5155809AA $18.45 5 Module, Fan 2008 68004051AA $235.00 #.8 2009-10-Serviced by Component Parts #Included in R&I/R&R Radiator Shroud, Fan 2008-Serviced w/Fan Module 2009-10 68031872AA $52.25 #1.1 Fan, Radiator 2008-Serviced w/Fan Module 2009-10 R 68031871AA $33.35 #1.1 L 68031871AA $33.35 #1.1 Motor, Fan 2008-Serviced w/Fan Module 2009-10 R 68031873AA $227.00 #1.1 L 68031873AA $227.00 #1.1 #R&R Complete 6 Hose, Upper Radiator 2.4L Eng w/Eng Oil Cooler 5058620AB $80.85 #.7 w/o Eng Oil Cooler 5058997AD $51.00 #.7 2.7L Eng 5058995AA $15.85 #.7 3.5L Eng 5058318AF $33.80 #.7 7 Hose, Lower Radiator 2.4L Eng 5058621AD $57.95 #1.0 2.7L Eng 5058996AC $77.95 #1.0 3.5L Eng 5058319AD $61.85 #1.0 Order by Application #R&R Both 1.5 8 Tube, Upper Hose 2.4L Eng 4884697AB $10.75 .5 9 Bracket, Upper Hose 2.4L Eng 5058488AB $11.85 10 Housing Assy, Inlet 3.5L Eng 4892189AD $25.50 2.7 11 Seal, Housing (a) 3.5L Eng 4892354AA $6.60 12 Tube, Inlet (a) 3.5L Eng 4892207AD 13 Hose, Coolant (a) 3.5L Eng 4892209AC (a) Included w/Inlet Housing Assy 14 Housing Assy, Thermostat 2.4L, 2.7L Eng-Serviced by Components 3.5L Eng 4892307AA $54.75 #3.2 Page 8 of 106

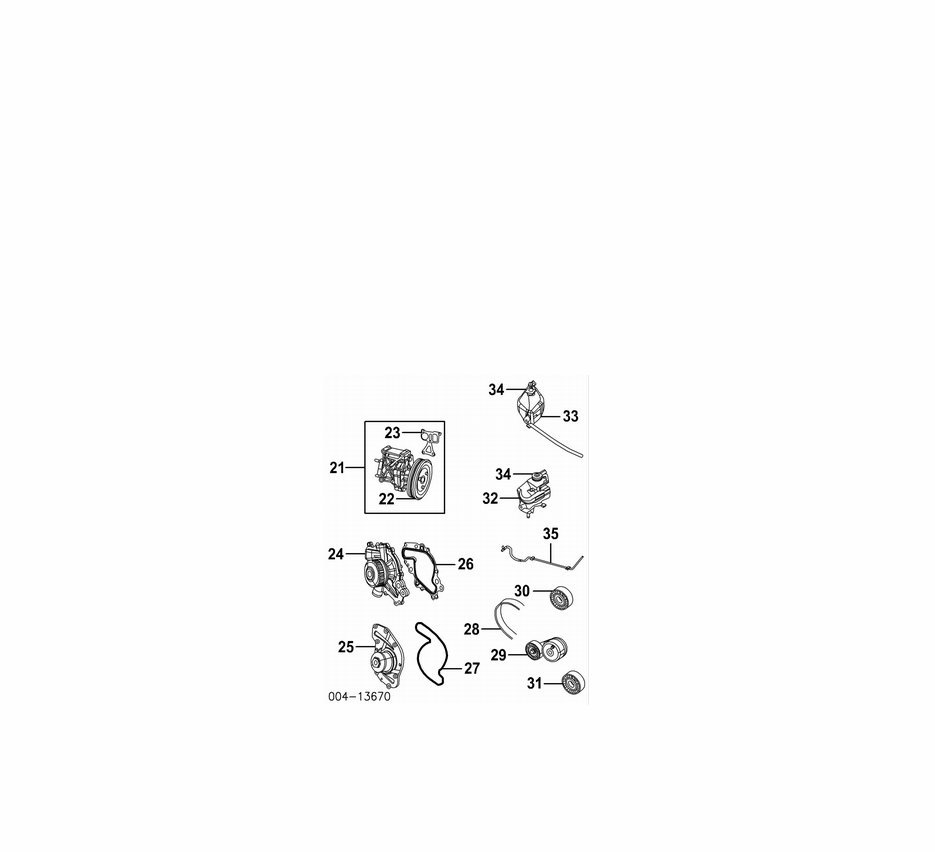

15 Housing, Thermostat (b) 2.4L Eng 4884571AB $5.35 #1.7 2.7L Eng N.A. #1.7 #Includes R&R Thermostat 3.5L Eng-Serviced w/Thermostat Housing Assy 16 Thermostat (b) 2.4L Eng 08 55111016AB $38.70 .9 09-10 55111016AC $40.10 .9 2.7L Eng 68023515AA $28.45 .9 3.5L Eng 4666140AA $14.20 .9 (b) Included w/Thermostat Housing Assy 17 Housing, Outlet 2.7L Eng 4892116AC $20.95 Adapter, Outlet Water 2.4L Eng 4884569AB $44.10 2.7L Eng 68003582AB $56.70 18 Connector, Inlet 2.7L Eng 4892113AB $16.95 19 Seal, Connector 2.7L Eng 4892354AA $6.60 20 Sensor, Temp 5033313AA $6.20 .5 21 Pump Assy, Water 2.4L Eng 08 5047138AA $64.85 2.2 09-10 5047138AB $67.60 2.2 22 Pulley, Water Pump (c) 2.4L Eng 68046027AA $25.00 #.8 #Includes R&R Drive Belt, Included in R&R Water Pump 23 Gasket, Water Pump (c) Page 9 of 106

2.4L Eng 4884696AA $1.10 (c) Included w/Water Pump Assy Pump, Water 24 2.7L Eng 4892225AA $126.00 3.2 25 3.5L Eng 4792968AD $86.20 3.6 Seal, Water Pump 26 2.7L Eng 4892311AA $9.85 27 3.5L Eng 4792982AA $11.45 28 Belt, Drive 2.4L Eng 4891721AB $18.00 .6 2.7L Eng 4891704AA $13.80 .6 3.5L Eng-See A/C /Heater/Ventilation Section Order by Application 29 Tensioner, Belt 2.4L Eng 08 4891595AB $48.35 #.8 09-10 4891595AC $48.35 #.8 2.7L Eng 4891617AA $77.50 #.8 3.5L Eng 4593805AB $77.25 #.8 #Includes R&R Drive Belt Bracket, Tensioner 2.4L Eng-See Steering Pump Section 3.5L Eng-Serviced w/Belt Tensioner Bolt, Tensioner (2) 2.4L Eng 6104198AA $1.60 2.7L, 3.5L Eng 6104223AA $2.45 Pulley, Idler 30 No. 1 4891596AB $18.20 #.7 31 No. 2 4891797AA $16.75 #.7 Order by Application #Includes R&R Drive Belt Bolt, Pulley Mtg 2.4L Eng, (2) 6508391AA $1.20 3.5L Eng 6508247AA $1.70 Reservoir, Coolant 32 2.4L Eng 08 5058371AC $31.95 .6 09-10 5058371AD $31.95 .6 33 2.7L, 3.5L Eng 08-09 5058511AC $62.95 .6 10 5058511AD $34.95 .6 34 Cap, Reservoir 4596198 $21.60 35 Hose, Supply (d) N.A. .3 (d) Cut to Fit ENGINE OIL COOLER Page 10 of 106
