2011 Chrysler/Dodge 300 300C Parts Manual
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
VIN PLATE DECODING INFORMATION
1 2 3 4 5 6 7 8 9 10 11 12 thru 17
Country Make
Vehicle
Type
Other Line Series
Body
Style
Engine
Check
Digit
Model
Year
Assy.
Plant
Sequence No.
The following table interprets the VIN Plate position shown above.
Position Interpretation Codes = Description
1 Country of Origin 2 = Chrysler Canada
2 Assembler C = Chrysler
B = Dodge
3 Vehicle Type 3 = Passenger Car
4 GVWR & Pass. Safety A = Active Belts (ASP) Front Air Bags (OSP) Without Side
Inatable Restraints
B = Active Belts (ASP) Front Air Bags (OSP) With Side
Inatable Restraints Front Row
C = Active Belts (ASP) Front Air Bags (OSP) With Side
Inatable Restraints All Rows
D = Active Belts (ASP) With Out Air Bags And Without Side
Inatable Restraints
5 Vehicle Line A = 300 / 300C (RWD) (LHD) U.S., Canada, Mexico, BUX
K = 300 / 300C (AWD) (LHD) U.S., Canada
6 Series 4 = 300 Touring C-H-48 U.S., Canada
5 = 300 Limited C-P-48 U.S., Canada
6 = 300C C-S-48 U.S., Canada, Mexico, BUX
6 = 300C F-S-48 U.S., Canada
7 Body Style C = 4DR Sedan Tall Body Style - 48 (LX-48)
8 Engine G = 3.6L 6 CYL Gasoline Non - Turbo ERB
T = 5.7L 8 CYL Gasoline Non Turbo EZH
9 Check Digit 0 = Check Digit
10 Model Year B = 2011 Model Year
11 Assembly Plant H = Brampton Assembly
12 thru 17 Vehicle Build Sequence Model Year Assembly Sequence
Group - 2
Front Suspension
002-100
Front Suspension, Strut and
Cradle
002-200
Front Stabilizer Bar

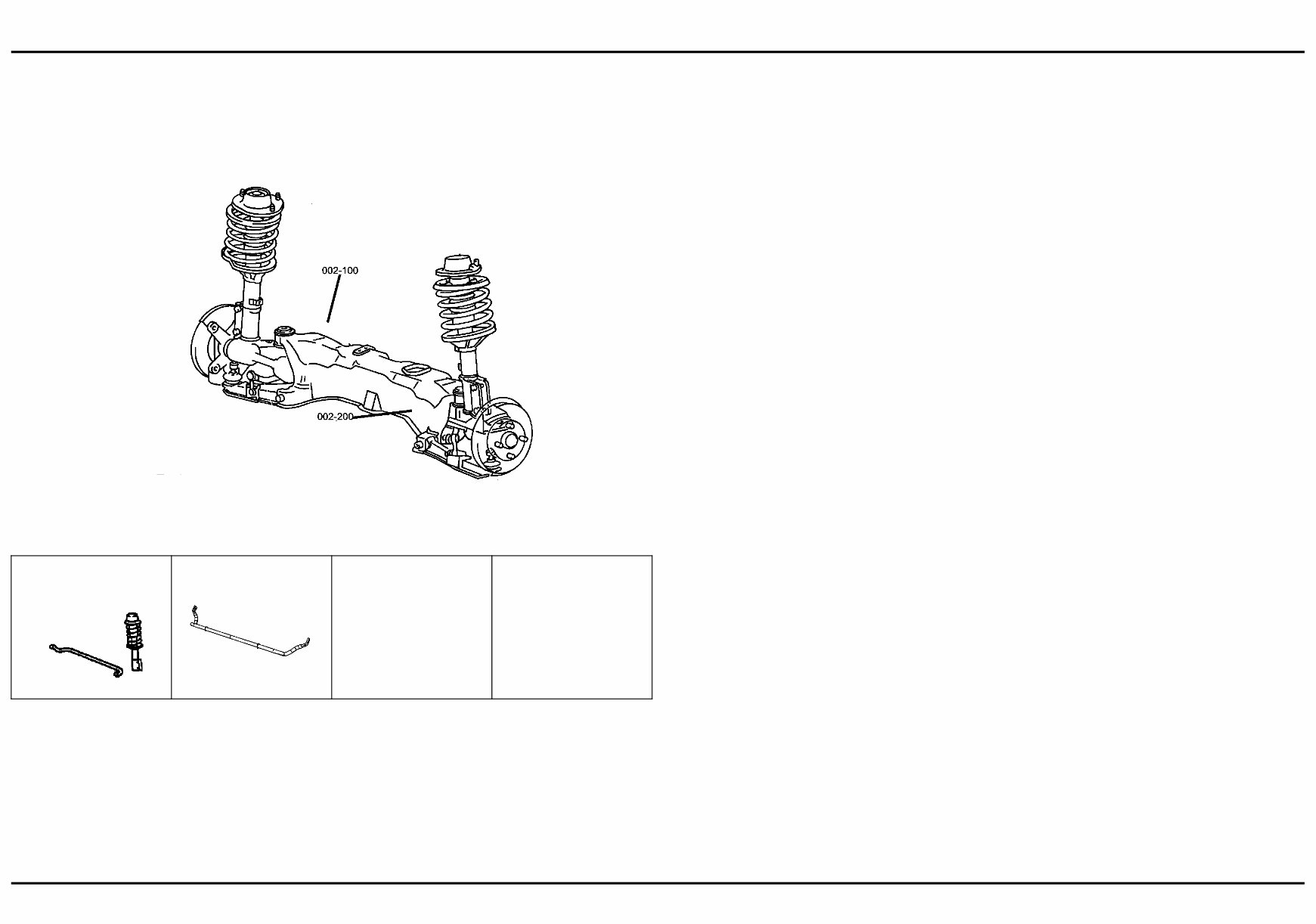

Group - 2 Front Suspension
Illustration Title Group-Fig. No.
Front Suspension, Strut and Cradle
Suspension, Front [RWD] ................................................................................................................... Fig. 2 - 105
Suspension, Front [AWD] .................................................................................................................... Fig. 2 - 110
Front Stabilizer Bar
Stabilizer Bar, Front, [RWD] ................................................................................................................. Fig. 2 - 205
Stabilizer Bar, Front, [AWD] ................................................................................................................. Fig. 2 - 206
2011 LX

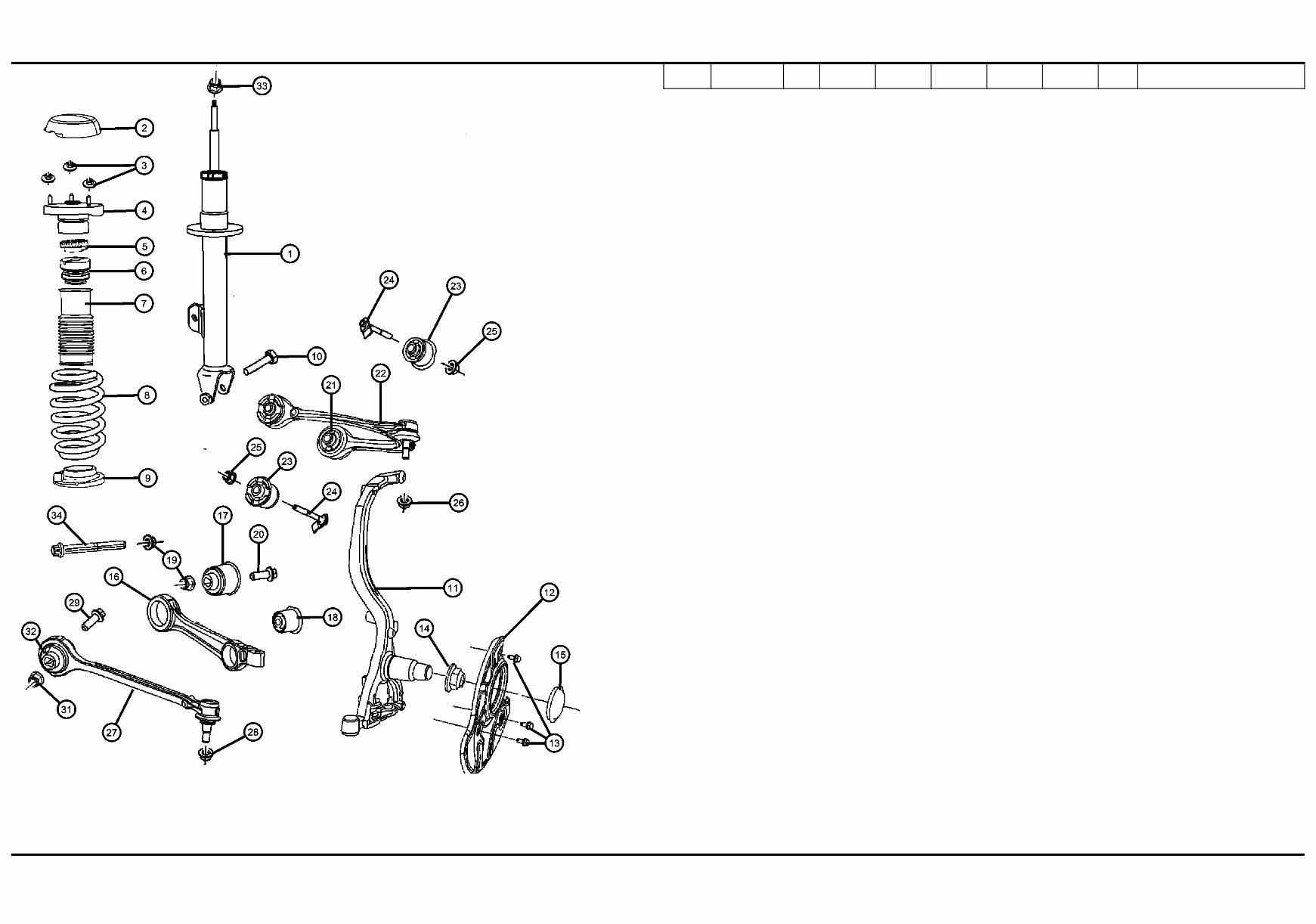

Suspension, Front [RWD]
Figure 2-105
ITEM
PART
NUMBER
QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION
Suspension, Front [RWD]
1 SHOCK ABSORBER, Suspension,
Front
05168647AA 1 C 48 ERB [SDG], Left
68072062AB 1 C 48 [SDC], Right
05168646AA 1 C 48 ERB [SDG], Right
68072065AC 1 C 48 [SDD], Left
68072063AB 1 C 48 [SDC], Left
68072064AC 1 C 48 [SDD], Right
68090072AB 1 C 48 [SDE], Right
68072066AB 1 C 48 [SDB], Right
68090073AB 1 C 48 [SDE], Left
68072067AB 1 C 48 [SDB], Left
2 04782982AB 2 C, F, Z 48 CAP, Shock Tower
3 06506152AA 6 C, F, Z 48 NUT AND WASHER, Hex
Nut-Coned Washer, M8 x 1.25,
Front Shock Mounting
4 05181575AA 2 C, Z 48 MOUNT, Strut, Upper
5 04895422AA 2 C, F, Z 48 ISOLATOR, Front Suspension
Spring
6 04782916AC 2 C, Z 48 BUMPER, Jounce
7 04782629AA 2 C, Z 48 SHIELD, Shock Absorber Dust
8 SPRING, Front Coil
68031640AC 1 C, F, Z 48 [ZPA], Right
1 C, F, Z 48 [ZBA], Left
68031641AC 1 C, F, Z 48 [ZBB], Left
68031642AB 1 C, F, Z 48 [ZPE], Right
1 C, F, Z 48 [ZPB], Right
68031643AB 1 C, F, Z 48 [ZBH], Left
1 C, F, Z 48 [ZBE], Left
68031645AB 1 C, F, Z 48 [ZRA], Right
68031644AB 1 C, F, Z 48 [ZPJ], Right
1 C, F, Z 48 [ZBJ], Left
68031646AB 1 C, F, Z 48 [ZRC], Right
1 C, F, Z 48 [ZCA], Left
1 C, F, Z 48 [ZCC], Left
68031651AB 1 C, F, Z 48 [ZRG], Right
68031647AB 1 C, F, Z 48 [ZRD], Right
1 C, F, Z 48 [ZPH], Right
MAGNUM/300/CHARGER (LX)
SERIES LINE BODY ENGINE TRANSMISSION
H = HIGHLINE
P = PREMIUM
S = SPORT
C = CHRYSLER
F = EAGLE
48 = SEDAN TYPE #8 ERB = 3.XL Mid V6 Engine
EZH = 5.7L V8 HEMI MDS
VCT Engine
DGJ = 5-Speed Auto W5A580
Transmission
AR = use ase required - = Non illustrrated part 2011 LX
<< RETURN TO GROUP INDEX
Suspension, Front [RWD]
Figure 2-105
ITEM
PART
NUMBER
QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION
68031655AB 1 C, F, Z 48 [ZRE], Right
68031653AB 1 C, F, Z 48 [ZSD], Right
1 C, F, Z 48 [ZDD], Left
1 C, F, Z 48 [ZCD], Left
68031652AB 1 C, F, Z 48 [ZCH], Left
1 C, F, Z 48 [ZCG], Left
1 C, F, Z 48 [ZRH], Right
68031658AB 1 C, F, Z 48 [ZSE], Right
1 C, F, Z 48 [ZDE], Left
68031657AB 1 C, F, Z 48 [ZDC], Left
1 C, F, Z 48 [ZCE], Left
1 C, F, Z 48 [ZSC], Right
9 04895452AA 2 C, Z 48 ISOLATOR, Front Suspension
Spring
10 06507620AA 2 C, Z 48 BOLT, Hex Flange Head,
M14x2.00x110.00
11 KNUCKLE, Front
04782741AE 1 C 48 Left
04782740AE 1 C 48 Right
12 SHIELD, Brake
04779200AA 1 C 48 Right
04779201AA 1 C 48 Left
13 06102164AA 3 C 48 BOLT AND CONED WASHER,
Hex Head, M6X1.00X14.00
14 06504007 1 C 48 NUT, Axle Hub
15 04779253AA 1 C 48 CAP, Wheel Bearing
16 ARM, Lower Control, Front
05168389AA 1 C, Z 48 [SDB] Or [SDD] Or [SDE], Right
or Left
68079723AA 1 C, Z 48 [SDC] Or [SDG], Right or Left
17 1 BUSHING, Pivot, Serviced in item
# 16, (NOT SERVICED),
18 1 BUSHING, Pivot, Serviced in item
# 16, (NOT SERVICED)
19 06502502 2 C, Z 48 NUT, Hex Flange Lock, M14x2
20 06507089AA 2 C, Z 48 BOLT, Hex Head,
M14x2.00x120.00
21 04895415AB 4 C, Z 48 SPACER
22 ARM, Upper Control, Front
MAGNUM/300/CHARGER (LX)
SERIES LINE BODY ENGINE TRANSMISSION
H = HIGHLINE
P = PREMIUM
S = SPORT
C = CHRYSLER
F = EAGLE
48 = SEDAN TYPE #8 ERB = 3.XL Mid V6 Engine
EZH = 5.7L V8 HEMI MDS
VCT Engine
DGJ = 5-Speed Auto W5A580
Transmission
AR = use ase required - = Non illustrrated part 2011 LX
<< RETURN TO GROUP INDEX
Suspension, Front [RWD]
Figure 2-105
ITEM
PART
NUMBER
QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION
68045130AC 1 C, Z 48 Right
68045131AC 1 C, Z 48 Left
23 1 BUSHING, Pivot, Serviced in item
# 22, (NOT SERVICED)
24 06507711AA 4 C, F, Z 48 BOLT
25 06502835 4 C, F, Z 48 NUT, Hex Flange Lock, M12x1.75
26 06507207AA 1 C, F 48 NUT, Hex Flange Lock, M12x1.75
27 STRUT, Tension
04670509AD 1 C, Z 48 Left
04670508AD 1 C, Z 48 Right
28 06507838AA 1 C 48 NUT
29 68101331AA 2 C, Z 48 BOLT AND WASHER, Hex Head,
M14 x 2.00 x 111.6, Tension Strut
to Cradle
-30 68101332AA 2 C, Z 48 WASHER, M14, Tension Strut to
Cradle
31 06502502 2 C, Z 48 NUT, Hex Flange Lock, M14x2,
Tension Strut to Cradle
32 04895415AB 4 C, Z 48 SPACER
33 06507207AA 2 C, F, Z 48 NUT, Hex Flange Lock, M12x1.75
34 2 BOLT, Camber Adjust, (NOT
SERVICED)
MAGNUM/300/CHARGER (LX)
SERIES LINE BODY ENGINE TRANSMISSION
H = HIGHLINE
P = PREMIUM
S = SPORT
C = CHRYSLER
F = EAGLE
48 = SEDAN TYPE #8 ERB = 3.XL Mid V6 Engine
EZH = 5.7L V8 HEMI MDS
VCT Engine
DGJ = 5-Speed Auto W5A580
Transmission
AR = use ase required - = Non illustrrated part 2011 LX
<< RETURN TO GROUP INDEX

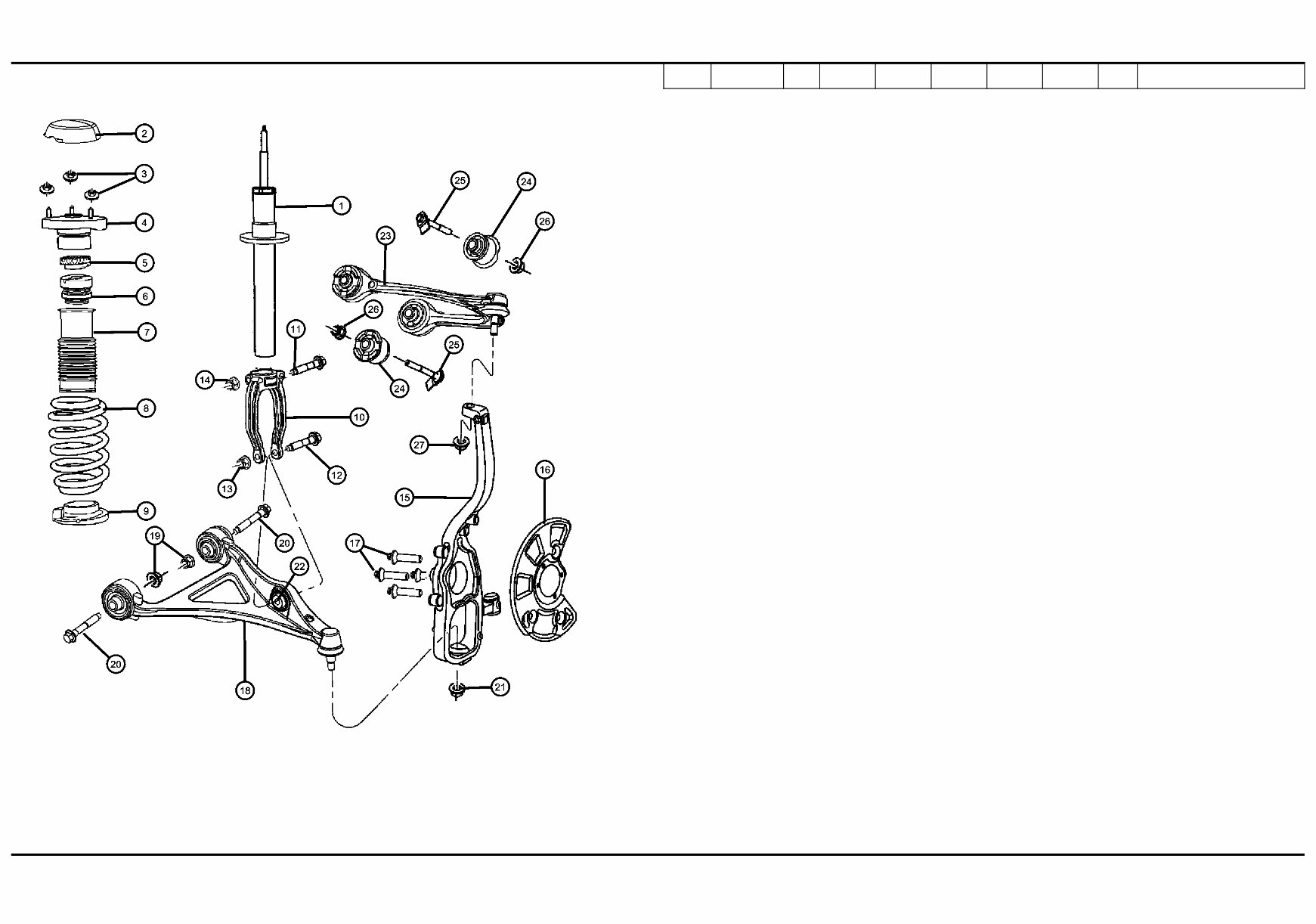

Suspension, Front [AWD]
Figure 2-110
ITEM
PART
NUMBER
QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION
Suspension, Front [AWD]
1 68072068AA 2 F 48 SHOCK ABSORBER, Suspension,
Front
2 04782982AB 2 C, F, Z 48 CAP, Shock Tower
3 06506152AA 6 C, F, Z 48 NUT AND WASHER, Hex
Nut-Coned Washer, M8 x 1.25
4 MOUNT, Strut, Upper
04895413AE 1 F 48 Left
04895414AE 1 F 48 Right
5 ISOLATOR, Front Suspension
Spring, Upper
04895451AA 1 F 48 Left
04895454AA 1 F 48 Right
6 04895444AB 2 F 48 BUMPER, Jounce
7 04895650AA 2 F 48 SHIELD, Shock Absorber Dust
8 SPRING, Front Coil
68031640AC 1 C, F, Z 48 [ZPA], Right
1 C, F, Z 48 [ZBA], Left
68031641AC 1 C, F, Z 48 [ZPB], Right
1 C, F, Z 48 [ZBB], Left
68031642AB 1 C, F, Z 48 [ZPE], Right
1 C, F, Z 48 [ZBE], Left
68031643AB 1 C, F, Z 48 [ZPH], Right
1 C, F, Z 48 [ZBH], Left
68031644AB 1 C, F, Z 48 [ZPJ], Right
68031645AB 1 C, F, Z 48 [ZRA], Right
1 C, F, Z 48 [ZCA], Left
68031646AB 1 C, F, Z 48 [ZCC], Left
1 C, F, Z 48 [ZRC], Right
68031647AB 1 C, F, Z 48 [ZRD], Right
1 C, F, Z 48 [ZCD], Left
68031651AB 1 C, F, Z 48 [ZRG], Right
1 C, F, Z 48 [ZCG], Left
68031652AB 1 C, F, Z 48 [ZRH], Right
1 C, F, Z 48 [ZCH], Left
68031653AB 1 C, F, Z 48 [ZSD], Right
1 C, F, Z 48 [ZBJ], Left
68031655AB 1 C, F, Z 48 [ZCE], Left
MAGNUM/300/CHARGER (LX)
SERIES LINE BODY ENGINE TRANSMISSION
H = HIGHLINE
P = PREMIUM
S = SPORT
C = CHRYSLER
F = EAGLE
48 = SEDAN TYPE #8 ERB = 3.XL Mid V6 Engine
EZH = 5.7L V8 HEMI MDS
VCT Engine
DGJ = 5-Speed Auto W5A580
Transmission
AR = use ase required - = Non illustrrated part 2011 LX
<< RETURN TO GROUP INDEX
Suspension, Front [AWD]
Figure 2-110
ITEM
PART
NUMBER
QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION
68031657AB 1 C, F, Z 48 [ZSC], Right
1 C, F, Z 48 [ZDC], Left
68031658AB 1 C, F, Z 48 [ZSE], Right
1 C, F, Z 48 [ZDD], Left
1 C, F, Z 48 [ZRE], Right
1 C, F, Z 48 [ZDE], Left
9 04895422AA 2 C, F, Z 48 ISOLATOR, Front Suspension
Spring
10 CLEVIS, Front
68078352AB 1 F 48 Right
68078353AB 1 F 48 Left
11 06504863AA 2 F 48 BOLT, Hex Flange Head,
M12x1.75x89.50
12 06509576AA 2 F 48 BOLT, Hex Flange Head,
M14X2.00X120.00
13 06502502 2 F 48 NUT, Hex Flange Lock, M14x2
14 06502724 2 F 48 NUT, Hex Flange, M12x1.75
15 KNUCKLE, Front
04895711AC 1 F 48 Left
04895710AC 1 F 48 Right
16 SHIELD, Brake
04779326AA 1 F 48 Right
04779327AA 1 F 48 Left
17 06507234AA 4 F 48 SCREW, 6 Lobed
18 ARM, Lower Control, Front
04895040AG 1 F 48 Right
04895041AG 1 F 48 Left
19 06502502 4 F 48 NUT, Hex Flange Lock, M14x2
20 06507575AA 4 F 48 SCREW, Hex Flange Head,
M14X2.00X100.00
21 06507838AA 1 C, F, Z 48 NUT
22 1 BUSHING, Pivot, Serviced in Item
#18, (NOT SERVICED)
23 ARM, Upper Control, Front
04895668AB 1 F 48 Right
04895669AB 1 F 48 Left
24 1 BUSHING, Pivot, Serviced in item
# 23, (NOT SERVICED)
MAGNUM/300/CHARGER (LX)
SERIES LINE BODY ENGINE TRANSMISSION
H = HIGHLINE
P = PREMIUM
S = SPORT
C = CHRYSLER
F = EAGLE
48 = SEDAN TYPE #8 ERB = 3.XL Mid V6 Engine
EZH = 5.7L V8 HEMI MDS
VCT Engine
DGJ = 5-Speed Auto W5A580
Transmission
AR = use ase required - = Non illustrrated part 2011 LX
<< RETURN TO GROUP INDEX
Suspension, Front [AWD]
Figure 2-110
ITEM
PART
NUMBER
QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION
25 06507711AA 4 C, F, Z 48 BOLT
26 06502835 4 C, F, Z 48 NUT, Hex Flange Lock, M12x1.75
27 06507207AA 1 C, F 48 NUT, Hex Flange Lock, M12x1.75
MAGNUM/300/CHARGER (LX)
SERIES LINE BODY ENGINE TRANSMISSION
H = HIGHLINE
P = PREMIUM
S = SPORT
C = CHRYSLER
F = EAGLE
48 = SEDAN TYPE #8 ERB = 3.XL Mid V6 Engine
EZH = 5.7L V8 HEMI MDS
VCT Engine
DGJ = 5-Speed Auto W5A580
Transmission
AR = use ase required - = Non illustrrated part 2011 LX
<< RETURN TO GROUP INDEX

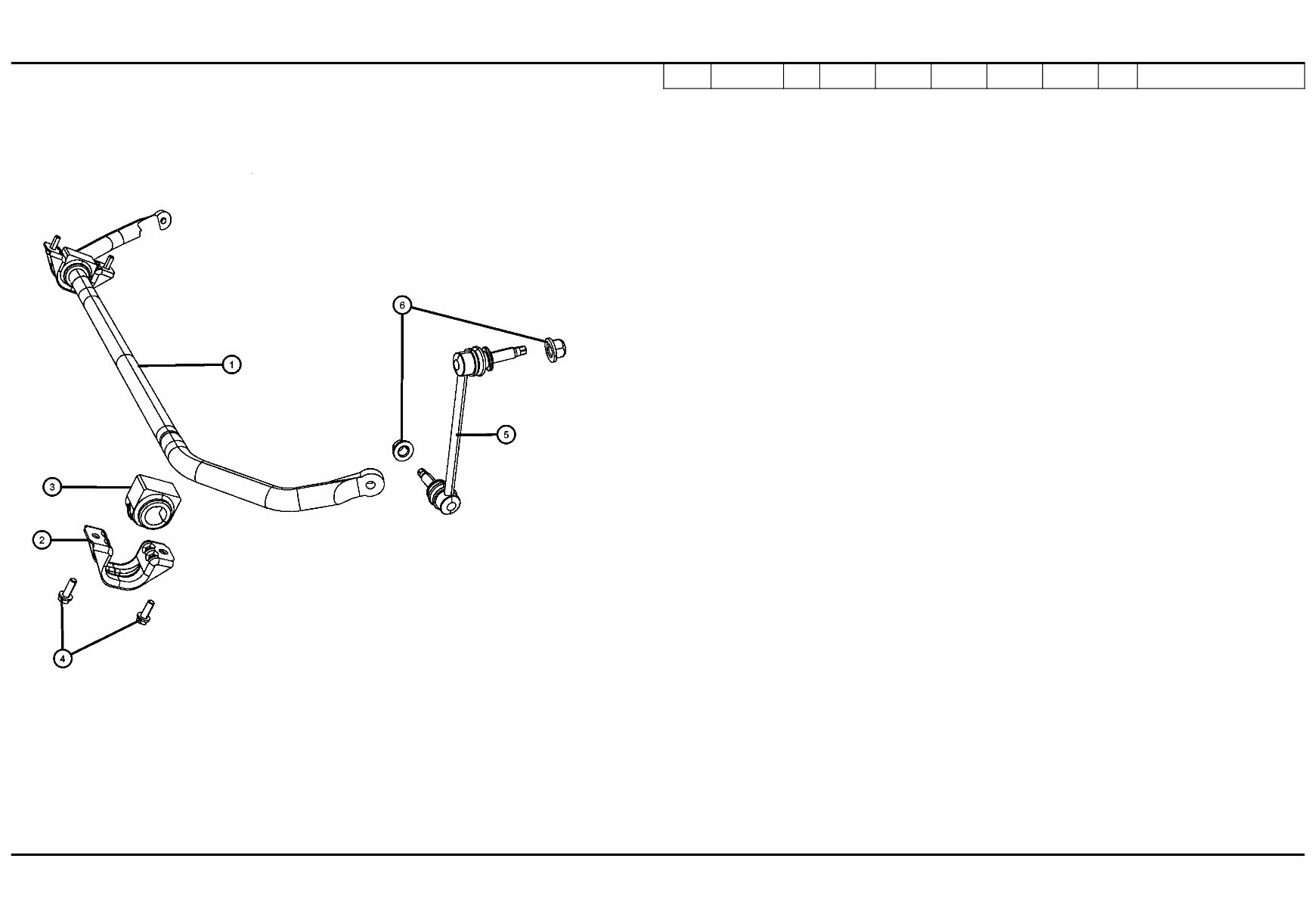

Stabilizer Bar, Front, [RWD]
Figure 2-205
ITEM
PART
NUMBER
QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION
Stabilizer Bar, Front, [RWD]
1 STABILIZER BAR, Front
04782543AC 1 C, Z 48 [SDC]
68080740AA 1 C, Z 48 [SDB]
04782541AC 1 C, Z 48 [SDG]
04782544AC 1 C, Z 48 [SDE]
2 04782718AA 2 C, Z 48 CLAMP, Stabilizer Bar
3 04782722AA 2 C, Z 48 CLAMP, Stabilizer Bar
4 2 CUSHION, Sway Eliminator,
Serviced in Stabilizer Bar Assy,
(NOT SERVICED)
5 04782817AA 2 C, Z 48 SHIELD, Heat
6 06101848 4 C, F, Z 48 BOLT AND WASHER, Hex Head,

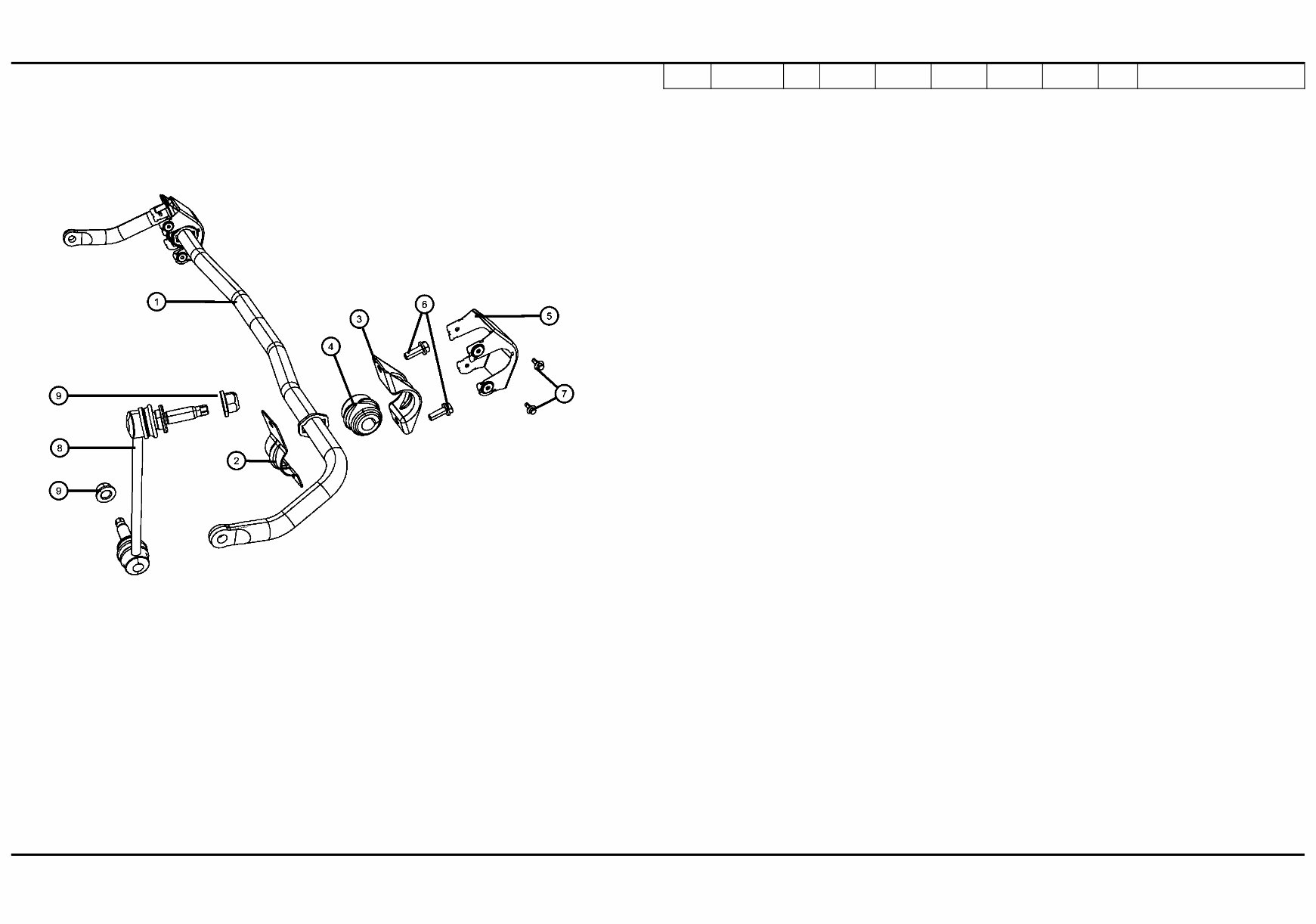

M10x1.50x30.00
7 06507593AA 4 C, Z 48 SCREW, Tapping Hex Head,
M5X0.8X14.00
8 04895483AB 1 C, Z 48 LINK, Sway Eliminator
9 06502502 2 C, F, Z 48 NUT, Hex Flange Lock, M14x2
MAGNUM/300/CHARGER (LX)
SERIES LINE BODY ENGINE TRANSMISSION
H = HIGHLINE
P = PREMIUM
S = SPORT
C = CHRYSLER
F = EAGLE
48 = SEDAN TYPE #8 ERB = 3.XL Mid V6 Engine
EZH = 5.7L V8 HEMI MDS
VCT Engine
DGJ = 5-Speed Auto W5A580
Transmission
AR = use ase required - = Non illustrrated part 2011 LX
<< RETURN TO GROUP INDEX
Stabilizer Bar, Front, [AWD]
Figure 2-206
ITEM
PART
NUMBER
QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION
Stabilizer Bar, Front, [AWD]
1 04782950AC 1 F 48 STABILIZER BAR, Front
2 04895134AB 2 F 48 RETAINER, Stabilizer Bar Bushing
3 04782990AC 2 F 48 ISOLATOR, Front Suspension
Cradle
4 06101848 4 C, F, Z 48 BOLT AND WASHER, Hex Head,
M10x1.50x30.00
5 04782952AC 2 F 48 LINK, Sway Eliminator
6 06502502 2 C, F, Z 48 NUT, Hex Flange Lock, M14x2
MAGNUM/300/CHARGER (LX)
SERIES LINE BODY ENGINE TRANSMISSION
H = HIGHLINE
P = PREMIUM
S = SPORT
C = CHRYSLER
F = EAGLE
48 = SEDAN TYPE #8 ERB = 3.XL Mid V6 Engine
EZH = 5.7L V8 HEMI MDS
VCT Engine
DGJ = 5-Speed Auto W5A580
Transmission
AR = use ase required - = Non illustrrated part 2011 LX
<< RETURN TO GROUP INDEX
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$30.99
Viewed 34 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$30.99
This comprehensive Parts manual is specifically designed for the 2011 Chrysler/Dodge 300 300C, covering various specifications and components for different models and configurations.
- LINE
- 300 / 300C (RWD) (LHD) U.S., Canada, Mexico, BUX
- 300 / 300C (AWD) (LHD) U.S., Canada
- BODY
- 4DR Sedan Tall Body Style - 48 (LX-48)
- ENGINE
- 3.6L 6 CYL Gasoline Non - Turbo ERB
- 5.7L 8 CYL Gasoline Non - Turbo EZH
This Service Repair Manual encompasses a wide range of components and systems, including but not limited to:
- Group - 2 Front Suspension
- Group - 3590 All Wheel Drive; Differential and Drive Line
- Group - 0035ZV Rear Wheel Drive; Differential and Drive Line
- Group - 5 Brakes
- Group - 7 Cooling
- Group - 8 Electrical
- Group - 009ERB 3.6L Gas; Engine
- Group - 009EZH 5.7L Gas; Engine
- Group - 10 Restraints
- Group - 11 Exhaust
- Group - 13 Frame, Bumper and Fascia
- Group - 14 Fuel
- Group - 17 Rear Suspension
- Group - 19 Steering
- Group - 021DGJ NAG1; W5A580; 5-Speed; Automatic Transmission
- Group - 021DKB Power Transfer Unit; Transfer Case
- Group - 22 Wheels
- Group - 24 Air Conditioners and Heaters
- Group - 25 Emission Controls
- Group - 26 Labels
- Group - 27 Glass
- Group - 30 Doors, Door Mirrors and Related Parts
- Group - 40 Exterior Ornamentation
- Group - 50 Interior Trim
- Group - 60 Body Sheet Metal Except Doors
This manual is of high quality, with printable pages and is instantly accessible without any shipping costs or the need to wait for a CD-ROM. The file format is compatible with all versions of Windows & Mac, and it requires Adobe Reader for access.
