Daihatsu Sirion Service repair Manual

EXTERIOR, MODEL VARIATION, VEHICLE MODEL CODE -------------------- A1 - 1 EXTERIOR ------------------------------------ A1 - 1 MODEL VARIATION------------------------ A1 - 2 EXPLANATION OF VEHICLE MODEL CODE ------------------------------- A1 - 2 SPECIFICATIONS ----------------------------- A1 - 3 VIEWS OF VEHICLE-------------------------- A1 - 4 VEHICLE IDENTIFICATION----------------- A1 - 5 LOCATION ------------------------------------ A1 - 5 ABBREVIATION CODES -------------------- A1 - 6 A1 GENERAL INFORMATION A1 TO INDEX

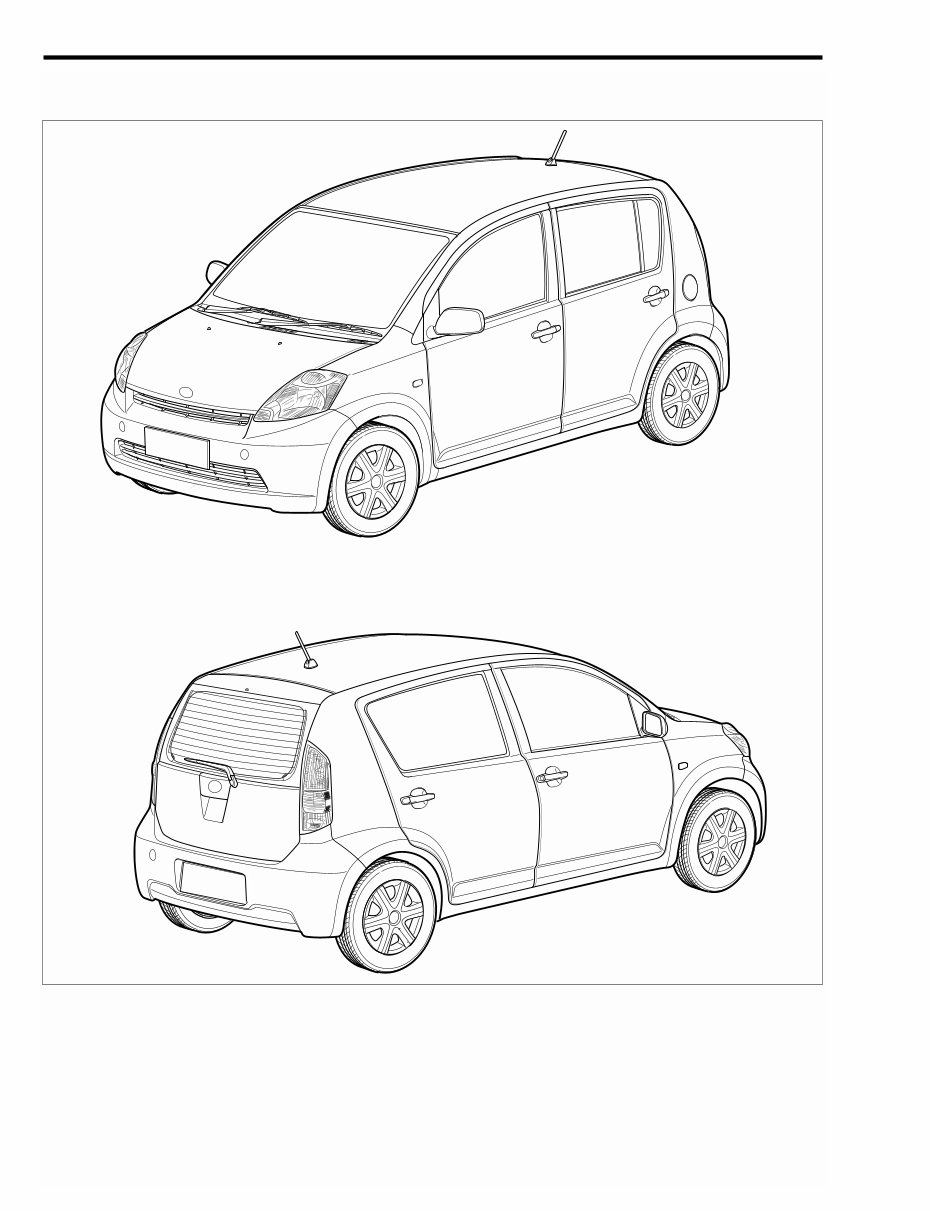

1 EXTERIOR, MODEL VARIATION, VEHICLE MODEL CODE 1-1 EXTERIOR T11S1501S40 A1–1

1-2 MODEL VARIATION 1-2-1 GENERAL SPECIFICATIONS 1-2-2 EU SPECIFICATIONS 1-3 EXPLANATION OF VEHICLE MODEL CODE M 3 1 0 2 0 3 R 4 S 5 ( G 6 M 7 N 8 E 9 W ! 1Model 2Drive M3 : SIRION 0 : 2WD 3Engine 4Steering 0 : 1KR(FE L : LHD 1 : K3(VE R : RHD 5Body type 6Door S : Sedan G : 5(door 7Transmission 8Grade M : 5M/T N : STD(1.0L) Q : Electronic control 4A/T G : STD(1.3L) 9Fuel system !Market E : DOHC None : General W : EU / AUS Model code Steering position Engine Drive Transmission Body type M300RS(GMNEW RHD 1KR(FE 2WD 5M/T 5(door M301RS(GMGEW RHD K3(VE 2WD 5M/T 5(door M301RS(GQGEW RHD K3(VE 2WD Electronic control 4A/T 5(door M300LS(GMNEW LHD 1KR(FE 2WD 5M/T 5(door M301LS(GMGEW LHD K3(VE 2WD 5M/T 5(door M301LS(GQGEW LHD K3(VE 2WD Electronic control 4A/T 5(door Model code Steering position Engine Drive Transmission Body type M300RS(GMNE RHD 1KR(FE 2WD 5M/T 5(door M301RS(GMGE RHD K3(VE 2WD 5M/T 5(door M301RS(GQGE RHD K3(VE 2WD Electronic control 4A/T 5(door M300LS(GMNE LHD 1KR(FE 2WD 5M/T 5(door M301LS(GMGE LHD K3(VE 2WD 5M/T 5(door M301LS(GQGE LHD K3(VE 2WD Electronic control 4A/T 5(door A1–2

2 SPECIFICATIONS M300LS/M300RS M301LS/M301RS GMNE GMNEW GMGE GQGE GMGEW GQGEW Engine 1KR(FE K3(VE Market General EU, AUS General General EU, AUS EU, AUS Items Drive 5M/T 5M/T 5M/T E4A/T 5M/T E4A/T Overall length mm 3600 With Aero Bumper mm ( 3630 Overall width mm 1665 Overall height mm 1550 Interior length mm 1830 Interior width mm 1400 Interior height mm 1275 Wheelbase mm 2430 Front mm 1470 ( 13 " tire Rear mm 1475 ( Front mm 1460 Tread 14 " tire Rear mm 1465 Minimum road clearance mm 150 13 " tire m 4.3 (Tire), 4.7 (Body) ( Min Turning Radius 14 " tire m 4.7 (Tire), 5.1 (Body) Kerb weight kg 875 890 925 940 955 General, EU kg 1380 1390 1450 Gross vehicle weight AUS kg ( 1320 ( 1380 Seating capacity persons Front : 2, Rear : 3 Engine type 1KR(FE K3(VE Total displacement cc 998 1298 Bore)stroke mm 71.0)84.0 72.00)79.70 Max. output kw/rpm 51.0/6000 64.0/6000 Max. Torque Nm/rpm 94.0/3600 120.0/3200 Compression ratio 10.5&0.3 10&0.3 Fuel system EFI (Electronic fuel injection) Fuel tank capacity Litres 40 5M/T Dry single plate with diaphragm spring and mechanical actuation Clutch 4A/T 3-element, 1-stage, 2-phase 5M/T Forward 5-speed, manual, all synchromesh Transmission 4A/T Forward 4-speed full automatic 1KR(FE 5M/T 1st:3.182, 2nd:1.842, 3rd:1.250, 4th:0.917, 5th:0.750, rev:3.143 5M/T 1st:3.182, 2nd:1.842, 3rd:1.250, 4th:0.865, 5th:0.750, rev:3.143 Transmission gear ratio K3(VE 4A/T 1st:2.731, 2nd:1.526, 3rd:1.00, 4th:0.696, rev:2.290 1KR(FE 5M/T 4.500 5M/T 4.267 Final reduction gear ratio K3(VE 4A/T 4.032 Steering type Rack&Pinion Front Disk brakes with booster Main brakes Rear Drum brakes, leading and trailing Parking brake Mechanically oprerating on rear wheels Front MacPherson struts with coil springs Suspension Rear Semi-independent torsion axle beam with coil springs 13 " tire 155/80R13 ( Tires 14 " tire 175/65R14 without brake kg 350 Trailer towing with brake kg 750 1000 Permissible roof rack load kg 50 A1–3

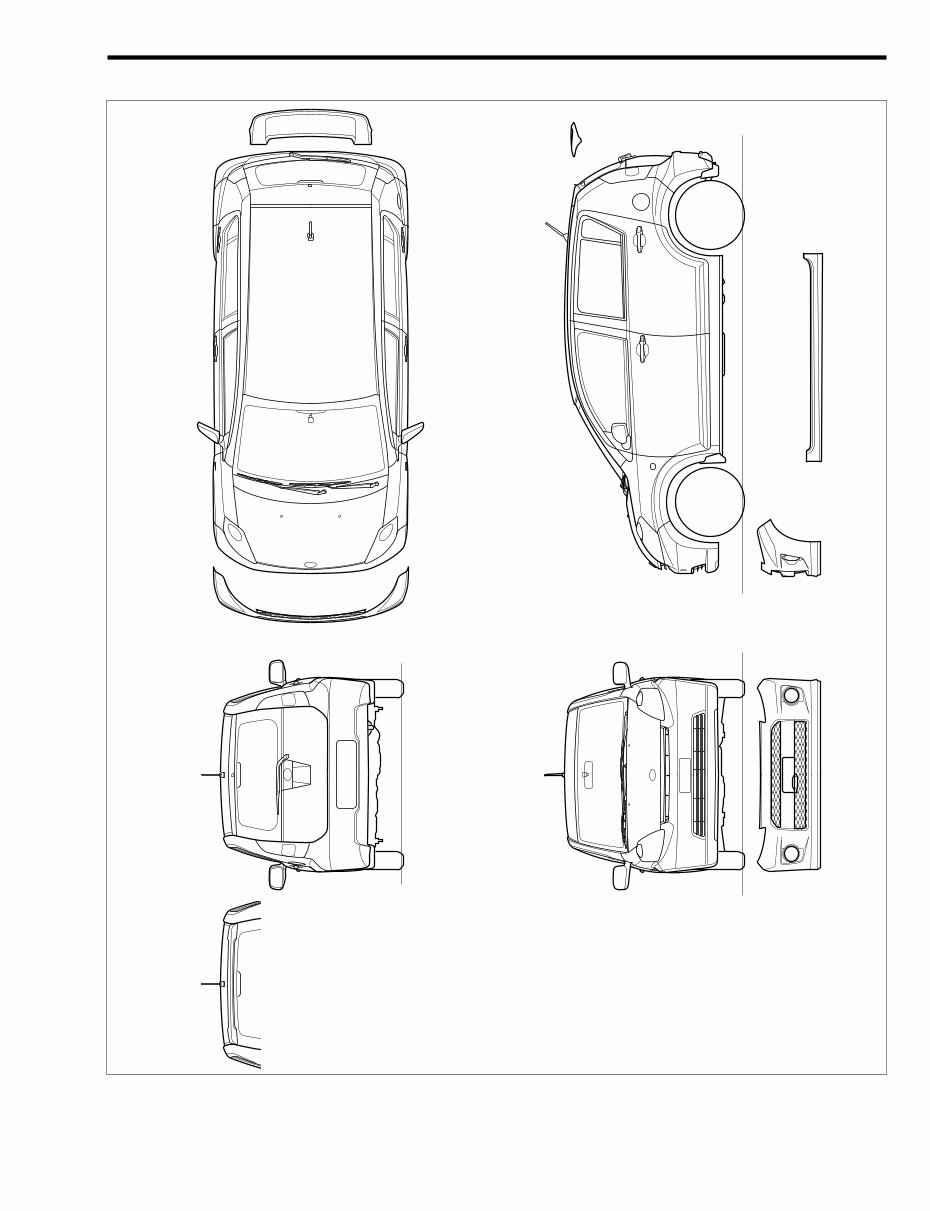

3 VIEWS OF VEHICLE T11S1511S45 A1–4

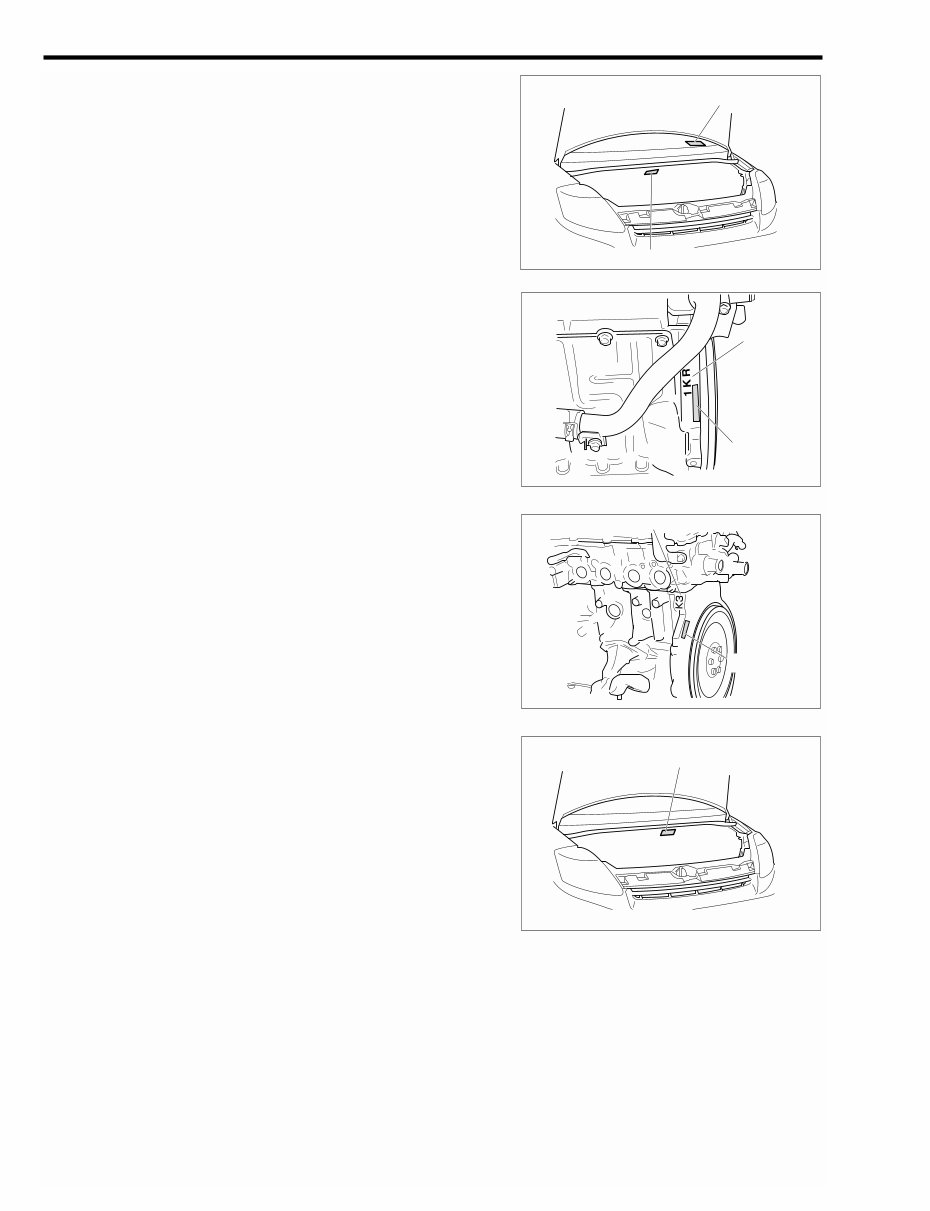

4 VEHICLE IDENTIFICATION 4-1 LOCATION 4-1-1 VEHICLE IDENTIFICATION NUMBER 4-1-2 ENGINE TYPE AND ENGINE NUMBER 4-1-3 MANUFACTURER'S PLATE POSITION A1–5 T11S5530ET10 Vehicle identification number Vehicle identification number (for GCC,EU & South Africa specifications) Engine type Engine number T11S5531ET10 T11S5532ET10 Engine number Engine type T11S5533ET10 Manufacturer’s plate

5 ABBREVIATION CODES ABBREVIATION CODE ORIGINAL WORD ABBREVIATION CODE ORIGINAL WORD 2WD Two Wheel Drive LHD Left Hand Drive 4WD Four Wheel Drive LIN Local Interconnect Netwark ABS Anti-lock Brake System LSPV Load Sensing Proportioning Valve ABV Air Bypass Valve LWR Lower A/C Air Conditioner MIL Malfunction Indicator Lamp ACC Accessory MP Multipurpose API American Petroleum Institute M/T Manual Transmission A/T Automatic Transmission N/A Natural Aspiration ATDC After Top Dead Center NOx Nitrogen Oxides ATF Automatic Transmission Fluid OPT Option Ay Assembly O/S Over Size BDC Bottom Dead Center PCV Positive Crankcase Ventilation BTDC Before Top Dead Center PR Ply Rating BVSV Bimetal Vacuum Switching Valve PTO Power Take Off CAN Controller Area Network RH Right Hand CD Compact Disc RHD Right Hand Drive CO Carbon Monoxide RR Rear DLC Data Link Connector S/A Sub-Assembly DLI Distributor Less Ignition SAE Society of Automotive Engineers DTC Diagnostic Trouble Code SRS Supplemental Restraint System DVVT Dynamic Variable Valve Timing SST Special Service Tool EBD Electronic Brake force Distribution STD Standard ECU Electronic Control Unit SW Switch EFI Electronic Fuel Injection T Torque EGR Exhaust Gas Recirculation System T/C Turbocharger EPS Electronic controlled Power Steering TDC Top Dead Center ESA Electronic Spark Advance UPR Upper EX Exhaust U/S Under Size F/L Fusible Link VCV Vacuum Control Valve FR Front VSV Vacuum Switching Valve GND Ground VTV Vacuum Transmitting Valve HC Hydro Carbon W/ With IG Ignition WVTA Whole Vehicle Type Approval IN Intake B Bolt ISC Idle Speed Control S Screw ISO International Organization for Stan- dardization N Nut LCD Liquid Crystal Display W Washer LED Light Emitting Diode C Clip LH Left Hand A1–6 TO INDEX TO NEXT SECTION
