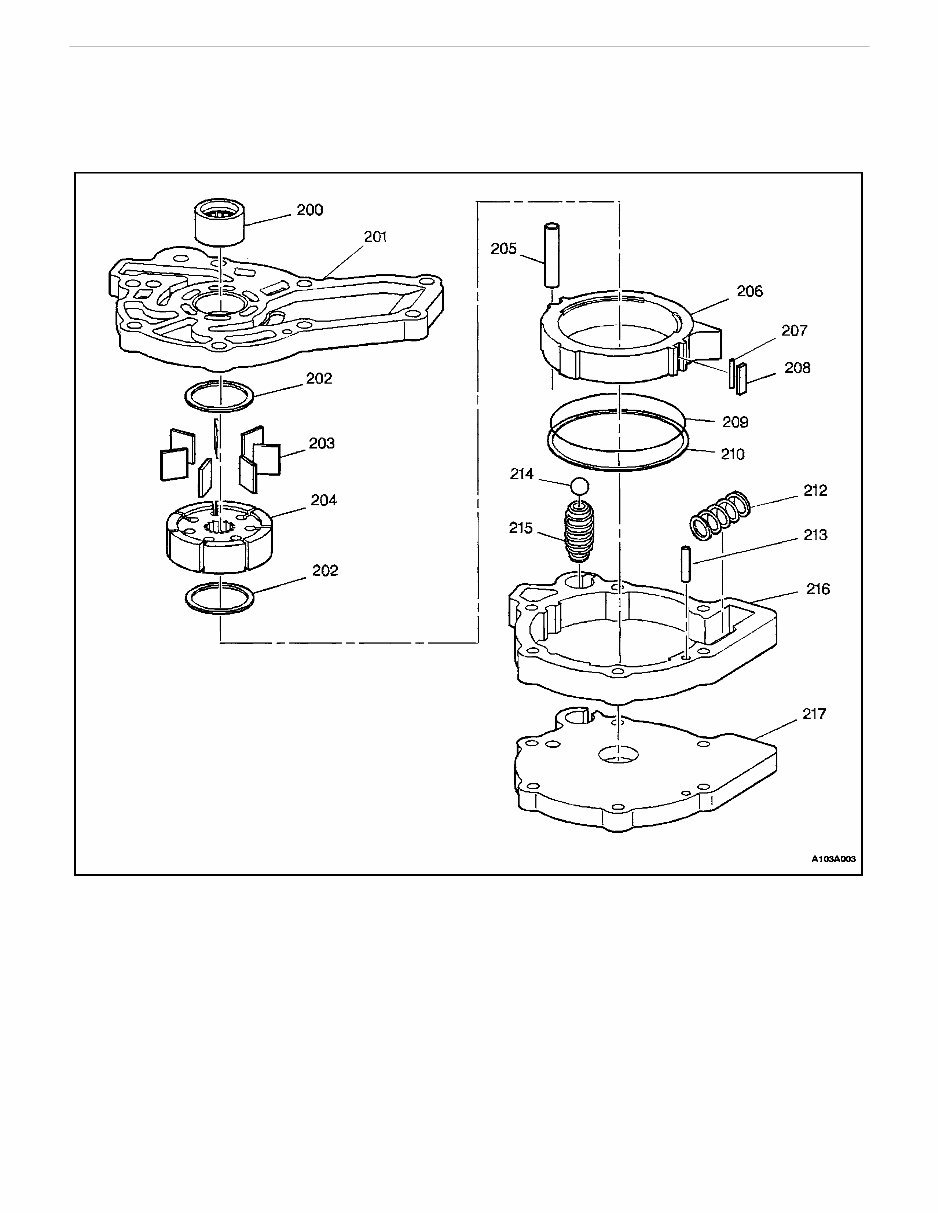

4T40–E AUTOMATIC TRANSAXLE 5A – 19 DAEWOO V–121 BL4 COMPONENT LOCATOR OIL PUMP ASSEMBLY 200.Oil Pump Bearing and Seal Assembly 201.Oil Pump Base 202.Oil Pump Vane Ring 203.Oil Pump Vane 204.Oil Pump Rotor 205.Pivot (Oil Pump Slide Pin) 206.Oil Pump Slide 207.Oil Pump Slide Seal Support 208.Oil Pump Slide Seal 209.O–Ring (Oil Pump Slide) Seal 210.Fluid Seal (Slide–to–Body) Ring 212.Oil Pump Priming Spring 213.Locating Pin 214.Pressure Relief Ball 215.Pressure Relief Spring 216.Oil Pump Body 217.Pump Cover

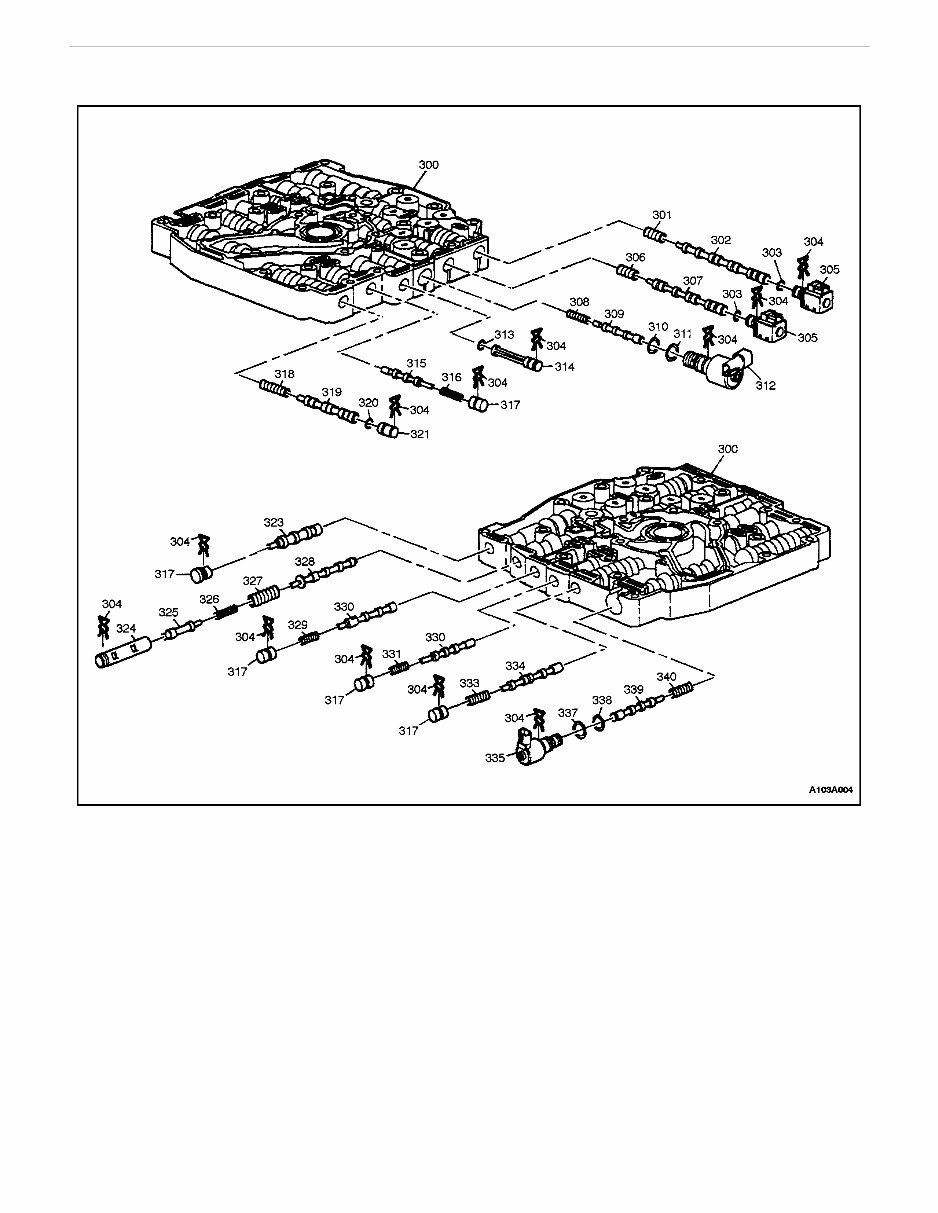

5A – 20I4T40–E AUTOMATIC TRANSAXLE DAEWOO V–121 BL4 CONTROL VALVE BODY ASSEMBLY 300.Control Valve Assembly Body 301.1–2 Shift Valve Spring 302.1–2 Shift Valve 303.Shift Solenoid A and B O–Ring 304.Retainer Clip 305.Shift (A and B) Solenoid 306.2–3 Shift Valve Spring 307.2–3 Shift Valve 308.Torque Signal Regulator Valve Spring 309.Torque Signal Regulator Valve 310.Pressure Control Solenoid O–Ring 311.Pressure Control Solenoid O–Ring 312.Pressure Control Solenoid 313.Actuator Oil Filter O–Ring 314.Actuator Oil Filter 315.Actuator Feed Limit Valve 316.Actuator Feed Limit Valve Spring 317.Bore Plug 318.3–4 Shift Valve Spring 319.3–4 Shift Valve 320.3–4 Shift Valve Plug O–Ring 321.Bore Plug 323.1–2/3–4 Accumulator Valve 324.Pressure Regulator Boost Bushing 325.Pressure Regulator Boost Valve 326.Isolator Spring 327.Pressure Regulator Valve Spring 328.Pressure Regulator Valve 329.2–3 Accumulator Valve Spring 330.2–3 Accumulator Valve 331.TCC Feed Limit Valve Spring 332.TCC Feed Limit Spring 333.TCC Control Valve Spring 334.TCC Control Valve 335.TCC Control Solenoid 337.TCC Control Solenoid O–Ring

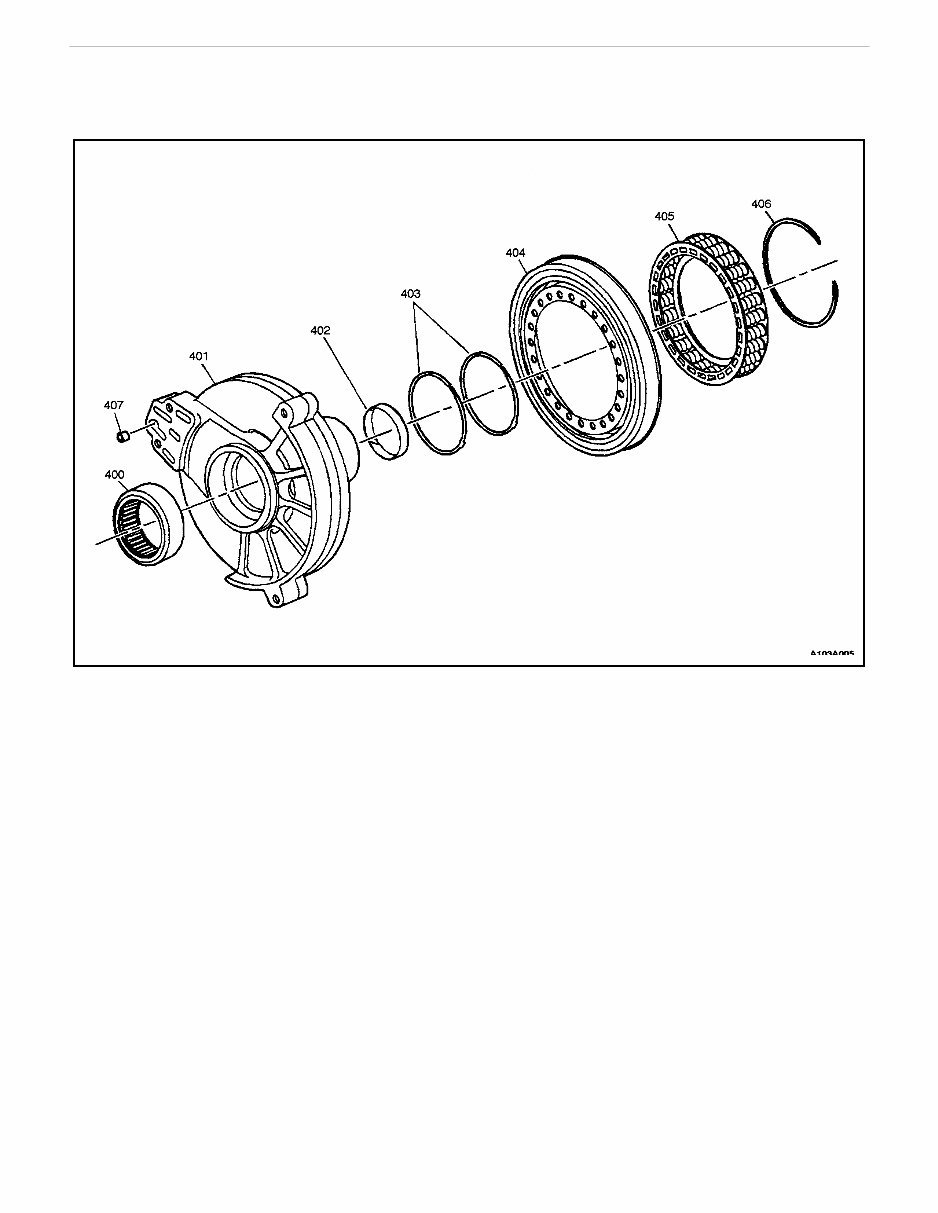

4T40–E AUTOMATIC TRANSAXLE 5A – 21 DAEWOO V–121 BL4 338.TCC Control Solenoid O–Ring 339.TCC–Regulated Apply Valve 340.TCC–Regulated Apply Valve Spring DRIVEN SPROCKET SUPPORT ASSEMBLY/2ND CLUTCH 400.Driven Sprocket Support Bearing 401.Driven Sprocket Support 402.Driven Sprocket Support Bushing 403.Oil Seal Ring 404.2nd Clutch Piston Assembly 405.2nd Clutch Spring Assembly 406.2nd Clutch Spring Retaining Ring 407.Reverse Intermediate Clutch Housing Valve As- sembly

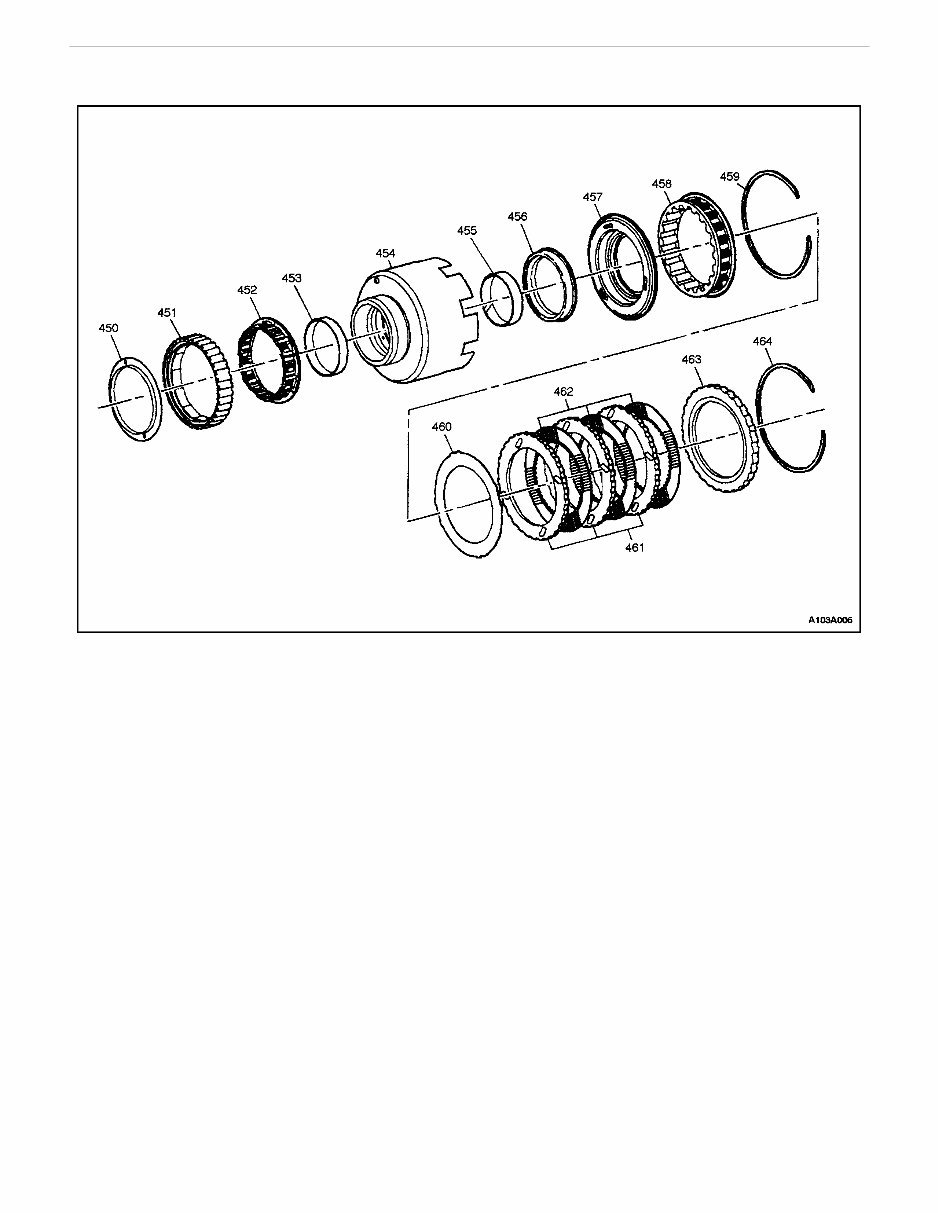

5A – 22I4T40–E AUTOMATIC TRANSAXLE DAEWOO V–121 BL4 REVERSE INPUT CLUTCH ASSEMBLY 450.2nd Roller Clutch Retainer 451.2nd Roller Clutch Cam 452.2nd Roller Clutch Assembly 453.Reverse Clutch Bushing 454.Reverse Clutch Housing 455.Reverse Clutch Bushing 456.Reverse Clutch Center Retainer and Seal Assem- bly 457.Reverse Clutch Piston Assembly 458.Reverse Clutch Spring and Retainer Assembly 459.Snap (Reverse Clutch Spring Retainer) Ring 460.Reverse Clutch (Waved) Plate 461.Reverse Clutch (Steel) Plate 462.Reverse Clutch (Fiber) Plate 463.Reverse Clutch (Backing) Selective Plate 464.Snap (Reverse Clutch) Ring

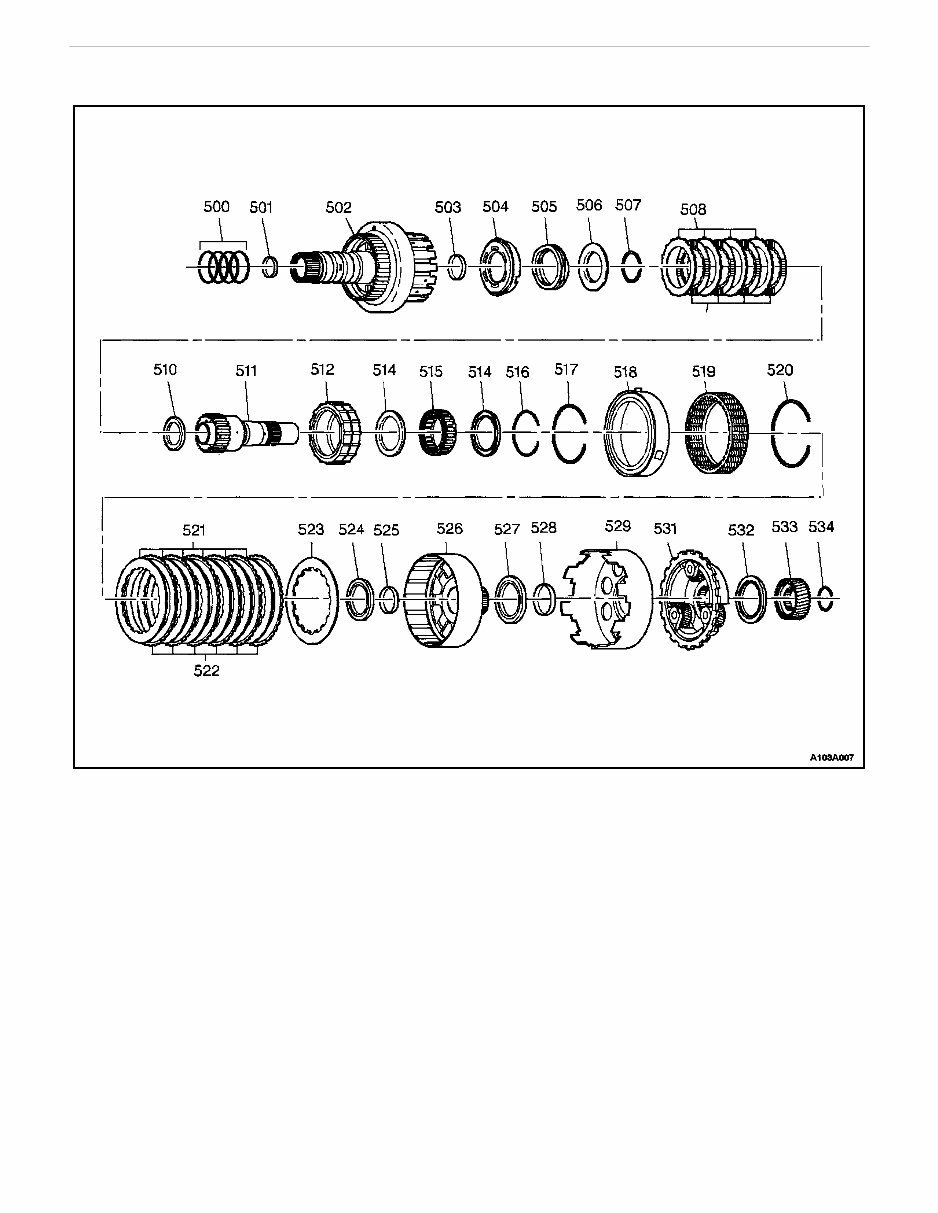

4T40–E AUTOMATIC TRANSAXLE 5A – 23 DAEWOO V–121 BL4 DIRECT AND COAST CLUTCH ASSEMBLIES 500.Oil Seal – Input Shaft Ring 501.Input Shaft Bushing 502.Direct and Coast Clutch and Input Shaft 503.Direct Clutch Housing–to–Output Shaft 504.Coast Clutch Piston Assembly 505.Coast Clutch Release Spring 506.Coast Clutch Spring Retainer 507.Snap (Coast Clutch Spring Retainer) Ring 508.Coast Clutch (Steel) Plate 509.Coast Clutch (Fiber) Plate 510.Thrust Bearing 511.Input Sun Gear Shaft and Inner Race Assembly 512.Outer (Input Sprag) Race 514.Sprag Clutch (2) End Bearings 515.Input Sprag Assembly 516.Snap (Outer Race–to–Sprag Assembly) Ring 517.Snap (Direct/Coast Clutch Retaining) Ring 518.Direct Clutch Piston Assembly 519.Direct Clutch Spring and Retainer Assembly 520.Direct Clutch Spring Retainer Ring 521.Direct Clutch (Steel) Plate 522.Direct Clutch (Fiber) Plate 523.Direct Clutch (Backing) Plate 524.Thrust Bearing 525.Reaction Carrier Shaft Bushing 526.Reaction Carrier Shaft Shell 527.Thrust (Carrier Shaft–to–Shell) Bearing 528.Reaction Sun Gear Bushing 529.Reaction Sun Shell 531.Reaction Carrier Assembly 532.Thrust (Reaction Carrier–to–Sun Gear) Bearing 533.Input Sun Gear 534.Snap Ring
