PRIVATE CARS C5 and C8 2004 CAR 050014 Volume 2 «The technical information contained in this document is intended for the exclusive use of the trained personnel of the motor vehicle repair trade. In some instances, this information could concern the security and safety of the vehicle. The information is to be used by the professional vehicle repairers for whom it is intended and they alone would assume full responsibility to the exclusion of that of the manufacturer». «The technical information appearing in this brochure is subject to updating as the characteristics of each model in the range evolve. Motor vehicle repairers are invited to contact the CITROËN network periodically for further information and to obtain any possible updates».

IMPORTANT As the booklet is constantly r e-edited, this one only covers vehicles for this particular model year . It is ther efor e necessary to or der a new booklet each year and RET AIN THE OLD ONES.

EW ES CORRESPONDENCE TABLE FOR PETROL ENGINES 7 10 12 9 C5 C8 Engine families Engine types D J4 J4 J4S 6FZ RFN 3FZ RLZ XFW XFX 1.8i 16V 2.0 16V HPi 2.0i 16V 2.0i 16V 2.2 16V HPi 3.0i 24V 3.0i 24V

DW CORRESPONDENCE TABLE FOR DIESEL ENGINES Engine families Engine types 12 C5 C8 2.0 HDi 2.0 HDi 2.0 HDi 2.2 HDi 10 TD ATED ATED4 TED TED4 RHY RHS RHZ RHW RHT 4HX 4HW 2.0 16V HDi 2.0 16V HDi 2.0 16V HDi RHM 2.0 HDi

PRESENTATION THIS HANDBOOK summarises the specifications, adjustments, checks and special features of CITROEN private vehicles, not including UTILITY vehicles for which there exists a separate handbook. The handbook is divided into nine groups representing the main functions: GENERAL - ENGINE - INJECTION - IGNITION - CLUTCH, GEARBOX, DRIVESHAFTS - AXLES, SUSPENSION, STEERING - BRAKES - ELECTRICAL - AIR CONDITIONING. In each section, the vehicles are dealt with in the following order: C5 - C8 and all models where applicable. The information given in this handbook is based on vehicles marketed in EUROPE.

IMPORTANT If you find that this handbook does not always meet your requirements, we invite you to send us your suggestions which we will take into account when preparing future publications. For example: – INSUFFICIENT INFORMATION – SUPERFLUOUS INFORMATION – NEED FOR MORE DETAILS Please send your comments and suggestions to: CITROEN U.K. Ltd. 221, Bath Road, SLOUGH, SL1 4BA. U.K.

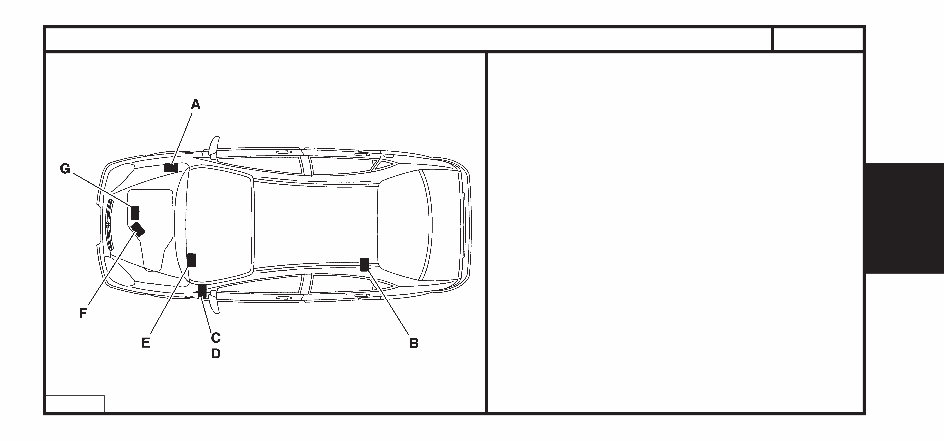

1 GENERAL IDENTIFICATION OF VEHICLES E1APO8RD (A) Chassis stamp (cold stamp on bodywork). (B) Manufacturer’s data plate. (under the rear bench seat) (C) A-S / RP No. and RP paint code (label on front pillar close to driver’s door). (D) Inflation pressures and tyre references. (label on front pillar close to driver’s door) (E) Serial no. on bodywork. (F) Gearbox reference – Factory serial no. (G) Engine legislation type – Factory serial no. C5

GENERAL DC 6FZB DC 6FZC/IF DC 6FZE DC RFNB DC RFNC/IF DC RFNE DC RFNF/IF 6FZ RFN 1749 1997 7 8 9 BE4/5 AL4 BE4/5 AL4 20 DL 29 20 TP 95 20 DL 30 20 TP 93 Emission standard L4 L5 L4 L5 L4 L5 Type code Engine type Cubic capacity (cc) Fiscal rating (hp) Gearbox type Gearbox ident. plate 2 C5 IDENTIFICATION OF VEHICLES Petrol saloons Pack 1.8i 16V Pack - Ambiance pack - Exclusive 2.0i 16V Auto. Auto.

3 GENERAL L4 IF/L5 DC RLZB DC XFXC/IF DC XFXF/IF RLZ XFX 1997 2946 9 13 14 BE4/5 ML/5C 4 HP 20 20 DL31 20 LM 21 20 HZ 26 C5 IDENTIFICATION OF VEHICLES Petrol saloons 2.0 16V HPi 3.0i 24V Exclusive Auto. Emission standard Type code Engine type Cubic capacity (cc) Fiscal rating (hp) Gearbox type Gearbox ident. plate

4 GENERAL Emission standard L4 Type code DC RHYB DC RHSB DC RHZB DC RHSE DC RHZE Engine type RHY RHS RHZ RHS RHZ Cubic capacity (cc) 1997 Fiscal rating (hp) 6 7 Gearbox type BE4/5 ML/5C AL4 Gearbox ident. plate 20 DL 32 20 LM 23 20 TP 94 C5 IDENTIFICATION OF VEHICLES Diesel saloons 2.0 HDi Leader Pack- Leader pack - Ambiance pack - Exclusive Auto. (*) FAP = Particle filter Pack- Ambiance pack Exclusive
