VIN PLATE DECODING INFORMATION
1 2 3 4 5 6 7 8 9 10 11 12 thru 17
Country Make
Vehicle
Type
Other Line Series
Body
Style
Engine
Check
Digit
Model
Year
Assy.
Plant
Sequence No.
The following table interprets the VIN Plate position shown above.
Position Interpretation Codes = Description
1 Country of Origin 1 = Manufactured by DamilerChrylser Corporation
2 Assembler C = Chrysler
3 Vehicle Type 3 = Passenger Car
4 GVWR & Pass. Safety H = Restraint System Air Bags Front Next Generation Multi
Stage Sales Code (CG1) With Side Air Bags Sales Code
(CGS)
J = Restraint System Air Bags Front Next Generation Multi
Stage Sales Code (CG1) Without Side Air Bags Sales Code
(CGS)
5 Vehicle Line 6 = 300C / SRT-8 (RWD)(LHD)
7 = 300C (AWD)(LHD)
C = 300C / SRT-8 (RWD)(RHD)
8 = 300C / SRT8 (RWD) (LHD) BUX
9 = 300C / SRT8 (RWD) (RHD) BUX
6 Series 6 = 300C Touring (RWD)(AWD)(BUX)
7 = SRT-8 Touring (RWD)(BUX)
6 = 300C C-S-48 BUX Less Sales Code ABB
* = 300C C-S-48 BUX With Sales Code ABB
6 = 300C Z-S-48 BUX Less Sales Code ABB
* = 300C Z-S-48 BUX With Sales Code ABB
7 = SRT8 C-X-48 BUX Less Sales Code ABB
* = SRT8 C-X-48 BUX With Sales Code ABB
7 = SRT8 Z-X-48 BUX Less Sales Code ABB
* = SRT8 Z-X-48 BUX With Sales Code ABB
7 Body Style 8 = 4 Door Hatchback
3 = 4DR Sedan Tall Body Style- 48
8 Engine 3 = 6.1L V8 Cyl. SRT HEMI (ESF)
2 = 5.7L V8 Cyl. HEMI Multiple Displacement (EZB)
V = 3.5L V6 Cyl. 24V High Output (EGG)
M = 3.0L V6 Cyl. Turbo Diesel (EXL)
T = 2.7L V6 Cyl. 24V DOHC (EER)
9 Check Digit 0 = Check Digit
10 Model Year 8 = 2008 Model Year
11 Assembly Plant Y = Chrysler Steyr Assembly
12 thru 17 Vehicle Build Sequence Model Year Assembly Sequence
Group - 2
Front Suspension
002-100
Front Suspension, Strut and
Cradle
002-200
Front Stabilizer Bar
Group - 2 Front Suspension
Illustration Title Group-Fig. No.
Front Suspension, Strut and Cradle
Suspension, Front ............................................................................................................................ Fig. 2 - 105
Front Stabilizer Bar
Stabilizer Bar, Front .......................................................................................................................... Fig. 2 - 205
2008 LE
Suspension, Front

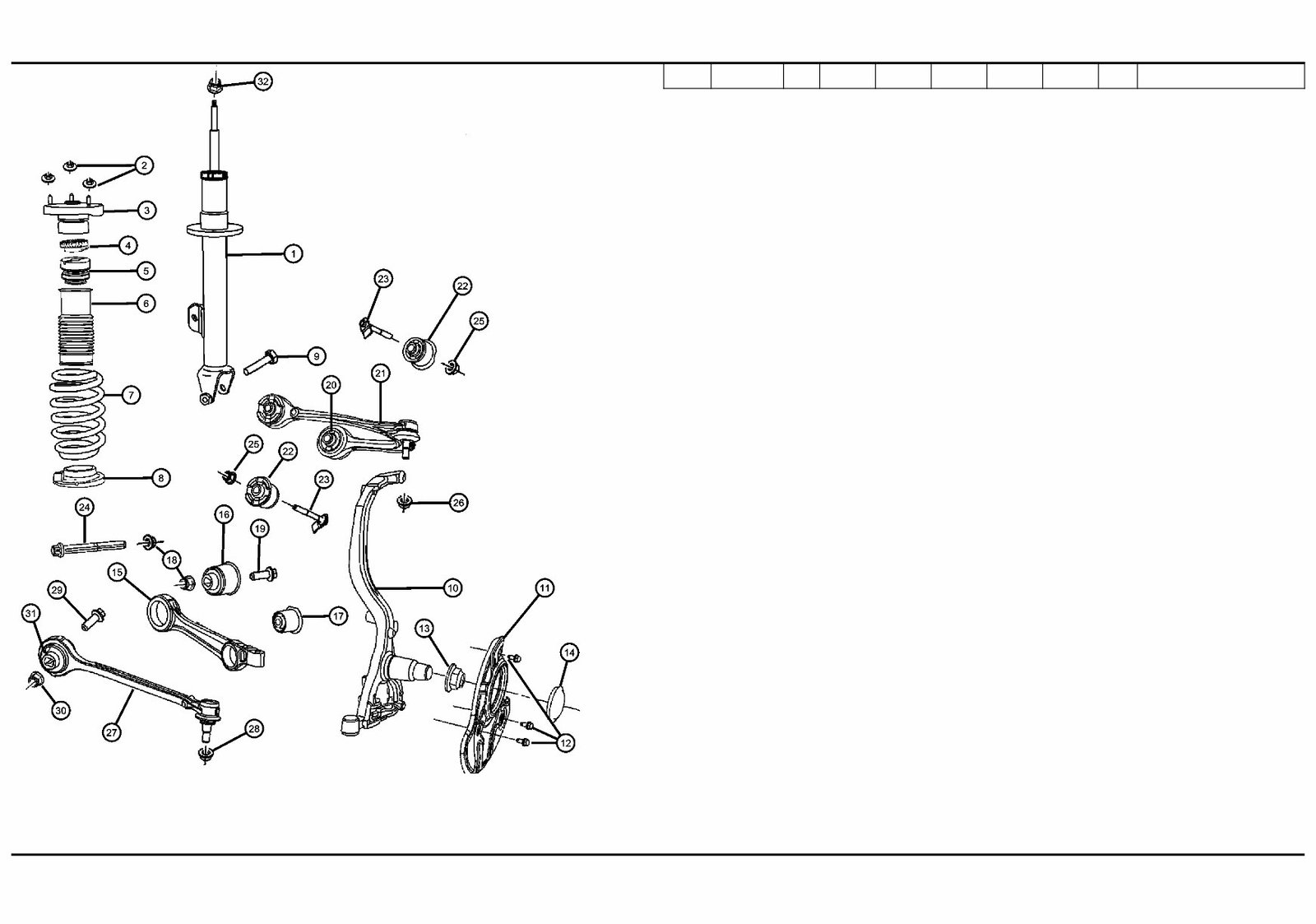

Figure 2-105
ITEM
PART
NUMBER
QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION
Suspension, Front S,F
NOTE:Sales codes:
[BR3]=ANTI-LOCK 4-WHEEL DISC BRAKES
[BR4]=ANTI-LOCK 4-WHEEL DISC PERF BRAKES
[BR5]=ANTI-LOCK 4-WHEEL DISC PERF BRAKES
[BR8]=4-WHEEL DISC HEAVY DUTY BRAKES
[BRD]=4-WHEEL DISC BRAKES
[SDC]=SUSPENSION - TOURING
[SDG]=SUSPENSIO
1 SHOCK ABSORBER, Suspension
05290471AC 1 C, Z 48 [SDX,ZRB]
04895743AB 1 F 49
05290474AC 1 C, Z 48 [SDX,ZCB]
04782731AD 1 C, Z 48 [SDD,ZBC,ZBD,ZBG]
04782732AD 1 C, Z 48 [SDD,ZPC,ZPD,ZPG]
2 06506152AA 6 C, F, Z 48, 49 NUT AND WASHER, Hex
Nut-Coned Washer, M8 x 1.25
3 MOUNT, Strut, Upper
04895412AC 1 C, Z 48
04895413AD 1 F 49
4 ISOLATOR, Front Suspension
Spring
04895452AA 1 C, Z 48
04895454AA 1 F 49
5 BUMPER, Jounce
04782916AC 1 F 49
04895443AB 1 C, Z 48
6 SHIELD, Shock Absorber Dust
04782629AA 1 C, Z 48
04895650AA 1 F 49
7 SPRING, Front Coil
04895627AB 1 C, Z 48 [SDD,ZBG,ZPG]
04895623AB 1 C, Z 48 [SDD,ZBC,ZPC]
04895624AB 1 C, Z 48 [SDD,ZBD,ZPD]
04895632AB 1 C, Z 48 [SDX,ZCB,ZRB]
04895642AC 1 F 49 [SDD,ZDB,ZSB]
CHRYSLER 300 (STEYR) (LE)
SERIES LINE BODY ENGINE TRANSMISSION
S = SPORT
X = SPECIAL
C = CHRYSLER
Z = CHRYSLER (RHD)
F = EAGLE
48 = SEDAN TYPE #8
49 = HATCHBACK TYPE #2
EER = 2.7L V6 DOHC 24
Valve MPI Engine
EGG = 3.5L High Output V6
24V MPI Engine
EXL = 3.0L V6 Turbo Diesel
Engine
ESF = 6.1L SRT HEMI SMPI
V8 Engine
EZB = 5.7L Hemi Multi
Displacement Engine
DGV = 4-Spd. Automatic VLP 42RLE
Trans
DGJ = 5-Speed Auto W5A580
Transmission
DGU = 5-Spd Auto W5J400
Transmission
AR = use ase required - = Non illustrrated part 2008 LE
<< RETURN TO GROUP INDEX
Suspension, Front
Figure 2-105
ITEM
PART
NUMBER
QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION
04895646AD 1 F 49 [SDD,ZFS,ZDF]
8 04895422AA 1 C, Z 48 ISOLATOR, Front Suspension
SpringLower
9 06507654AA 2 C, Z 48, 49 BOLT, Hex Flange Head,
M14x2.00x90.00
10 KNUCKLE, Front
04782740AB 1 C, Z 48 [BR6], Right
04782741AB 1 C, Z 48 [BR6], Left
04895710AB 1 F 49 Right
04895711AB 1 F 49 Left
05290539AB 1 C, Z 48 [BR4], Right
05290547AB 1 C, Z 48 [BR4], Left
11 SHIELD, Brake
04779200AA 1 C, Z 48 Right
04779201AA 1 C, Z 48 Left
04779326AA 1 F 49 Right
04779327AA 1 F 49 Left
12 04779327AA 1 SCREW AND WASHER, Hex
Head, M6x1x14, (NOT SERVICED)
13 06504007 1 C, Z 48 NUT, Axle Hub
14 04779253AA 1 C, Z 48 CAP, Wheel Bearing
15 ARM, Control, Lower
04782561AE 2 C, Z 48
04895040AC 1 F 49 Right
04895041AC 1 F 49 Left
16 04895041AC 1 BUSHING, Pivot, Serviced in item
# 18, (NOT SERVICED)
17 04895041AC 1 BUSHING, Pivot, Serviced in item
# 18, (NOT SERVICED)
18 NUT, Hex Flange Lock, M14x2
06502502 2 C, Z 48
2 C, F, Z 49
19 BOLT, Hex Head,
M14x2.00x120.00
CHRYSLER 300 (STEYR) (LE)
SERIES LINE BODY ENGINE TRANSMISSION
S = SPORT
X = SPECIAL
C = CHRYSLER
Z = CHRYSLER (RHD)
F = EAGLE
48 = SEDAN TYPE #8
49 = HATCHBACK TYPE #2
EER = 2.7L V6 DOHC 24
Valve MPI Engine
EGG = 3.5L High Output V6
24V MPI Engine
EXL = 3.0L V6 Turbo Diesel
Engine
ESF = 6.1L SRT HEMI SMPI
V8 Engine
EZB = 5.7L Hemi Multi
Displacement Engine
DGV = 4-Spd. Automatic VLP 42RLE
Trans
DGJ = 5-Speed Auto W5A580
Transmission
DGU = 5-Spd Auto W5J400
Transmission
AR = use ase required - = Non illustrrated part 2008 LE
<< RETURN TO GROUP INDEX
Suspension, Front
Figure 2-105
ITEM
PART
NUMBER
QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION
06507089AA 2 C, Z 48
2 C, F, Z 49
20 04895415AB 4 C, Z 48 SPACER
21 ARM, Control
04782665AB 1 C, Z 48 Left
04782666AB 1 C, Z 48 Right
04895668AA 1 F 49 Right
04895669AA 1 F 49 Left
22 04895669AA 1 BUSHING, Pivot, Serviced in item
# 24, (NOT SERVICED)
23 BOLT
06507711AA 4 C, Z 48
4 C, F, Z 49
24 06508238AA 2 C, Z 48, 49 SCREW, Hex Flange Head
25 06502835 4 C, F, Z 48, 49 NUT, Hex Flange Lock, M12x1.75
26 06507207AA 2 C, F, Z 48, 49 NUT, Hex Flange Lock, M12x1.75
27 STRUT, Suspension, Tension
04782612AC 1 C, Z 48 [SDD], Right
04782613AC 1 C, Z 48 [SDD], Left
05290828AA 1 C, Z 48 [SDX], Right
05290829AA 1 C, Z 48 [SDX], Left
28 06507838AA 2 C, Z 48 NUT
29 06508238AA 2 C, Z 48, 49 SCREW, Hex Flange Head
30 06502502 2 C, Z 48 NUT, Hex Flange Lock, M14x2
31 04895415AB 4 C, Z 48 SPACER
32 NUT, Hex Flange Lock, M12x1.75
06507207AA 1 C, Z 48, 49
1 F 49
CHRYSLER 300 (STEYR) (LE)
SERIES LINE BODY ENGINE TRANSMISSION
S = SPORT
X = SPECIAL
C = CHRYSLER
Z = CHRYSLER (RHD)
F = EAGLE
48 = SEDAN TYPE #8
49 = HATCHBACK TYPE #2
EER = 2.7L V6 DOHC 24
Valve MPI Engine
EGG = 3.5L High Output V6
24V MPI Engine
EXL = 3.0L V6 Turbo Diesel
Engine
ESF = 6.1L SRT HEMI SMPI
V8 Engine
EZB = 5.7L Hemi Multi
Displacement Engine
DGV = 4-Spd. Automatic VLP 42RLE
Trans
DGJ = 5-Speed Auto W5A580
Transmission
DGU = 5-Spd Auto W5J400
Transmission
AR = use ase required - = Non illustrrated part 2008 LE
<< RETURN TO GROUP INDEX
