2010 Chrysler Sebring
Online Parts and Labor (CEG) / CEG Domestic - US / SEBRING SEDAN 2007-2010
SPECIAL CAUTIONS
SUSPENSION
Manufacturer advises that some new fasteners must be used whenever old fasteners are loosened or removed.
AIR BAGS
Refer to Procedure Explanation 29 for Supplemental Restraint/Air Bag Special Cautions.
PAINT CODE LOCATION
Paint code located on left front door jamb.
CLEAR COAT IDENTIFICATION
All colors are clear coat.
INFORMATION LABELS
Label, A/C¶ 5058631AA 5.45
Label, Starting Procedure¶ 5140474AA 11.20
Label, Battery¶ 4606818AA 4.35
Label, Emission¶
2.4L Eng 4578503AA .70
2.7L Eng 4578502AB .75
3.5L Eng 5085749AA .75
Label, Air Bag Warning¶
Glove Box R 4595749AA 2.95
Door R 4595748AA 5.85
L 4595748AA 5.85
Visor R 5108000AA 2.00
L 5108000AA 2.00
¶Order by Application
Label, Child Protection 5056072AA 2.85
Label, Tire Storage¶ 4472491AC 8.70
Label, Safety Caution¶ 4680556AB 2.00
Label, Jack Warning¶ 5056223AA 2.25
¶Order by Application
FRONT BUMPER
Use Procedure Explanations 1 and 28 with the following text.
Refinish Front Cover 3.0
Refinish Headlamp Washer Cover R .4
L .4
Refinish Fog Lamp Cover R .5
L .5
Refinish Tow Hook Cover .3
R&I Front Cover #2.0
#Includes R&R Air Cleaner Duct, Cover Panel, Fender Liners & Grille
O/H Front Cover (Includes R&I) #3.2
#Includes R&R Air Cleaner Duct, Cover Panel, Washer Nozzles, Fender Liners & Grille
Add to R&R or O/H Front Cover
w/Fog Lamps .3
w/Ambient Sensor m .2
NOTE: All Parts in this section are included in overhaul unless noted otherwise.
1 Cover, Front (P)
w/Fog Lamps 07-08 68004586AE #3.2 §464.00
09-10 68004586AE #3.2 §464.00
w/o Fog Lamps 07-08 68004594AD #3.2 464.00
09-10 68004594AD #3.2 464.00
(P) Paint to Match
#Includes R&R Air Cleaner Duct, Cover Panel, Washer Nozzles, Fender Liners & Grille
2 Pin, Push (2/Side) R 4389947AA 6.35
Page 2 of 142 Print Article
L 4389947AA 6.35
3 Clip, Mounting R 4806110AA 4.60
L 4806110AA 4.60
4 Screw, Mounting R 6105099AA .70
L 6105099AA .70
Bracket, Support 07-08 R 4389942AD #.2 9.00
L 4389943AD #.2 9.00
09-10 R 4389942AD #.2 9.00
L 4389943AD #.2 9.00
#w/Front Cover Removed, Not Included in O/H
5 Cover, Headlamp Washer
2007-08
Bright Silver (Code S2) R 1ER40ZZZAC .1 67.50
L 1ER42ZZZAC .1 68.10
Brilliant Black (Code XR) R 1ER40ZZZAC .1 67.50
L 1ER42ZZZAC .1 68.10
Gold Pearl (Code YG) R 1ER40ZZZAC .1 67.50
L 1ER42ZZZAC .1 68.10
Inferno Red (Code RH) R 1ER40ZZZAC .1 67.50
L 1ER42ZZZAC .1 68.10
Marathon Blue (Code BD) R 1ER40ZZZAC .1 67.50
L 1ER42ZZZAC .1 68.10
Modern Blue (Code BL) R 1ER40ZZZAC .1 67.50
L 1ER42ZZZAC .1 68.10
Sandstone (Code KG) R 1ER40ZZZAC .1 67.50
L 1ER42ZZZAC .1 68.10
Silver Steel (Code A4) R 1ER40ZZZAC .1 67.50
L 1ER42ZZZAC .1 68.10
Stone White (Code W1) R 1ER40ZZZAC .1 67.50
L 1ER42ZZZAC .1 68.10
Paint to Match R 1ER40ZZZAC .1 67.50
L 1ER42ZZZAC .1 68.10
2009
Bright Silver (Code S2) R 1ER40ZZZAC .1 67.50
L 1ER42ZZZAC .1 68.10
Brilliant Black (Code XR) R 1ER40ZZZAC .1 67.50
L 1ER42ZZZAC .1 68.10
Inferno Red (Code RH) R 1ER40ZZZAC .1 67.50
L 1ER42ZZZAC .1 68.10
Sandstone (Code KG) R 1ER40ZZZAC .1 67.50
L 1ER42ZZZAC .1 68.10
Silver Steel (Code A4) R 1ER40ZZZAC .1 67.50
Page 3 of 142 Print Article
L 1ER42ZZZAC .1 68.10
Stone White (Code W1) R 1ER40ZZZAC .1 67.50
L 1ER42ZZZAC .1 68.10
Paint to Match R 1ER40ZZZAC .1 67.50
L 1ER42ZZZAC .1 68.10
2010 (P) R 1ER40ZZZAC .1 67.50
L 1ER42ZZZAC .1 68.10
6 Cover, Fog Lamp (P) R 5303888AB #.1 34.45
L 5303889AB #.1 34.45
(P) Paint to Match
#w/Front Cover Removed
7 Absorber, Impact 5303893AA IOH 65.45
8 Reinforcement, Frt Cover 5303700AD #.4 297.00
#w/Front Cover Removed, Not Included in O/H
9 Reflector, Cover 07-08 R 4389698AB .2 18.25
L 4389699AB .2 18.25
09-10 R 4389698AB .2 18.25
L 4389699AB .2 18.25
10 Sensor, Ambient 07-08 5149264AB m #.2 12.35
09-10 5149264AB m #.2 12.35
#w/Front Cover Removed, Not Included in O/H
11 Cover, Tow Hook
2007-08
Gold Pearl (Code YG) R 1CM56CYGAA .1 28.50
Marathon Blue (Code BD) R 1CM56EBDAA .1 38.20
Sandstone (Code KG) R 1CM56FKGAA .1 28.50
Stone White (Code W1) R 1CM56SW1AA .1 38.20
Paint to Match R 1CM56TZZAA .1 32.85
2009-10 (P) R 1CM56TZZAA .1 32.85
(P) Paint to Match
Hook, Tow-See Wheel Section

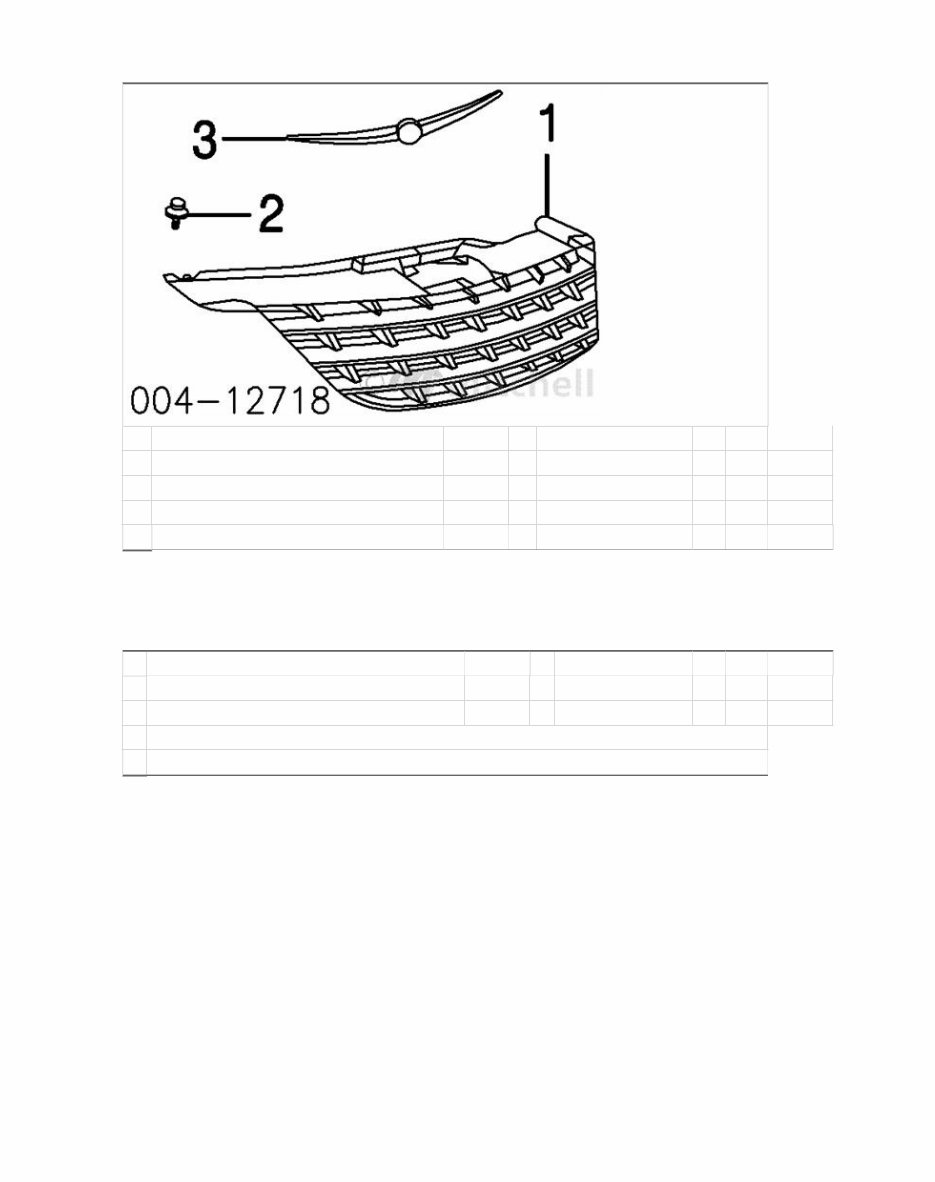

GRILLE
R&I Grille .3
Page 4 of 142 Print Article
1 Grille 1CM541S9AC .3 260.00
2 Clip, Attaching (4) 6504521 4.45
3 Medallion, Winged (Adhesive) 07-08 5113607AB .2 80.00
09 5113607AB .2 80.00
10 5113607AB .2 80.00
FRONT LAMPS
COMBINATION LAMP
Aim Lamps .4
R&I Combination Lamp R #.3
L #.3
#w/Front Cover Removed
NOTE: R&R Does Not include aim lamps.
Page 5 of 142 Print Article
1 Lamp, Combination
Type 1 07-08 R 5303746AG #.3 232.00
L 5303747AG #.3 232.00
09-10 R 5303746AG #.3 232.00
L 5303747AG #.3 232.00
Type 2 09-10 R 5303748AG #.3 270.00
L 5303749AG #.3 270.00
#w/Front Cover Removed
2 Bulb, High Beam R L0009005 #.2 16.35
L L0009005 #.2 16.35
3 Bulb, Low Beam
Type 1 R L0009006 #.2 15.45
L L0009006 #.2 15.45
Type 2 R L0000H11 #.2 16.50
L L0000H11 #.2 16.50
4 Bulb, Turn Signal R L0003757AK #.2 4.45
L L0003757AK #.2 4.45
5 Bulb, Side Marker R L002825W5W #.2 2.60
L L002825W5W #.2 2.60
#R&R One Side Complete, Included in R&I/R&R Combination Lamp
Page 6 of 142 Print Article
6 Screw, Mounting (3/Side) 07-08 R 6508495AA 1.70
L 6508495AA 1.70
09-10 R 6508430AA 1.70
L 6508430AA 1.70
Harness, Lamp-See Front Inner Structure Section

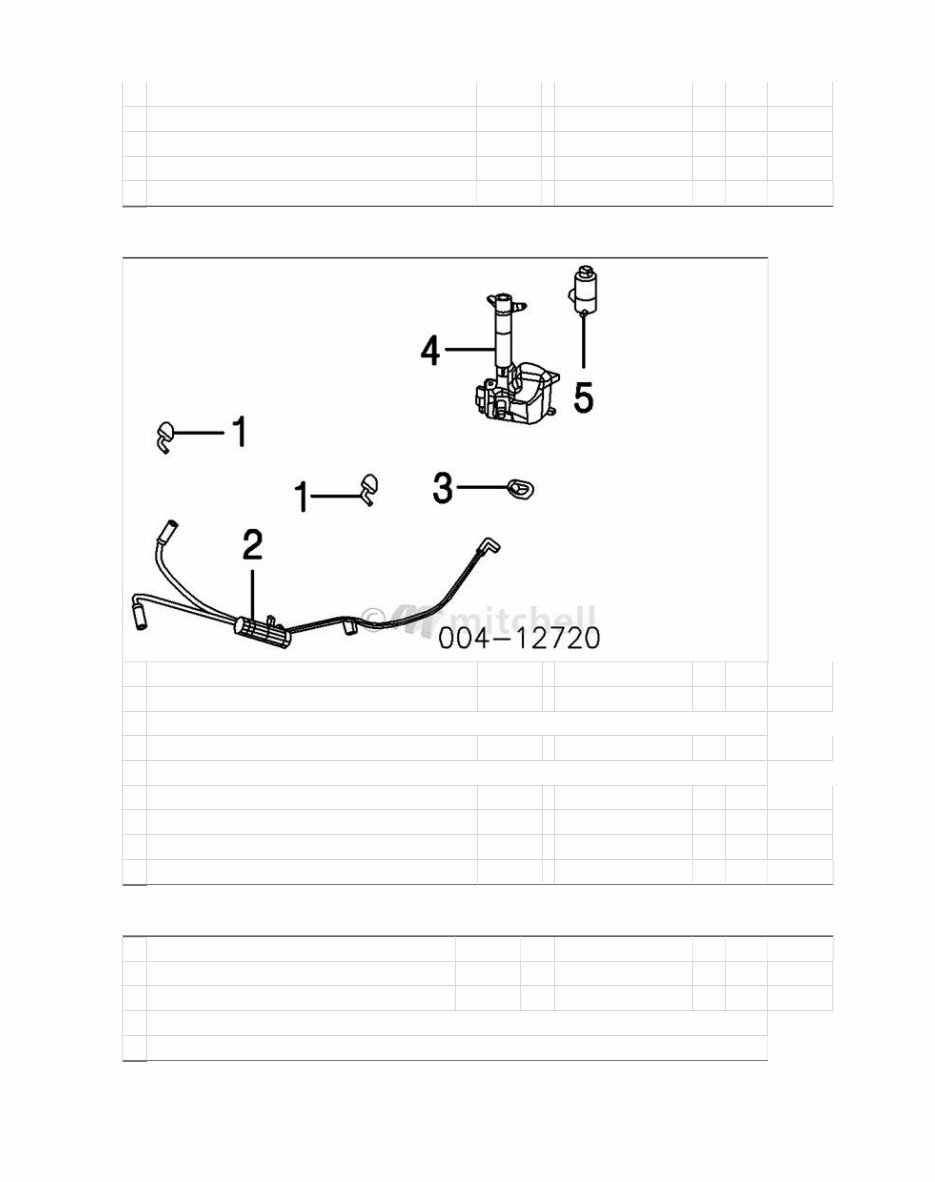

HEADLAMP WASHER
1 Nozzle, Headlamp Washer R 4389944AA #.2 159.00
L 4389945AA #.2 132.00
#w/Front Cover Removed, Included in R&R or O/H Front Cover
2 Hose, Washer¶ N.A. 0.00
¶Cut to Fit
Cover, Headlamp Washer-See Front Bumper Section
3 Grommet 5155841AA 4.00
4 Reservoir, Washer-See Windshield Section
5 Pump, H/Lamp Washer-See Windshield Section
FOG LAMP
Aim Fog Lamps .4
R&I Fog Lamp R #.4
L #.4
#Included in R&R or O/H Front Cover
NOTE: R&R Does Not include aim lamps.
Page 7 of 142 Print Article
1 Lamp, Fog 07-08 R 4805857AB #.4 73.60
L 4805857AB #.4 73.60
09 R 4805857AB #.4 73.60
L 4805857AB #.4 73.60
10 R 5182025AA #.4 42.35
L 5182025AA #.4 42.35
Page 8 of 142 Print Article
#Included in R&R or O/H Front Cover
2 Bulb, Fog Lamp R L0009145 #.2 17.75
L L0009145 #.2 17.75
#Included in R&I/R&R Fog Lamp
3 Screw, Mounting (2/Side) R 6506579AA .70
L 6506579AA .70

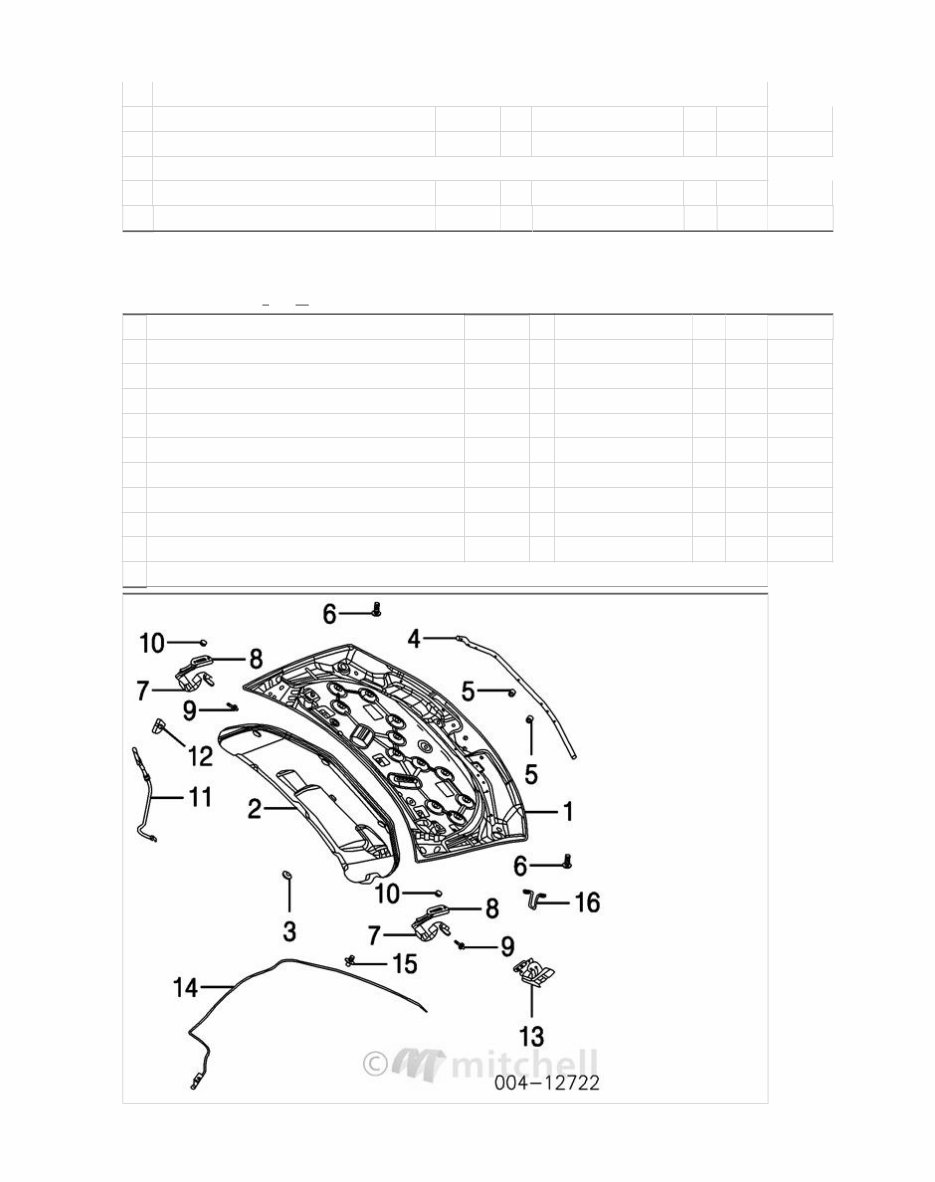

HOOD
Use Procedure Explanations 4 and 28 with the following text.
Refinish Hood Outside 2.8
Add for Underside 1.4
Refinish Hood Hinge
Hood Side R .5
L .5
Fender Side R .5
L .5
R&I Hood .5
R&I Washer Nozzle R #.2
L #.2
#Included in R&R Hood
Page 9 of 142 Print Article
1 Panel, Hood 07-08 5074530AE 1.3 712.00
09 5074530AE 1.3 712.00
10 4673878AC 1.3 515.00
2 Insulator, Hood 5074506AB .3 64.85
3 Clip, Insulator (4) 07-08 4878883AA 5.75
09-10 6504135 3.10
4 Seal, Front Hood 5008936AA .2 30.35
5 Bumper, Hood (2) 5054227AA 3.85
6 Bumper, Adj R 4103165 .2 7.85
L 4103165 .2 7.85
Hinge, Hood
7 Fender Side R 5155812AA #1.5 33.75
L 5155813AA #1.5 33.75
#w/Hood, Fender & Cowl Grille Removed
8 Hood Side 07-08 R 5074058AD #.3 29.35
L 5074059AD #.3 38.20
09-10 R 5074058AD #.3 29.35
L 5074059AD #.3 38.20
#w/Hood & Cowl Grille Removed
9 Bolt, Mounting (2/Side) R 6508562AA 5.45
L 6508562AA 5.45
10 Nut, Mounting (2/Side) R 6104716AA 1.95
L 6104716AA 1.95
11 Rod, Prop 07-08 5008960AE .1 29.95
09-10 5008960AE .1 29.95
12 Grommet, Rod 6506223AA 6.20
13 Latch, Hood 07-08 4589828AA .3 55.20
09 4589828AA .3 55.20
10 4589828AA .3 55.20
14 Cable, Hood Release 07-09 4389822AD #1.0 58.00
10 4389822AD #1.0 58.00
#Includes R&R Hood Latch
15 Grommet, Cable 4814094 1.20
16 Striker, Latch 5155607AA #.1 9.60
#Included in R&R Hood
Nozzle, W/S Washer-See Windshield Section
COOLING
Use Procedure Explanations 5 and 28 with the following text.
R&I Radiator #1.5
#w/Condenser Removed
Page 10 of 142 Print Article
