INTRODUCTION TABLE OF CONTENTS page page BODY CODE PLATE DESCRIPTION .......................... 1 FASTENER IDENTIFICATION DESCRIPTION .......................... 2 FASTENER USAGE DESCRIPTION DESCRIPTION - FASTENER USAGE ........ 5 DESCRIPTION - THREADED HOLE REPAIR ..5 INTERNATIONAL SYMBOLS DESCRIPTION .......................... 5 METRIC SYSTEM DESCRIPTION .......................... 5 TORQUE REFERENCES DESCRIPTION .......................... 8 VEHICLE IDENTIFICATION NUMBER DESCRIPTION .......................... 9 VEHICLE SAFETY CERTIFICATION LABEL DESCRIPTION ......................... 10 E-MARK LABEL DESCRIPTION ......................... 10 VECI LABEL DESCRIPTION ......................... 11 MANUFACTURER PLATE DESCRIPTION ......................... 11 BODY CODE PLATE DESCRIPTION The Body Code Plate (Fig. 1) is located in the engine compartment on the driver side strut tower. There are seven lines of information on the body code plate. Lines 4, 5, 6, and 7 are not used to define ser- vice information. Information reads from left to right, starting with line 3 in the center of the plate to line 1 at the bottom of the plate. BODY CODE PLATE LINE 2 DIGITS 1, 2, AND 3 Paint procedure DIGIT 4 Open Space DIGITS 5 THROUGH 7 Primary paint (Refer to 23 - BODY/PAINT - SPECIFICATIONS) for Body Color Codes. DIGIT 8 AND 9 Open Space DIGITS 10 THROUGH 12 Secondary Paint DIGIT 13 AND 14 Open Space DIGITS 15 THROUGH 18 Interior Trim Code DIGIT 19 Open Space DIGITS 20, 21, AND 22 Engine Code • ECC = 2.0L Four Cylinder 16 Valves DOHC Gasoline Fig. 1 BODY CODE PLATE 1 - PRIMARY PAINT 2 - SECONDARY PAINT 3 - VINYL ROOF 4 - VEHICLE ORDER NUMBER 5 - CAR LINE SHELL 6 - PAINT PROCEDURE 7 - ENGINE 8 - TRIM 9 - TRANSMISSION 10 - MARKET 11 - VIN JR INTRODUCTION 1

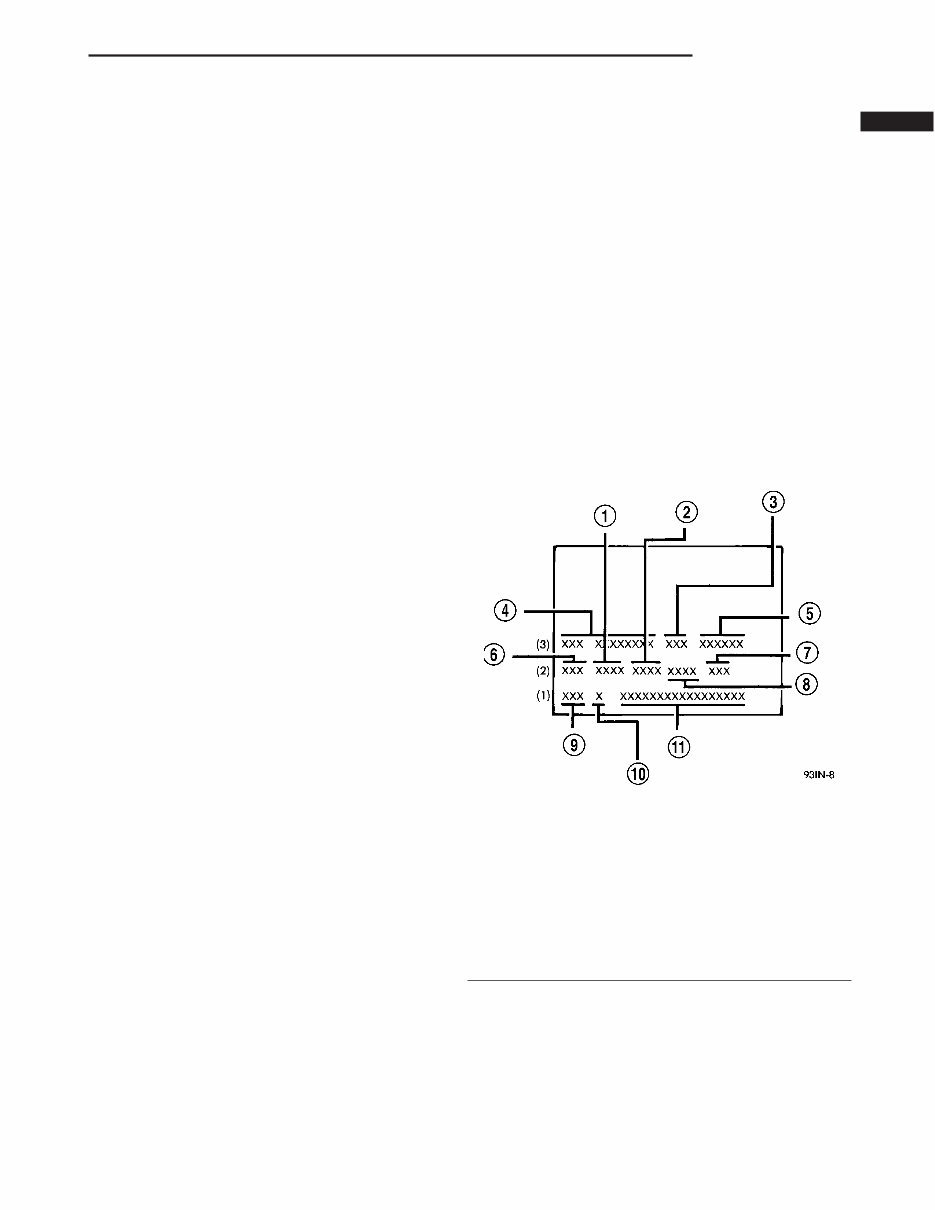

• EDV = 2.4L Four Cylinder 16 Valves DOHC Gasoline TURBO • EDZ = 2.4L Four Cylinder 16 Valves DOHC Gas- oline • EEE = 2.7L Six Cylinder 24 Valves FFV • EER = 2.7L Six Cylinder 24 Valves DOHC Gas- oline DIGIT 23 Open Space BODY CODE PLATE LINE 1 DIGITS 1, 2, AND 3 Transaxle Codes • DGL = 41TE 4-Speed Electronic Automatic Transaxle • DD5 = NV T350 5-Speed Manual Transaxle • DDR = NV T850 5-Speed Manual Transaxle DIGIT 4 Open Space DIGIT 5 Market Code • C = Canada • B = International • M = Mexico • U = United States DIGIT 6 Open Space DIGITS 7 THROUGH 23 Vehicle Identification Number • Refer to Vehicle Identification Number (VIN) paragraph for proper breakdown of VIN code. IF TWO BODY CODE PLATES ARE REQUIRED The last code shown on either plate will be fol- lowed by END. When two plates are required, the last code space on the first plate will indicate (CTD) When a second plate is required, the first four spaces of each line will not be used due to overlap of the plates. FASTENER IDENTIFICATION DESCRIPTION The SAE bolt strength grades range from grade 2 to grade 8. The higher the grade number, the greater the bolt strength. Identification is determined by the line marks on the top of each bolt head. The actual bolt strength grade corresponds to the number of line marks plus 2. The most commonly used metric bolt strength classes are 9.8 and 10.9. The metric strength class identification number is imprinted on the head of the bolt. The higher the class number, the greater the bolt strength. Some metric nuts are imprinted with a single-digit strength class on the nut face. Refer to the Fastener Identification and Fastener Strength Charts (Fig. 2) and (Fig. 3). 2 INTRODUCTION JR BODY CODE PLATE (Continued)

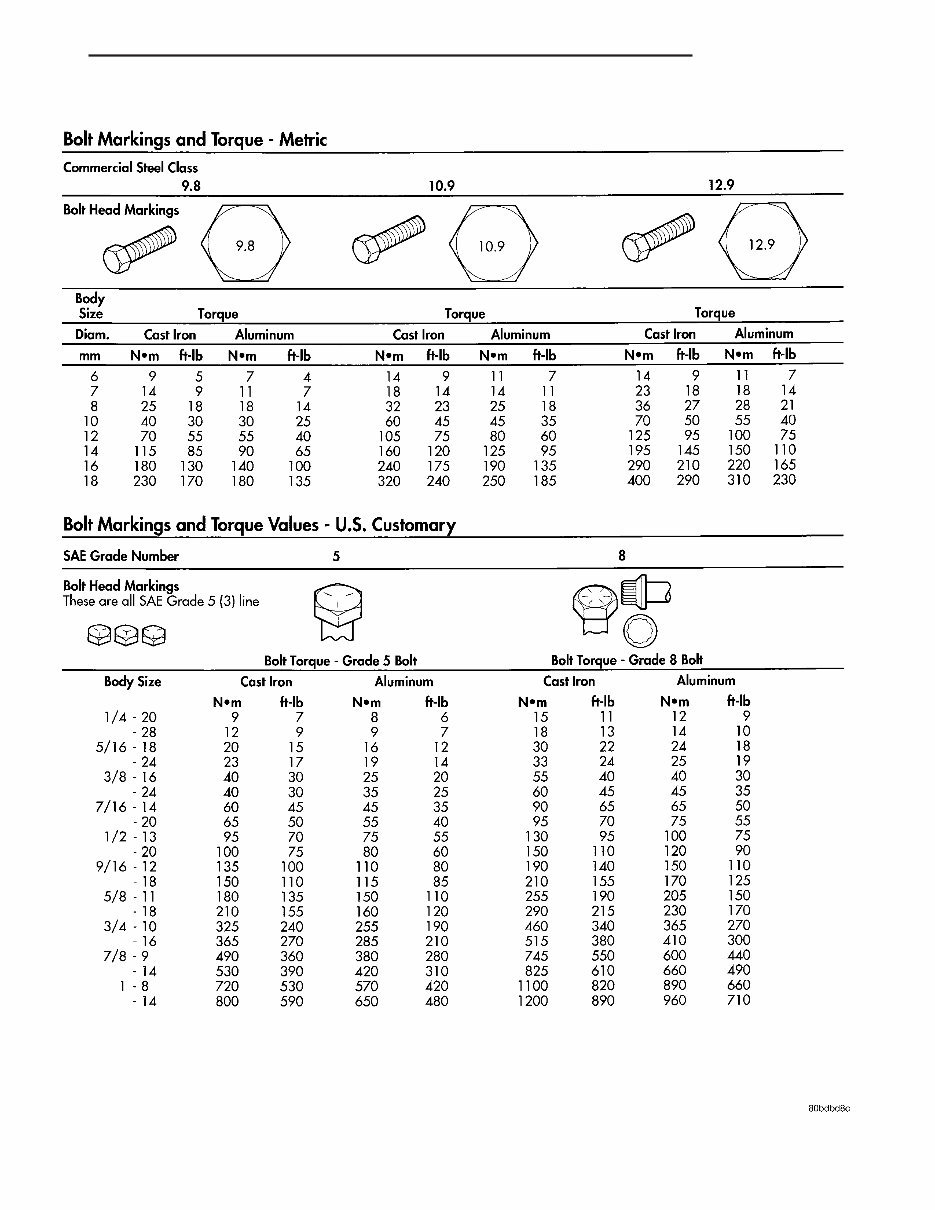

Fig. 2 FASTENER IDENTIFICATION JR INTRODUCTION 3 FASTENER IDENTIFICATION (Continued)
