2003 - 2008 Chrysler Pacifica Parts LIST CATALOG

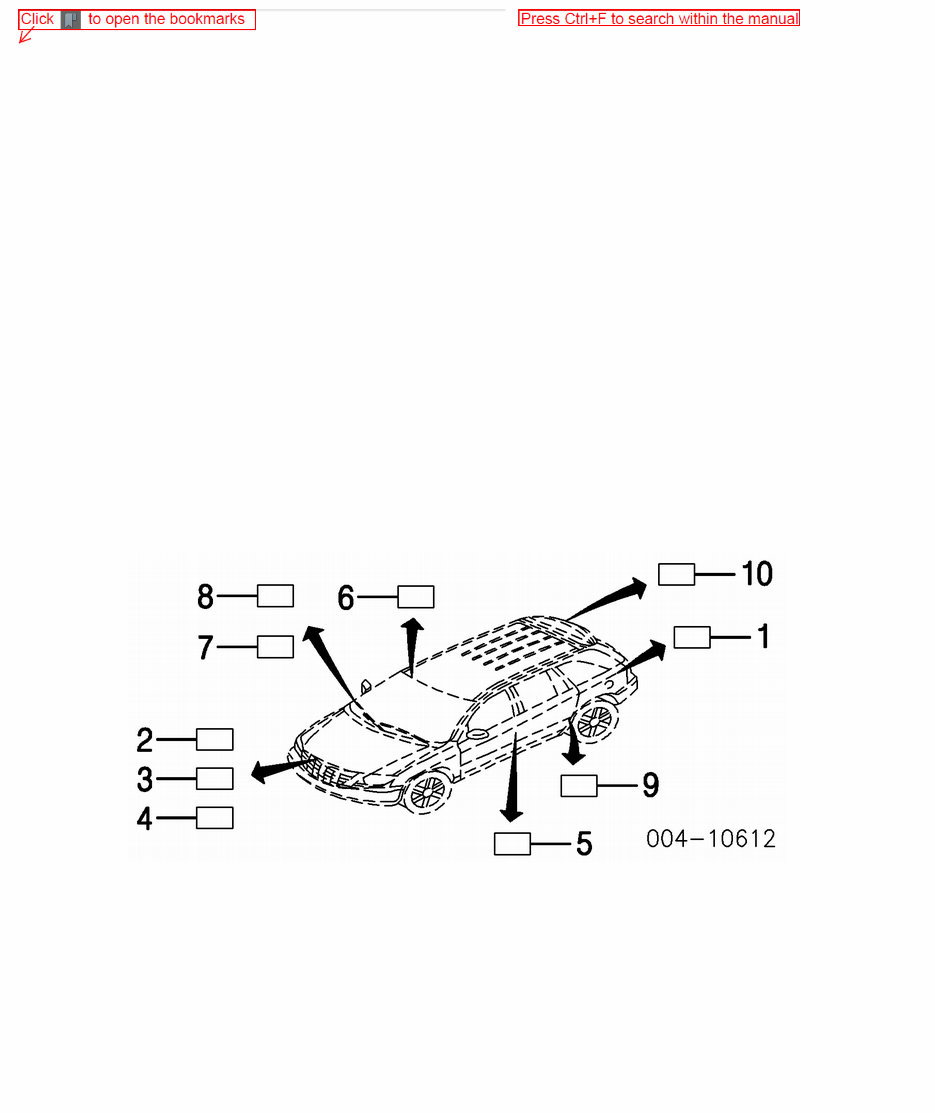

SPECIAL CAUTIONS AIR BAGS Refer to Procedure Explanation 29 for Supplemental Restraint/Air Bag Special Cautions. PAINT CODE LOCATION Paint code located on drivers side door. CLEAR COAT IDENTIFICATION All colors are clear coat. INFORMATION LABELS 1 Label, Fuel Caution 03-04 4860620AB $5.00 2 Label, Emission 2004-06 3.5L Eng 04 4809601AB $1.00 05 4881500AA $1.00 06 4880514AA $4.00 3.8L Eng 04-05 4880501AB $1.00 06 4880516AA $3.85 2007 3.8L Eng w/Calif Emissions 4880257AB $1.00 w/o Calif Emissions 4880256AB $1.00 2003-2008 Chrysler Pacifica Page 1 of 174

4.0L Eng w/Calif Emissions 4880394AB $1.00 w/o Calif Emissions 4880392AB $1.00 2008 3.8L Eng w/Calif Emissions 5273849AA $3.85 w/o Calif Emissions 5273848AA $3.85 4.0L Eng w/Calif Emissions 5273857AA $2.20 w/o Calif Emissions 5273856AA $2.20 Order by Application 3 Label, Fan Caution 4809615AA $5.95 4 Label, Coolant Warning N.A. Order by Application Label, A/C Refrig/Fan Blade Caution 5005508AD 5 Label, Air Bag Warning 4664280AD $4.60 6 Label, Air Bag Information 04 R 4787437AA $8.75 L 4787437AA $8.75 05-08 R 5108000AA $1.80 L 5108000AA $1.80 7 Label, Air Bag Caution 4678230 $5.35 8 Label, Tire Pressure 4743216AA $4.85 Order by Application 9 Label, Child Protection 04-07 R 4780544AA $3.10 L 4780545AA $3.10 08 R 4852524AA $7.00 L 4852525AA $7.35 10 Label, Warning Liftgate 4894383AA $7.25 Exhaust 4716878 $5.00 Order by Application Label, Jack Caution 04 52110391AB $6.70 05-08 5271426AA $4.10 FRONT BUMPER Use Procedure Explanations 1 and 28 with the following text. Page 2 of 174

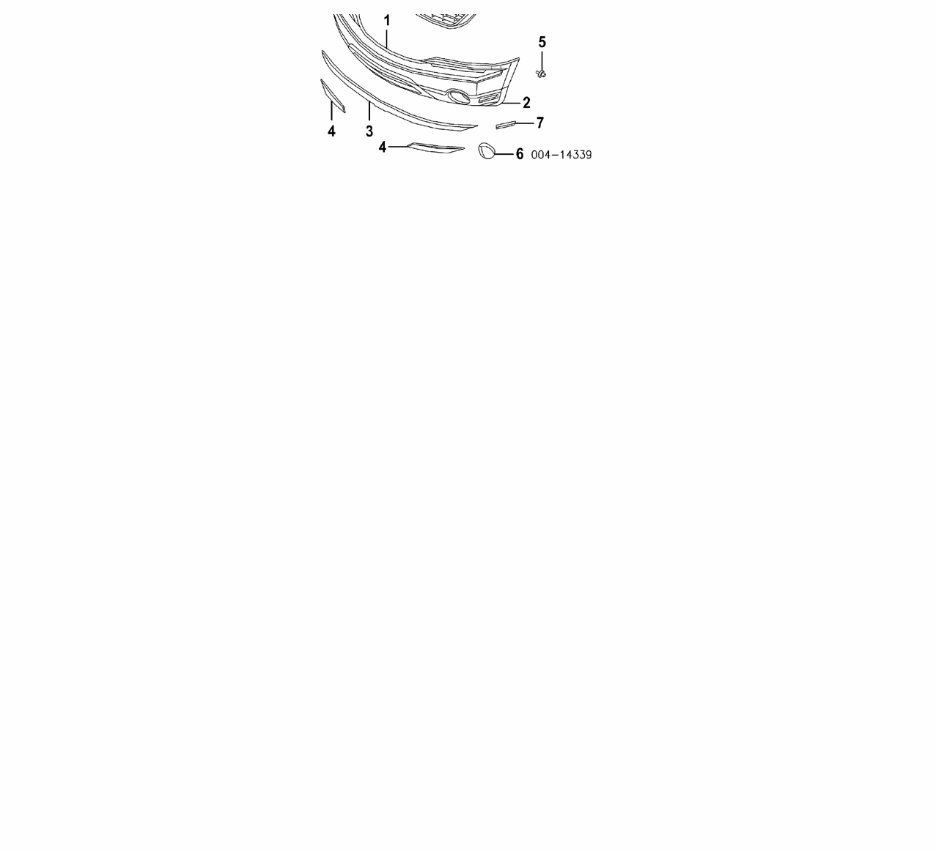

Refinish Upper Bumper Cover 2.6 Refinish Lower Bumper Cover 1.6 Refinish Fog Lamp Cover R .2 L .2 R&I Bumper Cover Assy #1.4 #Includes R&I/R&R Combination Lamps O/H Bumper Cover Assy (Includes R&I) #2.2 #Includes R&I/R&R Combination Lamps & Grille Add to R&R Lower Bumper Cover or O/H Bumper Cover Assy w/Fog Lamps .3 NOTE: All Parts in this section are included in overhaul unless noted otherwise. 1 Cover, Bumper (P) w/Chrome Insert 04-06 5102341AB $272.00 #2.2 07-08 68001921AA $452.00 #2.2 w/o Chrome Insert 04-06 5142729AB $255.00 #2.2 07-08 68001954AB $377.00 #2.2 #Includes R&I/R&R Combination Lamps & Grille 2 Cover, Lower Bumper 2004 Textured Finish Code BE, Code B8 YM13ABVAA $300.00 #2.0 Code DR, Code S2, Code W1 YM13ZSPAA $300.00 #2.0 Code EL, Code PK, Code XR YM13ZSPAA $300.00 #2.0 Code JR, Code P4 YM13AJ6AA $300.00 #2.0 Code KJ, Code T7 YM13AT7AA $300.00 #2.0 Code R8 YM13ARXAA $290.00 #2.0 Code YG YM13CJMAA $224.00 #2.0 2005 Smooth Finish (P) 5142746AA $279.00 #2.0 Textured Finish Code BE, Code B8 YM13ABVAA $300.00 #2.0 Code BJ, Code PK, Code RH YM13ZSPAA $300.00 #2.0 Code S2, Code W1, Code XR YM13ZSPAA $300.00 #2.0 Code YG YM13CJMAA $224.00 #2.0 2006 Smooth Finish (P) 5142746AA $279.00 #2.0 Textured Finish Page 3 of 174

Code BE, Code B8 YM13ABVAA $300.00 #2.0 Code PK, Code RH, Code XR YM13ZSPAA $300.00 #2.0 Code E5, Code S2, Code W1 YM13ZSPAA $300.00 #2.0 Code YG YM13CJMAA $224.00 #2.0 2007 Smooth Finish (P) 68001922AA $475.00 #2.0 Textured Finish Code BL, Code B6 1FA10ABVAA $224.00 #2.0 Code PK, Code RH, Code S2 1FA10ZSPAA $224.00 #2.0 Code VJ, Code W1, Code XR 1FA10ZSPAA $224.00 #2.0 Code YG 1FA10CJMAA $224.00 #2.0 2008 Smooth Finish (P) 68001922AA $475.00 #2.0 Textured Finish Code BL 1FA10ABVAA $224.00 #2.0 Code BG, Code HF, Code RH 1FA10ZSPAA $224.00 #2.0 Code KG 1FA10CJMAA $224.00 #2.0 Code S2, Code W1, Code XR 1FA10ZSPAA $224.00 #2.0 Order by Paint Code (P) Paint to Match #Includes R&I/R&R Combination Lamps Moulding, Upper 3 1 Piece 07-08 5113075AA $194.00 #.4 4 2 Piece 04-06 R 4857778AA $129.00 #.2 L 4857779AA $129.00 #.2 #w/Bumper Cover Assy Removed, Included in R&R Upper Bumper Cover 5 Clip, Mounting Lower, (8) 4857705AA $4.45 Side, (4/Side) 04-06 R 4857699AA $3.85 L 4857699AA $3.85 Bracket, Lower Bumper 4857624AA $27.70 6 Cover, Fog Lamp 2004 Code B8 R ZN32ABVAA $45.00 .1 L ZN33ABVAA $45.00 .1 Code DR, Code PK R ZN32ZSPAA $45.00 .1 L ZN33ZSPAA $45.00 .1 Code JR R ZN32AJ6AA $45.00 .1 L ZN33AJ6AA $45.00 .1 Code KJ R ZN32AT7AA $45.00 .1 L ZN33AT7AA $45.00 .1 Code R8 R ZN32ARXAA $40.20 .1 L ZN33ARXAA $40.20 .1 Code S2, Code W1 R ZN32ZSPAA $45.00 .1 L ZN33ZSPAA $45.00 .1 Code YG R ZN32CJMAA $45.00 .1 Page 4 of 174

L ZN33CJMAA $45.00 .1 2005-06 Code BE, Code PK R ZN32ZSPAA $45.00 .1 L ZN33ZSPAA $45.00 .1 Code B8 R ZN32ABVAA $45.00 .1 L ZN33ABVAA $45.00 .1 Code RH, Code W1 R ZN32ZSPAA $45.00 .1 L ZN33ZSPAA $45.00 .1 Code YG R ZN32CJMAA $45.00 .1 L ZN33CJMAA $45.00 .1 2006 Code BE, Code B8 R ZN32ABVAA $45.00 .1 L ZN33ABVAA $45.00 .1 Code RH, Code W1, Code XR R ZN32ZSPAA $45.00 .1 L ZN33ZSPAA $45.00 .1 Code YG R ZN32CJMAA $45.00 .1 L ZN33CJMAA $45.00 .1 2007 Code BL, Code B6 R ZN32ABVAA $45.00 .1 L ZN33ABVAA $45.00 .1 Code PK, Code RH R ZN32ZSPAA $45.00 .1 L ZN33ZSPAA $45.00 .1 Code VJ, Code W1, Code XR R ZN32ZSPAA $45.00 .1 L ZN33ZSPAA $45.00 .1 Code YG R ZN32CJMAA $45.00 .1 L ZN33CJMAA $45.00 .1 2008 Code BL R ZN32ABVAA $45.00 .1 L ZN33ABVAA $45.00 .1 Code BG, Code RH R ZN32ZSPAA $45.00 .1 L ZN33ZSPAA $45.00 .1 Code S2, Code W1 R ZN32ZSPAA $45.00 .1 L ZN33ZSPAA $45.00 .1 Order by Paint Code 7 Reflector, Bumper R 4857672AA $19.95 #.2 L 4857673AA $21.35 #.2 #Included in R&R Lower Bumper Cover 8 Grille-See Grille Section Sensor, Ambient 56042395 $32.30 9 Reinforcement Assy, Bumper 04 4857840AD $372.00 #.4 05 4857840AF $399.00 #.4 06-08 5113264AC $377.00 #.4 #w/Bumper Cover Assy Removed, Not Included in O/H 10 Absorber, Impact (a) 4857784AB $40.70 (a) Included w/Bumper Reinforcement Assy 11 Filler, Upper-See Grille Section Plate Kit, License 04-06 4857750AB $40.70 #.2 Page 5 of 174

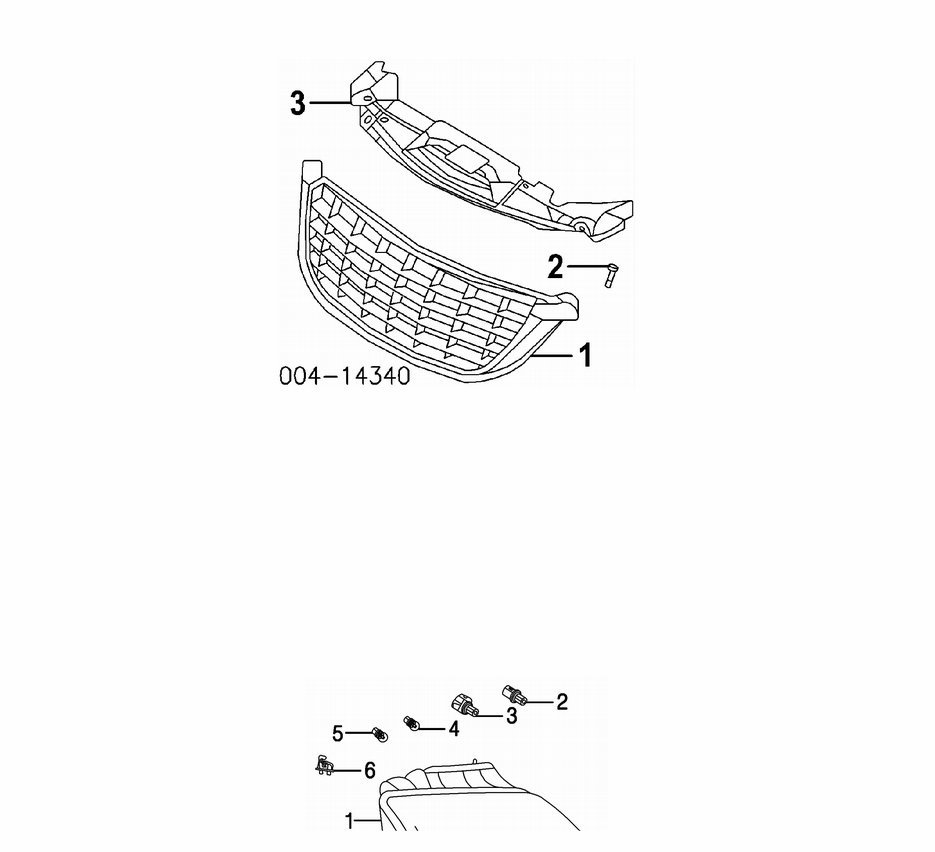

#Included in R&R Lower Bumper Cover GRILLE R&I Grille #1.6 #Includes R&I Bumper Cover Assy 1 Grille 2004 4857625AB $259.00 #1.6 2005-06 w/Chrome Insert 4857625AB $259.00 #1.6 w/o Chrome Insert 4857934AB $86.35 #1.6 2007-08 w/Chrome Insert 5113081AA $162.00 #1.6 w/o Chrome Insert 5113080AB $77.60 #1.6 #Includes R&I Bumper Cover Assy 2 Screw, Mounting (6) 153922 $1.35 3 Filler, Upper 4857713AA $77.75 #.2 #Included in R&I Bumper Cover Assy FRONT LAMPS COMBINATION LAMP Page 6 of 174

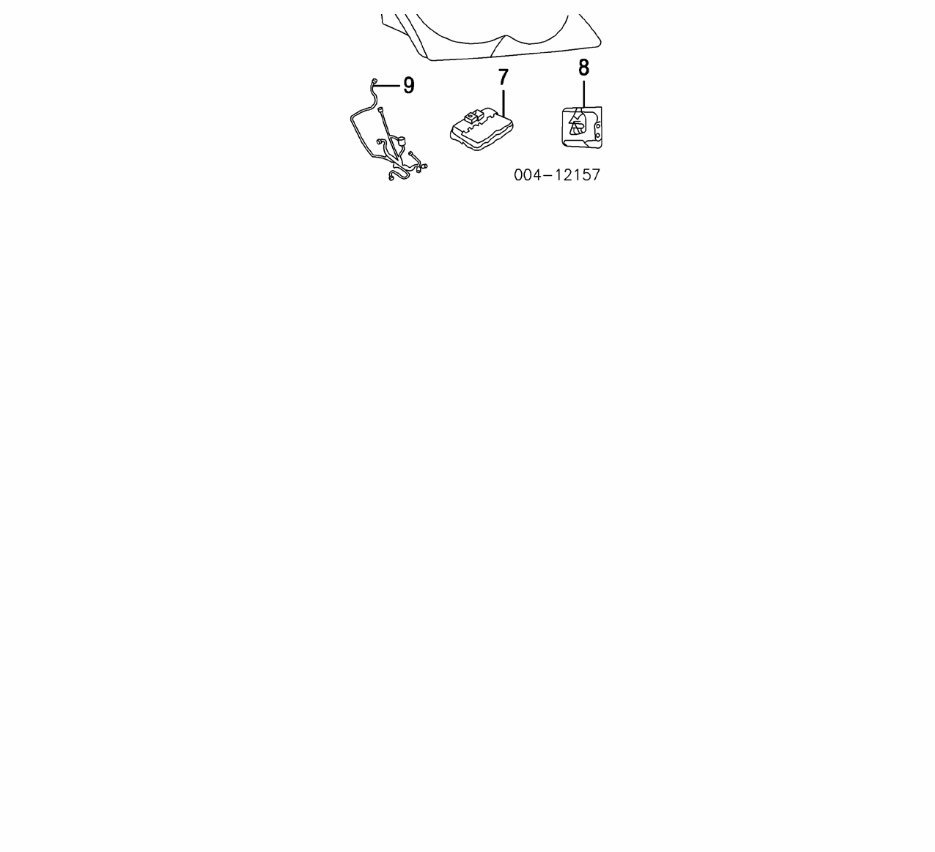

Aim Lamps .4 R&I Combination Lamp R .3 L .3 NOTE: R&R Does Not include aim lamps. 1 Lamp, Combination Halogen 04 R 4857850AA $370.00 .3 L 4857851AA $370.00 .3 05 R 4857850AC $327.00 .3 L 4857851AC $327.00 .3 06 R 4857850AE $354.00 .3 L 4857851AE $354.00 .3 07 R 5113060AC $214.00 .3 L 5113061AD $132.00 .3 08 R 5113060AD $214.00 .3 L 5113061AD $132.00 .3 Xenon 04-05 R 4857728AB $922.00 .4 L 4857729AB $922.00 .4 06 R 4857728AC $952.00 .4 L 4857729AC $952.00 .4 07 R 5113058AD $464.00 .4 L 5113059AC $537.00 .4 08 R 5113058AD $464.00 .4 L 5113059AD $537.00 .4 Clip, Lens Retainer R 5103369AA $1.10 L 5103369AA $1.10 2 Bulb, Halogen High Beam 04-06 R L0000000H7 $21.20 #.3 L L0000000H7 $21.20 #.3 07-08 R L0000H13 $22.20 #.3 L L0000H13 $22.20 #.3 Low Beam 04-06 R L0000000H7 $21.20 #.3 L L0000000H7 $21.20 #.3 07-08 R L0000H13 $22.20 #.3 L L0000H13 $22.20 #.3 3 Bulb, Xenon 04-06 R 5103354AA $99.60 #.3 L 5103354AA $99.60 #.3 Page 7 of 174

07-08 R 4865941AA $307.00 #.3 L 4865941AA $307.00 #.3 Cover, Bulb Access High Beam R 5103361AA $4.35 L 5103361AA $4.35 Low Beam R 5103362AA $4.25 L 5103362AA $4.25 Order by Application Retainer, Bulb R 5103366AA $9.25 L 5103366AA $9.25 4 Bulb, Signal/Park 04-07 R L0003157AK $3.45 #.3 L L0003157AK $3.45 #.3 08 R L004157NAK $4.00 #.3 L L004157NAK $4.00 #.3 5 Bulb, Marker R L00194NA $2.00 #.3 L L00194NA $2.00 #.3 #R&R One Side Complete, Included in R&I/R&R Combination Lamp Socket, Signal/Park R 68000921AA $42.35 L 68000921AA $42.35 Socket, Marker Lamp R 68000922AA $42.95 L 68000922AA $42.95 Order by Application 6 Clip, Headlamp R 4857674AC $0.95 L 4857674AC $0.95 Tube, Headlamp Vent R 5103363AA $0.95 L 5103363AA $0.95 7 Module, HID Ballast 04-06 R 5103356AA $265.00 #.5 L 5103356AA $265.00 #.5 07-08 R 68001392AA $387.00 #.5 L 68001392AA $387.00 #.5 8 Module, HID Starter 2004-06 R 5103360AA $77.95 #.4 L 5103360AA $77.95 #.4 2007-08-Serviced w/Combination Lamp #w/Combination Lamp Assy Removed 9 Harness, Lamp 2004-06 w/Fog Lamps 04 4869406AA $825.00 05-06 4869426AC $679.00 w/o Fog Lamps 04 4869973AB $755.00 05-06 4869434AC $220.00 2007 Halogen 4869853AD $118.00 Xenon 4869014AH $92.95 2008 Halogen 4869853AE $704.00 Page 8 of 174

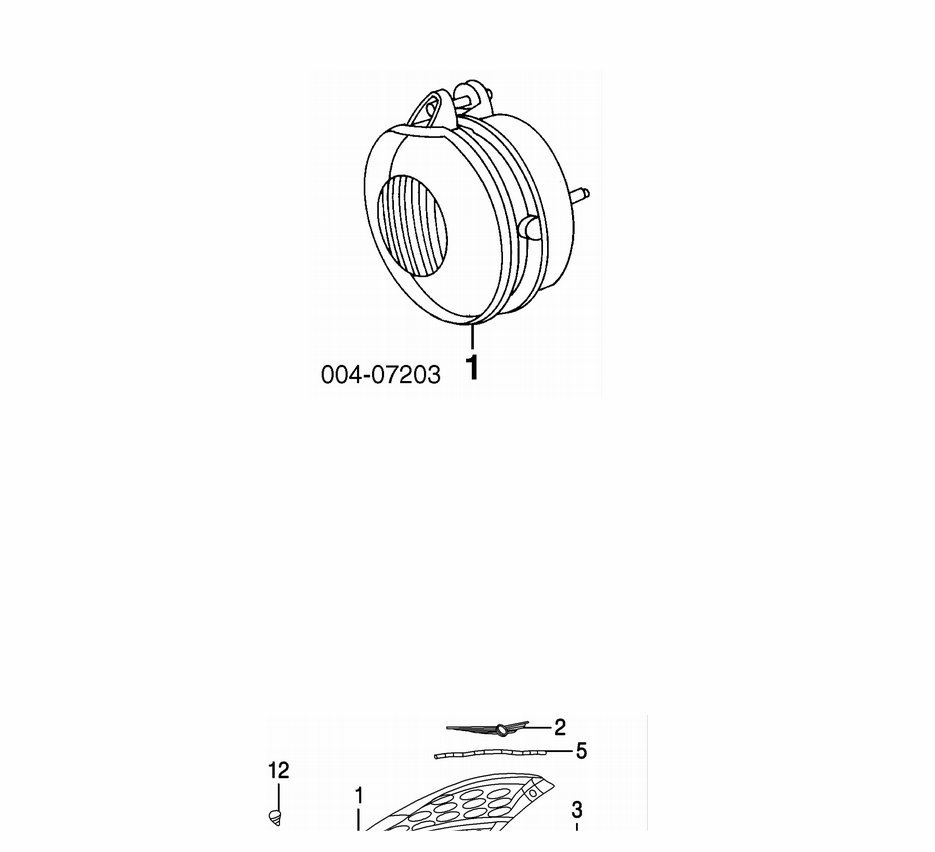

Xenon 4869014AI $507.00 Order by Application FOG LAMP R&I Fog Lamp R #.3 L #.3 #Included in R&R Lower Bumper Cover or O/H Bumper Cover Assy 1 Lamp, Fog 04 R 4805391AC $111.00 #.3 L 4805391AC $111.00 #.3 05-07 R 4805857AA $67.35 #.3 L 4805857AA $67.35 #.3 08 R 4805857AB $67.35 #.3 L 4805857AB $67.35 #.3 #Included in R&R Lower Bumper Cover or O/H Bumper Cover Assy Bulb, Fog Lamp R L0009145 $16.20 #.2 L L0009145 $16.20 #.2 #Included in R&I/R&R Fog Lamp HOOD Use Procedure Explanations 4 and 28 with the following text. Page 9 of 174

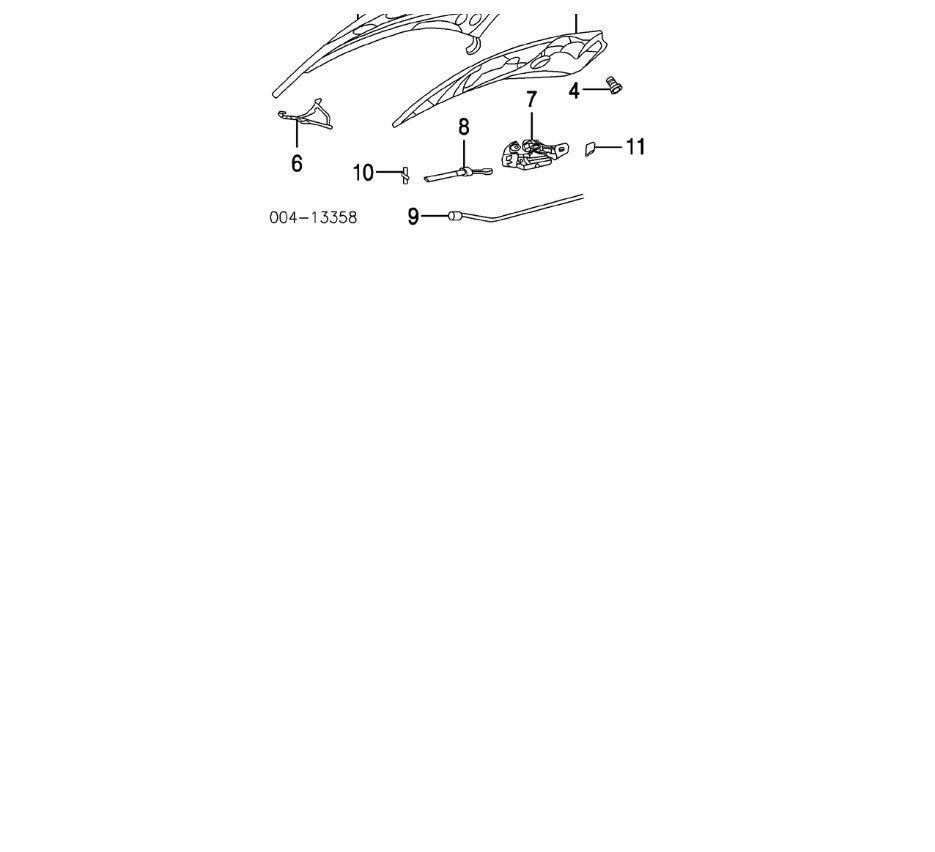

Refinish Hood Outside 2.4 Add for Underside 1.2 Refinish Hinge R .5 L .5 R&I Hood .6 R&I Hood Emblem .3 R&I Washer Nozzle R #.2 L #.2 #Included in R&R Hood 1 Hood 04-06 4719658AD $777.00 1.4 07-08 5054277AA $690.00 1.4 2 Emblem, Hood 04 4857662AC $76.75 .3 05-08 4857662AD $105.00 .3 Clip, Emblem (3) 6101443 $2.85 3 Insulator, Hood 04-06 4719715AD $57.50 .3 07-08 4719715AE $60.20 .3 4 Clip, Insulator (14) 6504135 $3.10 5 Seal, Front Hood 4719800AA $23.75 .2 6 Hinge, Hood R 5103484AC $65.70 #.2 L 5103485AC $65.70 #.2 #w/Hood Removed 7 Latch, Hood-See Front Inner Structure Section 8 Cable, Release 4719879AA $60.60 #.9 #Includes R&R Upper Filler Striker, Hood Latch-See Front Inner Structure Section 9 Rod, Hood Support 04-05 5054072AC $24.20 .2 06-07 5054308AA $25.45 .2 08 5054088AI $11.35 .2 Clip, Rod 5027550AC $6.20 10 Stopper, Front Hood R 4103165 $7.85 .2 L 4103165 $7.85 .2 11 Stopper, Rear R 5054227AA $3.85 .2 L 5054227AA $3.85 .2 12 Nozzle, Washer-See Windshield Section Page 10 of 174
