2011 GENERAL INFORMATION
Mopar Accessories - Chrysler 300
SPECIAL TOOLS
SPECIAL TOOLS
AUDIO AND ELECTRONICS
INSTRUCTION SHEET
BACKUP CAMERA
DODGE/CHRYSLER

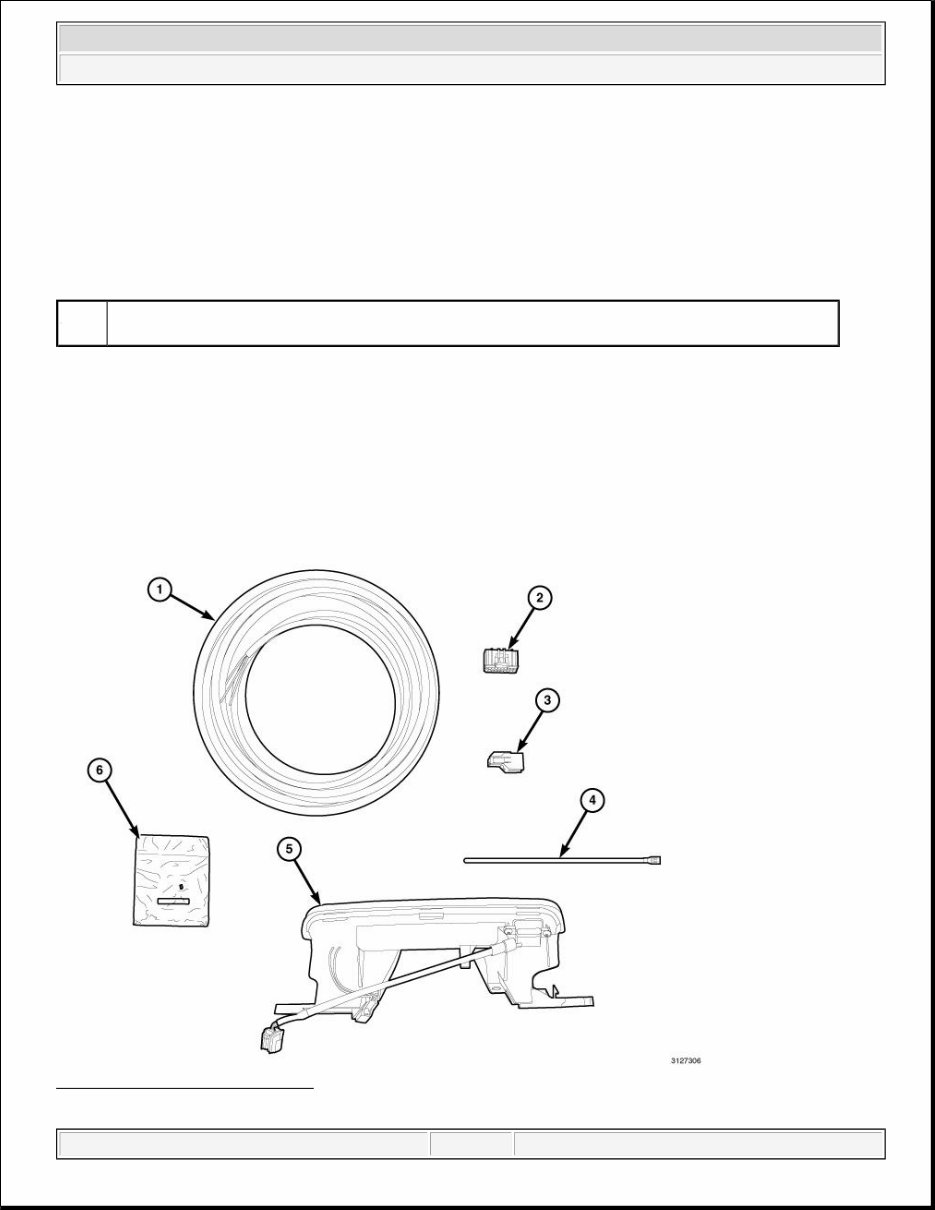

Fig. 1: Instruction Sheet of Items
Courtesy of CHRYSLER LLC
C-4755 - Trim Stick
(Originally Shipped In Kit Number(s) 9299, 9299CC, 9299CC, 9300A-CAN.)
2011 Chrysler 300 C
2011 GENERAL INFORMATION Mopar Accessories - Chrysler 300
2011 Chrysler 300 C
2011 GENERAL INFORMATION Mopar Accessories - Chrysler 300
Thursday, September 18, 2014 7:55:22 AM Page 1 © 2011 Mitchell Repair Information Company, LLC. Thursday, September 18, 2014 7:55:26 AM Page 1 © 2011 Mitchell Repair Information Company, LLC.

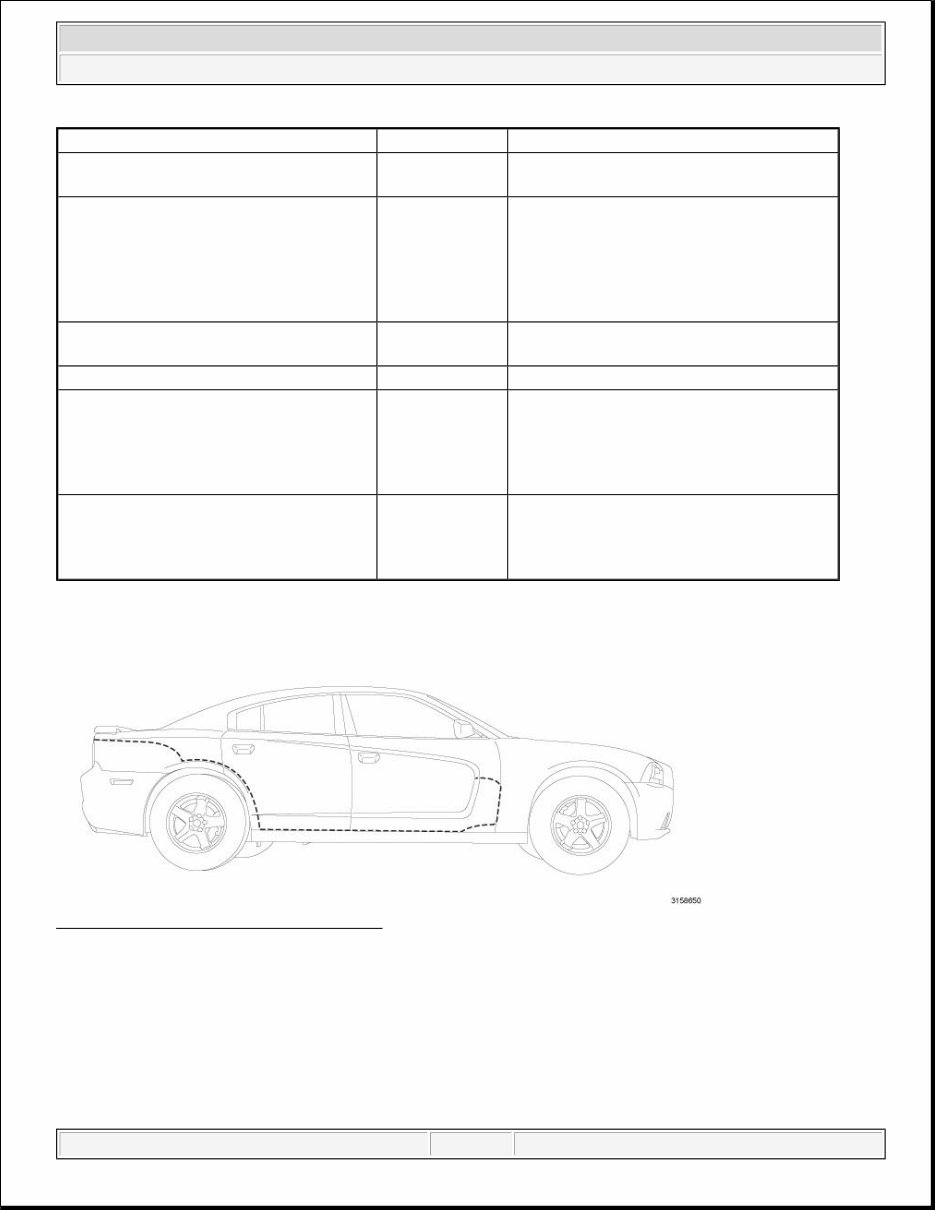

Fig. 2: Back Up Camera Harness Routing
Courtesy of CHRYSLER LLC
PROCEDURE STEPS:
CALL OUT DESCRIPTION QUANTITY
1
Backup camera
harness
1
2
Backup camera
harness to
Telematics
Gateway Module
(TGM)
connector
1
3
Backup camera
connector
1
4 Zip ties 12
5
High mount
brake lamp with
trunk release
button and
backup camera
1
6
Splice Kit
(includes 2
splice collars and
shrink tube)
1
NOTE: All views are Dodge unless noted different, Chrysler similar.
2011 Chrysler 300 C
2011 GENERAL INFORMATION Mopar Accessories - Chrysler 300
Thursday, September 18, 2014 7:55:22 AM Page 2 © 2011 Mitchell Repair Information Company, LLC.

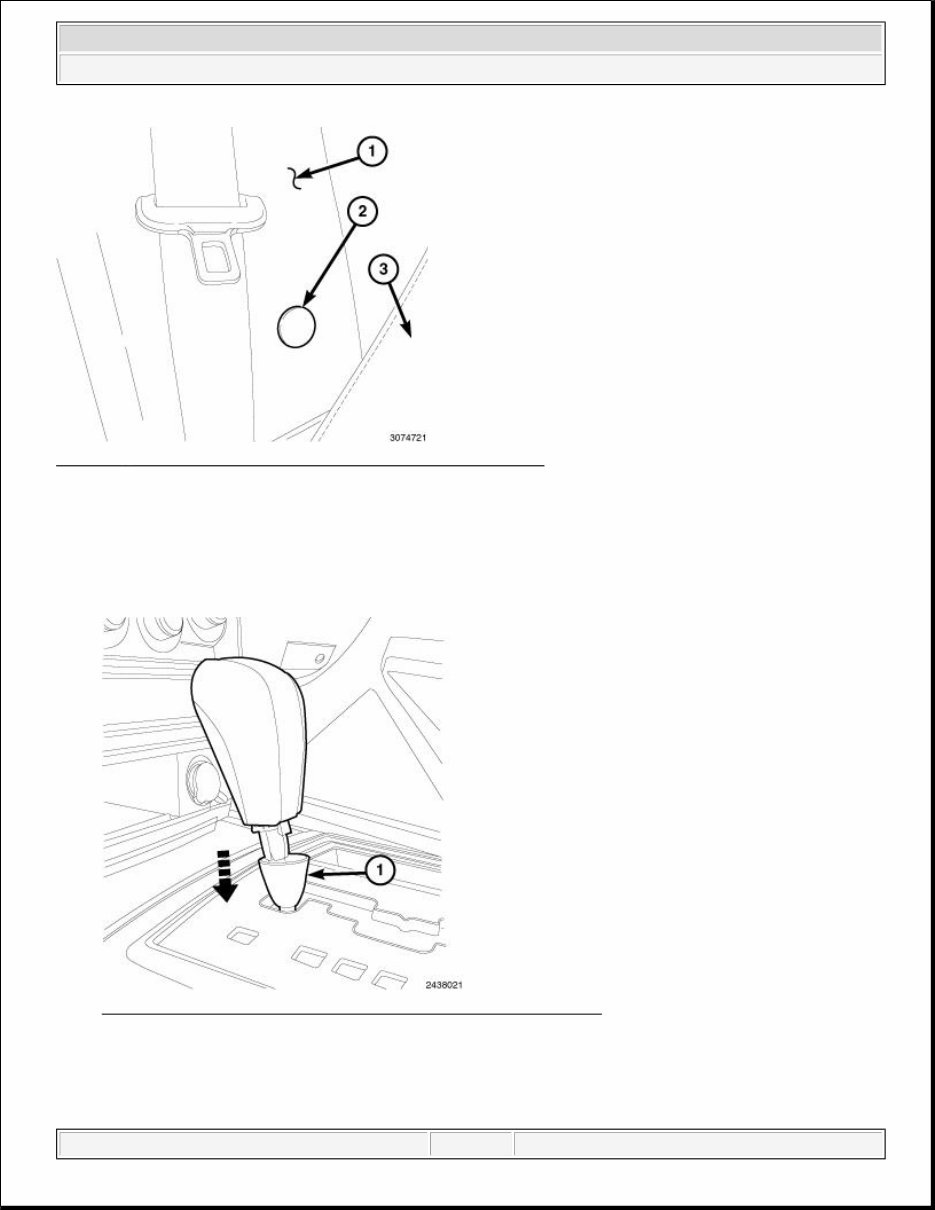

Fig. 3: B - Pillar Lower Panel Retaining Screw & RH Seat Back
Courtesy of CHRYSLER LLC
1. Tilt the RH seat back for access to the B-pillar lower panel retaining screw (not shown in illustration,
under the cover, 2), if equipped.
2. If equipped, using trim stick (special tool #C-4755, Trim Stick) or equivalent, remove the RH B-pillar
lower trim panel screw cover and remove the retaining screw.
Fig. 4: Separating Retaining Ring And Slide Down Shifter Shaft
Courtesy of CHRYSLER LLC
3. Apply the parking brake.
4. Place the ignition switch to the On position, apply the service brakes and place the gear selector lever into
2011 Chrysler 300 C
2011 GENERAL INFORMATION Mopar Accessories - Chrysler 300
Thursday, September 18, 2014 7:55:22 AM Page 3 © 2011 Mitchell Repair Information Company, LLC.
the Neutral position.
5. Place the ignition switch to the Off position.
6. Using a small flat bladed tool or equivalent, separate the retaining ring (1) and slide down the shifter
shaft.

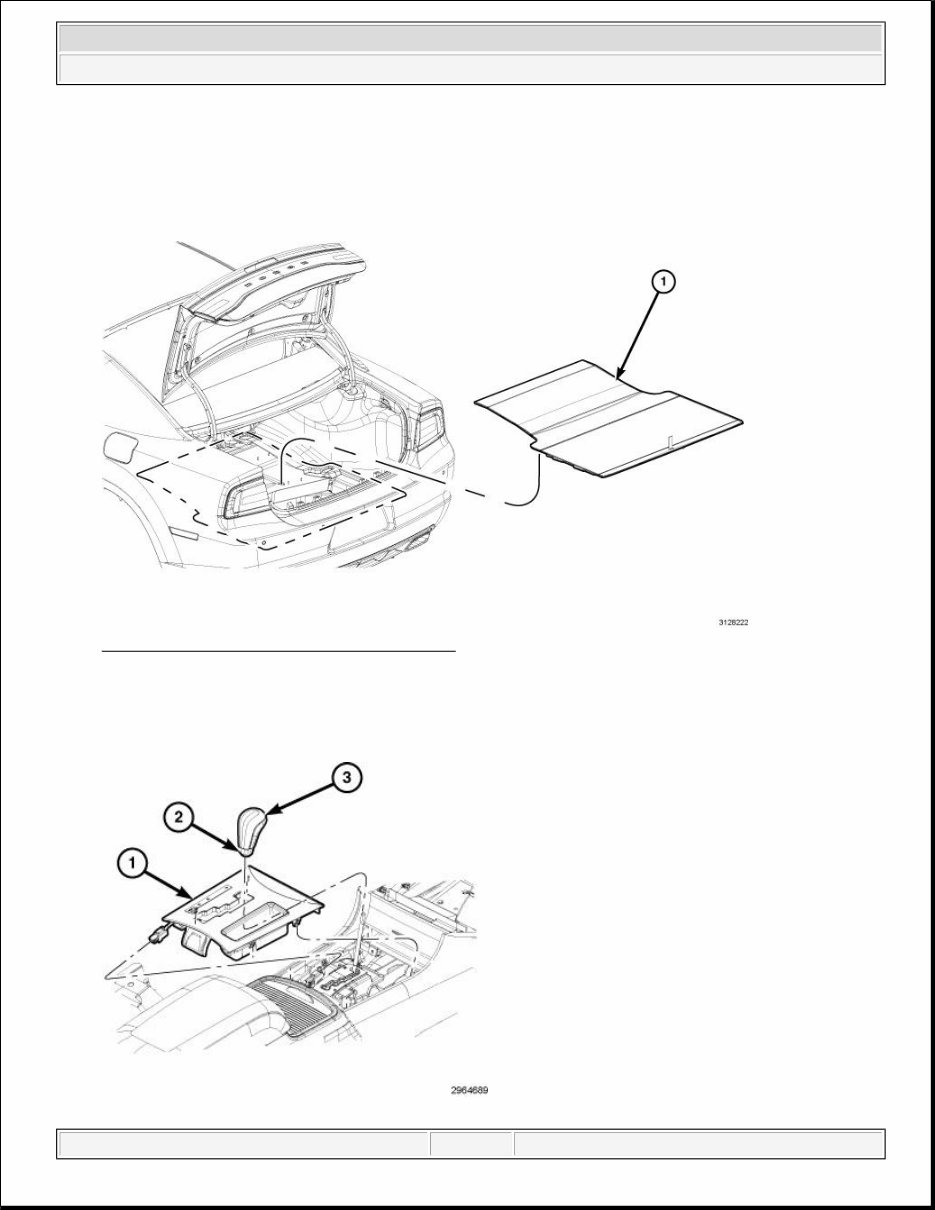

Fig. 5: Spare Tire Cover/Trunk Floor Carpet
Courtesy of CHRYSLER LLC
7. Remove the spare tire cover/trunk floor carpet from over the spare tire well.
8. Disconnect and isolate the battery negative cable.
2011 Chrysler 300 C
2011 GENERAL INFORMATION Mopar Accessories - Chrysler 300
Thursday, September 18, 2014 7:55:22 AM Page 4 © 2011 Mitchell Repair Information Company, LLC.
Fig. 6: Shifter Knob, Retaining Ring & Shifter Bezel
Courtesy of CHRYSLER LLC
9. Using a thin wire type tool, locate and press the release while pulling up on the shifter knob (3).
10. Remove the shifter knob (3) and retaining ring (2).
11. Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, gently pry between the shifter bezel
(1) and the floor console to release the snap retainers that secure the bezel.Do not pull with excessive
force or fully remove at this time.
12. Disconnect the shifter bezel wiring harness and remove the shifter bezel (1).

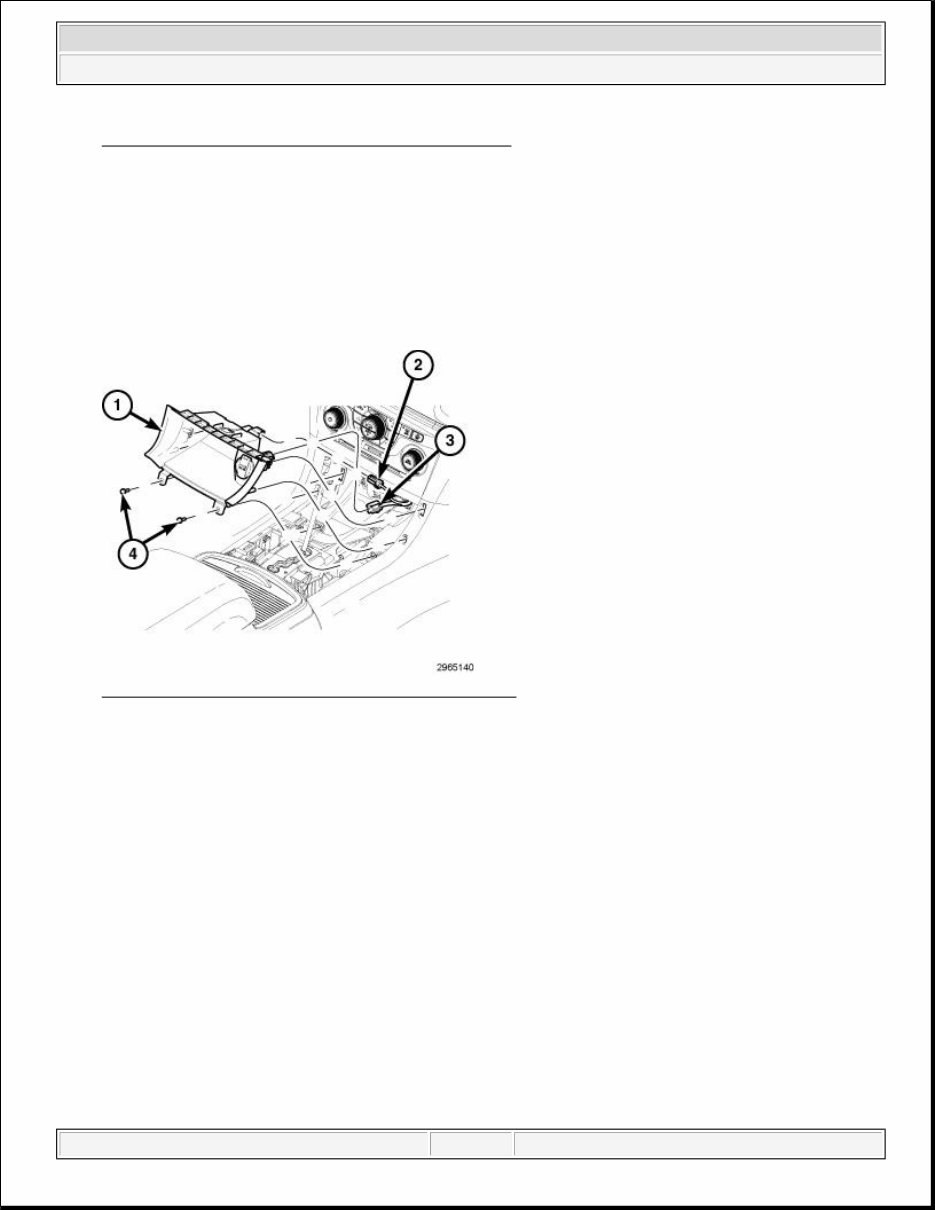

Fig. 7: Two Screws, Storage Bin & Wiring Harnesses
Courtesy of CHRYSLER LLC
13. Remove the two screws (4) securing the storage bin (1) to the console.
14. Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, gently pry between the storage bin (1)
and the floor console side close out panel to release the two snap retainers that secure the storage bin (1)
to the front console and close out panel.
15. Disconnect the 12V ignition power outlet wiring harness (3) from the rear of the storage bin (1).
16. Disconnect the LED/Lamp wiring harness (2) from the storage bin (1) and remove the storage bin from
the I/P.
2011 Chrysler 300 C
2011 GENERAL INFORMATION Mopar Accessories - Chrysler 300
Thursday, September 18, 2014 7:55:22 AM Page 5 © 2011 Mitchell Repair Information Company, LLC.

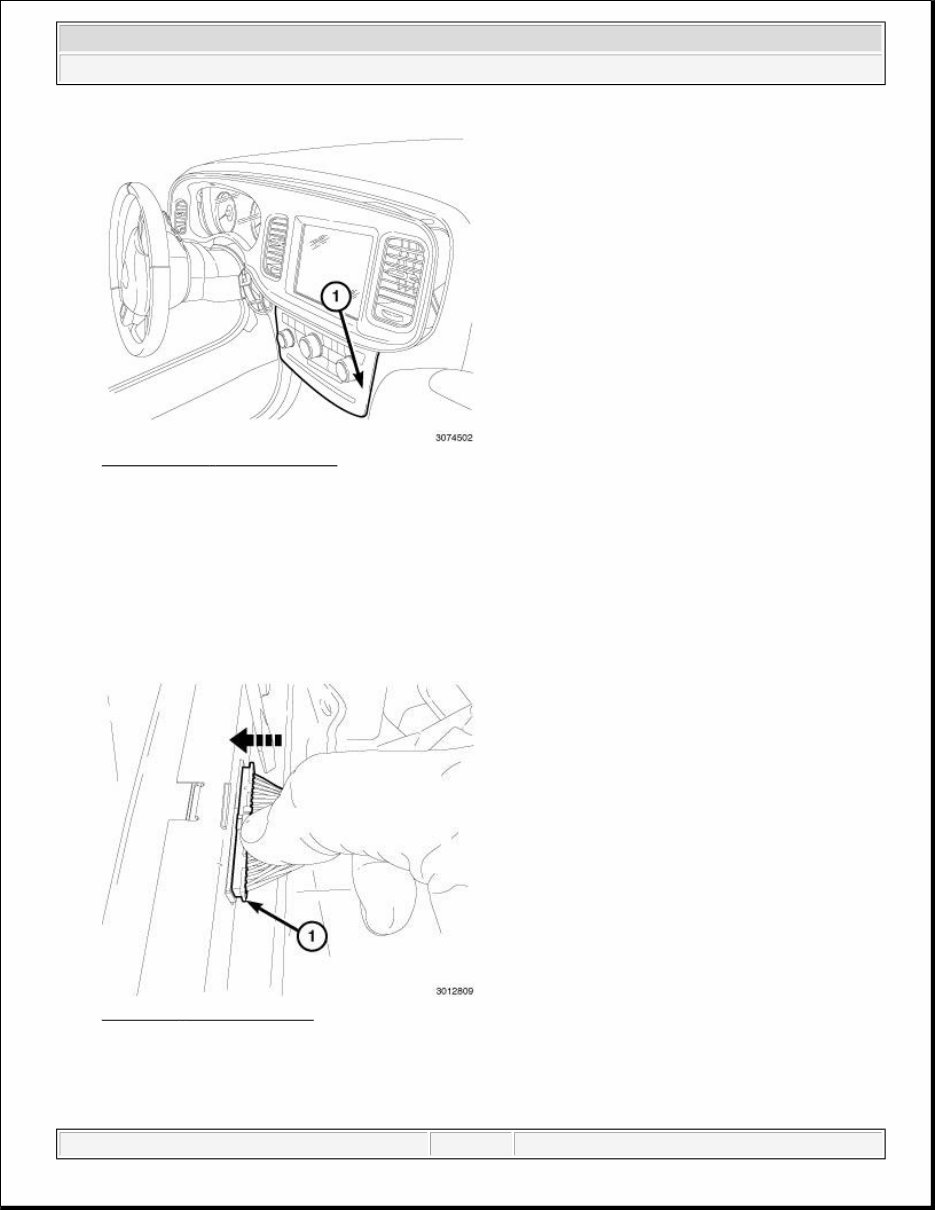

Fig. 8: Switch - Bank Assembly
Courtesy of CHRYSLER LLC
17. Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, gently pry between the switch-bank
assembly (1) and the instrument panel to release the snap retainers that secure the switch-bank assembly
(1) to the instrument panel and pull away from instrument panel for access to remove the connector
using the following steps:
Fig. 9: 40 - Way Connector
Courtesy of CHRYSLER LLC
NOTE: Only disconnect the switch-bank assembly wiring harness connector by
following the specific steps following this step.
CAUTION: Never pull the connector out by the wires. Failure to follow these
instructions will damage or break the wires and/or connector.
2011 Chrysler 300 C
2011 GENERAL INFORMATION Mopar Accessories - Chrysler 300
Thursday, September 18, 2014 7:55:22 AM Page 6 © 2011 Mitchell Repair Information Company, LLC.
18. Push in on the 40 way connector (1) of the switch-bank assembly.

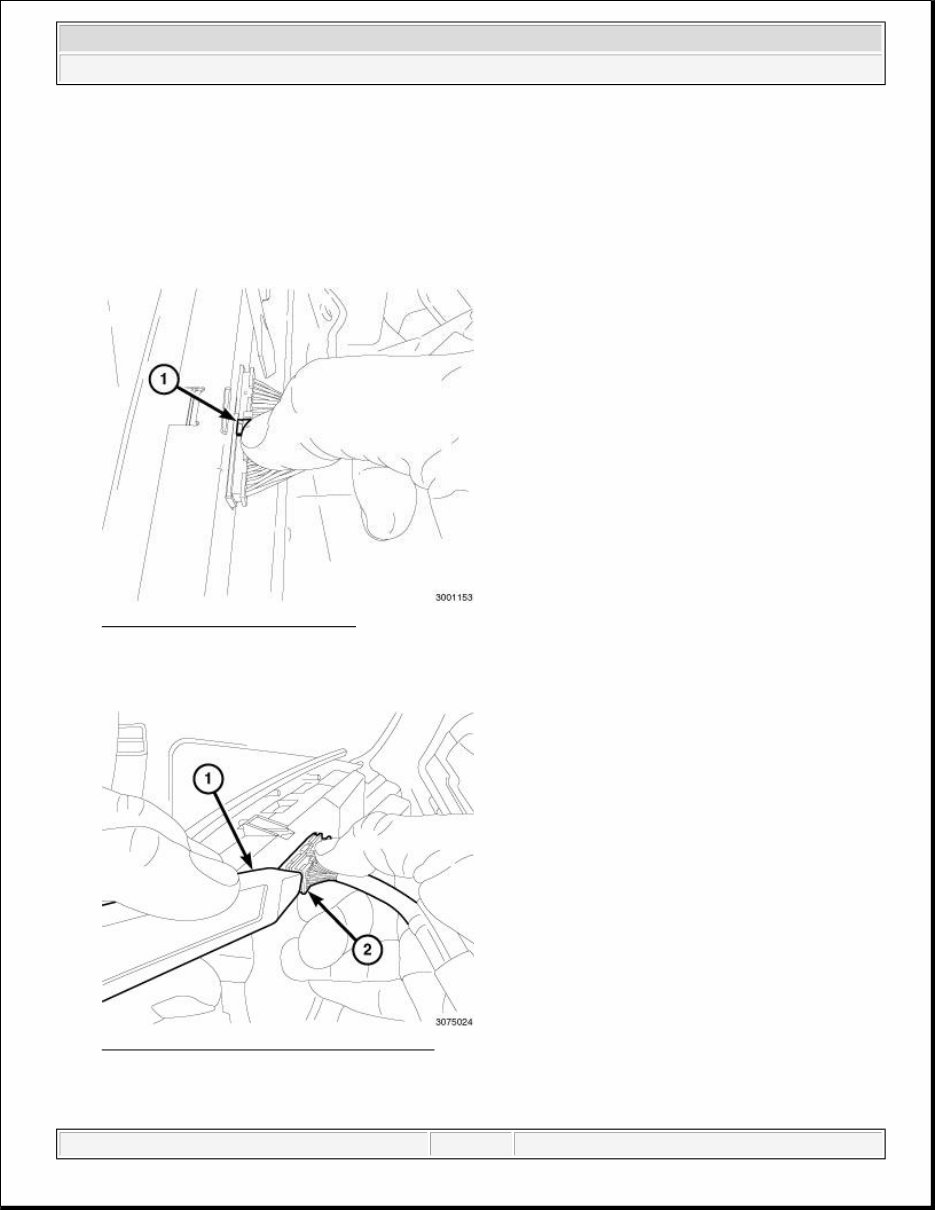

Fig. 10: Connector Release Lock
Courtesy of CHRYSLER LLC
19. Gently push down on the connector release lock (1).
Fig. 11: Pocket Screw Driver & Connector
Courtesy of CHRYSLER LLC
20. Using a pocket screw driver or a trim stick (special tool #C-4755, Trim Stick) or equivalent (1), gently
CAUTION: Push the 40 way connector in before pushing on the locking clip.
Failure to follow these instructions will damage or break the
connector locking clip.
2011 Chrysler 300 C
2011 GENERAL INFORMATION Mopar Accessories - Chrysler 300
Thursday, September 18, 2014 7:55:22 AM Page 7 © 2011 Mitchell Repair Information Company, LLC.
pry on one side of the connector (2) to remove.

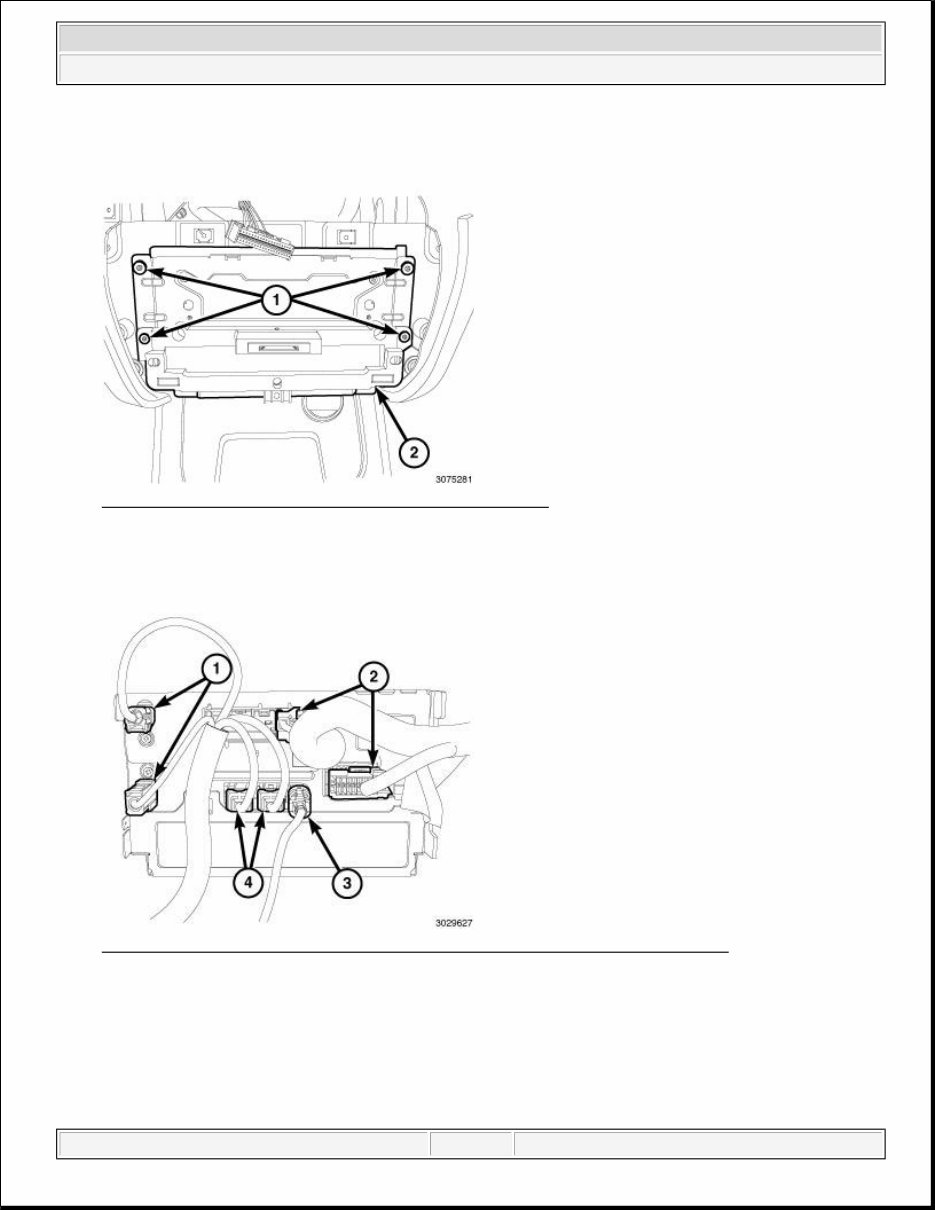

Fig. 12: Retainers & Telematics Gateway Module (TGM)
Courtesy of CHRYSLER LLC
21. Remove the retainers (1) from the Telematics Gateway Module (TGM) (2) and pull out far enough to
access the connectors on the back of the TGM.
Fig. 13: Antenna(s), Video Cable, RF HUB, Wiring Connectors And UCI Cables
Courtesy of CHRYSLER LLC
22. Disconnect the antenna(s) (1), RF HUB and UCI cables (4), video cable (3) and wiring connectors (2)
from the TGM.
CAUTION: Pulling the antenna cable straight out of the radio without pulling on
the locking antenna connector could damage the cable or radio.
2011 Chrysler 300 C
2011 GENERAL INFORMATION Mopar Accessories - Chrysler 300
Thursday, September 18, 2014 7:55:22 AM Page 8 © 2011 Mitchell Repair Information Company, LLC.
23. Remove the TGM from the vehicle.

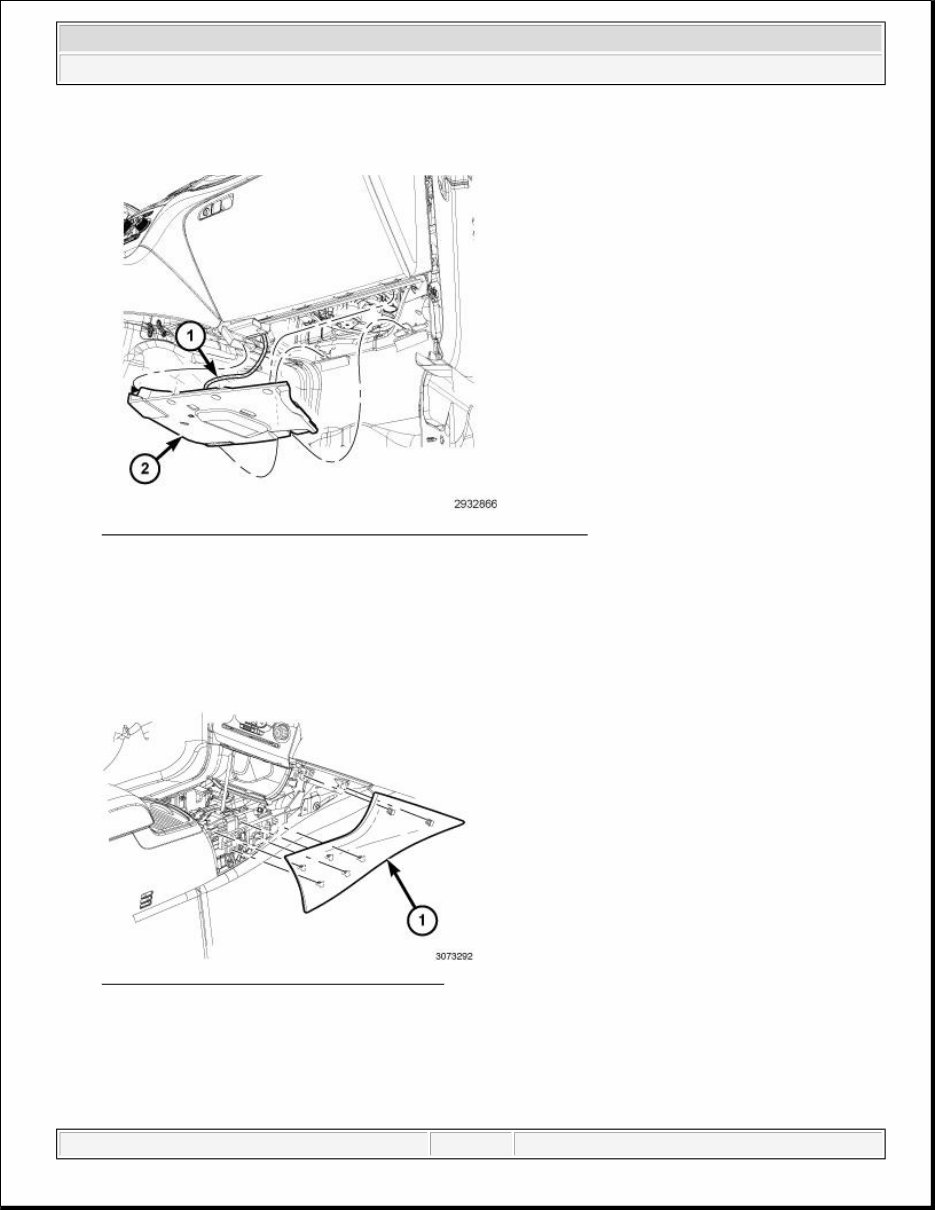

Fig. 14: LED Harness & Right Side Instrument Panel Silencer
Courtesy of CHRYSLER LLC
24. Remove the right side instrument panel silencer push in retainers.
25. Disconnect the LED harness (1) and remove the right side instrument panel silencer (2).
Fig. 15: Floor Console Side Close Out Panel
Courtesy of CHRYSLER LLC
26. On the RH side and using a trim stick (special tool #C-4755, Trim Stick) or equivalent, gently pry
between the instrument panel and the floor console side close out panel (1) to release the two snap
retainers that secure the close out panel to the instrument panel.
27. Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, gently pry between the floor console
2011 Chrysler 300 C
2011 GENERAL INFORMATION Mopar Accessories - Chrysler 300
Thursday, September 18, 2014 7:55:22 AM Page 9 © 2011 Mitchell Repair Information Company, LLC.
side close out panel (1) and the floor console to release the five snap retainers that secure the close out
panel to the floor console and remove the panel.

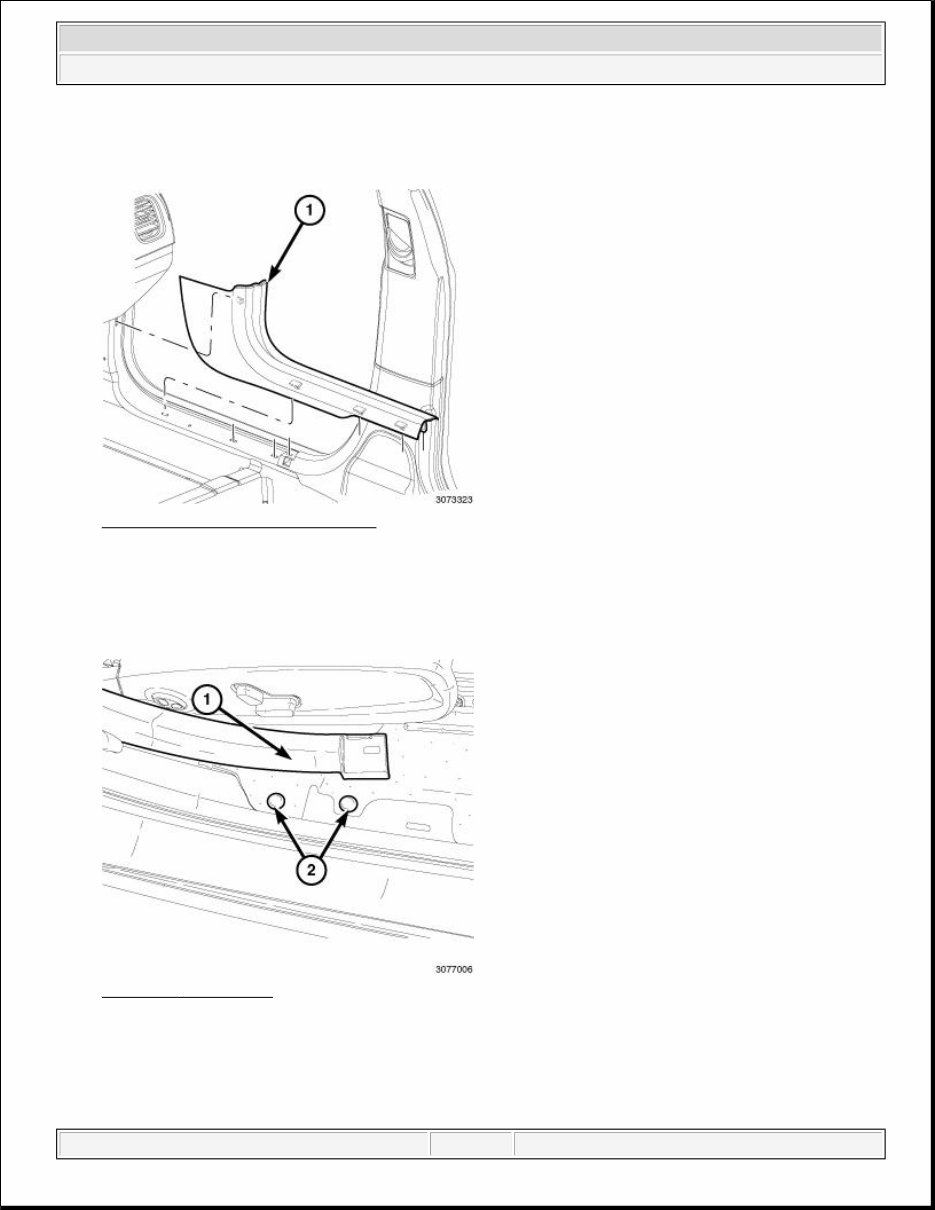

Fig. 16: RH Front Door Scuff Plate
Courtesy of CHRYSLER LLC
28. Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, remove the RH front door scuff plate
(1).
29. Remove the RH rear door scuff plate the same as the front.
Fig. 17: B - Pillar Trim
Courtesy of CHRYSLER LLC
NOTE: It is not necessary to remove the B-pillar trim, only loosen for access to
route the backup camera wiring harness.
2011 Chrysler 300 C
2011 GENERAL INFORMATION Mopar Accessories - Chrysler 300
Thursday, September 18, 2014 7:55:22 AM Page 10 © 2011 Mitchell Repair Information Company, LLC.
