2011 Chevrolet Impala Owner Manual M In Brief ........................ 1-1 Instrument Panel .............. 1-2 Initial Drive Information ........ 1-3 Vehicle Features ............. 1-14 Performance and Maintenance ................ 1-18 Keys, Doors and Windows ... 2-1 Keys and Locks ............... 2-2 Doors ........................ 2-10 Vehicle Security .............. 2-11 Exterior Mirrors ............... 2-14 Interior Mirrors ................ 2-15 Windows ..................... 2-16 Roof .......................... 2-18 Seats and Restraints ......... 3-1 Head Restraints ............... 3-2 Front Seats .................... 3-3 Rear Seats .................... 3-8 Safety Belts .................. 3-10 Airbag System ................ 3-26 Child Restraints .............. 3-42 Storage ....................... 4-1 Storage Compartments ........ 4-1 Additional Storage Features . . . 4-2 Instruments and Controls .... 5-1 Controls ....................... 5-2 Warning Lights, Gauges, and Indicators ................... 5-10 Information Displays .......... 5-26 Vehicle Messages ............ 5-30 Vehicle Personalization ....... 5-39 Universal Remote System .... 5-45 Lighting ....................... 6-1 Exterior Lighting ............... 6-1 Interior Lighting ................ 6-5 Lighting Features .............. 6-6 Infotainment System ......... 7-1 Introduction .................... 7-1 Radio .......................... 7-6 Audio Players ................ 7-15 Phone ........................ 7-21 Climate Controls ............. 8-1 Climate Control Systems .... . . 8-1 Air Vents ....................... 8-5 Maintenance ................... 8-5 Driving and Operating ........ 9-1 Driving Information ............. 9-2 Starting and Operating ....... 9-17 Engine Exhaust .............. 9-24 Automatic Transmission ...... 9-25 Brakes ....................... 9-28 Ride Control Systems ........ 9-29 Cruise Control ................ 9-32 Fuel .......................... 9-35 Towing ....................... 9-41 Conversions and Add-Ons . . . 9-48 Vehicle Care ................. 10-1 General Information .......... 10-2 Vehicle Checks ............... 10-4 Headlamp Aiming ........... 10-32 Bulb Replacement .......... 10-33

2011 Chevrolet Impala Owner Manual M Electrical System ............ 10-37 Wheels and Tires ........... 10-42 Jump Starting ............... 10-75 Towing ...................... 10-79 Appearance Care ........... 10-81 Service and Maintenance ... 11-1 General Information .......... 11-1 Scheduled Maintenance ...... 11-2 Recommended Fluids, Lubricants, and Parts ....... 11-6 Maintenance Records ........ 11-9 Technical Data ............... 12-1 Vehicle Identification ......... 12-1 Vehicle Data .................. 12-2 Customer Information ....... 13-1 Customer Information ........ 13-1 Reporting Safety Defects .... 13-14 Vehicle Data Recording and Privacy .................... 13-15 Index ..................... i-1

Introduction iii The names, logos, emblems, slogans, vehicle model names, and vehicle body designs appearing in this manual including, but not limited to, GM, the GM logo, CHEVROLET, the CHEVROLET Emblem, IMPALA, and the IMPALA Emblem are trademarks and/or service marks of General Motors LLC, its subsidiaries, affiliates, or licensors. This manual describes features that may or may not be on your specific vehicle either because they are options that you did not purchase or due to changes subsequent to the printing of this owner manual. Please refer to the purchase documentation relating to your specific vehicle to confirm each of the features found on your vehicle. For vehicles first sold in Canada, substitute the name "General Motors of Canada Limited" for Chevrolet Motor Division wherever it appears in this manual. Keep this manual in the vehicle for quick reference. Canadian Vehicle Owners Propriétaires Canadiens A French language copy of this manual can be obtained from your dealer or from: On peut obtenir un exemplaire de ce guide en français auprès du concessionnaire ou à l'adresse suivante: Helm, Incorporated P.O. Box 07130 Detroit, MI 48207 1-800-551-4123 Numéro de poste 6438 de langue française www.helminc.com Litho in U.S.A. Part No. 20782813 B Second Printing © 2010 General Motors LLC. All Rights Reserved.

iv Introduction Using this Manual To quickly locate information about the vehicle, use the Index in the back of the manual. It is an alphabetical list of what is in the manual and the page number where it can be found. Danger, Warnings, and Cautions Warning messages found on vehicle labels and in this manual describe hazards and what to do to avoid or reduce them. Danger indicates a hazard with a high level of risk which will result in serious injury or death. Warning or Caution indicates a hazard that could result in injury or death. { WARNING These mean there is something that could hurt you or other people. Notice: This means there is something that could result in property or vehicle damage. This would not be covered by the vehicle's warranty. A circle with a slash through it is a safety symbol which means “Do Not,”“Do not do this,” or “Do not let this happen.” Symbols The vehicle has components and labels that use symbols instead of text. Symbols are shown along with the text describing the operation or information relating to a specific component, control, message, gauge, or indicator. M : This symbol is shown when you need to see your owner manual for additional instructions or information. * : This symbol is shown when you need to see a service manual for additional instructions or information.

Introduction v Vehicle Symbol Chart Here are some additional symbols that may be found on the vehicle and what they mean. For more information on the symbol, refer to the Index. 9 : Airbag Readiness Light # : Air Conditioning ! : Antilock Brake System (ABS) % : Audio Steering Wheel Controls or OnStar ® $ : Brake System Warning Light " : Charging System I : Cruise Control B : Engine Coolant Temperature O : Exterior Lamps # : Fog Lamps . : Fuel Gauge + : Fuses 3 : Headlamp High/Low-Beam Changer j : LATCH System Child Restraints * : Malfunction Indicator Lamp : : Oil Pressure } : Power / : Remote Vehicle Start > : Safety Belt Reminders 7 : Tire Pressure Monitor d : Traction Control M : Windshield Washer Fluid

vi Introduction 2 NOTES

In Brief 1-1 In Brief Instrument Panel Instrument Panel .............. 1-2 Initial Drive Information Initial Drive Information ........ 1-3 Remote Keyless Entry (RKE) System ...................... 1-4 Remote Vehicle Start ......... 1-4 Door Locks ................... 1-5 Trunk Release ................ 1-5 Windows ...................... 1-6 Seat Adjustment .............. 1-6 Second Row Seats ........... 1-8 Head Restraint Adjustment .... 1-8 Safety Belts ................... 1-8 Sensing System for Passenger Airbag ....................... 1-8 Mirror Adjustment ............. 1-9 Steering Wheel Adjustment ................. 1-10 Interior Lighting .............. 1-10 Exterior Lighting ............. 1-10 Windshield Wiper/Washer .... 1-11 Climate Controls ............. 1-12 Vehicle Features Radio(s) ..................... 1-14 Satellite Radio ............... 1-15 Portable Audio Devices ...... 1-16 Bluetooth ® ................... 1-16 Steering Wheel Controls ..... 1-16 Cruise Control ............... 1-17 Power Outlets ............... 1-18 Performance and Maintenance Traction Control System (TCS) .............. 1-18 Electronic Stability Control (ESC) .............. 1-19 Tire Pressure Monitor ........ 1-19 Engine Oil Life System .... . . 1-20 Fuel E85 (85% Ethanol) .... . 1-20 Driving for Better Fuel Economy ................... 1-20 Roadside Assistance Program .................... 1-21 OnStar ® ..................... 1-21

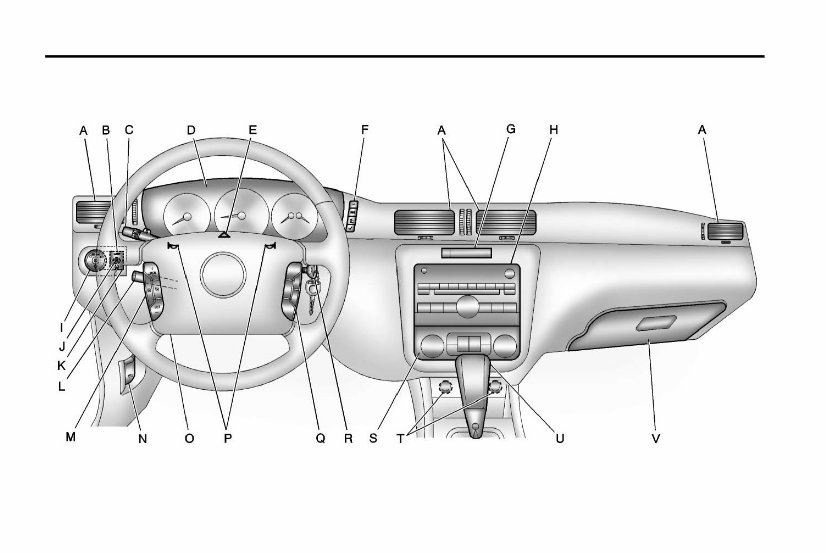

1-2 In Brief Instrument Panel

In Brief 1-3 A. Air Vents on page 8‑5. B. Remote Trunk Release Button. See Trunk on page 2‑10. C. Turn and Lane-Change Signals on page 6‑4. D. Instrument Cluster on page 5‑11. E. Hazard Warning Flashers on page 6‑4. F. Driver Information Center (DIC) on page 5‑26. G. Passenger Airbag Status Indicator on page 5‑16. H. Infotainment on page 7‑1. I. Exterior Lamp Controls on page 6‑1. J. Instrument Panel Illumination Control on page 6‑5. K. Traction Control System (TCS) on page 9‑29 (If Equipped). L. Steering Wheel Adjustment on page 5‑2. M. Cruise Control on page 9‑32. N. Hood Release. See Hood on page 10‑5. O. Data Link Connector (DLC) (Out of View). See Malfunction Indicator Lamp on page 5‑17. P. Horn on page 5‑3. Q. Steering Wheel Controls on page 5‑3 (If Equipped). R. Ignition Positions on page 9‑17. S. Climate Control Systems on page 8‑1. T. Power Outlets on page 5‑8. U. Center Console Shift Lever (If Equipped). See Shifting Into Park on page 9‑21. V. Glove Box on page 4‑1. Initial Drive Information This section provides a brief overview about some of the important features that may or may not be on your specific vehicle. For more detailed information, refer to each of the features which can be found later in this owner manual.

1-4 In Brief Remote Keyless Entry (RKE) System The RKE transmitter is used to remotely lock and unlock the doors from up to 60 m (195 ft) away from the vehicle. Press K to unlock the driver door. Press again within five seconds to unlock all remaining doors. Press Q to lock all doors. Lock and unlock feedback can be personalized. See Vehicle Personalization on page 5‑39 for additional information. Press and hold V for approximately one second to open the trunk. Press L and release to locate the vehicle. Press L and hold for more than two seconds to sound the panic alarm. Press L again to cancel the panic alarm. See Keys on page 2‑2 and Remote Keyless Entry (RKE) System Operation on page 2‑3. Remote Vehicle Start With this feature the engine can be started from outside of the vehicle. Starting the Vehicle 1. Aim the RKE transmitter at the vehicle. 2. Press Q. 3. Immediately after completing Step 2, press and hold / until the turn signal lamps flash. When the vehicle starts, the parking lamps will turn on and remain on as long as the engine is running. The doors will be locked and the climate control system may come on. The engine will continue to run for 10 minutes. Repeat the steps for a 10-minute time extension. Remote start can be extended only once.
