2009 Chevrolet Equinox | Equinox, Torrent (VIN L) Service Manual | Driver Information and Entertainment |
Cellular, Entertainment, and Navigation | Specifications | Document ID: 1726477
Fastener Tightening Specifications
Application
Specification
Metric English
Amplifier Screw 3 N·m 26 lb in
Communication Interface Module Battery Nut 10 N·m 89 lb in
Communication Interface Module Bolt 10 N·m 89 lb in
Digital Radio Antenna Base Bolt 5 N·m 44 lb in
Digital Radio Receiver Nut 4 N·m 35 lb in
Front Door Speaker Screw 2.5 N·m 22 lb in
Mobile Telephone and Vehicle Location Antenna Assembly Bolt 5 N·m 44 lb in
Radio Door Screw 2 N·m 18 lb in
Radio Rear Compartment Speaker Bolt 2.5 N·m 22 lb in
Radio Rear Compartment Speaker Nut 2.5 N·m 22 lb in
© 2010 General Motors Corporation. All rights reserved.
Page 1 of 1 Document ID: 1726477
9/16/2010 http://localhost:9001/si/showDoc.do?docSyskey=1726477&pubCellSyskey=46713&pubO...
2009 Chevrolet Equinox | Equinox, Torrent (VIN L) Service Manual | Driver Information and Entertainment |
Cellular, Entertainment, and Navigation | Repair Instructions | Document ID: 1719982

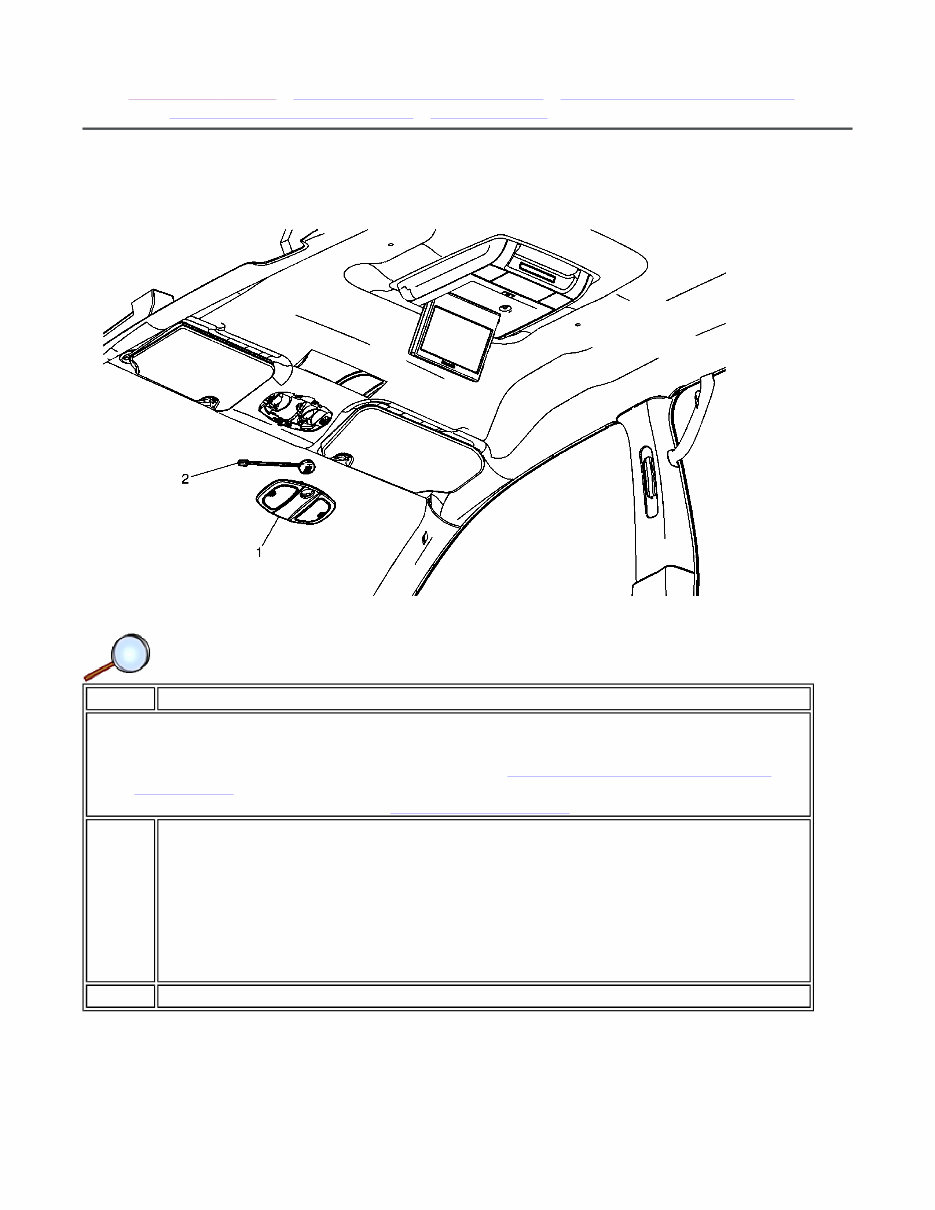

Mobile Telephone Microphone Replacement
Callout Component Name
Preliminary Procedures
1. Remove the windshield pillar moldings. Refer to Windshield Upper Garnish Molding
Replacement .
2. Remove the sunshades. Refer to Sunshade Replacement .
1
Reading Lamp Assembly
Procedure
1. Pull gently at the front of the reading lamp cover to disengage the retainer
clips.
2. Rotate the cover rearward until the rear attaching hooks are released.
3. Disconnect the electrical connectors.
2 Mobile Telephone Microphone Assembly
© 2010 General Motors Corporation. All rights reserved.
Page 1 of 1 Document ID: 1719982
9/16/2010 http://localhost:9001/si/showDoc.do?docSyskey=1719982&pubCellSyskey=149734&pub...
2009 Chevrolet Equinox | Equinox, Torrent (VIN L) Service Manual | Driver Information and Entertainment |
Cellular, Entertainment, and Navigation | Repair Instructions | Document ID: 2123033

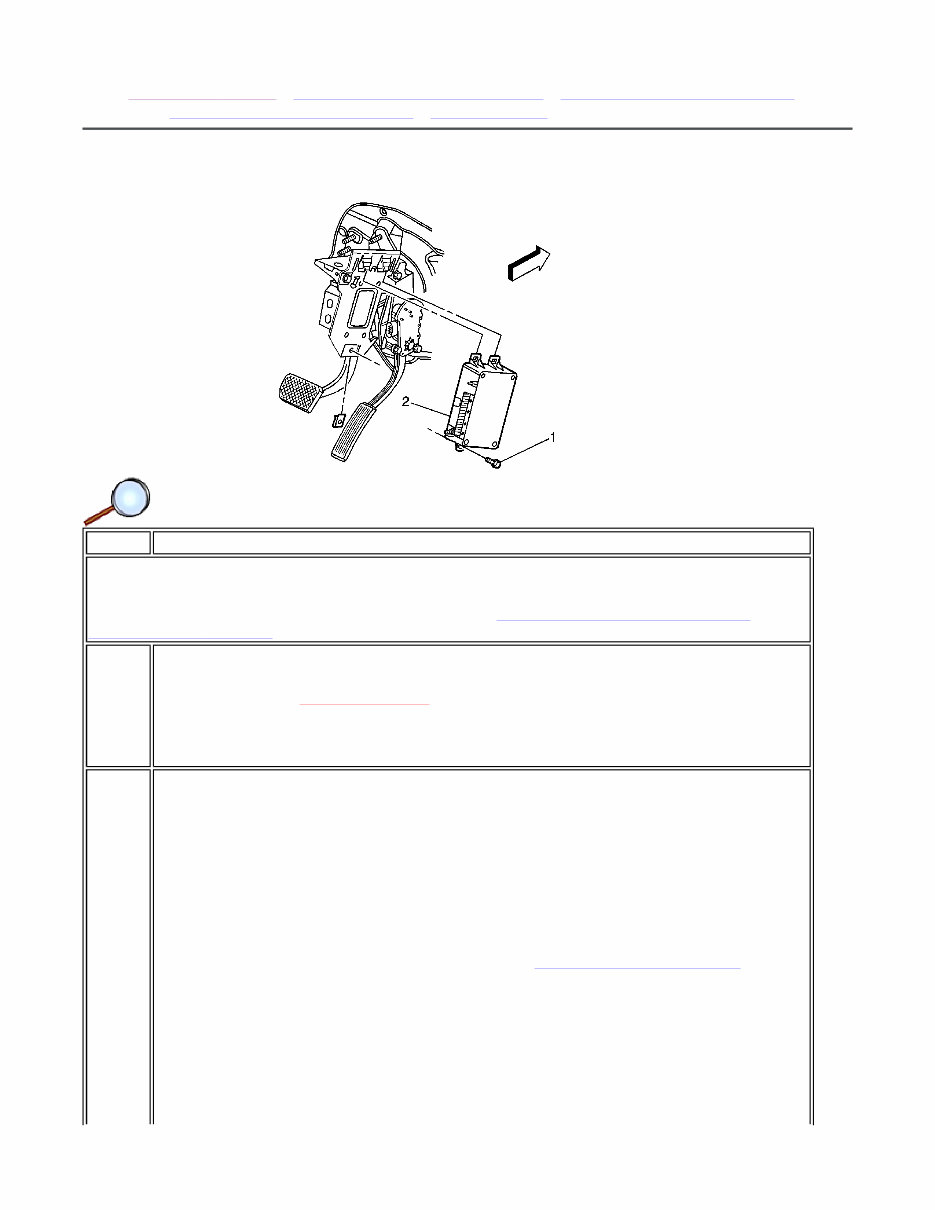

Communication Interface Module Replacement
Callout Component Name
Preliminary Procedure
Remove the left instrument panel insulator. Refer to Instrument Panel Insulator Panel
Replacement - Left Side .
1
Communication Interface Module Bolt
Caution: Refer to Fastener Caution in the Preface section.
Tighten
10 N·m (89 lb in)
2
Communication Interface Module
Procedure
1. Pull down to release the module from the bracket.
2. Disconnect the electrical connectors, the GPS antenna, and the cellular coax
cable.
3. If replacing the module, record the 10-digit STID number, and the 11-digit
ESN number from the labels on the new module.
4. Reconfigure the OnStar® system. Refer to Control Module References .
5. When replacing the communication interface module be sure to transfer the
Bluetooth antenna, if equipped.
Tip
The vehicle communication interface module (VCIM) has a specific set of unique
numbers that tie the module to each vehicle. These numbers, the 10-digit station
identification and the 11-digit electronic serial number, are used by the National
Cellular Network and OnStar® to identify the specific vehicle. Because these
© 2010 General Motors Corporation. All rights reserved.
Page 1 of 2 Document ID: 2123033
9/16/2010 http://localhost:9001/si/showDoc.do?docSyskey=2123033&pubCellSyskey=149736&pub...
numbers are tied to the vehicle identification number of the vehicle, you must never
exchange these parts with those of another vehicle.
Page 2 of 2 Document ID: 2123033
9/16/2010 http://localhost:9001/si/showDoc.do?docSyskey=2123033&pubCellSyskey=149736&pub...
2009 Chevrolet Equinox | Equinox, Torrent (VIN L) Service Manual | Driver Information and Entertainment |
Cellular, Entertainment, and Navigation | Repair Instructions | Document ID: 2163346

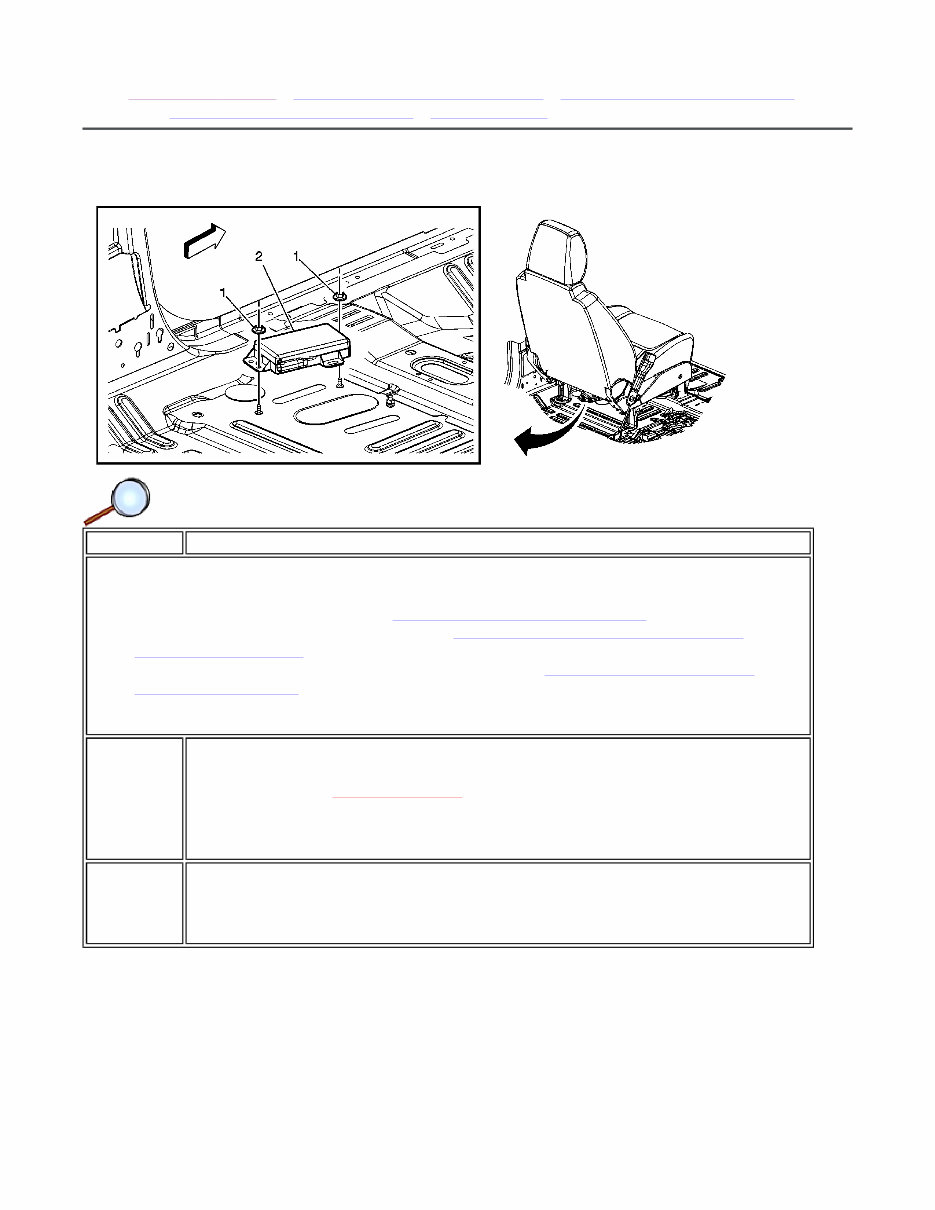

Communication Interface Module Battery Replacement
Callout Component Name
Preliminary Procedures
1. Remove the driver seat. Refer to Front Seat Replacement - Bucket .
2. Remove the left carpet retainer. Refer to Front Side Door Opening Floor Carpet
Retainer Replacement .
3. Remove the left lower center pillar molding. Refer to Center Pillar Lower Garnish
Molding Replacement .
4. Move the carpet back enough to gain access to the communication interface module
battery.
1
Communication Interface Module Battery Nut (Qty: 3)
Caution: Refer to Fastener Caution in the Preface section.
Tighten
10 N·m (89 lb in)
2
Communication Interface Module Battery
Tip
Disconnect the electrical connector.
© 2010 General Motors Corporation. All rights reserved.
Page 1 of 1 Document ID: 2163346
9/16/2010 http://localhost:9001/si/showDoc.do?docSyskey=2163346&pubCellSyskey=149688&pub...
2009 Chevrolet Equinox | Equinox, Torrent (VIN L) Service Manual | Driver Information and Entertainment |
Cellular, Entertainment, and Navigation | Repair Instructions | Document ID: 2123006

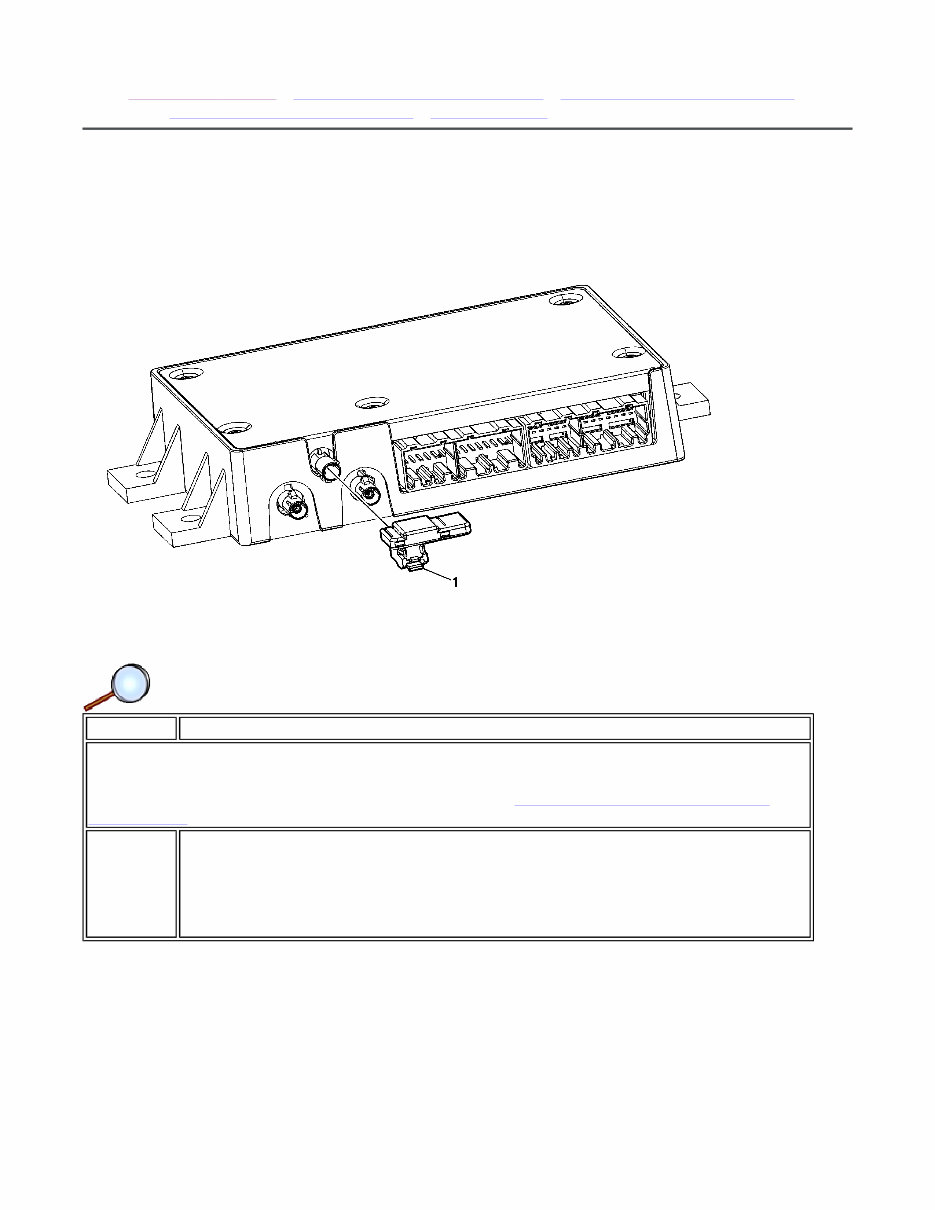

Wireless Communication Interface Antenna
Replacement
Callout Component Name
Preliminary Procedure
Remove the communication interface module. Refer to Communication Interface Module
Replacement
1
Wireless Communication Interface Antenna Bluetooth Module
Procedure
Unsnap the Antenna from Communication Module.
© 2010 General Motors Corporation. All rights reserved.
Page 1 of 1 Document ID: 2123006
9/16/2010 http://localhost:9001/si/showDoc.do?docSyskey=2123006&pubCellSyskey=169528&pub...
2009 Chevrolet Equinox | Equinox, Torrent (VIN L) Service Manual | Driver Information and Entertainment |
Cellular, Entertainment, and Navigation | Repair Instructions | Document ID: 2163350

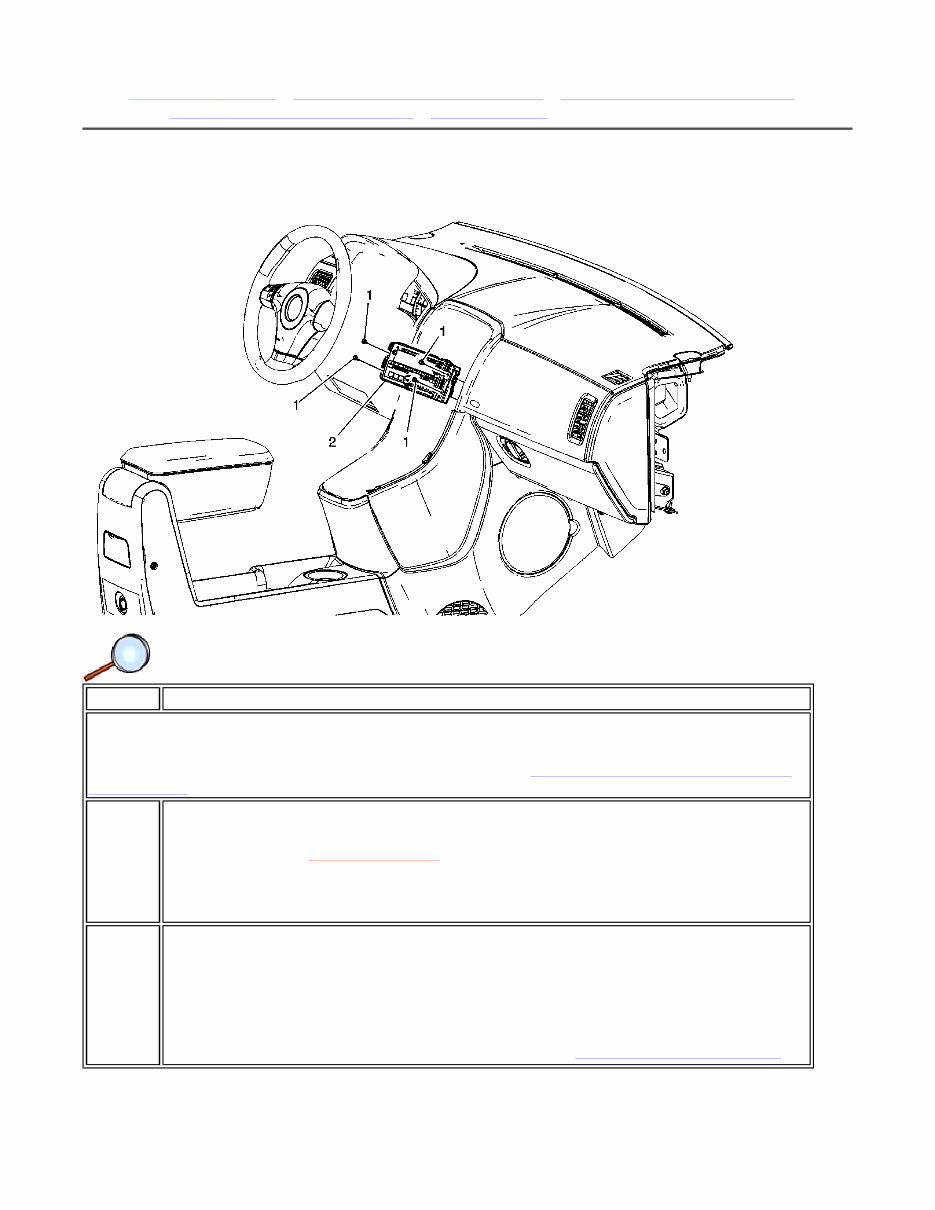

Radio Replacement
Callout Component Name
Preliminary Procedure
Remove the instrument panel center trim bezel. Refer to Instrument Panel Accessory Bezel
Replacement .
1
Radio Assembly Screw (Qty: 4)
Caution: Refer to Fastener Caution in the Preface section.
Tighten
2 N·m (18 lb in)
2
Radio Assembly
Tip
• Disconnect the electrical connector.
• Disconnect the antenna cable.
• Reprogram the radio after installation. Refer to Control Module References .
© 2010 General Motors Corporation. All rights reserved.
Page 1 of 1 Document ID: 2163350
9/16/2010 http://localhost:9001/si/showDoc.do?docSyskey=2163350&pubCellSyskey=46758&pubO...
2009 Chevrolet Equinox | Equinox, Torrent (VIN L) Service Manual | Driver Information and Entertainment |
Cellular, Entertainment, and Navigation | Repair Instructions | Document ID: 2163351

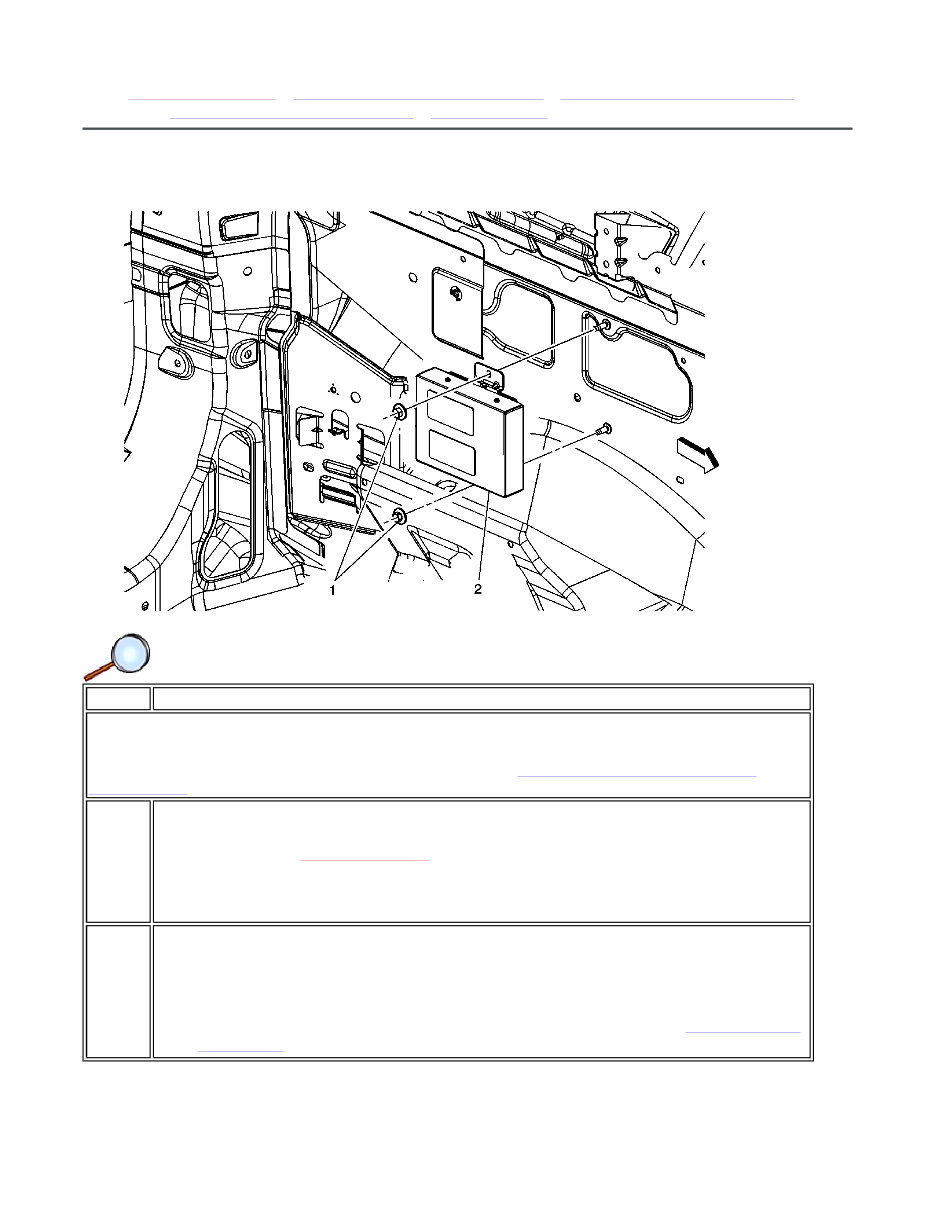

Digital Radio Receiver Replacement
Callout Component Name
Preliminary Procedure
Remove the left rear quarter lower trim panel. Refer to Quarter Lower Rear Trim Panel
Replacement .
1
Digital Radio Receiver Nut (Qty: 2)
Caution: Refer to Fastener Caution in the Preface section.
Tighten
4 N·m (35 lb in)
2
Digital Radio Receiver Assembly
Tip
• Disconnect the antenna cable.
• Reprogram the digital radio receiver after installation. Refer to Control Module
References .
© 2010 General Motors Corporation. All rights reserved.
Page 1 of 1 Document ID: 2163351
9/16/2010 http://localhost:9001/si/showDoc.do?docSyskey=2163351&pubCellSyskey=69602&pubO...
2009 Chevrolet Equinox | Equinox, Torrent (VIN L) Service Manual | Driver Information and Entertainment |
Cellular, Entertainment, and Navigation | Repair Instructions | Document ID: 2163353

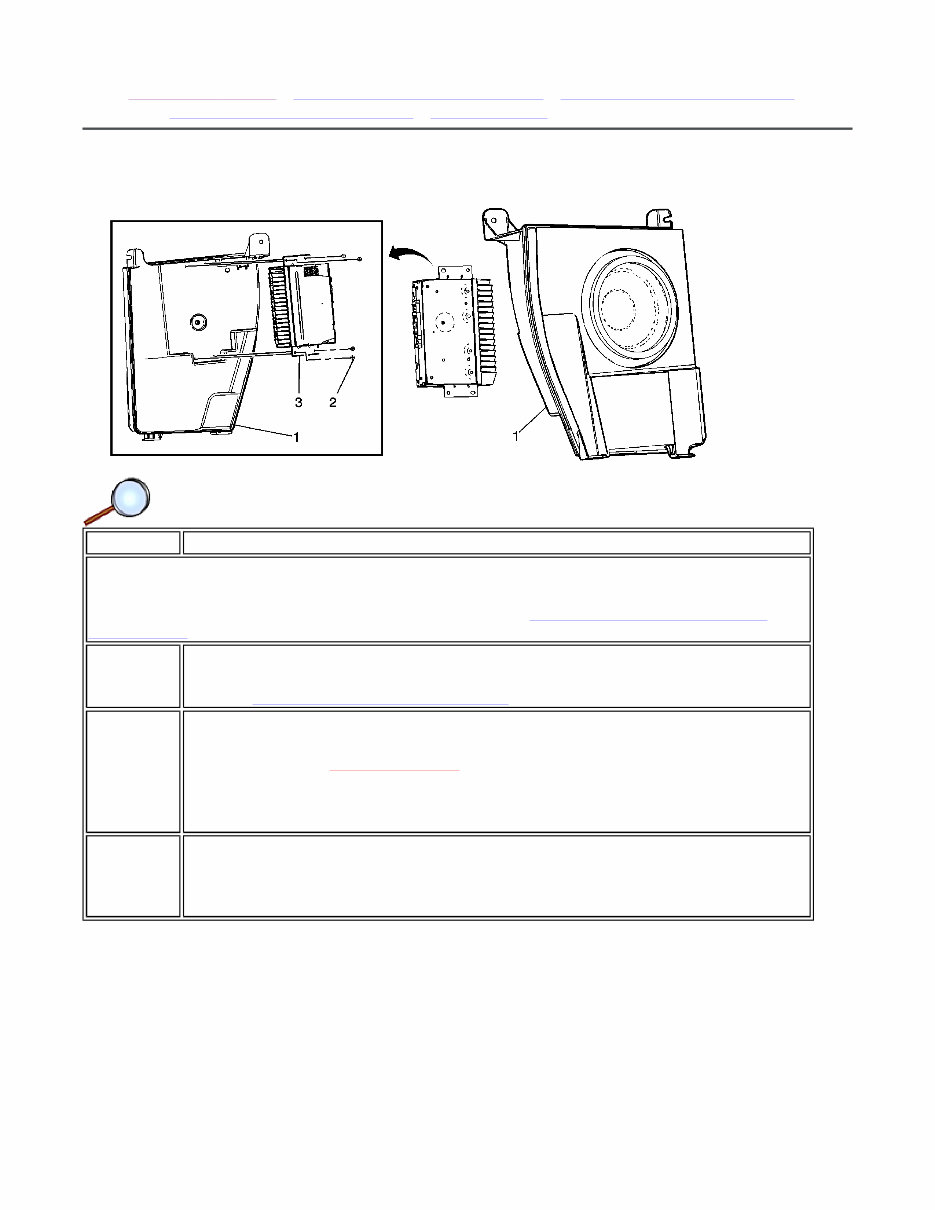

Radio Speaker Amplifier Replacement
Callout Component Name
Preliminary Procedure
Remove the right rear quarter lower trim panel. Refer to Quarter Lower Rear Trim Panel
Replacement .
1
Radio Rear Compartment Speaker
Refer to Radio Rear Speaker Replacement .
2
Amplifier Screw (Qty: 4)
Caution: Refer to Fastener Caution in the Preface section.
Tighten
3 N·m (26 lb in)
3
Amplifier Assembly
Tip
Disconnect the electrical connector.
© 2010 General Motors Corporation. All rights reserved.
Page 1 of 1 Document ID: 2163353
9/16/2010 http://localhost:9001/si/showDoc.do?docSyskey=2163353&pubCellSyskey=46705&pubO...
2009 Chevrolet Equinox | Equinox, Torrent (VIN L) Service Manual | Driver Information and Entertainment |
Cellular, Entertainment, and Navigation | Repair Instructions | Document ID: 2163354

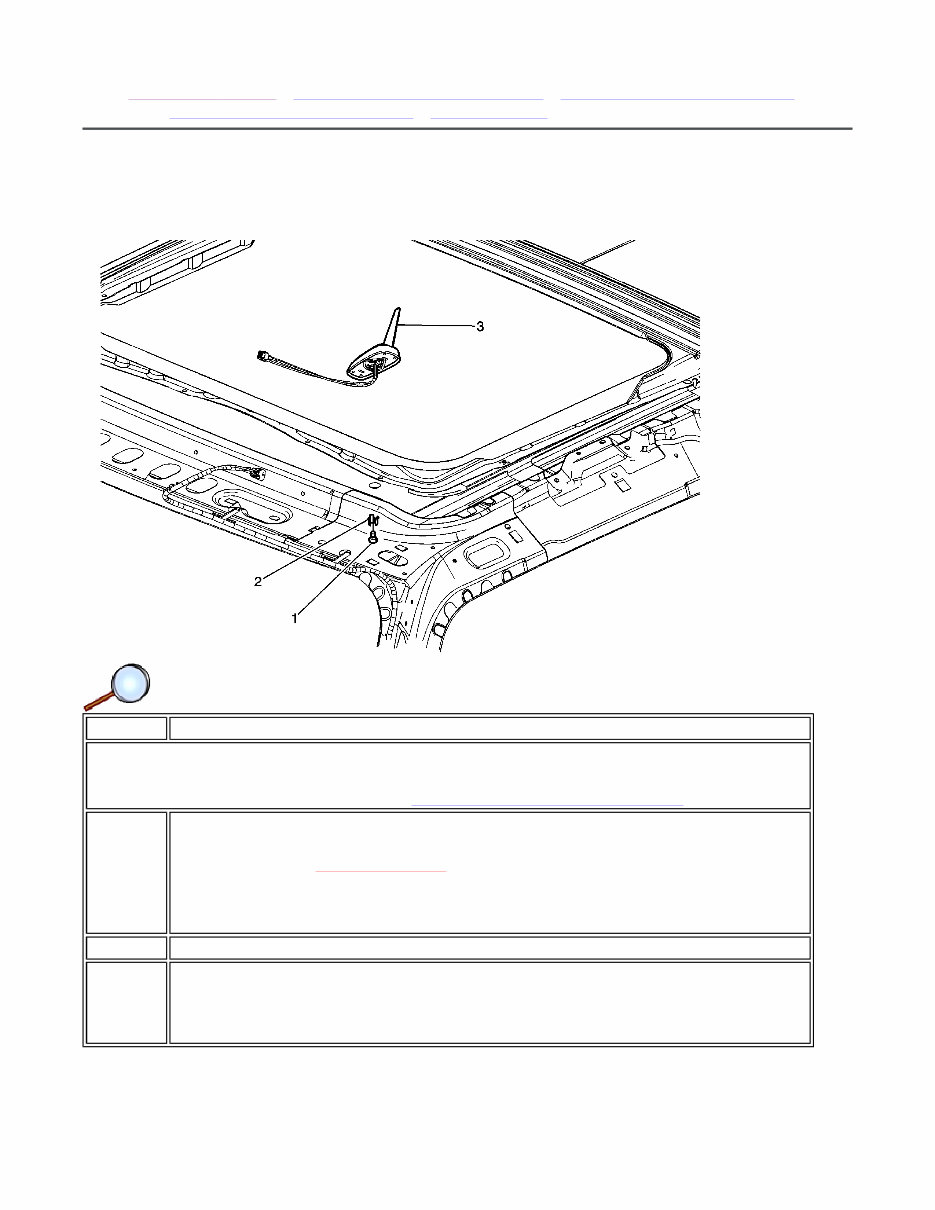

Cellular and Navigation Antenna Assembly
Replacement
Callout Component Name
Preliminary Procedure
Lower the front of the headliner. Refer to Headlining Trim Panel Replacement .
1
Mobile Telephone and Vehicle Location Antenna Assembly Bolt
Caution: Refer to Fastener Caution in the Preface section.
Tighten
5 N·m (44 lb in)
2 Mobile Telephone and Vehicle Location Antenna Expansion Sleeve
3
Mobile Telephone and Vehicle Location Antenna Assembly
Tip
Disconnect electrical connections.
© 2010 General Motors Corporation. All rights reserved.
Page 1 of 1 Document ID: 2163354
9/16/2010 http://localhost:9001/si/showDoc.do?docSyskey=2163354&pubCellSyskey=149666&pub...
