Seats and Restraint Systems ........................... 1-1 Front Seats ............................................... 1-2 Rear Seats .............................................. 1-10 Safety Belts ............................................. 1-29 Child Restraints ....................................... 1-50 Airbag System ......................................... 1-76 Restraint System Check ............................ 1-92 Features and Controls ..................................... 2-1 Keys ........................................................ 2-3 Doors and Locks ...................................... 2-10 Windows ................................................. 2-18 Theft-Deterrent Systems ............................ 2-20 Starting and Operating Your Vehicle ........... 2-24 Mirrors .................................................... 2-41 Object Detection Systems .......................... 2-48 OnStar ® System ...................................... 2-50 Universal Home Remote System ................ 2-53 Storage Areas ......................................... 2-60 Sunroof .................................................. 2-64 Instrument Panel ............................................. 3-1 Instrument Panel Overview .......................... 3-4 Climate Controls ...................................... 3-26 Warning Lights, Gages, and Indicators ........ 3-33 Driver Information Center (DIC) .................. 3-48 Audio System(s) ....................................... 3-70 Driving Your Vehicle ....................................... 4-1 Your Driving, the Road, and Your Vehicle ..... 4-2 Towing ................................................... 4-41 Service and Appearance Care .......................... 5-1 Service ..................................................... 5-3 Fuel ......................................................... 5-5 Checking Things Under the Hood ............... 5-10 All-Wheel Drive ........................................ 5-45 Rear Axle ............................................... 5-46 Front Axle ............................................... 5-47 Headlamp Aiming ..................................... 5-48 Bulb Replacement .................................... 5-51 Windshield Wiper Blade Replacement ......... 5-54 Tires ...................................................... 5-56 Appearance Care ..................................... 5-98 Vehicle Identiﬁcation ............................... 5-107 Electrical System .................................... 5-108 Capacities and Speciﬁcations ................... 5-115 Maintenance Schedule ..................................... 6-1 Maintenance Schedule ................................ 6-2 Customer Assistance Information .................... 7-1 Customer Assistance and Information ........... 7-2 Reporting Safety Defects ........................... 7-13 Vehicle Data Recording and Privacy ........... 7-15 Index ................................................................ 1 2008 Cadillac Escalade/Escalade ESV Owner Manual M

GENERAL MOTORS, GM, the GM Emblem, CADILLAC, the CADILLAC Crest & Wreath, and the names ESCALADE and ESV are registered trademarks of General Motors Corporation. This manual includes the latest information at the time it was printed. We reserve the right to make changes after that time without notice. For vehicles ﬁrst sold in Canada, substitute the name “General Motors of Canada Limited” for Cadillac Motor Car Division whenever it appears in this manual. This manual describes features that may be available in this model, but your vehicle may not have all of them. For example, more than one entertainment system may be offered or your vehicle may have been ordered without a front passenger or rear seats. Keep this manual in the vehicle for quick reference. Canadian Owners A French language copy of this manual can be obtained from your dealer/retailer or from: Helm, Incorporated P.O. Box 07130 Detroit, MI 48207 1-800-551-4123 www.helminc.com Propriétaires Canadiens On peut obtenir un exemplaire de ce guide en français auprès de concessionnaire ou à l’adresse suivante: Helm Incorporated P.O. Box 07130 Detroit, MI 48207 1-800-551-4123 www.helminc.com Litho in U.S.A. Part No. 15854808 A First Printing © 2007 General Motors Corporation. All Rights Reserved. ii

Using this Manual Many people read the owner manual from beginning to end when they ﬁrst receive their new vehicle to learn about the vehicle’s features and controls. Pictures and words work together to explain things. Index A good place to quickly locate information about the vehicle is the Index in the back of the manual. It is an alphabetical list of what is in the manual and the page number where it can be found. Safety Warnings and Symbols There are a number of safety cautions in this book. A box with the word CAUTION is used to tell about things that could hurt you or others if you were to ignore the warning. {CAUTION: These mean there is something that could hurt you or other people. We tell you what the hazard is and what to do to help avoid or reduce the hazard. Please read these cautions. If you do not, you or others could be hurt. A circle with a slash through it is a safety symbol which means “Do Not,” “Do Not do this” or “Do Not let this happen.” iii

Vehicle Damage Warnings You will also ﬁnd notices in this manual. Notice: These mean there is something that could damage your vehicle. A notice tells about something that can damage the vehicle. Many times, this damage would not be covered by your vehicle’s warranty, and it could be costly. The notice tells what to do to help avoid the damage. When you read other manuals, you might see CAUTION and NOTICE warnings in different colors or in different words. There are also warning labels on the vehicle which use the same words, CAUTION or NOTICE. Vehicle Symbols The vehicle has components and labels that use symbols instead of text. Symbols are shown along with the text describing the operation or information relating to a speciﬁc component, control, message, gage, or indicator. iv

Front Seats ......................................................1-2 Power Seats ..................................................1-2 Power Lumbar ...............................................1-3 Heated Seats .................................................1-4 Heated and Cooled Seats ................................1-5 Memory Seat, Mirrors, and Pedals ....................1-6 Power Reclining Seatbacks ..............................1-7 Head Restraints .............................................1-9 Center Seat .................................................1-10 Rear Seats .....................................................1-10 Heated Seats ...............................................1-10 60/40 Split Bench Seat (Second Row) .............1-11 Bucket Seats (Second Row) ...........................1-17 Third Row Seat ............................................1-25 Safety Belts ...................................................1-29 Safety Belts: They Are for Everyone ................1-29 How to Wear Safety Belts Properly .................1-34 Lap-Shoulder Belt .........................................1-42 Safety Belt Use During Pregnancy ..................1-48 Lap Belt ......................................................1-48 Safety Belt Extender .....................................1-49 Child Restraints .............................................1-50 Older Children ..............................................1-50 Infants and Young Children ............................1-53 Child Restraint Systems .................................1-57 Where to Put the Restraint .............................1-60 Lower Anchors and Tethers for Children (LATCH) ..................................................1-61 Securing a Child Restraint in a Rear Seat Position ...................................................1-69 Securing a Child Restraint in the Center Front Seat Position ....................................1-71 Securing a Child Restraint in the Right Front Seat Position ....................................1-72 Airbag System ...............................................1-76 Where Are the Airbags? ................................1-78 When Should an Airbag Inflate? .....................1-81 What Makes an Airbag Inflate? .......................1-83 How Does an Airbag Restrain? .......................1-83 What Will You See After an Airbag Inflates? .....1-84 Passenger Sensing System ............................1-85 Servicing Your Airbag-Equipped Vehicle ...........1-90 Adding Equipment to Your Airbag-Equipped Vehicle ....................................................1-90 Restraint System Check ..................................1-92 Checking the Restraint Systems ......................1-92 Replacing Restraint System Parts After a Crash ............................................1-93 Section 1 Seats and Restraint Systems 1-1

Front Seats Power Seats The power seat controls are located on the outboard side of the front seats. • Move the seat forward or rearward by sliding the control forward or rearward. • Raise or lower the front part of the seat cushion by moving the front of the control up or down. • Raise or lower the rear part of the seat cushion by moving the rear of the control up or down. • Raise or lower the entire seat by moving the entire control up or down. The power reclining seatback control is located behind the power seat control on the outboard side of the seats. See Power Reclining Seatbacks on page 1-7. Your vehicle has a memory function which allows seat settings to be saved and recalled. See Memory Seat, Mirrors, and Pedals on page 1-6. Driver’s Seat with Power Seat Control, Power Recline, and Power Lumbar shown 1-2

Power Lumbar The controls used to operate the power lumbar feature are located on the outboard side of the seats. • To increase lumbar support, press and hold the front of the control. • To decrease lumbar support, press and hold the rear of the control. • To raise the height of the support, press and hold the top of the control. • To lower the height of the support, press and hold the bottom of the control. Let go of the control when the lower seatback reaches the desired level of support. Your vehicle has a memory function which allows seat settings to be saved and recalled. See Memory Seat, Mirrors, and Pedals on page 1-6 for more information. Keep in mind that as your seating position changes, as it may during long trips, so should the position of your lumbar support. Adjust the seat as needed. 1-3

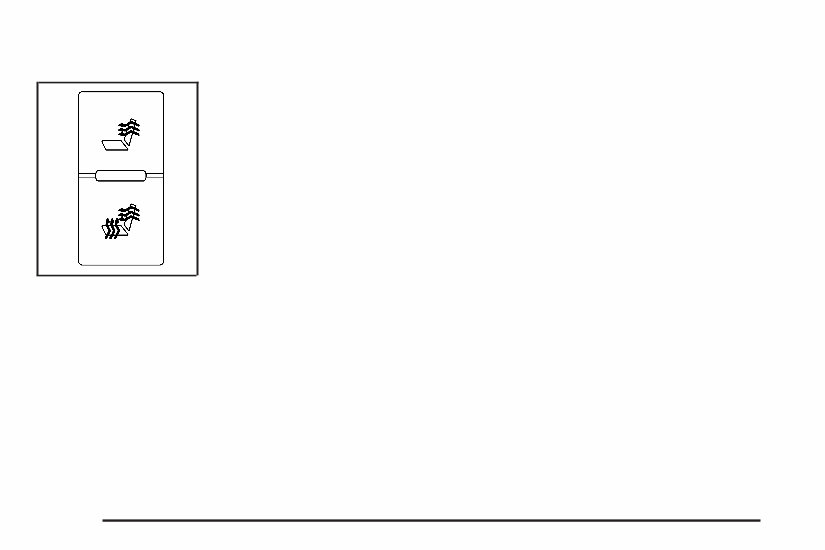

Heated Seats If the front seats have the heated seat feature, the buttons used to control this feature are located on the climate control panel. + (Heated Seatback): To heat only the seatback, press the top button with the heated seatback symbol. This symbol will appear on the climate control display to indicate that the feature is on. Press the button to cycle through the temperature settings of high, medium, and low and to turn the heated seatback off. Indicator bars next to the symbol designate the level of heat selected: three for high, two for medium, and one for low. z (Heated Seat and Seatback): To heat the entire seat, press the bottom button with the heated seat and seatback symbol. This symbol will appear on the climate control display to indicate that the feature is on. Press the button to cycle through the temperature settings of high, medium, and low and to turn the heated seat off. Indicator bars next to the symbol designate the level of heat selected: three for high, two for medium, and one for low. The heated seats will be canceled ten seconds after the ignition is turned off. If you want to use the heated seat feature after you restart the vehicle, you will need to press the appropriate heated seat button again. If your vehicle has heated and cooled seats, see Heated and Cooled Seats on page 1-5. 1-4

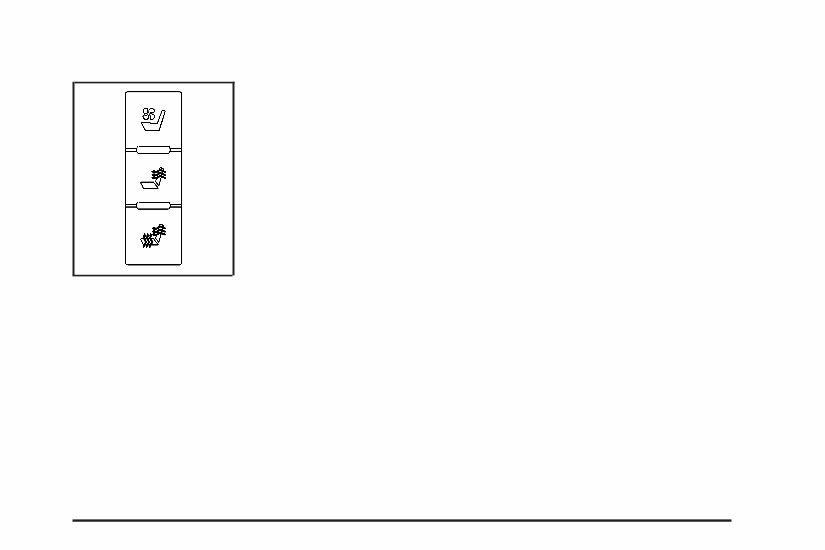

Heated and Cooled Seats If the front seats have the heated and cooled seat feature, the buttons used to control this feature are located on the climate control panel. { (Cooled Seat): To cool the entire seat, press the button with the cooled seat symbol. This symbol will appear on the climate control display to indicate that the feature is on. Press the button to cycle through the temperature settings of high, medium, and low and to turn the cooled seat off. Indicator bars next to the symbol designate the level of cooling selected: three for high, two for medium, and one for low. + (Heated Seatback): To heat only the seatback, press the button with the heated seatback symbol. This symbol will appear on the climate control display to indicate that the feature is on. Press the button to cycle through the temperature settings of high, medium, and low and to turn the heated seatback off. Indicator bars next to the symbol designate the level of heat selected: three for high, two for medium, and one for low. z (Heated Seat and Seatback): To heat the entire seat, press the button with the heated seat and seatback symbol. This symbol will appear on the climate control display to indicate that the feature is on. Press the button to cycle through the temperature settings of high, medium, and low and to turn the heated seat off. Indicator bars next to the symbol designate the level of heat selected: three for high, two for medium, and one for low. The heated and cooled seats will be canceled after the ignition is turned off. If you want to use the heated and cooled seat feature after you restart your vehicle, you will need to press the appropriate seat button again. 1-5

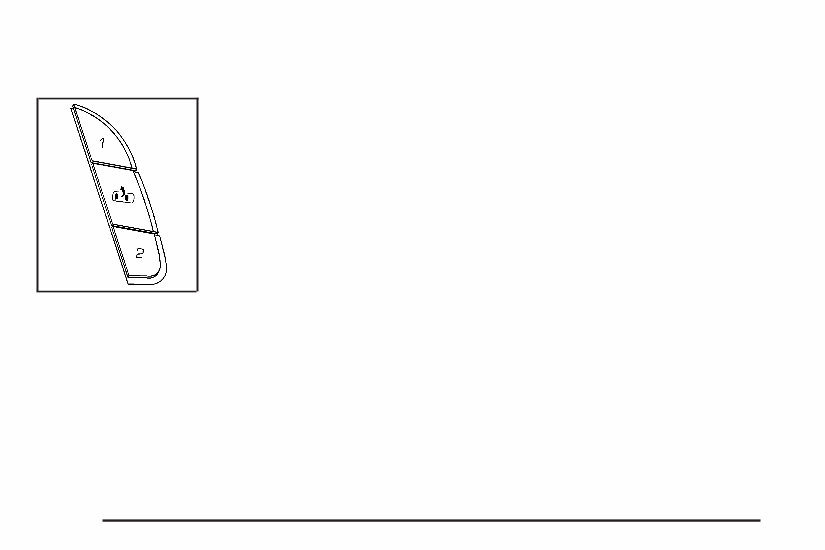

Memory Seat, Mirrors, and Pedals Your vehicle has the memory package. The controls for this feature are located on the driver’s door, and are used to program and recall memory settings for the driver’s seat, outside mirrors, and the adjustable throttle and brake pedal feature, if your vehicle has it. To save your positions in memory, do the following: 1. Adjust the driver’s seat, including the seatback recliner and lumbar, both outside mirrors, and the throttle and brake pedals to a comfortable position. See Outside Power Foldaway Mirrors on page 2-45 and Adjustable Throttle and Brake Pedal on page 2-28 for more information. Not all mirrors will have the ability to save and recall the mirror positions. 2. Press and hold button 1 until two beeps let you know that the position has been stored. A second seating, mirror, and throttle and brake pedal position can be programmed by repeating the above steps and pressing button 2. To recall the memory positions, the vehicle must be in PARK (P). Press and release either button 1 or button 2 corresponding to the desired driving position. The seat, outside mirrors, and adjustable throttle and brake pedals will move to the position previously stored. You will hear a single beep. If you use the remote keyless entry transmitter to enter your vehicle and the remote recall memory feature is on, automatic seat, mirror, and adjustable pedal movement will occur. See “MEMORY SEAT RECALL” under DIC Vehicle Customization on page 3-61 for more information. To stop recall movement of the memory feature at any time, press one of the power seat controls, memory buttons, power mirror buttons, or adjustable pedal switch. If something has blocked the driver’s seat and/or the adjustable pedals while recalling a memory position, the driver’s seat and/or the adjustable pedals recall may stop working. If this happens, remove the obstruction and press the appropriate function control for two seconds. Then try recalling the memory position again by pressing the appropriate memory button. If the memory position is still not recalling, see your dealer for service. 1-6
