2012 Cadillac CTS/CTS-V Navigation System M
Infotainment System ...... 3
Introduction ................. 3
Overview ....................... 4
Radio ....................... 10
AM-FM Radio ................. 10
Satellite Radio ................ 16
Audio Players ............. 16
CD/DVD Player ............... 16
MP3 .......................... 22
Hard Drive Device (HDD) .... . 26
Auxiliary Devices .............. 31
Navigation ................. 33
Using the Navigation
System ...................... 33
Maps .......................... 35
Navigation Symbols ........... 38
Destination .................... 42
Configure Menu ............... 56
Global Positioning
System (GPS) ............... 64
Vehicle Positioning ............ 64
Problems with Route
Guidance .................... 65
If the System Needs
Service ...................... 66
Ordering Map DVDs .......... 66
Database Coverage
Explanations ................. 66
Voice Recognition ........ 67
Speech Recognition ........... 67
Trademarks and License
Agreements .............. 68
Index ..................... i-1
Infotainment System 3
Introduction
The names, logos, emblems,
slogans, vehicle model names, and
vehicle body designs appearing in
this manual including, but not limited
to, GM, the GM logo, CADILLAC,
the CADILLAC Crest & Wreath, and
the name CTS are registered
trademarks of General Motors LLC.,
its subsidiaries, affiliates,
or licensors.
The information in this manual
supplements the owner manual.
This manual describes features that
may or may not be on your specific
vehicle either because they are
options that you did not purchase or
due to changes subsequent to the
printing of this owner manual.
Please refer to the purchase
documentation relating to your
specific vehicle to confirm each of
the features found on your vehicle.
Keep this manual with the
owner manual in the vehicle, so
it will be there if it is needed. If the
vehicle is sold, leave this manual in
the vehicle.
Canadian Vehicle Owners
Propriétaires Canadiens
A French language copy of this
manual can be obtained from your
dealer or from:
On peut obtenir un exemplaire de
ce guide en français auprès du
concessionnaire ou à l'adresse
suivante:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
1-800-551-4123
Numéro de poste 6438 de
langue française
www.helminc.com
Litho in U.S.A.
Part No. 22814336 B Second Printing
©
2011 General Motors LLC. All Rights Reserved.
4 Infotainment System
Overview
Read this manual thoroughly to
become familiar with how the
navigation system operates.
The navigation system includes
navigation and audio functions.
Keeping your eyes on the road and
your mind on the drive is important
for safe driving. The navigation
system has built-in features
intended to help with this by
disabling some features when
driving. A grayed-out function is
not available when the vehicle
is moving.
All functions are available when the
vehicle is parked. Do the following
before driving:
.
Become familiar with the
navigation system operation,
buttons on the faceplate, and
touch-sensitive screen buttons.
.
Set up the audio by presetting
favorite stations, setting the
tone, and adjusting the
speakers.
.
Set up the navigation features,
such as entering an address or
a preset destination.
.
Set up phone numbers in
advance so they can be called
easily by pressing a single
button or a single voice
command for navigation systems
equipped with phone capability.
{ WARNING
Taking your eyes off the road too
long or too often while using the
navigation system could cause a
crash and you or others could be
injured or killed. Focus your
attention on driving and limit
glances at the moving map on the
navigation screen. Use voice
guidance whenever possible.
Use the navigation system to:
.
Plan a route.
.
Select a destination using
various methods and choices.
.
Follow turn-by-turn route and
map guidance with voice
prompts, only if permitted by
traffic laws, controls, and
conditions.
.
Receive RDS broadcast
announcements.
Infotainment System 5
Always be alert and obey traffic and
roadway laws and instructions,
regardless of the guidance from the
navigation system. Because the
navigation system uses street map
information that does not include all
traffic restrictions or the latest road
changes, it may suggest using a
road that is now closed for
construction or a turn that is
prohibited by signs at the
intersection. Always evaluate
whether following the system's
directions is safe and legal for
the current conditions.
When the navigation system is
turned on, a screen may appear
with information that must be read
and acknowledged before accessing
some navigation features.
After acknowledging the start up
information, the NAV (Navigation)
and DEST (Destination) functions
are accessible. Information can
now be entered or deleted,
and other functions accessed.
See instructions later in this section.
Every 50 times the vehicle is started
and the navigation system is turned
on, the Caution screen appears.
After reading the caution, select OK
to load the map DVD information.
If OK is not selected, all buttons
except for NAV (Navigation) and
DEST (Destination) can be
accessed.
When getting started, set your
preferences or delete information
in the navigation system using
various options.
6 Infotainment System

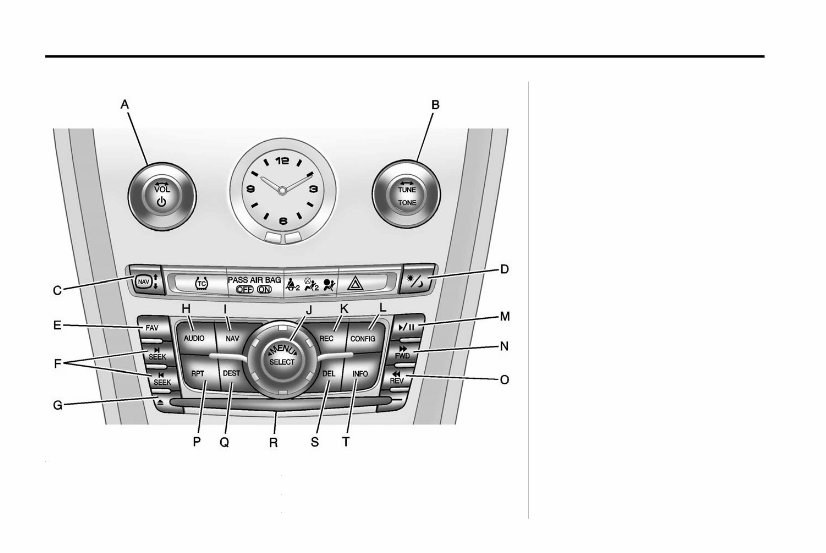

A. VOL/ O (Volume/Power)
B. TUNE/TONE
C. NAV mn (Navigation Screen
Up/Down)
D. ! (Dimming Change)
E. FAV (Favorite)
F. u SEEK/ t SEEK
G. Y (Eject)
H. AUDIO
I. NAV (Navigation)
J. q MENU r SELECT
K. REC (Record)
L. CONFIG (Configure)
M. k (Play/Pause)
N. [ FWD (Forward)
O. r REV (Reverse)
P. RPT (Repeat)
Q. DEST (Destination)
Infotainment System 7
R. CD/DVD Slot
S. DEL (Delete)
T. INFO (Information)
Language
To change the language of the
navigation screens, see “DIC
Vehicle Customization” in the Index
of the vehicle owner manual.
English or Metric Units
To change the navigation screens
from English or metric, see “DIC
Operation and Displays” in the
Index of the vehicle owner manual.
Deleting Personal Information
This navigation system can record
and store destinations and personal
information such as names and
addresses. When disposing of the
vehicle, you may want to delete this
information. See “Address Book —
Editing and Deleting Entries” and
“Previous Destinations — Deleting”
under Destination on page 42 for
deleting this information.
Storing Radio Station Presets
Up to 36 preset stations can
be stored. AM, FM, and
XM (if equipped) can be mixed.
To store presets:
1. Press VOL/ O to turn the
system on.
2. If viewing a map screen, press
the source screen button, press
AUDIO or FAV.
3. Select the band.
4. Seek or tune to the desired
station, to select the station.
5. Press and hold one of the preset
screen buttons for more than
one and a half seconds.
6. Repeat the steps for each
preset.
To change the number of preset
pages, see “Number of Preset
Pages” under AM-FM Radio on
page 10 for more information.
Entering an Address and Point
of Interest, and Storing Preset
Destinations
The vehicle must be in P (Park) to
perform these operations.
Entering an Address
If having trouble finding a city or a
street name:
.
Enter the street name first
instead of the city name, or vice
versa.
.
Enter more characters or reduce
the amount of characters to
reduce or expand the available
options.
To set a destination by entering a
street name:
1. Press VOL/ O to turn the
system on.
2. A caution may appear. Press OK
to proceed.
3. Press DEST.
4. Select the Street screen button.
8 Infotainment System
5. The Street name category is
automatically selected for entry.
Start entering the street name.
It is recommended that
directional information or street
type is not entered, and use the
Space screen button between
street or city names. Use the
backspace q screen button if an
incorrect character has been
entered.
If four or less names are
available for the entered
characters, a list displays.
If more than four are available,
there is a match counter with a
number in it, it represents the
number of available streets.
Press the List screen button to
view the list and select a street.
While the Street name
category is empty, there is a
Last 5 Streets screen button that
displays the last five selected
streets. Press this button to
select a street from the list.
6. Enter the house number. The
system displays the house
number range that is available
for the street.
7. If there is more than one city, the
list of cities that have that street
name and house number
displays. Select a city from
the list.
8. A confirmation screen displays
with the address. If the address
is correct, press Go. The system
calculates the route.
9. Select the route preference
(Fastest, Shortest, or Easy).
The system highlights the route.
10. Press the Start Guidance
screen button. The route is
now ready to be started.
See “Address Entry” under
Destination on page 42 for more
information.
Entering a Point of Interest (POI)
To set a destination by entering a
Point of Interest (POI):
1. Press VOL/ O to turn the
system on.
2. A caution may appear. Press OK
to proceed.
3. Press DEST.
4. Press the Point of Interest
screen button.
5. Enter the specific title of the
POI in the POI name space
(e.g. Washington Monument).
If four or less names are
available, a list displays. If more
than four are available, there is a
match counter with a number in
it, it represents the number of
available POI names. Press the
List button to view the list.
Select the POI.
6. Press the Go screen button.
The system calculates the route.
Infotainment System 9
7. Select the route preference
(Fastest, Shortest, or Easy).
The system highlights the route.
8. Press the Start Guidance screen
button. The route is now ready
to be started.
See “Point of Interest (POI)” under
Destination on page 42 for more
information.
Storing Preset Destinations
1. Press VOL/ O to turn the
system on.
2. A caution may appear. Press OK
to proceed.
3. Press DEST.
4. Enter a destination. See
Destination on page 42 for
information on how to enter a
destination.
5. Press the Add screen button
from the map screen to add the
current final destination to the
address book.
The address book screen
appears.
6. Press the Name screen button.
An alpha-keyboard displays.
Enter the name.
7. Press and hold one of the
screen buttons at the bottom of
the screen until the text in the
button changes.
The address book entry
name appears in that preset
destination screen button and is
now available to select from the
Select Destination screen.
See “Using the Stored Preset
Destinations” next in this section
to select it as a destination.
See “Preset Destinations —
Adding or Changing” under
Destination on page 42 for more
information on how to add preset
destinations.
Using the Stored Preset
Destinations
These destinations are available for
selection while driving.
1. Press VOL/ O to turn the
system on.
2. A caution may appear. Press OK
to proceed.
3. Press DEST.
4. Select one of the available
preset destination screen
buttons. The system calculates
the route.
5. Select the route preference
(Fastest, Shortest, or Easy).
The system highlights the route.
6. Press the Start Guidance screen
button. The route is now ready
to be started.
See “Preset Destination” under
Destination on page 42 for more
information.
10 Infotainment System
Canceling Guidance
Guidance is canceled once you
arrive at the final destination. To
cancel guidance prior to arrival at
the final destination:
1. Press DEST.
2. Press the Cancel Guidance
screen button.
3. Press the Yes screen button to
confirm cancellation.
Voice Guidance
To adjust the volume of voice
guidance prompts:
1. Press CONFIG to enter the
menu options, then press
CONFIG until Nav is selected or
press the Nav screen button.
2. Press the Voice Volume screen
button.
3. Press the + or – screen buttons
to increase or to decrease the
volume of the voice prompts.
See “Voice Volume” under Speech
Recognition on page 67 for more
information.
Cleaning the Display
Notice: Using abrasive cleaners
when cleaning glass surfaces
could scratch the glass. Use only
a soft cloth and do not spray
cleaner directly on the system as
it could affect the mechanical
parts.
Do not wipe the panel with a hard
cloth or use a volatile liquid such as
paint thinner, it could scratch the
surface or erase the characters.
Radio
AM-FM Radio
Playing the Radio
O (Power/Volume):
1. Press to turn the audio system
on and off.
2. Turn to increase or decrease
the volume.
TUNE/TONE:
1. Turn to go to the next or
previous frequency.
2. Press to display the Sound
menu. See “Sound Menu” later
in this section.
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$24.99
Viewed 63 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$24.99
Introducing the 2012 Cadillac CTS-V Sedan Navigation Manual. This luxury sedan is designed to provide an unparalleled driving experience for those who appreciate both style and performance.
Equipped with a powerful engine, this sedan delivers impressive performance on the road. Its sleek and stylish exterior design is guaranteed to turn heads wherever you go.
But that's not all. The 2012 Cadillac CTS-V Sedan Navigation Manual also features a state-of-the-art navigation system that will ensure you never get lost on your journey. Whether you're taking a road trip or navigating through the city, this sedan has got you covered.
Available Models:
- 2012 Cadillac CTS-V Sedan Navigation Manual
Experience the ultimate combination of luxury, performance, and technology with the 2012 Cadillac CTS-V Sedan Navigation Manual. Get behind the wheel and prepare to be amazed.
