2006 ACCESSORIES & EQUIPMENT Doors - Terraza, Uplander & Montana SV6 SPECIFICATIONS FASTENER TIGHTENING SPECIFICATIONS Fastener Tightening Specifications Application Specification Metric English Armrest Screws 3 N.m 26 lb ft Bearing Bushing Screw 2 N.m 18 lb in Cable Guide Bracket Bolts 10 N.m 89 lb in Cone Adjuster Bolt (Body Side) 10 N.m 89 lb in Front Door Lock Actuator Screws 2 N.m 18 lb in Front Door Lock Module Screws 10 N.m 89 lb in Front Door Lock Striker Screws 25 N.m 18 lb ft Front Door Outside Handle Screws 10 N.m 89 lb in Front Door Pull Handle Screws 2 N.m 18 lb in Front Door Window Run Channel Screws 10 N.m 89 lb in Front Quarter Window Hinge Stud Nuts 10 N.m 89 lb in Front Quarter Window Latch Screws 10 N.m 89 lb in Motor Clutch Assembly Bolts 10 N.m 89 lb in Motor Clutch Assembly Nuts 10 N.m 89 lb in Outside Rearview Mirror Motor Screws 10 N.m 89 lb in Outside Rearview Mirror Nuts 10 N.m 89 lb in Power Rear Quarter Window Actuator Screws 10 N.m 89 lb in Power Sliding Door Latch Detent Switch Retaining Screws 0.9 N.m 8.5 lb in Power Sliding Door Latch Release Actuator Screws 10 N.m 89 lb in Rear Quarter Window Hinge Stud Nuts 10 N.m 89 lb in Rear Quarter Window Latch Screws 10 N.m 89 lb in Sliding Door Catch with Reinforcement Channel Bolt 25 N.m 18 lb ft Sliding Door Center Roller Bracket (Door Side) Bolts 25 N.m 18 lb ft Sliding Door Center Track Bracket Screws 10 N.m 89 lb in Sliding Door Center Track Cover Front Screw 2 N.m 18 lb in Sliding Door Center Track Cover Rear Screw 10 N.m 89 lb in Sliding Door Center Track Screws 10 N.m 89 lb in Sliding Door Locating Pin Screws 10 N.m 89 lb in Sliding Door Locating Pocket Screws 10 N.m 89 lb in Sliding Door Lock Actuator Screws 10 N.m 89 lb in 2006 Chevrolet Uplander 2006 ACCESSORIES & EQUIPMENT Doors - Terraza, Uplander & Montana SV6 2006 Chevrolet Uplander 2006 ACCESSORIES & EQUIPMENT Doors - Terraza, Uplander & Montana SV6

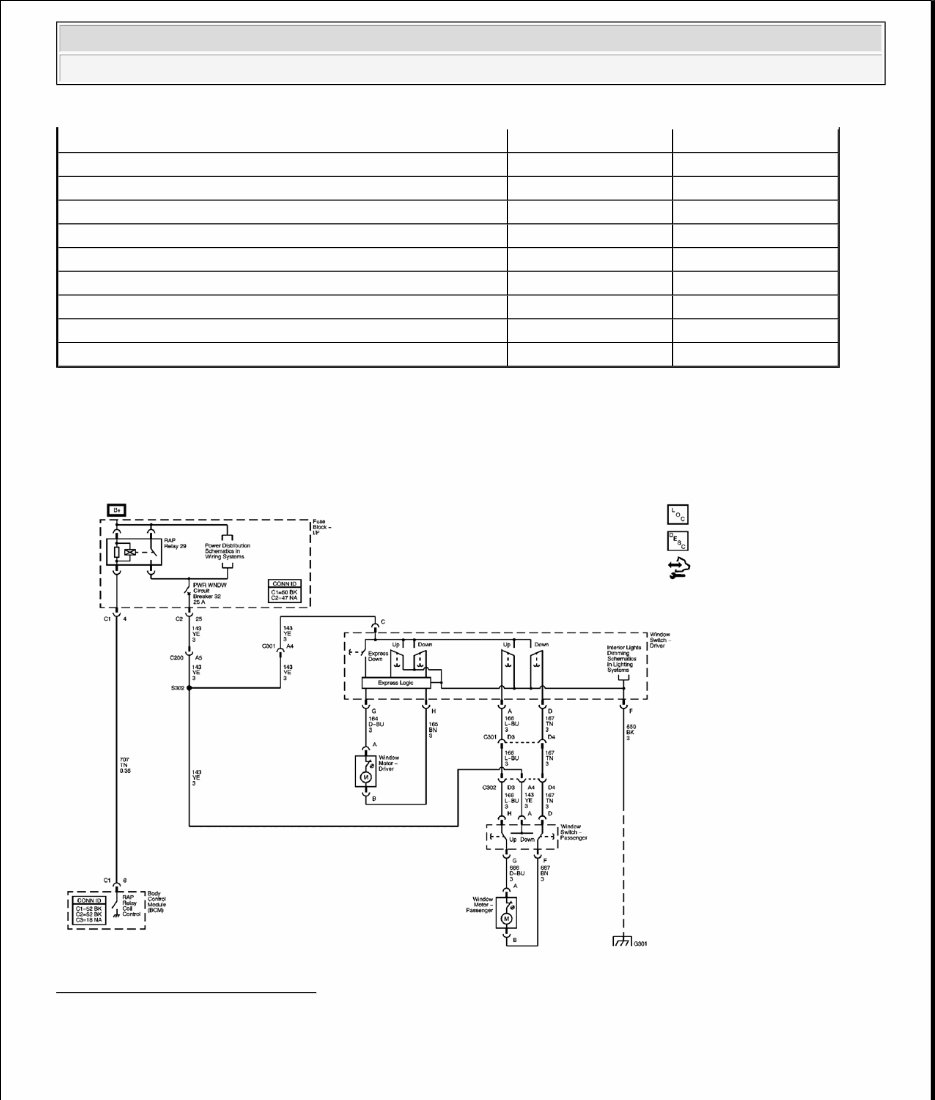

SCHEMATIC AND ROUTING DIAGRAMS POWER WINDOW SCHEMATICS Fig. 1: Power Window Schematic Courtesy of GENERAL MOTORS CORP. DOOR LOCK/INDICATOR SCHEMATICS Sliding Door Lock Screws 10 N.m 89 lb in Sliding Door Lower Roller Bracket Bolts 10 N.m 89 lb in Sliding Door Outside Handle Nuts 12 N.m 106 lb in Sliding Door Striker Screws 10 N.m 89 lb in Sliding Door Swing Out Window Hinge Stud Nuts 25 N.m 18 lb ft Sliding Door Swing Out Window Latch Screws 10 N.m 89 lb in Sliding Door Upper Roller Bracket Bolts 10 N.m 89 lb in Sliding Door Upper Track Screws 10 N.m 89 lb in Upper and Lower Body Side Hinge Bolts 33 N.m 24 lb ft Upper and Lower Door Side Hinge Bolts 33 N.m 24 lb ft 2006 Chevrolet Uplander 2006 ACCESSORIES & EQUIPMENT Doors - Terraza, Uplander & Montana SV6

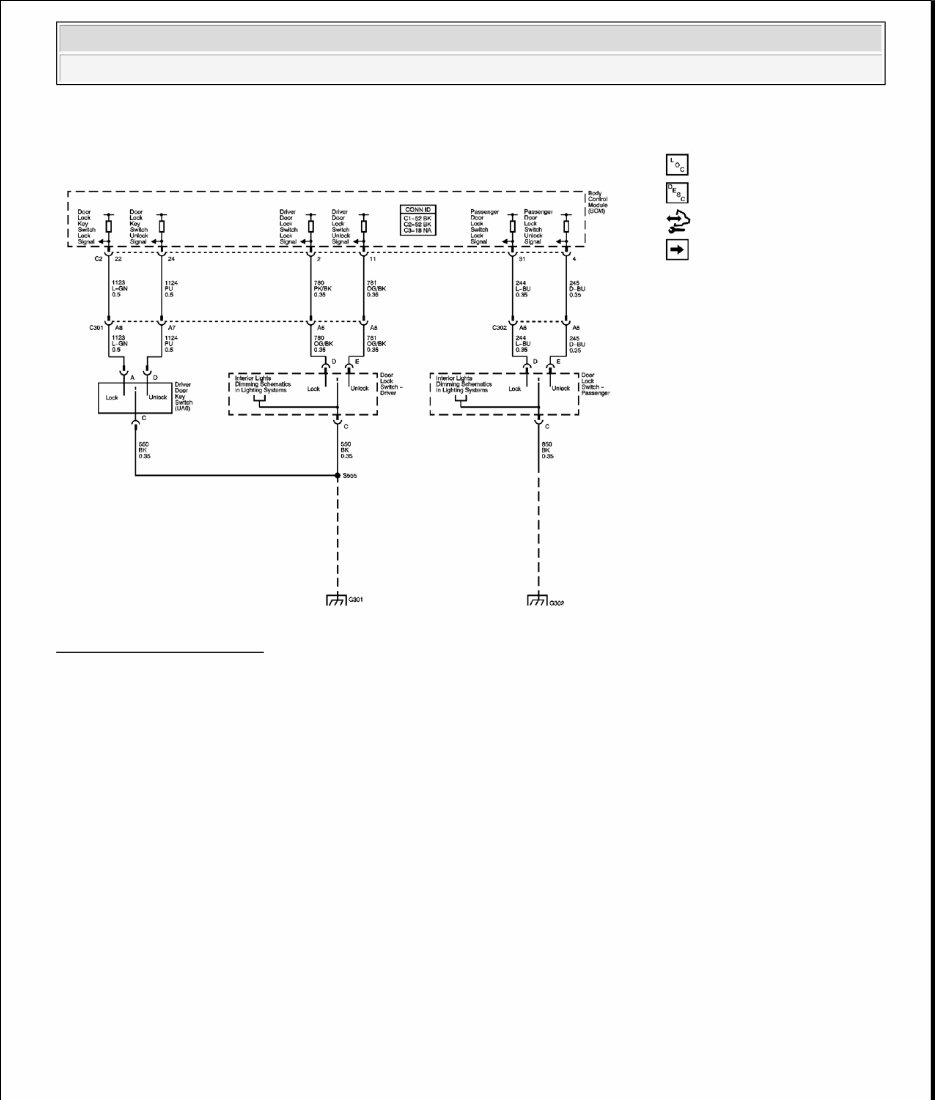

Fig. 2: Switches Schematic Courtesy of GENERAL MOTORS CORP. 2006 Chevrolet Uplander 2006 ACCESSORIES & EQUIPMENT Doors - Terraza, Uplander & Montana SV6

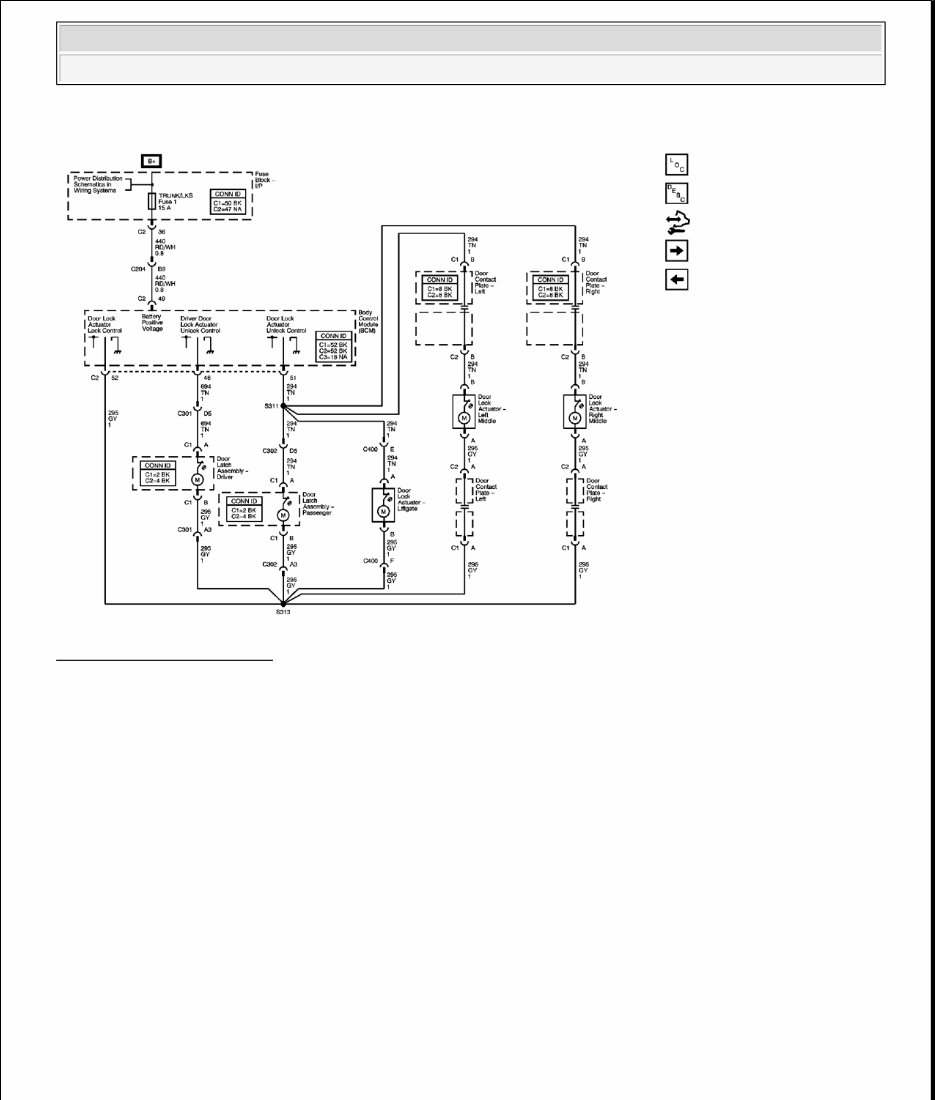

Fig. 3: Actuators Schematic Courtesy of GENERAL MOTORS CORP. 2006 Chevrolet Uplander 2006 ACCESSORIES & EQUIPMENT Doors - Terraza, Uplander & Montana SV6

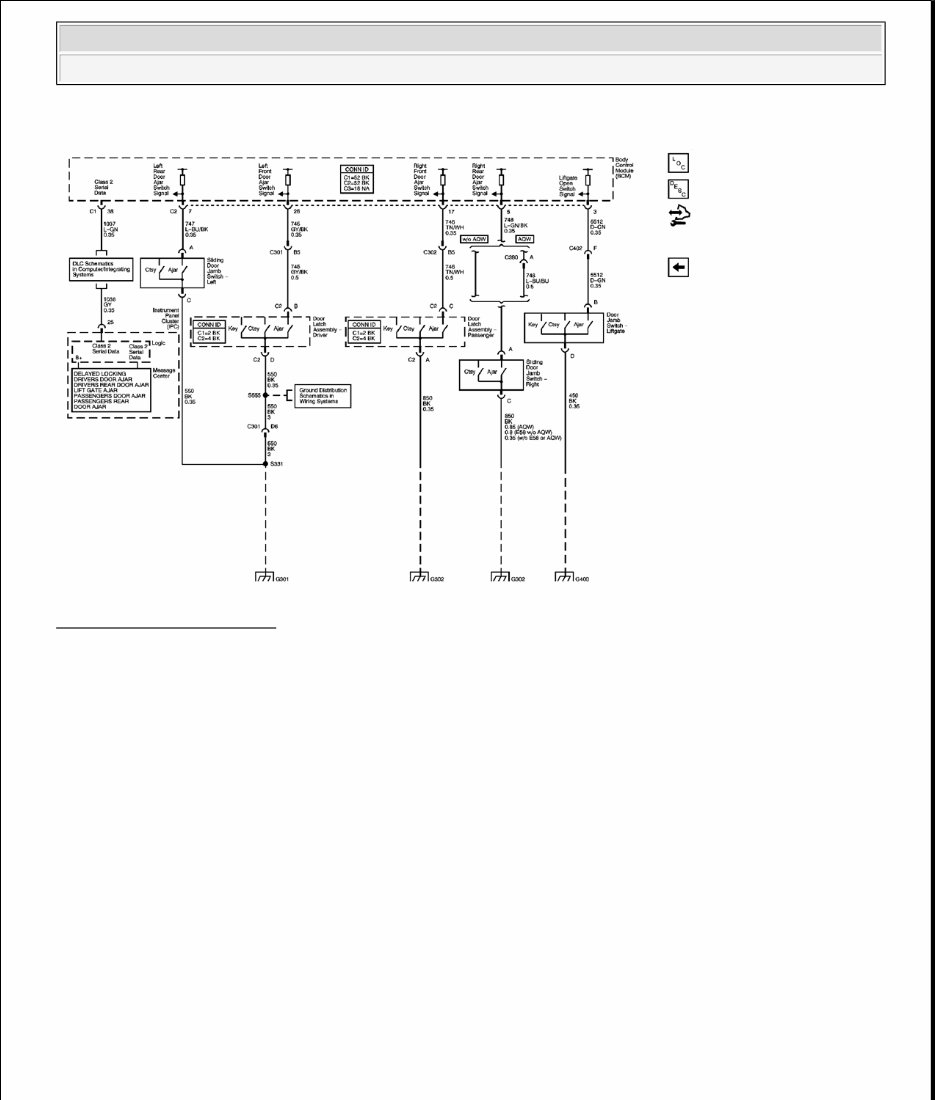

Fig. 4: Indicators Schematic Courtesy of GENERAL MOTORS CORP. OUTSIDE MIRROR SCHEMATICS 2006 Chevrolet Uplander 2006 ACCESSORIES & EQUIPMENT Doors - Terraza, Uplander & Montana SV6
