1998 Buick Skylark | Achieva, Grand Am, Skylark, (VIN N) Service Manual | Body and Accessories |
Wipers/Washer Systems | Specifications | Document ID: 603719
Fastener Tightening Specifications
Application
Specification
Metric English
Washer Solvent Container Screws 5 N·m 44 lb in
Wiper Arm to Shaft Nut 30 N·m 22 lb ft
Wiper Motor Cover Screws 2 N·m 18 lb in
Wiper Motor Mounting Screws 9 N·m 80 lb in
Wiper Transmission Screws 8 N·m 71 lb in
© 2010 General Motors Corporation. All rights reserved.
Page 1 of 1 Document ID: 603719
10/14/2010 http://localhost:9001/si/showDoc.do?docSyskey=603719&pubCellSyskey=61794&pubO...
1998 Buick Skylark | Achieva, Grand Am, Skylark, (VIN N) Service Manual | Body and Accessories |
Wipers/Washer Systems | Component Locator | Document ID: 540130
Wiper/Washer Component Views

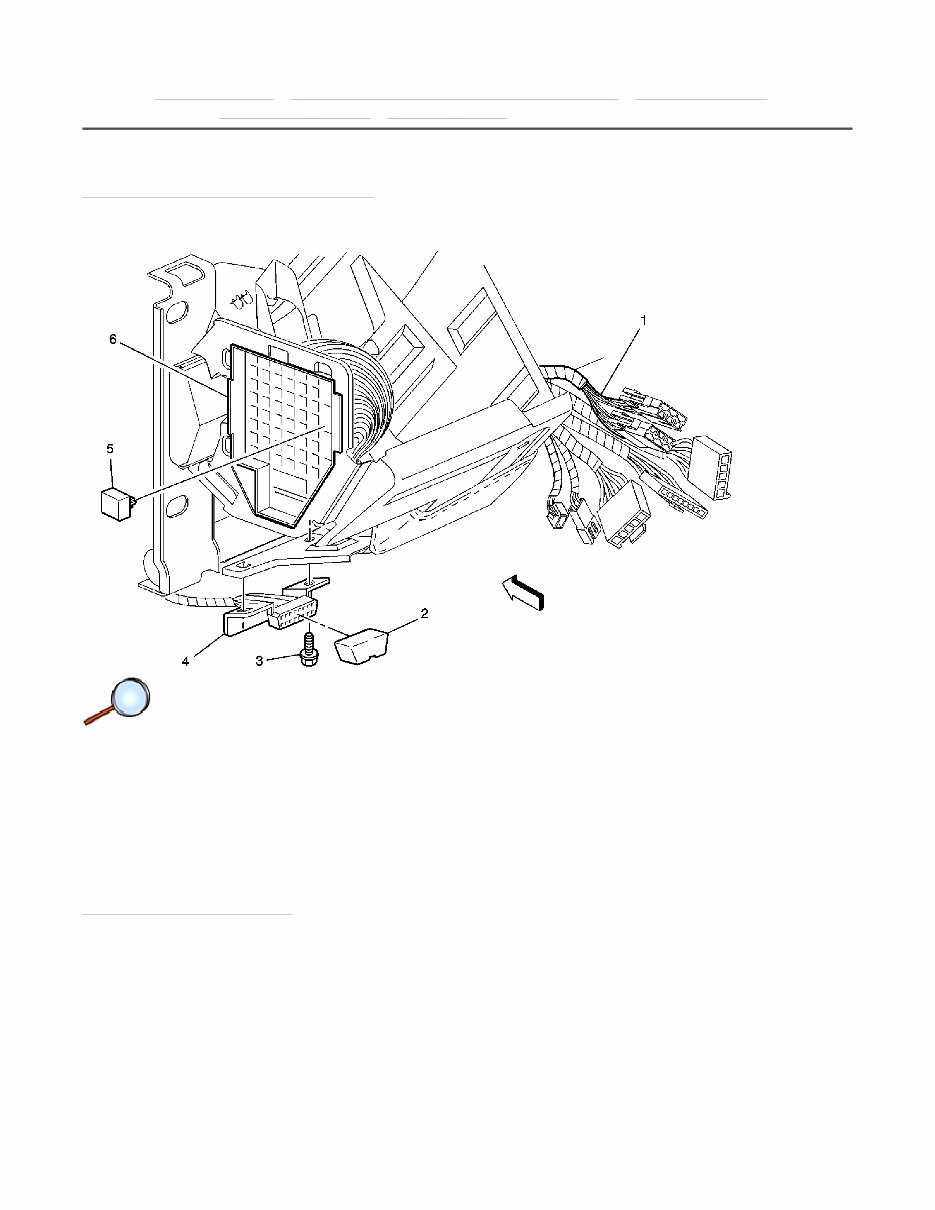

LH Side of Instrument Panel
LH Front Impact Bar
(1) Steering Column Wiring Branch
(2) DLC Cover
(3) Screw
(4) DLC
(5) Rear Defogger Relay
(6) Fuse Block
© 2010 General Motors Corporation. All rights reserved.
Page 1 of 4 Document ID: 540130
10/14/2010 http://localhost:9001/si/showDoc.do?docSyskey=540130&pubCellSyskey=61870&pubO...
LH Rear of Engine Compartment

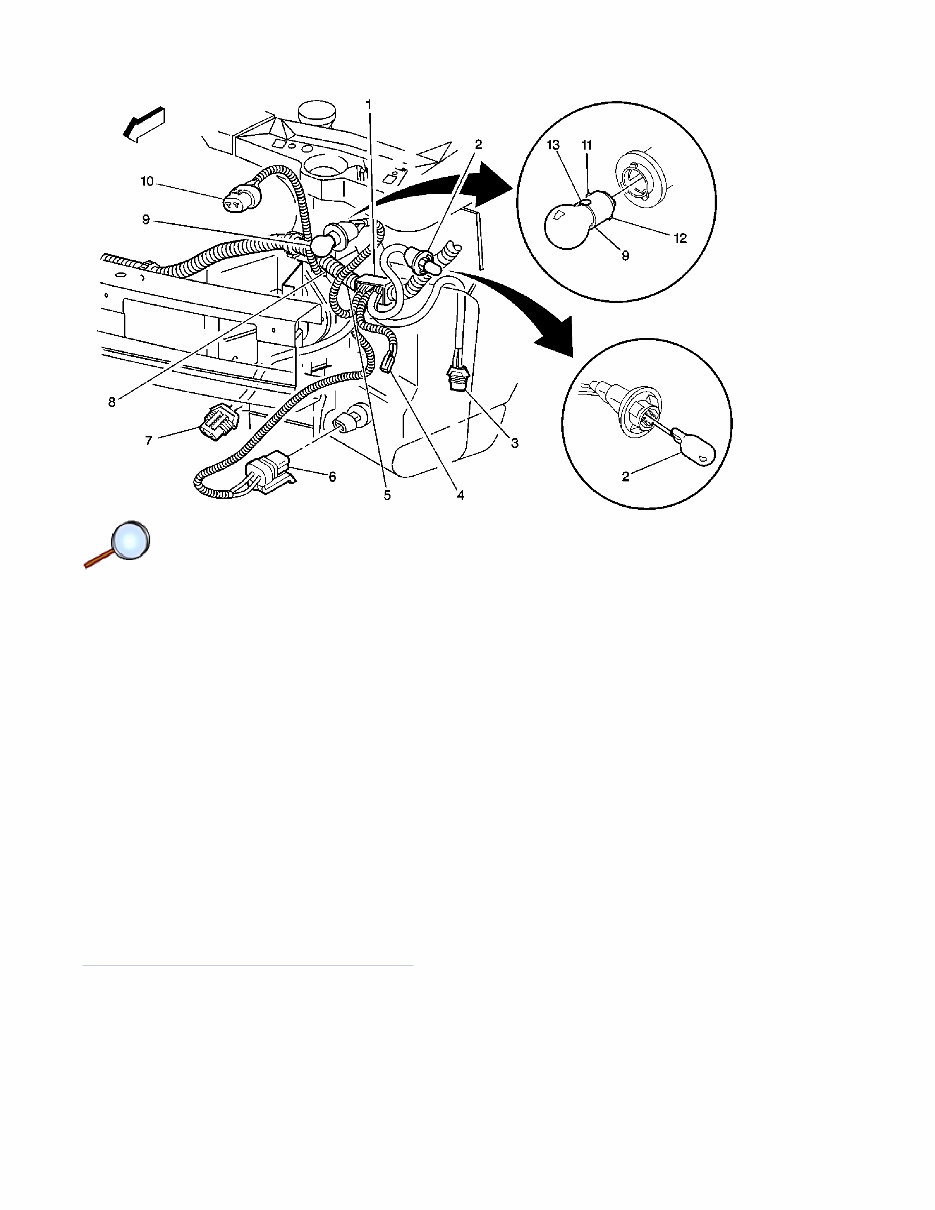

(1) S117
(2) Side Marker Lamp
(2) Side Marker Lamp
(3) Washer Pump Connector
(4) LH Horn Connector
(5) S127
(6) Fluid Level Sensor Connector
(7) Fog Lamp Connector
(8) S115
(9) Park/Turn Signal Lamp
(9) Park/Turn Signal Lamp
(10) Headlamp Connector
(11) Positive
(12) Negative
(13) Solder
Page 2 of 4 Document ID: 540130
10/14/2010 http://localhost:9001/si/showDoc.do?docSyskey=540130&pubCellSyskey=61870&pubO...
Lower LH of Steering Column

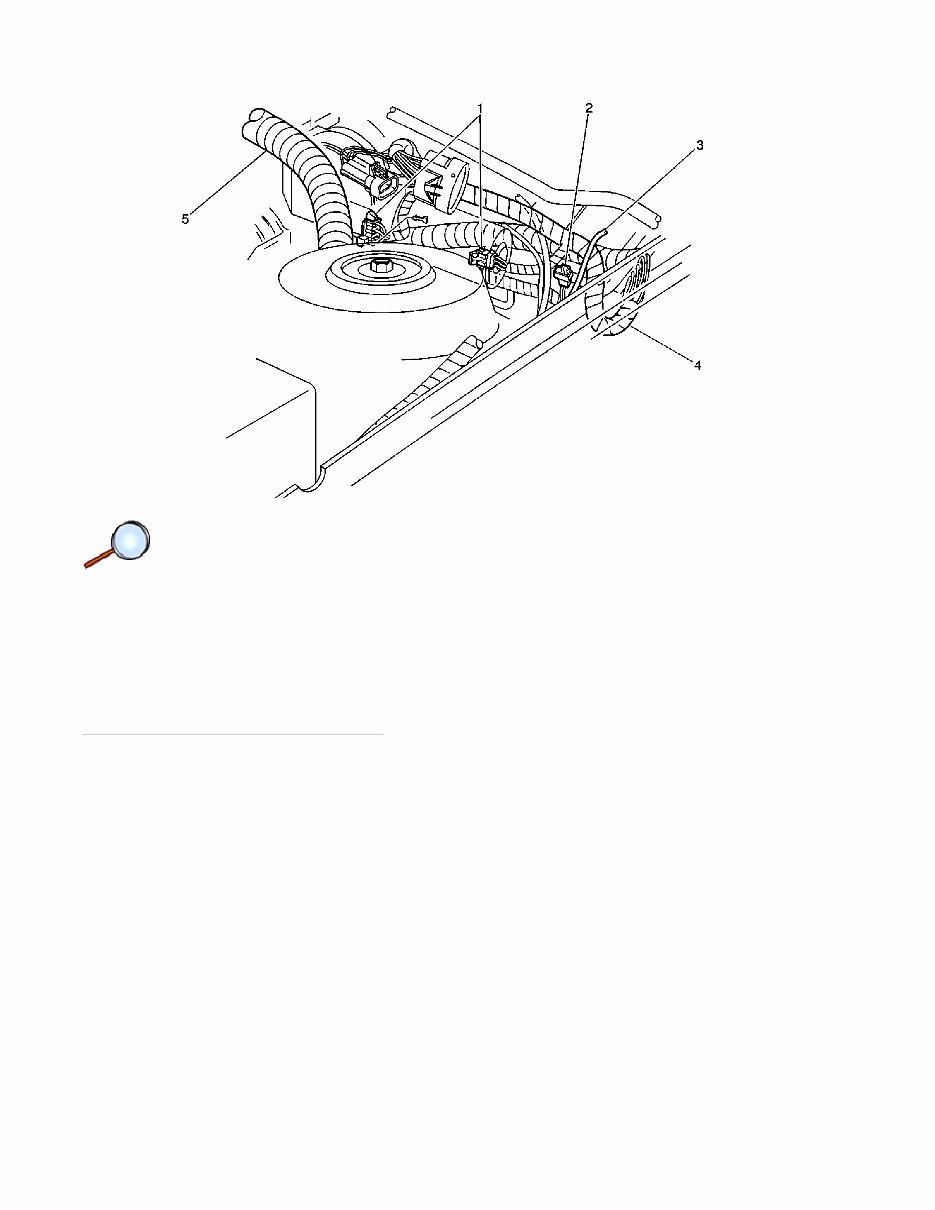

(1) Windshield Wiper and Washer Motor Lead
(2) Underhood Lamp Lead
(3) Hood Release Cable
(4) IP Wiring Harness
(5) Engine Wiring Harness
Page 3 of 4 Document ID: 540130
10/14/2010 http://localhost:9001/si/showDoc.do?docSyskey=540130&pubCellSyskey=61870&pubO...

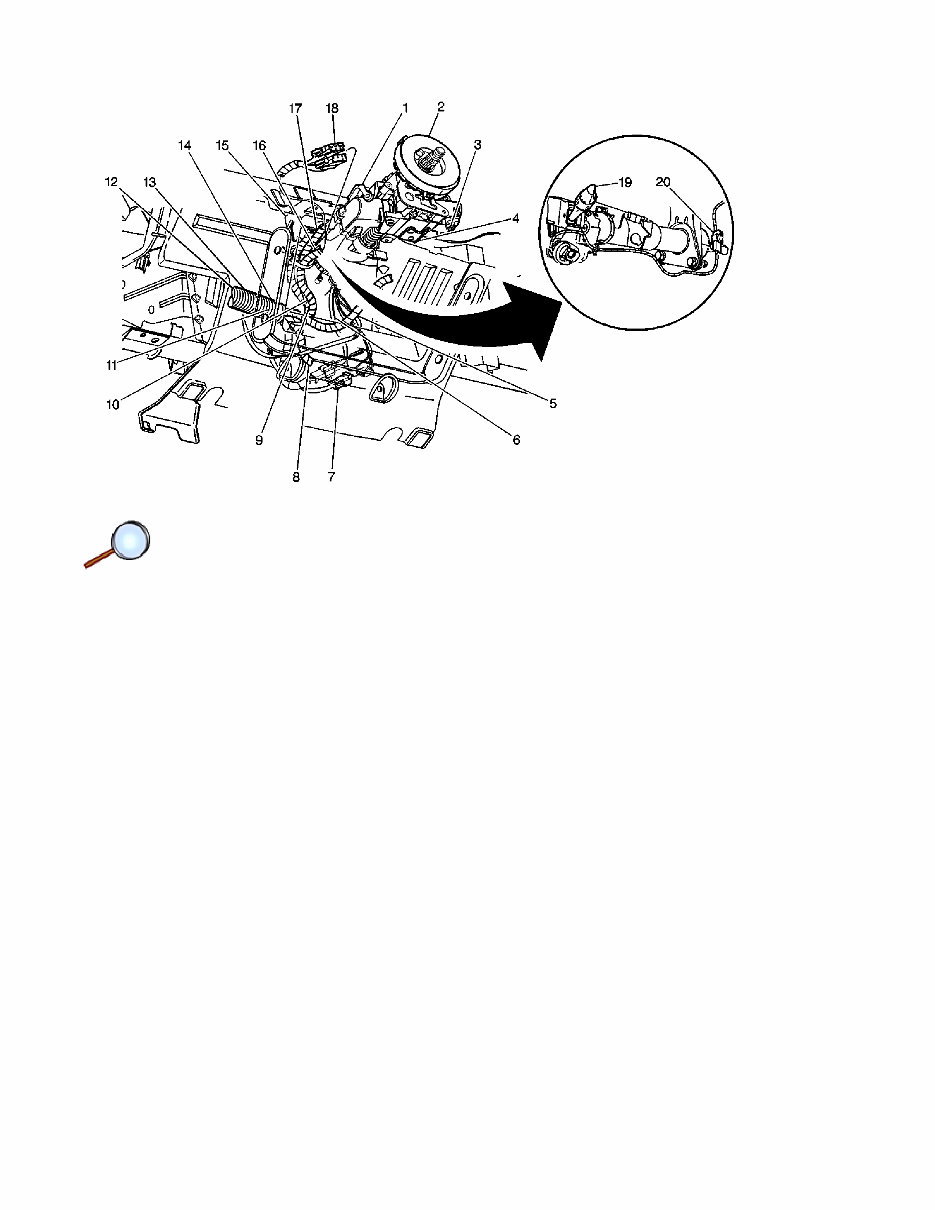

(1) Multi-Function Lever
(2) SIR Coil
(3) Ignition Lock Solenoid
(4) Passlock Connector Lead
(5) Windshield Wiper Switch Lead
(6) SIR Lead
(7) SIR Connector
(8) DLC Lead
(9) S128
(10) S127
(11) S200
(12) S205
(13) S204
(14) S423, S424
(15) LH Stalk Switch Branch
(16) S202
(17) Headlamp Switch Lead
(18) Ignition Switch Connector
(19) Wiper Switch
(20) Passlock Connector Lead
Page 4 of 4 Document ID: 540130
10/14/2010 http://localhost:9001/si/showDoc.do?docSyskey=540130&pubCellSyskey=61870&pubO...
