2002-2007 BUICK SERVICE AND REPAIR MANUAL

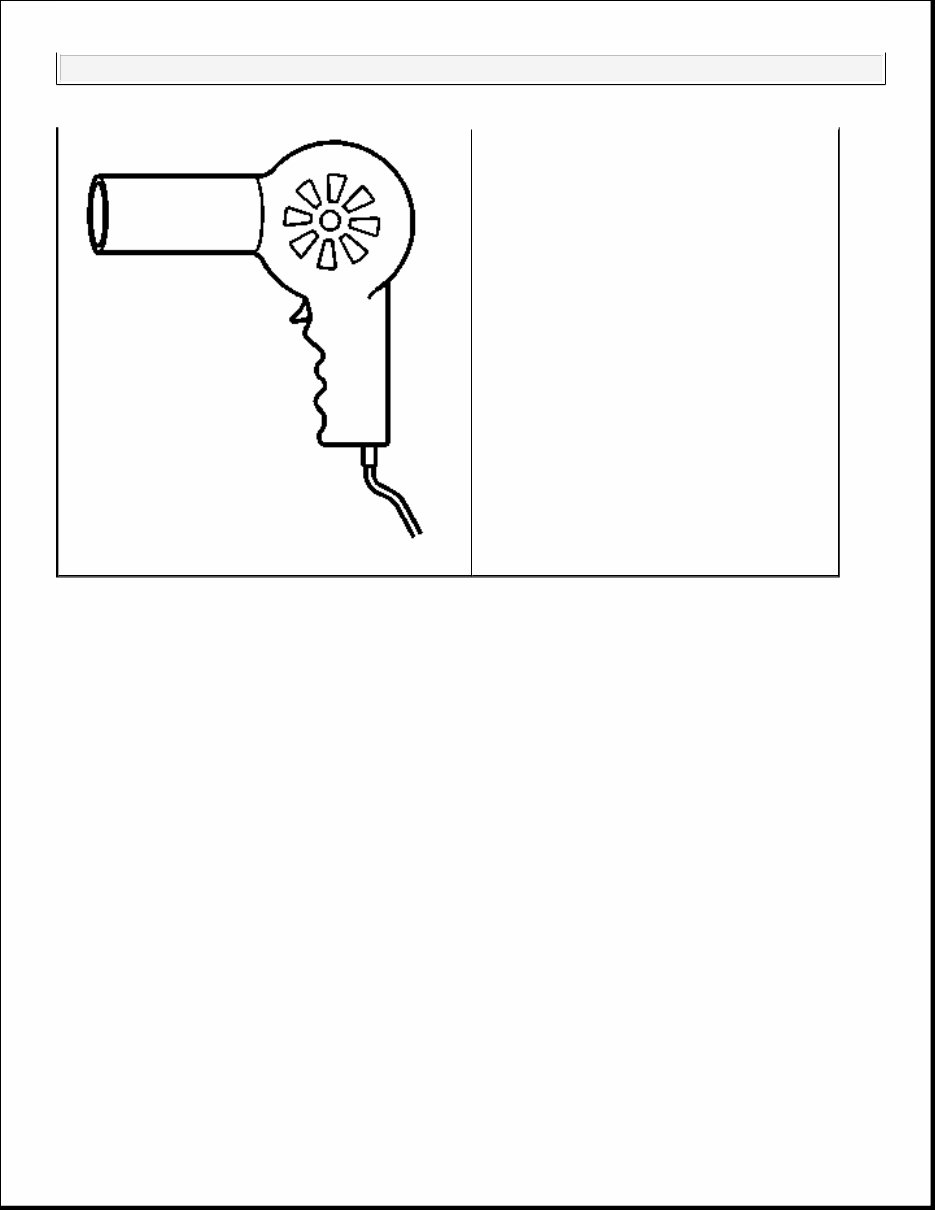

2006 BRAKES Antilock Brake System - Rendezvous SPECIFICATIONS FASTENER TIGHTENING SPECIFICATIONS Fastener Tightening Specifications SCHEMATIC AND ROUTING DIAGRAMS ABS SCHEMATIC ICONS ABS Schematic Icons Application Specification Metric English Brake Pipe Fittings at Brake Pressure Modulator Valve (BPMV) and Master Cylinder 24 N.m 18 lb ft Brake Pressure Modulator Valve (BPMV) and Electronic Brake Control Module (EBCM) Assembly to Mounting Bracket 10 N.m 89 lb in Electronic Brake Control Module (EBCM) to Brake Pressure Modulator Valve (BPMV) 5 N.m 44 lb in Master Cylinder to Brake Booster Studs 25 N.m 18 lb in Mounting Bracket Nut/Bolt Assembly to Shock Tower 10 N.m 89 lb in Switch Bank Nuts/Bolts 2.5 N.m 22 lb in Icon Icon Definition IMPORTANT: Twisted-pair wires provide an effective shield that helps protect sensitive electronic components from electrical interference. If the wires were covered with shielding, install new shielding. In order to prevent electrical interference from degrading the performance of the connected components, you must maintain the proper specification when making any repairs to the twisted-pair wires shown : z The wires must be twisted a minimum of 9 turns per 31 cm (12 in) as measured anywhere along the length of the wires. z The outside diameter of the twisted wires must not exceed 6.0 mm (0.25 in). 2006 BRAKES Antilock Brake System - Rendezvous
ABS SCHEMATICS 2006 BRAKES Antilock Brake System - Rendezvous
Fig. 1: Ground, Power, Pump, and Solenoid Valves Courtesy of GENERAL MOTORS CORP. 2006 BRAKES Antilock Brake System - Rendezvous

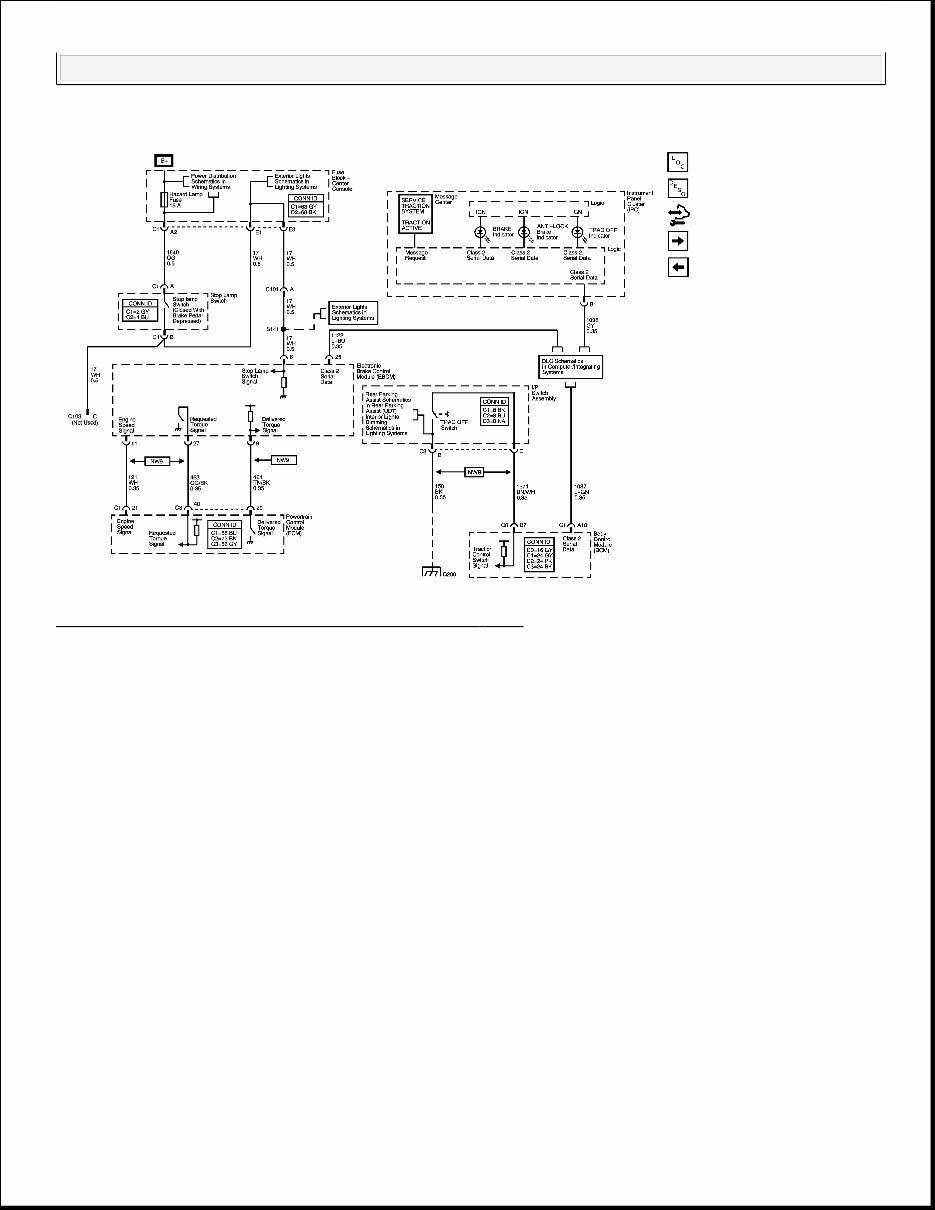

Fig. 2: DLC, Indicators, and Traction Control Switch - LX9 Courtesy of GENERAL MOTORS CORP. 2006 BRAKES Antilock Brake System - Rendezvous
Fig. 3: DLC, Indicators, and Traction Control Switch - LY7 Courtesy of GENERAL MOTORS CORP. 2006 BRAKES Antilock Brake System - Rendezvous

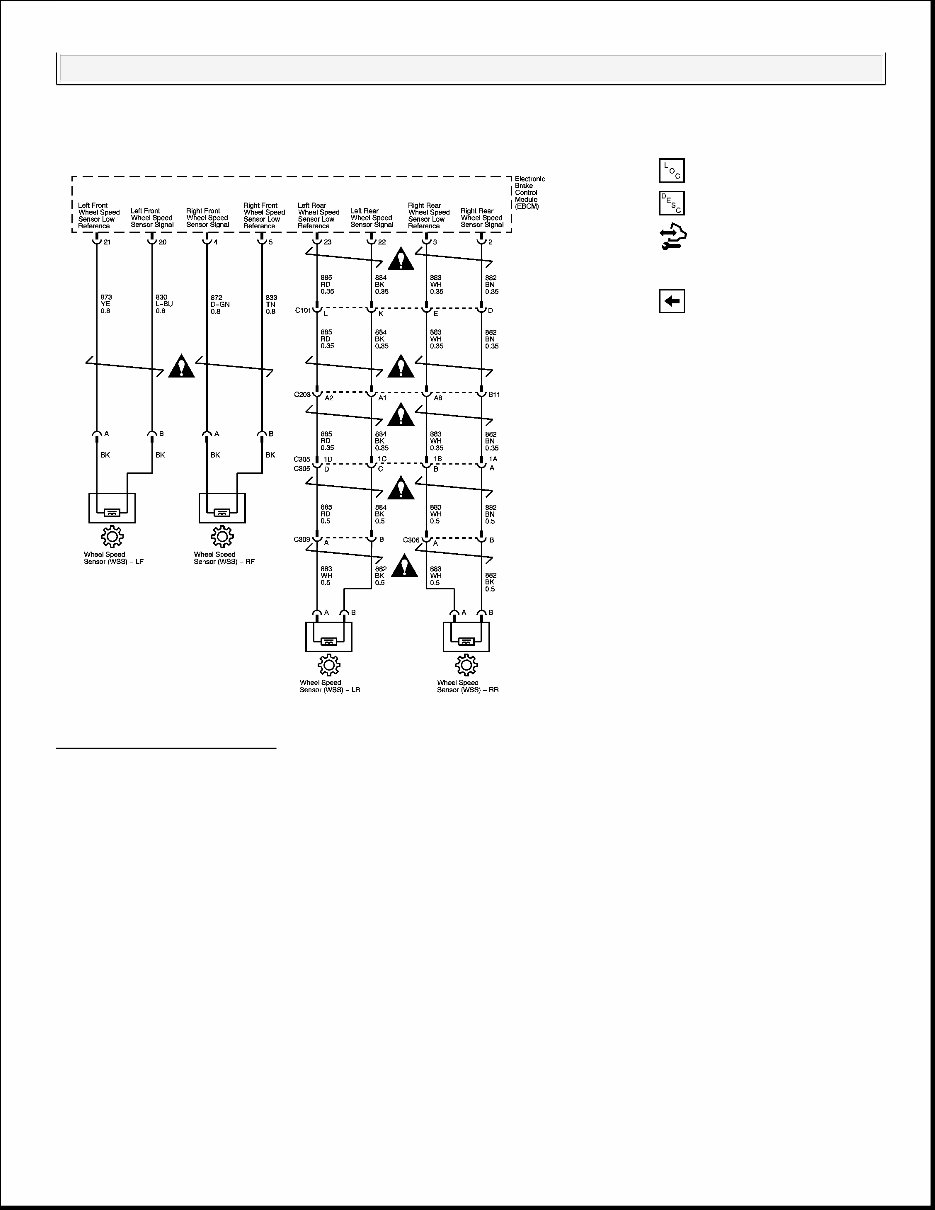

Fig. 4: Wheel Speed Sensors Courtesy of GENERAL MOTORS CORP. COMPONENT LOCATOR ABS COMPONENT VIEWS 2006 BRAKES Antilock Brake System - Rendezvous
Fig. 5: Right Front Wheel Component View Courtesy of GENERAL MOTORS CORP. Callout Component Name 1 Wheel Speed Sensor (WSS)-RF 2 Pigtail Connector 2006 BRAKES Antilock Brake System - Rendezvous
Fig. 6: LR Engine Compartment Location View Courtesy of GENERAL MOTORS CORP. Callout Component Name 1 Brake Fluid Level Switch 2 Cruise Control Module 3 Electronic Brake Control Module (EBCM) 2006 BRAKES Antilock Brake System - Rendezvous

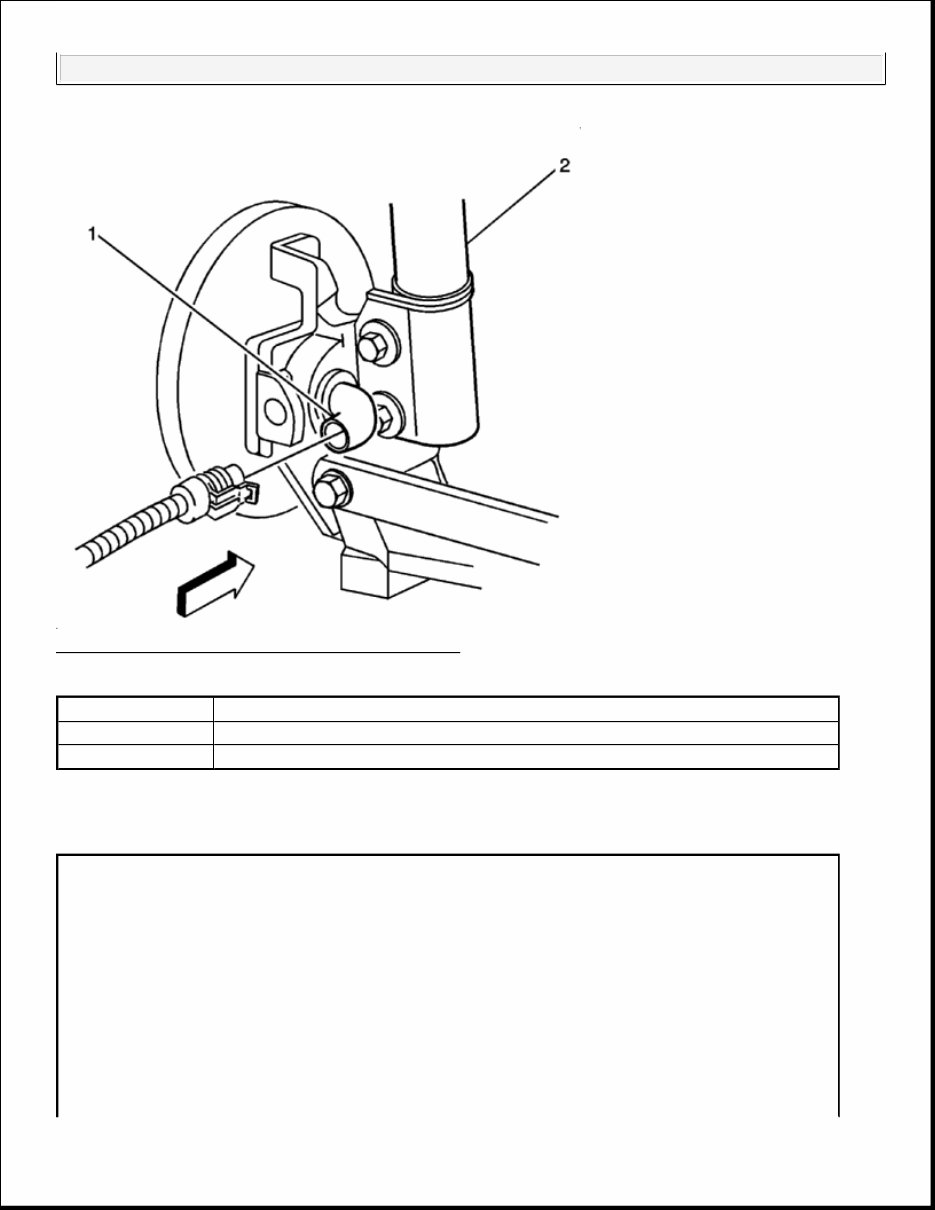

Fig. 7: Rear Wheel Speed Sensors Component View Courtesy of GENERAL MOTORS CORP. ABS CONNECTOR END VIEWS Electronic Brake Control Module (EBCM) Callout Component Name 1 Wheel Speed Sensor-LR (RR similar) 2 Rear Strut 2006 BRAKES Antilock Brake System - Rendezvous
