SPECIAL CAUTIONS AIR BAG Refer to Procedure Explanation 29 for Supplemental Restraint/Air Bag Special Cautions. ABS Manufacturer advises that ABS Control Unit be disconnected before welding and removed if a temperature of 85 degrees C (185 degrees F) is to be exceeded for more than two hours. REFINISH BAKING Manufacturer advises that after baking, sufficient cooling time should be allowed before attempting to start vehicle. SUSPENSION Manufacturer advises that some new fasteners must be used whenever old fasteners are loosened or removed. WELDING Before initiating any repair involving the use of an electric welder, the ignition must be in the off position and battery disconnected. Aluminum reinforcements are in the rocker panel areas. Manufacturer Advises that Laser Welding is Used on Some Welded Panels in the Manufacturing Process of this Vehicle. Please see Manufacturer's Body Service Manual for Specific Repair Instructions. PAINT CODE LOCATION Paint code located in luggage compartment. CLEAR COAT IDENTIFICATION All colors are clear coat. Pearl White Pearlescent (Code LOB9) is three stage. INFORMATION LABELS Label, Child Safety 8E0 010 171 C $16.50 Label, A/C 8E0 010 170 F $9.90 Label, Air Bag 1C0 010 332 $19.80 Label, Child Seat 8E0 010 166 G $6.00 Label, Unleaded Fuel 8E0 010 162 P $16.50 Label, Tire Pressure Sedan 2.0L Eng 8E5 010 502 CG $9.90 3.2L Eng 8E5 010 502 CH 4.2L Eng 8E5 010 502 CJ Wagon 2.0L Eng 8E9 010 502 GB $9.90 3.2L Eng 8E9 010 502 GC $9.90 4.2L Eng 8E9 010 502 GD $9.90 2007-2008 Audi A4, S4, RS4 Page 1 of 180

Order by Application Label, Caution N.A. FRONT BUMPER Use Procedure Explanations 1 and 28 with the following text. W/SPORT PKG Refinish Front Cover 2.2 Refinish Tow Hook Cover .3 Refinish Washer Nozzle Cover R .3 L .3 Refinish Park Distance Sensor .2 R&I Bumper Assy #1.4 #Includes R&I/R&R Engine Under Cover O/H Front Cover Assy (Includes R&I) #3.2 #Includes R&I/R&R Fog Lamps, Grille & Front Engine Undercover Add to R&R or O/H Front Cover w/Headlamp Washer .4 w/Park Distance Sensors .4 w/Side Marker Lamps #.4 #Includes R&I/R&R Side Marker Lamps NOTE: All Parts in this section are included in overhaul unless noted otherwise. 1 Cover Assy, Front (P) 8E0 807 105 AA GRU $590.00 #3.2 #Includes R&I/R&R Fog Lamps, Grille & Front Engine Undercover 2 Cover, Tow Hook (P) R 8E0 807 241 E GRU $45.30 (P) Paint to Match Page 2 of 180

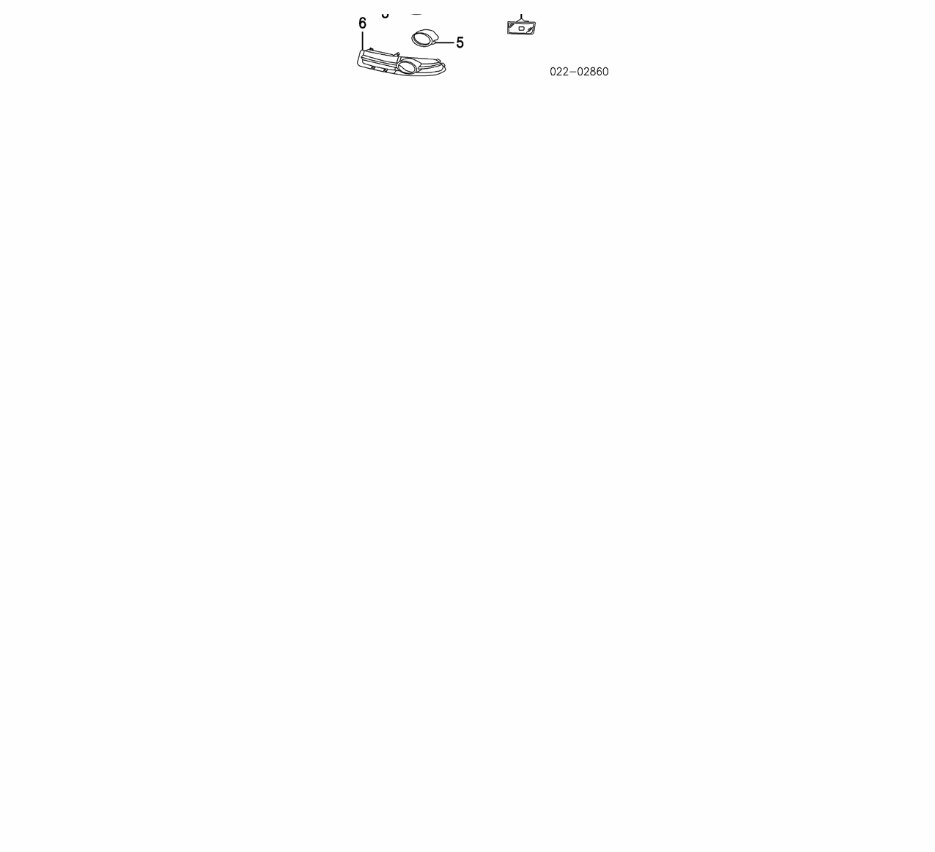

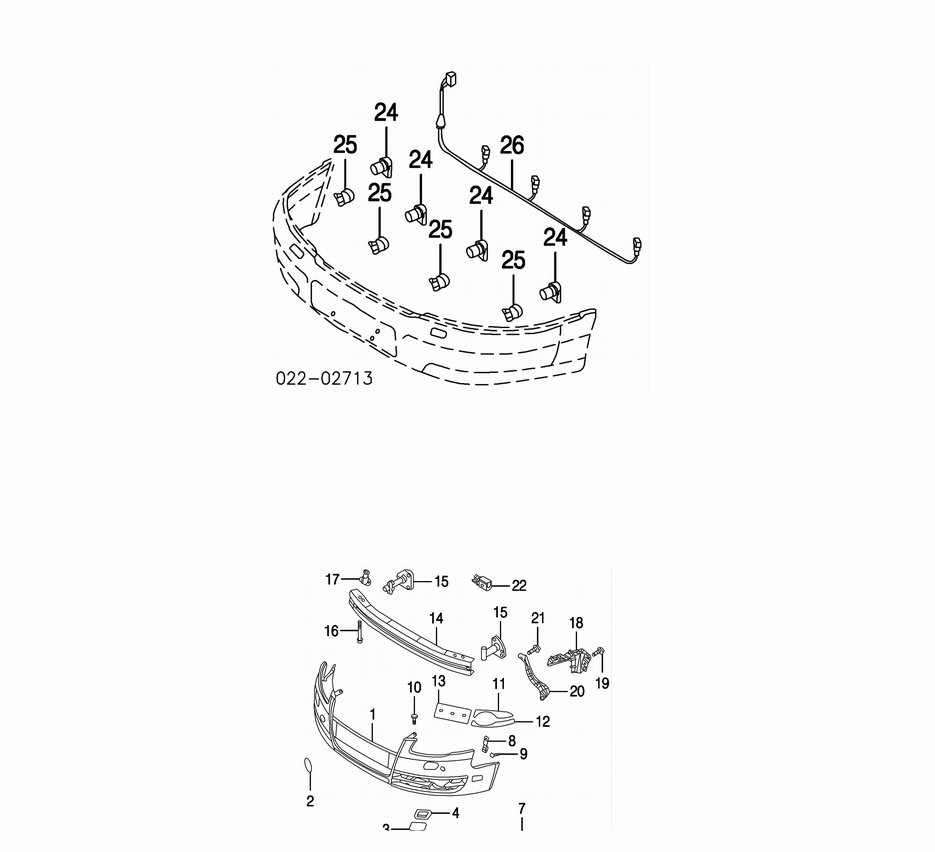

3 Holder, Cover R 8E0 807 278 $24.30 L 8E0 807 277 $24.30 4 Screw, Holder (2/Side) R 8E0 807 893 $9.90 L 8E0 807 893 $9.90 Included w/Front Cover Assy 5 Screen, Cover R 8E0 807 682 J Z9Y $92.00 .3 L 8E0 807 681 J Z9Y $92.00 .3 6 Cover, Nozzle (P) R 8E0 955 276 E GRU $29.10 .2 L 8E0 955 275 E GRU $29.10 .2 (P) Paint to Match Nozzle, Washer-See Headlamp Washer Section 7 Guide, Washer Nozzle R 8E0 807 788 B $9.90 L 8E0 807 787 B $9.90 8 Reflector, Bumper A4 R 8E0 945 072 $51.90 .2 L 8E0 945 071 $51.90 .2 RS4 07-08 R 8E5 945 073 $45.30 .2 L 8E5 945 074 $45.30 .2 S4 R 8E0 945 072 B $51.90 .2 L 8E0 945 071 B $51.90 .2 9 Grille, Cover R 8E0 807 078 B $59.50 L 8E0 807 077 B $59.50 10 Panel, Lower Valance 8E0 807 110 E $795.00 .2 11 Bolt, Lower Panel (10) N.A. 12 Nut, Mounting (10) N 104 337 01 $0.90 13 Pad, Foam 8E0 807 251 $45.30 14 Bracket, Upper Cover R 8E0 805 364 $39.00 L 8E0 805 363 $39.00 15 Bar, Impact A4, S4 8E0 807 109 M $268.00 #.3 RS4 07-08 8E0 807 109 N $470.00 #.3 #w/Front Bumper Cover Removed, Not Included in O/H 16 Absorber, Impact R 8E0 807 272 A $225.00 #.3 L 8E0 807 271 A $225.00 #.3 #w/Front Bumper Cover Removed, Includes R&R Impact Bar, Not Included in O/H 17 Bolt, Impact Bar R N 911 058 01 $3.90 L N 911 058 01 $3.90 18 Bracket, Support R 8E0 807 381 C $16.50 L 8E0 807 381 C $16.50 19 Guide, Bumper Support R 8E0 807 284 E $24.30 L 8E0 807 283 E $24.30 20 Screw, Side (2/Side) R N.A. L N.A. 21 Support, Front Cover R 8E0 807 204 B $24.30 L 8E0 807 203 B $29.10 22 Screw, Support R N 101 817 02 $0.50 Page 3 of 180

L N 101 817 02 $0.50 23 Sensor, Outside Temp 8Z0 820 535 $11.50 # #Not Included in O/H 24 Sensor, Park Distance (4) A4, S4 (P) 7H0 919 275 D GRU $115.00 #.1 RS4 07-08 7H0 919 275 D VMZ $142.00 #.1 (P) Paint to Match #w/Bumper Cover Removed, Not Included in O/H 25 Bracket, Sensor (4) N.A. 26 Harness, Sensor Sedan 8E0 971 085 A $268.00 Wagon 8E9 971 085 $268.00 W/O SPORT PKG Page 4 of 180

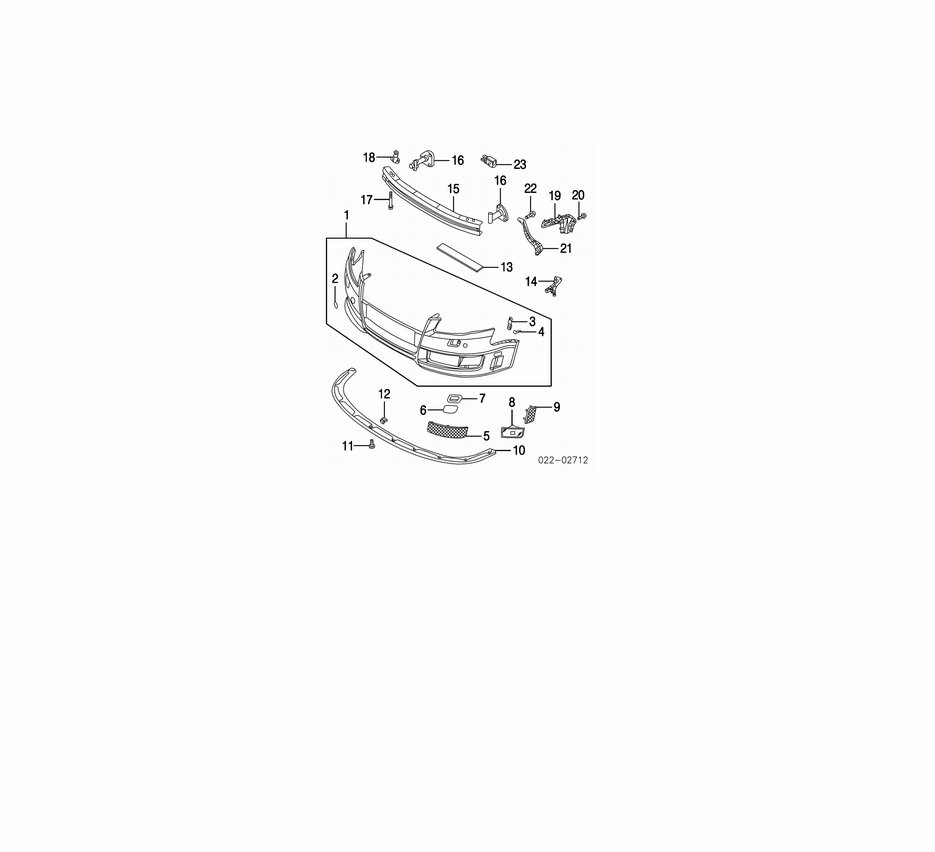

Refinish Front Cover 2.2 Refinish Tow Hook Cover .2 Refinish Front Spoiler .8 Refinish Fog Lamp Frame R .3 L .3 Refinish Park Distance Sensor .2 R&I Bumper Assy #1.4 #Includes R&I/R&R Engine Under Cover O/H Front Cover Assy (Includes R&I) #3.2 #Includes R&I/R&R Fog Lamps, Grille & Front Engine Undercover Add to R&R or O/H Front Cover w/Front Spoiler .8 w/Headlamp Washer .4 w/Park Distance Sensors .4 w/Side Marker Lamps #.4 #Includes R&I/R&R Side Marker Lamps NOTE: All Parts in this section are included in overhaul unless noted otherwise. 1 Cover, Front (P) w/Headlamp Washer 8E0 807 105 J GRU $590.00 #3.2 w/o Headlamp Washer 8E0 807 105 N GRU $590.00 #3.2 #Includes R&I/R&R Fog Lamps, Grille & Front Engine Undercover Spoiler, Front (P) Dealer Installed Type 1 8EC 071 609 9AX $550.00 #.8 Type 2 8E0 071 609 9AX $640.53 #.8 Order by Application #w/Front Cover Removed, Not Included in O/H 2 Cover, Tow Hook (P) R 8E0 807 241 C GRU $45.30 3 Cover, Nozzle (P) R 8E0 955 276 E GRU $29.10 .2 L 8E0 955 275 E GRU $29.10 .2 (P) Paint to Match Nozzle, Washer-See Headlamp Washer Section 4 Guide, Washer Nozzle R 8E0 807 788 B $9.90 L 8E0 807 787 B $9.90 5 Frame, Fog Lamp (P) R 8E0 807 820 GRU $58.00 #.2 L 8E0 807 819 GRU $58.00 #.2 (P) Paint to Match #Included in R&R Front Cover Grille 6 Grille, Front Cover R 8E0 807 682 G 01C $62.00 .3 L 8E0 807 681 G 01C $62.00 .3 Order by Application 7 Reflector, Bumper A4 R 8E0 945 072 $51.90 .2 Page 5 of 180

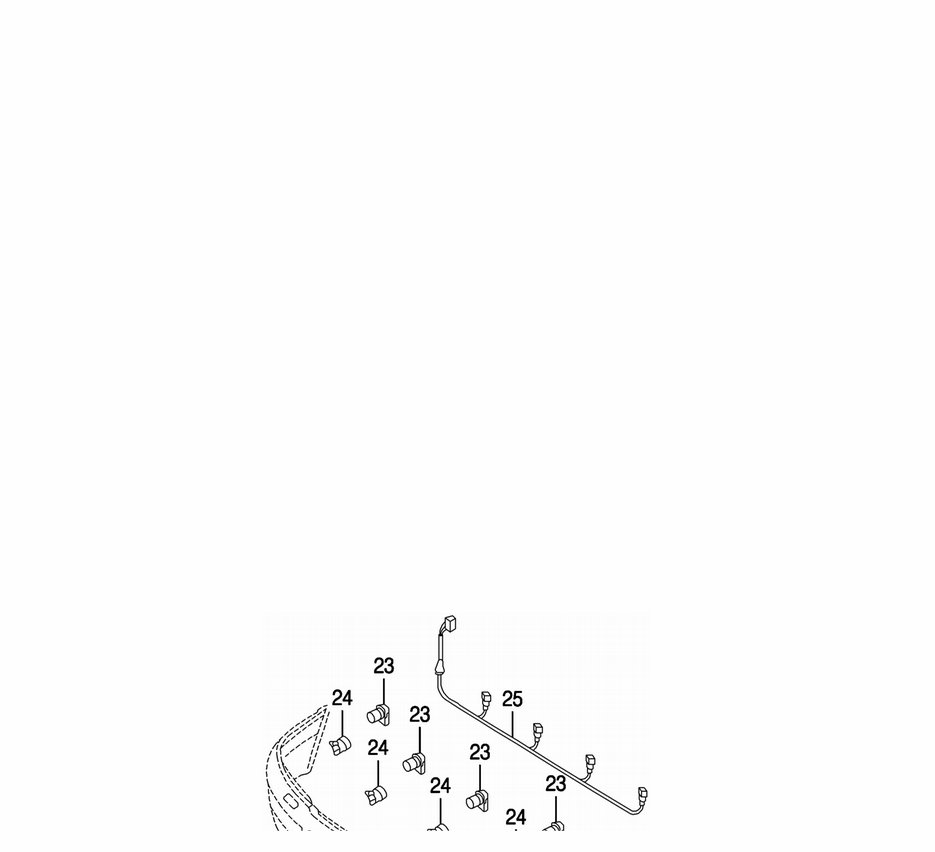

L 8E0 945 071 $51.90 .2 S4 R 8E0 945 072 B $51.90 .2 L 8E0 945 071 B $51.90 .2 8 Holder, Cover R 8E0 807 278 $24.30 L 8E0 807 277 $24.30 9 Screw, Holder (2/Side) R 8E0 807 893 $9.90 L 8E0 807 893 $9.90 10 Screw, Front Cover (3) N 903 833 05 Trim, Outer Fog Lamp 11 Upper R 8E0 807 174 01C $57.00 L 8E0 807 173 01C $57.00 12 Lower R 8E0 807 490 01C $57.00 L 8E0 807 489 01C $57.00 13 Trim, Cover R 8E0 807 812 $16.50 L 8E0 807 811 $16.50 14 Bar, Impact 8E0 807 109 M $268.00 #.3 #w/Front Bumper Cover Removed, Not Included in O/H 15 Absorber, Impact R 8E0 807 272 A $225.00 #.3 L 8E0 807 271 A $225.00 #.3 #w/Front Bumper Cover Removed, Includes R&R Impact Bar, Not Included in O/H 16 Bolt, Impact Absorber R N 911 058 01 $3.90 L N 911 058 01 $3.90 17 Bracket, Support R 8E0 807 381 C $16.50 L 8E0 807 381 C $16.50 18 Guide, Bumper Support R 8E0 807 284 E $24.30 L 8E0 807 283 E $24.30 19 Screw, Side (2/Side) R N 910 570 01 $0.50 L N 910 570 01 $0.50 20 Support, Front Cover R 8E0 807 204 B $24.30 L 8E0 807 203 B $29.10 21 Screw, Support R N 101 817 02 $0.50 L N 101 817 02 $0.50 22 Sensor, Outside Temp 8Z0 820 535 $11.50 # #Not Included in O/H Page 6 of 180

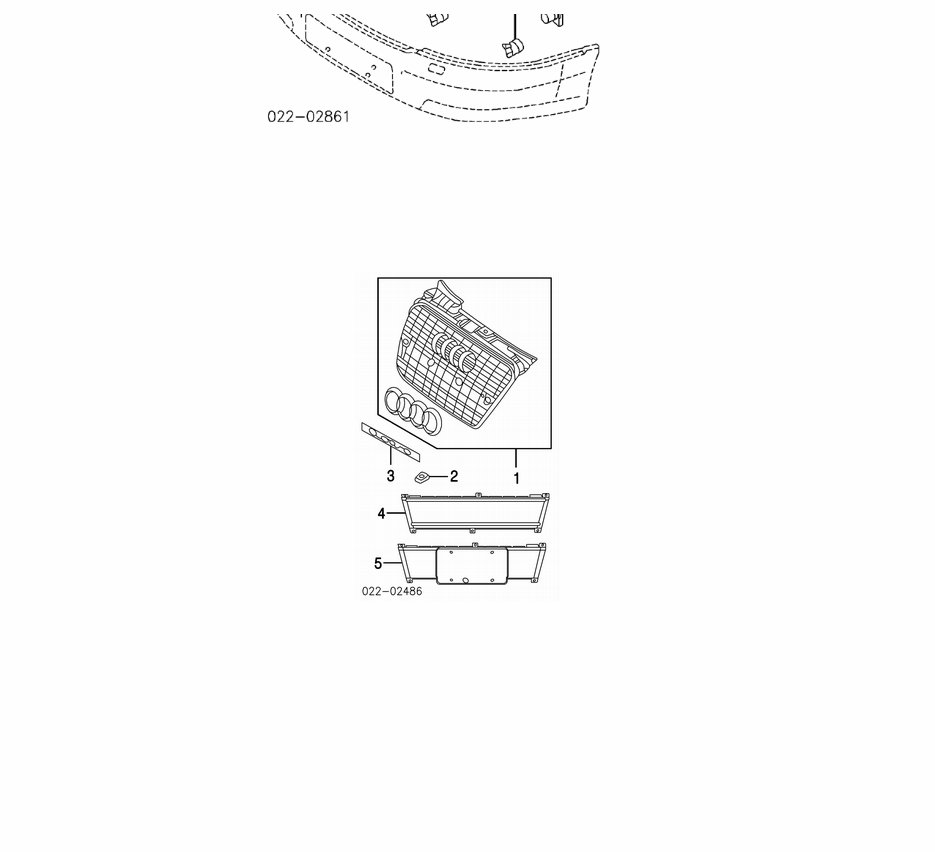

23 Sensor, Park Distance (4) (P) 7H0 919 275 D GRU $115.00 #.1 (P) Paint to Match #w/Bumper Cover Removed, Not Included in O/H 24 Bracket, Sensor (4) N.A. 25 Harness, Sensor Sedan 8E0 971 085 A $268.00 Wagon 8E9 971 085 $268.00 GRILLE R&I Grille #.3 #w/Bumper Removed, Included in R&R or O/H Front Bumper 1 Grille A4, S4 Black 8E0 853 651 J VMZ $365.00 #.3 Gray 8E0 853 651 J 1QP $195.00 #.3 Phantom Black 8E0 853 651 S Z9Y $450.00 #.3 Platinum Gray 8E0 853 651 K 1RR $360.00 #.3 RS4 Bright Mldgs 07-08 8E0 853 651 L 3FZ $440.00 #.3 Black Mldgs 07-08 8E0 853 651 AF VMZ $535.00 #.3 #w/Bumper Removed, Included in R&R or O/H Front Bumper 2 Retainer, Grille (2) 8L0 807 180 $3.90 Page 7 of 180

3 Nameplate (Adhesive) "Quattro" 8E0 853 736 B 2ZZ $39.00 .2 "RS4" 07-08 8E0 853 736 E 2ZZ $58.00 .2 "S4" 8E0 853 736 D 2ZZ $39.00 .2 "S Line" Chrome 8E0 853 736 C 2ZZ $51.90 .2 Black/Chrome 4F0 853 736 A VUJ $51.90 .2 4 Trim, Grille A4, S4 8E0 807 287 D 1QP $138.00 #.2 RS4 #.2 Bright Mldgs 07-08 8E0 807 287 E 3FZ $276.00 #.2 Black Mldgs 07-08 8E0 807 287 C 3FZ $142.00 #.2 5 Bracket, License Plate A4, S4 8E0 807 285 BH 1QP $138.00 #.2 RS4 07-08 8E0 807 285 BH 3FZ $142.00 #.2 Order by Application #Included in R&R Grille FRONT LAMPS COMBINATION LAMP COMBINATION LAMP HALOGEN Aim Lamps .4 R&I Combination Lamp Assy R #1.7 L #1.7 #Includes R&I Front Bumper Assy NOTE: R&R Does Not include aim lamps. Page 8 of 180

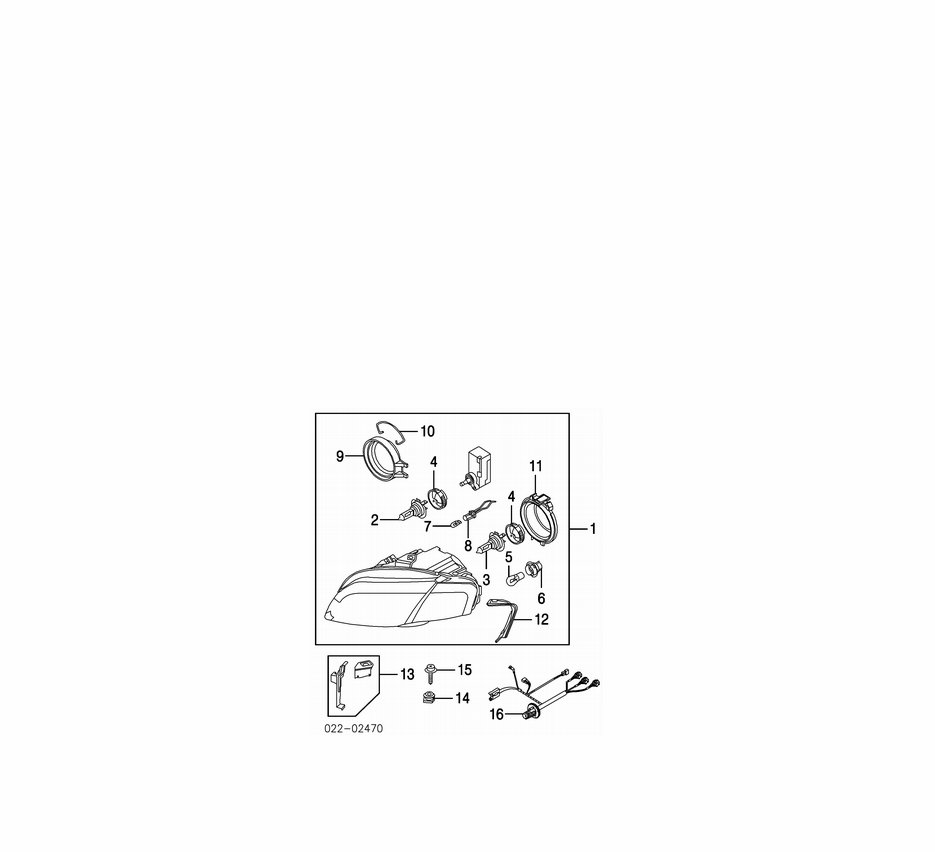

1 Lamp Assy, Combination R 8E0 941 004 AL $377.00 #1.7 L 8E0 941 003 AL $377.00 #1.7 #Includes R&I Front Bumper Assy 2 Bulb, High Beam R N 103 201 02 $16.50 #.2 L N 103 201 02 $16.50 #.2 3 Bulb, Low Beam R N 103 201 02 $16.50 #.2 L N 103 201 02 $16.50 #.2 4 Retainer, Bulb (2/Side) R 8E0 941 109 $39.00 L 8E0 941 109 $39.00 5 Bulb, Turn Signal R N 017 732 8 $3.90 #.2 L N 017 732 8 $3.90 #.2 6 Socket, Turn Signal R 8E0 953 123 $19.80 L 8E0 953 123 $19.80 7 Bulb, Running Lamp R N 017 753 5 $5.50 #.2 L N 017 753 5 $5.50 #.2 #R&R One Side Complete 8 Socket, Running Lamp R 8P0 941 953 $33.90 L 8P0 941 953 $33.90 9 Cover, High Beam Bulb R 8P0 941 159 A $29.10 L 8P0 941 159 A $29.10 10 Clip, Retaining R 8E0 941 160 $19.80 L 8E0 941 160 $19.80 11 Cover, Low Beam Bulb R 8E0 941 158 C $33.90 L 8E0 941 158 C $33.90 12 Seal, Headlamp R 8E0 941 191 A $29.10 L 8E0 941 191 A $29.10 Included w/Combination Lamp Assy 13 Repair Kit, Housing R 8E0 998 122 B $51.90 #.3 L 8E0 998 121 B $51.90 #.3 #w/Combination Lamp Assy Removed 14 Nut, Lamp R 8E0 941 118 $1.30 L 8E0 941 118 $1.30 15 Screw, Lamp R N 910 560 01 $0.70 L N 910 560 01 $0.70 16 Harness, Front Lamp (a) R 8E1 971 076 AF $242.00 L 8E1 971 075 BJ $430.00 (a) Order by Application COMBINATION LAMP COMBINATION LAMP XENON Page 9 of 180

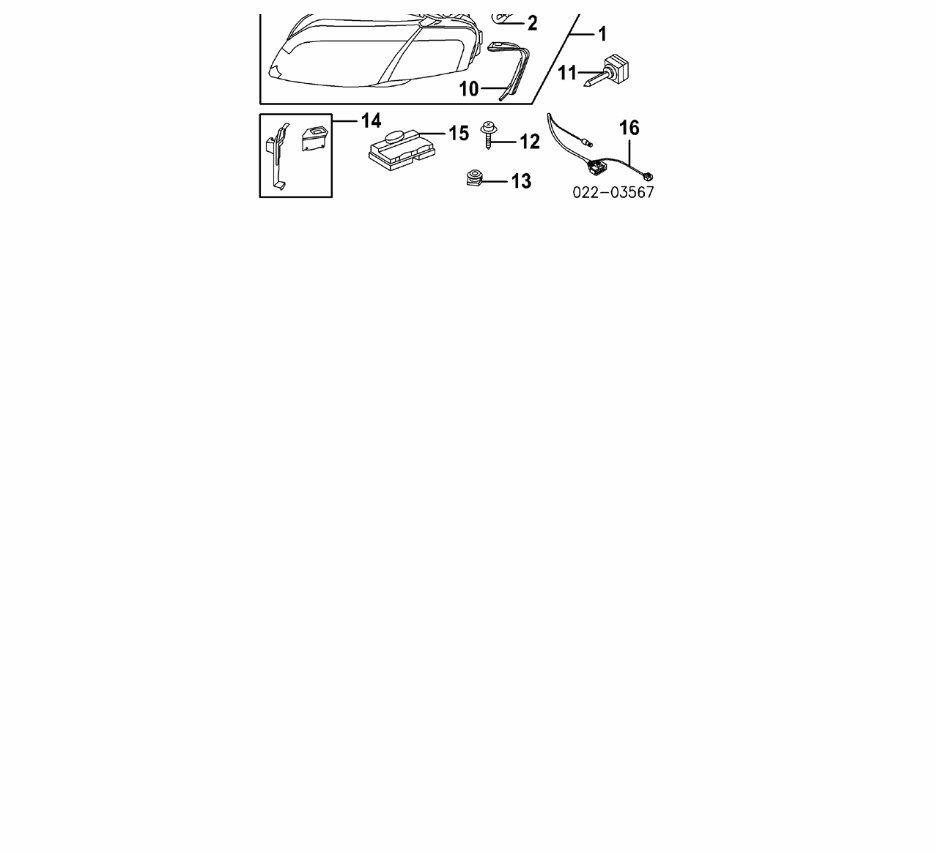

Aim Lamps .4 Add to Aim Lamps To Adjust Range Control .4 R&I Combination Lamp Assy R #1.7 L #1.7 #Includes R&I Front Bumper Assy NOTE: R&R Does Not include aim lamps. 1 Lamp Assy, Combination w/Curve Lighting R 8E0 941 030 BD $900.00 #1.9 L 8E0 941 029 BD $900.00 #1.9 w/o Curve Lighting R 8E0 941 030 BA $750.00 #1.9 L 8E0 941 029 BA $750.00 #1.9 #Includes R&I Front Bumper Assy 2 Bulb, Turn Signal R N 017 732 8 $3.90 #.2 L N 017 732 8 $3.90 #.2 3 Bulb, Running Lamp R N 017 753 5 $5.50 #.2 L N 017 753 5 $5.50 #.2 4 Bulb, Driving Lamp R N 017 732 8 $3.90 #.2 L N 017 732 8 $3.90 #.2 #R&R One Side Complete 5 Socket, Turn Signal R 8E0 953 123 $19.80 L 8E0 953 123 $19.80 6 Socket, Running Lamp R 8P0 941 953 $33.90 L 8P0 941 953 $33.90 7 Socket, Driving Lamp Bulb R 8E0 941 669 $14.50 L 8E0 941 669 $14.50 8 Cover, Bulb R 8E0 941 158 E $33.90 L 8E0 941 158 E $33.90 9 Cover, HID Bulb R 8E0 941 158 D $33.90 L 8E0 941 158 D $33.90 10 Seal, Headlamp R 8E0 941 192 A $29.10 L 8E0 941 191 A $29.10 Included w/Combination Lamp Assy 11 Bulb, HID R N 105 661 03 $160.00 #.2 L N 105 661 03 $160.00 #.2 #w/Combination Lamp Assy Removed, Included in R&R Combination Lamp Page 10 of 180
