Workshop Manual
Audi R8 2007 ➤
6-speed manual gearbox and automated manual
gearbox (R tronic) 086
Edition 02.2011
Service
Service Department. Technical Information
List of Workshop Manual Repair GroupsList of Workshop Manual
Repair GroupsList of Workshop Manual Repair Groups
Repair Group
00 - Technical data
30 - Clutch
34 - Controls, housing
35 - Gears, shafts
39 - Final drive - rear differential
39 - Final drive - front differential
Technical information should always be available to the foremen and mechanics, because their
careful and constant adherence to the instructions is essential to ensure vehicle road-worthiness and
safety. In addition, the normal basic safety precautions for working on motor vehicles must, as a
matter of course, be observed.
Service
A005R800820
Contents
00 - Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1 Gearbox identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

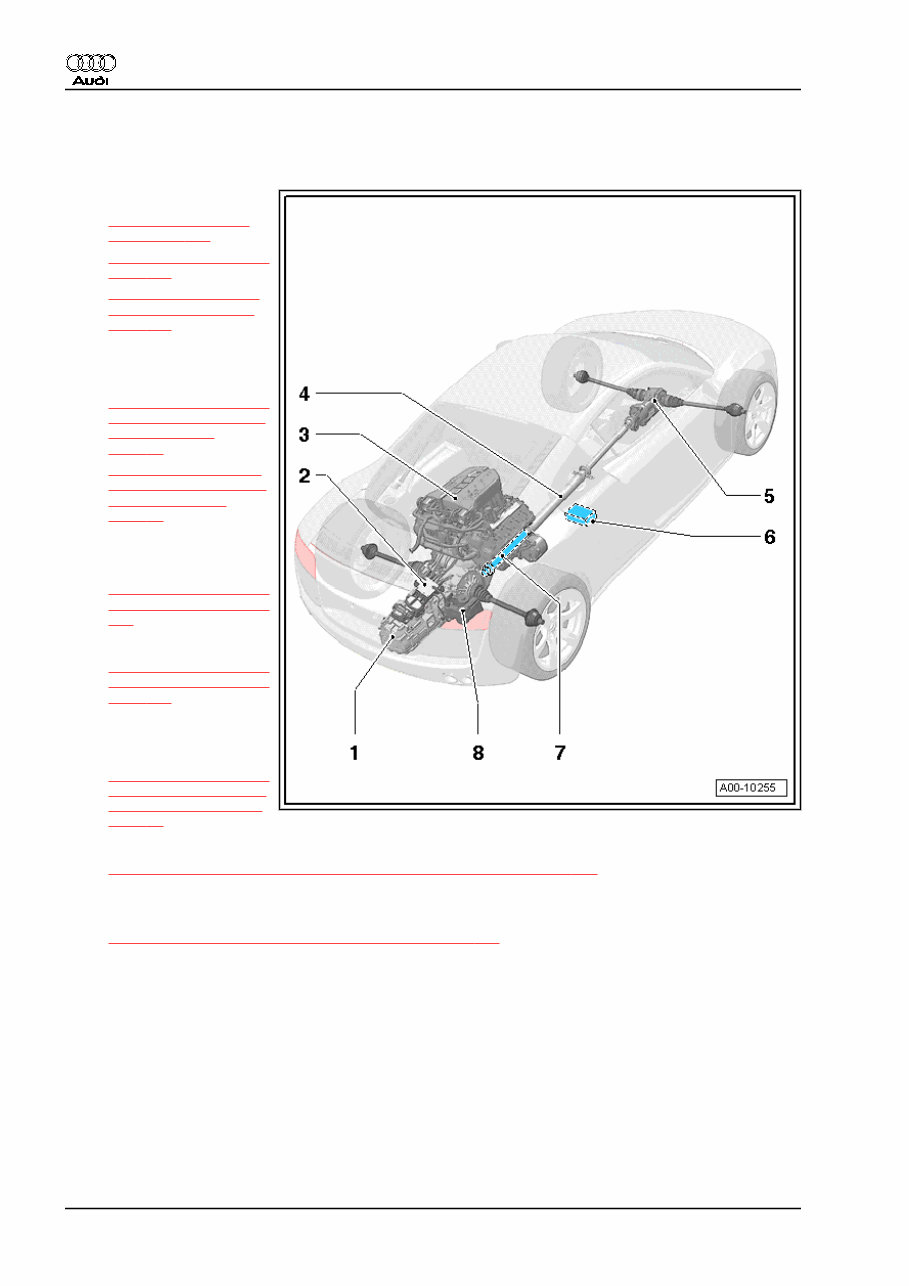

2 Transmission layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
3 Code letters, gearbox allocation, ratios, equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
4 Gearbox capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
5 Front final drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
5.1 Identification of front final drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
5.2 Capacity of front final drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
6 Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
6.1 When working on the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
6.2 When using test equipment while road-testing the vehicle . . . . . . . . . . . . . . . . . . . . . . . . 7
7 General notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
7.1 Notes for automated manual gearbox (R tronic) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
8 Notes on tow-starting and towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
9 Repair instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
9.1 Contact corrosion! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
9.2 Fitting body covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
10 Rules for cleanliness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
30 - Clutch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
1 Exploded view - clutch mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
1.1 Removing and installing over-centre spring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
1.2 Removing and installing clutch pedal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
1.3 Removing and installing mounting bracket for clutch pedal and clutch master cylinder . . 24
1.4 Removing and installing clutch master cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
1.5 Removing and installing clutch pedal switch F36 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
2 Exploded view - hydraulics for manual gearbox version . . . . . . . . . . . . . . . . . . . . . . . . . . 31
3 Exploded view - clutch release mechanism for manual gearbox version . . . . . . . . . . . . . . 33
3.1 Removing and installing clutch slave cylinder with release bearing - manual gearbox . . . . 34
3.2 Renewing input shaft oil seal - manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
4 Exploded view - clutch release mechanism for R tronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
4.1 Removing and installing clutch slave cylinder with release bearing - R tronic . . . . . . . . . . 38
4.2 Removing and installing clutch position sender G476 - R tronic . . . . . . . . . . . . . . . . . . . . 40
4.3 Renewing input shaft oil seal - R tronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
5 Bleeding clutch system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
5.1 Bleeding clutch system - manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
5.2 Bleeding clutch system - R tronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
5.3 Basic setting of clutch - R tronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
6 Exploded view - clutch unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
6.1 Removing and installing pressure plate with clutch plates . . . . . . . . . . . . . . . . . . . . . . . . . . 50
34 - Controls, housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
1 Electrical/electronic components on automated manual gearbox (R tronic) . . . . . . . . . . . . 52
1.1 Removing and installing automatic gearbox control unit J217 . . . . . . . . . . . . . . . . . . . . . . 55
2 Exploded view - selector mechanism on vehicles with manual gearbox . . . . . . . . . . . . . . 56
2.1 Removing and installing selector mechanism - manual gearbox version . . . . . . . . . . . . . . 57
2.2 Exploded view - gear selector cables on manual gearbox version . . . . . . . . . . . . . . . . . . 59
2.3 Removing and installing gear selector cable and gate selector cable - manual gearbox
version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
2.4 Exploded view - selector unit on manual gearbox version . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Audi R8 2007 ➤
6-speed manual gearbox and automated manual gearbox (R tronic) 086 - Edition 02.2011
Contents i
2.5 Adjusting selector mechanism - manual gearbox version . . . . . . . . . . . . . . . . . . . . . . . . . . 63
3 Exploded view - selector mechanism on vehicles with R tronic . . . . . . . . . . . . . . . . . . . . . . 66
3.1 Removing and installing selector mechanism - R tronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
3.2 Removing and installing selector lever handle - R tronic . . . . . . . . . . . . . . . . . . . . . . . . . . 68
3.3 Removing and installing selector mechanism cover - R tronic . . . . . . . . . . . . . . . . . . . . . . 68
3.4 Removing and installing sport program button E541 - R tronic . . . . . . . . . . . . . . . . . . . . . . 69
3.5 Removing and installing selected range display Y5 - R tronic . . . . . . . . . . . . . . . . . . . . . . 70
3.6 Removing and installing selector lever sensors control unit J587 - R tronic . . . . . . . . . . . . 71
4 Exploded view - hydraulic lines for R tronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
5 Exploded view - gearshift actuator for R tronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
5.1 Removing and installing gearshift actuator for R tronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
5.2 Removing and installing hydraulic return hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
5.3 Removing and installing clutch actuator valve N255 and selector lever valves N284 , N285 ,
N286 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
5.4 Removing and installing gearbox hydraulic pressure sender G270 . . . . . . . . . . . . . . . . . . 87
5.5 Removing and installing gear detection sensor G604 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
5.6 Removing and installing gear detection sensor 2 G616 . . . . . . . . . . . . . . . . . . . . . . . . . . 90
5.7 Installing adapter harnesses for gear detection sensors ( G604 , G616 ) . . . . . . . . . . . . . . 92
5.8 Removing and installing gearbox input speed sender G182 . . . . . . . . . . . . . . . . . . . . . . . . 99
5.9 Basic setting of gear actuator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
6 Exploded view - hydraulic unit for R tronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
6.1 Removing and installing hydraulic unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
6.2 Removing and installing hydraulic fluid reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
6.3 Removing and installing motor for hydraulic pump for gearbox V387 . . . . . . . . . . . . . . . . 107
6.4 Removing and installing mechanical hydraulic pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
6.5 Removing and installing accumulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
6.6 Removing and installing hydraulic pressure line between gearshift actuator and hydraulic unit
for R tronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
6.7 Renewing connection on gearshift actuator for R tronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
7 Fluid level in hydraulic unit for R tronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
7.1 Checking fluid level in hydraulic unit for R tronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
7.2 Topping up fluid in hydraulic unit for R tronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
7.3 Releasing system pressure in hydraulic system for R tronic . . . . . . . . . . . . . . . . . . . . . . . . 121
8 Removing gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
9 Installing gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
10 Exploded view - gearbox mountings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
10.1 Removing and installing gearbox mountings (left and right) . . . . . . . . . . . . . . . . . . . . . . . . 134
11 Exploded view - checking gear oil level and topping up . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
11.1 Checking gear oil level (old gearbox version) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
11.2 Checking and topping up gear oil level (new gearbox version) . . . . . . . . . . . . . . . . . . . . . . 140
12 Exploded view - gear oil lines, gear oil cooler and gear oil filter . . . . . . . . . . . . . . . . . . . . . . 142
12.1 Cleaning gear oil lines and gear oil cooler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
12.2 Removing and installing gear oil thermostat - vehicles with gear oil cooling . . . . . . . . . . . . 144
12.3 Removing and installing gear oil lines (front) - vehicles with gear oil cooling . . . . . . . . . . . . 145
12.4 Removing and installing gear oil lines (rear) - vehicles with gear oil cooling . . . . . . . . . . . . 147
13 Exploded view - gear oil cooler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
13.1 Removing and installing gear oil cooler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
14 Dismantling and assembling gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
14.1 Overview of manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
14.2 Securing gearbox to engine and gearbox support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
14.3 Exploded view - reverse gear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
14.4 Exploded view - removing and installing input shaft, output shaft, bearing housing and
selector forks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
14.5 Dismantling and assembling gearbox - assembly sequence . . . . . . . . . . . . . . . . . . . . . . . . 158
Audi R8 2007 ➤
6-speed manual gearbox and automated manual gearbox (R tronic) 086 - Edition 02.2011
ii Contents
15 Exploded view - servicing bearing housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
16 Exploded view - selector forks and selector plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
16.1 Removing and installing selector forks for 3rd to 6th gear . . . . . . . . . . . . . . . . . . . . . . . . . . 173
16.2 Removing and installing selector fork for 1st and 2nd gear . . . . . . . . . . . . . . . . . . . . . . . . 181
35 - Gears, shafts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
1 Exploded view - input shaft . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
1.1 Dismantling and assembling input shaft - assembly sequence . . . . . . . . . . . . . . . . . . . . . . 185
2 Exploded view - output shaft . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
2.1 Dismantling and assembling output shaft . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
39 - Final drive - rear differential . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
1 Exploded view - oil seal and flange shaft (left-side) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
1.1 Removing and installing flange shaft (left-side) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
1.2 Renewing oil seal for flange shaft (left-side) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
2 Exploded view - oil seal and flange shaft (right-side) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
2.1 Removing and installing cover for final drive with flange shaft (right-side) . . . . . . . . . . . . . . 199
2.2 Removing and installing flange shaft (right-side) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
2.3 Renewing oil seal for flange shaft (right-side) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
2.4 Removing and installing ball bearing for flange shaft (right-side) . . . . . . . . . . . . . . . . . . . . 205
39 - Final drive - front differential . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
1 Exploded view - transmission shaft (in engine) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
1.1 Removing and installing transmission shaft (in engine) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
1.2 Removing and installing ball bearings for transmission shaft (in engine) . . . . . . . . . . . . . . 209
2 Exploded view - output shaft for front final drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
2.1 Removing and installing output shaft for front final drive . . . . . . . . . . . . . . . . . . . . . . . . . . 213
3 Exploded view - oil seals for front final drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
3.1 Renewing oil seals for flange shafts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
3.2 Renewing oil seal on flange for propshaft . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
4 Exploded view - removing and installing front final drive . . . . . . . . . . . . . . . . . . . . . . . . . . 228
4.1 Removing and installing front final drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
5 Measuring and marking radial run-out at flange for propshaft . . . . . . . . . . . . . . . . . . . . . . 230
6 Checking oil level in front final drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
7 Exploded view - renewing bonded rubber bushes on front final drive . . . . . . . . . . . . . . . . 232
7.1 Renewing bonded rubber bushes on front final drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
7.2 Removing and installing cross member on front final drive . . . . . . . . . . . . . . . . . . . . . . . . 234
7.3 Renewing bonded rubber bushes on front cross member . . . . . . . . . . . . . . . . . . . . . . . . . . 235
8 Exploded view - propshaft . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
8.1 Removing and installing propshaft . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
8.2 Detaching propshaft from front final drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Audi R8 2007 ➤
6-speed manual gearbox and automated manual gearbox (R tronic) 086 - Edition 02.2011
Contents iii
Audi R8 2007 ➤
6-speed manual gearbox and automated manual gearbox (R tronic) 086 - Edition 02.2011
iv Contents
00 – Technical data

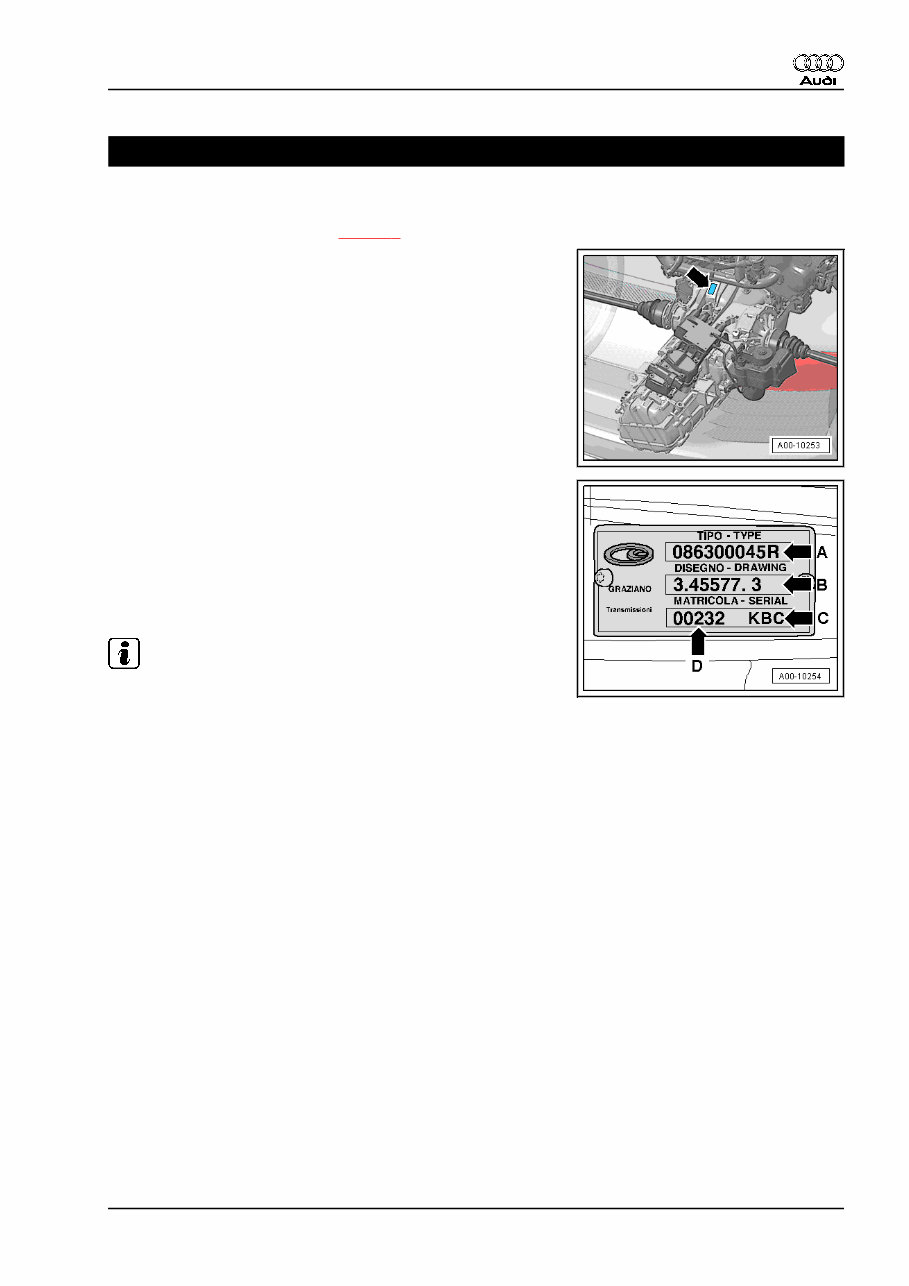

1 Gearbox identification
Allocation of gearbox code letters ⇒ page 3 .
The gearbox identification data are given on the identification
plate on the top of the gearbox -arrow-.
Example:
♦ -Arrow A-: „086300045R“ = part number of basic gearbox unit
♦ -Arrow B-: „3.45577.3“ = gearbox manufacturer's production
number
♦ -Arrow C-: „KBC“ = gearbox code letters
♦ -Arrow D-: „00232“ = serial number
Note
The gearbox code letters are also given on the vehicle data stick‐
ers.
If the gearbox code letters are not on the identification plate, iden‐
tify correct gearbox version in ⇒ Electronic parts catalogue .
Audi R8 2007 ➤
6-speed manual gearbox and automated manual gearbox (R tronic) 086 - Edition 02.2011
1. Gearbox identification 1
2 Transmission layout
1 - Gearbox
❑ ⇒ „8 Removing gear‐
box“, page 123
❑ ⇒ „9 Installing gearbox“,
page 131
❑ ⇒ „14 Dismantling and
assembling gearbox“,
page 152
2 - Gearshift actuator for
R tronic or selector unit for
manual gearbox
❑ ⇒ „5.1 Removing and in‐
stalling gearshift actua‐
tor for R tronic“,
page 78
❑ ⇒ „2.4 Exploded view -
selector unit on manual
gearbox version“,
page 63
3 - Engine
4 - Propshaft
❑ ⇒ „8.1 Removing and in‐
stalling propshaft“, page
238
5 - Front final drive
❑ ⇒ „4.1 Removing and in‐
stalling front final drive“,
page 228
6 - Automatic gearbox control
unit -J217- , only on R tronic
gearbox
❑ ⇒ „1.1 Removing and in‐
stalling automatic gear‐
box control unit J217 “,
page 55
7 - Transmission shaft
❑ ⇒ „1.1 Removing and installing transmission shaft (in engine)“, page 207
❑ Runs directly through sump of engine and is not visible from outside
8 - Hydraulic unit for R tronic
❑ ⇒ „6 Exploded view - hydraulic unit for R tronic“, page 102
❑ Only on R tronic gearbox
Audi R8 2007 ➤
6-speed manual gearbox and automated manual gearbox (R tronic) 086 - Edition 02.2011
2 Rep. gr.00 - Technical data
3 Code letters, gearbox allocation, ratios, equipment
6-speed manual gearbox
6-speed manual gearbox 086 four-wheel drive
Gearbox Code letters KBA KLA KVJ
Allocation Model Audi R8 2007 ► Audi R8 2007 ► Audi R8 2007 ►
Engine 8-cylinder
direct petrol injection
engine
4.2 ltr. 4-valve
10-cylinder
direct petrol injection
engine
5.2 ltr. 4-valve
10-cylinder
direct petrol injection
engine
5.2 ltr. 4-valve
The following data can be found in the ⇒ Electronic parts catalogue .
♦ Axle and gear ratios
♦ Allocation of clutch type
♦ Allocation of front final drive
Automated manual gearbox (R tronic)
Automated manual gearbox (R
tronic)
086 four-wheel drive
Gearbox Code letters KBC KLB
KVK
LFS
LJM
MAZ
LFR
MBB
Allocation Model Audi R8 2007 ► Audi R8 2007 ► Audi R8 2007 ►
Engine 8-cylinder
direct petrol injection
engine
4.2 ltr. 4-valve
10-cylinder
direct petrol injection
engine
5.2 ltr. 4-valve
8-cylinder
direct petrol injection
engine
4.2 ltr. 4-valve
Remarks Gearbox without gold
contacts on gear de‐
tection sensors ( -
G604- , -G616- )
The following data can be found in the ⇒ Electronic parts catalogue .
♦ Axle and gear ratios
♦ Allocation of clutch type
♦ Allocation of front final drive
Audi R8 2007 ➤
6-speed manual gearbox and automated manual gearbox (R tronic) 086 - Edition 02.2011
3. Code letters, gearbox allocation, ratios, equipment 3
4 Gearbox capacities
Capacity of 6-speed manual gearbox and automated manual
gearbox (R tronic) 086
Capacities 086 four-wheel drive
Initial filling
Vehicles with gear oil cooling 4 litres (including 0.5 ltr. for gear oil cooler)
Vehicles without gear oil cooling
(R8 GT)
3 ltr.
Oil change
Vehicles with gear oil cooling 3.5 litres (when gear oil cooler is not drained)
4.0 litres (when gear oil cooler is drained)
Vehicles without gear oil cooling
(R8 GT)
3 ltr.
Change interval Filled for life, no change
Lubricant Gear oil specifications
⇒ Electronic parts catalogue
Note
Use only the correct type of oil for the gearbox (available as a
replacement part). Other types of lubricant cause malfunctions
and/or failure of the gearbox.
– Checking gear oil level and topping up ⇒ page 137
Capacity of hydraulic unit, automated manual gearbox only (R
tronic)
Capacities Hydraulic system for R tronic
Initial filling 0.9 ltr.
Fluid change approx. 0.9 litres
Change interval Filled for life, no change
Lubricant Hydraulic fluid ⇒ Electronic parts catalogue
Note
Use only the correct type of hydraulic fluid for the hydraulic system
(available as a replacement part). Other types of fluid cause mal‐
functions and/or failure of the system.
– Checking fluid level in hydraulic unit for R tronic and topping
up ⇒ page 118
Audi R8 2007 ➤
6-speed manual gearbox and automated manual gearbox (R tronic) 086 - Edition 02.2011
4 Rep. gr.00 - Technical data
