SPECIAL CAUTIONS
AIR BAG
Refer to Procedure Explanation 29 for Supplemental Restraint/Air
Bag Special Cautions.
AUTHORIZED REPAIR
FACILITY
Manufacturer recommends that Body Structure Repairs be done
by an Authorized Repair Facility.
ELECTRICAL COMPONENTS
Ignition must be in off position before any electrical repair is
performed.
CRUISE CONTROL SYSTEM
Manufacturer advises that calibration of the Adaptive Cruise
Control System must be done whenever a four wheel alignment is
performed.
SUSPENSION
Manufacturer advises that some new fasteners must be used
whenever old fasteners are loosened or removed.
WELDING
Before initiating any repair involving the use of an electric welder,
the ignition must be in the off position and both battery terminals
disconnected.
Manufacturer Advises that Laser Welding is Used on Some
Welded Panels in the Manufacturing Process of this Vehicle.
Please see Manufacturer's Body Service Manual for Specific
Repair Instructions.
PAINT CODE
LOCATION
Paint code located in trunk compartment.
CLEAR COAT
IDENTIFICATION
All colors are clear coat.

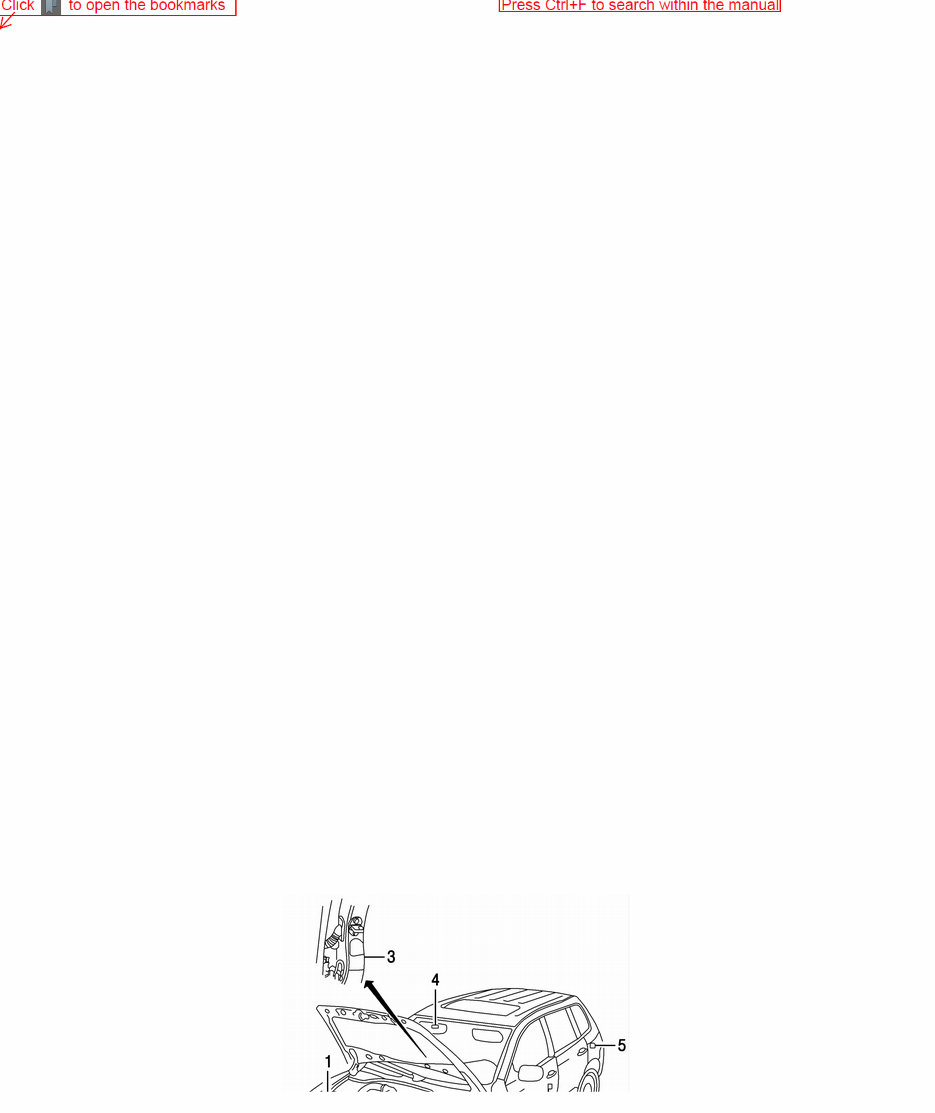

INFORMATION LABELS
2007-2010 Audi Q7
Page 1 of 203
1 Label, Caution 4A0 010 114 S $3.30
2 Label, A/C 4L0 010 515 A $9.90
3 Label, Child Caution Air Bag 8E0 010 171 C $16.50
4 Label, Air Bag Warning 8E0 010 166 G $6.00
5 Label, Unleaded Fuel 4F0 010 397 J $6.00
6 Label, Tire Pressure 4L0 010 502 EQ $9.90
Order by Application
FRONT BUMPER
Use Procedure Explanations 1 and 28
with the following text.
2007-09

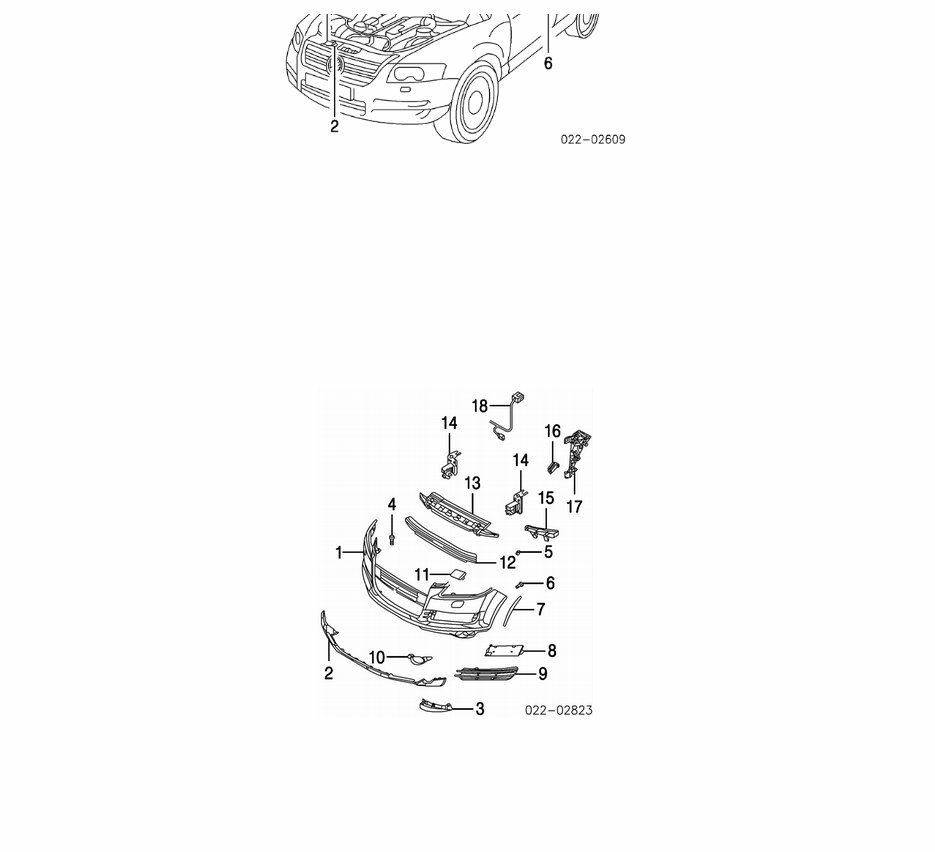

2007-09 W/SPOILER
Refinish Bumper Cover 2.2
Refinish Spoiler 1.0
Refinish Headlamp Washer Cover R .3
L .3
Refinish Wheel Opening Moulding R .5
L .5
Page 2 of 203
Refinish Parking Sensor .2
R&I Bumper Assy 1.0
O/H Bumper Assy (Includes R&I) #3.0
#Includes R&I Grille & Park/Signal Lamps
Add to R&R or O/H Front Bumper Cover
w/ H/Lamp Washers .4
w/Spoiler .5
w/Parking Sensor .4
To Cut Hole for Adaptive Cruise Control .3
Add to R&R Impact Bar
w/Adaptive Cruise Control #.3
#Does Not Include Aim and Calibrate Adaptive Cruise Control
System
NOTE 1: Refer to Special Cautions section at the beginning of
this vehicle text.
NOTE 2: All Parts in this section are included in overhaul unless
noted otherwise.
1 Cover, Bumper (P)
w/ H/Lamp Washers
w/Parking Aid 4L0 807 105 C GRU $770.00 #3.0
w/o Parking Aid 4L0 807 105 A GRU $850.00 #3.0
w/o H/Lamp Washers
w/Parking Aid 4L0 807 105 B GRU $850.00 #3.0
w/o Parking Aid 4L0 807 105 GRU $850.00 #3.0
(P) Paint to Match
#Includes R&I Grille & Park/Signal Lamps
2 Spoiler, Lower
Platinum Gray 4L0 807 061 A 1RR $260.00 #.5
Saber Black 4L0 807 061 V7W $260.00 #.5
Satin Black 4L0 807 061 B41 $260.00 #.5
Silver Metallic 4L0 807 061 A Q94 $276.00 #.5
#Not Included in O/H
3 Spoiler, Side R 4L0 807 514 A $29.10 .2
L 4L0 807 513 A $29.10 .2
4 Bolt, Upper Cover (3) N 906 833 05
5 Rivet, Cover R N 038 501 2 $0.70
L N 038 501 2 $0.70
Non-Reusable Part
6 Bolt, Lower Cover (6) N 907 750 01 $0.57
7 Moulding, Wheel Opening (a) (P)
Front R 4L0 853 728 A GRU $120.00 .2
L 4L0 853 727 A GRU $120.00 .2
(P) Paint to Match
8 Trim, Cover (a) R 4L0 807 152 3FZ $16.50 #.3
L 4L0 807 151 3FZ $16.50 #.3
#w/Front Bumper Cover Removed
9 Grille, Outer (a) R 4L0 807 682 01C $45.30 .3
L 4L0 807 681 01C $45.30 .3
(a) Order by Application
10 Bezel, Lamp R 4L0 807 490 $33.90 .2
Page 3 of 203
L 4L0 807 489 $33.90 .2
11 Cover, Headlamp Washer (P) R 4L0 955 276 B GRU $29.10 .2
L 4L0 955 275 B GRU $29.10 .2
(P) Paint to Match
12 Bar, Impact 4L0 807 113 A $225.00 #.3
#w/Front Bumper Cover Removed, Not Included in O/H, Requires
Calibration of the Adaptive Cruise Control System as Outlined by
the Manufacturer, if so Equipped
13 Absorber, Energy 4L0 807 550 $59.50
14 Bracket, Impact Bar R 4L0 807 134 C $142.00 #.3
L 4L0 807 133 A $99.00 #.3
#w/Impact Bar Removed, Not Included in O/H
15 Support, Bumper R 4L0 807 334 A $29.10 #.2
L 4L0 807 333 A $29.10 #.2
16 Bracket, Side Bumper R 4L0 807 054 $19.80
L 4L0 807 053 $19.80
17 Guide, Bumper R 4L0 807 284 B $29.10 #.3
L 4L0 807 283 B $29.10 #.3
#w/Bumper Cover Removed, Not Included in O/H
Bracket, License Plate-See Grille Section
18 Harness, Lamp Wiring-See Front Inner Structure
Section
19 Harness, Sensor-See Front Inner Structure
Section
20 Sensor, Parking (2/Side) (P)
2007 R 3C0 919 275 P GRU $110.00 #.1
L 3C0 919 275 P GRU $110.00 #.1
2008
To 1-08 R 3C0 919 275 P GRU $110.00 #.1
Page 4 of 203
L 3C0 919 275 P GRU $110.00 #.1
From 2-08 R 4H0 919 275 GRU $97.50 #.1
L 4H0 919 275 GRU $97.50 #.1
2009 R 4H0 919 275 GRU $97.50 #.1
L 4H0 919 275 GRU $97.50 #.1
(P) Paint to Match
#w/Front Bumper Cover Removed, Not Included in O/H
21 Seal, Sensor (2/Side) R N.A.
L N.A.
22 Sensor, Adaptive Cruise Control 4L0 910 561 A $1,750.00 #.3
#w/Front Bumper Cover Removed, Not Included in O/H, Does
Not Include Aim and Calibrate Adaptive Cruise Control System
23 Module, Garage Door Opener
2007-08 8E0 909 511 A $795.00 #.2
2009
To VIN 9000000 8E0 909 511 A $795.00 #.2
From VIN 9000001 8K0 907 410 C $825.00 #.2
#w/Front Bumper Cover Removed, Not Included in O/H
2007-09

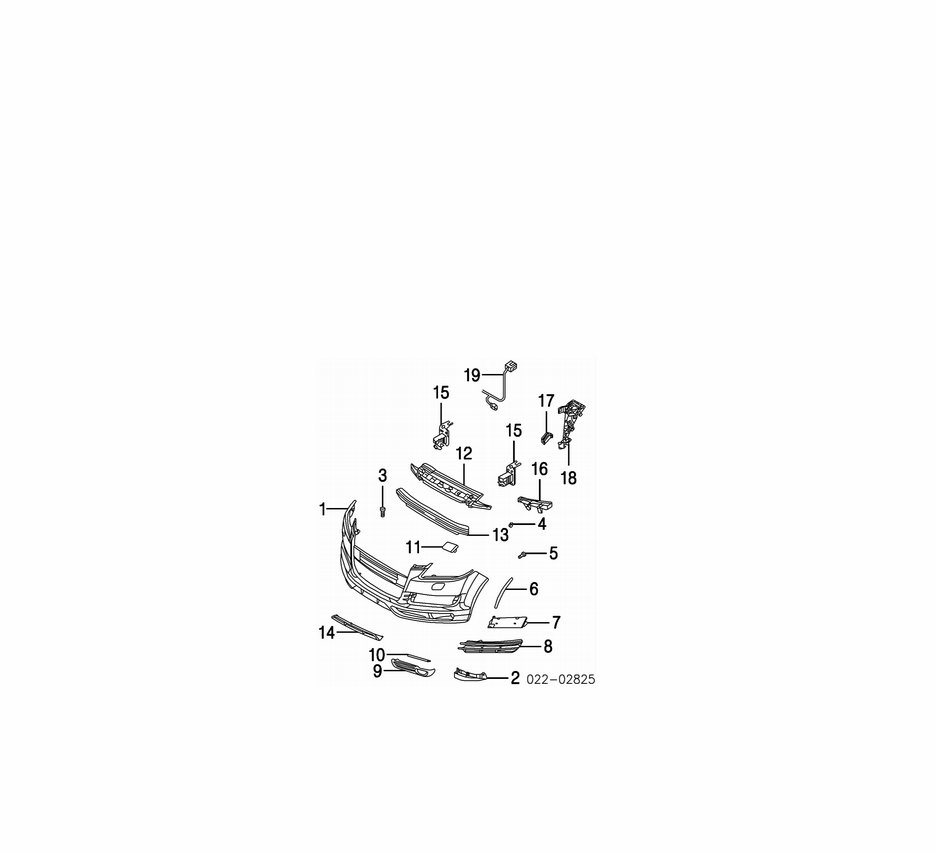

2007-09 W/O SPOILER
Refinish Bumper Cover 2.2
Refinish Headlamp Washer Cover R .3
L .3
Refinish Wheel Opening Moulding R .5
L .5
Refinish Parking Sensor .2
R&I Bumper Assy 1.0
O/H Bumper Assy (Includes R&I) #3.0
Page 5 of 203
#Includes R&I Grille & Park/Signal Lamps
Add to R&R or O/H Front Bumper Cover
w/ H/Lamp Washers .4
w/Parking Sensor .4
To Cut Hole for Adaptive Cruise Control .3
Add to R&R Impact Bar
w/Adaptive Cruise Control #.3
#Does Not Include Aim and Calibrate Adaptive Cruise Control
System
NOTE 1: Refer to Special Cautions section at the beginning of
this vehicle text.
NOTE 2: All Parts in this section are included in overhaul unless
noted otherwise.
1 Cover, Bumper (P)
w/Parking Aid 4L0 807 105 E GRU $850.00 #3.0
w/o Parking Aid 4L0 807 105 D GRU $850.00 #3.0
(P) Paint to Match
#Includes R&I Grille & Park/Signal Lamps
2 Spoiler, Side R 4L0 807 514 A $29.10 .2
L 4L0 807 513 A $29.10 .2
3 Bolt, Upper Cover (3) N 906 833 05
4 Rivet, Cover R N 038 501 2 $0.70
L N 038 501 2 $0.70
Non-Reusable Part
5 Bolt, Lower Cover (6) N 907 750 01 $0.57
6 Moulding, Wheel Opening (a) (P)
Front R 4L0 853 728 A GRU $120.00 .2
L 4L0 853 727 A GRU $120.00 .2
(P) Paint to Match
7 Trim, Cover (a) R 4L0 807 152 3FZ $16.50 #.3
L 4L0 807 151 3FZ $16.50 #.3
#w/Front Bumper Cover Removed
8 Grille, Outer (a) R 4L0 807 682 01C $45.30 .3
L 4L0 807 681 01C $45.30 .3
(a) Order by Application
9 Bezel, Lamp R 4L0 807 676 01C $51.90 .2
L 4L0 807 675 01C $51.90 .2
10 Trim, Lamp Opening Cover R 4L0 807 588 $92.00 .2
L 4L0 807 587 $92.00 .2
11 Cover, Headlamp Washer (P) R 4L0 955 276 B GRU $29.10 .2
L 4L0 955 275 B GRU $29.10 .2
(P) Paint to Match
12 Absorber, Energy 4L0 807 550 B $59.50
13 Bar, Impact 4L0 807 113 A $225.00 #.3
#w/Front Bumper Cover Removed, Not Included in O/H, Requires
Calibration of the Adaptive Cruise Control System as Outlined by
the Manufacturer, if so Equipped
14 Grille, Lower (a) 4L0 807 683 01C $99.00 .2
(a) Order by Application
15 Bracket, Impact Bar R 4L0 807 134 C $142.00 #.3
L 4L0 807 133 A $99.00 #.3
Page 6 of 203
#w/Impact Bar Removed, Not Included in O/H
16 Support, Bumper R 4L0 807 334 A $29.10 #.2
L 4L0 807 333 A $29.10 #.2
17 Bracket, Side Bumper R 4L0 807 054 $19.80
L 4L0 807 053 $19.80
18 Guide, Bumper R 4L0 807 284 B $29.10 #.3
L 4L0 807 283 B $29.10 #.3
#w/Bumper Cover Removed, Not Included in O/H
Bracket, License Plate-See Grille Section
19 Harness, Lamp Wiring-See Front Inner Structure
Section

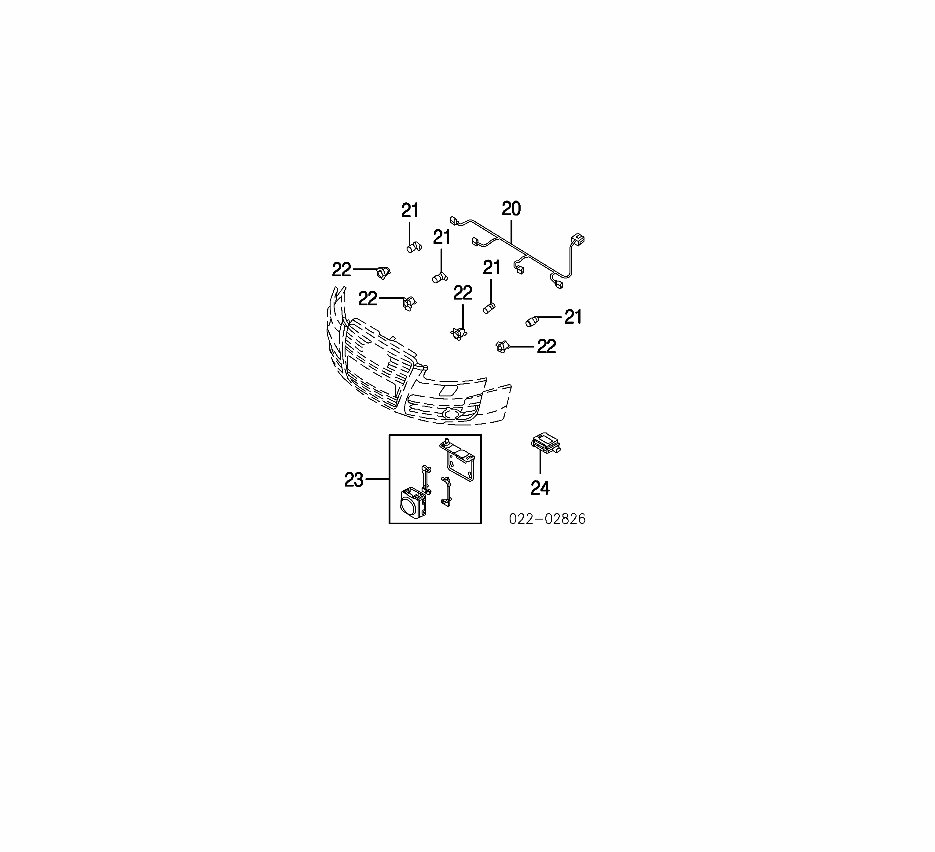

20 Harness, Sensor-See Front Inner Structure
Section
21 Sensor, Parking (2/Side) (P) R 3C0 919 275 P GRU $110.00 #.1
L 3C0 919 275 P GRU $110.00 #.1
(P) Paint to Match
#w/Front Bumper Cover Removed, Not Included in O/H
22 Seal, Sensor (2/Side) R N.A.
L N.A.
23 Sensor, Adaptive Cruise Control 4L0 910 561 A $1,750.00 #.3
#w/Front Bumper Cover Removed, Not Included in O/H, Does
Not Include Aim and Calibrate Adaptive Cruise Control System
24 Module, Garage Door Opener
2007-08 8E0 909 511 A $795.00 #.2
2009
To VIN 9000000 8E0 909 511 A $795.00 #.2
From VIN 9000001 8K0 907 410 C $825.00 #.2
#w/Front Bumper Cover Removed, Not Included in O/H
2010-11
Page 7 of 203

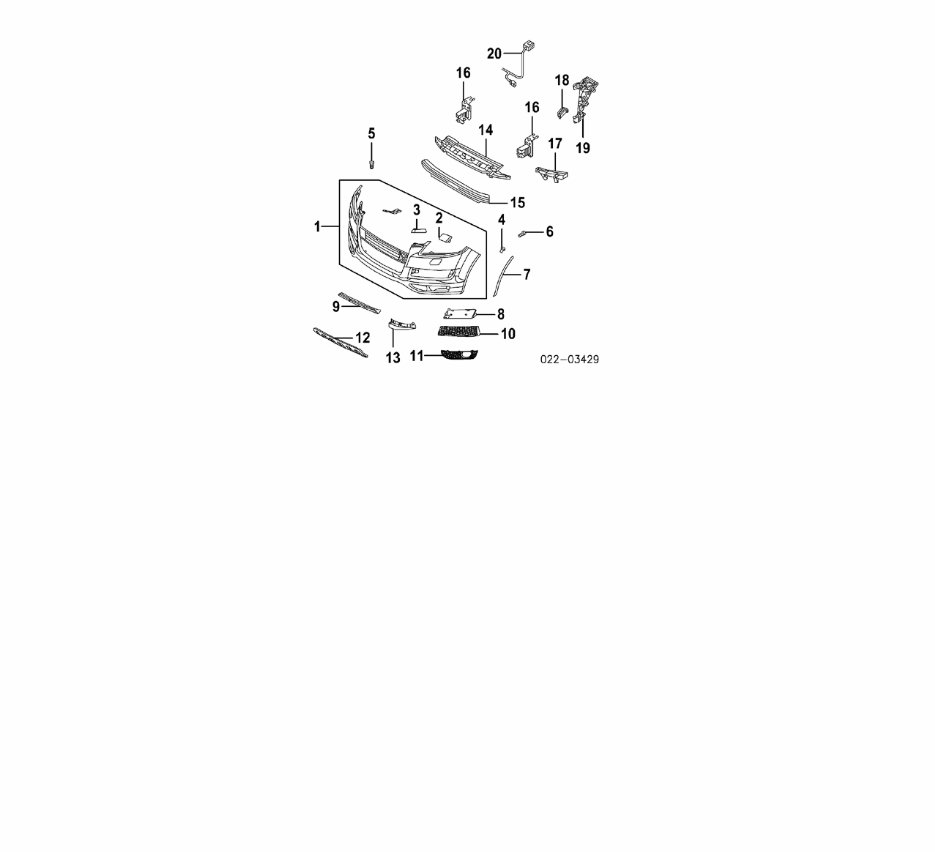

2010-11 W/S-LINE PKG
Refinish Bumper Cover Assy 2.2
Refinish Headlamp Washer Cover R .3
L .3
Refinish Wheel Opening Moulding R .5
L .5
Refinish Park Distance Sensor .2
R&I Bumper Assy 1.0
O/H Bumper Assy (Includes R&I) #3.0
#Includes R&I Grille & Park/Signal Lamps
Add to R&R or O/H Front Bumper Cover
w/Spoiler .5
w/Parking Aid .4
w/ H/Lamp Washers .4
To Cut Hole for Adaptive Cruise Control .3
Add to R&R Impact Bar
w/Adaptive Cruise Control #.3
#Does Not Include Aim and Calibrate Adaptive Cruise Control
System
NOTE 1: Refer to Special Cautions section at the beginning of
this vehicle text.
NOTE 2: All Parts in this section are included in overhaul unless
noted otherwise.
1 Cover Assy, Bumper (P)
w/Parking Aid 4L0 807 105 M GRU $770.00 #3.0
w/o Parking Aid 4L0 807 105 L GRU $770.00 #3.0
#Includes R&I Grille & Park/Signal Lamps
2 Cover, Headlamp Washer (P) R 4L0 955 276 G GRU $29.10 .2
L 4L0 955 275 G GRU $29.10 .2
(P) Paint to Match
Page 8 of 203
3 Protector (Adhesive) R 4L0 807 666 $11.50
L 4L0 807 665 $11.50
Included w/Bumper Cover Assy
4 Rivet, Cover (a) R N 038 501 2 $0.70
L N 038 501 2 $0.70
(a) Non-Reusable Part
5 Bolt, Upper Cover (3) N 906 833 02 $0.70
6 Bolt, Lower Cover (6) N 907 750 01 $0.57
7 Moulding, Wheel Opening (P)
Front R 4L0 853 728 B GRU $120.00 .2
L 4L0 853 727 B GRU $120.00 .2
(P) Paint to Match
8 Trim, Cover R 4L0 807 796 A 01C $70.00 #.3
L 4L0 807 795 A 01C $70.00 #.3
#w/Front Bumper Cover Removed
9 Grille, Lower 4L0 807 683 E 01C $99.00 .2
10 Grille, Outer R 4L0 807 698 B 01C $70.00 .3
L 4L0 807 697 B 01C $70.00 .3
11 Bezel, Lamp R 4L0 807 676 C 01C $51.90 .2
L 4L0 807 675 C 01C $51.90 .2
12 Spoiler, Center 4L0 807 110 1RR $175.00 #.5
#Not Included in O/H
13 Spoiler, Outer R 4L0 807 514 E $29.10 .2
L 4L0 807 513 E $29.10 .2
14 Absorber, Energy 4L0 807 550 E $62.00
15 Bar, Impact 4L0 807 113 A $225.00 #.3
#w/Front Bumper Cover Removed, Not Included in O/H, Requires
Calibration of the Adaptive Cruise Control System as Outlined by
the Manufacturer, if so Equipped
16 Bracket, Impact Bar R 4L0 807 134 C $142.00 #.3
L 4L0 807 133 A $99.00 #.3
#w/Impact Bar Removed, Not Included in O/H
17 Support, Bumper R 4L0 807 334 A $29.10 #.2
L 4L0 807 333 A $29.10 #.2
18 Bracket, Side Bumper R 4L0 807 054 $19.80
L 4L0 807 053 $19.80
19 Guide, Bumper R 4L0 807 284 B $29.10 #.3
L 4L0 807 283 B $29.10 #.3
#w/Bumper Cover Removed, Not Included in O/H
Bracket, License Plate-See Grille Section
20 Harness, Lamp Wiring-See Front Inner Structure
Section
Page 9 of 203

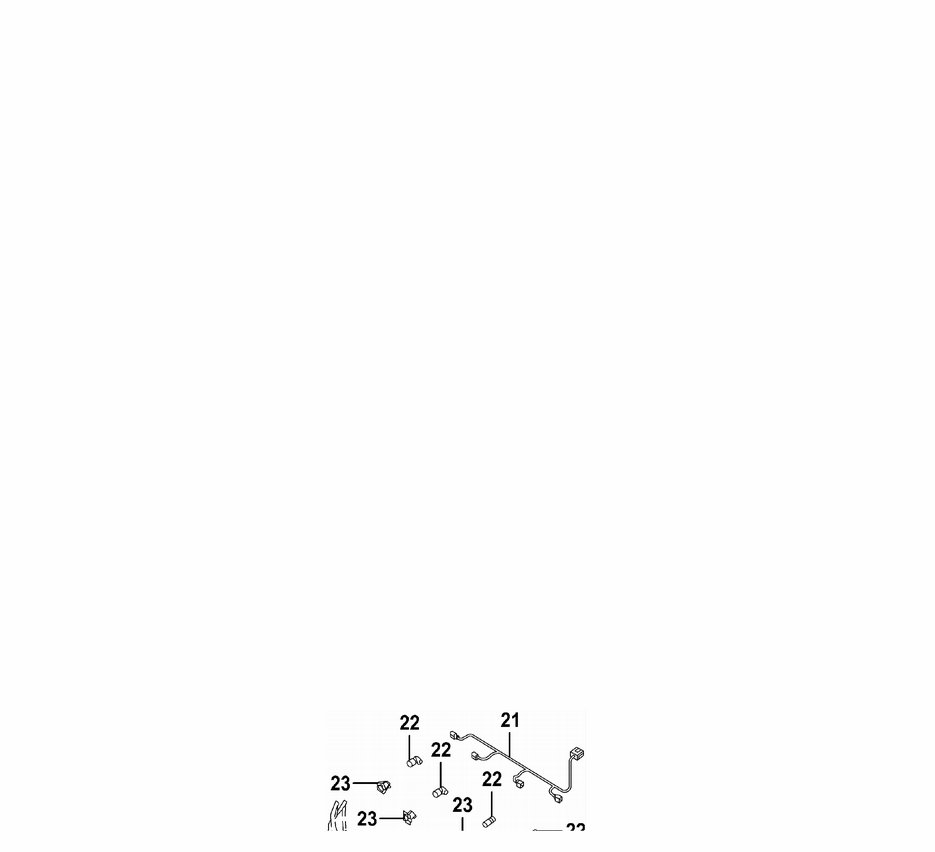

21 Harness, Sensor-See Front Inner Structure
Section
#Not Included in O/H

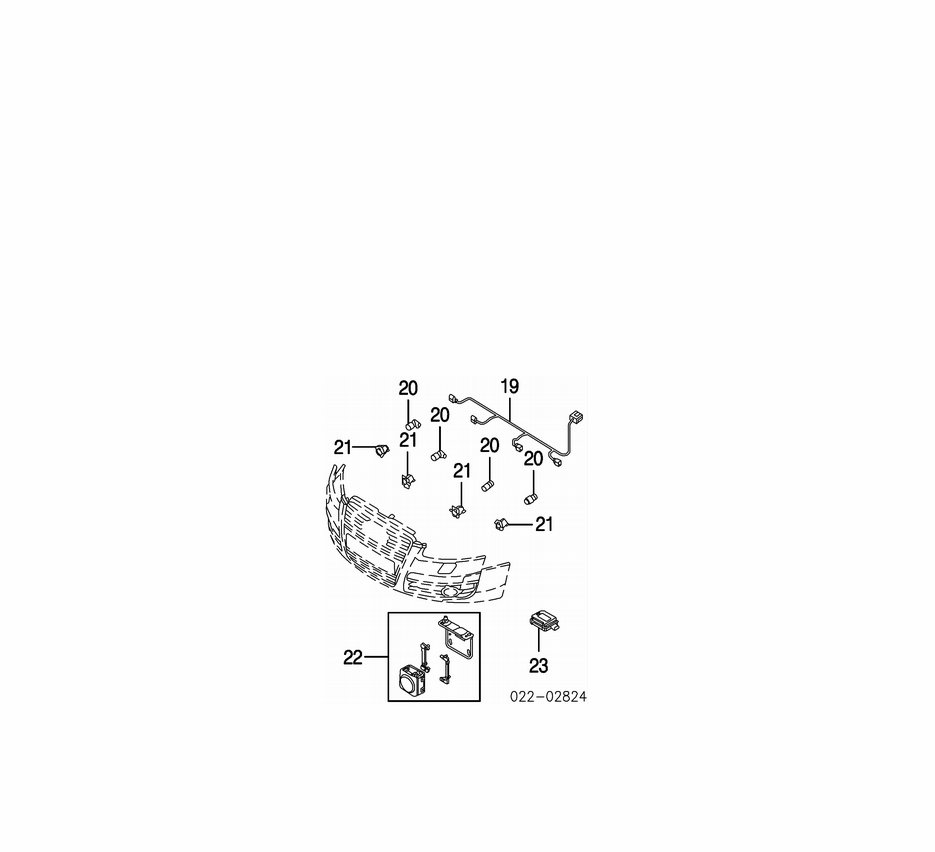

22 Sensor, Parking (2/Side) (P)
Outer
2010
To 11-09 R 4H0 919 275 S GRU #.1
L 4H0 919 275 S GRU #.1
From 12-09 R 4H0 919 275 GRU $97.50 #.1
L 4H0 919 275 GRU $97.50 #.1
2011 R 4H0 919 275 GRU $97.50 #.1
L 4H0 919 275 GRU $97.50 #.1
Inner R 4H0 919 275 A GRU $97.50 #.1
L 4H0 919 275 A GRU $97.50 #.1
(P) Paint to Match
#w/Front Bumper Cover Removed, Not Included in O/H
23 Seal, Sensor (2/Side) R N.A.
L N.A.

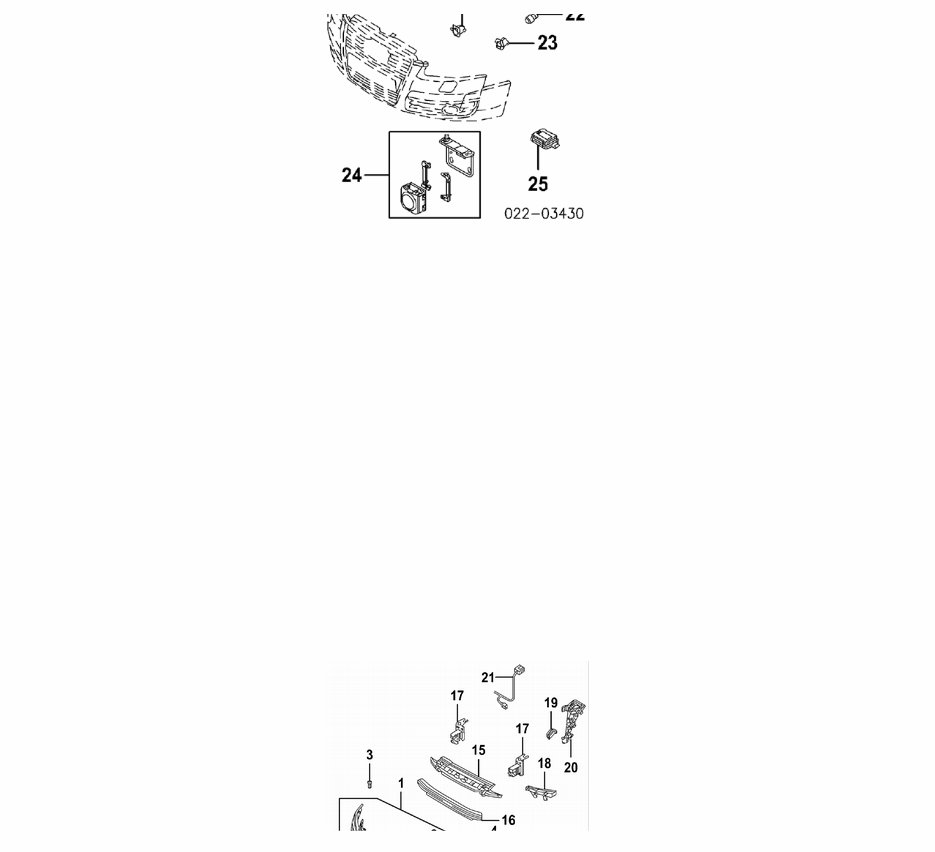

24 Sensor, Adaptive Cruise Control 4L0 910 561 A $1,750.00 #.3
#w/Front Bumper Cover Removed, Not Included in O/H, Does
Not Include Aim and Calibrate Adaptive Cruise Control System
25 Module, Garage Door Opener (b) 8K0 907 410 C $825.00 #.2
(b) Order by Application
#w/Front Bumper Cover Removed, Not Included in O/H
2010-11
2010-11 W/O S-LINE PKG
Page 10 of 203
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$28.99
Viewed 12 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$28.99
This catalog is an essential resource for anyone in need of specific parts numbers and prices for their 2007-2011 Audi Q7 (4L). Whether you are a professional mechanic or a DIY enthusiast, this manual provides valuable technical information, including labor hours for repairs and comprehensive details about each component.
- SPECIAL CAUTIONS
- ENGINE TRANSMISSION MOUNTS
- PAINT CODE LOCATION
- ENGINE UNDER COVER
- CLEAR COAT IDENTIFICATION
- AIR CLEANER
- INFORMATION LABELS
- EXHAUST
- FRONT BUMPER
- EMISSION SYSTEM
- GRILLE
- ELECTRICAL (NO WIRING)
- FRONT LAMPS
- WINDSHIELD
- HOOD
- COWL & DASH
- COOLING
- INSTRUMENT PANEL
- ENGINE OIL COOLER
- CENTER CONSOLE
- A/C REFRIGERANT CAPACITIES
- ROCKER/PILLARS/FLOOR
- A/C HEATER/VENTILATION
- FRONT SEAT
- FRONT FENDER
- REAR SEAT
- UNDERHOOD DIMENSIONS
- SEAT BELTS
- FRONT INNER STRUCTURE
- FRONT DOOR
- AIR BAG SYSTEM
- ROOF
- ABS/BRAKES
- SUNROOF
- CRUISE CONTROL SYSTEM
- BACK WINDOW
- WHEEL
- QUARTER PANEL
- FRONT SUSPENSION
- QUARTER GLASS
- FRONT DRIVE AXLE
- LUGGAGE LID
- FRONT STEERING LINKAGE/GEAR
- REAR SUSPENSION
- STEERING PUMP
- FUEL TANK
- STEERING WHEEL/COLUMN
- REAR BODY
- ENGINE/TRANSMISSION (NO INTERNAL PARTS)
- REAR LAMPS
- REAR BUMPER
This manual is tailored for the 2007-2011 Audi Q7 (4L) and delivers the precise parts data and technical specifications needed for maintenance and repair, ensuring accuracy and ease of use for both professionals and hobbyists.
