SPECIAL CAUTIONS
AUTHORIZED REPAIR
FACILITY
Manufacturer recommends that Body Structure Repairs be done
by an Authorized Repair Facility.
AIR BAG
Refer to Procedure Explanation 29 for Supplemental Restraint/Air
Bag Special Cautions.
MANUFACTURER
RECOMMENDATION
Labor Times for Welded, Weld Bonded or Rivet-Bonded Panels
Do Not Include Frame Set-Up on Straightening Bench as per
Manufacturer Recommended Procedures.
SUSPENSION
Manufacturer advises that some new fasteners must be used
whenever old fasteners are loosened or removed.
WELDING
Before initiating any repair involving the use of an electric welder,
the ignition must be in the off position and battery disconnected.
Manufacturer Advises that Laser Welding is Used on Some
Welded Panels in the Manufacturing Process of this Vehicle.
Please see Manufacturer's Body Service Manual for Specific
Repair Instructions.
PAINT CODE
LOCATION
PAINT CODE LOCATION
PAINT CODE
IDENTIFICATION
PAINT CODE IDENTIFICATION
CLEAR COAT
IDENTIFICATION
CLEAR COAT IDENTIFICATION
INFORMATION LABELS
2009-2011 Audi Q5
Page 1 of 142
1 Label, Caution 4A0 010 114 S $3.30
2 Label, A/C 8K0 010 515 Q $9.90
3 Label, Child Caution Air Bag 8E0 010 171 C $16.50
4 Label, Air Bag Warning 8E0 010 352 P $8.40
5 Label, Unleaded Fuel 8E0 010 183 T $6.00
6 Label, Tire Pressure 8R0 010 502 BH $19.80
Order by Application

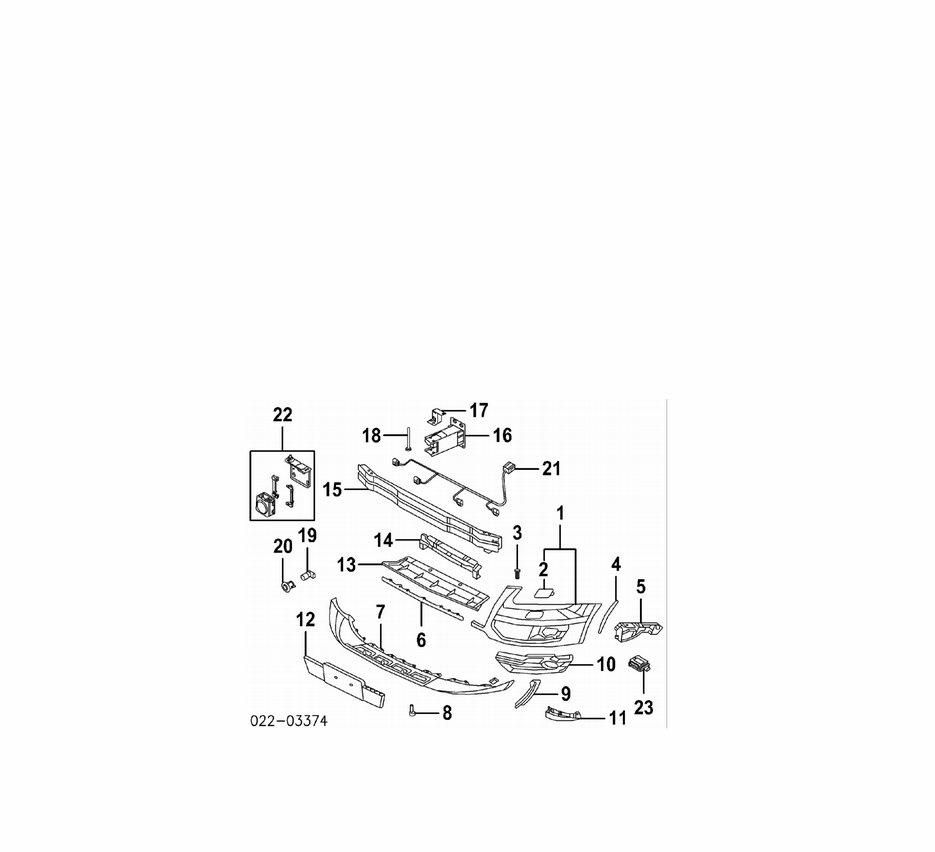

FRONT BUMPER
Use Procedure Explanations 1 and 28
with the following text.
W/S-LINE PKG
Refinish Bumper Cover Assy 3.0
Refinish Headlamp Washer Cover R .3
L .3
R&I Bumper Cover Assy 1.6
O/H Bumper Cover Assy 3.2
Page 2 of 142
Add to R&R or O/H Bumper Cover Assy
w/Park Distance Sensors #.6
#Includes R&I/R&R Parktronic Harness
Add to R&R or O/H Bumper Cover Assy
w/Headlamp Washer
.4
w/Fog Lamps .6
w/Adaptive Cruise Control #.3
#Does Not Include Aim and Calibrate Adaptive Cruise Control
System
Add to R&R or O/H Bumper Cover Assy
w/Wheel Opening Mldgs
.4
NOTE: All Parts in this section are included in overhaul unless
noted otherwise.
1 Cover Assy, Bumper (P)
w/Parking Aid 8R0 807 105 C GRU $760.00 3.2
w/o Parking Aid 8R0 807 105 B GRU $760.00 3.2
2 Cover, Headlamp Washer (P) R 8R0 955 276 A GRU $51.90 .2
L 8R0 955 275 A GRU $51.90 .2
Included w/Bumper Cover Assy
(P) Paint to Match
3 Screw, Bumper Cover R N 106 569 02 $0.50
L N 106 569 02 $0.50
4 Nut, Speed (9) N 101 941 01 $0.90
5 Moulding, Wheel Opening
Front R 8R0 853 728 A 1QP #.2
L 8R0 853 727 A 1QP #.2
#Not Included in O/H
6 Guide, Cover R 8R0 807 284 $16.50 #.1
L 8R0 807 283 $16.50 #.1
7 Spoiler, Lower 8R0 807 110 A 1RR $146.00 #.2
#w/Bumper Cover Assy Removed
8 Bolt, Mounting (4) N 908 082 03 $0.50
9 Grille, Outer (b) R 8R0 807 682 E 01C $92.00 .2
L 8R0 807 681 F 01C $79.50 .2
(b) Order by Application
10 Spoiler, Side R 8R0 853 888 $39.00 .2
L 8R0 853 887 $39.00 .2
11 Bracket, License-See Grille Section
12 Plate, Lower 8R0 807 233 A $82.00 .2
13 Cushion, Cover 8R0 807 550 C $58.00 IOH
14 Bar, Impact
w/Parking Aid
2009
To 5-18-09 8R0 807 113 A $225.00 #.5
From 5-18-09 8R0 807 113 C $230.00 #.5
2010-11 8R0 807 113 C $230.00 #.5
w/o Parking Aid 8R0 807 113 B $225.00 #.5
#w/Front Bumper Cover Assy Removed, Not Included in O/H
15 Bracket, Impact Bar
Page 3 of 142
w/Parking Aid R 8R0 807 134 A $99.00 #.3
L 8R0 807 133 $92.00 #.3
w/o Parking Aid R 8R0 807 134 $92.00 #.3
L 8R0 807 133 $92.00 #.3
#w/Impact Bar Removed, Not Included in O/H
16 Support, Upper R 8R0 807 334 $16.50
L 8R0 807 333 $16.50
17 Bolt, Impact Bar Bracket (2/Side) R N 100 362 03 $4.70
L N 100 362 03 $4.70
18 Sensor, Parking Aid (2/Side) R 3C0 919 275 S T94 $132.00 #.1
L 3C0 919 275 S T94 $132.00 #.1
19 Bracket, Sensor (2/Side) R N.A. #
L N.A. #
20 Harness, Parking Aid 8R0 971 095 A $268.00 #
#w/Bumper Cover Removed, Not Included in O/H
21 Sensor, Adaptive Cruise Control 8R0 907 561 $1,750.00 #.3
#w/Front Bumper Cover Removed, Not Included in O/H, Does
Not Include Aim and Calibrate Adaptive Cruise Control System
Cover, Sensor 8R0 907 299 01C $13.50
22 Module, Garage Door Opener (b) 8K0 907 410 C $825.00 #
(b) Order by Application
#w/Bumper Cover Removed, Not Included in O/H

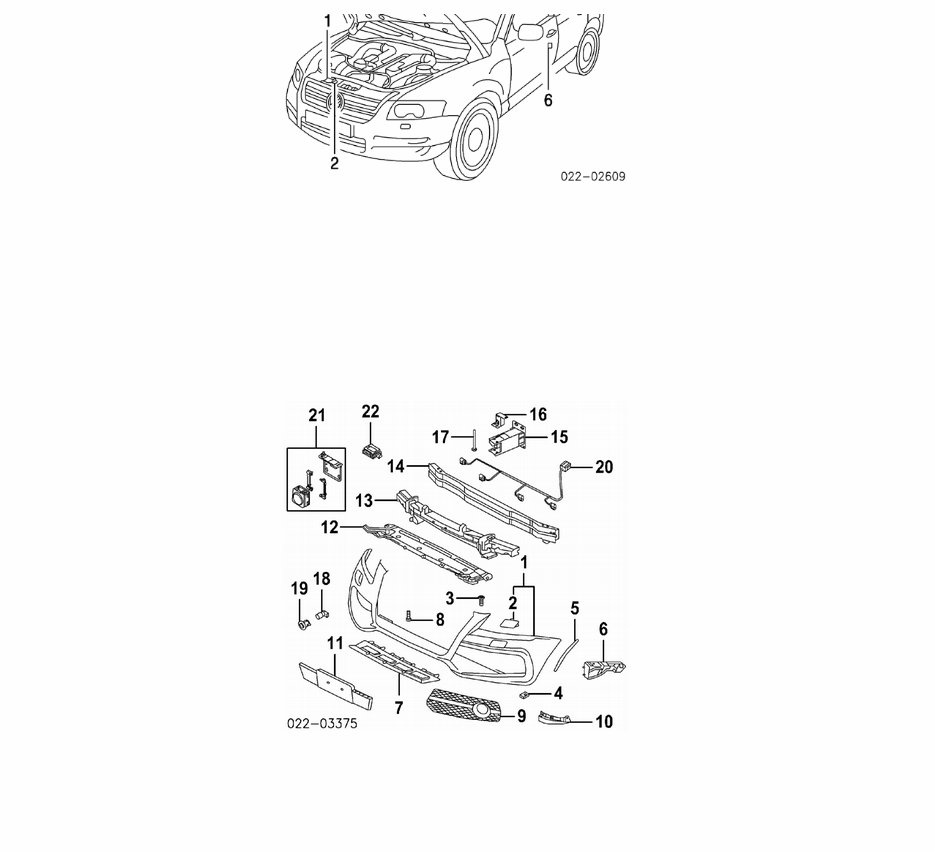

W/O S-LINE PKG
Refinish Bumper Cover Assy
R 1.6
L 1.6
Refinish Headlamp Washer Cover R .3
L .3
Refinish Center Cover .5
Page 4 of 142
Refinish Lower Spoiler 1.0
R&I Bumper Cover Assy 1.6
O/H Bumper Cover Assy 3.8
Add to R&R or O/H Bumper Cover Assy
w/Park Distance Sensors #.6
#Includes R&I/R&R Parktronic Harness
Add to R&R or O/H Bumper Cover Assy
w/Headlamp Washer
.4
w/Fog Lamps .6
w/Adaptive Cruise Control #.3
#Does Not Include Aim and Calibrate Adaptive Cruise Control
System
NOTE: All Parts in this section are included in overhaul unless
noted otherwise.
1 Cover Assy, Bumper (P)
w/Parking Aid R 8R0 807 108 C GRU $410.00 #2.9
L 8R0 807 107 C GRU $410.00 #2.9
w/o Parking Aid R 8R0 807 108 A GRU $388.00 #2.9
L 8R0 807 107 A GRU $388.00 #2.9
#Includes R&I/R&R Spoiler
2 Cover, Headlamp Washer (P) R 8R0 955 276 GRU $33.90 .2
L 8R0 955 275 GRU $33.90 .2
(P) Paint to Match
Included w/Bumper Cover Assy
3 Screw, Bumper Cover R N 106 569 02 $0.50
L N 106 569 02 $0.50
4 Moulding, Wheel Opening
Front R 8R0 853 728 A 1QP .2
L 8R0 853 727 A 1QP .2
5 Guide, Cover R 8R0 807 284 $16.50 #.1
L 8R0 807 283 $16.50 #.1
6 Cover, Center Bar (P) 8R0 807 661 GRU $92.00 #.2
7 Spoiler, Lower (P) 8R0 807 061 C #.3
(P) Paint to Match
8 Bolt, Mounting (4) N 908 082 03 $0.50
9 Strip, Retaining R 8R0 807 278 $19.80 #.2
L 8R0 807 277 $19.80 #.2
#w/Bumper Cover Removed
10 Grille, Outer (a) R 8R0 807 682 A 01C $59.50 .2
L 8R0 807 681 A 01C $59.50 .2
(a) Order by Application
11 Spoiler, Side R 8R0 853 888 $39.00 .2
L 8R0 853 887 $39.00 .2
12 Bracket, License-See Grille Section
13 Plate, Lower 8R0 807 233 $82.00 .2
14 Cushion, Cover 8R0 807 550 C $58.00 IOH
15 Bar, Impact
w/Parking Aid
2009
Page 5 of 142
To 5-18-09 8R0 807 113 A $225.00 #.5
From 5-18-09 8R0 807 113 C $230.00 #.5
2010-11 8R0 807 113 C $230.00 #.5
w/o Parking Aid 8R0 807 113 B $225.00 #.5
#w/Front Bumper Cover Assy Removed, Not Included in O/H
16 Bracket, Impact Bar
w/Parking Aid R 8R0 807 134 A $99.00 #.3
L 8R0 807 133 $92.00 #.3
w/o Parking Aid R 8R0 807 134 $92.00 #.3
L 8R0 807 133 $92.00 #.3
#w/Impact Bar Removed, Not Included in O/H
17 Support, Upper R 8R0 807 334 $16.50
L 8R0 807 333 $16.50
18 Bolt, Impact Bar Bracket (2/Side) R N 100 362 03 $4.70
L N 100 362 03 $4.70
19 Sensor, Parking Aid (2/Side) R 3C0 919 275 S T94 $132.00 #.1
L 3C0 919 275 S T94 $132.00 #.1
20 Bracket, Sensor (2/Side) R N.A. #
L N.A. #
21 Harness, Parking Aid 8R0 971 095 $268.00 #
#w/Bumper Cover Removed, Not Included in O/H
22 Sensor, Adaptive Cruise Control 8R0 907 561 $1,750.00 #.3
#w/Front Bumper Cover Removed, Not Included in O/H, Does
Not Include Aim and Calibrate Adaptive Cruise Control System
Cover, Sensor 8R0 907 299 01C $13.50
23 Module, Garage Door Opener (a) 8K0 907 410 C $825.00 #
(a) Order by Application
#w/Bumper Cover Removed, Not Included in O/H

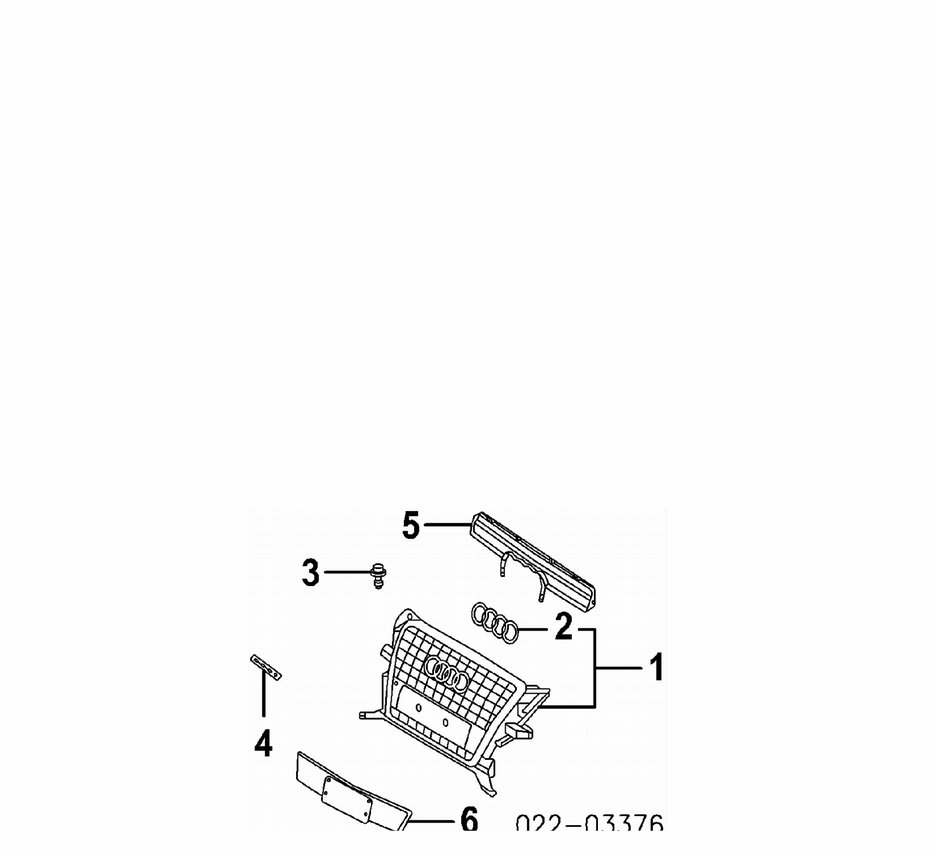

GRILLE
Page 6 of 142
R&I Grille Assy #.5
#w/Front Bumper Cover Assy Removed, Included in R&R or O/H
Front Bumper Cover Assy
1 Grille Assy (a)
2.0L Eng
Black 11 8R0 853 651 N VMZ $630.00 #.5
Gray 11 8R0 853 651 N 1QP $495.00 #.5
3.2L Eng
w/S-Line Pkg
Black 8R0 853 651 P VMZ $630.00 #.5
Gloss Black 8R0 853 651 P T94 $495.00 #.5
w/o S-Line Pkg
Black 8R0 853 651 N VMZ $630.00 #.5
Gloss Black 8R0 853 651 N T94 $460.00 #.5
(a) Order by Application
#w/Front Bumper Cover Assy Removed, Included in R&R or O/H
Front Bumper Cover Assy
2 Emblem, Grille (Adhesive) 8R0 853 605 $57.00 .2
Included w/Grille Assy
3 Screw, Mtg (2) N 106 569 02 $0.50
4 Nameplate (Adhesive)
"Quattro" 4L0 853 736 2ZZ $39.00 .2
5 Plate, Upper
w/S-Line Pkg 8R0 853 692 A 9B9 #.2
w/o S-Line Pkg 8R0 853 692 9B9 #.2
6 Bracket, License (a) 8R0 807 285 B T94 $138.00 #.2
(a) Order by Application
#Included in R&I/R&R Grille

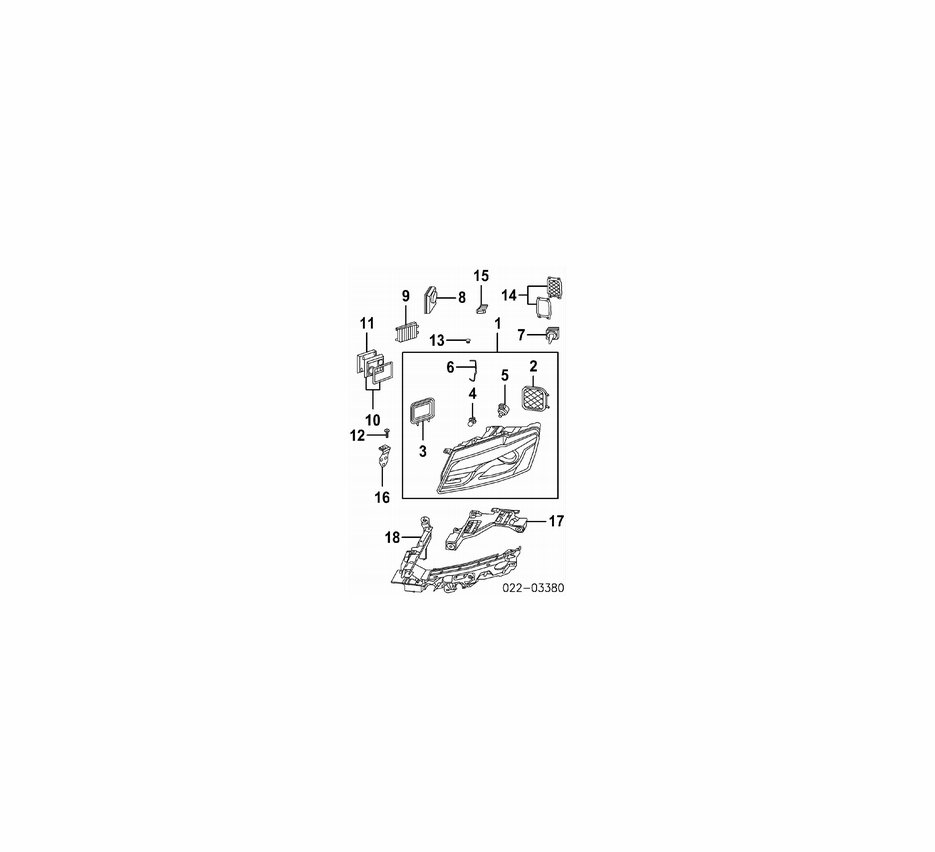

FRONT LAMPS
COMBINATION LAMP
COMBINATION LAMP
HALOGEN
Page 7 of 142
Aim Lamps .4
R&I Combination Lamp Assy R #.4
L #.4
#w/Front Bumper Cover Removed
NOTE: R&R Does Not include aim lamps.
1 Lamp Assy, Combination
2009
To 11-6-09 R 8R0 941 030 B $337.00 #.4
L 8R0 941 029 B $337.00 #.4
From 11-6-09 R 8R0 941 030 N $347.00 #.4
L 8R0 941 029 N $347.00 #.4
2010-11 R 8R0 941 030 N $347.00 #.4
L 8R0 941 029 N $347.00 #.4
#w/Front Bumper Cover Removed
Cap, Protective
2 Outer R 8R0 941 158 $29.10
L 8R0 941 158 $29.10
3 Inner R 8R0 941 159 $29.10
L 8R0 941 159 $29.10
4 Bulb, Halogen (2/Side) R N 103 201 02 $16.50
L N 103 201 02 $16.50
5 Bulb, Side Marker R N 017 753 9 $9.90 #.2
L N 017 753 9 $9.90 #.2
6 Bulb, Driving Lamp (2/Side) R N 107 373 01 $45.30
L N 107 373 01 $45.30
7 Bulb, Turn Signal R N 107 374 01 $45.30 #.2
L N 107 374 01 $45.30 #.2
8 Motor, Adjuster R 5P0 941 295 $68.50 #.2
L 5P0 941 295 $68.50 #.2
#R&R One Side Complete, Included in R&I/R&R Combination
Lamp Assy
9 Clip, Retaining (a) R 8R0 998 160 $9.90
L 8R0 998 160 $9.90
Included w/Combination Lamp Assy
(a) As Required
10 Bolt, Mounting R N 911 182 01 $1.30
L N 911 182 01 $1.30
11 Cap, Adjuster R 4E0 941 041 $0.30
L 4E0 941 041 $0.30
Repair Kit, Housing
12 Type 1 R 8R0 998 295 $51.90 #.2
L 8R0 998 295 $51.90 #.2
13 Type 2 R 8R1 998 122 $57.00 #.2
Page 8 of 142
L 8R1 998 121 $57.00 #.2
14 Type 3 R 8R0 998 122 $57.00 #.2
L 8R0 998 121 $57.00 #.2
#w/Combination Lamp Assy Removed
15 Plate, Mount R 8R0 941 454 $45.30 #.3
L 8R0 941 453 $45.30 #.3
16 Mounting, Headlamp R 8R0 805 608 $58.00 #.3
L 8R0 805 607 $58.00 #.3
#R&R One Side Complete, w/Bumper Cover & Combination
Lamp Assy Removed
Harness, Lamp-See Front Inner Structure Section
COMBINATION LAMP
COMBINATION LAMP BI-
XENON
Aim Lamps .4
R&I Combination Lamp Assy R #.4
L #.4
#w/Front Bumper Cover Removed
NOTE: R&R Does Not include aim lamps.
1 Lamp Assy, Combination
w/Curve Lighting
2009 R 8R0 998 030 G $750.00 #1.1
L 8R0 998 029 E $850.00 #1.1
2010
To 11-16-09 R 8R0 998 030 G $750.00 #1.1
L 8R0 998 029 E $850.00 #1.1
From 11-16-09 R 8R0 941 030 AL $765.00 #1.1
Page 9 of 142
L 8R0 941 029 AL $765.00 #1.1
2011 R 8R0 941 030 AL $765.00 #1.1
L 8R0 941 029 AL $765.00 #1.1
w/o Curve Lighting
2009 R 8R0 998 030 G $750.00 #1.1
L 8R0 998 029 G $750.00 #1.1
2010
To 10-27-09 R 8R0 998 030 G $750.00 #.9
L 8R0 998 029 G $750.00 #.9
From 10-27-09 R 8R0 941 030 AH $650.00 #.9
L 8R0 941 029 AH $650.00 #.9
2011 R 8R0 941 030 AH $650.00 #.9
L 8R0 941 029 AH $650.00 #.9
#w/Front Bumper Cover Removed
Cap, Protective
2 Outer R 8R0 941 158 $29.10
L 8R0 941 158 $29.10
3 Inner
w/Curve Lighting R 8R0 941 159 A $29.10
L 8R0 941 159 A $29.10
w/o Curve Lighting R 8R0 941 159 $29.10
L 8R0 941 159 $29.10
4 Bulb, Turn Signal R N 107 374 01 $45.30 #.2
L N 107 374 01 $45.30 #.2
5 Motor, Adjuster R 8R0 941 293 $136.00 #.2
L 8R0 941 293 $136.00 #.2
#R&R One Side Complete, Included in R&I/R&R Combination
Lamp Assy
6 Clip, Retaining (a) R 8R0 998 160 $9.90
L 8R0 998 160 $9.90
Included w/Combination Lamp Assy
(a) As Required
7 Bulb, Xenon R N 107 218 01 $160.00 #.2
L N 107 218 01 $160.00 #.2
8 Ballast, Lamp R 8K0 941 597 C $300.00 #.2
L 8K0 941 597 C $300.00 #.2
#R&R One Side Complete, w/Combination Lamp Removed,
Included in R&R Combination Lamp
9 Module, LED Control R 8R0 998 472 $250.00 #.2
L 8R0 998 472 $250.00 #.2
#w/Combination Lamp Removed, Included in R&R Combination
Lamp
10 Module, Power
w/Curve Lighting R 7L6 941 329 A $399.00 #.2
L 7L6 941 329 A $399.00 #.2
11 Cover, Module
w/Curve Lighting R 3C0 941 405 $19.80 #.2
L 3C0 941 405 $19.80 #.2
Page 10 of 142
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$28.99
Viewed 14 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$28.99
This catalog is an essential resource for anyone in need of specific parts numbers and prices for their vehicle. Whether you are a professional mechanic or a DIY enthusiast, this manual provides valuable information such as labor hours required for repairs and a comprehensive parts list covering various components including:
- SPECIAL CAUTIONS
- ENGINE TRANSMISSION MOUNTS
- PAINT CODE LOCATION
- ENGINE UNDER COVER
- CLEAR COAT IDENTIFICATION
- AIR CLEANER
- INFORMATION LABELS
- EXHAUST
- FRONT BUMPER
- EMISSION SYSTEM
- GRILLE
- ELECTRICAL (NO WIRING)
- FRONT LAMPS
- WINDSHIELD
- HOOD
- COWL & DASH
- COOLING
- INSTRUMENT PANEL
- ENGINE OIL COOLER
- CENTER CONSOLE
- A/C REFRIGERANT CAPACITIES
- ROCKER/PILLARS/FLOOR
- A/C HEATER/VENTILATION
- FRONT SEAT
- FRONT FENDER
- REAR SEAT
- UNDERHOOD DIMENSIONS
- SEAT BELTS
- FRONT INNER STRUCTURE
- FRONT DOOR
- AIR BAG SYSTEM
- ROOF
- ABS/BRAKES
- SUNROOF
- CRUISE CONTROL SYSTEM
- BACK WINDOW
- WHEEL
- QUARTER PANEL
- FRONT SUSPENSION
- QUARTER GLASS
- FRONT DRIVE AXLE
- LUGGAGE LID
- FRONT STEERING LINKAGE/GEAR
- REAR SUSPENSION
- STEERING PUMP
- FUEL TANK
- STEERING WHEEL/COLUMN
- REAR BODY
- ENGINE/TRANSMISSION (NO INTERNAL PARTS)
- REAR LAMPS
- REAR BUMPER
Whether you are a professional mechanic or a DIY enthusiast, this manual provides valuable information such as labor hours required for repairs and a comprehensive parts list covering various components.
