SPECIAL CAUTIONS
AUTHORIZED REPAIR
FACILITY
Manufacturer recommends that Body Structure Repairs be done
by an Authorized Repair Facility.
AIR BAG
Refer to Procedure Explanation 29 for Supplemental Restraint/Air
Bag Special Cautions.
MANUFACTURER
RECOMMENDATION
Labor Times for Welded, Weld Bonded or Rivet-Bonded Panels
Do Not Include Frame Set-Up on Straightening Bench as per
Manufacturer Recommended Procedures.
SUSPENSION
Manufacturer advises that some new fasteners must be used
whenever old fasteners are loosened or removed.
WELDING
Before initiating any repair involving the use of an electric welder,
the ignition must be in the off position and battery disconnected.
Manufacturer Advises that Laser Welding is Used on Some
Welded Panels in the Manufacturing Process of this Vehicle.
Please see Manufacturer's Body Service Manual for Specific
Repair Instructions.
PAINT CODE
LOCATION
Paint code located on rear floor pan in spare wheel well.
CLEAR COAT
IDENTIFICATION
All colors are clear coat.
INFORMATION LABELS
2012-2014 Audi A7
Page 1 of 136
1 Label, Air Bag Child Seat 3C0 010 492 L $8.06
2 Label, Knee Air Bag 4E0 010 357 S $16.50
3 Label, Fuel
Gas 8E0 010 183 T $10.40
Diesel 14 8K0 010 508 Q $10.40
4 Label, Tire Pressure
A7 4G8 010 502 AK
S7 13-14 4G8 010 502 G
5 Label, High Voltage 8K0 010 520 B $10.40
6 Label, A/C 4G0 010 515 A $16.50
Order by Application

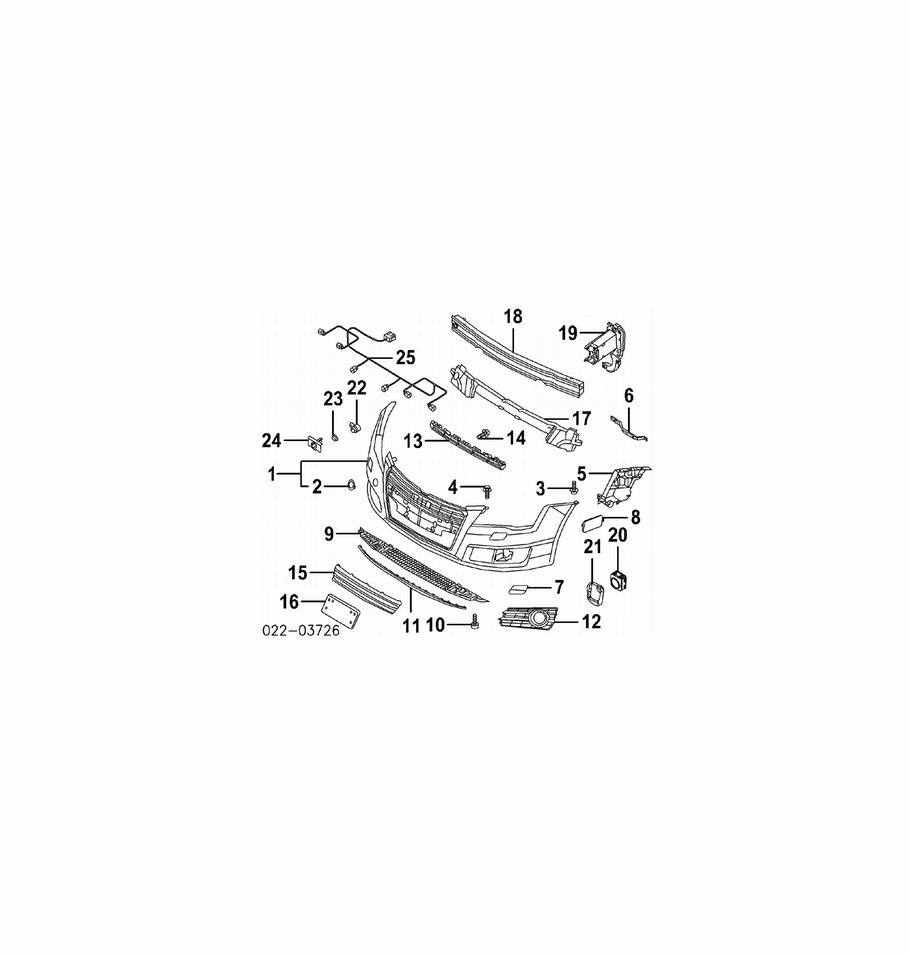

FRONT BUMPER
Use Procedure Explanations 1 and 28
with the following text.
Refinish Front Bumper Cover Assy 2.6
Refinish Tow Eye Cover .3
Refinish Washer Nozzle Cap R .3
L .3
Refinish Parking Aid Sensor .3
R&I Front Bumper Cover Assy 1.5
O/H Front Bumper Cover Assy (Includes R&I) #4.0
#Includes R&I/R&R Grille Assy
Add to R&R or O/H Front Bumper Cover Assy
w/Parking Aid Sensors #.7
#Includes R&I/R&R Wiring Harness
Add to R&R or O/H Front Bumper Cover Assy
w/Headlamp Washer
.2
NOTE: Manufacturer Advises that Sensors are one time refinish
only and existing Sensors should never be re-coated.
NOTE: All Parts in this section are included in overhaul unless
noted otherwise.
Page 2 of 136
1 Cover Assy, Front Bumper (P) (a)
A7
Base, Premium Quattro Model
w/Parking Aid 4G8 807 065 AC GRU $927.00 #4.0
w/o Parking Aid 4G8 807 065 AB GRU $927.00 #4.0
Prem. Plus Quattro Model
w/Parking Aid 4G8 807 065 AC GRU $927.00 #4.0
w/o Parking Aid 4G8 807 065 AB GRU $927.00 #4.0
Progressiv, Technik Model
w/Parking Aid 14 4G8 807 065 AC GRU $927.00 #4.0
w/o Parking Aid 14 4G8 807 065 AB GRU $927.00 #4.0
Prestige Quattro Model
w/Parking Aid 4G8 807 065 AH GRU $995.00 #4.0
w/o Parking Aid 4G8 807 065 AG GRU $927.00 #4.0
S7
w/Parking Aid 4G8 807 065 AH GRU $995.00 #4.0
w/o Parking Aid 4G8 807 065 AG GRU $927.00 #4.0
(a) Order by Application
#Includes R&I/R&R Grille Assy
2 Cover, Tow Eye (P)
A7
Base, Premium Quattro Model R 4G8 807 241 GRU $55.00 .1
Prem. Plus Quattro Model R 4G8 807 241 GRU $55.00 .1
Prestige Quattro Model R 4G8 807 241 A GRU $55.00 .1
Progressiv, Technik Model 14 R 4G8 807 241 GRU $55.00 .1
S7 R 4G8 807 241 A GRU $55.00 .1
(P) Paint to Match
Included w/Front Bumper Cover Assy
Eye, Towing-See Wheel Section
Screw, Cover Mounting
3 Outer R N 910 570 01 $0.80
L N 910 570 01 $0.80
4 Inner R N 106 569 02 $0.72
L N 106 569 02 $0.72
5 Guide, Front Cover-See Front Fender Section
6 Support, Front-See Front Fender Section
7 Cap, Washer Nozzle (P)
A7
Base, Premium Quattro Model R 4G8 955 276 GRU $70.00 .2
L 4G8 955 275 GRU $70.00 .2
Prem. Plus Quattro Model R 4G8 955 276 GRU $70.00 .2
L 4G8 955 275 GRU $70.00 .2
Prestige Quattro Model R 4G8 955 276 A GRU $70.00 .2
L 4G8 955 275 A GRU $70.00 .2
Progressiv, Technik Model 14 R 4G8 955 276 GRU $70.00 .2
L 4G8 955 275 GRU $70.00 .2
S7 R 4G8 955 276 A GRU $70.00 .2
L 4G8 955 275 A GRU $70.00 .2
(P) Paint to Match
8 Lamp, Side Marker-See Front Lamps Section
9 Plate, Air Dam
A7
Page 3 of 136
Base, Premium Quattro Model 4G8 807 611 C $132.50 #.3
Prem. Plus Quattro Model 4G8 807 611 C $132.50 #.3
Prestige Quattro Model 4G8 807 611 A $130.00 #.3
Progressiv, Technik Model 14 4G8 807 611 C $132.50 #.3
S7 4G8 807 611 A $130.00 #.3
#w/Front Bumper Cover Assy Removed
10 Bolt, Plate (4) N 908 082 03 $0.72
11 Spoiler, Lower (a) 4G8 807 110 9B9 $134.00 .3
12 Grille, Outer (a)
w/Adaptive Cruise Control
A7
Base, Premium Quattro Model R 4G8 807 648 A 9B9 $157.45 .2
L 4G8 807 647 A 9B9 $157.45 .2
Prem. Plus Quattro Model R 4G8 807 648 A 9B9 $157.45 .2
L 4G8 807 647 A 9B9 $157.45 .2
Progressiv, Technik Model 14 R 4G8 807 648 A 9B9 $157.45 .2
L 4G8 807 647 A 9B9 $157.45 .2
Prestige Quattro Model
2012
To 10-11 R 4G8 807 682 C 9B9 $155.00 .2
L 4G8 807 681 C 9B9 $155.00 .2
From 10-11 R 4G8 807 682 C ZDE $155.00 .2
L 4G8 807 681 C ZDE $155.00 .2
2013-14
Black Trim R 4G8 807 682 C ZDE $155.00 .2
L 4G8 807 681 C ZDE $155.00 .2
Bright Trim R 4G8 807 682 C 9B9 $155.00 .2
L 4G8 807 681 C 9B9 $155.00 .2
S7
Black Trim R 4G8 807 682 C ZDE $155.00 .2
L 4G8 807 681 C ZDE $155.00 .2
Bright Trim R 4G8 807 682 C 9B9 $155.00 .2
L 4G8 807 681 C 9B9 $155.00 .2
w/o Adaptive Cruise Control
A7
Base, Premium Quattro Model R 4G8 807 682 9B9 $152.00 .2
L 4G8 807 681 9B9 $152.00 .2
Prem. Plus Quattro Model R 4G8 807 682 9B9 $152.00 .2
L 4G8 807 681 9B9 $152.00 .2
Prestige Quattro Model R 4G8 807 682 B 9B9 $152.00 .2
L 4G8 807 681 B 9B9 $152.00 .2
S7 R 4G8 807 682 B 9B9 $152.00 .2
L 4G8 807 681 B 9B9 $152.00 .2
(a) Order by Application
13 Extension, Lower Grille
A7
Base, Premium Quattro Model 4G8 807 683 9B9 $95.00 .2
Prem. Plus Quattro Model 4G8 807 683 9B9 $95.00 .2
Prestige Quattro Model 4G8 807 899 A $50.00 .2
Progressiv, Technik Model 14 4G8 807 683 9B9 $95.00 .2
S7 4G8 807 899 A $50.00 .2
Page 4 of 136
14 Bolt, Extension (4) N 910 907 01 $0.72
15 Trim, License Plate (a) 4G8 807 287 A T94 $335.00 #.2
(a) Order by Application
16 Bracket, License Plate
Flat Black 12-13 4G8 807 285 M 3FZ $345.00 #.2
Glossy Black 14 4G8 807 285 M T94 $240.00 #.2
#Included in R&I/R&R Grille
17 Absorber, Impact
A7
Base, Premium Quattro Model 4G8 807 550 A $85.00
Prem. Plus Quattro Model 4G8 807 550 A $85.00
Prestige Quattro Model 4G8 807 550 C $110.00
Progressiv, Technik Model 14 4G8 807 550 A $85.00
S7 4G8 807 550 C $110.00
18 Bar, Impact 4G0 807 113 A $396.45 #.5
#w/Front Bumper Cover Assy Removed, Not Included in O/H
19 Bracket, Impact Bar-See Front Inner Structure
Section
20 Sensor, Adaptive Cruise Control
2012
To 11-7-11 R 4G0 907 561 $2,133.00 #.3
L 4G0 907 541 $1,728.00 #.3
From 11-7-11 R 4G0 907 561 A $2,133.00 #.3
L 4G0 907 541 A $1,728.00 #.3
2013-14 R 4G0 907 561 A $2,133.00 #.3
L 4G0 907 541 A $1,728.00 #.3
#w/Front Cover Assy Removed, Not Included in O/H, Does Not
Include Aim and Calibrate Adaptive Cruise Control System
21 Bezel, Adaptive Cruise Control R 4G0 907 224 $10.00
L 4G0 907 225 $10.00
22 Sensor, Parking Aid (P)
Outer R 1S0 919 275 A $128.35 #.1
L 1S0 919 275 A $128.35 #.1
Inner R 1S0 919 275 $114.57 #.1
L 1S0 919 275 $114.57 #.1
(P) Paint to Match
23 Seal, Sensor (2/Side)
Black R 1T0 919 133 C 9B9 $0.52
L 1T0 919 133 C 9B9 $0.52
Gray R 1T0 919 133 C 704 $0.62
L 1T0 919 133 C 704 $0.62
24 Bracket, Inner Sensor R 4G8 919 268 A $33.00
L 4G8 919 267 A $33.00
25 Harness, Wiring
w/Parking Aid 4G8 971 095 B $352.00 #
w/o Parking Aid 4G8 971 095 A $352.00 #
#w/Front Cover Assy Removed, Not Included in O/H

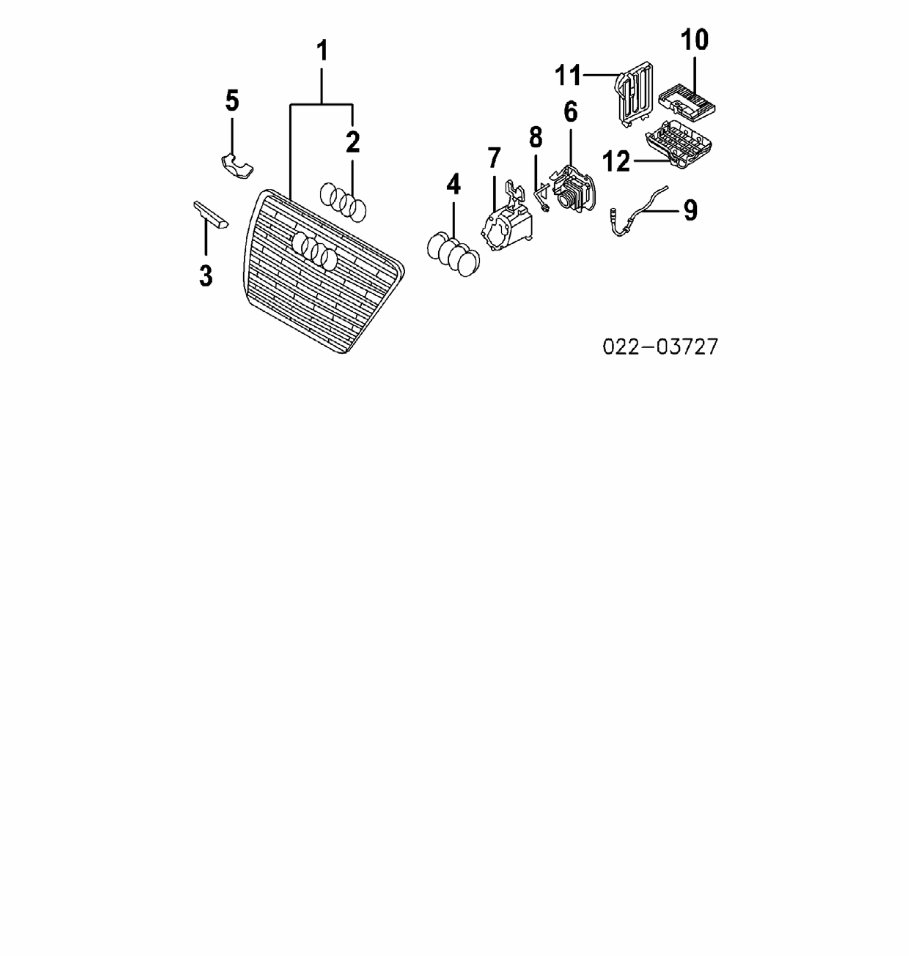

GRILLE
Page 5 of 136
R&I Grille Assy #.6
#w/Front Bumper Cover Assy Removed, Included in R&R or O/H
Front Bumper Cover Assy
1 Grille Assy
w/Night Vision
2012
To 10-11 4G8 853 651 D T94 $934.00 #.6
From 10-11
Black 4G8 853 651 D VMZ $973.00 #.6
Gloss Black 4G8 853 651 D T94 $934.00 #.6
2013-14
Black 4G8 853 651 D VMZ $973.00 #.6
Gloss Black 4G8 853 651 D T94 $934.00 #.6
Matt Black 4G8 853 651 D CKA $1,251.00 #.6
w/o Night Vision
2012
To 10-11 4G8 853 651 C T94 $450.00 #.6
From 10-11
Black 4G8 853 651 C VMZ $796.00 #.6
Gloss Black 4G8 853 651 C T94 $450.00 #.6
2013-14
Black 4G8 853 651 C VMZ $796.00 #.6
Gloss Black 4G8 853 651 C T94 $450.00 #.6
Matt Black 4G8 853 651 C CKA $712.00 #.6
#w/Front Bumper Cover Assy Removed, Included in R&R or O/H
Front Bumper Cover Assy
2 Emblem, Grille (Adhesive) 4H0 853 605 B 2ZZ $75.00 .2
Included w/Grille Assy
3 Nameplate
"Quattro" 4G8 853 736 B 2ZZ $72.00 .2
"S7" 4G8 853 736 A 2ZZ $75.00 .2
4 Plate, Emblem
w/Night Vision 4G8 853 037 E 9B9 $70.00 .2
Page 6 of 136
w/o Night Vision 4G8 853 037 D 9B9 $27.00 .2
5 Cap, Grille (a) 4G8 853 140 T94 $41.00
(a) Order by Application
6 Camera, Night Vision 4H0 980 552 A $2,800.00 #.5
#w/Front Bumper Cover Removed
7 Plate, Mounting 4G0 980 295 $14.00
8 Nozzle, Camera Washer-See Front Lamps
Section
9 Harness, Wiring 4G0 971 192 $240.00
10 Control Unit, Night Vision 4H0 907 547 F $1,045.00
Bracket, Control Unit
11 Upper 4G0 907 613 $44.00
12 Lower 4G0 907 387 A $58.00
FRONT LAMPS
COMBINATION LAMP
COMBINATION LAMP XENON
Aim Lamps .4
R&I Combination Lamp Assy R .4
L .4
NOTE: R&R Does Not include aim lamps.
1 Lamp Assy, Combination
w/Cornering Lamps R 4G8 941 754 B $1,140.00 1.2
L 4G8 941 753 B $1,140.00 1.2
w/o Cornering Lamps R 4G8 941 044 B $1,030.00 1.2
L 4G8 941 043 B $1,030.00 1.2
2 Bulb, High Beam
w/Cornering Lamps R N 103 201 02 $17.33 #.2
L N 103 201 02 $17.33 #.2
w/o Cornering Lamps R N 105 295 01 $30.56 #.2
L N 105 295 01 $30.56 #.2
3 Bulb, Cornering Lamp R N 103 201 06 $25.52 #.2
Page 7 of 136
L N 103 201 06 $25.52 #.2
4 Bulb, Turn Signal R N 107 375 01 $63.70 #.2
L N 107 375 01 $63.70 #.2
#R&R One Side Complete, Included in R&R Combination Lamp
Assy
5 Retainer, Bulb
w/Cornering Lamps R 8E0 941 109 $54.00
L 8E0 941 109 $54.00
6 Cap, Protective R 6Q0 941 607 B $15.54
L 6Q0 941 607 B $15.54
7 Cap, Signal Bulb R 4G8 941 159 $44.00
L 4G8 941 159 $44.00
8 Motor, Adjustment R 8P0 941 293 $60.00
L 8P0 941 293 $60.00
9 Connector, Tube R 4G8 941 109 $54.00
L 4G8 941 109 $54.00
10 Cover, Xenon Bulb R 8K0 941 159 A $27.94
L 8K0 941 159 A $27.94
Included w/Combination Lamp Assy
11 Bulb, Xenon R N 107 218 05 $168.00 #.2
L N 107 218 05 $168.00 #.2
#w/Combination Lamp Assy Removed, Included in R&R
Combination Lamp Assy
12 Bracket, Headlamp Mounting R 4G8 941 454 A $85.00 #.3
L 4G8 941 453 A $85.00 #.3
#w/Combination Lamp Assy Removed
Bolt, Combination Lamp Mounting
13 No. 1 R N 906 847 05 $1.10
L N 906 847 05 $1.10
14 No. 2, (3/Side) R WHT 000 372 $1.74
L WHT 000 372 $1.74
15 No. 3 R WHT 000 372 $1.74
L WHT 000 372 $1.74
Spacer, Mounting
16 No. 1, (3/Side) R 8P7 806 305 $22.58
L 8P7 806 305 $22.58
17 No. 2 R 4G8 806 305 $40.00
L 4G8 806 305 $40.00
18 Cap, Adjuster R 4E0 941 041 $0.42
L 4E0 941 041 $0.42
19 Tube, Breather R 4G8 941 718 B $18.50
L 4G8 941 717 B $18.50
20 Module, Daytime Running Lamps R 4G0 907 697 F $217.25 #.2
L 4G0 907 697 F $217.25 #.2
21 Ballast, Lamp R 8K0 941 597 E $325.38 #.2
L 8K0 941 597 E $325.38 #.2
22 Module, Cornering Lamp R 4G8 941 329 $460.00 #.2
L 4G8 941 329 $460.00 #.2
#w/Combination Lamp Removed, Included in R&R Combination
Lamp Assy
23 Repair Kit, Mtg R 4G8 998 121 $56.00
L 4G8 998 121 $56.00
Page 8 of 136
24 Repair Kit, Housing R 8K0 998 295 A $56.00
L 8K0 998 295 A $56.00
Harness, Front Lamp R N.A.
L N.A.
COMBINATION LAMP
COMBINATION LAMP LED
Aim Lamps .4
R&I Combination Lamp Assy R .4
L .4
NOTE: R&R Does Not include aim lamps.
1 Lamp Assy, Combination R 4G8 941 774 B $2,375.00 1.0
L 4G8 941 773 B $2,375.00 1.0
2 Fan, Vent (2/Side) R 4G8 907 463 $235.00 #.2
L 4G8 907 463 $235.00 #.2
#w/Combination Lamp Assy Removed
3 Connector, Tube R 8K0 941 110 $16.00
L 8K0 941 109 $16.00
4 Gasket, Module (2/Side) R 4G8 941 119 $54.00
L 4G8 941 119 $54.00
Included w/Combination Lamp Assy
5 Bracket, Headlamp Mounting R 4G8 941 454 A $85.00 #.3
L 4G8 941 453 A $85.00 #.3
#w/Combination Lamp Assy Removed
Bolt, Combination Lamp Mounting
6 No. 1 R N 906 847 05 $1.10
L N 906 847 05 $1.10
7 No. 2, (3/Side) R WHT 000 372 $1.74
L WHT 000 372 $1.74
8 No. 3 R WHT 000 372 $1.74
L WHT 000 372 $1.74
Spacer, Mounting
9 No. 1, (3/Side) R 8P7 806 305 $22.58
Page 9 of 136
L 8P7 806 305 $22.58
10 No. 2 R 4G8 806 305 $40.00
L 4G8 806 305 $40.00
11 Cap, Adjuster R 4E0 941 041 $0.42
L 4E0 941 041 $0.42
12 Tube, Breather R 4G8 941 718 A $125.00
L 4G8 941 717 A $125.00
13 Module, Daytime Running Lamps R 4G0 907 697 F $217.25 #.2
L 4G0 907 697 F $217.25 #.2
14 Module, Headlamp Control R 4G0 907 472 B $530.00 #.2
L 4G0 907 472 B $530.00 #.2
15 Module, Cornering Lamp R 4G0 907 472 C $530.00 #.2
L 4G0 907 472 C $530.00 #.2
#w/Combination Lamp Removed, Included in R&R Combination
Lamp Assy
16 Repair Kit, Mtg R 4G8 998 121 $56.00
L 4G8 998 121 $56.00
17 Repair Kit, Housing R 4G8 998 296 $83.00
L 4G8 998 295 $83.00
Harness, Front Lamp R N.A.
L N.A.

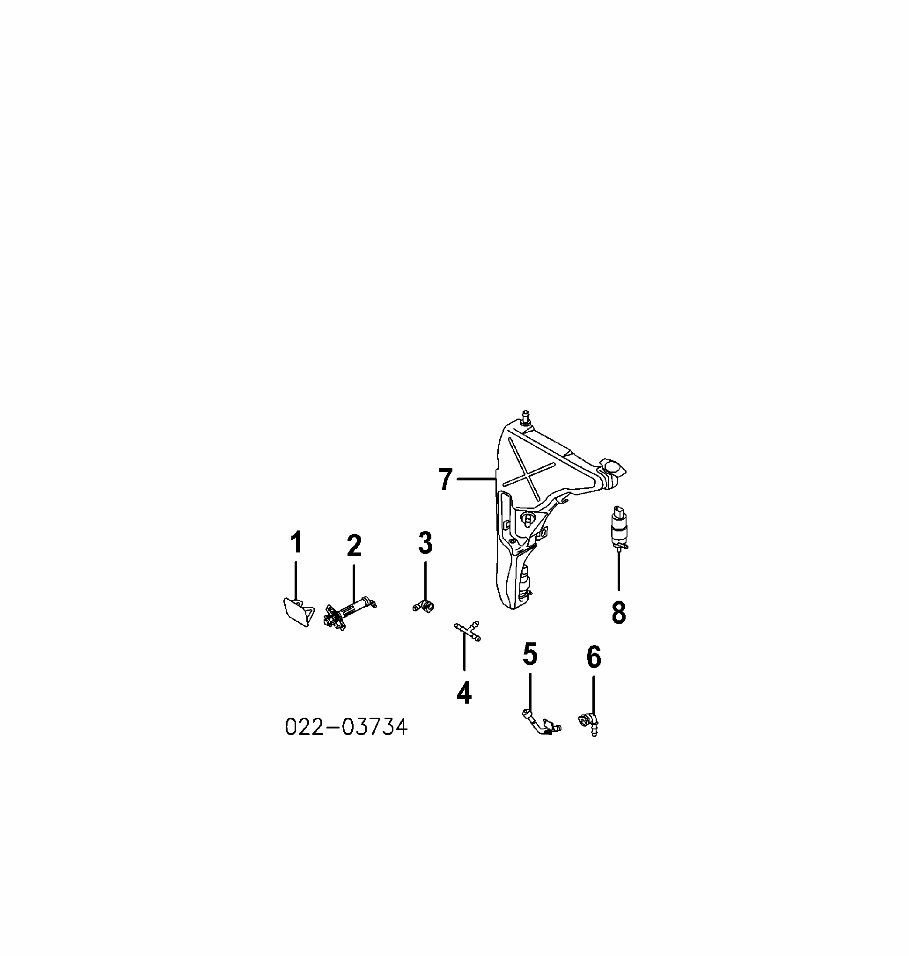

HEADLAMP WASHER
1 Cap, Washer Nozzle-See Front Bumper Section
2 Cylinder, Pressure R 4G8 955 102 $146.00 #.3
L 4G8 955 101 $146.00 #.3
#w/Front Bumper Cover Assy Removed, Included in R&R or O/H
Front Bumper Cover Assy
Connector, Hose
3 Elbow 8E0 955 665 $27.00
4 Tee (a) 8E0 955 975 $7.38
(a) As Required
5 Nozzle, Camera Washer
Page 10 of 136
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$28.99
Viewed 17 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$28.99
This digital catalog is an essential resource for anyone in need of specific parts numbers and prices for their vehicle. Whether you are a professional mechanic or a DIY enthusiast, this catalog provides valuable information such as labor hours required for repairs and parts ordering.
The catalog is fully searchable and available in digital format, making it convenient to access and use. It covers a wide range of parts including special cautions, engine transmission mounts, paint code location, engine under cover, clear coat identification, air cleaner, information labels, exhaust, front bumper, emission system, grille, electrical components (excluding wiring), front lamps, windshield, hood, cowl & dash, cooling system, instrument panel, engine oil cooler, center console, A/C refrigerant capacities, rocker/pillars/floor, A/C heater/ventilation, front seat, front fender, rear seat, underhood dimensions, seat belts, front inner structure, front door, air bag system, roof, ABS/brakes, sunroof, cruise control system, back window, wheel, quarter panel, front suspension, quarter glass, front drive axle, luggage lid, front steering linkage/gear, rear suspension, steering pump, fuel tank, steering wheel/column, rear body, and engine/transmission (excluding internal parts), rear lamps, and rear bumper.
