2008-2014 Audi A5 Parts Catalog

SPECIAL CAUTIONS AUTHORIZED REPAIR FACILITY Manufacturer recommends that Body Structure Repairs be done by an Authorized Repair Facility. AIR BAG Refer to Procedure Explanation 29 for Supplemental Restraint/Air Bag Special Cautions. MANUFACTURER RECOMMENDATION Labor Times for Welded, Weld Bonded or Rivet-Bonded Panels Do Not Include Frame Set-Up on Straightening Bench as per Manufacturer Recommended Procedures. SUSPENSION Manufacturer advises that some new fasteners must be used whenever old fasteners are loosened or removed. WELDING Before initiating any repair involving the use of an electric welder, the ignition must be in the off position and battery disconnected. Manufacturer Advises that Laser Welding is Used on Some Welded Panels in the Manufacturing Process of this Vehicle. Please see Manufacturer's Body Service Manual for Specific Repair Instructions. PAINT CODE LOCATION Paint code located on rear floor pan in spare wheel well. CLEAR COAT IDENTIFICATION All colors are clear coat. INFORMATION LABELS 2008-2014 Audi A5, S5 Page 1 of 161

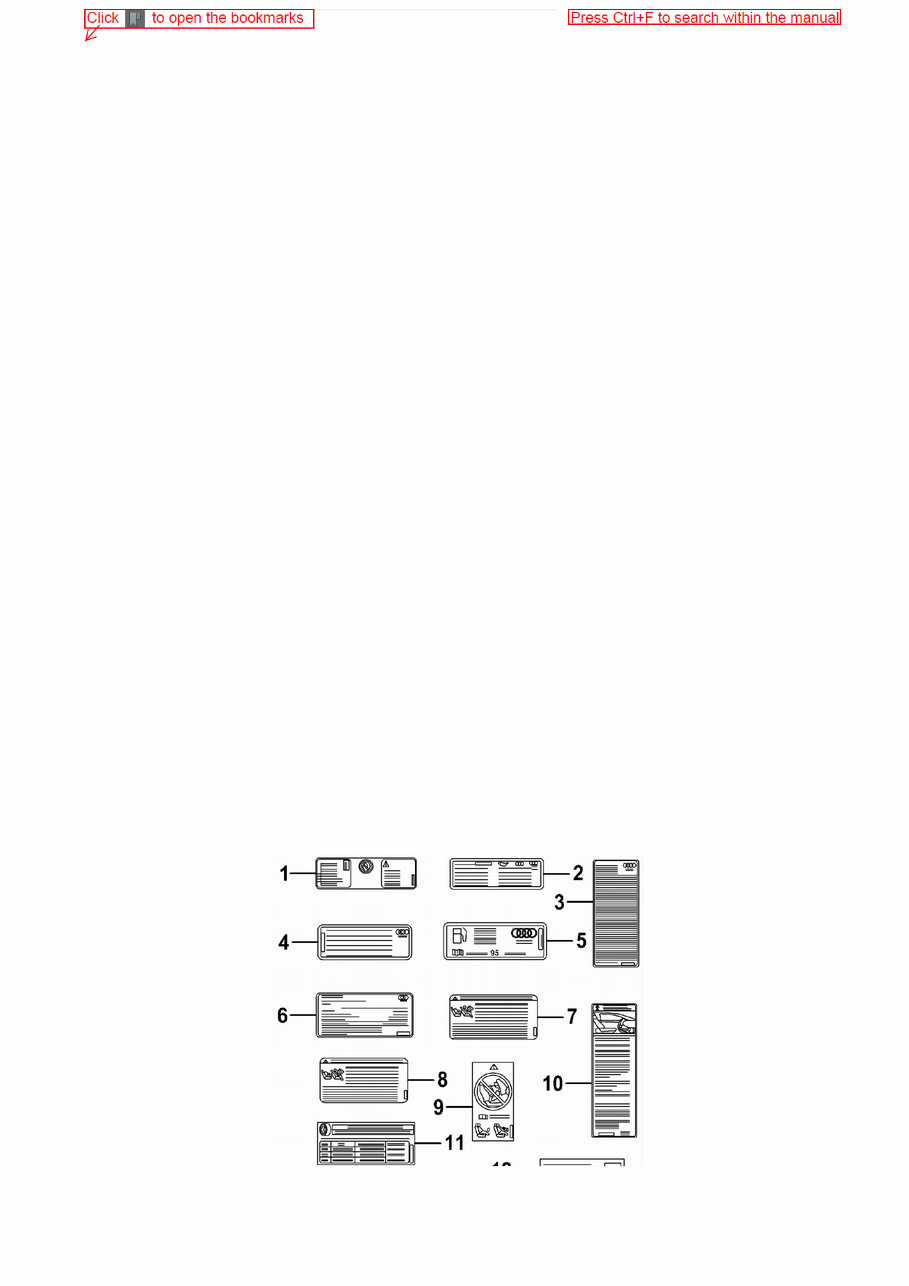

1 Label, Caution 2008-09 4A0 010 114 S $3.90 2010 To 3-8-10 4A0 010 114 S $3.90 From 3-8-10 8K0 010 520 C $10.40 2011-14 8K0 010 520 C $10.40 2 Label, Oil 8E0 010 560 A $16.50 3 Label, Fuse/Relay 8K1 010 503 B $16.50 Order by Application 4 Label, Ignition 8E0 010 175 Q $10.40 5 Label, Unleaded Fuel 8K0 010 508 A $10.40 6 Label, Emission 06E 010 504 M $60.00 Order by Application 7 Label, Air Bag Deactivation 1H0 010 076 E $52.82 8 Label, Air Bag Caution R 4D0 010 146 R $52.82 L 4D0 010 146 M $52.82 9 Label, Child Caution 3C0 010 492 L $8.06 10 Label, Knee Air Bag 4E0 010 357 S $16.50 11 Label, Tire Pressure 2.0L Eng 10 8T0 010 502 KA $31.00 11-14 8T0 010 502 LH 3.0L Eng 13-14 8T0 010 502 LP 3.2L Eng 08-10 8T0 010 502 KC $31.00 4.2L Eng 10-12 8T0 010 502 KD $31.00 Order by Application 12 Label, Mercury Disposal 4E0 010 530 $14.10 Label, A/C 8K0 010 515 Q $16.50 Order by Application Label, AWD 077 010 542 A $60.00 FRONT BUMPER Use Procedure Explanations 1 and 28 with the following text. 2008-12 Page 2 of 161

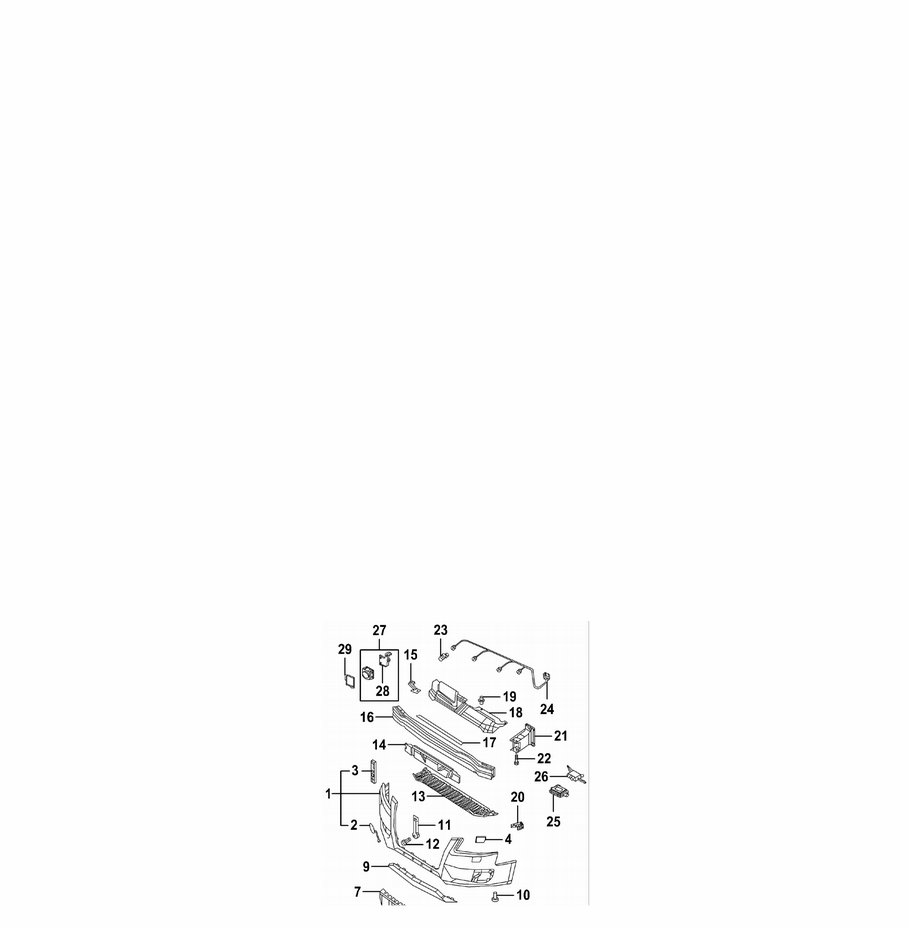

Refinish Front Cover Assy 3.0 Refinish Towing Eye Cover #.3 Refinish Parking Aid Sensor R #.3 L #.3 #Included in Refinish Front Cover R&I Front Cover Assy #2.0 O/H Front Cover Assy (Includes R&I) #3.2 #Includes R&I/R&R Fender Liners Add to R&R or O/H Front Cover Assy w/Parking Aid Sensors .4 w/Headlamp Washer .4 w/Fog Lamps .4 Add to R&R Impact Bar w/Adaptive Cruise Control #.3 #Does Not Include Aim and Calibrate Adaptive Cruise Control System NOTE: All Parts in this section are included in overhaul unless noted otherwise. 1 Cover Assy, Front (P) A5 w/Parking Aid w/ H/Lamp Washer 8T0 807 105 C GRU 3.2 w/o H/Lamp Washer 8T0 807 105 B GRU 3.2 w/o Parking Aid w/ H/Lamp Washer 8T0 807 105 A GRU $964.00 3.2 w/o H/Lamp Washer 8T0 807 105 GRU $725.00 3.2 S5 w/ H/Lamp Washer 8T0 807 105 E GRU 3.2 w/o H/Lamp Washer 8T0 807 105 D GRU $714.00 3.2 2 Cover, Towing Eye (P) A5 R 8T0 807 241 GRU $70.00 .2 S5 R 8T0 807 241 A GRU $70.00 .2 (P) Paint to Match 3 Strip, Retaining R 8T0 807 278 $33.00 L 8T0 807 277 $33.00 Included w/Front Cover Assy 4 Cap, Washer Nozzle-See Front Lamps Section 5 Cover, Outer A5 w/Adaptive Cruise Control R 8T0 807 682 A 01C $130.00 #.2 L 8T0 807 681 01C $85.00 #.2 w/o Adaptive Cruise Control w/S-Line Pkg R 8T0 807 682 D 01C $85.00 #.2 L 8T0 807 681 B 01C $85.00 #.2 w/o S-Line Pkg R 8T0 807 682 01C $85.00 #.2 L 8T0 807 681 01C $85.00 #.2 S5 w/Adaptive Cruise Control R 8T0 807 682 E 01C $130.00 #.2 L 8T0 807 681 B 01C $85.00 #.2 w/o Adaptive Cruise Control R 8T0 807 682 D 01C $85.00 #.2 Page 3 of 161

L 8T0 807 681 B 01C $85.00 #.2 6 Trim, Fog Lamp Chrome R 8T0 853 102 2ZZ $59.40 #.2 L 8T0 853 101 2ZZ $59.40 #.2 Black R 8T0 853 102 3FZ $59.40 #.2 L 8T0 853 101 3FZ $59.40 #.2 #R&R One Side Complete 7 Bracket, License A5 Flat Black 8K0 807 285 3FZ $195.00 .2 Glossy Black 8K0 807 285 T94 $170.00 .2 Stone Gray 8K0 807 285 1QP $170.00 .2 S5 Flat Black 8K0 807 285 C 3FZ $195.00 .2 Platinum Gray 8K0 807 285 C 1RR $195.00 .2 8 Trim, License Plate (a) A5 Flat Black 8K0 807 287 3FZ $170.00 .2 Glossy Black 8K0 807 287 T94 $170.00 .2 Stone Gray 8K0 807 287 1QP $155.00 .2 S5 Black 8K0 807 287 A 3FZ $170.00 .2 Platinum Gray 8K0 807 287 A 1RR $155.00 .2 9 Valance, Lower (a) S5 Chrome 8T0 807 717 2ZZ $304.00 .2 Black 8T0 807 717 3FZ $397.00 .2 (a) Order by Application 10 Pin, Dowel R 8K0 805 121 $12.50 L 8K0 805 121 $12.50 11 Strap, Cover Support A5, (4) 8T0 807 899 A $45.00 #.2 S5, (3) 8T0 807 899 $45.00 #.2 #w/Front Cover Assy Removed 12 Screw, Tapping (b) N 105 072 01 $0.72 (b) As Required 13 Filler, Lower A5 8T0 807 233 $120.00 .3 S5 8T0 807 233 A $110.00 .3 14 Foam, Absorber (a) 8T0 807 550 B $85.00 IOH (a) Order by Application 15 Support, Cover R 8T0 807 334 $26.00 L 8T0 807 333 $26.00 16 Bar, Reinforcement 8K0 807 113 G $530.00 #.3 #w/Front Bumper Cover Removed, Not Included in O/H, Requires Calibration of the Adaptive Cruise Control System as Outlined by the Manufacturer, if so Equipped 17 Cover, Reinforcement 8T0 807 217 A 01C $59.00 18 Filler, Upper 8T0 807 081 A $82.00 .3 19 Fastener (4) 2008 To 1-7-08 8T0 807 300 A $2.50 Page 4 of 161

From 1-7-08 N 911 182 01 $1.90 2009-12 N 911 182 01 $1.90 20 Guide, Cover R 8T0 807 284 C $40.00 #.2 L 8T0 807 283 C $40.00 #.2 #Not Included in O/H, Included in R&R Fender 21 Bracket, Mounting R 8K0 807 134 D $130.00 #.3 L 8K0 807 133 D $130.00 #.3 #w/Reinforcement Bar Removed, Not Included in O/H 22 Bolt, Mounting (b) R N 100 362 03 $6.12 L N 100 362 03 $6.12 (b) As Required 23 Sensor, Parking Aid (2/Side) (P) R 1S0 919 275 A $128.35 #.1 L 1S0 919 275 A $128.35 #.1 (P) Paint to Match 24 Harness, Parking Aid (a) 8K0 971 095 $352.00 # (a) Order by Application 25 Module, Garage Door Opener 8K0 907 410 C $950.00 #w/Front Cover Assy Removed, Not Included in O/H 26 Bracket, Mounting 8K0 907 179 A $16.00 27 Sensor Assy, Adaptive Cruise Control 8K0 907 561 $1,750.00 #.3 28 Bracket, Adaptive Sensor (c) 8K0 907 574 B $129.00 # (c) Included w/Adaptive Cruise Control Sensor Assy #w/Front Cover Assy Removed, Not Included in O/H, Does Not Include Aim and Calibrate Adaptive Cruise Control System 29 Bezel, Sensor 8K0 907 299 A $16.00 2013-14 Refinish Front Cover Assy 3.0 Refinish Towing Eye Cover #.3 Refinish Washer Nozzle Cap R #.3 L #.3 #Included in Refinish Front Cover Refinish Center Grille .5 Refinish Parking Aid Sensor Refinish Outer R .3 Page 5 of 161

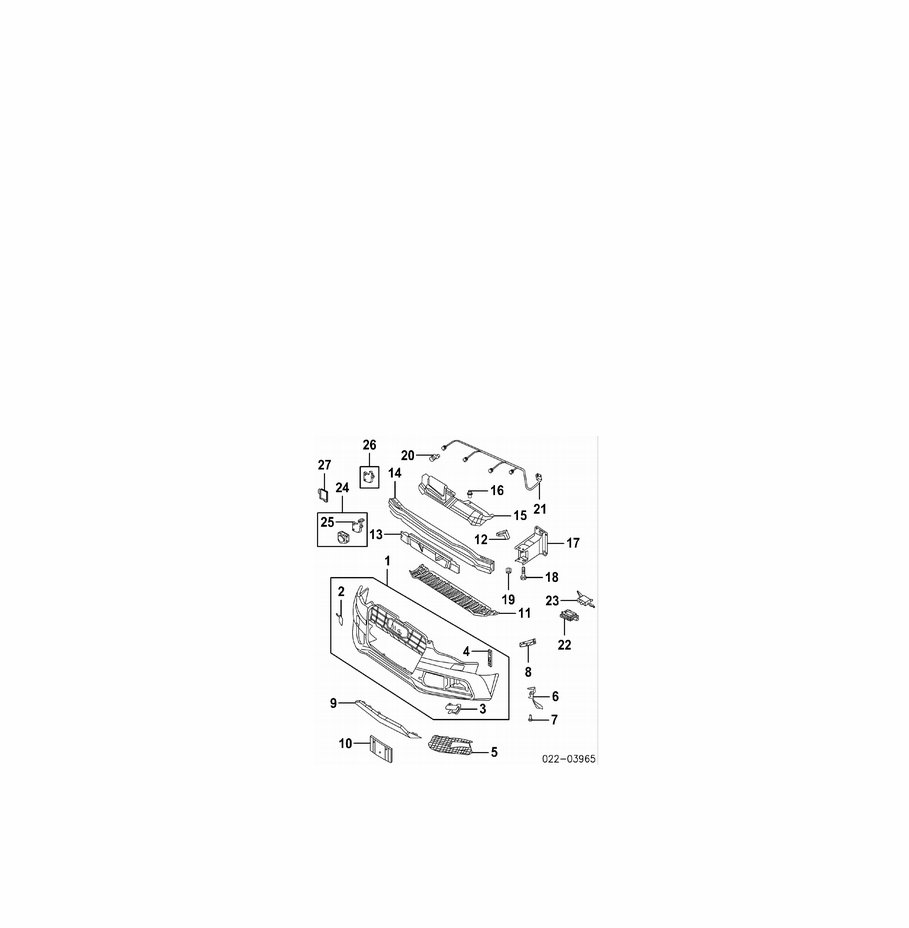

L .3 Refinish Parking Aid Sensor Inner R .3 L .3 R&I Front Cover Assy #2.0 O/H Front Cover Assy (Includes R&I) #3.2 #Includes R&I/R&R Fender Liners Add to R&R or O/H Front Cover Assy w/Parking Aid Sensors .4 w/Headlamp Washer .4 w/Fog Lamps .4 Add to R&R Impact Bar w/Adaptive Cruise Control #.3 #Does Not Include Aim and Calibrate Adaptive Cruise Control System NOTE: All Parts in this section are included in overhaul unless noted otherwise. 1 Cover Assy, Front (P) A5 w/Parking Aid w/Headlamp Washer 8T0 807 065 D GRU $964.00 3.2 w/o Headlamp Washer 8T0 807 065 C GRU $964.00 3.2 w/o Parking Aid w/Headlamp Washer 8T0 807 065 B GRU $964.00 3.2 w/o Headlamp Washer 8T0 807 065 A GRU $964.00 3.2 S5 w/Headlamp Washer w/Parking Aid 8T0 807 065 F GRU $927.00 3.2 w/o Parking Aid 8T0 807 065 E GRU $927.00 3.2 w/o Headlamp Washer 8T0 807 065 G GRU $927.00 3.2 2 Cover, Towing Eye (P) A5 8T0 807 241 C GRU $35.00 .2 S5 R 8T0 807 241 D GRU $35.00 .2 3 Cap, Washer Nozzle (P) w/Headlamp Washer R 8T0 955 276 B GRU $60.00 .3 L 8T0 955 275 B GRU $60.00 .3 (P) Paint to Match 4 Strip, Retaining R 8T0 807 278 A $33.00 L 8T0 807 277 A $33.00 Included w/Front Cover Assy 5 Cover, Outer (b) A5 w/Adaptive Cruise Control R 8T0 807 682 J 01C $335.00 .2 L 8T0 807 681 H 01C $130.00 .2 w/o Adaptive Cruise Control w/S-Line Pkg R 8T0 807 682 L 01C $195.00 .2 L 8T0 807 681 M 01C $195.00 .2 w/o S-Line Pkg R 8T0 807 682 H 01C $130.00 .2 L 8T0 807 681 H 01C $130.00 .2 S5 w/Adaptive Cruise Control R 8T0 807 682 L 01C $195.00 .2 L 8T0 807 681 M 01C $195.00 .2 w/o Adaptive Cruise Control R 8T0 807 682 K 01C $130.00 .2 L 8T0 807 681 K 01C $130.00 .2 Page 6 of 161

(b) Order by Application 6 Trim, Front A5 R 8T0 853 888 F $45.00 .2 L 8T0 853 887 F $45.00 .2 S5 R 8T0 853 888 K $45.00 .2 L 8T0 853 887 K $45.00 .2 7 Screw, Attaching (2/Side) R N 910 570 01 $0.80 L N 910 570 01 $0.80 8 Guide, Cover R 8T0 807 284 C $40.00 .2 L 8T0 807 283 C $40.00 .2 9 Grille, Center (P) S5 8T0 807 647 A 01C $195.00 .2 (P) Paint to Match 10 Bracket, License Plate (b) A5 Black 8T0 807 285 D 3FZ .2 Glossy Black 8T0 807 285 D T94 .2 Platinum Gray 8T0 807 285 F 1RR .2 S5 Black 8T0 807 285 D 3FZ .2 Platinum Gray 8T0 807 285 E 1RR $240.00 .2 (b) Order by Application 11 Filler, Lower A5 8T0 807 611 $123.00 .3 S5 8T0 807 611 A $123.00 .3 12 Support, Cover R 8K0 807 333 B $5.90 L 8K0 807 333 B $5.90 13 Foam, Absorber A5 8T0 807 550 E IOH S5 8T0 807 550 F $110.00 IOH 14 Bar, Reinforcement 8K0 807 113 F $396.45 #.3 #w/Front Bumper Cover Removed, Not Included in O/H, Requires Calibration of the Adaptive Cruise Control System as Outlined by the Manufacturer, if so Equipped 15 Cover, Reinforcement 8T0 807 081 F $82.00 16 Fastener (4) 4D0 807 300 $0.90 17 Bracket, Mounting R 8K0 807 134 D $130.00 #.3 L 8K0 807 133 D $130.00 #.3 #w/Reinforcement Bar Removed, Not Included in O/H 18 Bolt, Mounting (a) No. 1 R N 100 362 03 $6.12 L N 100 362 03 $6.12 No. 2 R N 906 484 02 $3.56 L N 906 484 02 $3.56 19 Nut, Mounting (a) No. 1 R N 103 401 03 $1.26 L N 103 401 03 $1.26 No. 2 R N 015 082 10 $0.74 L N 015 082 10 $0.74 (a) As Required 20 Sensor, Parking Aid (P) Outer R 1S0 919 275 $114.57 #.1 Page 7 of 161

L 1S0 919 275 $114.57 #.1 Inner R 1S0 919 275 $114.57 #.1 L 1S0 919 275 $114.57 #.1 (P) Paint to Match 21 Harness, Parking Aid (b) 8K0 971 095 $352.00 # (b) Order by Application 22 Module, Garage Door Opener 4G0 907 410 A $976.45 #.2 #w/Front Cover Assy Removed, Not Included in O/H 23 Bracket, Mounting 8K0 907 179 A $16.00 24 Sensor Assy, Adaptive Cruise Control 8K0 907 561 B $2,133.00 #.3 25 Bracket, Adaptive Sensor (c) 8K0 907 574 C $129.00 # (c) Included w/Adaptive Cruise Control Sensor Assy #w/Front Cover Assy Removed, Not Included in O/H, Does Not Include Aim and Calibrate Adaptive Cruise Control System 26 Repair Kit, Sensor 4H0 998 561 $54.93 # 27 Bezel, Sensor 8K0 907 299 A $16.00 # #w/Front Cover Assy Removed, Not Included in O/H GRILLE R&I Grille Assy #.4 #w/Front Cover Assy Removed, Included in R&R or O/H Front Cover 1 Grille Assy 2008-11 A5 Flat Black 8T0 853 651 E T94 $390.00 #.4 Glossy Black 8T0 853 651 E VMZ $640.00 #.4 Stone Gray 8T0 853 651 E 1QP $333.00 #.4 S5 Black 8T0 853 651 C 1RR $440.00 #.4 Platinum Gray 8T0 853 651 F VMZ $640.00 #.4 2012-14 A5 8T0 853 651 L T94 $462.00 #.4 S5 8T0 853 651 P 1RR $751.00 #.4 Page 8 of 161

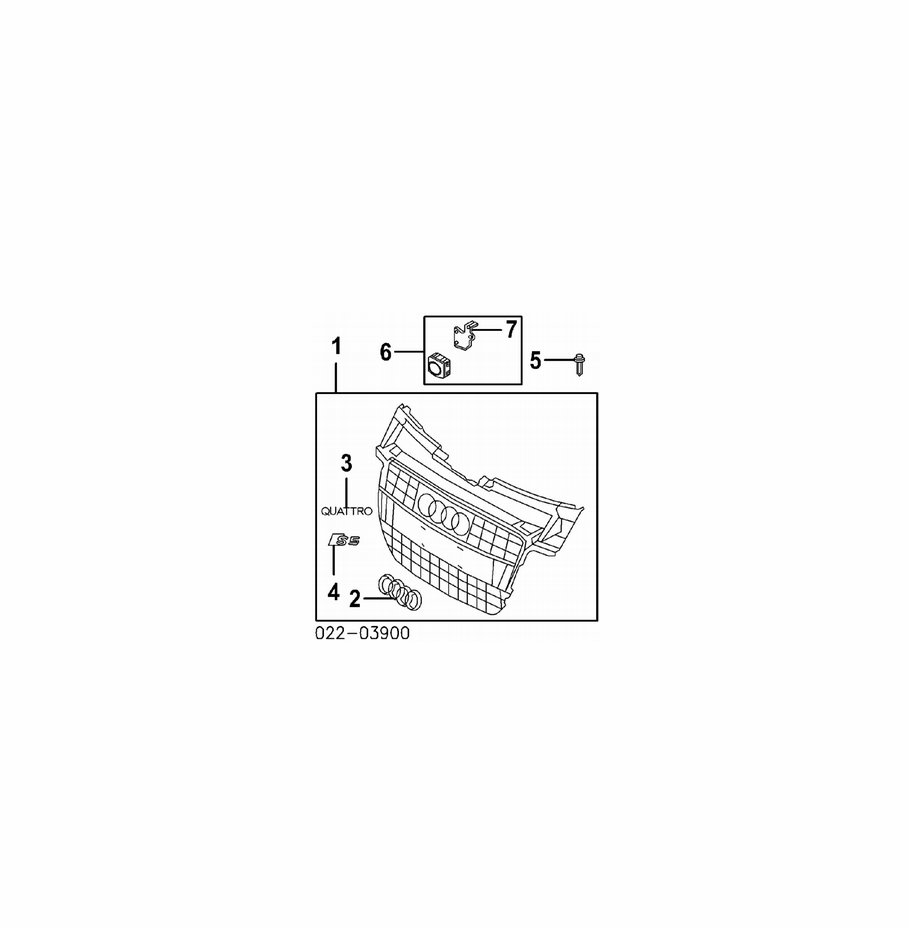

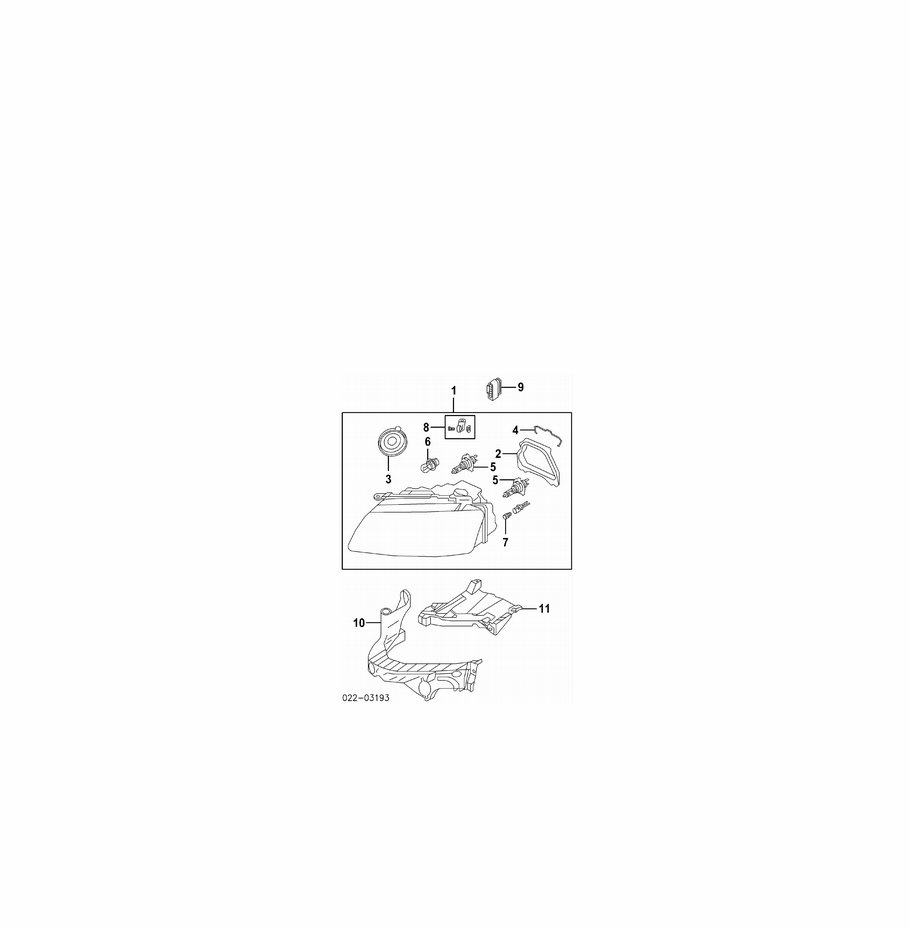

Order by Application #w/Front Cover Assy Removed, Included in R&R or O/H Front Cover Assy 2 Emblem (Adhesive) (a) 8T0 853 605 $75.00 .2 Nameplate (Adhesive) (a) 3 "Quattro" 8T0 853 736 A 2ZZ $72.00 .2 4 "S5" 8T0 853 736 2ZZ $75.00 .2 (a) Included w/Grille Assy 5 Bolt, Mounting Upper, (2) N 106 569 02 $0.72 Lower, (6) N 907 758 01 $0.72 6 Sensor Assy, Adaptive Cruise Control-See Front Bumper Section 7 Bracket, Adaptive Sensor-See Front Bumper Section #Not Included in O/H, Included in R&R Fender FRONT LAMPS COMBINATION LAMP COMBINATION LAMP HALOGEN 2008-11 Aim Lamps .4 R&I Combination Lamp Assy R .4 L .4 NOTE: R&R Does Not include aim lamps. 1 Lamp Assy, Combination 2008 R 8T0 941 030 B $470.00 .4 L 8T0 941 029 B $470.00 .4 2009 To VIN 025000 R 8T0 941 030 B $470.00 .4 L 8T0 941 029 B $470.00 .4 From VIN 025001 R 8T0 941 030 AC $470.00 .4 Page 9 of 161

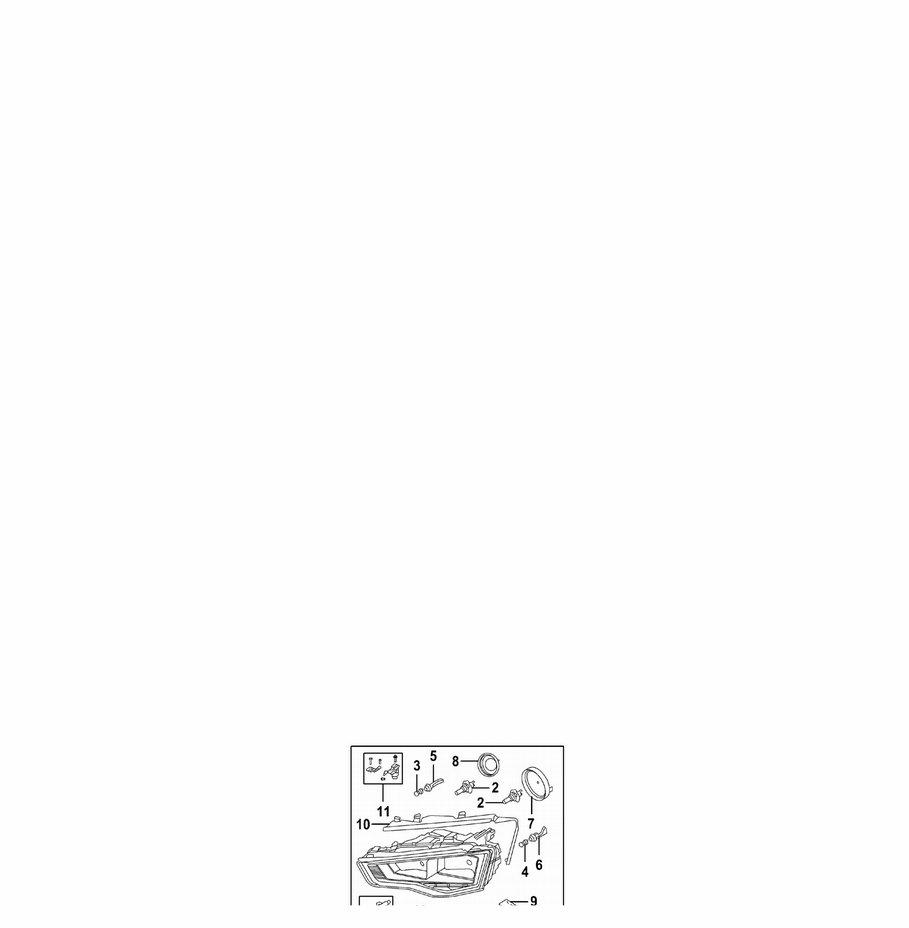

L 8T0 941 029 AC $470.00 .4 2010-11 R 8T0 941 030 AC $470.00 .4 L 8T0 941 029 AC $470.00 .4 2 Cover, Outer R 8T0 941 158 $45.00 L 8T0 941 158 $45.00 3 Cover, Inner R 7L6 941 607 $27.94 L 7L6 941 607 $27.94 4 Clip, Cover R 8T0 941 160 $16.00 L 8T0 941 160 $16.00 5 Bulb, Halogen (2/Side) 2008 R N 103 201 02 $17.33 L N 103 201 02 $17.33 2009 To VIN 025000 R N 103 201 02 $17.33 L N 103 201 02 $17.33 From VIN 025001 R N 107 333 01 $35.60 L N 107 333 01 $35.60 2010-11 R N 107 333 01 $35.60 L N 107 333 01 $35.60 6 Bulb, Turn Signal R N 107 374 01 $47.58 #.2 L N 107 374 01 $47.58 #.2 7 Bulb, Side Marker R N 017 753 9 $10.90 #.2 L N 017 753 9 $10.90 #.2 #R&R One Side Complete, Included in R&I/R&R Combination Lamp Assy 8 Repair Kit, Lamp R 8T0 998 122 $24.00 #.3 L 8T0 998 121 $24.00 #.3 Included w/Combination Lamp Assy #w/Combination Lamp Removed 9 Socket, Wiring R 6R0 973 735 $16.13 L 6R0 973 735 $16.13 Bracket, Mounting 10 Outer R 8T0 805 608 $85.00 #.3 L 8T0 805 607 $85.00 #.3 11 Inner R 8T0 941 454 A $65.00 #.3 L 8T0 941 453 A $65.00 #.3 #R&R One Side Complete, w/Front Cover & Combination Lamp Assy Removed Harness, Lamp-See Front Inner Structure Section COMBINATION LAMP COMBINATION LAMP HALOGEN 2012-14 Page 10 of 161

2008-2014 Audi A5 Parts Catalog

You're Reading a Preview

2008-2014 Audi A5 Parts Catalog

What’s Inside the 2008-2014 Audi A5 (8T) Parts Catalog

Engine & Mounting Components

Transmission & Drivetrain Assemblies

Front & Rear Suspension

Brake System Components

Steering System

Body Panels & Trim

Interior Components

Cooling System

Fuel System

Heating & Air Conditioning

Exhaust System

Lighting & Exterior Electronics

Glass & Mirrors

Seats, Belts & Restraints

Fasteners, Clips & Brackets

Part Number Index & Grouped Views

Why This Catalog Matters

Format & Compatibility
