SPECIAL CAUTIONS
AUTHORIZED REPAIR
FACILITY
Manufacturer recommends that Body Structure Repairs be done
by an Authorized Repair Facility.
AIR BAG
Refer to Procedure Explanation 29 for Supplemental Restraint/Air
Bag Special Cautions.
MANUFACTURER
RECOMMENDATION
Labor Times for Welded, Weld Bonded or Rivet-Bonded Panels
Do Not Include Frame Set-Up on Straightening Bench as per
Manufacturer Recommended Procedures.
SUSPENSION
Manufacturer advises that some new fasteners must be used
whenever old fasteners are loosened or removed.
WELDING
Before initiating any repair involving the use of an electric welder,
the ignition must be in the off position and battery disconnected.
Manufacturer Advises that Laser Welding is Used on Some
Welded Panels in the Manufacturing Process of this Vehicle.
Please see Manufacturer's Body Service Manual for Specific
Repair Instructions.
PAINT CODE
LOCATION
Paint code located on rear floor pan in spare wheel well.
CLEAR COAT
IDENTIFICATION
All colors are clear coat.
INFORMATION LABELS
2009 -2011Audi A4, S4
Page 1 of 166

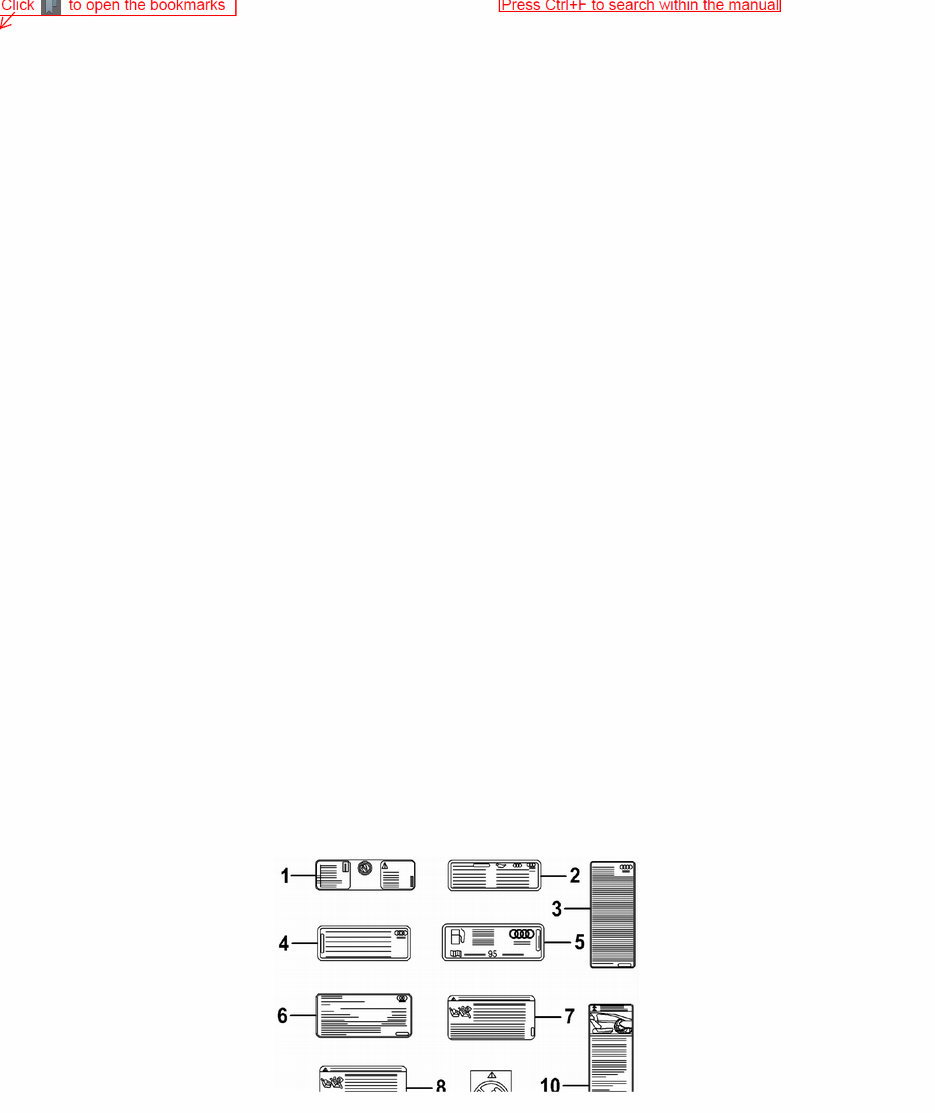

1 Label, Fan Caution 4A0 010 114 S $3.30
2 Label, Oil 8E0 010 560 A $9.90
3 Label, Fuse/Relay 8K1 010 503 B $9.90
Order by Application
4 Label, Ignition 8E0 010 175 Q $6.00
5 Label, Unleaded Fuel 8E0 010 183 T $6.00
6 Label, Emission 06E 010 504 M $50.00
Order by Application
7 Label, Air Bag Deactivation 1H0 010 076 E $51.90
8 Label, Air Bag Warning 8E0 010 352 P $8.40
9 Label, Child Caution Air Bag 3C0 010 492 K $6.00
10 Label, Knee Air Bag 4E0 010 357 S $9.90
11 Label, Tire Pressure 8K0 010 502 HJ $19.80
Order by Application
Label, A/C 8K0 010 515 Q $9.90
FRONT BUMPER
Use Procedure Explanations 1 and 28
with the following text.
Refinish Front Cover Assy 2.6
Refinish Tow Hook Cover .3
Refinish Nozzle Cover R .5
Page 2 of 166
L .5
Refinish Parking Aid Sensor R .3
L .3
R&I Front Cover Assy #2.0
O/H Front Cover Assy (Includes R&I) #3.2
#Includes R&I/R&R Fender Liners
Add to R&R or O/H Front Cover Assy
w/Parking Aid Sensors .4
w/Fog Lamps .4
NOTE: All Parts in this section are included in overhaul unless
noted otherwise.
1 Cover Assy, Front (P)
w/S-Line Pkg
w/Headlamp Washer 8K0 807 105 E GRU $760.00 #3.2
w/o Headlamp Washer 8K0 807 105 D GRU $775.00 #3.2
w/o S-Line Pkg
w/Headlamp Washer 8K0 807 105 A GRU $760.00 #3.2
w/o Headlamp Washer 8K0 807 105 GRU $695.00 #3.2
#Includes R&I/R&R Fender Liners
2 Cover, Tow Hook (P)
w/S-Line Pkg L 8K0 807 241 A GRU $45.30 .2
w/o S-Line Pkg L 8K0 807 241 GRU $45.30 .2
(P) Paint to Match
3 Strip, Bumper R 8K0 807 277 $24.30
L 8K0 807 277 $24.30
Included w/Front Cover Assy
4 Bolt, Mounting R N 101 602 04 $0.50
L N 101 602 04 $0.50
5 Grille, Bumper Center
Chrome 8K0 807 110 A 2ZZ $200.00 #.3
Black 8K0 807 110 3FZ $200.00 #.3
Platinum Gray 8K0 807 110 1RR $142.00 #.3
#w/Front Cover Assy Removed
6 Grille, Bumper Outer (a)
w/S-Line Pkg
w/Parking Aid R 8K0 807 682 E 01C $99.00 .2
L 8K0 807 681 C 01C $62.00 .2
w/o Parking Aid R 8K0 807 682 C 01C $62.00 .2
L 8K0 807 681 C 01C $62.00 .2
w/o S-Line Pkg
w/Parking Aid R 8K0 807 682 B 01C $99.00 .2
L 8K0 807 681 A 01C $79.50 .2
w/o Parking Aid R 8K0 807 682 01C $62.00 .2
L 8K0 807 681 01C $62.00 .2
(a) Order by Application
7 Cover, Nozzle (P)
w/S-Line Pkg R 8K0 955 276 A GRU $33.90 .2
L 8K0 955 275 A GRU $33.90 .2
Page 3 of 166
w/o S-Line Pkg R 8K0 955 276 GRU $33.90 .2
L 8K0 955 275 GRU $33.90 .2
(P) Paint to Match
8 Guide, Bumper R 8K0 807 284 $29.10 #.1
L 8K0 807 283 $29.10 #.1
9 Strap, Cover 8K0 807 899 $29.10 #.2
10 Bolt, Center Retainer (2) N 105 514 03 $0.70
11 Cover, Lower Bumper
w/S-Line Pkg 8K0 807 233 A $59.50 #.3
w/o S-Line Pkg 8K0 807 233 B $70.00 #.3
#w/Front Cover Assy Removed
12 Bolt, Lower (2/Side) R N 909 675 02 $0.70
L N 909 675 02 $0.70
13 Foam, Absorber 8K0 807 550 A $82.00 IOH
14 Bar, Impact 8K0 807 113 E $300.00 #.3
#w/Front Cover Assy Removed, Not Included in O/H
15 Cover, Impact Bar 8T0 807 217 A 01C $57.00
16 Support, Side R 8K0 807 334 A $16.50
L 8K0 807 333 A $16.50
17 Bracket, Impact Bar R 8K0 807 134 C $99.00 #.3
L 8K0 807 133 C $99.00 #.3
#w/Reinforcement Bar Removed
Bolt, Bracket
18 No. 1, (2/Side) R N 100 362 03 $4.70
L N 100 362 03 $4.70
19 No. 2, (3/Side) R N 906 484 02 $2.90
L N 906 484 02 $2.90
20 No. 3 R N 015 082 10 $0.50
L N 015 082 10 $0.50
21 Cover, Upper Bumper 8K0 807 081 $59.50 .3
22 Bolt, Upper R N 909 675 02 $0.70
L N 909 675 02 $0.70
Sensor, Outside Temp-See
A/C /Heater/Ventilation Section
Page 4 of 166

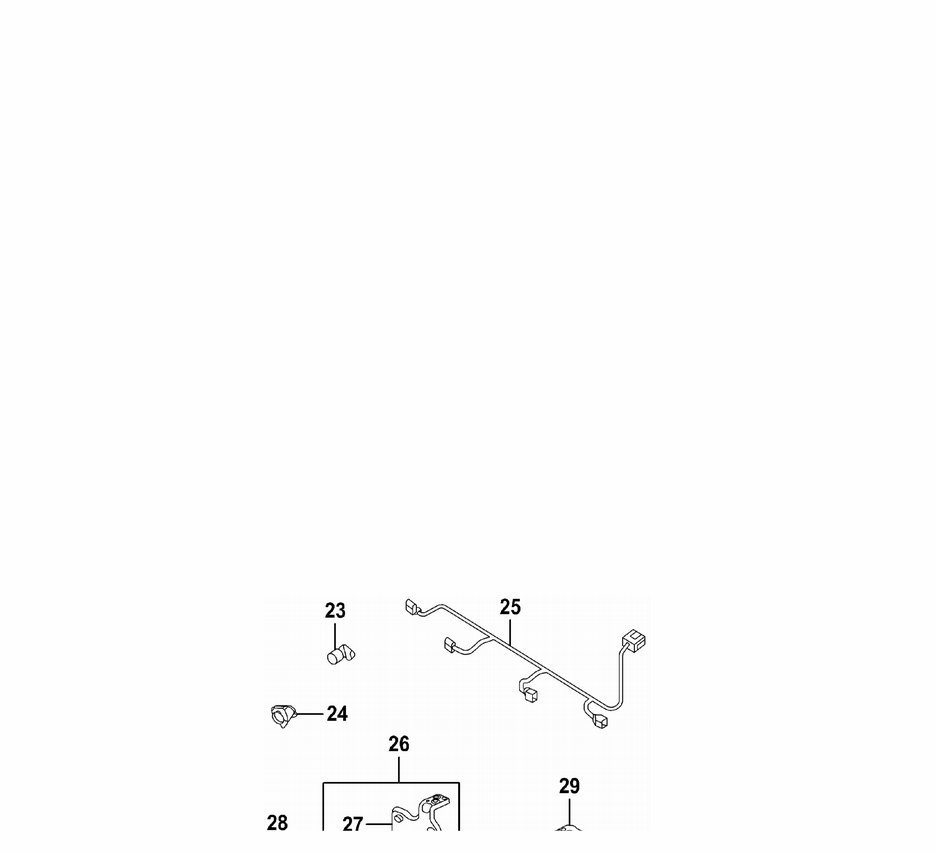

23 Sensor, Parking Aid (2/Side) (P) R N.A. #.1
L N.A. #.1
(P) Paint to Match
24 Seal, Sensor (2/Side) R N.A. #
L N.A. #
25 Harness, Parking Aid 8K0 971 095 A $268.00 #
#w/Front Bumper Cover Removed, Not Included in O/H
26 Sensor Assy, Adaptive Cruise Control 8K0 907 561 $1,750.00 #.3
#w/Front Bumper Cover Removed, Not Included in O/H, Does
Not Include Aim and Calibrate Adaptive Cruise Control System
27 Bracket, Adaptive Sensor (b) 8K0 907 574 B $82.00 #
(b) Included w/Adaptive Cruise Control Sensor Assy
28 Cover, Sensor 8K0 907 299 $13.50 #
29 Module, Garage Door Opener 8K0 907 410 C $825.00 #
#w/Front Bumper Cover Removed, Not Included in O/H
GRILLE
R&I Grille Assy #.4
#w/Front Cover Assy Removed, Included in R&R or O/H Front
Cover

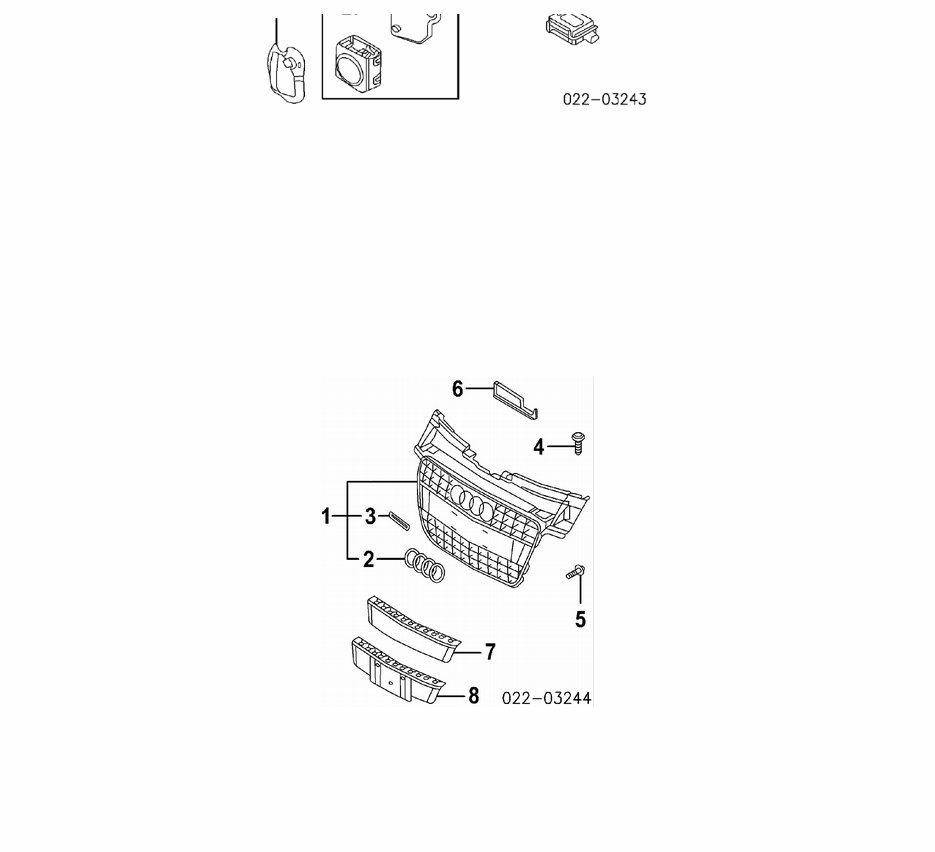

1 Grille Assy
A4
Black 8K0 853 651 VMZ $630.00 #.4
Gloss Black 8K0 853 651 T94 $200.00 #.4
Page 5 of 166
Gray 8K0 853 651 1QP $190.00 #.4
S4
w/Parking Aid
Black 10-11 8K0 853 651 D VMZ $630.00 #.4
Gray 10-11 8K0 853 651 D 1RR $630.00 #.4
w/o Parking Aid
Black 10-11 8K0 853 651 B VMZ $630.00 #.4
Gray 10-11 8K0 853 651 B 1RR $630.00 #.4
#w/Front Cover Assy Removed, Included in R&R or O/H Front
Cover
2 Emblem (Adhesive) 8K0 853 605 $57.00 .2
3 Nameplate (Adhesive)
"Quattro" 8K0 853 736 2ZZ $51.90 .2
"S4" 10-11 8K0 853 736 A 2ZZ $51.90 .2
Included w/Grille Assy
4 Bolt, Upper (2/Side) R N 908 963 01 $0.50
L N 908 963 01 $0.50
5 Bolt, Lower (3/Side) R N 907 758 01 $0.50
L N 907 758 01 $0.50
6 Cover, Grille Right R 8K0 853 037 $33.90
7 Bracket, License Plate (a)
Black 8K0 807 285 T94 $138.00 #.2
Gray 8K0 807 285 1QP $138.00 #.2
8 Trim, License Plate (a)
Black 8K0 807 287 T94 $138.00 #.2
Gray 8K0 807 287 A 1RR $122.00 #.2
(a) Order by Application
#Included in R&R Grille Assy
Sensor Assy, Adaptive Cruise Control-See Front
Bumper Section
FRONT LAMPS
COMBINATION LAMP
COMBINATION LAMP
HALOGEN
Page 6 of 166
Aim Lamps .4
R&I Combination Lamp Assy R .4
L .4
NOTE: R&R Does Not include aim lamps.

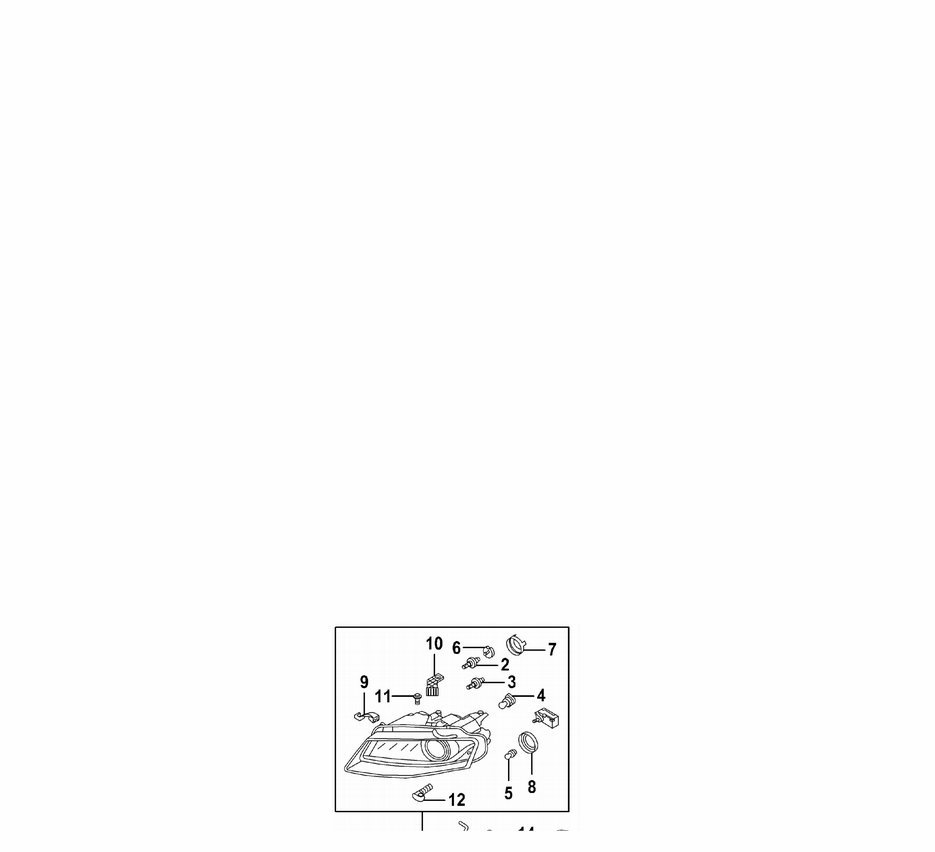

1 Lamp Assy, Combination R 8K0 941 030 B $330.00 .4
L 8K0 941 029 B $330.00 .4
2 Bulb, High Beam R N 103 201 02 $16.50 #.2
L N 103 201 02 $16.50 #.2
3 Bulb, Low Beam R N 103 201 02 $16.50 #.2
L N 103 201 02 $16.50 #.2
4 Bulb, Turn Signal R N 107 374 01 $45.30 #.2
L N 107 374 01 $45.30 #.2
5 Bulb, Side Marker R N 107 373 01 $45.30 #.2
L N 107 373 01 $45.30 #.2
#R&R One Side Complete, Included in R&I/R&R Combination
Lamp Assy
6 Clip, Mounting (2/Side) R 8E0 941 109 $39.00
L 8E0 941 109 $39.00
7 Cover, H/Lamp (2/Side) R 8K0 941 159 $29.10
L 8K0 941 159 $29.10
8 Cover, Side Marker Bulb R 8J0 941 607 $24.30
L 8J0 941 607 $24.30
Support, H/Lamp Hsg
9 Front R 8K1 941 122 $33.90
L 8K1 941 121 $33.90
10 Rear R 8K1 941 122 A $33.90
L 8K1 941 121 A $33.90
11 Screw, Attaching (a) R N 906 847 05 $0.70
L N 906 847 05 $0.70
(a) As Required
12 Connector, Tube R 8K0 941 110 $11.50
L 8K0 941 109 $11.50
Included w/Combination Lamp Assy
13 Seal, H/Lamp R 8K0 941 192 $39.00
L 8K0 941 191 $39.00
14 Tube, Vent R 8K0 941 718 $8.40
L 8K0 941 717 $8.40
Bracket, H/Lamp Mounting
15 Upper R 8K0 805 608 A $58.00 #.3
L 8K0 805 607 A $58.00 #.3
Page 7 of 166
16 Lower R 8K0 941 454 $45.30 #.3
L 8K0 941 453 $45.30 #.3
#R&R One Side Complete, w/Front Cover & Combination Lamp
Assemblies Removed
17 Bolt, Mounting (a) R N 911 714 01 $1.30
L N 911 714 01 $1.30
(a) As Required
Harness, Lamp Wiring-See Front Inner Structure
Section
COMBINATION LAMP
COMBINATION LAMP XENON
Aim Lamps .4
R&I Combination Lamp Assy R .4
L .4
NOTE: R&R Does Not include aim lamps.

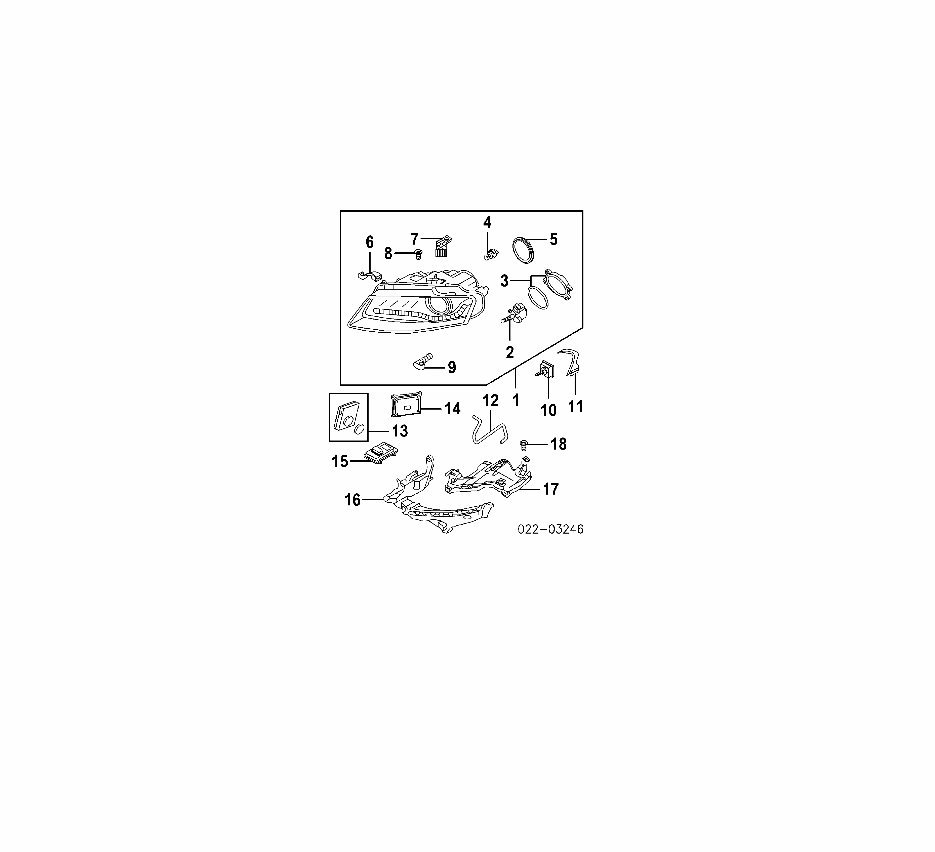

1 Lamp Assy, Combination
w/Curve Lighting 09-10 R 8K0 941 030 J $760.00 1.0
L 8K0 941 029 J $760.00 1.0
11 R 8K0 941 030 AA $760.00 1.0
L 8K0 941 029 AA $760.00 1.0
w/o Curve Lighting 09-10 R 8K0 941 030 E $650.00 1.0
L 8K0 941 029 E $650.00 1.0
11 R 8K0 941 030 R $650.00 1.0
L 8K0 941 029 R $650.00 1.0
2 Motor, Adjuster R 8P0 941 293 $63.00 #.2
L 8P0 941 293 $63.00 #.2
3 Repair Kit, Lamp R 8K0 998 295 A $51.90
Page 8 of 166
L 8K0 998 295 A $51.90
4 Bulb, Turn Signal R N 107 374 01 $45.30 #.2
L N 107 374 01 $45.30 #.2
#R&R One Side Complete, Included in R&I/R&R Combination
Lamp Assy
5 Cover, Xenon Bulb R 8K0 941 159 A $24.30
L 8K0 941 159 A $24.30
Support, H/Lamp Hsg
6 Front R 8K1 941 122 $33.90
L 8K1 941 121 $33.90
7 Rear R 8K1 941 122 A $33.90
L 8K1 941 121 A $33.90
8 Screw, Attaching (a) R N 906 847 05 $0.70
L N 906 847 05 $0.70
(a) As Required
9 Connector, Tube R 8K0 941 110 $11.50
L 8K0 941 109 $11.50
Included w/Combination Lamp Assy
10 Bulb, Xenon R N 107 218 01 $160.00 #.2
L N 107 218 01 $160.00 #.2
Bulb, Low Beam R N.A. #.2
L N.A. #.2
#R&R One Side Complete, Included in R&R Combination Lamp
Assy
11 Seal, H/Lamp R 8K0 941 192 $39.00
L 8K0 941 191 $39.00
12 Tube, Vent R 8K0 941 718 $8.40
L 8K0 941 717 $8.40
13 Module, Xenon Bulb R 8K0 941 597 C $300.00 #.2
L 8K0 941 597 C $300.00 #.2
14 Module, LED Control 09-10 R 8K0 907 472 $292.00 #.2
L 8K0 907 472 $292.00 #.2
11 R 8K0 907 472 A $292.00 #.2
L 8K0 907 472 A $292.00 #.2
#w/Combination Lamp Removed, Included in R&R Combination
Lamp Assy
15 Module, Cornering Lamp
w/Curve Lighting R 8K0 941 329 $347.00 #.2
L 8K0 941 329 $347.00 #.2
#w/Combination Lamp Removed
Bracket, H/Lamp Mounting
16 Upper R 8K0 805 608 A $58.00 #.3
L 8K0 805 607 A $58.00 #.3
17 Lower R 8K0 941 454 $45.30 #.3
L 8K0 941 453 $45.30 #.3
#R&R One Side Complete, w/Front Cover & Combination Lamp
Assemblies Removed
18 Bolt, Mounting (a) R N 911 714 01 $1.30
L N 911 714 01 $1.30
Page 9 of 166
(a) As Required
Harness, Lamp Wiring-See Front Inner Structure
Section
HEADLAMP WASHER

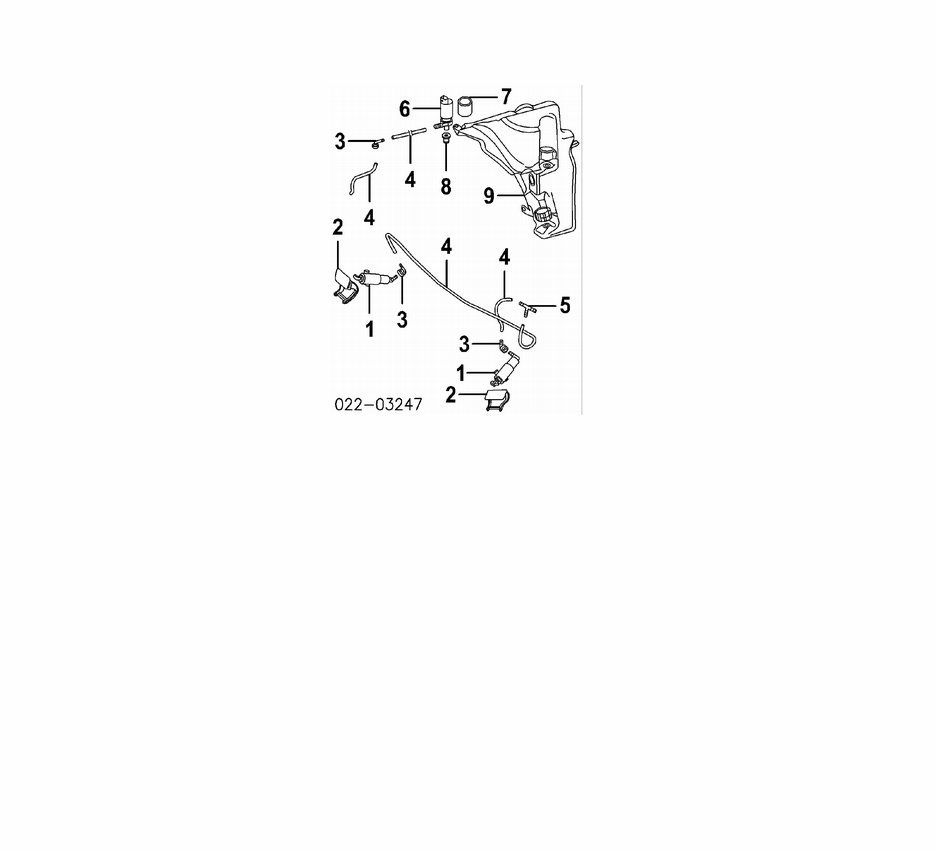

1 Nozzle, Washer
2009
To 5-11-09 R 8K0 955 102 A $99.00 #.3
L 8K0 955 101 $90.00 #.3
From 5-11-09 R 8K0 955 102 A $99.00 #.3
L 8K0 955 101 A $99.00 #.3
2010-11 R 8K0 955 102 A $99.00 #.3
L 8K0 955 101 A $99.00 #.3
#w/Front Cover Assy Removed, Included in R&R or O/H Front
Cover Assy
2 Cover, Nozzle-See Front Bumper Section
3 Elbow (3) 8E0 955 665 $11.50
4 Hose, Washer N.A.
Cut to Fit
5 Connector, Hose Tee 8D0 955 873 $8.40
6 Pump, Washer 3B7 955 681 $54.00 #.2
#Included in R&R Reservoir
7 Sleeve 447 857 991 J $8.40
8 Grommet, Pump 431 955 465 A $3.30
9 Reservoir, Washer-See Windshield Section
SIDE SIGNAL LAMP
Page 10 of 166
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$28.99
2009 - 2011 AUDI A4 Parts LIST CATALOG
Viewed 23 Times Today
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$28.99
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
Description
Introducing the 2009 - 2011 AUDI A4 Parts LIST CATALOG.
Designed specifically for AUDI A4 models from 2009 to 2011, this comprehensive catalog is your go-to resource for all your automotive part needs. Whether you are a car enthusiast, a mechanic, or simply a car owner who likes to do their own repairs and modifications, this catalog has got you covered.
With a wide range of parts available, you can easily find the perfect components to keep your AUDI A4 running smoothly and efficiently. From engine parts to suspension components, from electrical systems to body panels, this catalog includes everything you need to maintain and enhance your vehicle.
Here are some of the models that this catalog covers:
- 2009 AUDI A4
- 2010 AUDI A4
- 2011 AUDI A4
Each model is listed separately, making it easy to locate the specific parts you require. Say goodbye to wasting time searching through generic catalogs that don't cater to your specific car model.
So why wait? Upgrade your AUDI A4 with top-quality parts from our handy 2009 - 2011 AUDI A4 Parts LIST CATALOG today!
