01 ON BOARD DIAGNOSTIC (OBD)
ON BOARD DIAGNOSTIC (OBD)
On Board Diagnostic (OBD), technical data
Equipment
Data is transmitted between the control module and the VAS5051 tester via operating mode "On Board
Diagnostic (OBD)".
DTC memory is designed for permanent memory and is therefore not dependent on voltage supply.
Display of stored DTCs occurs after initiation of display mode. Refer to Diagnostic Trouble Code
(DTC) memory, checking .
DTC memory must be erased after malfunction is repaired. Refer to Diagnostic Trouble Code (DTC)
memory, erasing .
Important:
Readiness code must be generated every time DTC memory is erased. Refer to Readiness code,
generating .
If the ECM recognizes malfunctions that lead to a worsening of emissions values, it indicates them by
lighting the Malfunction Indicator Lamp (MIL) -K83- in the instrument cluster. Meaning of exhaust
Malfunction Indicator Lamp (MIL) -K83-. Refer to Exhaust Malfunction Indicator Lamp (MIL) in
instrument cluster .
EPC relevant malfunctions are also indicated by the Electronic Power Control (EPC) warning lamp in the
instrument cluster.
Exhaust Malfunction Indicator Lamp (MIL) in instrument cluster
If the ECM recognizes malfunctions that lead to a worsening of emissions values, it indicates them by lighting
the exhaust Malfunction Indicator Lamp (MIL).
The Engine Control Module (ECM) switches on the exhaust Malfunction Indicator Lamp (MIL) after ignition is
switched on. Shortly after engine is started, the exhaust MIL will go out. This requires, first of all, that the
Engine Control Module (ECM) does not detect a malfunction that worsens the emissions values and, secondly,
that activation of the lamp by the Engine Control Module (ECM) is OK.
If malfunctions that worsen emissions are recognized during operation of the engine, the ECM switches on the
exhaust MIL in instrument cluster. An entry is made in DTC memory at the same time.
The Malfunction Indicator Lamp (MIL) can blink or remain lit continuously. DTC memory should be checked
in either case. Refer to Diagnostic Trouble Code (DTC) memory, checking .
Continuously lit:
There is a malfunction that causes increased emissions. Check DTC memory for Motronic ECM and automatic
2005 Audi A4 Quattro
ENGINE PERFORMANCE 3.0 Liter 6-Cyl. 5V Fuel Injection & Ignition, Engine Code(s): AVK, BGN
2005 Audi A4 Quattro
ENGINE PERFORMANCE 3.0 Liter 6-Cyl. 5V Fuel Injection & Ignition, Engine Code(s): AVK, BGN
12:18:17 AM Page 1 12:18:29 AM Page 1
transmission (if installed).
Check DTC memory if there is a drivability problem or a customer complaint, but the exhaust Malfunction
Indicator Lamp (MIL) is not lit. There may be DTCs stored that do not cause the exhaust MIL to light up
immediately, but only after engine is started again and malfunction is recognized again.
Blinking:
There is a malfunction that causes damage to the catalytic converter in this driving condition (e.g. combustion
misfire). In this case, vehicle must only be driven at reduced power!
Exhaust Malfunction Indicator Lamp (MIL), checking
Function test of warning lamp
Switch ignition on.
Warning lamp for On Board Diagnostic (Malfunction Indicator Lamp -MIL-) must light up
Start engine.
Shortly after engine is started, the Malfunction Indicator Lamp (MIL) will go out if there are no
malfunctions stored in the DTC memory that relate to the emissions system
Safety precautions
Vehicle diagnostic, testing and information system VAS5051, connecting and select functions
Test requirements
Fuses for engine electronics OK
NOTE: The switch-on signal for the Malfunction Indicator Lamp (MIL) is transferred
from the Engine Control Module (ECM) to the instrument cluster via CAN-bus.
Check data exchange between the Engine Control Module (ECM) and other CAN
capable control modules. Refer to Data exchange between engine control
module and other CAN - control modules, checking
NOTE: The following points if testers and measuring instruments have to be used
during a road test:
WARNING:
Always install testers and measuring instruments on the back seat
and have a second person operate them from there.
If test equipment were operated from the front passenger seat, the
person sitting there could be injured if the front passenger airbag
were triggered in the event of an accident.
2005 Audi A4 Quattro
ENGINE PERFORMANCE 3.0 Liter 6-Cyl. 5V Fuel Injection & Ignition, Engine Code(s): AVK, BGN
12:18:17 AM Page 2
Refer to Electrical Wiring Diagrams, Troubleshooting & Component Locations
Battery voltage at least 12.7 V
Ground connections on engine and transmission OK.
Procedure
Switch ignition off.

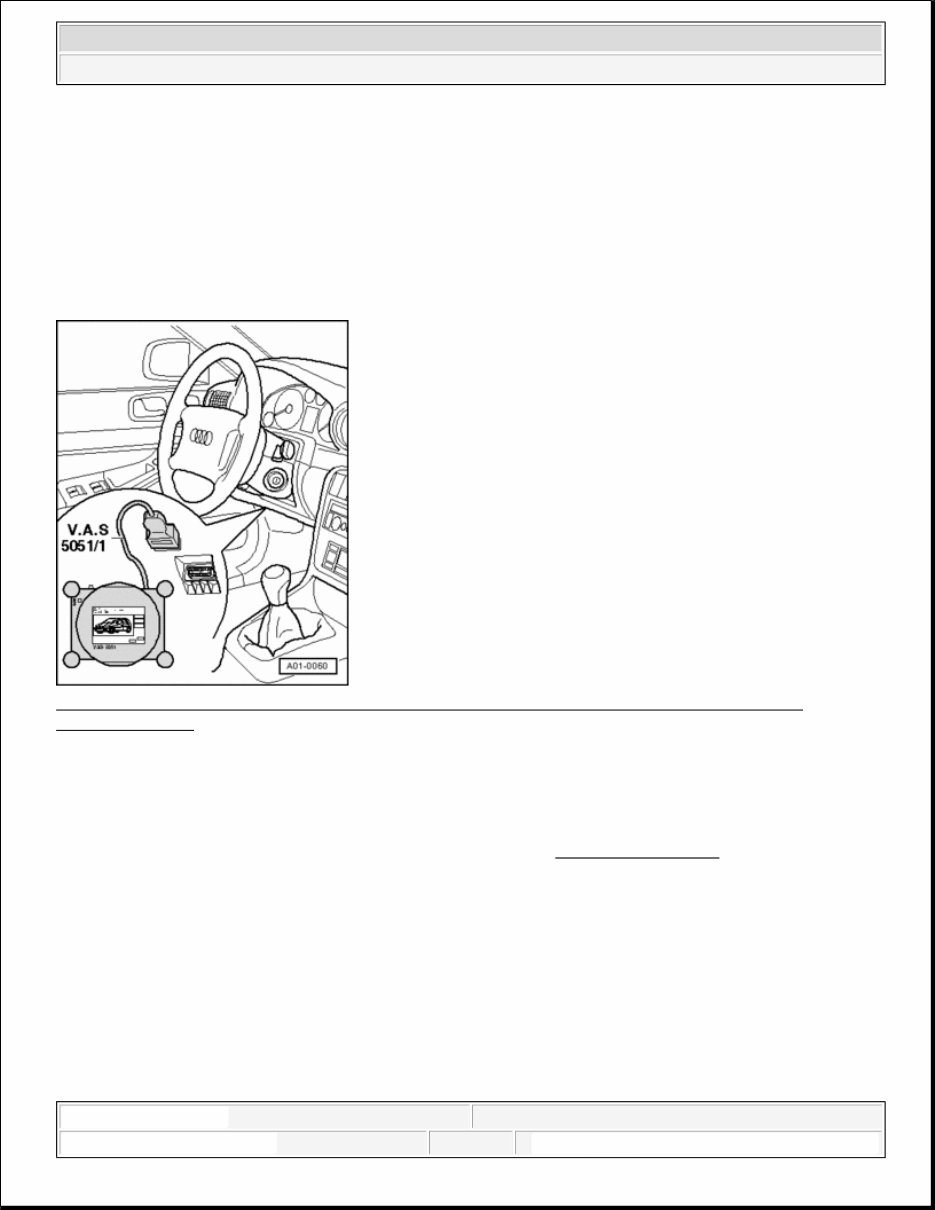

Fig. 1: Identifying Vehicle Diagnosis, Testing and Information System VAS 5051 and Data Link
Connector (DLC)
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Connect up vehicle diagnostic, testing and information system VAS5051 with diagnostic wire
VAS5051/1.
Refer to Operating instructions of vehicle diagnostic, testing and information system VAS5051
WARNING: Note the safety precautions. Refer to Safety precautions
NOTE: A DTC message appears on the display:
2005 Audi A4 Quattro
ENGINE PERFORMANCE 3.0 Liter 6-Cyl. 5V Fuel Injection & Ignition, Engine Code(s): AVK, BGN
12:18:17 AM Page 3
Fig. 2: Diagnostic System VAS 5051: Display
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Display on VAS5051:
Press "vehicle self-diagnosis" button.
Fig. 3: Diagnostic System VAS 5051: Display
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Display on VAS5051:
NOTE: The automatic test sequence is carried out by pressing "00 - Check Diagnostic
Trouble Code (DTC) memory - Total system" in selection -1-, i.e. the DTC
memories of all vehicle systems with On Board Diagnostic (OBD) capability are
checked.
2005 Audi A4 Quattro
ENGINE PERFORMANCE 3.0 Liter 6-Cyl. 5V Fuel Injection & Ignition, Engine Code(s): AVK, BGN
12:18:17 AM Page 4

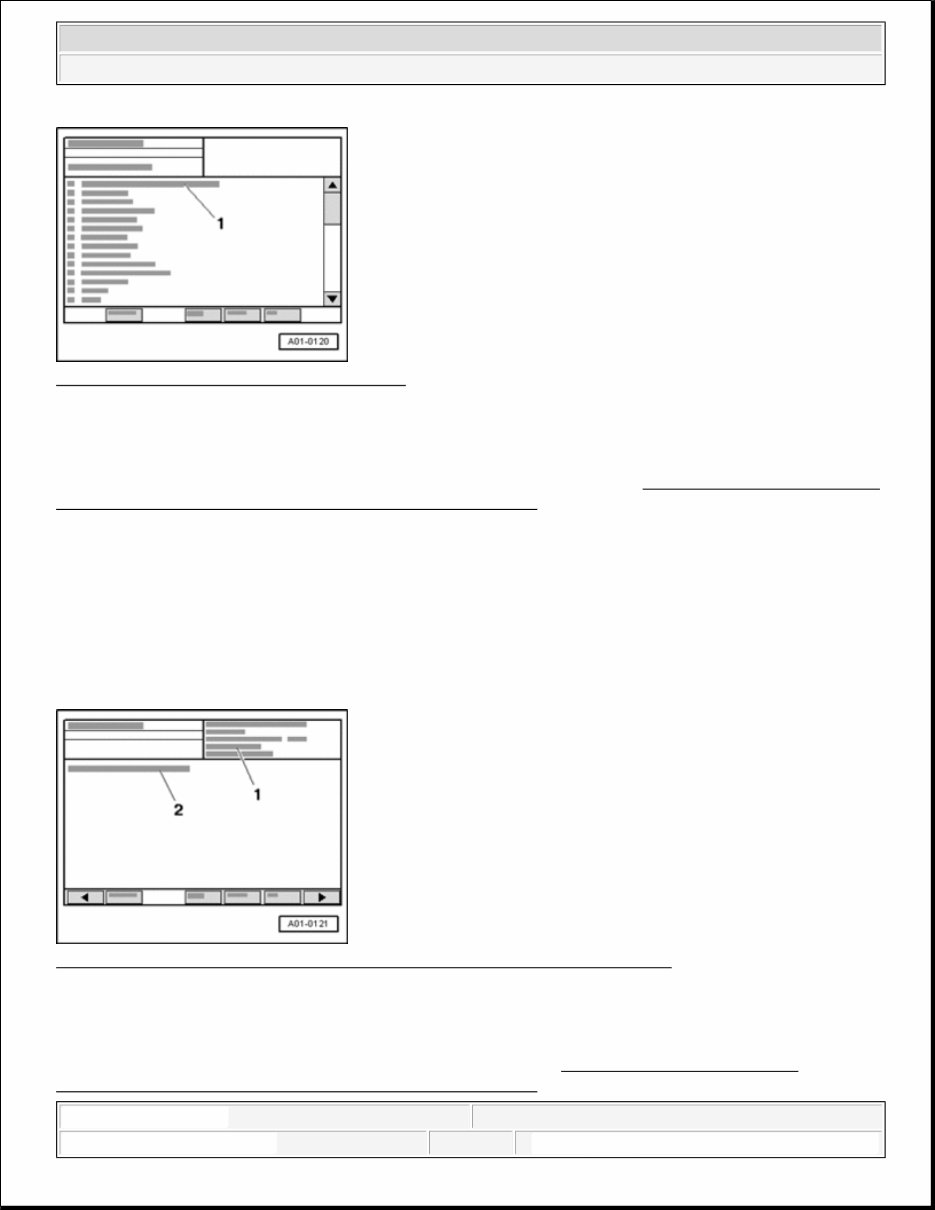

Fig. 4: Diagnostic System VAS 5051: Display
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Display on VAS5051:
Depending on which function is required "Diagnostic functions" table: Refer to Vehicle diagnostic, testing and
information system VAS5051, connecting and select functions :
Switch ignition on.
or
Start engine.
Select vehicle system "01 - Engine electronics" in selection -1-.
Wait until next display appears.
Fig. 5: VAS 5051 Tester Displaying Control Module Identification And Coding
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Display on VAS5051:
1 - Control module identification of engine control module. Refer to Vehicle diagnostic, testing and
information system VAS5051, connecting and select functions
2005 Audi A4 Quattro
ENGINE PERFORMANCE 3.0 Liter 6-Cyl. 5V Fuel Injection & Ignition, Engine Code(s): AVK, BGN
12:18:17 AM Page 5
2 - Control module identification of immobilizer. Refer to Vehicle diagnostic, testing and information system
VAS5051, connecting and select functions
Press delta button.

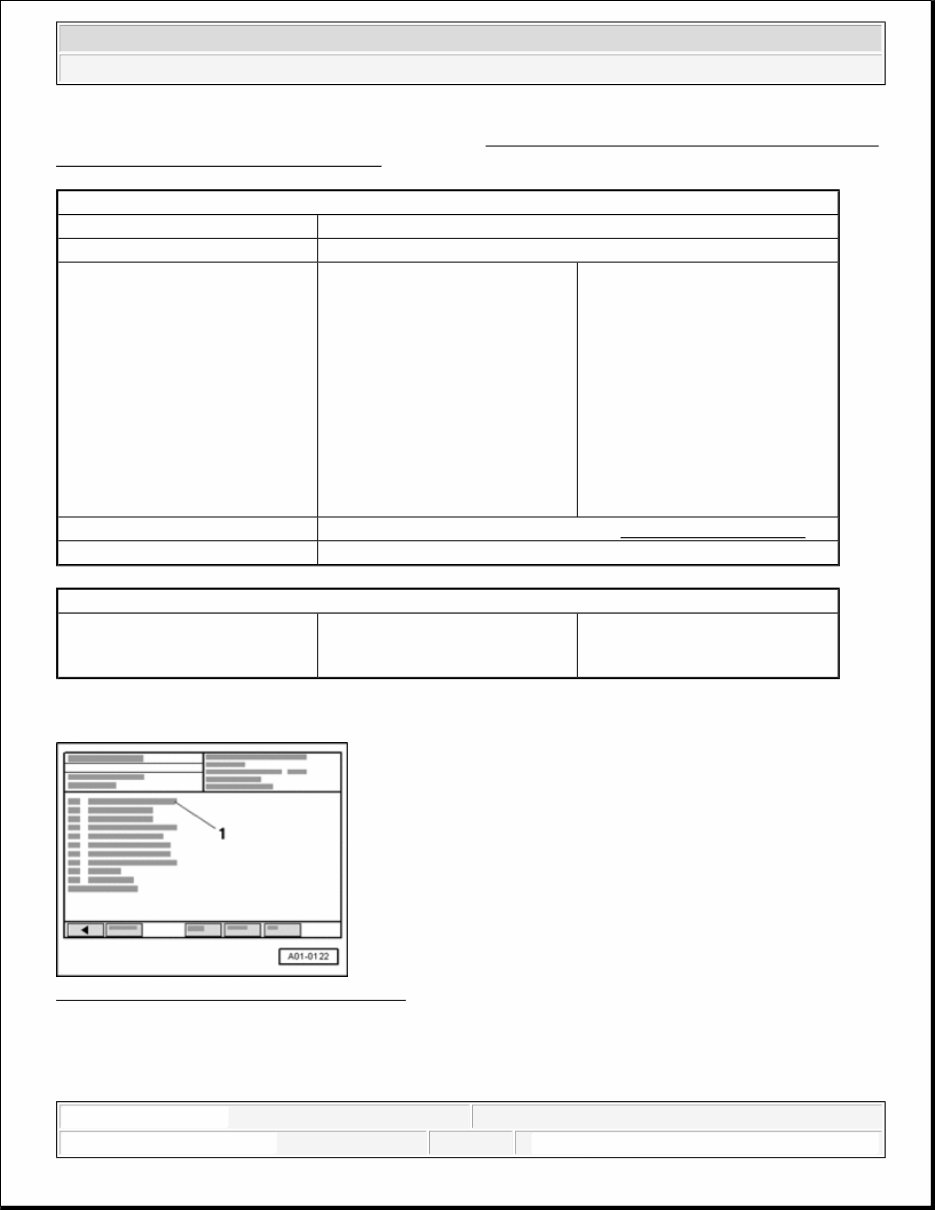

Fig. 6: Diagnostic System VAS 5051: Display
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Display on VAS5051:
1 - Selection of diagnostic functions:
Control module identification Engine control module (example)
01 - Engine electronics Vehicle system
8E0909559.. Part-No.; assignment
3.0 liter 1) V6/5 V 2) G 3) 0003 4) 1)
2)
3)
4)
Engine capacity
Engine, 6-cylinder/5-valve)
G = cruise control system
activated
No display = no cruise
control system or cruise
control system not activated
Control module data status
(software type)
Code 16751: Code of control module (check. Refer to Control module, coding )
Dealership No. 12345 Workshop code of VAS5051 with which coding was last performed
Control module identification, immobilizer (example)
WAUXXX8EX2A054321 1)
AUZ7Z0X1137197 2)
1)
2)
17-digit vehicle identification no.
(VIN)
14-digit ident no. for immobilizer
2005 Audi A4 Quattro
ENGINE PERFORMANCE 3.0 Liter 6-Cyl. 5V Fuel Injection & Ignition, Engine Code(s): AVK, BGN
12:18:17 AM Page 6
DIAGNOSTIC TROUBLE CODE (DTC) MEMORY
Diagnostic Trouble Code (DTC) memory, checking
Connect vehicle diagnostic, testing and information system VAS5051. Refer to Vehicle diagnostic,
testing and information system VAS5051, connecting and select functions and select vehicle system
"01 - Engine electronics" in selection. Engine should be idling.
Diagnostic functions Ignition on,
Engine stopped
Engine idling Vehicle running Refer to
02 Checking
Diagnostic
Trouble Code
(DTC) memory
No Yes Yes Refer to
Diagnostic
Trouble Code
(DTC) memory,
checking
03 Final control
diagnosis
Yes No No Refer to Output
Diagnostic Test
Mode (DTM)
04 Basic setting No Yes No Refer to Basic
setting
05 Erasing DTC
memory
Yes Yes Yes Refer to
Diagnostic
Trouble Code
(DTC) memory,
checking
06 End of output Yes Yes Yes Refer to Ending
output
07 Coding control
module
Yes No No Refer to Control
module, coding
08 Reading
measured value
block
Yes Yes Yes Refer to
Measured value
block, reading
09 Reading
individual
measured value
No No No -
10 Adaptation No Yes No Refer to
Adaptation
11 Coding II Yes No No Refer to Login
procedure or
coding II
NOTE: If the engine will not start, crank it for at least 5 seconds with the starter and
leave the ignition on.
2005 Audi A4 Quattro
ENGINE PERFORMANCE 3.0 Liter 6-Cyl. 5V Fuel Injection & Ignition, Engine Code(s): AVK, BGN
12:18:17 AM Page 7

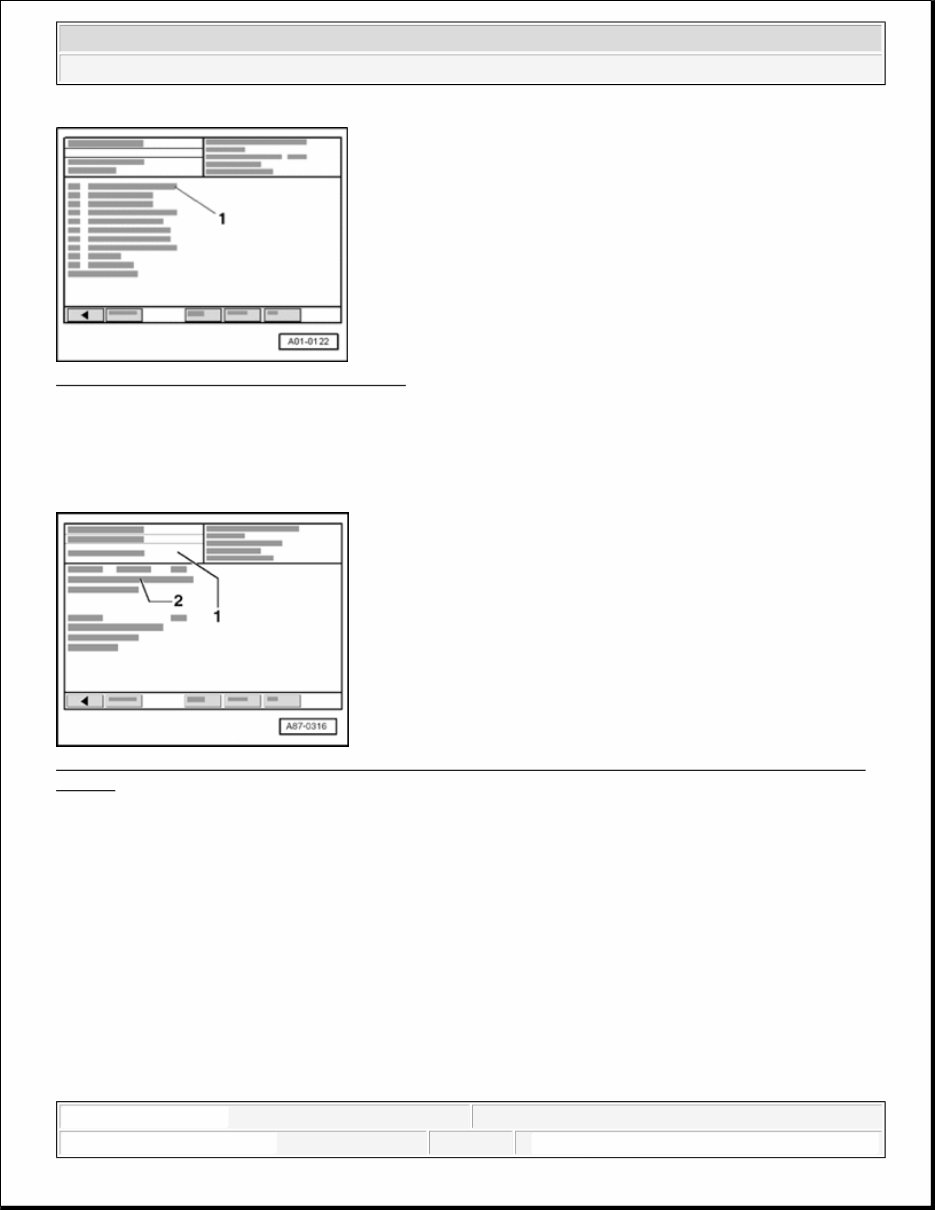

Fig. 7: Diagnostic System VAS 5051: Display
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Display on VAS5051:
Under -1- select diagnostic function "02 - check DTC memory".
Fig. 8: Identifying Content Of DTC Memory & Identification Of Fault On Diagnostic System VAS 5051
Display
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Display on VAS5051:
1 - Contents of DTC memory
0 Faults recognized
or
X Faults recognized
2 - Fault
Fault code
2005 Audi A4 Quattro
ENGINE PERFORMANCE 3.0 Liter 6-Cyl. 5V Fuel Injection & Ignition, Engine Code(s): AVK, BGN
12:18:17 AM Page 8
Fault location
Fault type
A - If malfunctions were recognized:
Print out screen content or On Board Diagnostic (OBD) report.
Exit function "02 - check DTC memory" by pressing <-- button.
Fig. 9: Diagnostic System VAS 5051: Display
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Display on VAS5051:
Repair DTC(s) as specified in DTC table. Refer to Diagnostic Trouble Code (DTC) table .
Reselect diagnostic function "02 - Check DTC memory" and erase the DTC memory. Refer to Diagnostic
Trouble Code (DTC) memory, erasing .
Select diagnostic function "06 - End output" in selection. Refer to Ending output .
B - If no malfunction was recognized:
Select diagnostic function "06 - End output" in selection. Refer to Ending output .
Diagnostic Trouble Code (DTC) memory, erasing
Requirements
DTC memory checked. Refer to Diagnostic Trouble Code (DTC) memory, checking .
All malfunctions repaired.
After DTC memory has been successfully checked:
NOTE: If it is not possible to erase DTC memory, check it once again and remedy
malfunctions.
2005 Audi A4 Quattro
ENGINE PERFORMANCE 3.0 Liter 6-Cyl. 5V Fuel Injection & Ignition, Engine Code(s): AVK, BGN
12:18:17 AM Page 9
Fig. 10: Diagnostic System VAS 5051: Display
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Display on VAS5051:
Under -1- select diagnostic function "05 - Erase DTC memory".
Fig. 11: Diagnostic System VAS 5051: Display
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Display on VAS5051:
No display (before erasing)
or
DTC memory erased
NOTE: The following message appears in display zone -1-: "DTC memory not yet
checked", if the operational sequence was not adhered to exactly. If the DTC
memory has been checked beforehand, the DTC memory can only be erased.
NOTE: Should the function be carried out?
2005 Audi A4 Quattro
ENGINE PERFORMANCE 3.0 Liter 6-Cyl. 5V Fuel Injection & Ignition, Engine Code(s): AVK, BGN
12:18:17 AM Page 10
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Offline Viewing
Access Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$52.99
Viewed 31 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Offline Viewing
Access Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$52.99
The 2006 Audi A4 Avant Download Service & Repair Manual is an essential resource for Audi A4 Avant owners who want to maintain and repair their vehicles.
This manual provides detailed instructions and diagrams for performing a wide range of maintenance and repair tasks on the 2006 Audi A4 Avant. Whether you need to change the oil, replace a spark plug, or fix a faulty electrical component, this manual will guide you through the process.
With the 2006 Audi A4 Avant Download Service & Repair Manual, you can save money by performing basic maintenance and repairs yourself. Instead of taking your vehicle to a costly mechanic, you'll have the knowledge and instructions to tackle the job on your own.
Features of the 2006 Audi A4 Avant Download Service & Repair Manual include:
- Detailed step-by-step instructions for a wide range of maintenance and repair tasks
- Clear diagrams and illustrations to aid in the understanding of procedures
- Specifications and technical data for various components of the vehicle
- Troubleshooting guides to help diagnose and solve common issues
- Information on recommended tools and equipment for each task
Whether you're a seasoned mechanic or a novice DIY enthusiast, the 2006 Audi A4 Avant Download Service & Repair Manual is a valuable resource to have on hand. It will help you keep your Audi A4 Avant running smoothly and ensure you're able to address any maintenance or repair needs that arise.
