SPECIAL CAUTIONS
AIR BAGS
Refer to Procedure Explanation 29 for Supplemental Restraint/Air
Bag Special Cautions.
ABS
Manufacturer advises that ABS Control Unit be disconnected
before welding and removed if a temperature of 85 degrees C (185
degrees F) is to be exceeded for more than two hours.
REFINISH BAKING
Manufacturer advises that after baking, sufficient cooling time
should be allowed before attempting to start vehicle.
SUSPENSION
Manufacturer advises that some new fasteners must be used
whenever old fasteners are loosened or removed.
PAINT CODE
LOCATION
Paint code located in luggage compartment.
CLEAR COAT
IDENTIFICATION
All colors except Laser Red (Code LY3H) and Casablanca White
are clear coat.
INFORMATION LABELS
NOTE: Emission and Vacuum Routing Labels must be special
ordered from dealer by supplying description, VIN and owner
information.
Label, Engine Warning 4A0 010 114 S $3.30
Label, Unleaded Fuel Only 034 010 105 K $3.30
Label
Premium Unleaded Fuel Only 030 010 046 F $6.00
Catalyst Damage-Oil Level 037 010 049 R $6.00
Label, Air Bag Renewal 443 010 111 G $19.80
Label, Air Bag 4A0 010 129 C $3.30
Label, Alarm 4D0 010 138 E $3.30
Label, A/C Refrigerant 8A0 010 126 N $6.00
Label, Differential Level 4A0 010 137 K $8.40
Label, Tire Pressure 8D0 010 138 J $1.80

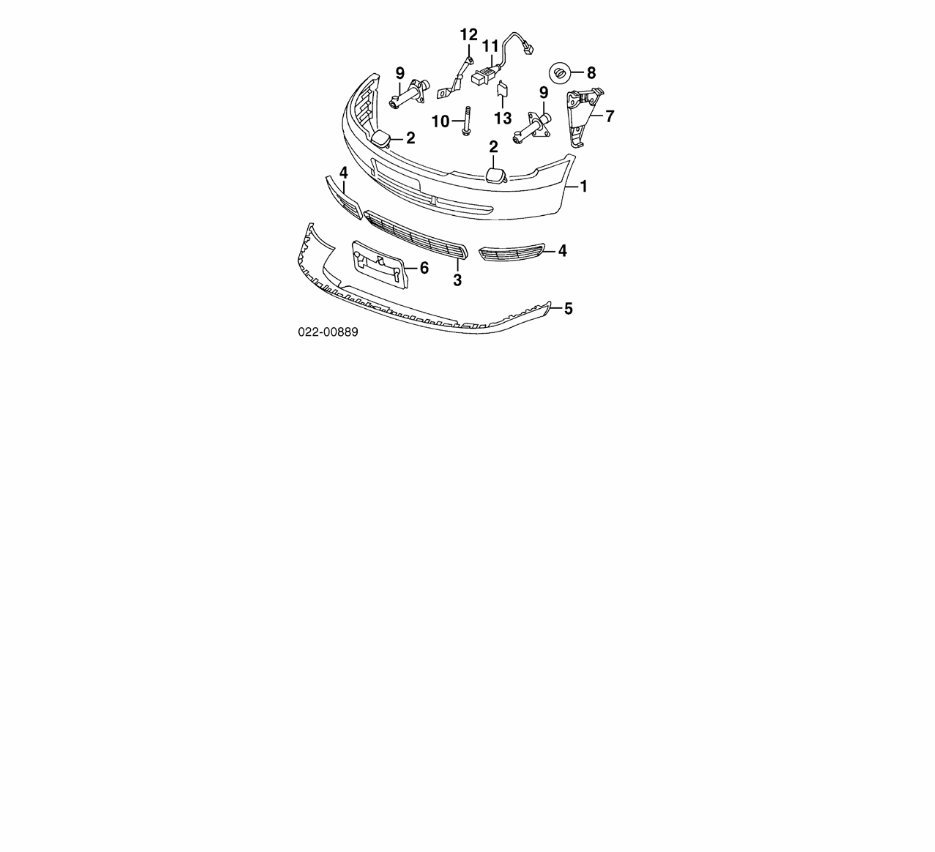

FRONT BUMPER
Use Procedure Explanations 1 and 28
with the following text.
1996-2002 Audi A4, S4
Page 1 of 240
Refinish Front Cover #1.7
#Includes Refinish Washer Nozzle Caps
Refinish Washer Nozzle Cap R .2
L .2
Refinish Cover Outer Grille R .5
L .5
Refinish License Trim Cover .3
R&I Bumper Assy #.8
O/H Bumper Assy (Includes R&I) #2.4
#Includes R&I/R&R Engine Under Cover Pan
Add to R&R or O/H Front Bumper
w/Fog Lamps .4
NOTE: All Parts in this section are included in overhaul unless
noted otherwise.
1 Cover, Front (P)
A4 8D0 807 103 S GRU $695.00 #2.4
S4 8D0 807 103 J GRU $695.00 #2.4
#Includes R&I/R&R Engine Under Cover Pan
2 Cap, Washer Nozzle (P) R 8D0 955 276 GRU $29.10
L 8D0 955 275 GRU $29.10
(P) Paint to Match
3 Grille, Cover Center
A4 8D0 807 683 C 3FZ $70.00 .3
S4 8D0 807 683 G 3FZ $70.00 .3
4 Grille, Cover Outer
A4
4 Cyl
1996-98 R 8D0 807 346 H 3FZ $60.50 .2
L 8D0 807 345 A 3FZ $62.00 .2
Page 2 of 240
1999
To VIN X199999 R 8D0 807 346 H 3FZ $60.50 .2
L 8D0 807 345 A 3FZ $62.00 .2
From VIN X200001 R 8D0 807 346 R 3FZ $57.00 .2
L 8D0 807 345 S 3FZ $58.00 .2
2000 R 8D0 807 346 R 3FZ $57.00 .2
L 8D0 807 345 S 3FZ $58.00 .2
2001-02 R 8D0 807 346 R 3FZ $57.00 .2
L 8D0 807 345 S 3FZ $58.00 .2
6 Cyl
1996-98 R 8D0 807 346 H 3FZ $60.50 .2
L 8D0 807 345 C 3FZ $62.00 .2
1999
To VIN X199999 R 8D0 807 346 H 3FZ $60.50 .2
L 8D0 807 345 A 3FZ $62.00 .2
From VIN X200001 R 8D0 807 346 R 3FZ $57.00 .2
L 8D0 807 345 R 3FZ $58.00 .2
2000 R 8D0 807 346 R 3FZ $57.00 .2
L 8D0 807 345 R 3FZ $58.00 .2
2001-02 R 8D0 807 346 R 3FZ $57.00 .2
L 8D0 807 345 R 3FZ $58.00 .2
S4 (P) R 8D0 807 346 L GRU $82.00 .2
L 8D0 807 345 L GRU $82.00 .2
(P) Paint to Match
5 Spoiler, Bumper 8D0 807 110 L 3FZ $97.50 #.3
#w/Front Bumper Cover Removed
6 Brkt, License Plate
A4 8D0 807 285 3FZ $148.00 .2
S4 8D0 807 285 C 3FZ $142.00 .2
Cover, License Trim (P)
S4 8D0 807 977 GRU $170.00 .1
(P) Paint to Match
7 Brkt, Guide
1996-98 R 8D0 807 284 $24.30 IOH
L 8D0 807 283 $24.30 IOH
1999
To VIN X199999 R 8D0 807 284 $24.30 IOH
L 8D0 807 283 $24.30 IOH
From VIN X200001 R 8D0 807 284 A $24.30 IOH
L 8D0 807 283 A $24.30 IOH
2000-02 R 8D0 807 284 A $24.30 IOH
L 8D0 807 283 A $24.30 IOH
8 Nut, Expanding (3/Side)
1996-98 R 441 807 300 A $2.00
L 441 807 300 A $2.00
1999
To VIN X199999 R 441 807 300 A $2.00
Page 3 of 240
L 441 807 300 A $2.00
From VIN X200001 R 443 807 300 A $1.00
L 443 807 300 A $1.00
2000-02 R 443 807 300 A $1.00
L 443 807 300 A $1.00
9 Absorber, Impact
A4 R 8D0 807 272 $200.00 #.3
L 8D0 807 271 $200.00 #.3
S4 R 8D0 807 134 C $132.00 #.3
L 8D0 807 133 C $132.00 #.3
#w/Front Bumper Assy Removed, Not Included in O/H
10 Bolt, Mounting R N 903 509 01 $4.70
L N 903 509 01 $4.70
11 Sensor, Outside Temp 8D0 820 535 $39.00 #1.0
#Includes R&I Bumper Assy & R&I/R&R Under Cover Pan
12 Brkt, Sensor 8D0 820 536 C $11.50
13 Clamp, Sensor N 902 455 02 $0.50

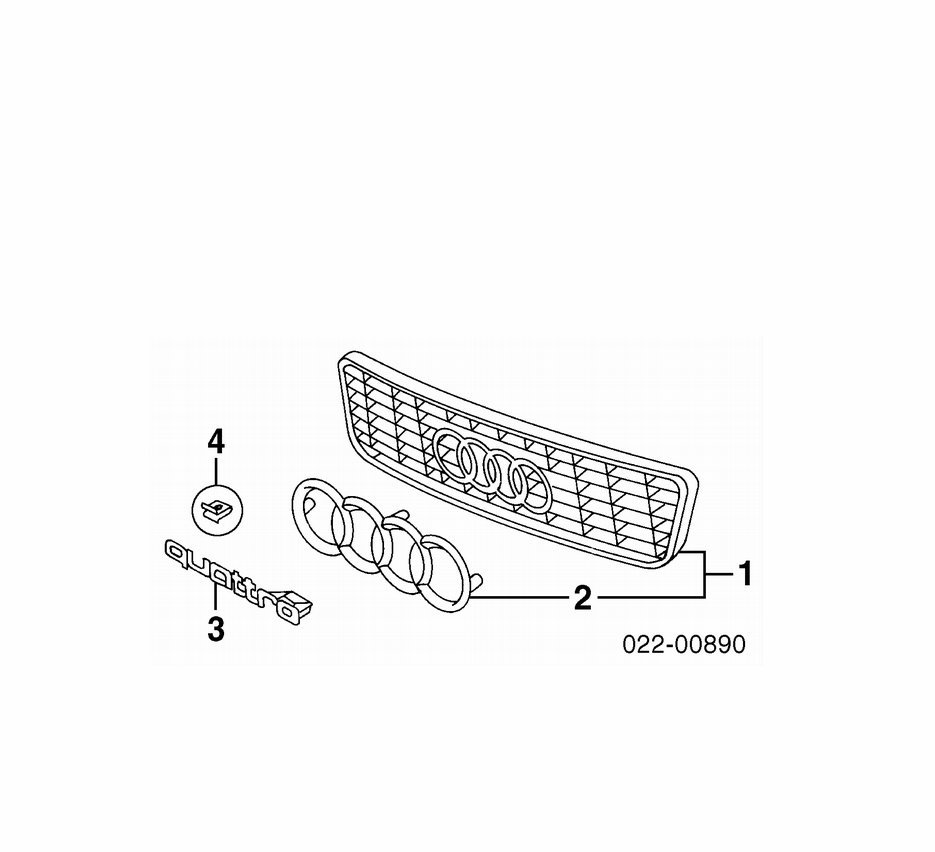

GRILLE
R&I Grille Assy #.3
#Included in R&R Hood
1 Grille Assy
A4
1996-98 8D0 853 651 J 3FZ $125.00 #.3
1999
To VIN X199999 8D0 853 651 J 3FZ $125.00 #.3
From VIN X200001 8D0 853 651 R 3FZ $122.00 #.3
2000-02 8D0 853 651 R 3FZ $122.00 #.3
Page 4 of 240
S4 00 8D0 853 651 S 3SR $225.00 #.3
01-02 8D0 853 651 AA 3SR $325.00 #.3
#Included in R&R Hood
2 Emblem, Grille 8D0 853 605 $57.00 .2
Included w/Grille Assy
3 Nameplate
"Quattro"
1996-98 8D0 853 736 2ZZ $39.00 .2
1999
To VIN X199999 8D0 853 736 2ZZ $39.00 .2
From VIN X200001 8D0 853 736 D 2ZZ $39.00 .2
2000-02 8D0 853 736 D 2ZZ $39.00 .2
"S4" 00 8D0 853 736 C 2ZZ $58.00 .2
01-02 8D0 853 736 E 2ZZ $39.00 .2
4 Clip, Nameplate (2) 8L0 807 180 $3.90
FRONT LAMPS
COMBINATION LAMP

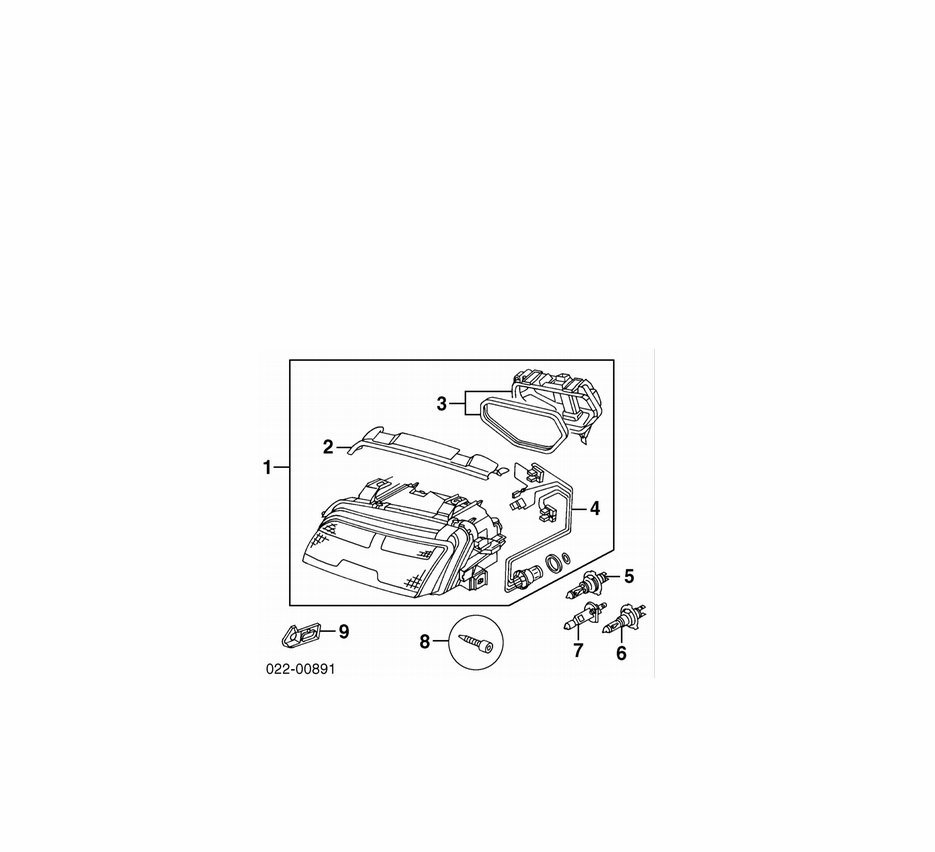

COMBINATION LAMP 1996-98
Aim Lamps .4
R&I Combination Lamp Assy R #.4
L #.4
#Includes R&I/R&R Park/Signal Lamp
NOTE: R&R Does Not include aim lamps.
1 Lamp Assy, Combination R 8D0 941 030 E $440.00 #.6
L 8D0 941 029 E $470.00 #.6
#Includes R&I/R&R Park/Signal Lamp
2 Trim, Lamp R 8D0 941 192 $20.20
Page 5 of 240
L 8D0 941 191 $20.20
3 Cap, Protective R 8D0 941 159 A $24.30
L 8D0 941 159 A $24.30
4 Harness, Lamp R 8D0 941 951 $51.90
L 8D0 941 951 $51.90
Included w/Combination Lamp Assy
5 Bulb, Halogen High Beam R N 103 201 01 $19.80 #.2
L N 103 201 01 $19.80 #.2
6 Bulb, Halogen Low Beam R N 103 201 01 $19.80 #.2
L N 103 201 01 $19.80 #.2
7 Bulb, Fog Lamp R N 017 761 2 $8.20 #.2
L N 017 761 2 $8.20 #.2
#R&R Each Additional Bulb .1, Included in R&R Lamp Assy
8 Screw, Mounting (4/Side) R N 903 694 02 $0.50
L N 903 694 02 $0.50
9 Brkt, Mounting R 8D0 941 454 $45.30
L 8D0 941 453 $45.30
COMBINATION LAMP
COMBINATION LAMP 1999 TO
VIN X199999
Aim Lamps .4
R&I Combination Lamp Assy R #.4
L #.4
#Includes R&I/R&R Park/Signal Lamp
NOTE: R&R Does Not include aim lamps.
1 Lamp Assy, Combination R 8D0 941 030 E $440.00 #.6
L 8D0 941 029 E $470.00 #.6
#Includes R&I/R&R Park/Signal Lamp
2 Trim, Lamp R 8D0 941 192 $20.20
L 8D0 941 191 $20.20
3 Cap, Protective R 8D0 941 159 A $24.30
L 8D0 941 159 A $24.30
4 Harness, Lamp R 8D0 941 951 $51.90
L 8D0 941 951 $51.90
Included w/Combination Lamp Assy
5 Bulb, Halogen High Beam R N 103 201 01 $19.80 #.2
L N 103 201 01 $19.80 #.2
6 Bulb, Halogen Low Beam R N 103 201 01 $19.80 #.2
L N 103 201 01 $19.80 #.2
7 Bulb, Fog Lamp R N 017 761 2 $8.20 #.2
L N 017 761 2 $8.20 #.2
#R&R Each Additional Bulb .1, Included in R&R Lamp Assy
8 Screw, Mounting (4/Side) R N 903 694 02 $0.50
L N 903 694 02 $0.50
9 Brkt, Mounting R 8D0 941 454 $45.30
L 8D0 941 453 $45.30
Page 6 of 240

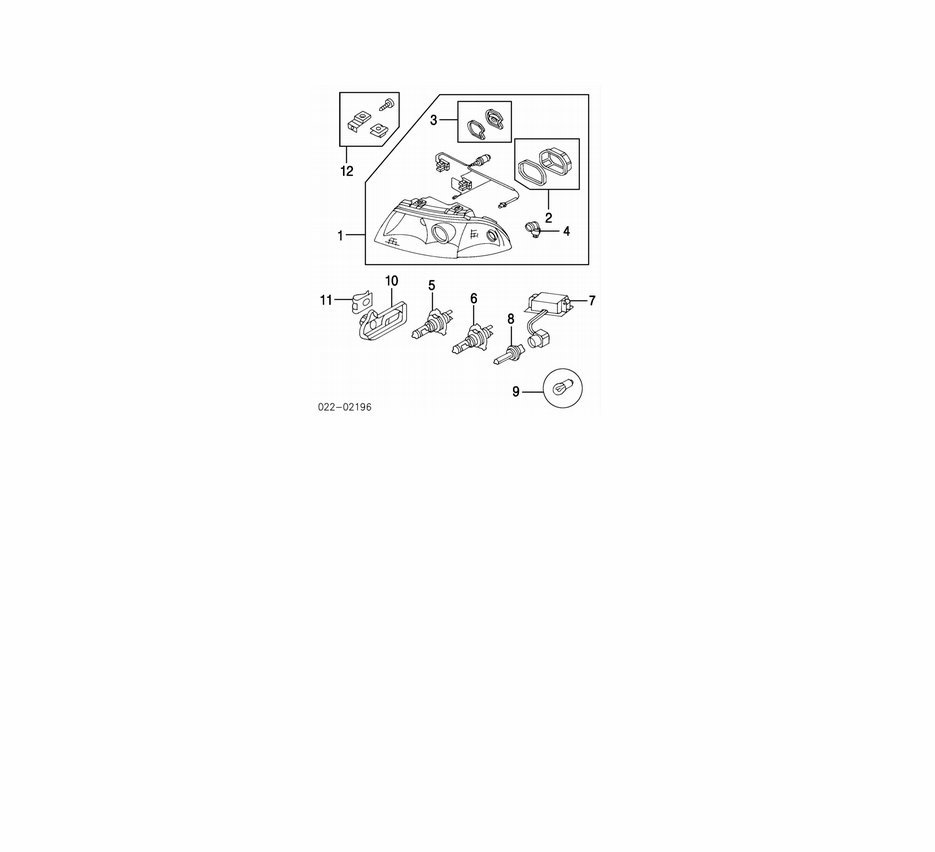

COMBINATION LAMP
COMBINATION LAMP 1999
FROM VIN X200001
Aim Lamps .4
R&I Combination Lamp Assy R .4
L .4
NOTE: R&R Does Not include aim lamps.
1 Lamp Assy, Combination
Halogen R 8D0 941 030 AQ $375.00 .6
L 8D0 941 029 AQ $400.00 .6
Halogen/Xenon R 8D0 941 030 AR $575.00 .6
L 8D0 941 029 AR $575.00 .6
2 Cap, High Beam Protective R 8D0 941 159 F $29.10
L 8D0 941 159 E $29.10
3 Cap, Low Beam Protective R 8D0 941 159 D $29.10
L 8D0 941 159 D $29.10
4 Socket, Bulb R 8D0 953 053 B $33.90
L 8D0 953 053 B $33.90
Included w/Combination Lamp Assy
5 Bulb, Halogen High Beam R N 103 201 01 $19.80 #.2
L N 103 201 01 $19.80 #.2
6 Bulb, Halogen Low Beam R N 103 201 01 $19.80 #.2
L N 103 201 01 $19.80 #.2
#R&R Each Additional Bulb .1, Included in R&R Lamp Assy
7 Igniter, Xenon R 8D0 907 391 A $501.00
L 8D0 907 391 A $501.00
8 Bulb, Xenon R N 104 457 01 $160.00 #.2
Page 7 of 240
L N 104 457 01 $160.00 #.2
9 Bulb, Signal R N 901 298 01 $5.50 #.2
L N 901 298 01 $5.50 #.2
#R&R Each Additional Bulb .1, Included in R&R Lamp Assy
10 Bracket, Mounting R 8D0 941 454 $45.30
L 8D0 941 453 $45.30
11 Nut, Spring R N 901 686 04 $1.07
L N 901 686 04 $1.07
As Required
12 Repair Kit, Housing R 8D0 998 122 $57.00 #.3
L 8D0 998 121 A $57.00 #.3
#w/Combination Lamp Assy Removed

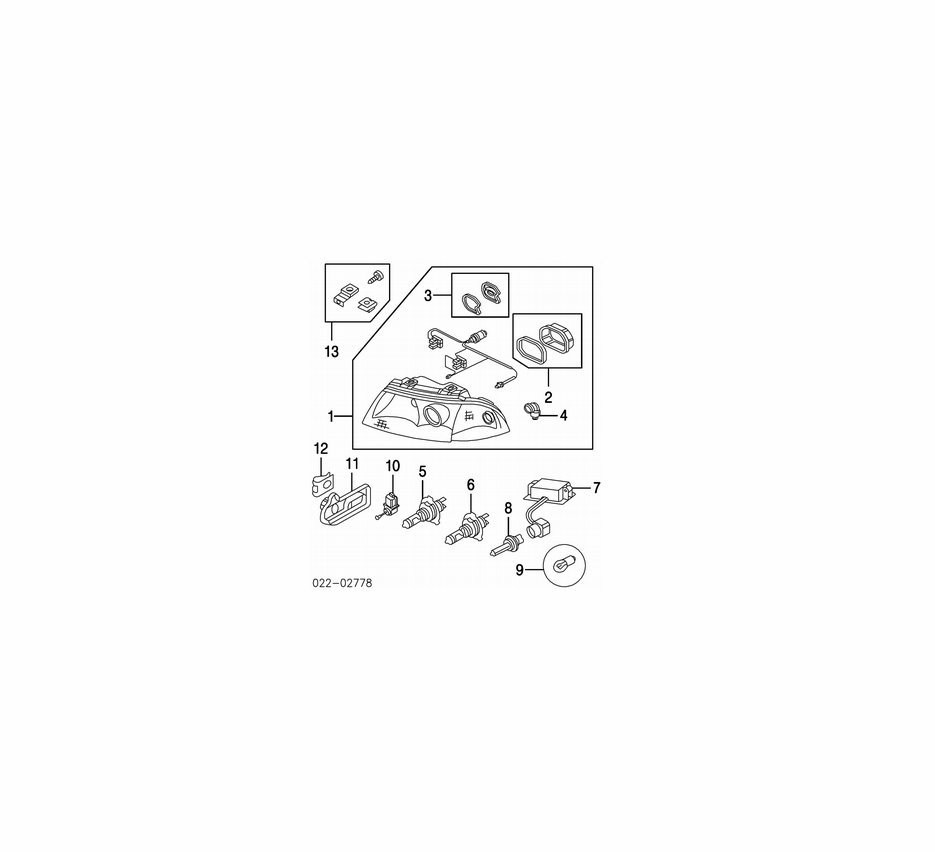

COMBINATION LAMP
COMBINATION LAMP 2000-02
Aim Lamps .4
R&I Combination Lamp Assy R .4
L .4
NOTE: R&R Does Not include aim lamps.
1 Lamp Assy, Combination
Halogen R 8D0 941 030 AQ $375.00 .6
L 8D0 941 029 AQ $400.00 .6
Halogen/Xenon R 8D0 941 030 AR $575.00 .6
L 8D0 941 029 AR $575.00 .6
2 Cap, High Beam Protective R 8D0 941 159 F $29.10
L 8D0 941 159 E $29.10
3 Cap, Low Beam Protective R 8D0 941 159 D $29.10
L 8D0 941 159 D $29.10
Page 8 of 240
4 Socket, Bulb R 8D0 953 053 B $33.90
L 8D0 953 053 B $33.90
Included w/Combination Lamp Assy
5 Bulb, Halogen High Beam R N 103 201 01 $19.80 #.2
L N 103 201 01 $19.80 #.2
6 Bulb, Halogen Low Beam R N 103 201 01 $19.80 #.2
L N 103 201 01 $19.80 #.2
#R&R Each Additional Bulb .1, Included in R&R Lamp Assy
7 Igniter, Xenon R 8D0 907 391 A $501.00
L 8D0 907 391 A $501.00
8 Bulb, Xenon R N 104 457 01 $160.00 #.2
L N 104 457 01 $160.00 #.2
9 Bulb, Signal R N 901 298 01 $5.50 #.2
L N 901 298 01 $5.50 #.2
#R&R Each Additional Bulb .1, Included in R&R Lamp Assy
10 Motor, Adjustment R 1J0 941 295 B $68.50
L 1J0 941 295 B $68.50
11 Bracket, Mounting R 8D0 941 454 $45.30
L 8D0 941 453 $45.30
12 Nut, Spring R N 901 686 04 $1.07
L N 901 686 04 $1.07
As Required
13 Repair Kit, Housing R 8D0 998 122 $57.00 #.3
L 8D0 998 121 A $57.00 #.3
#w/Combination Lamp Assy Removed

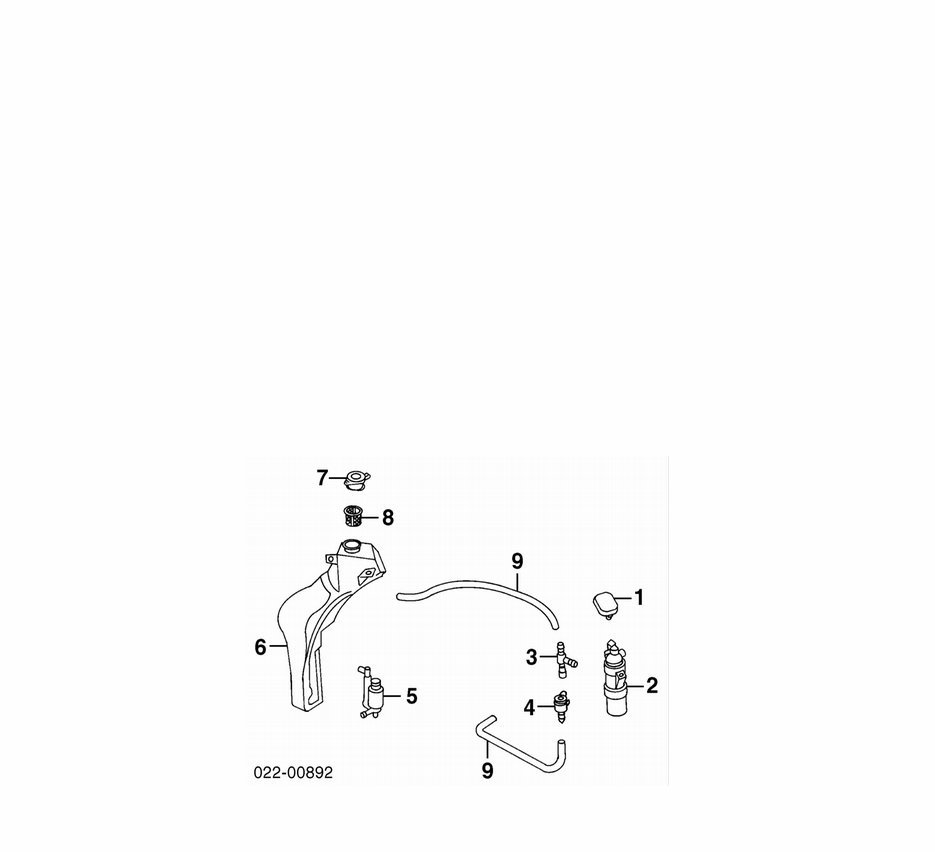

HEADLAMP WASHER
1 Cap, Washer Nozzle-See Front Bumper Section
2 Cylinder, Pressure R 8D0 955 101 $140.00 #.2
Page 9 of 240
L 8D0 955 101 $140.00 #.2
#w/Front Bumper Cover Removed
3 Tee, Hose 8D0 955 873 $8.40
4 Connector, Hose 4B0 955 873 $11.50
5 Pump, Washer
FWD 96-97 4A0 955 651 B $110.00 #.8
98-02 1J0 955 681 $63.77 #.8
AWD Quattro 1J0 955 681 $63.77 #.8
6 Reservoir, Washer 8D0 955 453 A $99.00 #.8
Order by Application
#R&R Complete
7 Cap, Reservoir 1K0 955 455 $8.40
8 Filter, Reservoir 1C0 955 485 $6.00
9 Hose, Washer N.A.
Cut to Fit

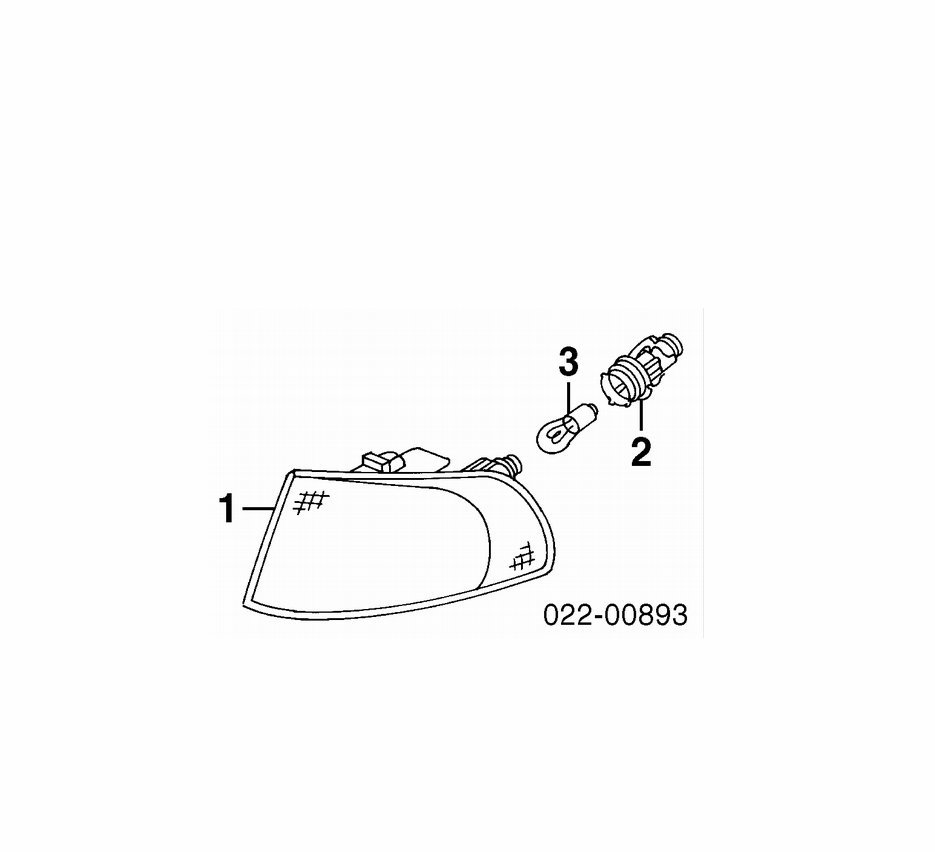

PARK/SIGNAL/SIDE MARKER
LAMP
R&I Park/Signal/Side Marker Lamp R #.2
L #.2
#Included in R&I/R&R Headlamp & Fender
1 Lamp, Park/Signal/Side Marker
Right 96-99 8D0 953 050 B $80.00 #.2
Left 96-99 8D0 953 049 B $80.00 #.2
#Included in R&I/R&R Headlamp & Fender
2 Socket, Bulb 96-99 R 8D0 953 053 $33.90
L 8D0 953 053 $33.90
3 Bulb 96-99 R N 901 298 01 $5.50
L N 901 298 01 $5.50
Page 10 of 240
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$28.99
1996-2002 Audi A4/S4 Parts Catalog
Viewed 50 Times Today
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$28.99
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
Description
Discover our comprehensive 1996 - 2002 AUDI A4 Parts LIST CATALOG, featuring a wide range of parts tailored for AUDI A4 models across seven model years.
- Model Year: 1996
- Model Year: 1997
- Model Year: 1998
- Model Year: 1999
- Model Year: 2000
- Model Year: 2001
- Model Year: 2002
Whether you're a professional mechanic or a DIY enthusiast, this catalog is an invaluable resource for sourcing genuine parts essential for maintaining and repairing your AUDI A4.
Each part is meticulously categorized and listed, simplifying the process of identifying and acquiring the precise component required for your AUDI A4. From engine elements to interior components, our catalog encompasses a wide array of parts.
Rest assured, all the parts featured in our catalog are authentic and of superior quality. We recognize the significance of utilizing genuine parts to uphold the peak performance and durability of your AUDI A4.
Ensure the continued performance and dependability of your vehicle. Acquire our 1996 - 2002 AUDI A4 Parts LIST CATALOG today and secure the ideal parts to uphold the seamless operation of your AUDI A4.
