Cruise Control - TL
COMPONENT LOCATION INDEX

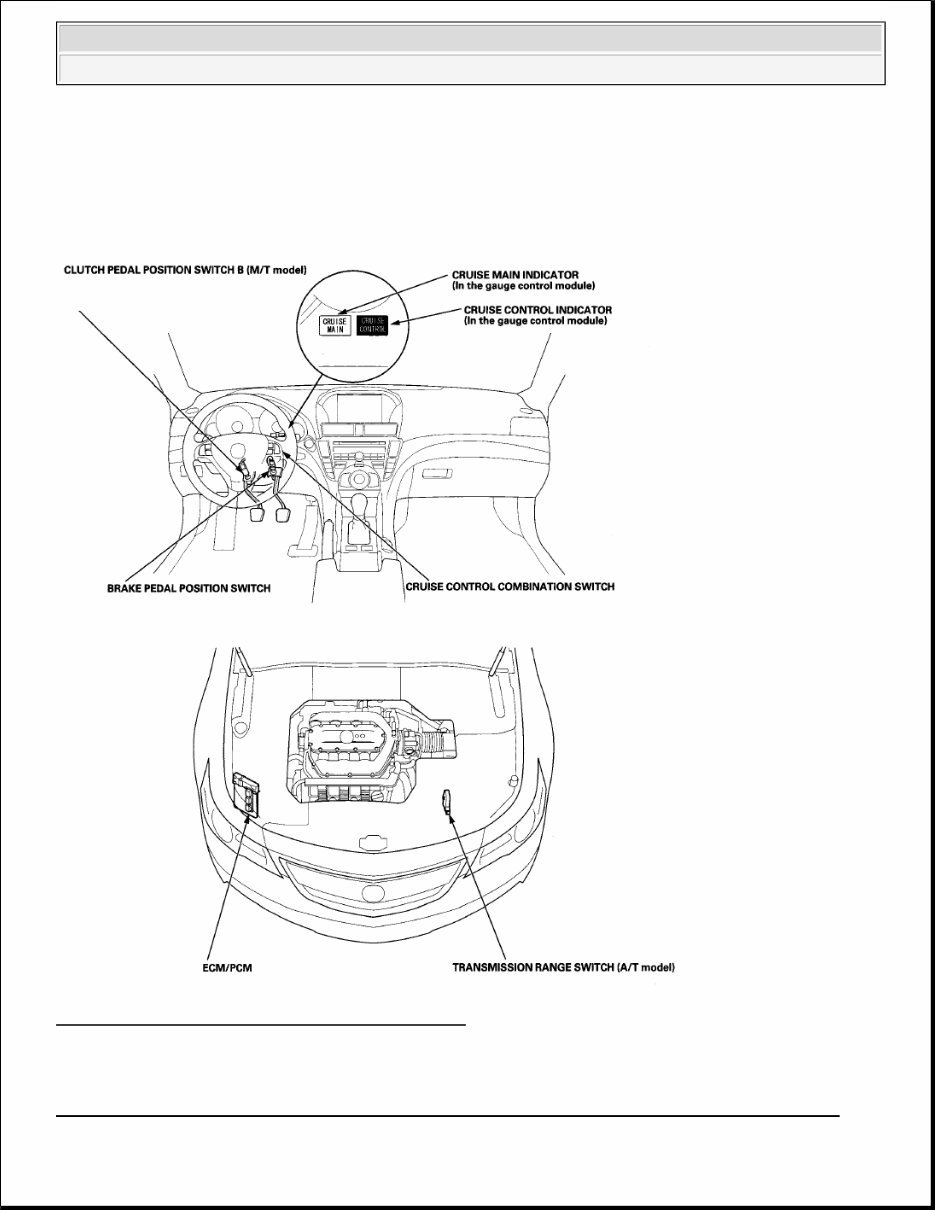

Fig. 1: Cruise Control System Components Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
SYMPTOM TROUBLESHOOTING INDEX
2012 Acura TL SH-AWD
2012 ACCESSORIES & EQUIPMENT Cruise Control - TL
Symptom Diagnostic procedure Also check for
Cruise control cannot be set
1. Check for PGM-FI DTCs (see
GENERAL TROUBLESHOOTING
INFORMATION ).
2. Check the No. 10 (20 A) fuse in the
under-hood fuse/relay box, and the No.
13 (15 A) fuse in the driver's under-dash
fuse/relay box.
3. Do the cruise control combination switch
test (see CRUISE CONTROL
COMBINATION SWITCH
TEST/REPLACEMENT ).
4. Do the cruise control input test (see
CRUISE CONTROL INPUT TEST ).
Poor ground G301
(M/T model) or G101
(A/T model)
Cruise control can be set, but the
cruise main indicator does not
come on
1. Do the gauge control module self-
diagnostic function procedure (see
SELF - DIAGNOSTIC FUNCTION ).
2. Do the cruise control input test (see
CRUISE CONTROL INPUT TEST ).
Test the cruise control main switch
signal input.
3. Check for PGM-FI DTCs (see
GENERAL TROUBLESHOOTING
INFORMATION ).
Faulty gauge control
module
Cruise control can be set, but the
cruise control indicator does not
come on
1. Do the gauge control module self-
diagnostic function procedure (see
SELF - DIAGNOSTIC FUNCTION ).
2. Do the cruise control input test (see
CRUISE CONTROL INPUT TEST ).
Test the cruise control indicator signal
input.
3. Check for PGM-FI DTCs (see
GENERAL TROUBLESHOOTING
INFORMATION ).
Faulty gauge control
module
Vehicle does not accelerate
accordingly when the resume/accel
button is pressed
1. Do the cruise control combination switch
test (see CRUISE CONTROL
COMBINATION SWITCH
TEST/REPLACEMENT ).
2. Do the cruise control input test (see
CRUISE CONTROL INPUT TEST ).
Test the resume/accel switch signal
input.
3. Check for PGM-FI DTCs (see
GENERAL TROUBLESHOOTING
Open circuit, loose or
disconnected
terminals: ORN or
GRY wire
2012 Acura TL SH-AWD
2012 ACCESSORIES & EQUIPMENT Cruise Control - TL
INFORMATION ).
Set speed does not cancel when the
brake pedal is pressed
1. Do the brake pedal position switch test
(see BRAKE PEDAL POSITION
SWITCH TEST ).
2. Do the cruise control input test (see
CRUISE CONTROL INPUT TEST ).
Test the brake pedal position switch
signal input.
3. Check for PGM-FI DTCs (see
GENERAL TROUBLESHOOTING
INFORMATION ).
Short to power
on the ORN
wire
Faulty brake
pedal position
switch
Set speed does not cancel (engine
RPM stays high) when the clutch
pedal is pressed (M/T model)
1. Do the clutch pedal position switch B
test (see CLUTCH PEDAL POSITION
SWITCH B TEST ).
2. Do the cruise control input test (see
CRUISE CONTROL INPUT TEST ).
Test the clutch pedal position switch B
signal input.
3. Check for PGM-FI DTCs (see
GENERAL TROUBLESHOOTING
INFORMATION ).
Short to ground in
the BRN wire
Set speed does not cancel when the
cruise control main button is
pressed
1. Do the cruise control combination switch
test (see CRUISE CONTROL
COMBINATION SWITCH
TEST/REPLACEMENT ).
2. Do the cruise control input test (see
CRUISE CONTROL INPUT TEST ).
Test the cruise control main switch
signal input.
3. Check for PGM-FI DTCs (see
GENERAL TROUBLESHOOTING
INFORMATION ).
Short to ground in
the YEL wire
Set speed does not cancel when the
cancel button is pressed
1. Do the cruise control combination switch
test (see CRUISE CONTROL
COMBINATION SWITCH
TEST/REPLACEMENT ).
2. Do the cruise control input test (see
CRUISE CONTROL INPUT TEST ).
Test the cancel switch signal input.
3. Check for PGM-FI DTCs (see
GENERAL TROUBLESHOOTING
INFORMATION ).
Open circuit, loose or
disconnected
terminals: LT GRN,
ORN or GRY wire
1. Do the cruise control combination switch
2012 Acura TL SH-AWD
2012 ACCESSORIES & EQUIPMENT Cruise Control - TL
CIRCUIT DIAGRAM
WITHOUT KEYLESS ACCESS SYSTEM
Set speed does not resume when
the resume/accel button is pressed
(with the cruise control main
switch turned on, and set speed
temporarily canceled by pressing
the brake pedal)
test (see CRUISE CONTROL
COMBINATION SWITCH
TEST/REPLACEMENT ).
2. Do the cruise control input test (see
CRUISE CONTROL INPUT TEST ).
Test the resume/accel switch signal
input.
3. Check for PGM-FI DTCs (see
GENERAL TROUBLESHOOTING
INFORMATION ).
Open circuit, loose or
disconnected
terminals: ORN or
GRY wire
Set speed does not resume when
the resume/accel button is pressed
(with the cruise control main
switch turned on, and set speed
temporarily canceled by pressing
the clutch pedal) (M/T model)
1. Do the cruise control combination switch
test (see CRUISE CONTROL
COMBINATION SWITCH
TEST/REPLACEMENT ).
2. Do the cruise control input test (see
CRUISE CONTROL INPUT TEST ).
Test the resume/accel switch signal
input.
3. Check for PGM-FI DTCs (see
GENERAL TROUBLESHOOTING
INFORMATION ).
Open circuit loose or
disconnected
terminal: LT BLU or
GRY wire
Light switch turned on, the cruise
control combination switch
illumination does not come on
1. Check the No. 6 (7.5 A) fuse in the
passenger's under-dash fuse/relay box.
2. Do the cruise control combination switch
test (see CRUISE CONTROL
COMBINATION SWITCH
TEST/REPLACEMENT ).
Open circuit, loose or
disconnected
terminals: GRY or
RED wires
2012 Acura TL SH-AWD
2012 ACCESSORIES & EQUIPMENT Cruise Control - TL

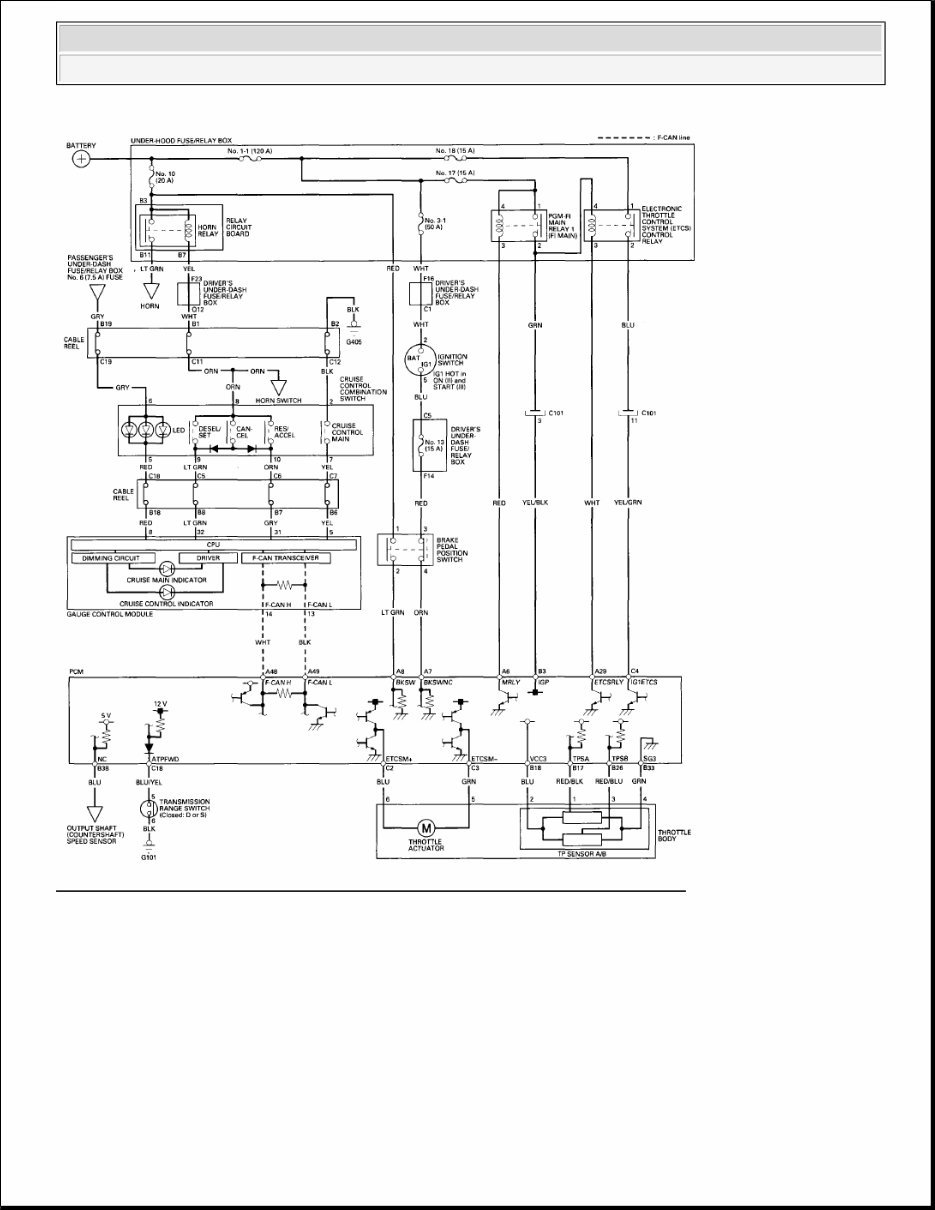

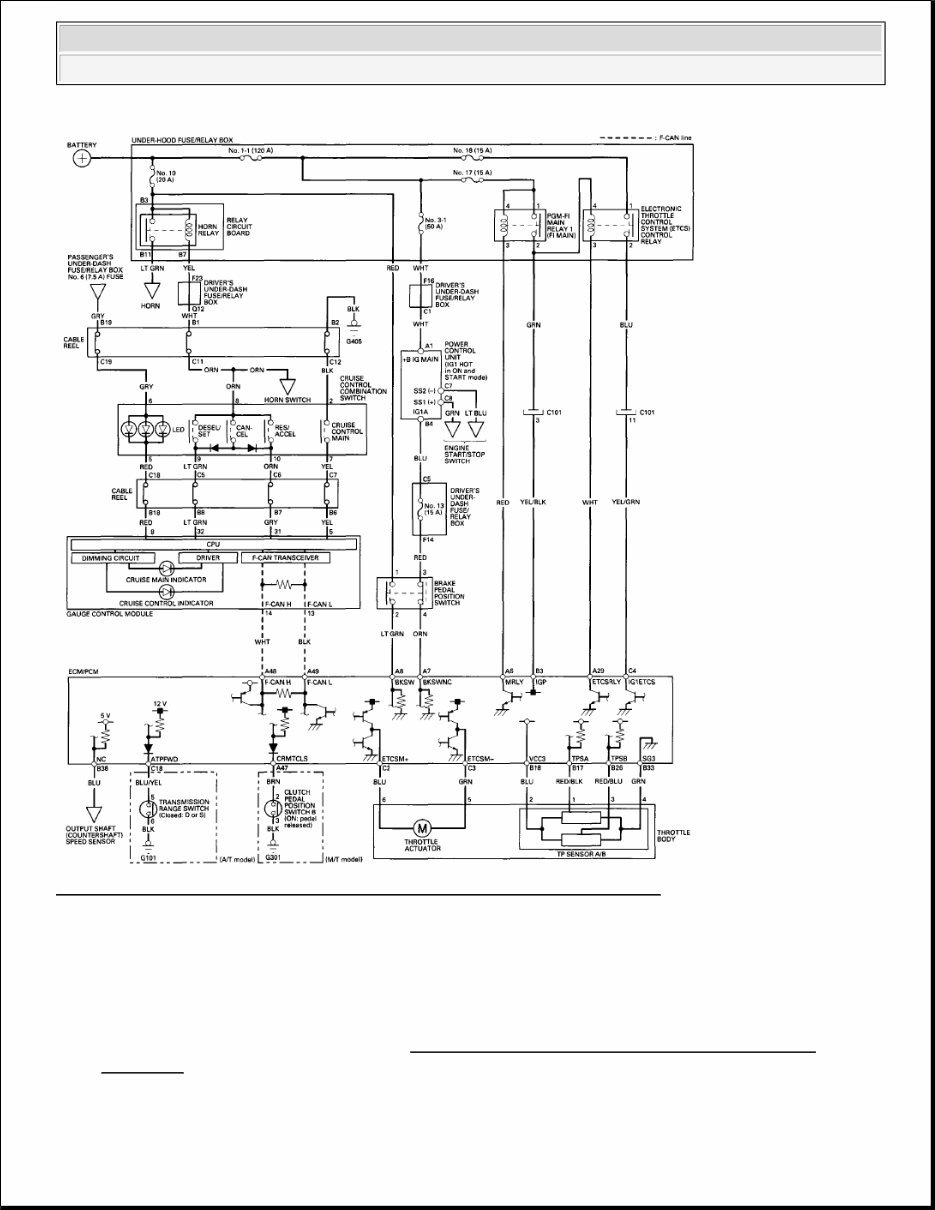

Fig. 2: Cruise Control System Circuit Diagram (Without Keyless Access System)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
WITH KEYLESS ACCESS SYSTEM
2012 Acura TL SH-AWD
2012 ACCESSORIES & EQUIPMENT Cruise Control - TL
Fig. 3: Cruise Control System Circuit Diagram (With Keyless Access System)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
CRUISE CONTROL INPUT TEST
1. Connect the Honda HDS to the DLC (see HOW TO USE THE HDS (HONDA DIAGNOSTIC
SYSTEM) ).
2. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode.
NOTE: Always make sure that you have the latest HDS software.
2012 Acura TL SH-AWD
2012 ACCESSORIES & EQUIPMENT Cruise Control - TL
3. Make sure the HDS communicates with the vehicle and the ECM/PCM. If it does not communicate,
troubleshoot the DLC circuit (see DLC CIRCUIT TROUBLESHOOTING ).
4. Check for and troubleshoot any DTCs (see GENERAL TROUBLESHOOTING INFORMATION ).
5. Do the following tests while monitoring parameters in the PGM-FI DATA LIST with the HDS.
6. If the input tests prove OK, replace the ECM/PCM (see ECM/PCM REPLACEMENT ).
NOTE: Intermittent failures are often caused by loose circuit connections. While
monitoring cruise control inputs, flex the circuit wires, and note if any of
the test results change.
Signal to be
tested
Test condition Parameter: Desired result
Possible cause if result is
not obtained
Brake pedal
position
switch signal
Brake pedal pressed, then
released
CRUISE BRAKE SW/IDLE
STOP SW should indicate
OPEN when the brake pedal is
pressed and CLOSE when the
brake pedal is released.
Faulty brake pedal
position switch
Blown No. 13 (15 A)
fuse in the driver's
under-dash fuse/relay
box
An open in the wire
between the
ECM/PCM and the
brake pedal position
switch
A wire shorted to
ground or power
between the
ECM/PCM and the
brake pedal position
switch
Clutch pedal
position
switch B
signal (M/T
model)
Clutch pedal pressed, then
released
SHIFT/CLUTCH SW should
indicate ON when the clutch
pedal is pressed and OFF when
the clutch pedal is released.
Faulty clutch pedal
position switch B
An open in the wire
between the ECM
and clutch pedal
position switch B
A wire shorted to
ground between the
ECM and clutch
pedal position switch
B
Poor ground G301
Faulty cruise control
combination switch
2012 Acura TL SH-AWD
2012 ACCESSORIES & EQUIPMENT Cruise Control - TL
Cruise
control main
switch signal
Cruise control main button
pressed and released
CRUISE MASTER (MAIN)
SW should indicate ON when
the cruise control main button is
pressed and OFF when the
cruise control main button is
released.
An open in the wire
between the gauge
control module and
the cruise control
combination switch
A wire shorted to
ground between the
gauge control module
and the cruise control
combination switch
An open in the wire
between the cruise
control combination
switch and ground
G405
Set switch
signal
Decel/set button pressed and
released
CRUISE SET SW should
indicate ON when the decel/set
button is pressed and OFF when
the decel/set button is released.
Faulty cruise control
combination switch
An open in the wire
between the gauge
control module and
the cruise control
combination switch
A wire shorted to
ground between the
gauge control module
and the cruise control
combination switch
Resume
switch signal
Resume/accel button pressed
and released
CRUISE RESUME SW should
indicate ON when the
resume/accel button is pressed
and OFF when the resume/accel
button is released.
Faulty cruise control
combination switch
An open in the wire
between the gauge
control module and
the cruise control
combination switch
A wire shorted to
ground between the
gauge control module
and the cruise control
combination switch
CRUISE CANCEL SW should
Faulty cruise control
combination switch
An open in the wire
between the gauge
control module and
2012 Acura TL SH-AWD
2012 ACCESSORIES & EQUIPMENT Cruise Control - TL
CRUISE CONTROL COMBINATION SWITCH TEST/REPLACEMENT
There are SRS components located in this area. Review the SRS component locations (see COMPONENT
LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ), in
the SRS before doing repairs or service.
1. Remove the steering wheel (see STEERING WHEEL REMOVAL ).
2. Remove the steering wheel rear cover (see STEERING WHEEL REMOVAL ).
3. Disconnect the cable reel subharness connector (A), then remove the steering wheel trim/cruise control
combination switch (B).
Cancel
switch signal
Cancel button pressed and
released
indicate ON when the cancel
button is pressed and OFF when
the cancel button is released.
the cruise control
combination switch
A wire shorted to
ground between the
gauge control module
and the cruise control
combination switch
Cruise
control
indicator
signal
Start the engine, press the
cruise control main button
on and drive the vehicle
above 25 mph (40 km/h)
with the cruise control set
and cancel the cruise control
CRUISE INDICATOR should
indicate ON when the cruise
control is set and OFF when the
cruise control is cancelled.
Faulty gauge control
module
Faulty cruise control
combination switch
An open in the wire
between the gauge
control module and
the cruise control
combination switch
A wire shorted to
ground between the
gauge control module
and the cruise control
combination switch
2012 Acura TL SH-AWD
2012 ACCESSORIES & EQUIPMENT Cruise Control - TL
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$36.99
2012 Acura TL Service & Repair Manual
Viewed 13 Times Today
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$36.99
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
Description
If you are in need of a repair manual for your 2012 Acura TL, look no further. This comprehensive manual is suitable for both professional mechanics and DIY enthusiasts. Unlike traditional paper manuals, this digital format offers greater convenience and cost-effectiveness.
Whether you are looking to address brake issues, replace suspension components, troubleshoot engine problems, or perform standard maintenance, this manual has you covered. It contains detailed service information for various vehicle systems including brakes, engine, suspension, steering, drivetrain, electrical, heating, and air conditioning.
By utilizing this manual, you can save a significant amount of money on vehicle repairs. The easy-to-use format is compatible with Windows, Mac computers, smartphones, and tablets, making it accessible for all users.
