P-touch SERVICE MANUAL MODEL: PT-1100/1130/1170/1180/11Q PT-1250/1160 ST-1150(Heavy Duty Labeler TM ) REVISED 1

SERVICE MANUAL MODEL: PT-1100/1130/1170/1180/11Q PT-1250/1160 ST-1150(Heavy Duty Labeler TM )

© Copyright Brother 2002 All rights reserved. No part of this publication may be reproduced in any form or by any means without permission in writing from the publisher. Specifications are subject to change without notice.

PREFACE This publication is a service manual covering the specifications, theory of operation, disassembly/reassembly procedure, and troubleshooting of the Brother PT-1100/1130 /1170/1180/11Q, PT-1250/1160 and ST-1150. It is intended for service personnel and other concerned persons to accurately and quickly provide after-sale service for our PT-1100/1130/1170/1180/11Q, PT- 1250/1160 and ST-1150. To perform appropriate maintenance so that the machine is always in best condition for the customer, the service personnel must adequately understand and apply this manual. This manual is made up of three chapters and appendices. CHAPTER I SPECIFICATIONS CHAPTER II MECHANISMS CHAPTER III ELECTRONICS APPENDICES CIRCUIT DIAGRAMS

CHAPTER I SPECIFICATIONS

CONTENTS CHAPTER I SPECIFICATIONS ......................................................................... I-1 1.1 MECHANICAL SPECIFICATIONS ........................................................................ I-1 1.1.1 External Appearance ...................................................................................... I-1 1.1.2 Keyboard........................................................................................................ I-1 1.1.3 Display ........................................................................................................... I-2 1.1.4 Printing Mechanism........................................................................................ I-2 1.1.5 Tape Cassette ................................................................................................ I-2 1.1.6 Tape Cutter .................................................................................................... I-2 1.2 ELECTRONICS SPECIFICATIONS ...................................................................... I-6 1.2.1 Character Generator....................................................................................... I-6 1.2.2 Power Supply ................................................................................................. I-6 1.3 SPECIAL KEY....................................................................................................... I-6 1.3.1 Format ........................................................................................................... I-6 1.3.2 Demonstration Print........................................................................................ I-6

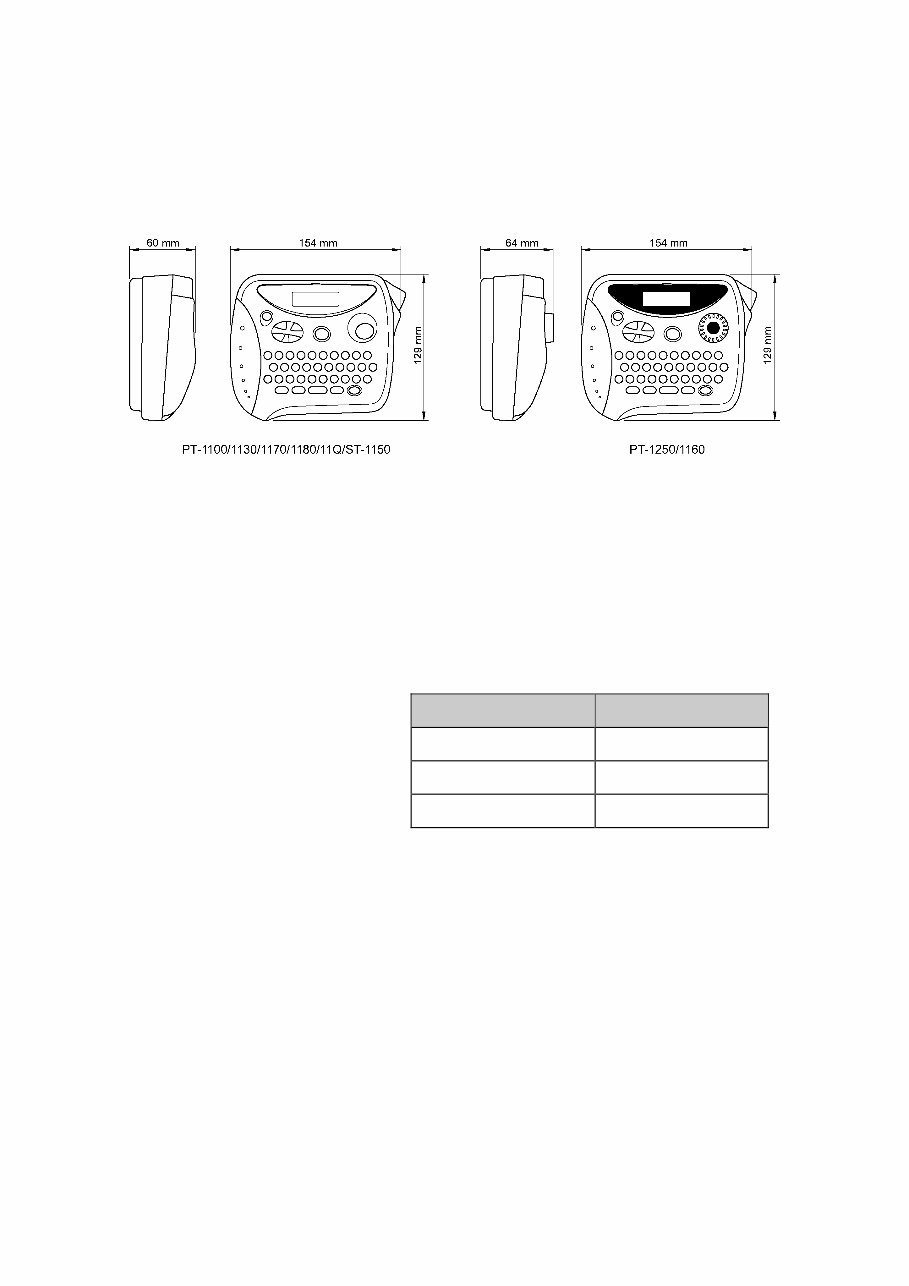

I-1 CHAPTER I SPECIFICATIONS 1.1 MECHANICAL SPECIFICATIONS 1.1.1 External Appearance Fig. 1.1-1 External Appearance (1) Dimensions (W x D x H) 154 x 129 x 60 mm (PT-1100/1130/1170/1180/11Q/ST-1150) 154 x 129 x 64 mm (PT-1250/1160) (2) Weight Machine proper only Approx. 400 g In package Packaging Weight (g) Carton with One Unit 670g Clamshell 650g Carrying Case 1300g (including the machine, packing materials and packaged standard components) 1.1.2 Keyboard (1) Entry system Rubber 41 key (PT-1100/1130/1170/1180/11Q/ST-1150) Rubber 40 key and tact switch (PT-1250/1160) (2) Number of alphanumeric 30 and symbol keys (3) Number of function keys 11 (PT-1100/1130/1170/1180/11Q/ST-1150) 10 (PT-1250/1160) (including On/Off key, L/R pointing keys must be counted as one.) (4) Key arrangement See Fig. 1.1-2.

I-2 1.1.3 Display (1) Display type Liquid crystal display (LCD) (2) Number of columns 8 columns x 1 row (See Fig. 1.1-2.) (3) Number of indicators 10 (See Fig. 1.1-2.) (4) Character size 5 dots wide by 7 dots high (5) Field-of-view angle Fixed by a resistor adjustment 1.1.4 Printing Mechanism (1) Print method Thermal transfer onto plastic tapes (laminate tape and non-laminated tape) (Fixed print head and tape feeding mechanism) (2) Print speed 10 mm/second (Typical) (3) Print head Type Thermal print head Heat generator Consists of 64 heating elements vertically aligned Size of heating element 0.195 mm wide by 0.141 mm high (4) Character size Ratio Width x height Standard (Small) size (1) 2.26 x 2.96 mm 16 x 21 dot Double width (W2) 4.37 x 2.96 mm 31 x 21 dot Double height (H2) 2.26 x 5.92 mm 16 x 42 dot Double width and double height (4) 4.37 x 5.92 mm 31 x 42 dot Quadruple width and double height (8) 8.74 x 5.92 mm 62 x 42 dot This part explains the dot size of "H" character as an example in the table above, because the character size is different by the width of the tape and the character. 1.1.5 Tape Cassette (1) Cassette Cartridge type (TZ-cassette) (2) Types of tape cassettes Laminated tape cassette Laminated tape, ink ribbon, and adhesive base tape Non-laminated tape cassette Non-laminated tape and ink ribbon Cloth tape cassette Cloth tape and ink ribbon (3) Tape size Width Length Laminated tape 6, 9, 12 mm 8 m Non-laminated tape 6, 9, 12 mm 8 m Cloth tape 12 mm 4 m (4) Tape cassette packed with the machine Laminated tape cassette containing a 12-mm-wide back ink ribbon, laminate tape, and adhesive base tape 1.1.6 Tape Cutter (1) Tape cutting Manual cutting with the cutter lever (2) Cutter unit Replaceable by the customer

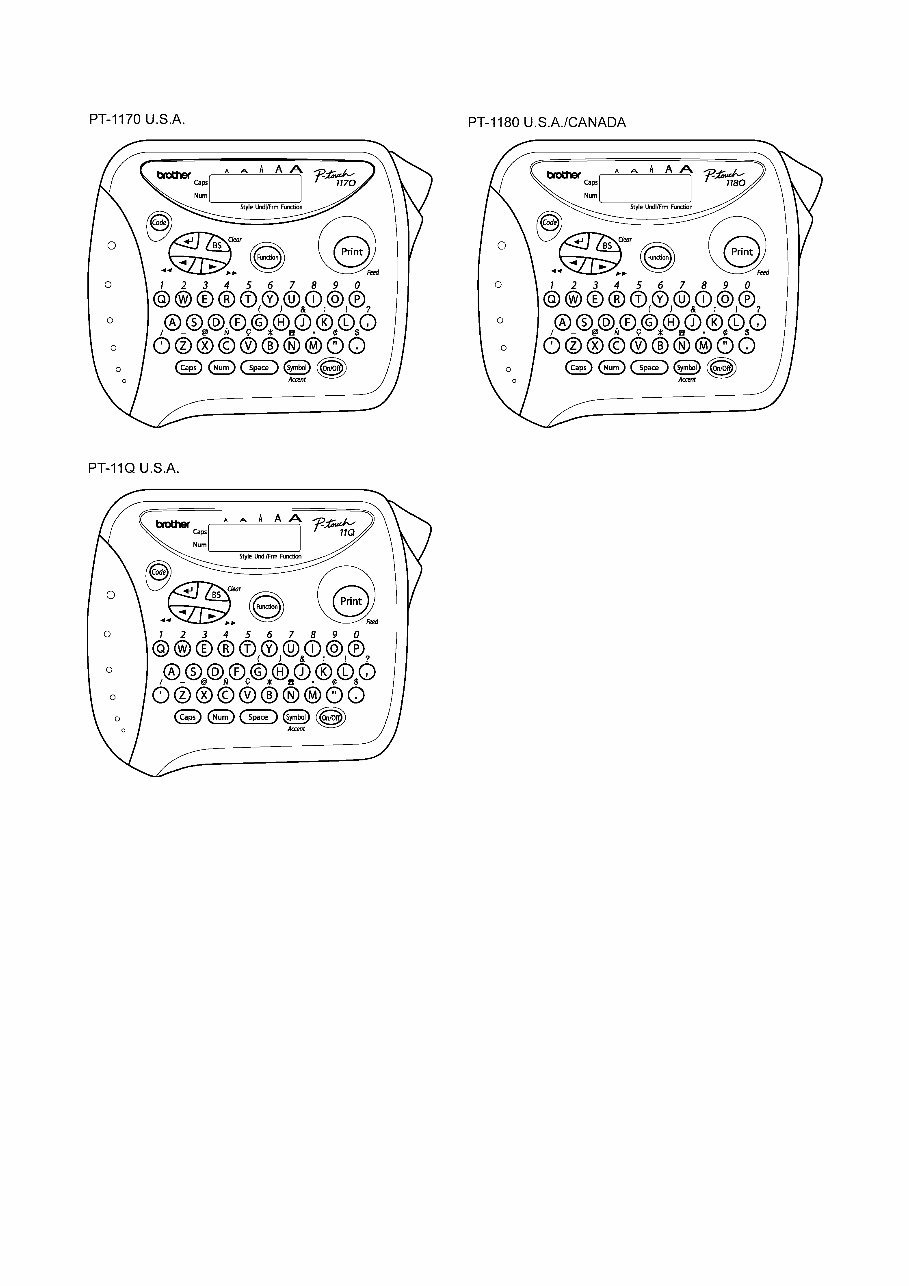

I-3 Fig. 1.1-2 Key Arrangement (1)

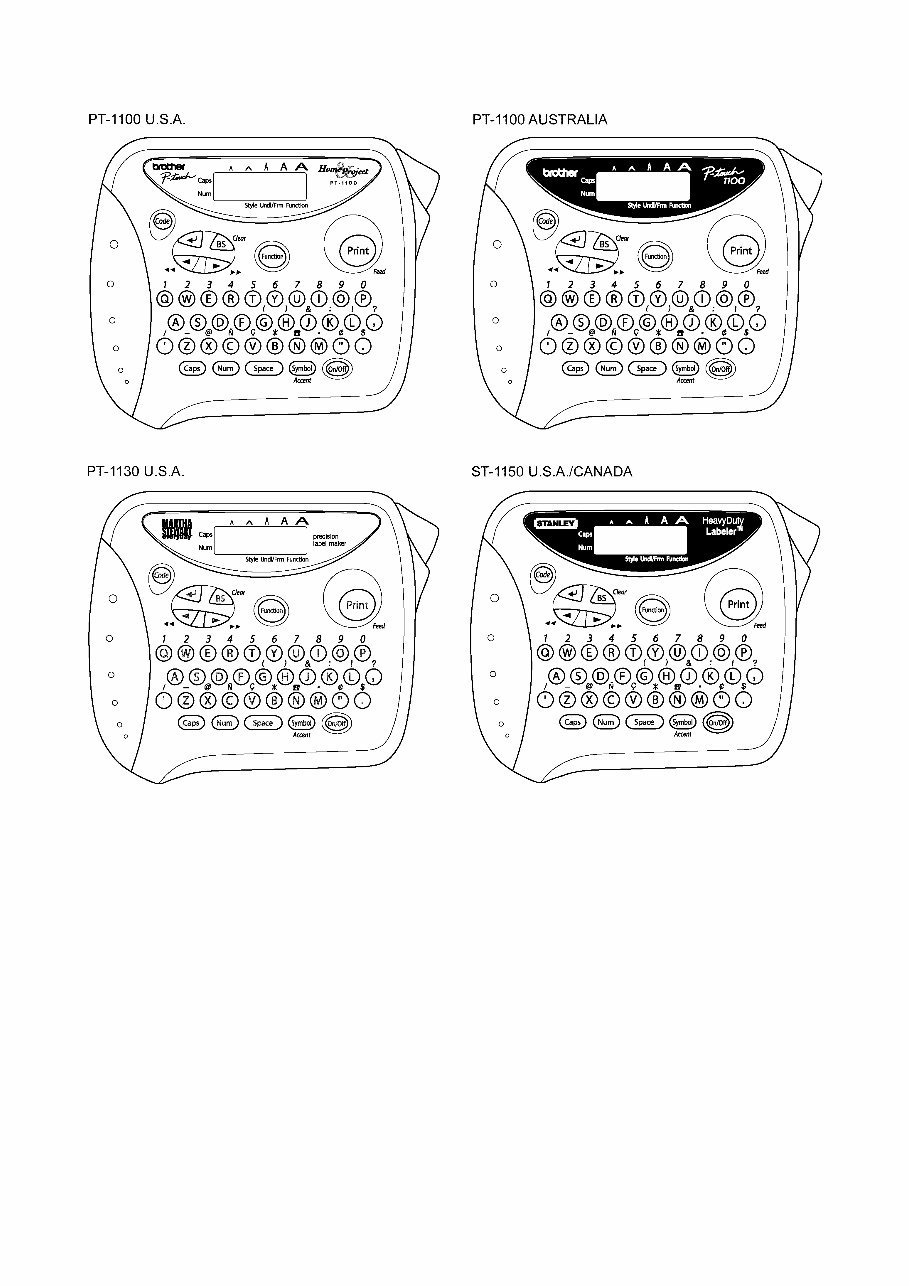

I-4 Fig. 1.1-2 Key Arrangement (2)
