Yanmar YM169, YM169D Tractor Parts Catalog Manual
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
PC NO : Y00T2261
CONTENTS
MODEL : YM169(D)(B3700:
Fig.No. GROUP NAME Fig.No. GROUP NAME
ENGINE
CYLINDER BLOCK 1.
GEAR HOUSING 2.
MAIN BEARING 3.
CAMSHAFT BEARING 4.
BREATHER 5.
DECOMPRESSION LINKAGE 6.
LABELS 7.
CYLINDER HEAD 8.
AIR CLEANER 9.
SILENCER 10.
EXHAUST MANIFOLD 11.
CAMSHAFT 12.
CRANKSHAFT 13.
PISTON 14.
CONNECTING ROD 15.
HYD. OIL PUMP & DRIVING UNIT 16.
LUBRICATING OIL PUMP 17.
DIPSTICK 18.
LUBRICATING OIL FILTER 19.
LUBRICATING OIL SYSTEM 20.
COOLING WATER PUMP 21.
RADIATOR 22.
COOLING WATER SYSTEM 23.
FUEL INJECTION PUMP 24.
FUEL INJECTION VALVE 25.
FUEL FILTER 26.
FUEL INJECTION LINES 27.
FUEL LINES 28.
GOVERNOR 29.
REMOTE CONTROL DEVICE 30.
ENGINE STOP DEVICE 31.
ELECTRIC PARTS 32.
THERMOSTART 33.
TACHOMETER GEAR UNIT 34.
STARTING MOTOR COMPONENT PARTS 35.
GENERATOR COMPONENT PARTS 36.
GASKET SET 37.
REPAIR SET 38.
CHASSIS
THROTTLE(EXCEPT ENGLAND) 39.
THROTTLE(FOR ENGLAND) 40.
FUEL TANK 41.
BELT COVER 42.
FRONT BRACKET & CENTER PIN 43.
FRONT AXLE(FOR YM169) 44.
TIE-ROD 45.
RING GEAR OF FRONT AXLE 46.
PROPELLER SHAFT 47.
FRONT AXLE HOUSING(FOR YM169D) 48.
FRONT GEAR HOUSING(FOR YM169D) 49.
FRONT SPINDLE(FOR YM169D) 50.
STEERING 51.
CLUTCH 52.
TRANSMISSION HOUSING 53.
TRANSMISSION GEARS 54.
P.T.O. DRIVING SHAFT 55.
P.T.O. SHIFT LEVER 56.
FRONT DRIVE(FOR YM169D) 57.
PC NO : Y00T2261
CONTENTS
MODEL : YM169(D)(B3700:
Fig.No. GROUP NAME Fig.No. GROUP NAME
RING GEAR & DIFFERENTIAL GEAR 58.
REAR HOUSING(U.S.A.& S.AFRICA) 59.
REAR HOUSING(FOR ENGLAND) 60.
REAR HOUSING(FOR PORTUGAL) 61.
MAIN & RANGE SHIFT 62.
DIFF. LOCK (EXCEPT ENGLAND) 63.
DIFFERENTIAL LOCK(FOR ENGLAND) 64.
REAR AXLE SHAFT(USA & S.AFRICA 65.
REAR AXLE SHAFT(ENGLAND&PORTUG 66.
BRAKE 67.
TIRES(EXCEPT U.S.A.;FOR YM169) 68.
TIRES(EXCEPT USA.;FOR YM169D) 69.
TURF TIRES(EXCEPT USA.;YM169) 70.
TURF TIRES(EXCEPT USA.;YM169D) 71.
HYDRAULIC CYLINDER 72.
HYDRAULIC LIFT 73.
HYDRAULIC CONTROL VALVE 74.
HYDRAULIC CONTROL 75.
HYDRAULIC PIPES 76.
WIRE HARNESS (U.S.A.& S.AFRICA 77.
WIRE HARNESS(FOR ENGLAND) 78.
WIRE HARNESS(FOR PORTUGAL) 79.
SWITCH & LAMP(USA & S.AFRICA) 80.
SWITCH & LAMP(FOR ENGLAND) 81.
SWITCH & LAMP(FOR PORTUGAL) 82.
HOOD (EXCEPT ENGLAND) 83.
HOOD (FOR ENGLAND) 84.
DASHBOARD(EXCEPT ENGLAND) 85.
DASHBOARD(FOR ENGLAND) 86.
FENDER & STEP(USA & S.AFRICA) 87.
FENDER & STEP(FOR ENGLAND) 88.
FENDER & STEP(FOR PORTUGAL) 89.
SEAT(FOR USA & S.AFRICA) 90.
SEAT (FOR ENGLAND) 91.
SEAT (FOR PORTUGAL) 92.
BACK-MILLAR(FOR PORTUGAL) 93.
TOOL BOX (FOR PORTUGAL) 94.
LABELS(FOR USA & S.AFRICA) 95.
LABELS(FOR ENGLAND) 96.
LABELS(FOR PORTUGAL) 97.
3-POINT HITCH(USA & S.AFRICA) 98.
3-POINT HITCH(ENGLAND&PORTUGAL 99.
REAR HITCH(FOR USA & S.AFRICA) 100.
REAR HITCH(ENGLAND & PORTUGAL) 101.
TIRES(U.S.A. ONLY;FOR YM169) 102.
TIRES(U.S.A. ONLY;FOR YM169D) 103.
TURF TIRES(U.S.A. ONLY) 104.
FRONT POWER TAKE OFF 105.
ROLL BAR 106.
Fig.1. CYLINDER BLOCK
Y00T2261
Y00T2261 1. CYLINDER BLOCK
(F)=
(E)=
(D)=
(C)=
(B)=
(A)=3T72HA-A
LEV. REF. PARTS NO. DESCRIPTION R I
Q'TY
(F) (D) (C) (B) (A) (E)
BLOCK ASSY, CYLINDER 721454-01562 1 1 1
PLUG, PT1/8 124060-01050 2 3 7
LINER, CYLINDER 121450-01100 2 4 3
BOLT, CYL. HEAD 121450-01203 2 5 6
STUD, CYL. HEAD 121450-01210 2 6 2
NUT, CYL. HEAD 121450-01220 2 7 2
BOLT, CYL. HEAD 129350-01230 2 8 3
GUIDE, O-RING 124085-01900 2 9 2
PLUG 171051-01921 2 10 2
PLUG PF1/4 121450-01960 2 11 1
GASKET 121450-01980 2 12 1
PLUG 30 121450-01990 2 13 1
SPRING WASHER 8 22217-080000 2 14 4
PARALLEL PIN 8X 16 22312-080160 2 15 3
SPRING PIN 6X12 22351-060012 2 16 2
O-RING 1A P-10.0 24311-000100 2 17 2
STUD M 8X 30 PLATED 26216-080302 2 18 4
NUT M 8 26716-080002 2 19 4
PLUG 30 27241-300000 2 20 5
MAIN BEARING 121450-02100 2 21 1
GASKET, CYL. HEAD 121000-01330 1 22 1
FLANGE, MOUNTING 121465-01600 1 23 1
BOLT 121450-01650 1 24 2
SPRING WASHER 10 22217-100000 1 25 2
BOLT M10X20 26206-100202 1 26 10
NUT M10 26706-100002 1 27 2
SUMP ASSY, LUB OIL 721450-01540 1 28 1
PLUG, DRAIN 104200-55080 2 30 1
SEAL WASHER 12 43400-500450 2 31 1
BOLT 121450-01710 1 32 21
BOLT M 6X 8 PLATED 26106-060082 1 32-1 R 21
(A=E/# C1041)
GASKET, OIL SUMP 121000-01750 1 33 1
GASKET, F.FEED PUMP 121520-01850 1 34 1
GASKET, (NON ASB.) 121520-01851 1 34-1 R 1
(A=E/# D0413)
BRACKET, STRAINER 121465-55610 1 35 1
BOLT M 6X 16 PLATED 26106-060162 1 36 2
SHIM SET 121450-01951 1 37 1
(C)Copy Rights YANMAR CO.,LTD and YANMAR AGRICULTURAL EQUIPMENT CO.,LTD.

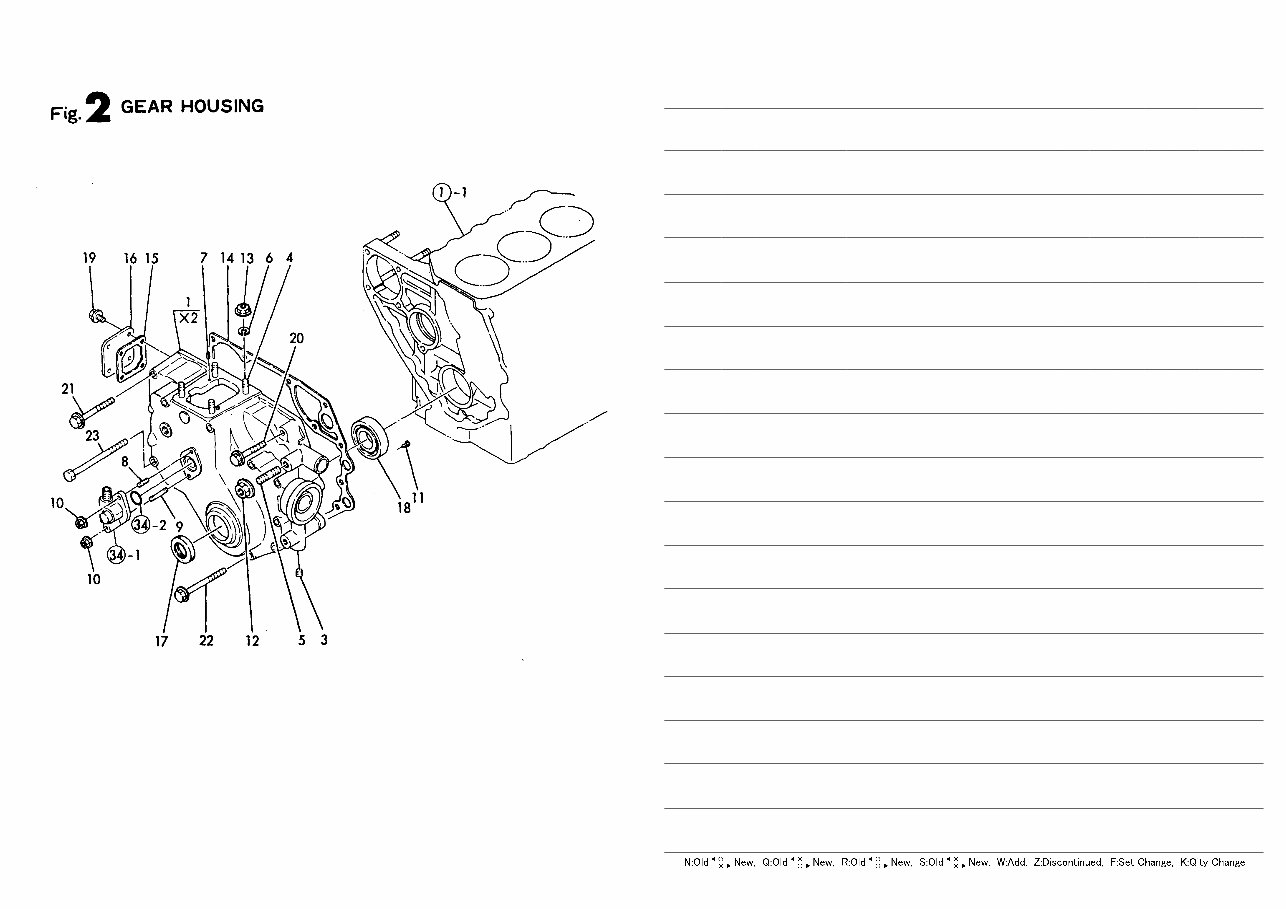

Fig.2. GEAR HOUSING
Y00T2261
Y00T2261 2. GEAR HOUSING
(F)=
(E)=
(D)=
(C)=
(B)=
(A)=3T72HA-A
LEV. REF. PARTS NO. DESCRIPTION R I
Q'TY
(F) (D) (C) (B) (A) (E)
HOUSING ASSY, GEARS 721454-01612 1 1 1
PLUG, PT1/8 124060-01050 2 3 1
STUD M 8X 22 121450-01560 2 4 4
STUD 121450-01570 2 5 1
SPRING WASHER 8 22217-080000 2 6 4
SPRING PIN 4X10 22351-040010 2 7 2
STUD M 6X 14 PLATED 26216-060142 2 8 1
STUD M 6X 35 PLATED 26216-060352 2 9 1
NUT M 6 26366-060002 2 10 2
SCREW M 8X 10 26587-080102 2 11 1
NUT M10 26706-100002 2 12 1
NUT M 8 26716-080002 2 13 4
GASKET, GEAR HOUSING 121450-01511 1 14 1
GASKET, COVER 121450-01531 1 15 1
COVER, CYL. BLOCK 121450-01550 1 16 1
SEAL TC25 40 8, OIL 121450-01801 1 17 1
BALL BEARING 24101-063050 1 18 1
BOLT M 6X 12 PLATED 26106-060122 1 19 4
BOLT M 8X 45 PLATED 26106-080452 1 20 1
BOLT M 8X 75 PLATED 26106-080752 1 21 2
BOLT M 8X 85 PLATED 26106-080852 1 22 7
BOLT M 8X115 PLATED 26106-081152 1 23 3
(C)Copy Rights YANMAR CO.,LTD and YANMAR AGRICULTURAL EQUIPMENT CO.,LTD.

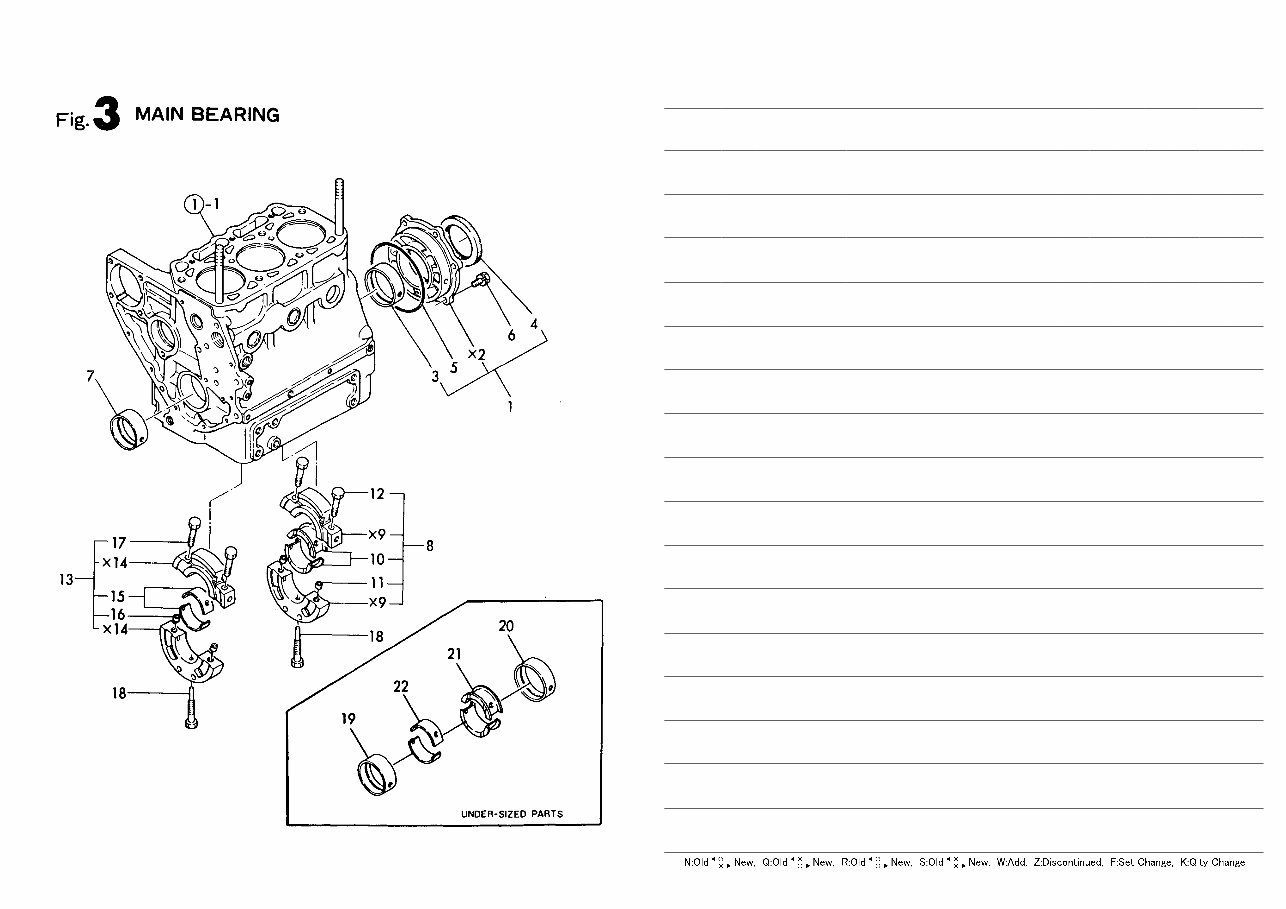

Fig.3. MAIN BEARING
Y00T2261
Y00T2261 3. MAIN BEARING
(F)=
(E)=
(D)=
(C)=
(B)=
(A)=3T72HA-A
LEV. REF. PARTS NO. DESCRIPTION R I
Q'TY
(F) (D) (C) (B) (A) (E)
HOUSING ASSY,BEARING 721450-02500 1 1 1
MAIN BEARING 121450-02110 2 3 1
SEAL, OIL 124085-02220 2 4 1
O-RING 105225-02020 1 5 1
BOLT W/WASHER M8X20 26013-080202 1 6 6
MAIN BEARING 121450-02100 1 7 1
HOUSING ASSY,BEARING 721450-02612 1 8 1
MAIN BEARING (1) 121450-02160 2 10 1
BOLT 121450-02071 2 12 2
HOUSING ASSY,BEARING 721450-02622 1 13 1
MAIN BEARING (2) 121450-02170 2 15 1
BOLT 121450-02071 2 17 2
BOLT 105225-02300 1 18 2
1 MAIN BEARING 0.25US 121450-02310 1 19 1
1 MAIN BEARING 0.25US 121450-02320 1 20 1
1 MAIN BEARING 0.25US 121450-02370 1 21 1
1 MAIN BEARING 0.25US 121450-02380 1 22 1
(C)Copy Rights YANMAR CO.,LTD and YANMAR AGRICULTURAL EQUIPMENT CO.,LTD.
Fig.4. CAMSHAFT BEARING
Y00T2261
Y00T2261 4. CAMSHAFT BEARING
(F)=
(E)=
(D)=
(C)=
(B)=
(A)=3T72HA-A
LEV. REF. PARTS NO. DESCRIPTION R I
Q'TY
(F) (D) (C) (B) (A) (E)
BEARING #6205 24101-062054 1 1 1
SCREW M 8X 10 26587-080102 1 2 1
SCREW M 8X 12 26587-080122 1 2-1 N 1
(A=E/# C7392)
(C)Copy Rights YANMAR CO.,LTD and YANMAR AGRICULTURAL EQUIPMENT CO.,LTD.

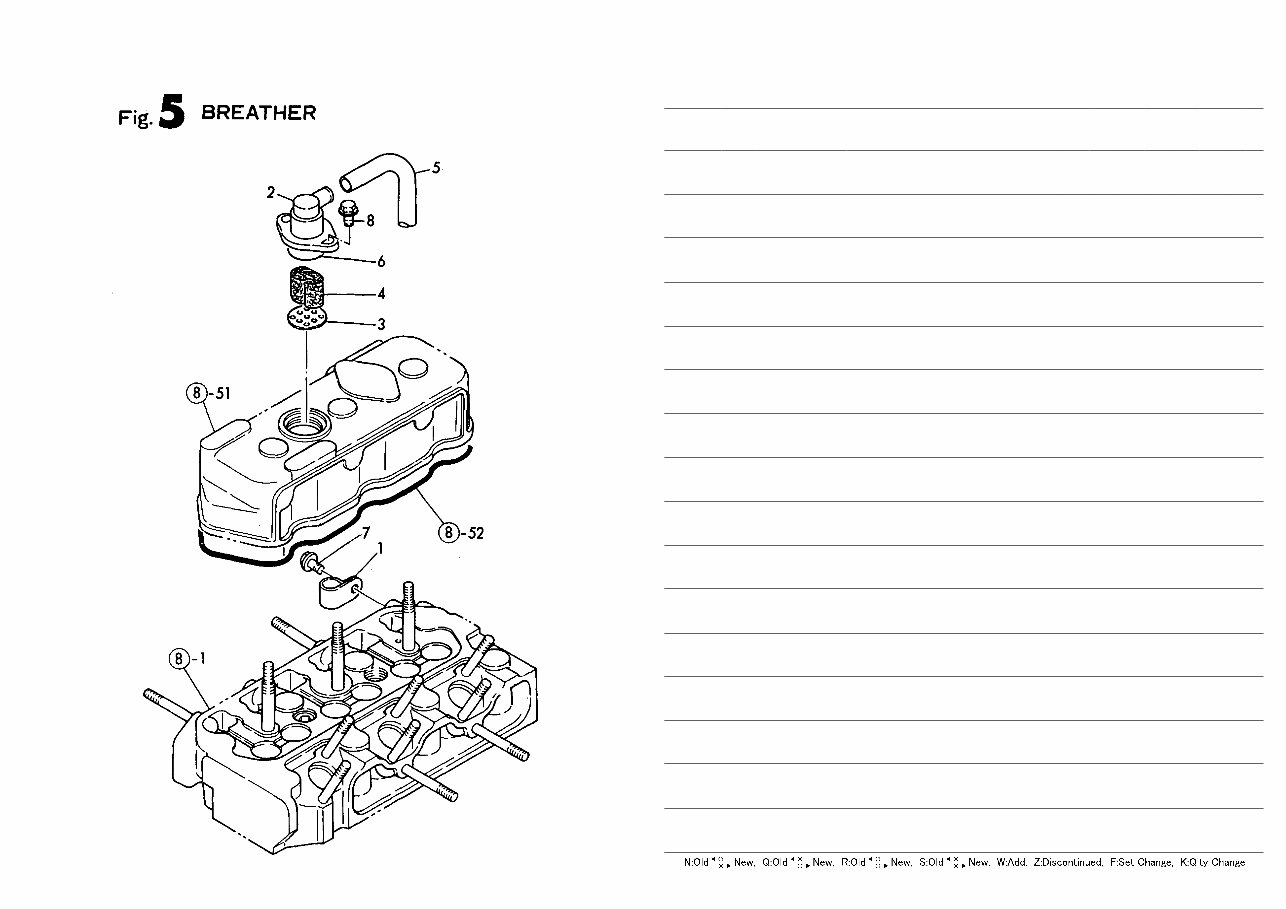

Fig.5. BREATHER
Y00T2261
Y00T2261 5. BREATHER
(F)=
(E)=
(D)=
(C)=
(B)=
(A)=3T72HA-A
LEV. REF. PARTS NO. DESCRIPTION R I
Q'TY
(F) (D) (C) (B) (A) (E)
CLAMP 124160-01650 1 1 1
BODY (A), BREATHER 121450-03012 1 2 1
BODY (B), BREATHER 121450-03020 1 3 1
STEEL WOOLPD24W28T18 121450-03030 1 4 1
PIPE, VINYL 12X 500 23065-120500 1 5 1
O-RING 1A S-40.0 24341-000400 1 6 1
BOLT M 8X 10 PLATED 26106-080102 1 7 1
BOLT M 8X 16 PLATED 26106-080162 1 8 2
(C)Copy Rights YANMAR CO.,LTD and YANMAR AGRICULTURAL EQUIPMENT CO.,LTD.

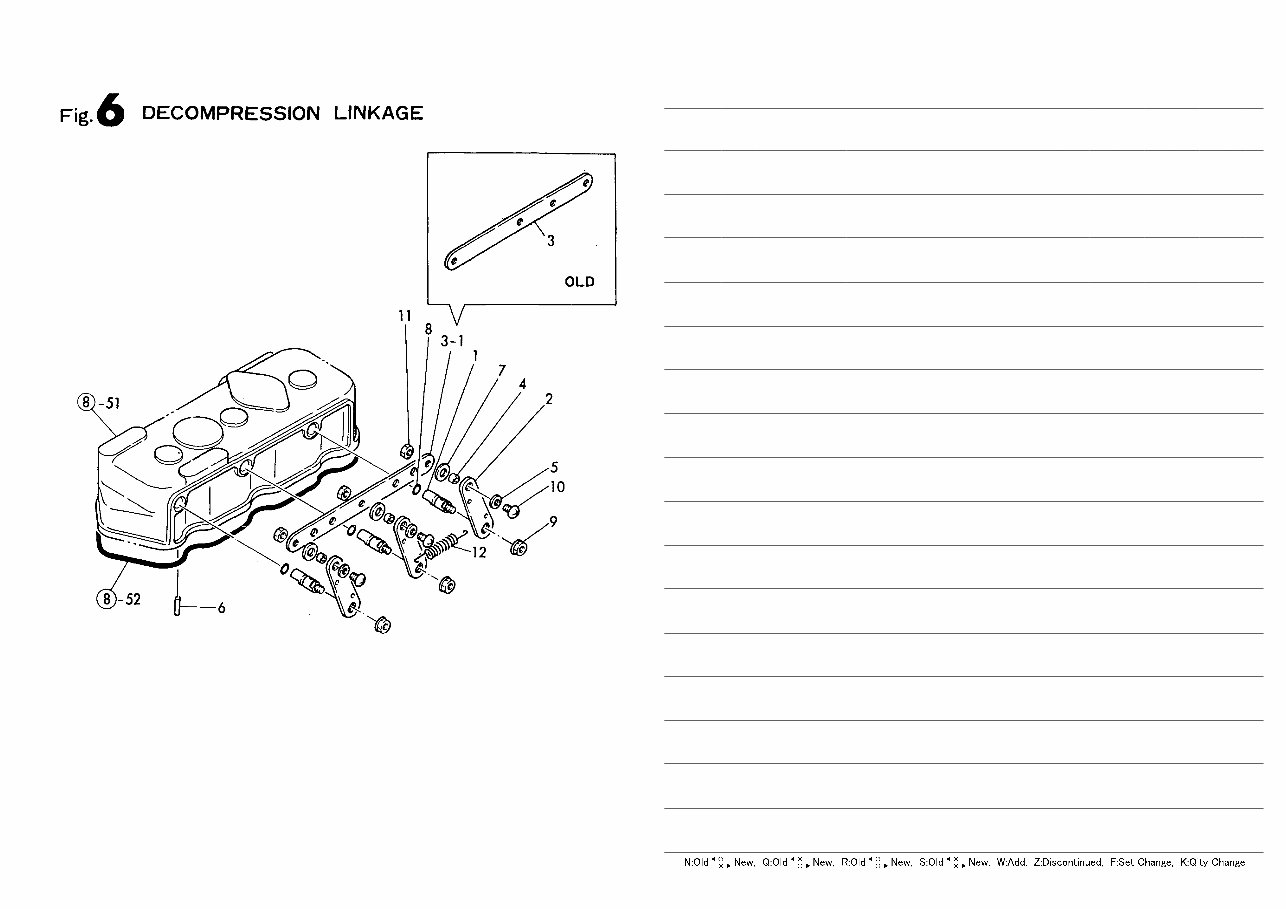

Fig.6. DECOMPRESSION LINKAGE
Y00T2261
Y00T2261 6. DECOMPRESSION LINKAGE
(F)=
(E)=
(D)=
(C)=
(B)=
(A)=3T72HA-A
LEV. REF. PARTS NO. DESCRIPTION R I
Q'TY
(F) (D) (C) (B) (A) (E)
SHAFT, DECOMPRESSION 121450-03610 1 1 3
LEVER, DECOMPRESSION 121462-03740 1 2 3
CONNECTOR 121450-03760 1 3 1
CONNECTOR 121023-03760 1 3-1 R 1
(A=FROM 1ST)
COLLAR 121450-03770 1 4 3
WASHER 5 22117-050000 1 5 3
PARALLEL PIN 3X16 22312-030160 1 6 3
GASKET 8 23418-080000 1 7 3
O-RING 1A P-7.0 24311-000070 1 8 3
NUT M 6 26366-060002 1 9 3
SCREW M 5X 12 26557-050122 1 10 3
LOCK NUT M 5 PLATED 26756-050002 1 11 3
SPRING, RETURN 104104-67300 1 12 1
(C)Copy Rights YANMAR CO.,LTD and YANMAR AGRICULTURAL EQUIPMENT CO.,LTD.

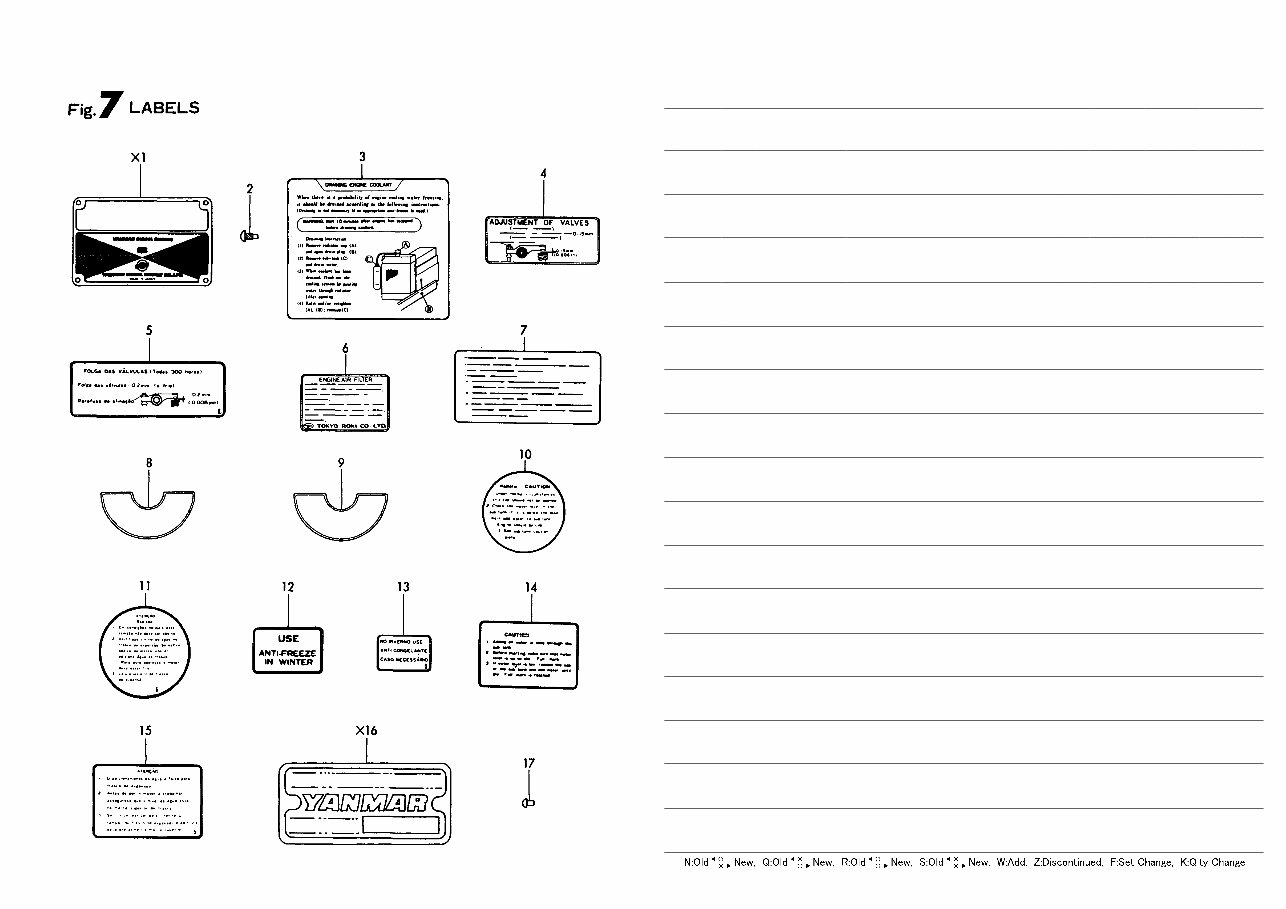

Fig.7. LABELS
Y00T2261
Y00T2261 7. LABELS
(F)=
(E)=
(D)=
(C)=
(B)=
(A)=3T72HA-A
LEV. REF. PARTS NO. DESCRIPTION R I
Q'TY
(F) (D) (C) (B) (A) (E)
RIVET 102210-07990 1 2 4
LABEL, DRAIN 121454-07150 1 3 1
LABEL, VALVE ADJUST. 124064-07160 1 4 1
1 LABEL 121452-07160 1 5 1
LABEL, AIR-CLEANER 121454-12520 1 6 1
1 LABEL (PORTUGAL 124742-12480 1 7 1
LABEL, PRE-CLEANER 121454-12480 1 8 1
1 LABEL (PORTUGAL 124742-12520 1 9 1
LABEL, RADIATOR 124764-44800 1 10 1
1 LABEL (PORTUGAL 124742-44800 1 11 1
LABEL, ANTI-FREEZING 124764-44920 1 12 1
1 LABEL (PORTUGAL 124742-44920 1 13 1
LABEL, RESERVE TANK 124764-44810 1 14 1
1 LABEL (PORTUGAL 124742-44810 1 15 1
RIVET, LABEL 124220-51890 1 17 2
(C)Copy Rights YANMAR CO.,LTD and YANMAR AGRICULTURAL EQUIPMENT CO.,LTD.

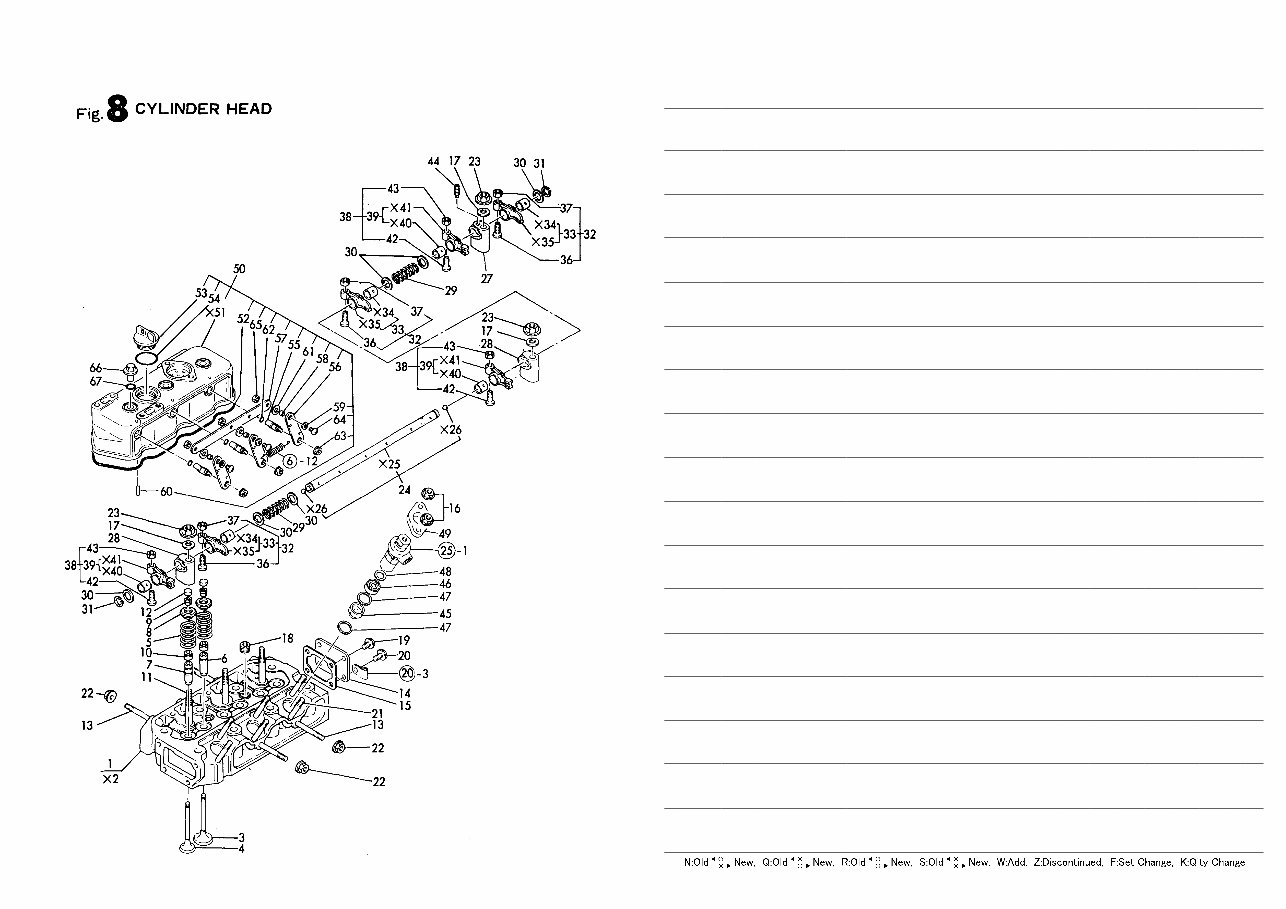

Fig.8. CYLINDER HEAD
Y00T2261
Y00T2261 8. CYLINDER HEAD
(F)=
(E)=
(D)=
(C)=
(B)=
(A)=3T72HA-A
LEV. REF. PARTS NO. DESCRIPTION R I
Q'TY
(F) (D) (C) (B) (A) (E)
HEAD ASSY, CYLINDER 721450-11700 1 1 1
VALVE, SUCTION 105225-11100 2 3 3
VALVE, EXHAUST 105225-11110 2 4 3
SPRING, VALVE 124060-11120 2 5 6
GUIDE, VALVE 124060-11160 2 6 3
GUIDE, VALVE 124060-11170 2 7 3
GUIDE, VALVE 128272-11170 2 7-1 S 3
(A=E/# B8423)
RETAINER, SPRING 104200-11180 2 8 6
COTTER 101158-11190 2 9 6
SEAL, VALVE STEM 124950-11340 2 10 6
STUD, SUPPORT 105225-11350 2 11 3
CAP, VALVE 104211-11370 2 12 6
STUD, MANIFOLD 121450-11550 2 13 4
COVER 121450-11670 2 14 1
GASKET, COVER 121450-11680 2 15 1
NUT 121465-11950 2 16 6
WASHER 10,POLISHED 22137-100000 2 17 3
PLUG PT3/8,SCREW 23871-030000 2 18 2
BOLT M 8X 12 PLATED 26106-080122 2 19 3
BOLT M 8X 14 PLATED 26106-080142 2 20 1
STUD M 8X 65 PLATED 26216-080652 2 21 6
NUT M 8 26366-080002 2 22 4
NUT M10 26696-100002 2 23 3
SHAFT, ROCKER ARM 121450-11240 1 24 1
SUPPORT, ROCKER ARM 121450-11260 1 27 1
SUPPORT, ROCKER ARM 121450-11270 1 28 2
SPRING 121550-11280 1 29 2
WASHER 121550-11290 1 30 6
CIRCLIP 14 22242-000140 1 31 2
ARM ASSY, ROCKER 721450-11650 1 32 1
ARM ASSY, ROCKER 121450-11620 2 33 3
SCREW, VALVE 101158-11230 2 36 3
LOCK NUT M 8 PLATED 26756-080002 2 37 3
ARM ASSY, ROCKER 721450-11660 1 38 1
ARM ASSY, ROCKER 121450-11640 2 39 3
SCREW, VALVE 101158-11230 2 42 3
LOCK NUT M 8 PLATED 26756-080002 2 43 3
SETSCREW 26921-080102 1 44 1
CHAMBER, FRONT 121450-11402 1 45 3
CHAMBER, REAR 124950-11410 1 46 3
GASKET, CHAMBER 124950-11450 1 47 6
INSULATOR 101147-11490 1 48 3
FLANGE 101147-11900 1 49 3
BONNET ASSY 721454-11521 1 50 1
GASKET, BONNET 121476-11310 2 52 1
CAP, LUB.OIL SUPPLY 124160-01751 2 53 1
O-RING 1A P-32.0 24311-000320 2 54 1
SHAFT, DECOMPRESSION 121450-03610 2 55 3
LEVER, DECOMPRESSION 121462-03740 2 56 3
CONNECTOR 121023-03760 2 57 1
++ CONTINUE ++ (C)Copy Rights YANMAR CO.,LTD and YANMAR AGRICULTURAL EQUIPMENT CO.,LTD.
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$37.99
Viewed 89 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$37.99
Get your hands on the Yanmar YM169, YM169D Tractor Parts Manual for comprehensive technical guidance. Whether you're a professional mechanic or a DIY enthusiast, this manual is tailored to assist you in maintaining and repairing your vehicle with ease.
Delivered in PDF format, this manual is compatible with all Windows and Mac operating systems. It's a valuable resource, featuring easy-to-read text sections, high-quality diagrams, and step-by-step instructions covering all areas of repair.
The manual covers a wide range of components, including the engine, chassis, and other essential parts. From cylinder blocks to hydraulic control valves, this manual provides detailed insights to streamline your repair process.
By opting for the digital version, you gain instant access without any shipping delays or fees. It's a cost-effective solution that allows you to start your repairs immediately. Save time and money with the Yanmar YM169, YM169D Tractor Parts Manual.
Thank you for choosing us. Have a great day!
