New Holland TT55, TT75 Parts Catalog

SPARE PARTS CATALOGUE 2nd Edition 10-05 TT75 - TT55 P A R T S

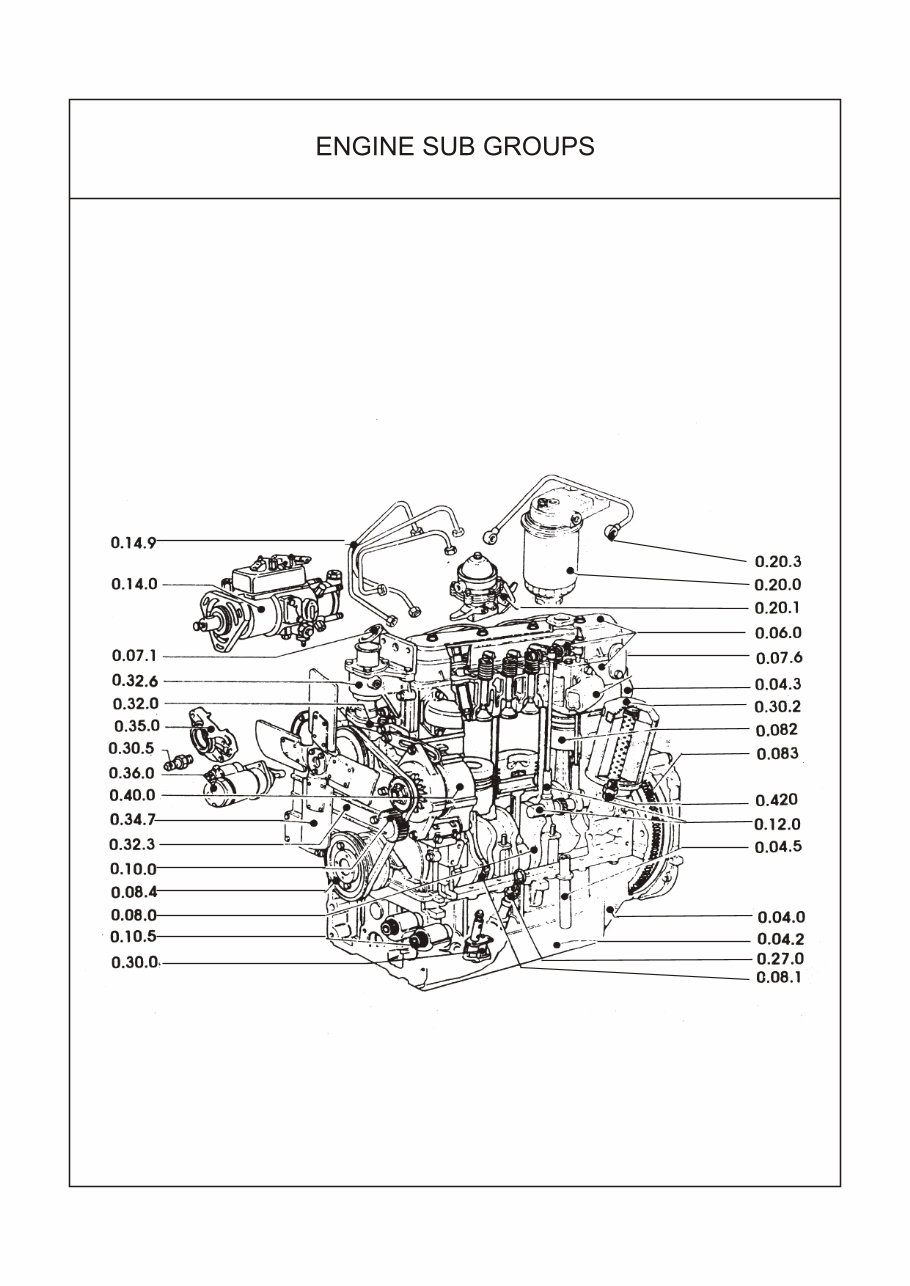

GUIDELINES THIS CATALOGUE contains details of the following model : TT75 - TT55 HOW TO USE THE CATALOGUE : Objective of the catalogue is to enable identification of individual parts and their descriptions. Exploded sketches of all assemblies are shown in the catalogue and they are arranged in the ascending order. SUB GROUP INDEX has been provided for easy identification of the sub group number for any assembly/sub assembly. Details of all the parts covered by an assembly/sub assembly are given along side the illustrations. These illustrations are not drawn to scale. TERMS USED : (A) REFERENCE Indicates the no. on the illustration identifying that part. (B) PART NUMBER Part number is a unique no given to a parts. While processing of orders only part numbers will be taken into consideration and supplies affected accordingly. (C) DESCRIPTION Each part is identified by a standard description. (D) QUANTITY Quantity is no. of units used per tractor, which is reflected under column of Qty. according to usage. (E) REMARKS This column consists of more details about the part. (F) PICTORIAL INDEX Pictorial Index identifies the Sub Group number of various Assemblies/Sub Assemblies. This is a quick reference guide for identifying Sub Group Numbers. (G) SUB GROUP INDEX All the Sub Groups contained in this catalogue are listed in the rising Sub Group number sequence. This list enables the user to identify the description of any Sub Group number.

GUIDELINES (H) PART NUMBER INDEX At the end of the catalogue, there is a cross reference between the Part Number and the Sub Group Number. This Index is in the ascending order of part numbers. (I) HOW TO READ THIS CATALOGUE 1. Identify the main group. 2. Refer to the Pictorial Index of that group. 3. Identify the Sub Group. 4. Refer to the corresponding Sub Group Drawing. 5. Identify the Part Number and the Description. ADDITIONAL INFORMATION This Parts Catalogue is a period publication and copies can be ordered on New Holland Tractors (India) Pvt. Ltd., E4/B 1 Mohan Cooperative Industrial Estate, Mathura Road, New Delhi-110044. This catalogue is in loose leaf binder format. Whenever a change in any assembly takes place, Parts Catalogue for relevent Sub Groups will be printed. The new sheets should be substituted for the old ones. NOTE : At the time of publishing this parts catalogue, the listed part numbers were current. It is our endeavour to constantly improve our machines, therefore the design and part numbers change. When ordering parts, verify part number through NHI dealers / stockists records, for latest part numbers. The Part No. of this Catalogue is 9971491.

SUB GROUP INDEX TT75 - TT55 1 Air Cleaner (dry Type) 1.19.5 1 2 Aircleaner Piping 1.19.7 1 3 Alternator 0.40.0 1 4 Auxillary Hydraulics 364 1 5 Auxillary Valve Assy. 366 1 6 Axle Housing 1.48.0 1 7 Battery And Battery - Mounting 1.74.1 1 8 Brake Mechanism And Internal Linakge 1.65.3 1 9 Brake Pedal And External Linkage 1.67.0 1 10 Breather Pipe And Dipstick - TT55 0.04.5 2 11 Breather Pipe And Dipstick - TT75 0.04.5 1 12 Camshaft And Valves 0.12.0 1 13 Center Housing And Related Parts 1.21.0 2 14 Clutch Assy. - Single 1.25.0 2 15 Clutch Assy.. - Dual 1.25.0 1 16 Clutch Pedal 1.26.0 1 17 Connecting Rod Assy. 0.08.1 1 18 Cooling Circuit 1.17.2 1 19 Crankshaft, Flywheel And Front Pully 0.08.0 1 20 Crown Wheel And Pinion Assy 1.32.1a 1 21 Cylinder Block - TT55 0.04.0 2 22 Cylinder Block - TT75 0.04.0 1 23 Cylinder Head - TT55 0.06.0 2 24 Cylinder Head - TT75 0.06.0 1 25 Decals 1.98.2 1 26 Differential Casing 1.32.0 1 27 Differential Gears 1.32.4 1 28 Differential Lock 1.32.6 1 29 Differential Lock Control 1.32.7 1 30 Dipstick 0.27.0 1 S. NO. SUB ASSEMBLY SUB GROUP NO. SEQUENCE

SUB GROUP INDEX TT75 - TT55 31 Dual Clutch Related Parts 1.25.0 3 32 Dynamic Balancer Unit 0.10.5 1 33 Engine Assembly 0.02.1 1 34 Engine Assembly 0.02.1 2 35 Engine Oil Sump - TT55 0.04.2 2 36 Engine Oil Sump - TT75 0.04.2 1 37 Exhaust Manifold - TT55 0.07.6 2 38 Exhaust Manifold - TT75 0.07.6 1 39 Fan Assy. 0.34.7 1 40 Fenders And Footboard (mechanical Steering) 1.87.0 2 41 Fenders And Footboard (power Steering) 1.87.0 1 42 Flywheel Housing And Related Parts 0.04.3 2 43 Front Axle 1.58.0 1 44 Front Axle Support 1.21.1 1 45 Front Ballast Support 226 1 46 Front Wheel And Rim 1.49.4 1 47 Fuel Feed Pump 0.20.1 1 48 Fuel Feed Pump Child Parts 0.20.1a 1 49 Fuel Filter - TT55 0.20.0 2 50 Fuel Filter - TT75 0.20.0 1 51 Fuel Injection Pipes - TT55 0.14.9 2 52 Fuel Injection Pipes - TT75 0.14.9 1 53 Fuel Injection Pump And Timing Gears 0.14.0 1 54 Fuel Injector 0.14.0 2 55 Fuel Lines - TT55 0.20.3 2 56 Fuel Lines - TT75 0.20.3 1 57 Hi-lo Shift Assy 1.32.2 1 58 Hi-low Range Gear Assy 1.32.1 1 59 Hydraulic Lift Circuit (front) W Remote 1.82.1 1 S. NO. SUB ASSEMBLY SUB GROUP NO. SEQUENCE

SUB GROUP INDEX TT75 - TT55 60 Hydraulic Lift Circuit (Front) Wo Remote 1.82.1 01a 61 Hydraulic Lift Circuit (Rear) W Remote W Tap 1.82.1 3 62 Hydraulic Lift Circuit (Rear) W Remote Wo Tap 1.82.1 2 63 Hydraulic Lift Circuit (Rear) Wo Remote W Tap 1.82.1 03a 64 Hydraulic Lift Circuit (Rear) Wo Remote Wo Tap 1.82.1 02a 65 Hydraulic Lift Circuit For Remote Valve 1.82.1 4 66 Hydraulic Lift Internal Linkage (Draft Control And Lift ‘o’ Matic Linkage ) 1.82.5 2 67 Hydraulic Lift Internal Linkage (Position Control) 1.82.5 1 68 Hydraulic Lift Operating Levers 1.82.5 3 69 Hydraulic Pump Drive Gears 0.35.0 1 70 Hydrostatic Steering 1.63.1 1 71 Hydrostatic Steering Cylinder And Hoses 1.63.5 1 72 Idlear Gear 0.10.0 1 73 Instrument Panel 1.75.1 1 74 Intake Manifold - TT55 0.07.1 2 75 Intake Manifold - TT75 0.07.1 1 76 Lift Cover Assy 1.82.0 1 77 Lift Rod And Lower Links-TT55 1.89.6 2 78 Lift Rod And Lower Links-TT75 1.89.6 1 79 Oil Filter And Cooler - TT55 0.30.2 2 80 Oil Filter And Cooler - TT75 0.30.2 1 81 Oil Pump And Strainer Assy - TT55 0.30.0 2 82 Oil Pump And Strainer Assy - TT75 0.30.0 1 83 Oil Pump Child Parts 0.30.0 A 1 84 Parking Brake 1.67.2 1 85 Piston Assy. 0.08.2 1 86 Power Steering Pump Assembly 1.63.8 3 87 Power Take Off 1.80.1 1 S. NO. SUB ASSEMBLY SUB GROUP NO. SEQUENCE

SUB GROUP INDEX TT75 - TT55 88 Pto Clutch Linkage 1.26.5 1 89 Pto Drive Shaft 1.25.3 1 90 Radiator Assy. 1.17.0 1 91 Rear Wheel And Rim 1.49.5 1 92 Rear Wheel Weights 471 1 93 Rh Lift Rod Assembly 1.89.6a 1 94 Ropes And Canopy 876 1 95 Seat 1.85.1 1 96 Selector Forks 1.29.0 1 97 Sheet Metal Parts 1.83.0 1 98 Sheet Metal Parts 1.83.0 2 99 Shift Assy 1.29.1 1 100 Silencer 1.15.1 1 101 Slow Moving Vehicle Emblem 1.98.2 2 102 Spindle And Hub Assy. 1.58.2 1 103 Starter Motor Assy. 0.36.0 1 104 Steering Cylinder Child Parts 1.63.5 2 105 Steering Linkage And Arms-mechanical Steering 1.63.3 1 106 Steering Linkage And Arms-power Steering 1.63.3 2 107 Steering Pipe 1.63.8 1 108 Steering Reservior ( Hydrostatic ) 1.63.8 2 109 Steering Wheel And Box (mechanical) 1.62.0 1 110 Swinging Drawbar Assy. 890 4 111 Timing Cover And Related Parts 0.04.3 1 112 Tool Box 1.90.5 1 113 Top Link Assembly 1.89.6 3 114 Tow-hook (For Tractors With Swinging Drawbar) 890 3 115 Tow-hook (For Tractors Without Swinging Drawbar) 890 1 116 Tow-hook (For Tractors Without Swinging Drawbar) 890 2 S. NO. SUB ASSEMBLY SUB GROUP NO. SEQUENCE

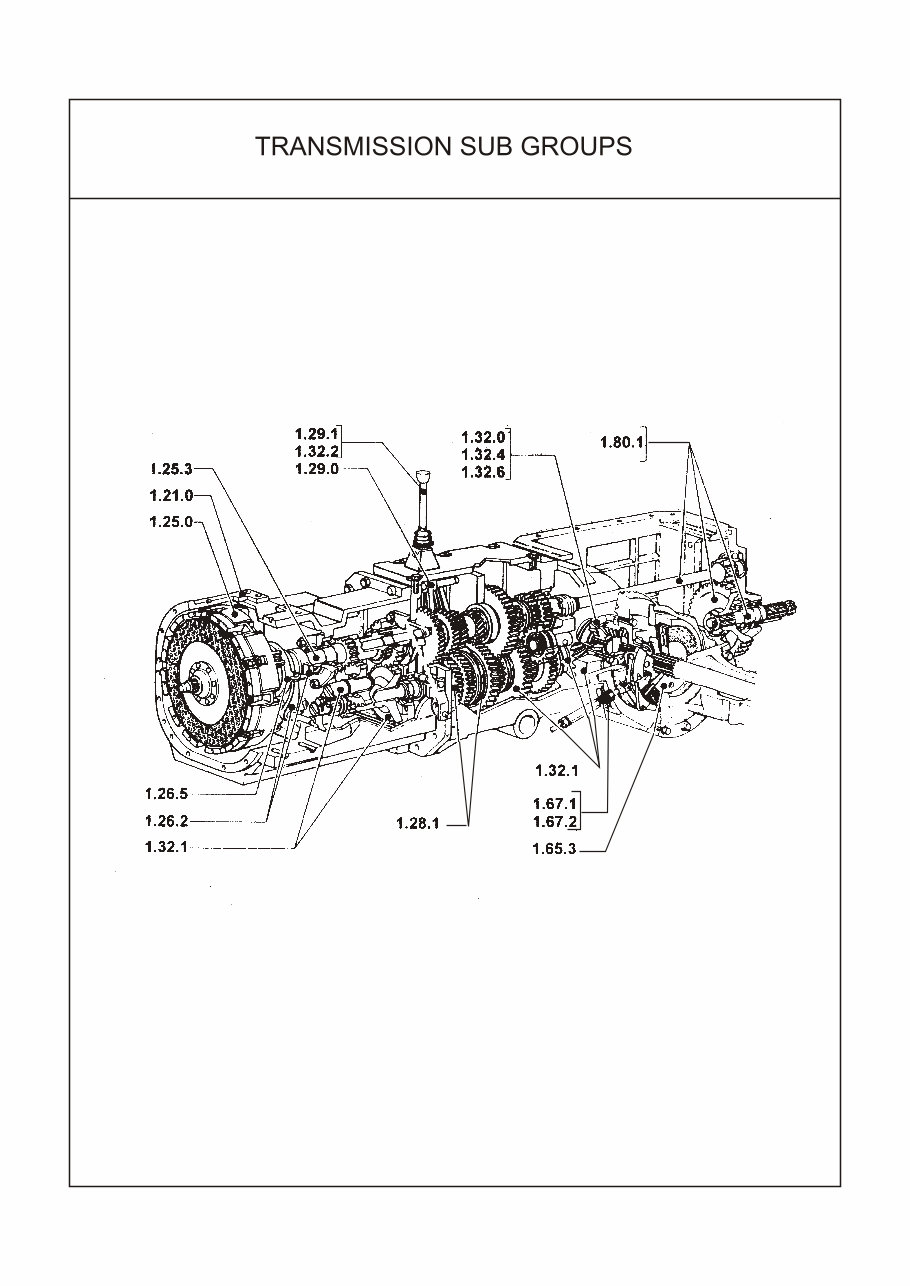

SUB GROUP INDEX TT75 - TT55 117 Tractor Meter Drive 1.30.5 1 118 Transmission Gears And Shafts 1.28.1 1 119 Transmission Gears And Shafts (Constant Mesh 3rd/4th Gears) 1.28.1 2 120 Transmission Gears And Shafts (Synchromesh 3rd/4th Gears) 1.28.1 3 121 Transmission Housing 1.21.0 1 122 Water Pump Assy. 0.32.0 1 123 Water Pump Connector And Thermostat 0.32.6 1 124 Water Pump Parts 0.32.0 A 1 125 Wiring And Lighting 1.75.0 1 126 Wiring And Lighting 1.75.0 A 1 S. NO. SUB ASSEMBLY SUB GROUP NO. SEQUENCE
