New Holland
TS90 TS100 TS110 TS115
01) -ENGINE
02) -ENGINE EQUIPMENT
03) -TRANSMISSION
04) - FRONT AXLE & STEERING
05) -REAR AXLE
06) -ELECTRICAL SYSTEMS
07) -HYDRAULIC SYSTEM
08) -SHEET METAL
09) -IMPLEMENT LIFT
10) -OPERATOR'S PLATFORM/CAB
11) -WHEELS/TRACKS
13) -DECALS

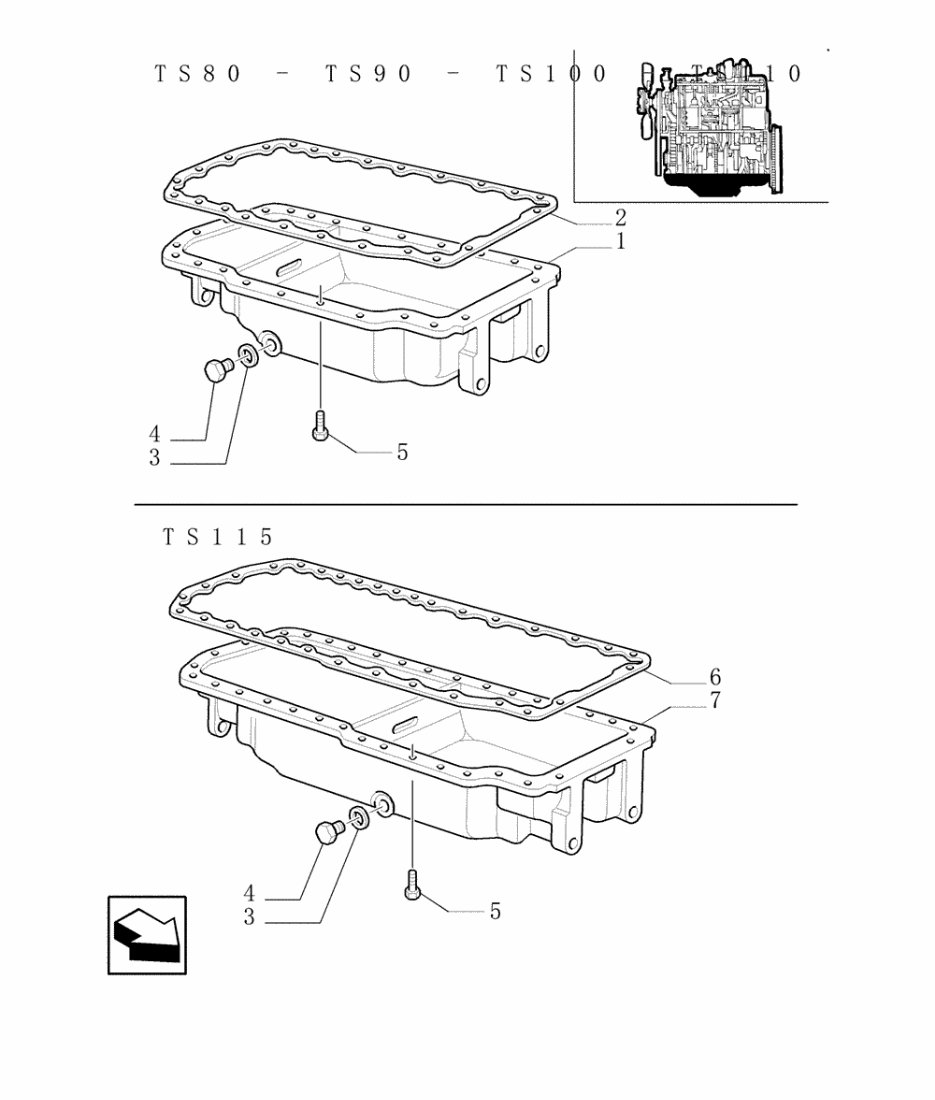

- EMISSIONISED TRACTOR (11/97-7/03) > (0.04.2) - OIL SUMP
- EMISSIONISED TRACTOR (11/97-7/03) > (0.04.2) - OIL SUMP
Qty Description Name Part # Diag #
1 TS80, TS90, TS90E, TS100, TS110 ENGINE OIL PAN 87800494 1
1 TS80, TS90, TS90E, TS100, TS110, Serial
Range: -852613
OIL PAN GASKET SET 87802061 2
1 , Start Serial: 852614 OIL PAN GASKET SET 87802061 2
1 3/4" ID x .06" Thk, Drain Plug OIL PAN GASKET
SET,19.18mm ID x 25.4mm
OD x 1.52mm Thk
C9NN6734A 3
1 3/4"-16 PLUG 81822147 4
1 BOLT,Hex Flg, 3/8"-16 x 1 1/4", G5, Full
Thd
BOLT,Hex Flg, 3/8"-16 x 1
1/4", G5, Full Thd
56141S36 5
1 TS115, Serial Range: -826805 OIL PAN GASKET SET 87800945 6
1 TS115, Start Serial: 826806 OIL PAN GASKET SET 87800945 6
1 TS115 ENGINE OIL PAN 87800495 7
- EMISSIONISED TRACTOR (11/97-7/03) > ( ) - D.I.A. (DEALER INSTALLED ACCESSORY) KIT INDEX
Qty Description Name Part # Diag #
1 Front Weight Carrier DIA KIT, TRACTOR 719225014
1 Front Weight Kit, 6 Wts. WEIGHT 710226014
1 Front Weight Kit, 10 Wts. WEIGHT 710227024
1 R.H. Step Kit, for 8x2/16x4 Straddle Mount STEP 710664024
1 Seat Back Extension, Vinyl SEAT ACCESSORY 710850014
1 Seat Back Extension, Cab Only SEAT ACCESSORY 710850024
1 Kit, Mounts on Grab Rail TELESCOPIC MIRROR 710879014
1 Telescopic Mirror Kit, Mount on "A" Pillar DIA KIT, TRACTOR 710879034
1 Fender Extension Kit, for Rear Cab
Fenders
DIA KIT, TRACTOR 710869024
1 Kit, for 4WD Only FRONT FENDER 710860034
1 Monitor Bracket Kit, Mounts on R.H. Cab
Pillar
BRACKET 710686014
1 Dual Battery Kit, Incl. Tray, Cables DIA KIT, TRACTOR 710699014
1 40 Amp Plug Kit, (2) 40 amp Plugs For 4
Pin External Socket
POWER SOCKET 710753014
1 SAE 3-Prong Adaptor (plugs into a 40amp
4 prong outlet
DIA KIT, TRACTOR 710628024
1 Detent Removal Kit, Removes Detents from
Closed Center Valve
CONTROL VALVE 710408014
1 Hydraulic Assist Ram Kit, Adds (1) Lift
Cylinder from, Serial Range: 0-1
HYDRAULIC LIFT 710785014
1 Hydraulic Assist Ram Kit, Adds (1) Lift
Cylinder, Serial Range: from1-2
HYDRAULIC LIFT 710786014
1 Remote Valve Kit, Adds (1) to R.H.
8x2/16x4 When No Remotes are Factory
Fitted
DIA KIT, TRACTOR 710423024
1 Remote Valve Kit, Adds (2) to L.H.
8x2/16x4
CONTROL VALVE 710411024
1 Remote Valve Kit, Adds (2) to L.H.
12x12/24x24 ROPS Only
CONTROL VALVE 710411034
1 Remote Valve Kit, Adds (2) to L.H. 16x16
ROPS Only
CONTROL VALVE 710411044
1 Remote Valve Kit, Adds (1) to L.H.
12x12/24/24 Cab Only
CONTROL VALVE 710412014
1 Remote Valve Kit, Adds (1) to L.H. 16x16
Cab Only
CONTROL VALVE 710412024
1 Remote Valve Kit, Adds (2) to L.H.
12x12/24/24 Cab Only
CONTROL VALVE 710410014
1 Remote Valve Kit, Adds (2) to L.H. 16x16
Cab Only
CONTROL VALVE 710410024
1 Steel FOPS Canopy {716565006} ORDER WHOLEGOODS W0
Qty Description Name Part # Diag #
1 OW - Order thru Wholegoods ( LogNet ) OW - Order thru
Wholegoods ( LogNet )
1 Grill Guard {715824006} ORDER WHOLEGOODS W0
1 OW - Order thru Wholegoods ( LogNet ) OW - Order thru
Wholegoods ( LogNet )
1 Rotating Roof Beacon for Cab BEACON 2010665
1 Bracket, Rotating Roof Beacon LAMP F0NN94500R79AB
1 Male, 4 Pin Electrical SOCKET 81864735
1 Kit, Creeper Gear, 8x2, 16x4, also req'd.
E9NN7B226BA shift lever stop kit
GEAR REDUCTION UNIT FT0707C373F
1 Heater, Engine Block, Single, 90° bend KIT 86590140
1 Heater, Engine Block, Dual, 90° bend KIT 86578375
1 Clevis, for Offset Drawbar TOWHOOK FOR OFFSET
SWINGI
718914024
1 Wheel base extension Kit(2WD) KIT 710324014
1 Backup Alarm ALARM 86594356

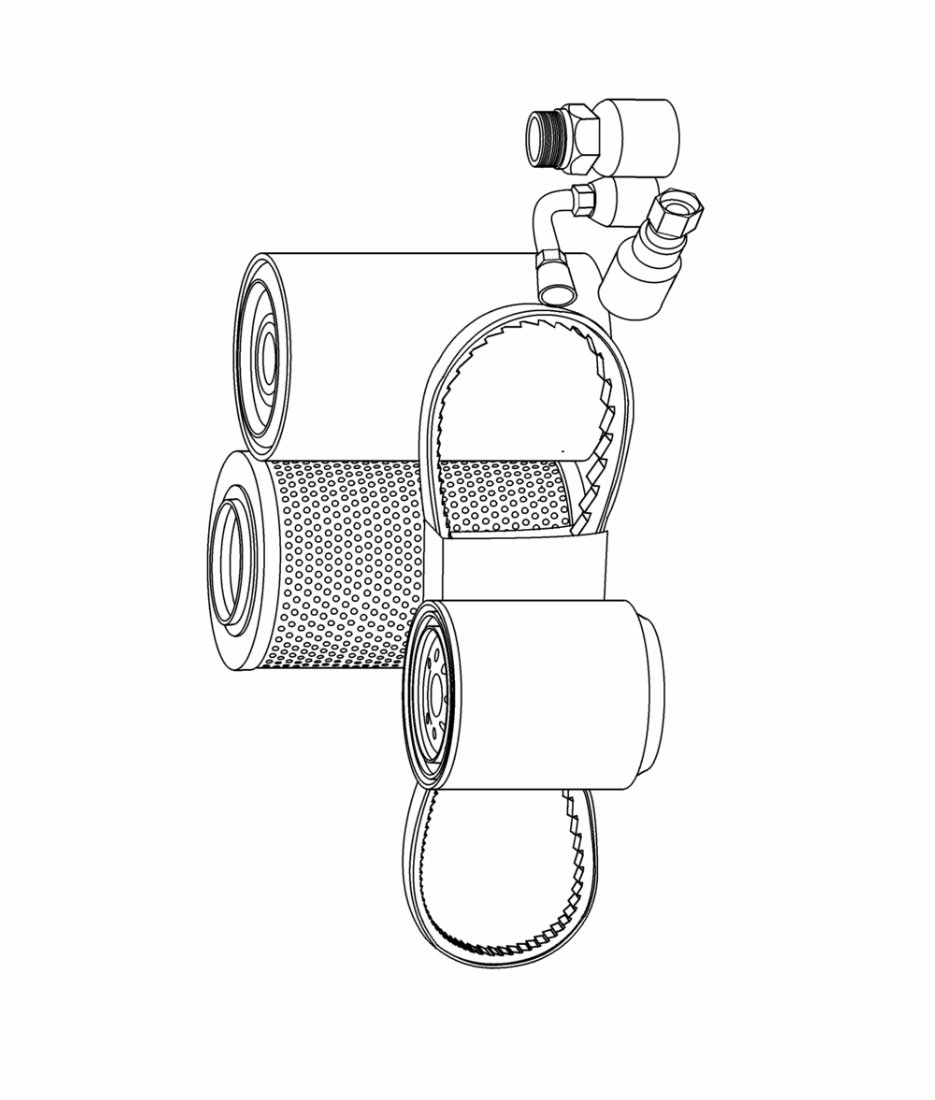

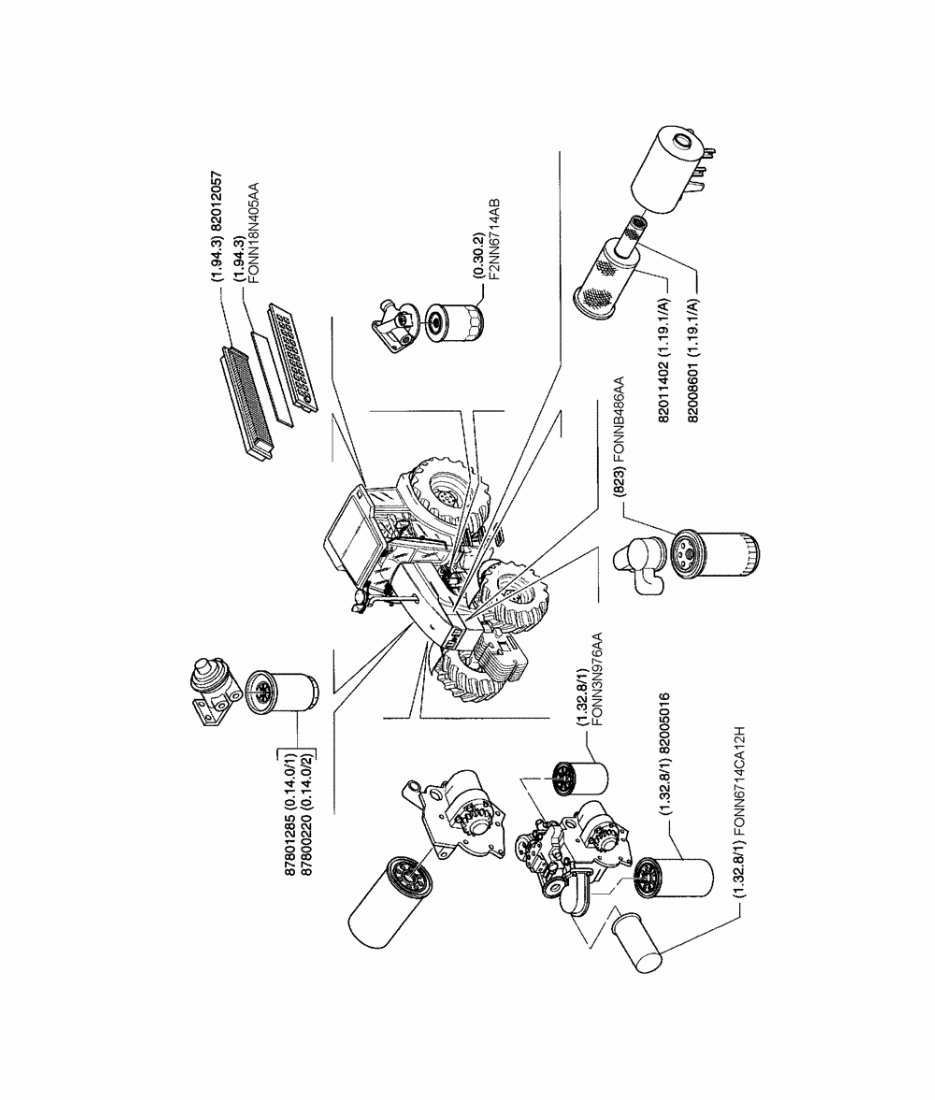

- EMISSIONISED TRACTOR (11/97-7/03) > ( ) - RECOMMENDED STOCKING PARTS
EMISSIONISED TRACTOR (11/97-7/03) > ( ) - RECOMMENDED STOCKING PARTS
Qty Description Name Part # Diag #
1 Filter, Engine Oil ENGINE OIL FILTER 81879134
1 Filter, Air, Outer ELEMENT 82011402
1 Filter, Air, Inner AIR FILTER 82008601
1 Hydraulic, Auxiliary, 3.86"x6.57" FILTER F0NNB486AA
1 Filter, Hydraulic, Lift Intake, CCLS Pump,
392mm
HYDRAULIC OIL FILTER 82005016
1 Filter, Power Steering, CCLS Pump,
98x208
HYDRAULIC OIL FILTER 81869132
1 Filter, Hydraulic, Charge Pump, CCLS
Pump, 3.82"x7.45"
HYDRAULIC OIL FILTER 9821387
1 Filter Element, Fuel FUEL FILTER 87801285
1 Filter, Cab Air, Main CAB FILTER 82014790
1 Filter, Cab Air, Secondary AIR FILTER 82033107
1 Fan, L/AC, TS90, TS100 21.34 mm W x
2228.00 mm L
BELT,21.34 mm W x
2228.00 mm L
82850751
1 Fan, L/AC, TS110 21.34 mm W x 2217.00
mm L
BELT,21.34 mm W x
2217.00 mm L
82850750
1 w/ Air Conditioning 21.36 mm W x 2555.00
mm L, 5 Ribs
BELT,21.36 mm W x
2555.00 mm L, 5 Ribs
87309963
- EMISSIONISED TRACTOR (11/97-7/03) > (0.01.1) - INITIAL STOCKING LIST (LIST A)
EMISSIONISED TRACTOR (11/97-7/03) > (0.01.1) - INITIAL STOCKING LIST (LIST A)
Qty Description Name Part # Diag #
1 Hydraulic Pump CCLS (Charge Pump) HYDRAULIC OIL FILTER 9821387 1
1 TS90 - TS100 - TS110 - TS115 TS90 - TS100 - TS110 -
TS115
1 North America Market Only North America Market Only
2 Heater, Primary CAB FILTER 47548101 2
1 TS90 - TS100 - TS110 - TS115 TS90 - TS100 - TS110 -
TS115
1 Before Engine Serial Number 139307 Before Engine Serial
Number 139307
1 Auxiliary Pump FILTER 47622189 3
1 TS90 - TS100 - TS110 TS90 - TS100 - TS110
1 Straddle Version Only Straddle Version Only
1 Hydraulic Pump CCLS (Power Steering) /
Auxiliary Pump
HYDRAULIC OIL FILTER 81869132 4
1 TS90 - TS100 - TS110 - TS115 TS90 - TS100 - TS110 -
TS115
1 ENGINE OIL FILTER ENGINE OIL FILTER 81879134 5
1 Transmission FILTER 82003166 6
1 TS90 - TS100 - TS110 - TS115 TS90 - TS100 - TS110 -
TS115
1 Safety AIR FILTER 82008601 7
1 Air Conditioning FILTER 82015699 8
1 TS90 - TS100 - TS110 - TS115 TS90 - TS100 - TS110 -
TS115
2 Air Conditioning CAB FILTER 82018373 9
1 TS90 - TS100 - TS110 - TS115 TS90 - TS100 - TS110 -
TS115
1 Main AIR FILTER 82027153 10
2 Heater, Secondary AIR FILTER 82033107 11
1 TS90 - TS100 - TS110 - TS115 TS90 - TS100 - TS110 -
TS115
1 Oil Bath AIR PRE-CLEANER ASSY 82926173 12
1 TS80 - TS90 TS80 - TS90
1 Separator Fuel/Water ELEMENT 83916922 13
1 Hydraulic Pump CCLS (Charge Pump) HYDRAULIC OIL FILTER 84226258 14
1 TS90 - TS100 - TS110 - TS115 TS90 - TS100 - TS110 -
TS115
1 Hydraulic Pump CCLS (Lift Intake) HYDRAULIC OIL FILTER 84248043 15
1 Oil Bath ELEMENT 84465005 16
1 TS80 - TS90 TS80 - TS90
Qty Description Name Part # Diag #
1 ENGINE OIL FILTER ENGINE OIL FILTER 84518337 17
1 North America Market Only North America Market Only
1 PRESCREENER PRESCREENER 85804347 18
2 Heater, Primary CAB FILTER 87385322 19
1 TS90 - TS100 - TS110 - TS115 TS90 - TS100 - TS110 -
TS115
1 After Engine Serial Number 139306 After Engine Serial Number
139306
1 Injection Pump, 5 Micron FUEL FILTER 87801285 20
