NEW HOLLand TC30 3 CYLINDER COMPACT Tractor MASTER ILLUSTRATED Parts LIST Manual BOOK
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
How To Use Figure Search 1). Locate the figure list index at the beginning of manual examples: 01A01 FRONT WHEEL ASSEMBLY - 2100,2110,2120,2150,2300,2310,3055,3100,3120,3150,3190,3300,3310,3550,4140 01A01[C] FRONT WHEEL ASSEMBLY, W/16" WHEELS - 3400, 3500, 3550, 4400, 4500, 4410, 5100, 5200, 5190, 7100, 7200 01B01 STANDARD REAR WHEELS - 2000, 4100 & 3000 EXCEPT 3550 01B01[A] STANDARD REAR WHEELS - 3500, 3550, 5000, 7000, 4000 EXCEPT 4110 01B02 POWER ADJUSTABLE REAR WHEELS - 2000, 3000, 4140 Use the “search” feature in adobe to jump to the figure number. Press Ctrl key, and letter F on the keyboard, at the same time. This will bring up the “search” feature in Adobe Acrobat. Then simply type in the figure number you wish to locate, and press enter. Adobe takes you immediately to that page!
Figure Search for TC30 3 CYL COMPACT TRACTOR (9/01- ) Figure Search for TC30 3 CYL COMPACT TRACTOR (9/01- ) 01A01 FRONT & REAR WHEELS 01A02 FRONT END WEIGHTS 01A03 REAR WHEEL WEIGHTS, 105 LBS., AG ONLY - 710470013 01A04 REAR WHEEL WEIGHTS, 75 LBS., R4 03A01 FRONT AXLE W/2WD 03A02 STEERING LINKAGE, W/2WD 03B01 FRONT AXLE W/FWD 03B02 FRONT DIFFERENTIAL GEARS, W/FWD 03B03 FINAL REDUCTION GEARS, W/FWD 03C01 STEERING COLUMN, GEARBOX & PIPING W/POWER STEERING & W/FWD 03C02 POWER STEERING PUMP 03C03 POWER STEERING CYLINDER ASSY. W/2WD 03C04 POWER STEERING CYLINDER ASSY. W/FWD 03C05 POWER STEERING MOTOR 04A01 BRAKE & WHEEL SHAFT CASE 04B01 DIFFERENTIAL & DIFFERENTIAL LOCK LINKAGE 05A01 HYDRAULIC LIFT COVER & ARMS 05B01 LIFT COVER CYLINDER HEAD ASSY. 05C01 CONTROL VALVE, QUADRANT & LINKAGE 05D01 REMOTE CONTROL VALVE & PIPING KIT 05D01[A] REMOTE CONTROL VALVE ASSEMBLY 05E01 HYDRAULIC PUMP & PIPING 05F01 HYDRAULIC PIPING W/HST 05G01 HPL CONTROL VALVE ASSEMBLY 05H01 2-SPOOL REMOTE CONTROL VALVE & PIPING KIT 05H01[A] 2-SPOOL REMOTE CONTROL VALVE ASSEMBLY 05I01 THREE POINT LINKAGE 05J01 DRAWBAR KITS 05K01 MANIFOLD DIVERTER BLOCK 06A01 CYLINDER BLOCK 06B01 CAMSHAFT 06C01 CYLINDER HEAD 06D01 CRANKSHAFT & PISTONS 06E01 TIMING GEAR CASE 06F01 OIL PUMP, WATER PUMP, ALTERNATOR 06G01 AIR CLEANER & MUFFLER 06H01 ENGINE GASKET KIT 07A01 CLUTCH & CLUTCH CASE, W/9 X 3 TRANSMISSION, SINGLE 07A02 CLUTCH & CLUTCH CASE, W/9 X 3 TRANSMISSION, DOUBLE 07A03 CLUTCH ASSEMBLY, DOUBLE, 9 X 3 W/LIVE PTO 07A04 CLUTCH & CLUTCH CASE, W/HST 07C01 FRONT TRANSMISSION CASE & SHIFTER, W/9 X 3 07C02 FRONT TRANSMISSION DUAL CLUTCH IN PUT SHAFT W/9 X 3 07C03 FRONT TRANSMISSION GEARS & SINGLE CLUTCH IN PUT SHAFT 2WD W/9 X 3 07C04 FRONT TRANSMISSION FWD GEARS W/9 X 3 07C05 REAR TRANSMISSION GEARS, W/9 X 3 07D01 FRONT TRANSMISSION CASE & SHIFTER, W/HST 07D02 FRONT TRANSMISSION GEARS, W/HST Page 1
Figure Search for TC30 3 CYL COMPACT TRACTOR (9/01- ) Figure Search for TC30 3 CYL COMPACT TRACTOR (9/01- ) 07D03 REAR TRANSMISSION GEARS, W/HST 07E01 REAR TRANSMISSION CASE & SHIFTER 9 X 3 & HST 07F01 PTO GEARS 07F02 MID PTO - STD W/HST & OPTIONAL W/ 9 X 3 - 710801036 07G01 AERATION PARTS 07I01 HST ASSEMBLY 07I02 HST CONTROLS 07I03 HST CRUISE CONTROL KIT 07J01 COLUMN SHIFT & ACCELERATOR LEVER 07J02 LEVERS - GEAR SHIFT 07K01 PEDALS, STEPS & PLATFORM, R.H. 07K02 PEDALS, STEPS, PLATFORM, L.H. & CLUTCH STOPPER KIT 07K03 STEP KIT, RH & LH 08A01 RADIATOR 09A01 TANK & RELATED PARTS 09B01 THROTTLE CONTROLS, HAND 09B02 THROTTLE CONTROLS, FOOT 09C01 INJECTION PUMP & LINES 09C02 INJECTION PUMP 09C03 FUEL INJECTOR ASSY. 10A01 HYDRAULIC PUMP 11A01 WIRING HARNESS 11A01A OHIO LIGHT KIT - USED ON & ASN HK14462 11A02 RELAYS 11B01 BATTERY 11C01 ALTERNATOR ASSY. 11D01 STARTING MOTOR 12A01 INSTRUMENT PANEL 12B01 DASHBOARD 13A01 SEAT BRACKET 13A02 ARMREST 13B01 ROLLBAR, SEAT & SEAT BELT 14A01 FENDERS & RELATED PARTS 14B01 HOOD & RELATED PARTS 14C01 TOOLBOX 14D01 WORKLIGHTS 16A01 DECALS, SAFETY 16A02 DECALS, INSTRUCTION 16A03 DECALS, INSTRUCTION 16A04 DECALS, IDENTIFICATION 17A01 SOFT SIDE CABS & FOPS/CANOPY - 710660046 & 718857006 17B01 FRONT BUMPER ASSEMBLY Page 2

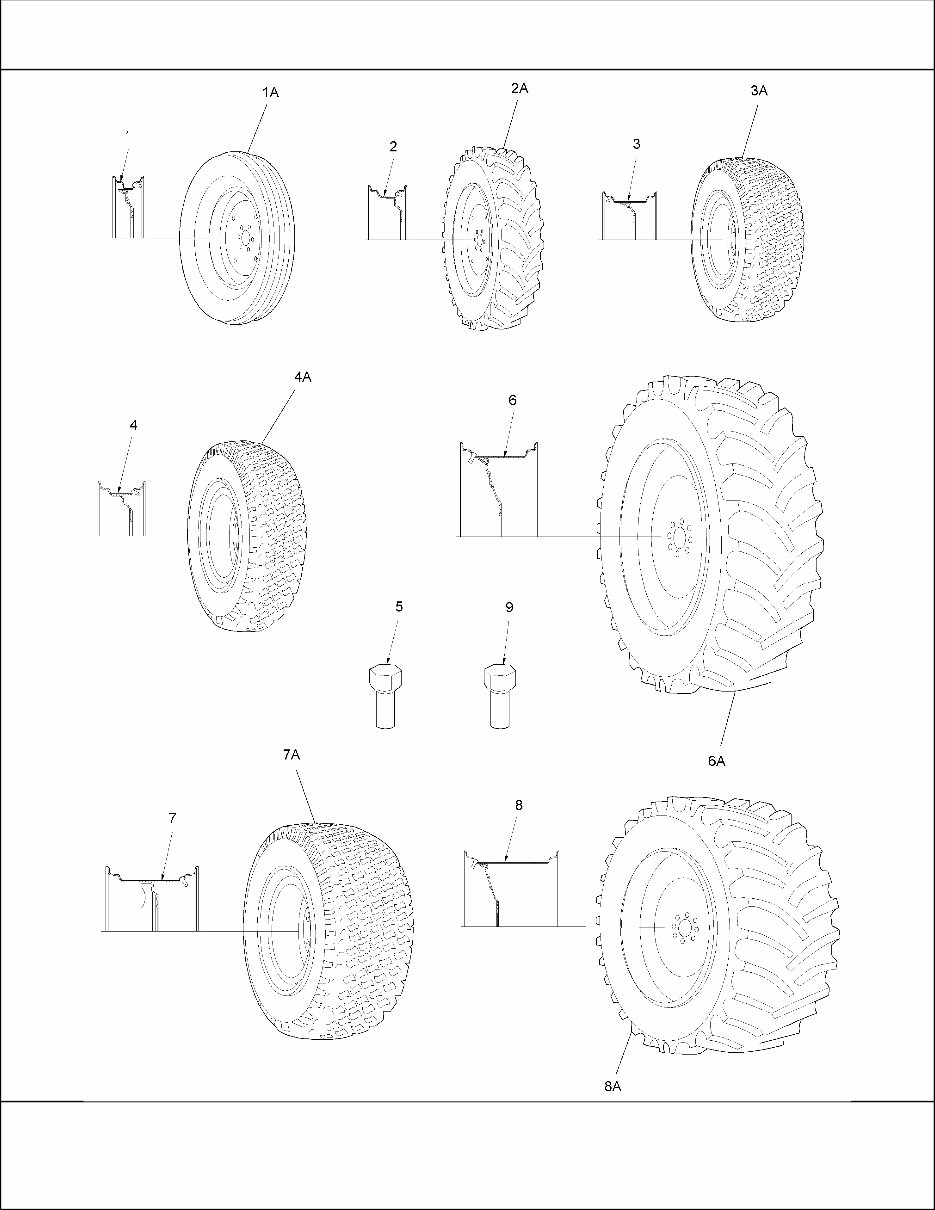

Ref Part Number Qty Description TC30 3 CYL COMPACT TRACTOR (9/01- ) 01A01 FRONT & REAR WHEELS 1 86526792 2 WHEEL, Front, 2WD, 4 x 16, 6 Holes, Tire Size, 5.50 x 16 1A TT462339DS 2 TIRE, RUBBER, 5.50-16, 6 Ply , AG 2 86525440 2 WHEEL, Front, AG FWD, 5 x 14, 6 Holes, Tire Size, 7 x 14 2A TT48D665DS 2 TIRE, RUBBER, 7.0-14, 4 Ply, AG 3 86526789 2 WHEEL, Front, Turf 2WD, 7 x 12, 6 Holes, Tire Size, 23 x 8.50 - 12 3A TT474301DS 2 TIRE, RUBBER, 23 x 8.50-12, 4 Ply, Turf 4 86525438 2 WHEEL, Front, Turf FWD & R4, 6 x 14, 6 Holes, Tire Size, 24 x 8.50 - 14 4A TT474324DS 2 TIRE, RUBBER, 24 x 8.50-14, 4 Ply, Turf, When replacing Tire, 25 x 8.50-14 With 24 x 8.50-14 you need to change both front tires 5 198056 12 BOLT, Wheel, G5, 1/2"-20 x 1-1/32" (Front Wheel) 6 86525441 2 WHEEL, Rear, AG, 10 x 24, 8 Holes, Tire Size, 11.2 x 24 6A TT48D404DS 2 TIRE, RUBBER, 11.2-24, 4 Ply, AG 7 86525439 2 WHEEL, Rear, Turf, 16 x 12 , 8 Holes, Tire Size, 13.6 x 16 7A TT474381DS 2 TIRE, RUBBER, 13.6-16, 4 Ply, Turf 8 86535866 2 WHEEL, Rear, R4, 12.25 x 19.5, 8 Holes, Tire Size, 15 x 19.5 8A TT412373DS 2 TIRE, RUBBER, 15-19.5, 4 Ply, R4 9 86628557 16 BOLT, Wheel, 9/16"-18 x 1-1/8", Rear

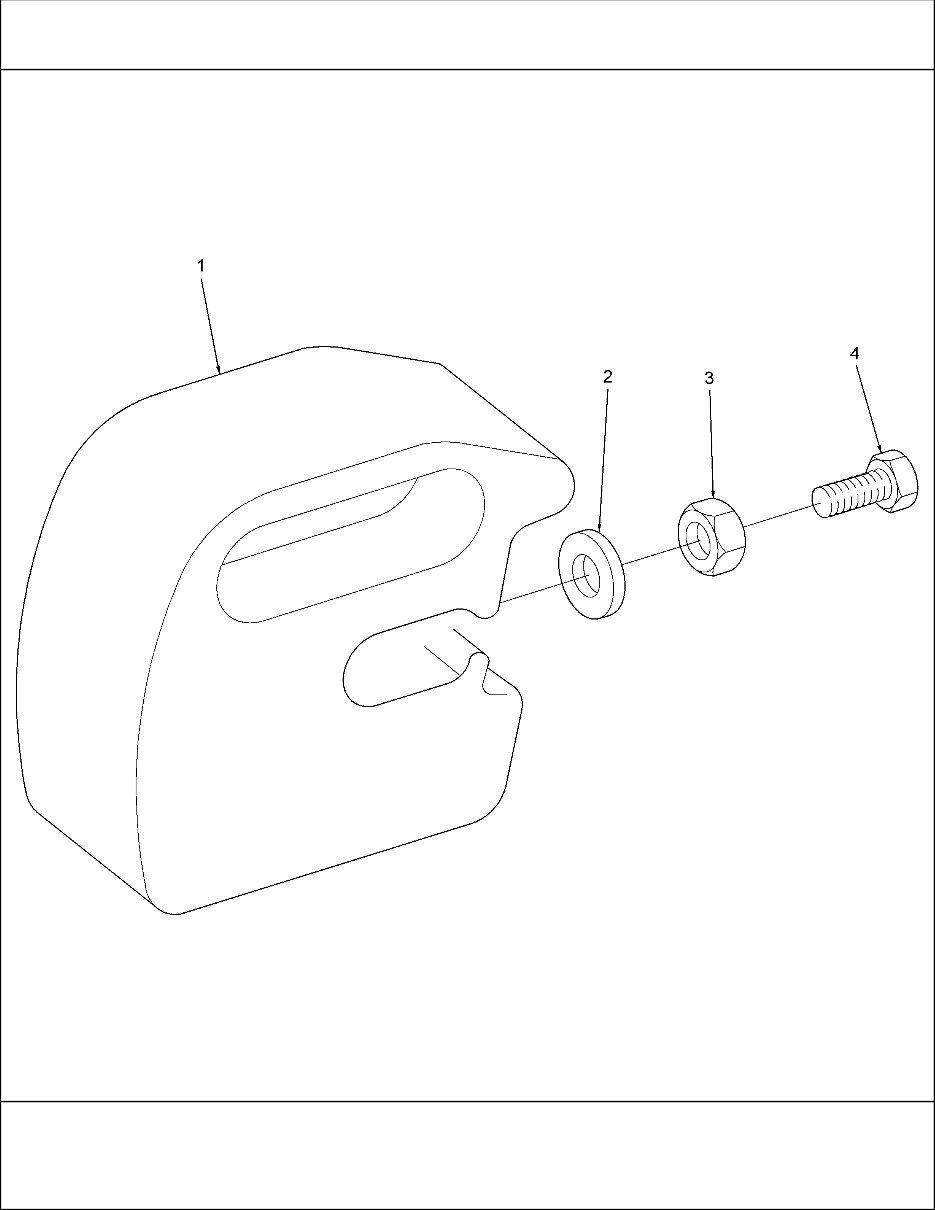

TC30 3 CYL COMPACT TRACTOR (9/01- ) 01A02 FRONT END WEIGHTS
Ref Part Number Qty Description TC30 3 CYL COMPACT TRACTOR (9/01- ) 01A02 FRONT END WEIGHTS 1 710215016 1 KIT, MISC, Weight, Front End, Max Of 3 With All Axle/Tire Combinations , Order Thru Wholegoods 2 80299 1 WASHER, 5/8" 3 280374 1 NUT, G5, 5/8"-11 4 280508 1 BOLT, Carriage

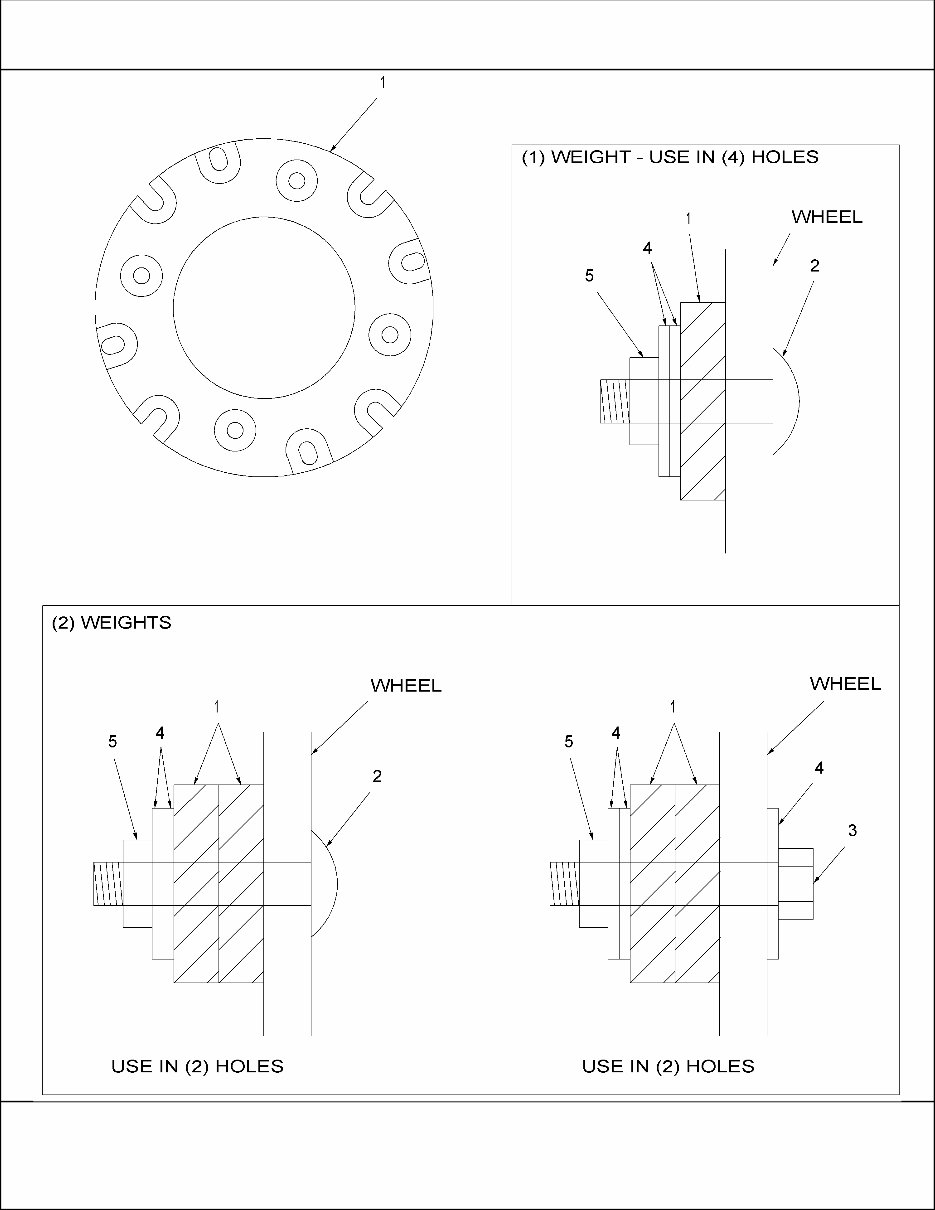

TC30 3 CYL COMPACT TRACTOR (9/01- ) 01A03 REAR WHEEL WEIGHTS, 105 LBS., AG ONLY - 710470013
Ref Part Number Qty Description TC30 3 CYL COMPACT TRACTOR (9/01- ) 01A03 REAR WHEEL WEIGHTS, 105 LBS., AG ONLY - 710470013 1 710470013 1 KIT, MISC, Weight, Rear Wheel, 105 Lbs., AG Only, Order Thru Wholegoods 2 280563 4 BOLT, Carriage, G5, 5/8"-11 x 3-1/2", Used W/(1) Weight Per Wheel 2 280563 2 BOLT, Carriage, G5, 5/8"-11 x 3-1/2", Used W/(2) Weight Per Wheel 3 280293 2 SCREW, Cap, HH, G5, 5/8"-11 x 7", Used With (2) Weights Per Wheel 4 80299 8 WASHER, 5/8", Used With (1) Weight Per Wheel 4 80299 10 WASHER, 5/8", Used With (2) Weights Per Wheel 5 280374 4 NUT, G5, 5/8"-11, Use (4) W/Both (1) & (2) Weights Per Wheel
This is a comprehensive illustrated master parts list manual for the New Holland model TC30 Compact Tractor. It contains detailed parts explosions, exploded views, and breakdowns of all part numbers for various aspects of these TC30 New Holland compact tractors, including detailed engine parts breakdowns.
The manual covers the following areas of the machine:
Wheels and Weights
Front Axle and Steering
Rear Axle
Hydraulic Systems
Engine
Transmission
Cooling System
Fuel System
Hydraulic Pump
Electrical System
Instrument Panel
Seats
Sheet Metal and Grille
Decals
Miscellaneous
This indexed manual is divided into sections for fast navigation, including a full machine text index, figure search instructions, and general information such as abbreviations and metric to inches conversion.
Additionally, it includes attachment parts manuals for TC & 15 series, and 20 series compact tractors, covering various attachments like front blades, loaders, mowers, snow blowers, backhoes, and tillers.
For DIY tractor parts lookup, this manual provides exploded views to assist in servicing, rebuilding, teardowns, overhauls, repairs, and adjustments. It contains all the original parts information needed to lookup correct part numbers for the entire machine, including engine parts.
This manual is available in digital format, allowing for immediate access without the need for shipping. It is fully text searchable for quick and simple navigation.
About New Holland:
New Holland is a global leader in the design and manufacture of agricultural tractors and construction equipment. Supported by a vast network of dealers and outlets worldwide, New Holland offers a full line of construction equipment, bringing together the knowledge and experience of various heritage brands.
Founded in 1895, New Holland has a rich history in farm implements and automatic hay balers. Acquired by Ford Tractor Operations in 1985, it later became part of CNH Global, continuing to build tractors under the New Holland brand.
New Holland produces both agricultural farm equipment and heavy construction equipment, including backhoes, skid steer loaders, excavators, mini excavators, and wheel loaders. The models covered in this Illustrated Master Parts List Manual include the TC30 Compact Tractor.
