TC27D Compact Tractor OPERATOR’S MANUAL Print No. 604.53.211.00 English 05/99 NOT FOR REPRODUCTION

NOT FOR REPRODUCTION

AIRBORNE NOISE EMISSION In accordance with E.E.C. directives, the noise levels of tractors covered by this Manual and marketed within the European Economic Community are as follows: WITH CAB Noise level at operator’s ear* External noise Model Drive line Closed -- dB(A) Open -- dB(A) level -- dB(A)** TC27D 9 x 3 transmission 84.5 86.5 77 TC27D Hydrostatic transmission 85 88 77 * The noise level at the operator’s ear is with all cab windows, doors and roof hatch (where fitted) open or closed, as indicated. Test results are in accordance with directive 77/311/EEC Annex I. ** Test results are in accordance with directive 74/151/EEC Annex VI 1. 4. 2, with tractor stationary. WITHOUT CAB Noise level at External noise Model Drive line operator’s ear -- dB(A)* level -- dB(A)** TC27D 9 x 3 transmission 86 78 TC27D Hydrostatic transmission 86 79 * Test results are in accordance with directive 77/311/EEC Annex II. ** Test results are in accordance with directive 74/151/EEC Annex VI 1. 4. 2, with tractor stationary. NOT FOR REPRODUCTION

CONTENTS SECTION 1 -- INTRODUCTION General Information 1--1 ....................................................................... Identification Plate 1--1 ........................................................................ To the Owner 1--2 ............................................................................. Safety Precautions 1--3 ........................................................................ Safety Decals 1--7 ............................................................................ Hardware Torque Charts 1--8 ................................................................... International Symbols 1--10 ..................................................................... SECTION2 -- OPERATION Seat, Seat Belt and ROPS 2--2 ................................................................. Safety Cab 2--4 ............................................................................... Instrument Panel and Starting the Engine 2--10 ................................................... Instrument Console 2--13 ...................................................................... Brakes and Front Wheel Drive 2--15 ............................................................. Transmissions 2--16 ........................................................................... Differential Lock 2--18 ......................................................................... Power Take-off 2--19 .......................................................................... Swinging Drawbar and Three-point Linkage 2--21 .................................................. Super SteerT Axle 2--22 ....................................................................... Tractor Hydraulics 2--23 ....................................................................... Wheel Tread Settings 2--26 ..................................................................... Tractor Weighting 2--26 ........................................................................ SECTION 3 -- LUBRICATION AND MAINTENANCE Lubrication and Maintenance Chart 3--2 .......................................................... Service -- Every 10 Hours or Daily 3--5 ........................................................... Service -- First 50 Hours only 3--7 ............................................................... Service -- Every 50 Hours 3--8 .................................................................. Service -- Every 100 Hours 3--14 ................................................................ Service -- Every 200 Hours 3--18 ................................................................ Service -- Every 300 Hours 3--21 ................................................................ Service -- Every 600 Hours 3--25 ................................................................ Service -- Seasonal 3--28 ...................................................................... Service -- Special Air Cleaner Service 3--31 ....................................................... General Maintenance 3--32 ..................................................................... SECTION4 -- SPECIFICATIONS PRE-DELIVERY INSPECTION CHECK LIST INDEX NOT FOR REPRODUCTION

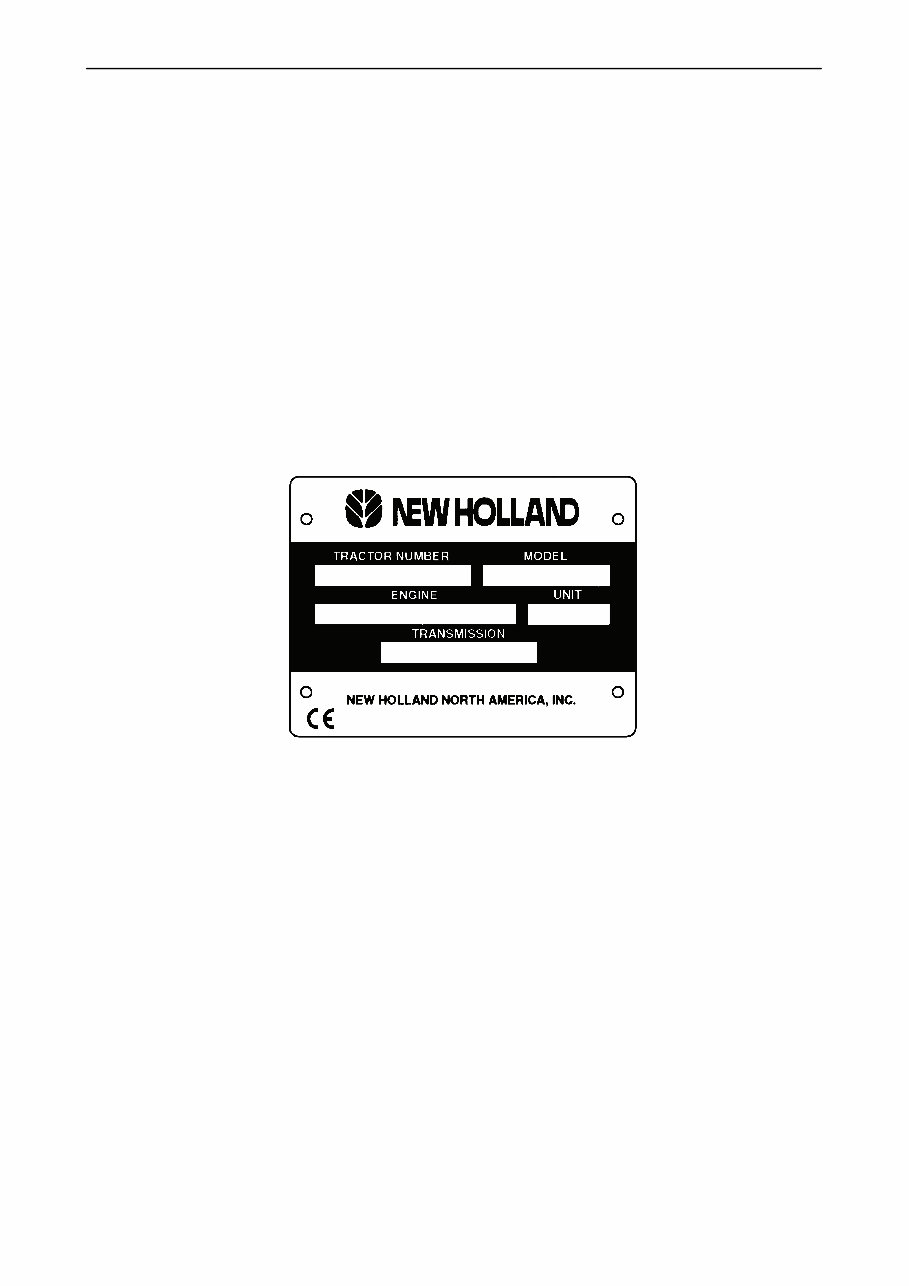

1 SECTION 1 GENERAL INFORMATION PLEASE READ CAREFULLY: For a complete list of the pre-delivery service checks performed by your dealer, refer to the PRE-DELIVERY INSPECTION check list found at the back of this manual. Keep one copy as your record of the service performed. The other copy should be removed from the manual and kept by your dealer. MAKE SURE THAT BOTH COPIES ARE COMPLETED AND THAT YOU AND THE DEALER SIGN BOTH COPIES. A PRODUCT IDENTIFICATION PLATE is located on the left-hand side of the transmission housing. The numbers on the plate are important in the event your tractor should require future service. For your convenience, have your dealer record these numbers in the appropriate spaces below. MADE IN U.S.A. New Holland policy is one of continuous improvement and the right to change prices, specification or equipment at any time without notice is reserved. All data given in this manual is subject to production variations. Dimensions and weight are approximate only. The illustrations do not necessarily show tractors in standard condition or imply that these features are available in all countries. For exact information about any particular tractor, please consult your New Holland dealer. NOT FOR REPRODUCTION

GENERAL INFORMATION 2 TO THE OWNER This manual contains information concerning the operation, adjustment, and maintenance of the Model TC27D Compact tractor. You have purchased a dependable machine, but only by proper care and operation can you expect to receive the performance and long service built into this tractor. Please have all operators read this manual carefully and keep the manual available for ready reference. Your New Holland dealer will instruct you in the general operation of your tractor. (See also, the Pre-Delivery check list at the back of this Manual). Your dealer’s staff of factory-trained service technicians will be glad to answer any questions that may arise regarding the operation of your tractor. Your New Holland dealer carries a complete line of genuine New Holland parts. These parts are manufactured and carefully inspected to insure high quality and accurate fitting of any necessary replacement parts. CAUTION: This symbol is used throughout this book whenever personal safety is involved. Take time to read and follow the instructions. Be careful! CAUTION: Pictures in this manual may show protective shielding open or removed to better illustrate a particular feature or adjustment. Be certain, however, to close or replace all shielding before operating the machine. NOT FOR REPRODUCTION

SECTION 1 3 SAFETY PRECAUTIONS PERSONAL SAFETY Throughout this manual and on machine decals, you will find precautionary statements (“CAUTION”, “WARNING”, and “DANGER”) followed by specific instructions. These precautions are intended for the personal safety of you and those working with you. Please take the time to read them. CAUTION: The word “CAUTION” is used where a safe behavioral practice according to operating and maintenance instructions and common safety practices will protect the operator and others from accident involvement. WARNING: The word “WARNING” denotes a potential or hidden hazard which has a potential for serious injury. It is used to warn operators and others to exercise every appropriate means to avoid a surprise involvement with machinery. DANGER: The word “DANGER” denotes a forbidden practice in connection with a serious hazard. Failure to follow the “CAUTION”, “WARNING”, and “DANGER” instructions may result in serious bodily injury or death. MACHINE SAFETY Additional precautionary statements (“ATTENTION” and “IMPORTANT”) are followed by specific instructions. These statements are intended for machine safety. ATTENTION: The word “ATTENTION” is used to warn the operator of potential machine damage if a certain procedure is not followed. IMPORTANT: The word “IMPORTANT” is used to inform the reader of something he needs to know to prevent minor machine damage if a certain procedure is not followed. NOT FOR REPRODUCTION

GENERAL INFORMATION 4 SAFETY PRECAUTIONS A careful operator is the best operator. Most accidents can be avoided by observing certain precautions. To help prevent accidents, read and take the following precautions before operating this tractor. Equipment should be operated only by those who are responsible and instructed to do so. THE TRACTOR 1. Read the Operator’s Manual carefully before using the tractor. Lack of operating knowledge can lead to accidents. 2. Use an approved roll bar for safe operation. Overturning a tractor without a roll bar can result in death or injury. If your tractor is not equipped with a roll bar, see your New Holland Dealer. 3. If a front end loader is to be installed, always use a FOPS (Falling Object Protective Structure) canopy to avoid injury from falling objects. 4. Use the handholds and step plates when getting on and off the tractor to prevent falls. Keep steps and platform cleared of mud and debris. 5. Do not permit anyone but the operator to ride on the tractor. There is no safe place for extra riders. 6. Keep all safety decals clean of dirt and grime, and replace all missing, illegible, or damaged safety decals. See the list of decals in the Decal section of this manual. SERVICING THE TRACTOR 1. The cooling system operates under pressure which is controlled by the radiator cap. It is dangerous to remove the cap while the system is hot. Always turn the cap slowly to the first stop and allow pressure to escape before removing the cap entirely. 2. Keep any type of open flame away from the tractor and do not smoke while refueling. Wait for the engine to cool before refueling. 3. Keep the tractor and equipment, particularly brakes and steering, maintained in a reliable and satisfactory condition to ensure your safety and comply with legal requirements. 4. Keep open flame or cold weather starting aids away from the battery to prevent fires or explo- sions. Use jumper cables according to instructions to prevent sparks which could cause explosion. 5. Stop the engine before performing any service on the tractor. 6. Escaping hydraulic/diesel fluid under pressure can penetrate the skin causing serious injury. If fluid is injected into the skin, obtain medical attention immediately or gangrene may result. • Do not use your hand to check for leaks. Use a piece of cardboard or paper to search for leaks. • Stop the engine and relieve pressure before connecting or disconnecting lines. • Tighten all connections before starting the engine or pressurising lines. 7. Do not modify or permit anyone else to modify or alter this tractor or any of its components or functions without first consulting a New Holland Dealer. 8. The fuel oil in the injection system is under high pressure and can penetrate the skin. Unqualified persons should not remove or attempt to adjust a pump, injector, nozzle, or any other part of the fuel injection system. Failure to follow these instructions can result in serious injury. 9. Continuous long-term contact with used engine oil may cause skin cancer. Avoid prolonged contact with used engine oil. Wash skin promptly with soap and water. NOT FOR REPRODUCTION
