1--1 SECTION 1 GENERAL INFORMATION AND SAFETY TO THE OWNER GENERAL This Manual has been prepared to assist you in the correct procedure for running--in, driving and operating and for the maintenance of your new tractor. Read this Manual carefully. Your tractor is intended for use in normal and customary agricultural applications. If at any time you require advice concerning your tractor, do not hesitate to contact your authorised dealer. He has factory trained personnel, genuine manufacturers’ parts and the necessary equipment to carry out all your service requirements. Your tractor has been designed and built to give maximum performance, economy and ease of operation under a wide variety of operating conditions. Prior to delivery, the tractor was carefully inspected, both at the factory and by your dealer to ensure that it reaches you in optimum condition. To maintain this condition and ensure trouble--free operation, it is important that the routine services, as specified in Section 4 of this Manual, are carried out at the recommended intervals. OPERATORS MANUAL STORAGE A storage pocket for the Operators Manual can be found on the rear of the seat. The manual should be kept in this pocket at all times when not in use. CLEANING THE TRACTOR Your tractor is a state-of-the-art machine with sophisticated, electronic controls. This should be taken into consideration when cleaning the tractor, particularly if using a high pressure washer. Even though every precaution has been taken to safeguard electronic components and connections, the pressure generated by some of these machines is such that complete protection against water ingress cannot be guaranteed. When using a high pressure washer, do not stand too close to the tractor and avoid directing the jet at electronic components, electrical connections, breathers, seals, filler caps, etc. Never direct a cold water jet at a hot engine or exhaust. SAFETY Pages 1--7 to 1--13 inclusive list the precautions to be observed to ensure your safety and the safety of others. Read the safety precautions and follow the advice offered before operating the tractor. FIRST 50 HOUR SERVICE In Section 8, at the back of this Manual, you will find the 50--hour service reports. After you have operated the tractor for 50 hours, take your tractor, together with this Manual, to your dealer. He will then perform the factory recommended 50 hour service and complete the service report sheets (pages 8--1 and 8--3). The first sheet (page 8--1) is the dealer’s copy and should be removed by the dealer after the service has been carried out. The second sheet (page 8--3) is your copy of the service performed. Ensure that you and the dealer sign both copies. SERVICE PARTS It should be pointed out that genuine parts have been examined and approved by the Company. The installation and/or use of ‘non-genuine’ products could have negative effects upon the design characteristics of your tractor and thereby affect it’s safety. The Company is not liable for any damage caused by the use of ‘non--genuine’ parts and accessories. Only genuine New Holland replacement parts should be used. The use of non-genuine parts may invalidate legal approvals associated with this product. It is prohibited to carry out any modifications to the tractor unless specifically authorised, in writing, by the After Sales Service department of the Company. WARRANTY Your tractor is warranted according to legal rights in your country and the contractual agreement with the selling dealer. No warranty shall, however, apply if the tractor has not been used, adjusted and maintained according to the instructions given in the Operator’s Manual.

SECTION 1 -- GENERAL INFORMATION AND SAFETY 1--2 END USER LICENCE AGREEMENT TERMS • You have acquired a device (”DEVICE”) that includes Software licensed by CHN America LLC from Microsoft Licensing, GP or its affiliates (”MS”). Those installed software products of MS origin, as well as associated media, printed materials, and “online” or electronic documentation (”SOFTWARE”) are protected by international intellectual property laws and treaties. The SOFTWARE is licensed, not sold. All rights reserved. • IF YOU DO NOT AGREE TO THIS END USER LICENSE AGREEMENT (”EULA”0, DO NOT USE THE DEVICE OR COPY THE SOFTWARE. INSTEAD, PROMPTLY CONTACT CNH AMERICA LLC FOR INSTRUCTIONS ON RETURN OF THE UNUSED DEVICE(S) FOR A REFUND. ANY USE OF SOFTWARE INCLUDING BUT NOT LIMITED TO USE ON THE DEVICE, WILL CONSTITUTE YOUR AGREEMENT TO THIS EULA (OR RATIFICATION OF ANY PREVIOUS CONSENT.) • GRANT OF SOFTWARE LICENSE. This EULA grants you the following license: -- You may use the SOFTWARE only on the DEVICE. -- NOT FAULT TOLERANT. THE SOFTWARE IS NOT FAULT TOLERANT. CNH AMERICA LLC HAS INDEPENDENTLY DETERMINED HOW TO USE THE SOFTWARE IN THE DEVICE, AND MS HAS RELIED UPON CNH AMERICA LLC TO CONDUCT SUFFICIENT TESTING TO DETERMINE THAT THE SOFTWARE IS SUITABLE FOR SUCH USE. -- NO WARRANTIES FOR THE SOFTWARE. THE SOFTWARE is provided “AS IS” and with all faults. THE ENTIRE RISK AS TO SATISFACTORY QUALITY, PERFORMANCE, ACCURACY AND EFFORT (INCLUDING LACK OF NEGLIGENCE) IS WITH YOU. ALSO, THERE IS NO WARRANTY AGAINST INTERFERENCE WITH YOUR ENJOYMENT OF THE SOFTWARE OR AGAINST INFRINGEMENT. IF YOU HAVE RECEIVED ANY WARRANTIES REGARDING THE DEVICE OR THE SOFTWARE, THOSE WARRANTIES DO NOT ORIGINATE FROM, AND ARE NOT BINDING ON, MS. -- No Liability for Certain Damages. EXCEPT AS PROHIBITED BY LAW, MS SHALL HAVE NO LIABILITY FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE SOFTWARE. THIS LIMITATION SHALL APPLY EVEN IF ANY REMEDY FAILS OF ITS ESSENTIAL PURPOSE. IN NO EVENT SHALL MS BE LIABLE FOR ANY AMOUNT IN EXCESS OF U.S. TWO HUNDRED AND FIFTY DOLLARS (U.S. $250.00) -- Limitations on Reverse Engineering, Decompilation, and Disassembly. You may not reverse engineer, decompile, or disassemble the SOFTWARE, except and only to the extent that such activity is expressly permitted by application law notwithstanding this limitation. -- SOFTWARE TRANSFER ALLOWED BUT WITH RESTRICTIONS. You may permanently transfer rights under this EULA only as part of a permanent sale or transfer of the DEVICE, and only if the recipient agrees to this EULA. If the SOFTWARE is an upgrade, any transfer must also include all prior versions of the SOFTWARE. -- EXPORT RESTRICTIONS. You acknowledge that SOFTWARE is subject to U.S. export jurisdiction. You agree to comply with all applicable international and national laws that apply to the SOFTWARE, including the U.S. Export Administration Regulations, as well as end--user, end--use and destination restrictions issued by U.S. and other governments. For additional information see http://www.microsoft.com/exporting/.

SECTION 1 -- GENERAL INFORMATION AND SAFETY 1--3 PRODUCT IDENTIFICATION The tractor and major components are identified using serial numbers and/or manufacturing codes. Tractor identification data must be supplied to the dealer when requesting parts or service and will also be needed to aid in identifying the tractor if it is ever stolen. The following provides the locations of the identification data. 1 1 Vehicle Identification Plate The vehicle identification plate, (1) Figure 1 is located on the left-hand radiator support. Record the information on the sample identification plate provided below. 2 Tractor Identification The serial number and model identification information is stamped on the right--hand side of the front support (1). These numbers are also repeated on the vehicle identification plate reproduced above. 3

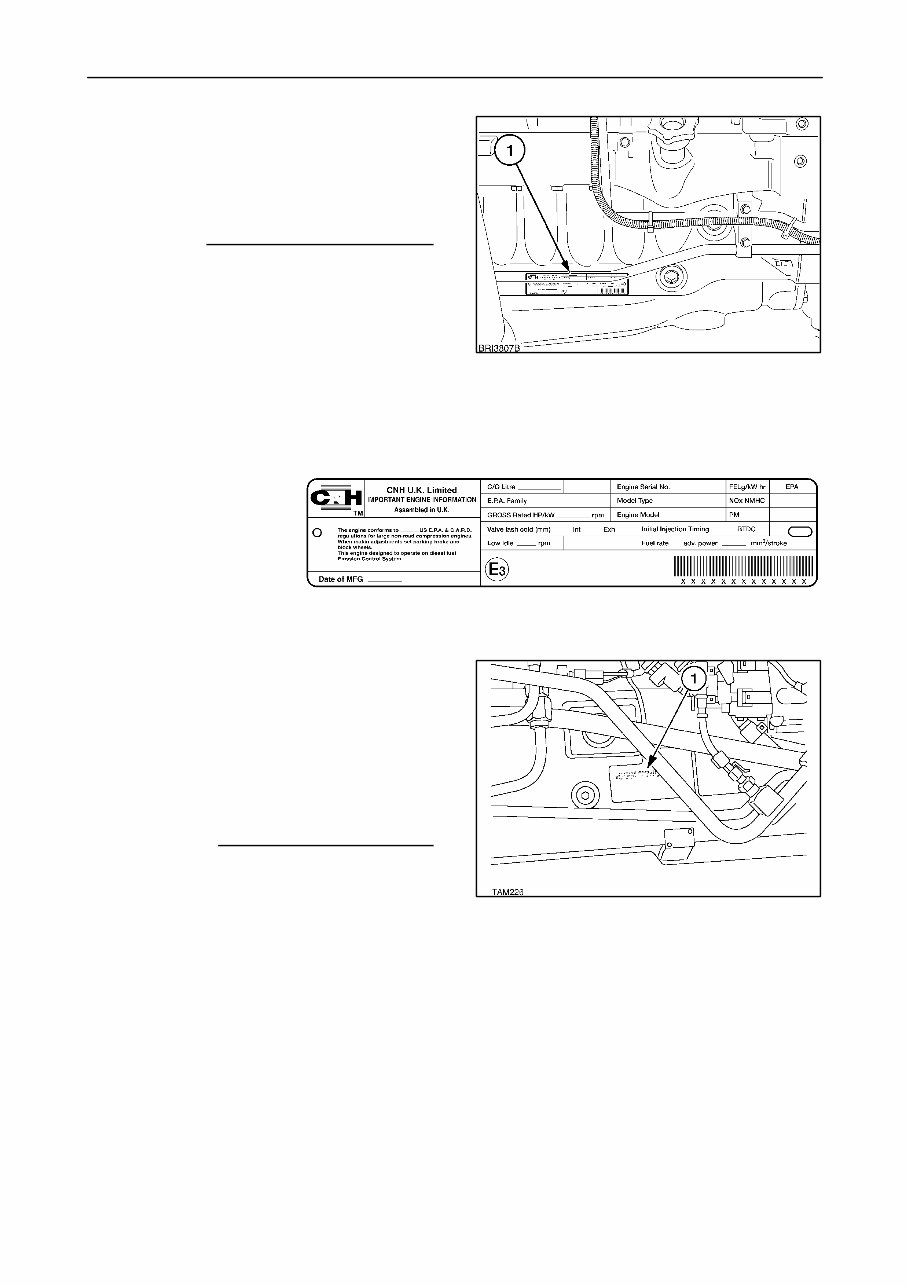

SECTION 1 -- GENERAL INFORMATION AND SAFETY 1--4 Engine Information The engine serial number and date of manufacture are stamped on the engine iinformation plate (1) located on the left side of the engine oil pan. Engine Serial No. 4 Further information relating to engine adjustments and emission level compliance are also shown on the engine information plate. Driveline Identification The serial number plate (1) is located on the transmission casing. Access to the number can be gained by removing the plate in the floor of the cab as shown in the illustration. This number is repeated on the vehicle identification plate. Record the information below for quick reference. Driveline Serial No. 5
