How To Use Figure Search
1). Locate the figure list index at the beginning of manual
examples:
01A01 FRONT WHEEL ASSEMBLY -
2100,2110,2120,2150,2300,2310,3055,3100,3120,3150,3190,3300,3310,3550,4140
01A01[C] FRONT WHEEL ASSEMBLY, W/16" WHEELS - 3400, 3500, 3550, 4400,
4500, 4410, 5100, 5200, 5190, 7100, 7200
01B01 STANDARD REAR WHEELS - 2000, 4100 & 3000 EXCEPT 3550
01B01[A] STANDARD REAR WHEELS - 3500, 3550, 5000, 7000, 4000 EXCEPT 4110
01B02 POWER ADJUSTABLE REAR WHEELS - 2000, 3000, 4140
Use the “search” feature in adobe to jump to the figure number.
Press Ctrl key, and letter F on the keyboard, at the same time. This will bring up the
“search” feature in Adobe Acrobat. Then simply type in the figure number you wish to
locate, and press enter.
Adobe takes you immediately to that page!
Figure Search for 545D 3 CYL TRACTOR LOADER (9/92-12/00)
Figure Search for 545D 3 CYL TRACTOR LOADER (9/92-12/00)
01A01 FRONT WHEEL ASSEMBLY
01B01 STANDARD REAR WHEELS
01B02 STANDARD REAR WHEELS, SQUARE DISC
01C01 FRONT END WEIGHTS
01D01 24" REAR WHEEL WEIGHTS
02A01 BRAKE CONTROLS - L/8X8 TRANSMISSION
02A02 BRAKE CONTROLS - W/8X8 TRANSMISSION
02A03 BRAKE PEDALS, (9-92/), W/CAB
02B01 HANDBRAKE LEVER W/TWIN CABLE
02B02 HANDBRAKE, W/CAB - 445D, 545D
03A01 FRONT AXLE, STEERING, 2WD
03A02 FRONT AXLE, STEERING, 4WD
03A03 FRONT AXLE, STEERING, ASN A442030, 5-98/
03B01 STEERING COLUMN & MOTOR, 12/88-4/98
03B02 STEERING COLUMN & MOTOR, 5-98/
03C01 POWER STEERING PUMP & RESERVOIR
03D01 POWER STEERING CYLINDER ASSEMBLY - TRW
03D02 POWER STEERING CYLINDER ASSEMBLY - "CASCADE"
03F01 4WD FRONT AXLE
03F02 4WD DIFFERENTIAL BOX
03F03 4WD BEVEL GEAR & PINION SET
03F04 4WD REDUCTION GEARS
03F05 4WD STEERING ARMS & TIE ROD
03F06 4WD DRIVESHAFTS
03F07 4WD DRIVE SHAFTS & SHIELDS
03F08 4WD GEARBOX ASSEMBLY
03F09 4WD FRONT SUPPORT
03F10 4WD TRANSFER CASE
04A01 REAR AXLE, DIFFERENTIAL
04A02 REAR AXLE, W/4WD
04B01 DIFFERENTIAL LOCK LINKAGE
04B02 DIFFERENTIAL LOCK & PTO CONTROL, W/CAB (9-92/ )
04C01 CENTER HOUSING
04D01 REAR AXLE OIL COOLER, 345D, 445D, 545D
05A01 HYDRAULIC LIFT COVER
05A02 HYDRAULIC LIFT SHAFT & RELATED PARTS
05A03 HYDRAULIC LIFT CYLINDER
05B01 HYDRAULIC RESERVOIR & PUMP DRIVE, NON-EMISSIONIZED ENGINE
05B02 HYDRAULIC RESERVOIR, EMISSIONIZED ENGINES, ASN A442030
05B03 FLOW CONTROL VALVE PIPING
05B04 FLOW CONTROL VALVE
05B05 MANIFOLD ASSEMBLY, REAR AXLE HYDRAULIC
05C01 HYDRAULIC LIFT LINKAGE
05D01 STABILIZER KIT - W/LOADER
05E01 SWINGING DRAWBAR ASSEMBLY
05F01 VALVE ASSEMBLY, LOADER CONTROL
05G01 LIFT & DRAFT CONTROL - W/CAB
05G02 BOX ASSEMBLY - LIFT LEVELING
Page 1
Figure Search for 545D 3 CYL TRACTOR LOADER (9/92-12/00)
Figure Search for 545D 3 CYL TRACTOR LOADER (9/92-12/00)
05G03 HYDRAULIC LIFT CONTROL
05H01 REMOTE CONTROLS, W/CAB
05H02 REMOTE CONTROL VALVE & COUPLER
05H03 CONTROL VALVE, DELUXE REMOTE-345D,445D,545D
05H04 COUPLING ASSEMBLY - REMOTE CONTROL
05H05 UNLOAD VALVE
05J01 HYDRAULIC PUMP ASSEMBLY- (ENGINE MOUNTED - AUXILIARY)
05J02 HYDRAULIC PUMP ASSEMBLY, GEAR TYPE, MOUNTED IN CENTER HOUSING,
05J03 HYDRAULIC PUMP ASSEMBLY, FRONT MOUNTED, LOADER BACKHOE
06A01 CYLINDER BLOCK & HEAD
06A02 PLUGS - BLOCK
06B01 CRANKSHAFT & FLYWHEEL
06C01 CAMSHAFT, ROCKER ARM & VALVES
06D01 PISTONS & CONNECTING RODS
06E01 OIL PUMP & PAN
06F01 MANIFOLD & EXHAUST SYSTEM, NON-EMISSIONIZED
06F02 MANIFOLD & EXHAUST SYSTEM, EMISSIONIZED
06G01 OIL COOLER & HOSES, 5-98/
07A01 6 X 4 MANUAL REVERSING TRANSMISSION CASE & SHIFT LEVER
07A02 8 X 2 TRANSMISSION CASE & SHIFT LEVERS, D SERIES, 1-95/
07B01 6 X 4 MANUAL REVERSING TRANSMISSION GEARS
07B02 8 X 2 TRANSMISSION GEARS, D-SERIES, 1-95/
07C01 INDEPENDENT PTO ASSEMBLY
07C02 FWD RELATED PARTS L/PTO
07D01 PTO GUARD
07E01 CLUTCH CONTROLS
07F01 SINGLE CLUTCH ASSEMBLY, 13"
07J01 TRANSMISSION VALVE, TUBES & FITTINGS, 4 X 4 & 8 X 8
07J02 REVERSE IDLER SHAFT & GEAR, 4 X 4 & 8 X 8
07K01 TRANSMISSION CASE, 4 X 4
07K02 TRANSMISSION REAR COVER, 4 X 4
07K03 TRANSMISSION FRONT COVER, 4 X 4
07K04 TRANSMISSION VALVE & HOUSING, 4 X 4
07K05 TRANSMISSION CLUTCH & INPUT SHAFT, 4 X 4
07K06 TRANSMISSION COUNTERSHAFT & GEARS - 4 X 4
07K07 TRANSMISSION OUTPUT SHAFT & GEARS, 4 X 4
07K08 SHIFT FORK & RAIL, 1 & 2, W / 4 X 4
07K09 SHIFT FORK & RAIL, 3 & 4, W/4 X 4
07K10 TRANSMISSION SHIFT LEVER & DIPSTICK, W/4 X 4
07L01 TRANSMISSION CASE, 8 X 8
07L02 TRANSMISSION REAR COVER, 8 X 8
07L03 TRANSMISSION FRONT COVER, 8 X 8
07L04 TRANSMISSION VALVE & HOUSING, 8 X 8
07L05 CLUTCH & INPUT SHAFT, 8 X 8
07L06 PTO SHAFT & GEARS, 8 X 8
07L07 PTO COVER ASSEMBLY, W/8 X 8 TRANSMISSION
07L08 TRANSMISSION OUTPUT SHAFT & GEARS, 8 X 8
07L09 SHIFT FORK & RAIL, 1 & 2 W/ 8 X 8
Page 2
Figure Search for 545D 3 CYL TRACTOR LOADER (9/92-12/00)
Figure Search for 545D 3 CYL TRACTOR LOADER (9/92-12/00)
07L10 SHIFT FORK & RAILS, 3 & 4, HIGH & LOW W/8 X 8
07L11 TRANSMISSION SHIFT LEVER & DIPSTICK - W/8 X 8
07M01 SHUTTLE SHIFT CONTROL
07M02 TRANSMISSION DUMP VALVE ROUND PEDAL
07M03 TRANSMISSION DUMP VALVE SQUARE PEDAL
07N01 TRANSMISSION OIL COOLER
08A01 RADIATOR & FAN
08B01 WATER PUMP
08C01 WATER FILTER
09A01 FUEL SYSTEM
09A02 FUEL TANK & RELATED PARTS, EMISSIONIZED
09B01 FUEL SEDIMENTER & FILTER ASSEMBLY, NON-EMMISSIONIZED (12-88/4-98)
09B02 FUEL FILTER ASSEMBLY, EMISSIONISED, ASN A442030 (5-98/)
09C02 FUEL INJECTOR ASSEMBLY (3-90/-)
09D01 FUEL INJECTION PUMP, DPA ROTARY, UPPER HALF
09D02 FUEL INJECTION PUMP, DPA ROTARY, LOWER HALF
09E01 DIESEL COLD START
09F01 THROTTLE CONTROLS, L/CAB (12-88/ )
09F02 THROTTLE CONTROLS, W/CAB (9-92/ )
09G01 AIR CLEANER ASSEMBLY FOR NON-EMISSIONIZED ENGINE (12-88/4-98)
09G02 AIR CLEANER FOR EMMISIONIZED ENGINES (5-98/ )
11A01L ELECTRICAL SYSTEM, L.H.
11A01R ELECTRICAL SYSTEM, R.H.
11A02 SWITCH, TRANSMISSION CONTROL VALVE PEDAL & REL
11B01 HEADLAMP ASSEMBLY, FRONT MOUNTED L/CAB - N.A. ONLY
11B02 HEADLAMP ASSEMBLY, FLAT TOP FENDER L/CAB - N.A. ONLY
11C01 REAR LAMPS L/CAB - N.A. ONLY
11C02 LAMP ASSEMBLY, EMERGENCY WARNING L/CAB - N.A. ONLY
11C03 LAMP ASSEMBLY, FLASHER WARNING L/CAB - N.A. ONLY
11C04 KIT, TURN SIGNAL, DIA, L/CAB, NA ONLY
11C05 IMPLEMENT LAMP ASSEMBLY L/CAB - N.A. ONLY
11C06 IMPLEMENT LAMP, L/CAB, NA ONLY (3-90/ )
11D01 BATTERY & SUPPORT, NON-EMISSIONIZED ENGINE (12-88/4-98)
11D02 BATTERY & SUPPORT, EMMISSIONIZED ENGINE (5-98/ )
11E01 STARTING MOTOR ASSEMBLY - 5" DIA.
11F01 ALTERNATOR ASSEMBLY (12-88/8-90)
11F02 ALTERNATOR ASSEMBLY (9-90/)
11G01 HORN ACCESSORY KIT
11H01 D.I.A., STOP & TAIL LIGHTS
11H02 D.I.A., STOP & TAIL LAMP, W/FOUR POST ROPS
11H03 D.I.A., LAMP ASSEMBLY - LICENSE PLATE
11H04 D.I.A., BACK-UP ALARM
11K01 WORKLAMP, FRONT, 445D & 545D, W/CAB
11K02 TAIL LIGHT, 1/2 AMBER & 1/2 RED LENS - 445D,545D
11K03 TAIL LIGHT, 1/3 AMBER & 2/3 RED LENS - 445D,545D
12A01 INSTRUMENT CLUSTER
13A01 SEAT ASSEMBLY, MICHIGAN SEAT
13A02 SEAT ASSEMBLY, GRAMMER
Page 3
Figure Search for 545D 3 CYL TRACTOR LOADER (9/92-12/00)
Figure Search for 545D 3 CYL TRACTOR LOADER (9/92-12/00)
13A03 SEAT ASSEMBLY, AIR SUSPENSION, W/CAB
14A01 FENDERS
14A02 PLATFORM, 345C, 445C, 545C
14A03 PLATFORM, 345D, 445D, 545D
14B01 ENGINE HOOD
14B02 ENGINE GRILLE, NON-EMISSIONIZED ENGINES
14B03 ENGINE GRILLE, EMMISSIONIZED ENGINES (5-98/ )
14C01 REFLECTORS
15A01 ROOF, ROLLBAR KITS
15B01 WINDOWS, 445D,545D
15B02 DOOR, 445D & 545D
15B03 ROOF, 445D,545D
15B04 INTERIOR, 445D,545D
15B05 CAB & ATTACHING PARTS, 445D,545D
15B06 ACCESSORIES, 445D,545D
15B07 WIPER, REAR WINDOW, 445D,545D
15C01 HEATER, 445D & 545D
15D01 ELECTRICAL, HARNESS
15D02 ELECTRICAL, CONSOLE, SWITCHES & INSTRUMENT CLUSTER
15D03 ELECTRICAL, HARNESS, WORKLAMPS & TRAILER SOCKET
16A01 DECALS, IDENTIFICATON
16B01 DECALS, INSTRUCTIONS
16B02 DECALS, WARNING & CAUTION
16C01 SHIFT PATTERN DECALS
16D01 DECALS - LOADER
16E01 SAFETY
17A01 PAINTS
17B01 LUBRICANTS - LUBRICATION EQUIPMENT
17B01A RADIO - PUSHBUTTON - NH-NA
17C01 MIRROR ASSEMBLY - REAR VIEW - L/CAB - D.I.A.
17D01 SAFETY EQUIPMENT
17E01 ENGINE COOLANT HEATER KIT, ACCESSORY
17F01 STABILIZER ASSEMBLY
18A01 SUBFRAME ASSEMBLY
18B02 ARM ASSEMBLY & LINKAGE, LOADER LIFT - 445C,545C,445D,545D
18C01 HYDRAULIC TUBES & HOSES
18C02 LOADER CONTROL VALVE, CONTROL LEVER & LINKAGE
18C03 LOADER HYDRAULICS, NON-EMMISIONIZED ENGINES
18C04 LOADER HYDRAULICS, W/EMMISIONIZED ENGINES, ASN A442030
18D01 LIFT CYLINDER ASSEMBLY
18D02 BUCKET CYLINDER
18E01 BUCKET ASSEMBLIES
Page 4
545D 3 CYL TRACTOR LOADER (9/92-12/00)

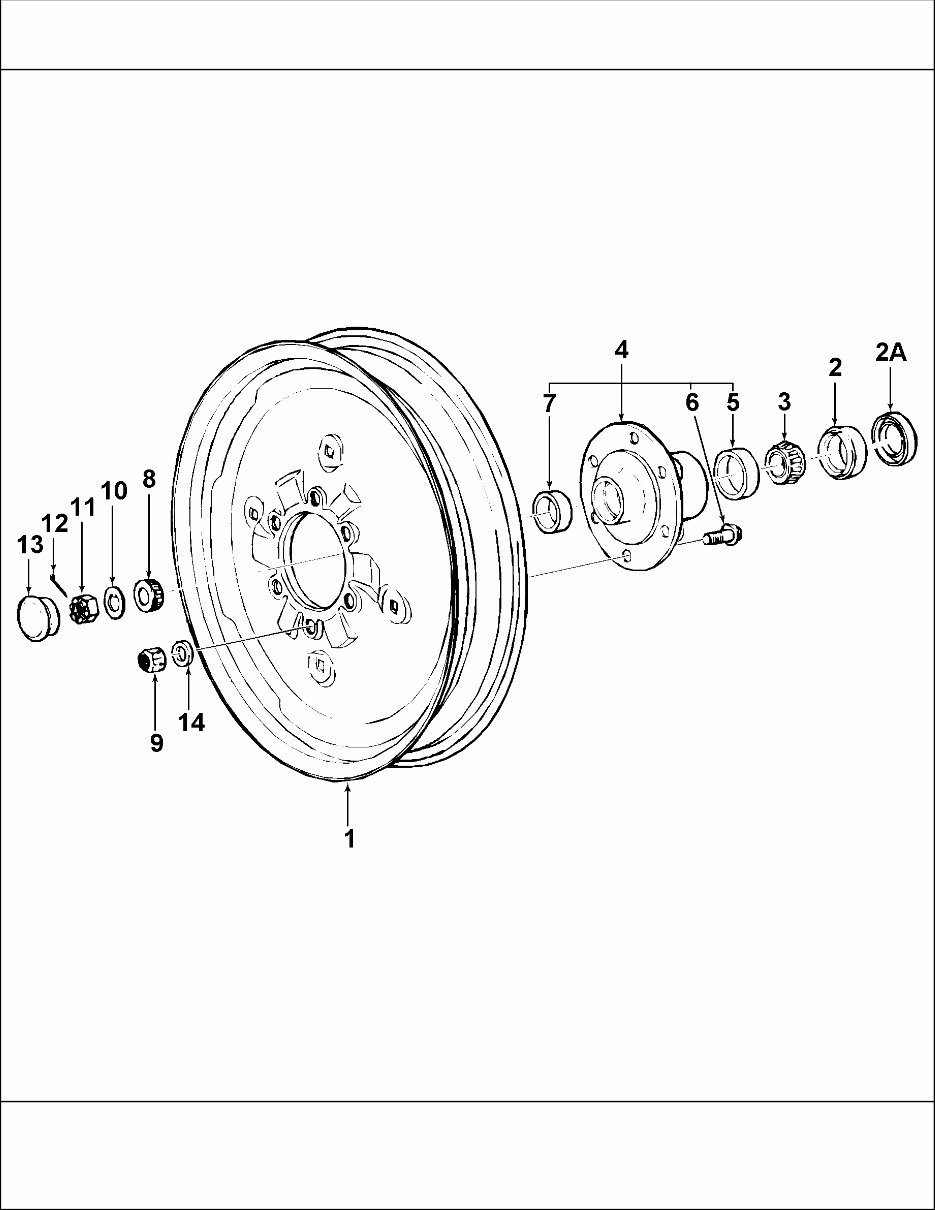

01A01 FRONT WHEEL ASSEMBLY
Ref Part Number Qty Description
545D 3 CYL TRACTOR LOADER (9/92-12/00)
01A01 FRONT WHEEL ASSEMBLY
1 82005056 2 Rim, 5.50x16, 6 Bolt, 345C & D,445C & D, Start Year: 12/01/1988
1 E0NN1007LA 2 Rim, 8.00x16, 6 Bolt, 345C & D,445C, Start Year: 12/01/1988
1 D4NN1007D12Z 2 Rim, 8.00x16, 8 Bolt, 545C & D, Start Year: 12/01/1988
1 83946635 2 Rim, 5.50x16, 8 Bolt, 545C (Replaces D4NN1007A), Start Year: 12/01/1988
1 82006614 2 Rim, 9.75x16.5, 8 Bolt, W/4WD, Start Year: 12/01/1988
1 E5NN1007KA29Z 2 Rim, 8"x16", 6 Bolt, Solid Disc, H.D., Start Year: 12/01/1988
2 83948358 2 Retainer Assy., Start Year: 12/01/1988
2A 312565 2 Shield, Start Year: 12/01/1988
3 512725 2 Cone Assy., Inner, Start Year: 12/01/1988
4 313020 2 Hub Assy., 6 Bolt, Start Year: 12/01/1988
4 D8NN1104DA 2 Hub Assy., 8 Bolt, Start Year: 12/01/1988
5 81812302 2 Cup, Inner, Start Year: 12/01/1988
6 81816580 12 Bolt, 1/2"-20 x 1-3/4", Front Wheel Hub, Start Year: 12/01/1988
6 E5NN1117AA 16 Bolt, Wheel, 5/8"-18 x 2-3/8", Start Year: 12/01/1988
7 273610 2 Cup, Outer, Start Year: 12/01/1988
8 81812303 2 Cone Assy., Outer, Start Year: 12/01/1988
9 81815739 12 Nut, 1/2"-20, Front Wheel Bolt, 445C & D, Start Year: 12/01/1988
9 81815912 16 Nut, 5/8"-18, Start Year: 12/01/1988
9 E0NN1012AA 16 Nut, M18 x 1.5 , FWD, Start Year: 12/01/1988
10 BB1195 2 Washer, Front Hub Grease Retainer, 345C & D,445C,545C, NHNA Only., Start Year: 12/01/1988
11 280172 AR Nut, Slotted, G2, 7/8"-14, Start Year: 12/01/1988
12 88350 2 Pin,Split (Cotter), 5/32" x 1-1/2", Start Year: 12/01/1988
13 249127 2 Cap, Hub, Start Year: 12/01/1988
14 E0NN1A042AA 16 Adapter, For Tapered Holes, 4WD, Start Year: 12/01/1988
545D 3 CYL TRACTOR LOADER (9/92-12/00)

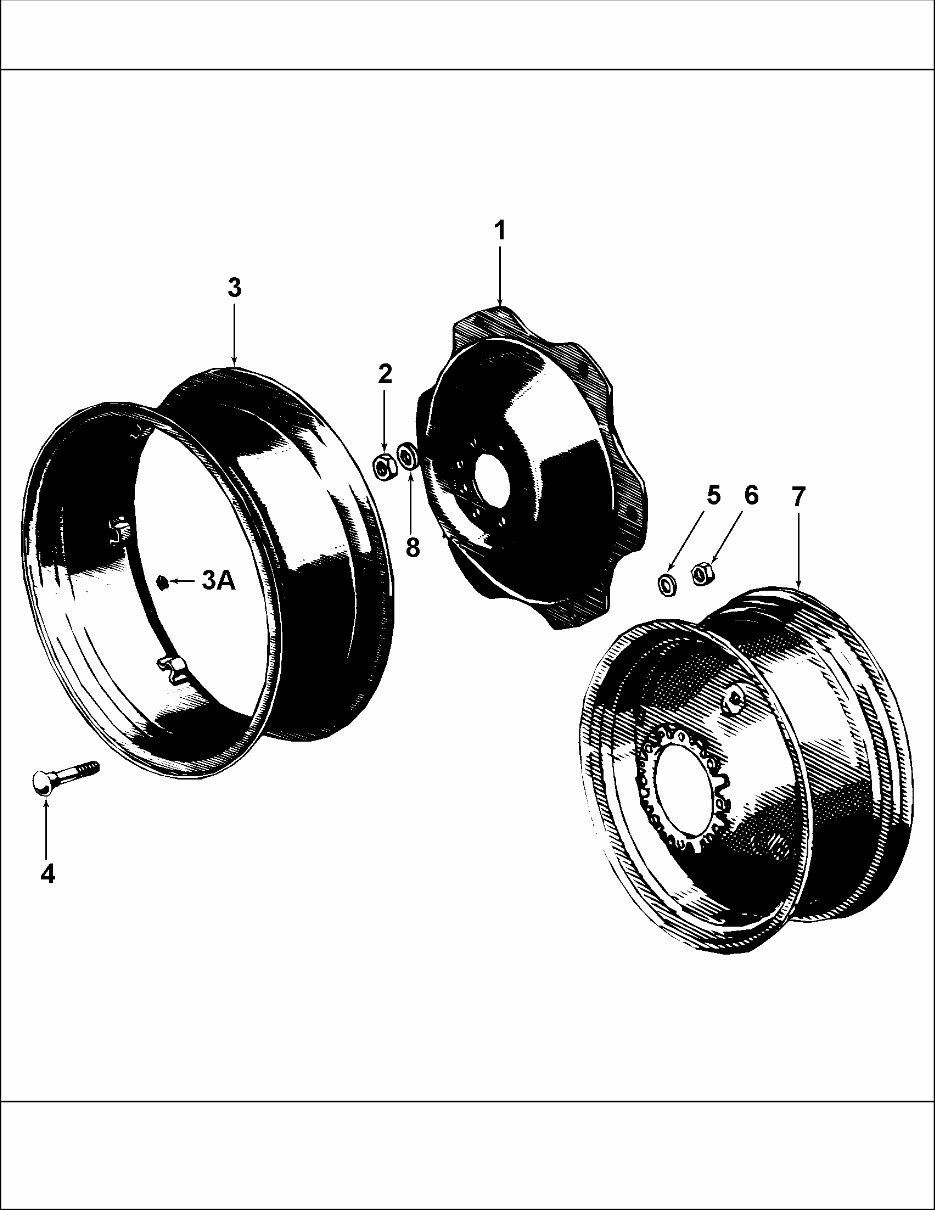

01B01 STANDARD REAR WHEELS
Ref Part Number Qty Description
545D 3 CYL TRACTOR LOADER (9/92-12/00)
01B01 STANDARD REAR WHEELS
1 C5NN1036G 2 Disc, 24" for 16.9 x 24 Tire, 8 Bolt, Start Year: 12/01/1988
2 9823966 AR Nut, G8, 3/4"-16, Start Year: 12/01/1988
3 C5NN1050S 2 Rim Assy., 15 x 24, Start Year: 12/01/1988
3A C0NN1A030A 2 Valve, Plug, Start Year: 12/01/1988
4 370938S36 AR Bolt, Carriage, 5/8"-18 x 2-53/64", Start Year: 12/01/1988
4 374713S36 12 Bolt, Carriage, 5/8"-18 x 3.4", Start Year: 12/01/1988
5 370692S36 AR Washer, Flat, 5/8", Start Year: 12/01/1988
6 408 AR Nut, G5, 5/8"-18, Start Year: 12/01/1988
7 E8NN1100BA 2 Wheel Assy., 15 x 24, 8 Bolt, Start Year: 12/01/1988
7 E8NN1100EA 2 Wheel Assy., 15 x 28, 8 Bolt, Start Year: 12/01/1988
8 86512328 16 Washer, Hardened, G8, 3/4", Start Year: 12/01/1988
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$41.99
Viewed 54 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$41.99
This comprehensive illustrated master parts list manual for the New Holland/Ford 545D Tractor Loader Parts Catalog provides detailed parts explosions, exploded views, and breakdowns of all part numbers for every aspect of the 545D Industrial Tractor Loader TL, including an in-depth engine parts breakdown.
The 453-page illustrated parts list book covers multiple critical areas of the machine, including:
- Wheels and Weights
- Brakes
- Front Axle and Steering
- Rear Axle
- Hydraulic Systems
- Engine
- Transmission
- Cooling System
- Fuel System
- Electrical System
- Instrument Panel
- Seats
- Sheet Metal and Grille
- Cab and Roll Bars
- Decals
- Miscellaneous Components
- Front End Loader
The manual is carefully indexed and divided into the following sections for fast navigation:
- Full Machine Text Index
- How To Use Figure Search
- General Information – Abbreviations
- General Information – Metric to Inches Conversion
Designed for the do-it-yourself tractor parts lookup, this manual features clear, easy-to-read exploded views that simplify part number identification, accurate ordering, and ensuring correct repairs. It contains all original parts information necessary to locate the correct part numbers for the entire machine, including comprehensive engine components.
This digital version is identical to the original manual made for the Ford New Holland model 545D Industrial Tractor Loader TL. As a downloadable document, it is immediately accessible without the wait for shipping bulky paper documentation. You can zoom, print, save, and close it as needed—all sections being fully text searchable for lightning-fast navigation when using the Adobe Acrobat viewer.
About New Holland/Ford:
New Holland began with one corn mill in Pennsylvania back in 1895, evolving into a major producer of farm implements and later automatic hay balers. Acquired by Ford Tractor Operations in 1985, the Ford New Holland name was introduced on tractors. By 1990, the majority of the farm machinery operations was sold to FIAT, with the Ford name maintained for a transitional period. In 1999, the merger of Case IH and FIAT New Holland led to the formation of CNH Global (Case New Holland), ensuring that tractors continue to be built under the New Holland brand.
New Holland produces both agricultural and heavy construction equipment—ranging from backhoes, skid steer loaders, excavators, mini excavators, to wheel loaders. The models detailed in this master parts list manual pertain specifically to the 545D Industrial Tractor Loader TL.
