McCormick MTX110 120 125 135 140 150 155 165 175 185 200 SRM

Table of Contents MTX Series Tractors Service Manual SM 8-11504 1 GENERAL Safety Rules, General Information and Torque Specifications ..........................1001 SM 2 ENGINE NOTE: For Service and Overhaul procedures refer to your Engine Service Manual. MTX110-175 1000 Series MTX120-150 B Power Mech MTX165-185 B Power Elec B Power Error Codes How it Works MTX 200 QSB 5.9 3 FUEL NOTE: For Service and Overhaul procedures refer to your Engine Service Manual. 4 ELECTRICAL Electrical Troubleshooting and Schematics MTX110, MTX125 and MTX140 Tractors .........................................................4001 SM Electrical Schematics MTX120, MTX135 and MTX150 Tractors .........................................................4001 SM Electrical Schematics MTX165, MTX185 and MTX200 Tractors .........................................................4001 SM Instrument Cluster Programming.......................................................................4002 SM Instrument Cluster Programming Tractors Equipped With Dot Matrix Display Instrument Clusters .......................4002 SM Battery Servicing and Testing............................................................................4004 SM 5 STEERING Steering Column and Steering Hand Pump Removal .......................................5001 SM Rexroth Steering Hand Pump............................................................................5002 SM 2WD Front Axle .................................................................................................5003 SM 6 TRANSMISSION HOW IT WORKS………………………………………………………………………………... Powershift Transmission Servicing ...................................................................6006 SM Range Transmission Servicing MC Series and MTX110 to MTX150 Tractors ...................................................6007 SM Range Transmission Servicing MTX155 to MTX200 Tractors ............................................................................6007 SM Powershift Valve ................................................................................................6009 SM Shuttle Valve......................................................................................................6010 SM Differential and Differential Lock MC Series and MTX110 to MTX150 Tractors ...................................................6012 SM Differential and Differential Lock MTX155 to MTX200 Tractors ............................................................................6012 SM Rear Axles and Planetaries MTX110 to MTX150 Tractors ............................................................................6018 SM PTO - Reversible and Shiftable MC Series and MTX110 to MTX150 Tractors ...................................................6019 SM Shiftable PTO MTX155 to MTX200 Tractors ...........................................................................6019 SM

MFD Front Axle - 20.19 and 20.22 Axle ...........................................................6021 SM Independent Front Suspension Axle - 20.25 Axle ............................................6022 SM PTO Front Drive Shaft and Hydraulic Pump Drive Gear MC Series and MTX110 to MTX150 Tractors ..................................................6023 SM 7 BRAKES Service Brakes................................................................................................ 7002 SM Hydraulic Trailer Brake Valve MC Series and MTX110 to MTX150 Tractors ................................................ 7004 SM 8 HYDRAULICS HOW IT WORKS………………………………………………………………………………. Hydraulic Troubleshooting and Schematic ..................................................... 8001 SM Hydraulic Troubleshooting and Schematic MTX110 to MTX150 Tractors from Transmission Serial No JJA300646 MTX155 to MTX200 Tractors from Transmission Serial No JJA400695........ 8001 SM Charge Lubrication Pump MC Series and MTX110 to MTX150 Tractors ................................................ 8003 SM Charge Lubrication Pump MTX155 to MTX200 Tractors ......................................................................... 8003 SM Hydraulic Valves ............................................................................................. 8006 SM Front Hitch ...................................................................................................... 8007 SM Remote Valves MC Series and MTX110 to MTX150 Tractors ................................................ 8008 SM Remote Valves (Bosch) MC and MTX Series Tractors ......................................................................... 8008 SM 9 CHASSIS AND MOUNTED EQUIPMENT Pedal, Lever and Switch Adjustments ............................................................ 9001 SM 10 CONTROLLER SYSTEMS Hitch/MFD/Differential Lock Controller - Calibration, Error Codes Troubleshooting and Schematics ................................................................ 10002 SM Independent Front Suspension Axle Controller Calibration, Error Codes, Troubleshooting and Schematics......................... 10003 SM Speed Sequencer Controller, F/N/R and powershift - Calibration, Error Codes Troubleshooting and Schematics (For Tractors With Speed Sequencer).......................................................... 10004 SM PTO Controller (For Tractors With Speed Sequencer), F/N/R Controller and Powershift (For Tractors Without Speed Sequencer) - Configuration, Error Codes, Troubleshooting and Schematics .................. 10006 SM Instrument Cluster Controller Software Programming, Error Codes, Troubleshooting and Schematics For Tractors Equipped With Dot Matrix Display Instrument Clusters ........... 10009 SM Hitch and PTO Controller Programming ....................................................... 10010 SM Automatic Temperature Control error Codes, Troubleshooting and Schematics ............................................ 10012 SM 11 Other Auto-Speed Supplement………………………………………………………………………. Cab Suspension………………………………………………………………………………... 4 th Auxiliary valve ………………………………………………………………………………

SECTION 1001 2 SM 8-10080 Issued 03-2001 TABLE OF CONTENTS SAFETY ................................................................................................................................................................... 3 GENERAL INFORMATION Cleaning ............................................................................................................................................................... 5 Inspection ............................................................................................................................................................. 5 Bearings ............................................................................................................................................................... 5 Needle Bearings .................................................................................................................................................. 5 Gears ................................................................................................................................................................... 5 Oil Seals, O-Rings And Gaskets .......................................................................................................................... 5 Shafts ................................................................................................................................................................... 5 Service Parts ........................................................................................................................................................ 5 Lubrication ........................................................................................................................................................... 5 STANDARD TORQUE DATA FOR NUTS AND BOLTS Chart 1 (Plain Nuts/Bolts) .................................................................................................................................... 6 Chart 2 (Phosphate Coated Nuts/Bolts) ............................................................................................................... 6 Chart 3 (Zinc or Cadmium Plated Nuts/Bolts) ...................................................................................................... 7

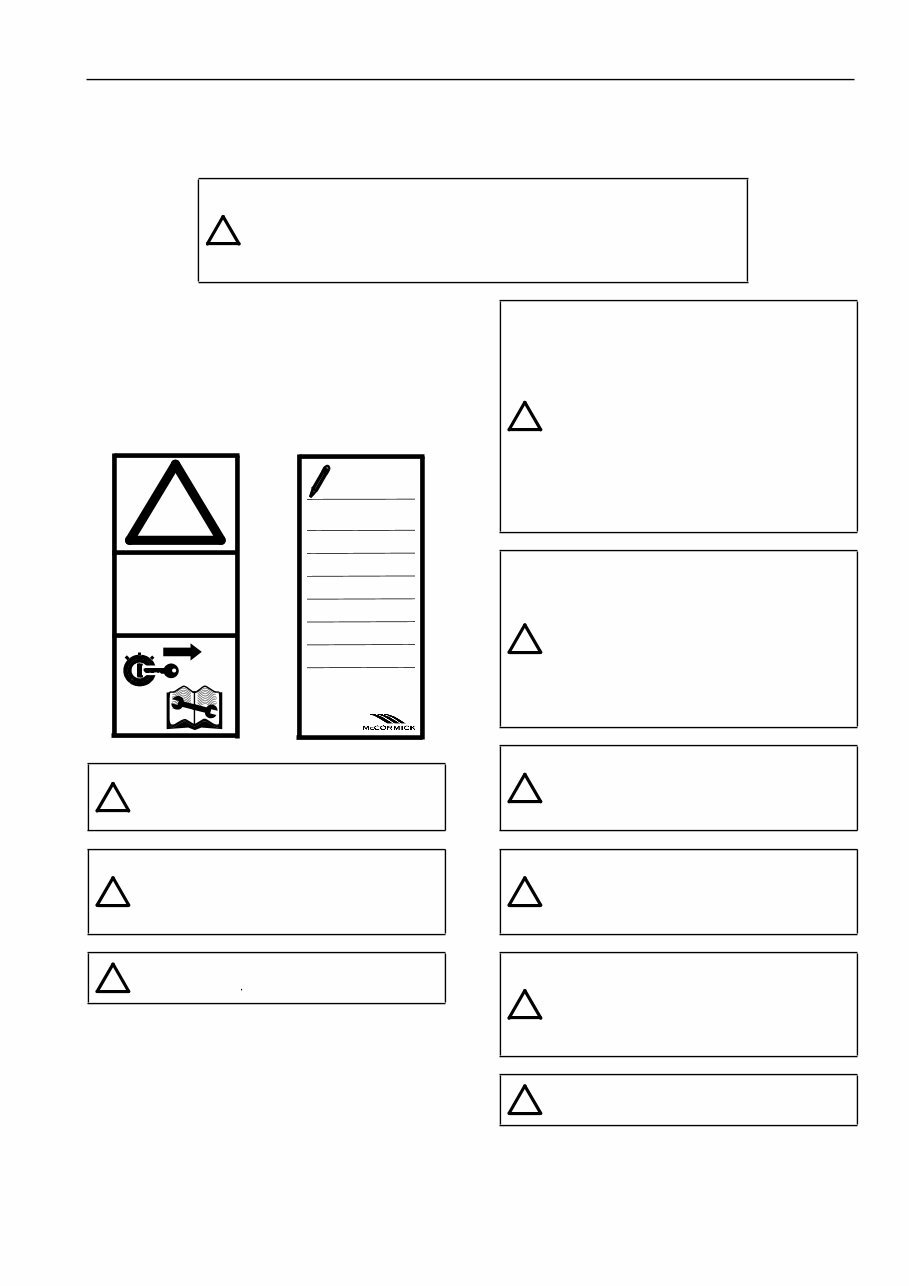

SECTION 1001 SM 8-10080 Issued 03-2001 3 SAFETY To prevent injury always follow the Warning, Caution and Danger notes in this section and throughout the manual. Put a warning tag as shown below on the key for the key switch when carrying out servicing or repairs to the tractor. Warning tags (publication number 2-1000) are available from your McCormick dealer. This symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED. The message that follows the symbol contains important information about safety. Carefully read the message. Make sure you fully understand the causes of possible injury or death. ! WARNING: Read the operators manual to familiarize yourself with the correct control functions. WARNING: Operate the machine and equipment controls from the seat position only. Any other method could result in serious injury. WARNING: This is one a man machine, no riders allowed ! DO NOT OPERATE NE PAS UTILISER NICHT BETREIBEN NO UTILIZAR REASON/RAISON VERNUNFT/RAZON 2-1000 ! ! ! WARNING: Before starting engine, study Operator’s Manual safety messages. Read all safety signs on machine. Clear the area of other persons. Learn and practice safe use of controls before operating. It is your responsibility to understand and follow manufacturers instructions on machine operation, service, and to observe pertinent laws and regulations. Operator’s and Service Manuals may be obtained from you McCormick dealer. WARNING: If you wear clothing that is too loose or do not use the correct safety equipment for your job, you can be injured. Always wear clothing that will not catch on objects. Extra safety equipment that can be required includes hard hat, safety shoes, ear protection, eye or face protection, heavy gloves and reflector clothing. WARNING: When working in the area of the fan belt with the engine running, avoid loose clothing if possible, and use extreme caution. WARNING: When doing checks and tests on the equipment hydraulics, follow the procedures as they are written. DO NOT change the procedure. WARNING: When putting the hydraulic cylinders on this machine through the necessary cycles to check operation or to remove air from a circuit, make sure all people are out of the way. WARNING: Use insulated gloves or mittens when working with hot parts. ! ! ! ! ! !

SECTION 1001 4 SM 8-10080 Issued 03-2001 CAUTION: Lower all attachments to the ground or use stands to safely support the attachments before you do any maintenance or service. CAUTION: Pin sized and smaller streams of hydraulic oil under pressure can penetrate the skin and result in serious infection. If hydraulic oil under pressure does penetrate the skin, seek medical treatment immediately. Maintain all hoses and tubes in good condition. Make sure all connections are tight. Make a replacement of any tube or hose that is damaged or thought to be damaged. DO NOT use your hand to check for leaks, use a piece of cardboard or wood. CAUTION: When removing hardened pins such as a pivot pin, or a hardened shaft, use a soft head (brass or bronze) hammer or use a driver made from brass or bronze and a steel head hammer. CAUTION: When using a hammer to remove and install pivot pins or separate parts using compressed air or using a grinder, wear eye protection that completely encloses the eyes (approved goggles or other approved eye protectors). CAUTION: Use suitable floor (service) jacks or chain hoist to raise wheels or tracks off the floor. Always block machine in place with suitable safety stands. ! ! ! ! ! CAUTION: When servicing or repairing the machine. Keep the shop floor and operator’s compartment and steps free of oil, water, grease, tools, etc. Use oil absorbing material and or shop cloths as required. Use safe practices at all times. CAUTION: Some components of this machine are very heavy. Use suitable lifting equipment or additional help as instructed in this Service Manual. DANGER: Engine exhaust fumes can cause death. If it is necessary to start the engine in a closed place, remove the exhaust fumes from the area with an exhaust pipe extension. Open the doors and get outside air into the area. DANGER: When the battery electrolyte is frozen, the battery can explode if (1), you try to charge the battery, or (2), you try to jump start and run the engine. To prevent that battery electrolyte from freezing, try to keep the battery at full charge. If you do not follow these instructions, you or others in the area can be injured. DANGER: Batteries contain acid and explosive gas. Explosions can result from sparks, flames or wrong cable connections. To connect the jumper cables correctly to the battery of this machine see the Operator’s Manual. Failure to follow these instructions can cause serious injury or death. ! ! ! ! !

SECTION 1001 SM 8-10080 Issued 03-2001 5 GENERAL INFORMATION Cleaning Clean all metal parts except bearings, in mineral spirits or by steam cleaning. Do not use caustic soda for steam cleaning. After cleaning dry and put oil on all parts. Clean oil passages with compressed air. Clean bearings in kerosene, dry the bearings completely and put oil on the bearings. Inspection Check all parts when the parts are disassembled. Replace all parts that have wear or damage. Small scoring or grooves can be removed with a hone or crocus cloth. Complete visual inspection for indications of wear, pitting and the replacement of parts necessary will prevent early failures. Bearings Check bearings for easy action. If bearings have a loose fit or rough action replace the bearing. Wash bearings with a good solvent or kerosene and permit to air dry. DO NOT DRY BEARINGS WITH COMPRESSED AIR. Needle Bearings Before you press needle bearings in a bore always remove any metal protrusions in the bore or edge of the bore. Before you press bearings into position put petroleum jelly on the inside and outside diameter of the bearings. Gears Check all gears for wear and damage. Replace gears that have wear or damage. Oil Seals, O-Rings And Gaskets Always install new oil seals, o-rings and gaskets. Put petroleum jelly on seals and o-rings. Shafts Check all shafts that have wear or damage. Check the bearing and oil seal surfaces of the shafts for damage. Service Parts Always install genuine McCormick service parts, when ordering refer to the Parts Catalog for the correct part number of the genuine McCormick replacement items. Failures due to the use of other than genuine McCormick replacement parts are not covered by warranty. Lubrication Only use the oils and lubricants specified in the Operators or Service Manual. Failures due to the use of non specified oils and lubricants are not covered by warranty.

SECTION 1001 6 SM 8-10080 Issued 03-2001 STANDARD TORQUE DATA FOR NUTS AND BOLTS NOTE: A “click type” torque wrench is recommended for the bolt torques listed below. Chart 1 (Plain Nuts/Bolts) Chart 2 (Phosphate Coated Nuts/Bolts) BOLT SIZE (mm) TYPE 8.8 TYPE 10.9 MIN MAX MIN MAX lb ft Nm lb ft Nm lb ft Nm lb ft Nm M4 3.0 4.0 3.4 4.5 4.3 5.8 4.8 6.5 M5 4.8 6.5 5.5 7.5 7.0 9.5 7.8 10.5 M6 8.2 11.0 9.2 12.5 11.8 16.0 13.3 18.0 M8 20.0 27.0 22.5 31.0 28.7 39.0 32.3 44.0 M10 40.0 54.0 45.0 61.0 56.0 77.0 64.0 87.0 M12 69.0 94.0 78.0 106.0 100.0 134.0 110.0 151.0 M14 110.0 150.0 125.0 170.0 160.0 215.0 180.0 240.0 M16 175.0 235.0 190.0 260.0 245.0 335.0 275.0 375.0 M20 345.0 470.0 390.0 530.0 480.0 650.0 540.0 730.0 M22 475.0 640.0 530.0 720.0 655.0 890.0 735.0 1000.0 M24 600.0 810.0 675.0 915.0 830.0 1125.0 930.0 1265.0 M30 1190.0 1615.0 1340.0 1815.0 1645.0 2235.0 1855.0 2515.0 M36 2080.0 2825.0 2340.0 3175.0 2875.0 3900.0 3235.0 4390.0 BOLT SIZE (mm) TYPE 8.8 TYPE 10.9 MIN MAX MIN MAX lb ft Nm lb ft Nm lb ft Nm lb ft Nm M4 2.3 3.0 2.6 3.4 3.2 4.4 3.6 4.9 M5 3.6 4.9 4.1 5.6 5.2 7.1 5.9 8.0 M6 6.2 8.3 6.9 9.4 8.9 12.0 10.0 13.5 M8 15.0 20.3 16.9 23.3 21.5 29.2 24.2 32.8 M10 30.0 41.0 34.0 46.0 42.0 58.0 48.0 65.0 M12 52.0 71.0 59.0 80.0 75.0 101.0 83.0 113.0 M14 83.0 113.0 94.0 126.0 120.0 161.0 135.0 180.0 M16 131.0 176.0 143.0 195.0 185.0 251.0 205.0 280.0 M20 259.0 353.0 293.0 400.0 360.0 490.0 405.0 550.0 M22 355.0 480.0 400.0 540.0 490.0 665.0 550.0 750.0 M24 450.0 608.0 506.0 686.0 625.0 845.0 700.0 950.0 M30 893.0 1211.0 1005.0 1361.0 1235.0 1675.0 1390.0 1885.0 M36 1560.0 2119.0 1755.0 2381.0 2156.0 2925.0 2425.0 3295.0

SECTION 1001 SM 8-10080 Issued 03-2001 7 Chart 3 (Zinc or Cadmium Plated Nuts/Bolts) BOLT SIZE (mm) TYPE 8.8 TYPE 10.9 MIN MAX MIN MAX lb ft Nm lb ft Nm lb ft Nm lb ft Nm M4 2.6 3.5 2.9 3.9 3.7 5.0 4.1 5.6 M5 4.1 5.6 4.6 6.3 5.9 8.0 6.6 9.0 M6 7.0 9.5 7.8 10.6 10.0 13.6 11.3 15.3 M8 17.0 23.1 19.1 25.9 24.4 33.1 27.4 37.2 M10 34.0 46.0 38.3 52.0 48.0 65.0 54.0 74.0 M12 59.0 80.0 66.0 90.0 85.0 114.0 94.0 128.0 M14 94.0 128.0 106.0 145.0 136.0 183.0 153.0 205.0 M16 149.0 200.0 161.0 220.0 208.0 285.0 235.0 320.0 M20 293.0 400.0 330.0 450.0 408.0 555.0 460.0 620.0 M22 400.0 545.0 450.0 615.0 555.0 755.0 625.0 850.0 M24 510.0 690.0 575.0 780.0 705.0 955.0 790.0 1075.0 M30 1010.0 1375.0 1140.0 1545.0 1400.0 1900.0 1580.0 2140.0 M36 1770.0 2400.0 1990.0 2700.0 2445.0 3315.0 2750.0 3730.0

Section 4001 4001 © 2005 McCormick Tractors International Limited. SM 8-11141 October 2002 (Revised January 2005) ELECTRICAL TROUBLESHOOTING AND SCHEMATICS MTX110, MTX125, MTX140, MTX155 and MTX175 Tractors
