Training manual P/N° 3659955M1 DRAFT COPY

CONTENTS Chap. 1 INTRODUCTION Chap. 2 ENGINE Chap. 3 CLUTCH Chap. 4 POWERFIVE / DELTAFIVE TRANSMISSION Chap. 5 4WD FRONT AXLE Chap. 6 POWER TAKE-OFF Chap. 7 HYDRAULIC CIRCUIT Chap. 8 MECHANICAL POWER LIFT Chap. 9 ELECTRONIC POWER LIFT Chap. 10ELECTRICAL SYSTEM Chap. 11CAB AND AIR CONDITIONING SYSTEM Chap. 12 SPECIAL TOOLS CONTENTS

PRE-SALES SERVICE February 2001 42042 FABBRICO (RE) ITALY PREFACE This manual contains the technical specifications, mechanical, hydraulic layouts and wiring diagrams, plus instructions on how to operate and adjust series 90-100-110 Mythos tractors. It does not contain all the necessary information as it is completed with the theoretical and practical explanations and theoretical descriptions given by the instructors during the training courses. This information is therefore dedicated to the persons who frequent training courses at the Landini training center. NOTE : The descriptions and technical specifications in this manual are strictly not binding. Landini therefore reserves the right to modify the components and accessories for technical or commercial reasons without being obliged to update this manual each time.

1 - 1 INTRODUCTION INDEX Sect. 1 How to consult the manual. ..................................................... 1-3 1-1 Introduction ................................................................... 1-4 1-2 Structure of the manual ................................................. 1-4 Sect. 2 Tractor identification and technical specifications. .............. 1-5 2-1 Tractor identification ...................................................... 1-6 2-2 Weights and measurements .......................................... 1-7 2-3 Engine specifications .................................................... 1-8 2-4 Clutch specifications ..................................................... 1-9 2-5 Transmission specifications ........................................... 1-9 2-6 Power take-off specifications ....................................... 1-14 2-7 4WD front axle specifications ...................................... 1-15 2-8 Hydraulic circuit specifications .................................... 1-16 2-9 Electrical circuit specifications ..................................... 1-16 Sect. 3 Working in safety. ................................................................... 1-19 3-1 Essential rules for accident prevention ........................ 1-20 3-2 Safety decals ............................................................... 1-26 3-3 Replacing tractor parts ................................................ 1-28 3-4 Safe use of the tractor ................................................. 1-28 Sect. 4 Pre-delivery inspection and maintenance. ........................... 1-31 4-1 General information ..................................................... 1-32 4-2 Inspections prior to delivery ........................................ 1-32 4-3 Routine maintenance guide ........................................ 1-33 CHAP.1

INTRODUCTION 1 - 2 CHAP.1 Sect. 5 Conversion tables. .................................................................. 1-39 5-1 Length ......................................................................... 1-40 5-2 Area ............................................................................. 1-43 5-3 Volume ........................................................................ 1-44 5-4 Weight ......................................................................... 1-47 5-5 Pressure ...................................................................... 1-49 5-6 Moment of rotation ...................................................... 1-51 5-7 Temperature ................................................................ 1-53 Sect. 6 Sealants. .................................................................................. 1-55 Sect. 7 Bolt driving torques. ............................................................... 1-57

1 - 3 INTRODUCTION INDEX Sect.1 How to consult the manual 1-1 Introduction ................................................................... 1-4 1-2 Structure of the manual ................................................. 1-4 CHAP. 1 How to consult the manual

INTRODUCTION 1 - 4 Sect.1 - How to consult the manual 1-1 Introduction The purpose of this training manual is to provide clear instructions on how to operate and adjust the various components of Mythos 90-100-110 tractors. The manual is for the chief foreman since it does not describe the demounting, remounting and adjustment operations in detail and for all assemblies, merely those that require particular expertise or recommenda- tions. Before reading the manual, it is essential to read sect.3: WORKING IN SAFETY in order to prevent errors or mistakes that could jeopardize the safety of the technicians in the workshop. The information in this manual was up to date at the time of publication. Landini reserves the right to make modifications without being obliged to give notice. Please contact your area dealer or the importer if di- screpancies are discovered or for any other require- ment. 1-2 Structure of the manual The manual is divided into chapters (chap.) and each chapter into sections (sect.). Page numbering begins with 1 for each chapter with the number of the chapter itself alongside. Example: 5-7 indicates page 7 of chapter 5. Numbering of the figures also begins with 1 in each chapter with the chapter number alongside. Example: Fig. 73-5, indicates figure 73 of chapter 5. The tools required for all the demounting, remounting and adjusting operations are listed at the end of each important chapter or section. However, not all the tools given at the end of the chapter or section are men- tioned in the text, just those considered essential to demount, remount and adjust the unit in question in the correct way. Chapter 12 contains the constructional drawings of all the tools indicated in the various chapters or sections so that dealers can make all those considered necessary for their workshops.

1 - 5 INTRODUCTION INDEX Sect.2 Tractor identification and technical specifications 2-1 Tractor identification ...................................................... 1-6 2-2 Weights and measurements .......................................... 1-7 2-3 Engine specifications .................................................... 1-8 2-4 Clutch specifications ..................................................... 1-9 2-5 Transmission specifications ........................................... 1-9 2-6 Power take-off specifications ....................................... 1-14 2-7 4WD front axle specifications ...................................... 1-15 2-8 Hydraulic circuit specifications .................................... 1-16 2-9 Electrical circuit specifications ..................................... 1-16 CHAP. 1 Tractor identification and technical specifications

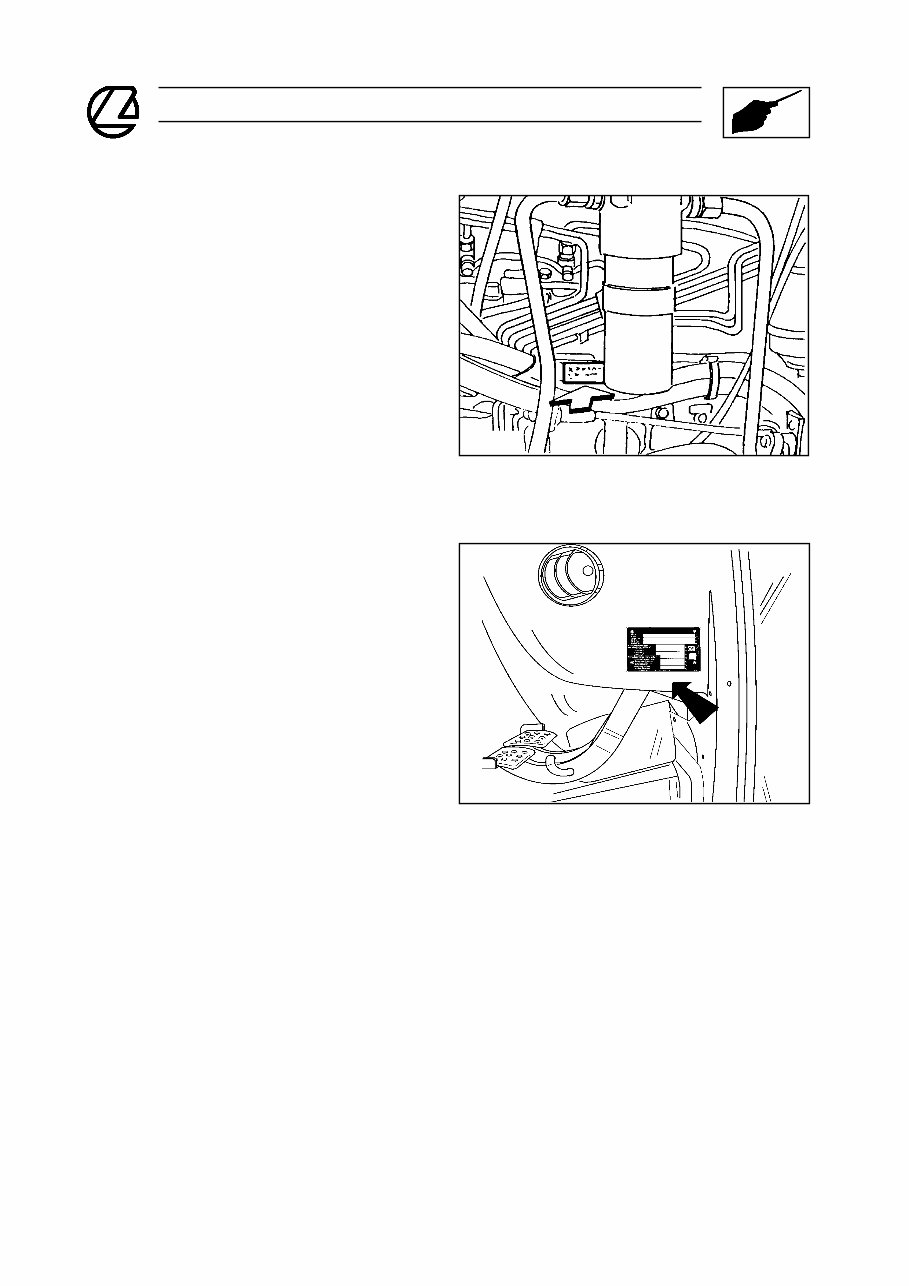

INTRODUCTION 1 - 6 Sect.2-Tractor identification & technical specifications 2-1 Tractor identification The tractor is identified by a serial number stamped on the rear part of the transmission housing and on the bonnet. The engine also has its own serial number stamped on the engine block. To ensure a quick and efficient service when ordering spare parts or asking for technical specifications or other information, always state the chassis and engine serial number. Chassis serial number ............................................. Engine serial number ............................................... Cab serial number ................................................... Type of tractor .......................................................... Identification code OLF*0000 X 00000* where OLF factory mark * asterisk 0000 serial number X letter corresponding to the year of manufacture 00 number corresponding to the week of manufacture 000 number corresponding to the production sequence * asterisk Engine serial number (cylinder block) Fig.2-1 Type of tractor and chassis serial number (lower dashboard panel). Fig.1-1

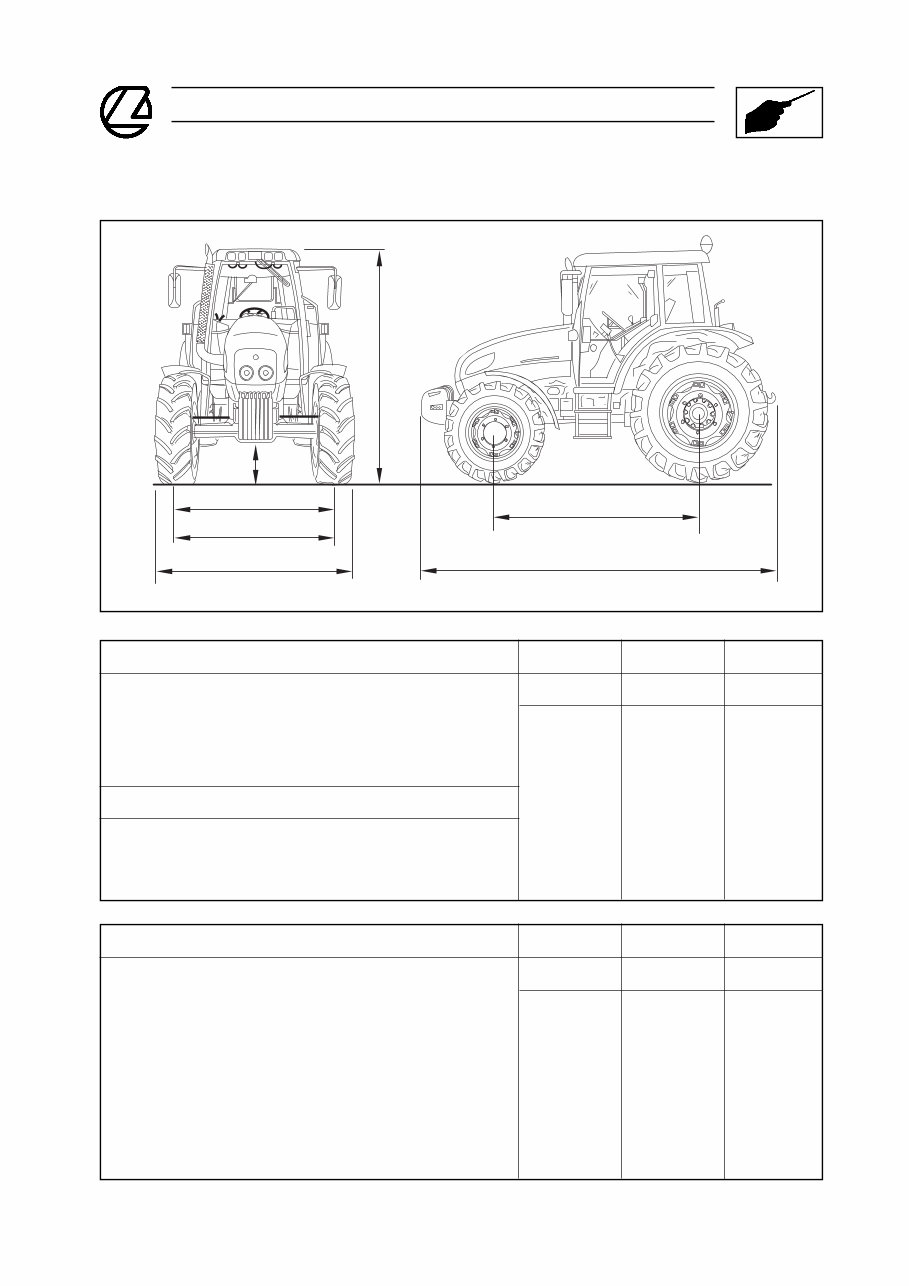

1 - 7 INTRODUCTION Tractor identification and technical specifications 2-2 Weights and measurements Fig.3-1 GENERAL SPECIFICATIONS 90 100 110 4WD 4WD 4WD With tyres: - Front 13,6 R24 14,9 R24 14,9 R24 - Rear 16,9 R34 18,4 R34 18,4 R38 WEIGHTS In running order, without ballast, with cab ................. Kg 4260 4280 4690 In running order, with front and rear ballast with cab .................................................................... Kg 4920 4960 5350 DIMENSIONS 90 100 110 4WD 4WD 4WD A - Cab height from ground ........................................ mm 2720 2770 2870 A- Cab height from rear wheel center ....................... mm 1975 2000 2050 B - Wheelbase ........................................................... mm 2426 2449 2759 C - Maximum length - without front ballast .............................................. mm 4160 4160 4160 D - Ground clearance ................................................. mm 450 475 525 E - Front track (see tab.) ............................................ mm 1738 1937 1937 F - Carreggiate post. (vedi le tab.) .............................. mm 1692 1720 1720 G - Maximum width on road ....................................... mm 2062 2062 2062 A D E F G B C
