Landini Globalfarm 95 105 90 100 Tractor Workshop Service & Repair Manual # 1 Top Rated

GLOBALFARM 95 - 105 - 90 - 100 Training Manual P/N 4208730M1

 PREFACE This manual contains the technical specifications, mechanical, hydraulic layouts and wiring diagrams, plus instructions on how to operate and djust Landini’s Globalfarm series tractors. It does not contain all the necessary information as it is completed with the theoretical and actical explanations and theoretical descriptions given by the instructors during the training courses. This information is therefore dedicated to the persons who frequent training courses at the Landini training center.. Note: The descriptions and technical specifications in this manual are strictly not binding. Landini therefore reserves the right to modify the components and accessories for technical or commercial reasons without being obliged to update this manual each time. PRE-SALE SERVICE August 007 42042 FABBRICO (RE) ITALY

 Cap.1 INTRODUCTION Cap. ENGINE Cap. CLUTCH Cap.4 TRANSMISSION Cap.5 FRONT AXLE Cap.6 HYDRAULIC CIRCUIT Cap.7 MECHANICAL POWER LIFT Cap.8 ELECTRICAL SYSTEM Cap.9 SPECIAL TOOLS TABLE OF CONTENTS

1-1 Capitolo 1 : Introduction Index Sezione 1 : How to consult the manual ........................................ 1-3 1.1 Introduction ......................................................................... 1-4 1.2 Structure of the manual ....................................................... 1-4 Sezione 2 : Tractor identification and technical specifications. ..1-5 2.1 Tractor identification ............................................................ 1-6 2.2 Weights and dimensions (Footstep) .................................... 1-7 Sezione 3 : Working in safety ........................................................ 1-9 3.1 Essential rules for accident prevention ............................. 1-10 3.2 Danger warning decals ..................................................... 1-16 3.3 Replacement of tractor parts ............................................. 1-19 3.4 Safe use of the tractor ....................................................... 1-20 Sezione 4 : Pre-delivery inspection and maintenance .............. 1-23 4.1 General information ........................................................... 1-24 4.2 Pre-delivery inspections .................................................... 1-25 4.3 Periodical maintenance table ............................................ 1-26 Sezione 5 : Conversion tables ..................................................... 1-29 5.1 Length ............................................................................... 1-30 5.2 Area ................................................................................... 1-36 5.3 Volume .............................................................................. 1-38 5.4 Weight ............................................................................... 1-44 5.5 Pressure ............................................................................ 1-48 5.6 Moment of rotation ............................................................ 1-52 5.7 Temperature ...................................................................... 1-56

1-2 INTRODUCTION Sezione 6 : Sealants ..................................................................... 1-57 6.1 Types of Loctite sealant .................................................... 1-58 6.2 Practical advice ................................................................. 1-59 Sezione 7 : Driving torques ......................................................... 1-61 7.1 Driving torques .................................................................. 1-62 Sezione 8 : General assembly instructions................................ 1-63 8.1 Seals ................................................................................. 1-64 8.2 O-ring seals ....................................................................... 1-65 8.3 Bearings ............................................................................ 1-66

1-3 How to consult the manual Sezione 1 : How to consult the manual Index 1.1 Introduction............................................................................... 1-4 1.2 Structure of the manual ........................................................... 1-4

1-4 INTRODUCTION 1.1 Introduction The purpose of this workshop manual is to provide the user with the information, operating principles and instructions about the adjustments to which the various parts of the tractor must be subjected. The manual does not give full details about how to disassemble the parts as it has been compiled for assistance technicians who have already taken part in the training courses. It must therefore be used along with the theoretic and practical information that the instructor gives during these courses. Before reading the whole manual, it is essential to read section 3: Working in safety, in order to prevent errors or mistakes that could jeopardize the safety of the technicians in the workshop. The information in this manual was up to date at the time of publication. Landini reserves the right to make modifications without being obliged to give notice. Please contact your dealer or the importer if discrepancies are discovered or for any other requirement. 1.2 Structure of the manual The manual is divided into chapters, and each chapter into sections and sub-sections. Page numbering begins with 1 in each chapter. The title of the chapter is given at the top left of every even page. The title of the section is given at the top right of every odd page. Numbering of the figures also begins with 1 in each chapter, with the chapter number alongside. Esempio:Fig. 5.73 indicates figure 73 of chapter 5.

1-5 Tractor identification and technical specifications. Sezione 2 : Tractor identification and technical specifications. 2.1 Tractor identification ................................................................ 1-6 2.2 Weights and dimensions (Footstep)....................................... 1-7 Index

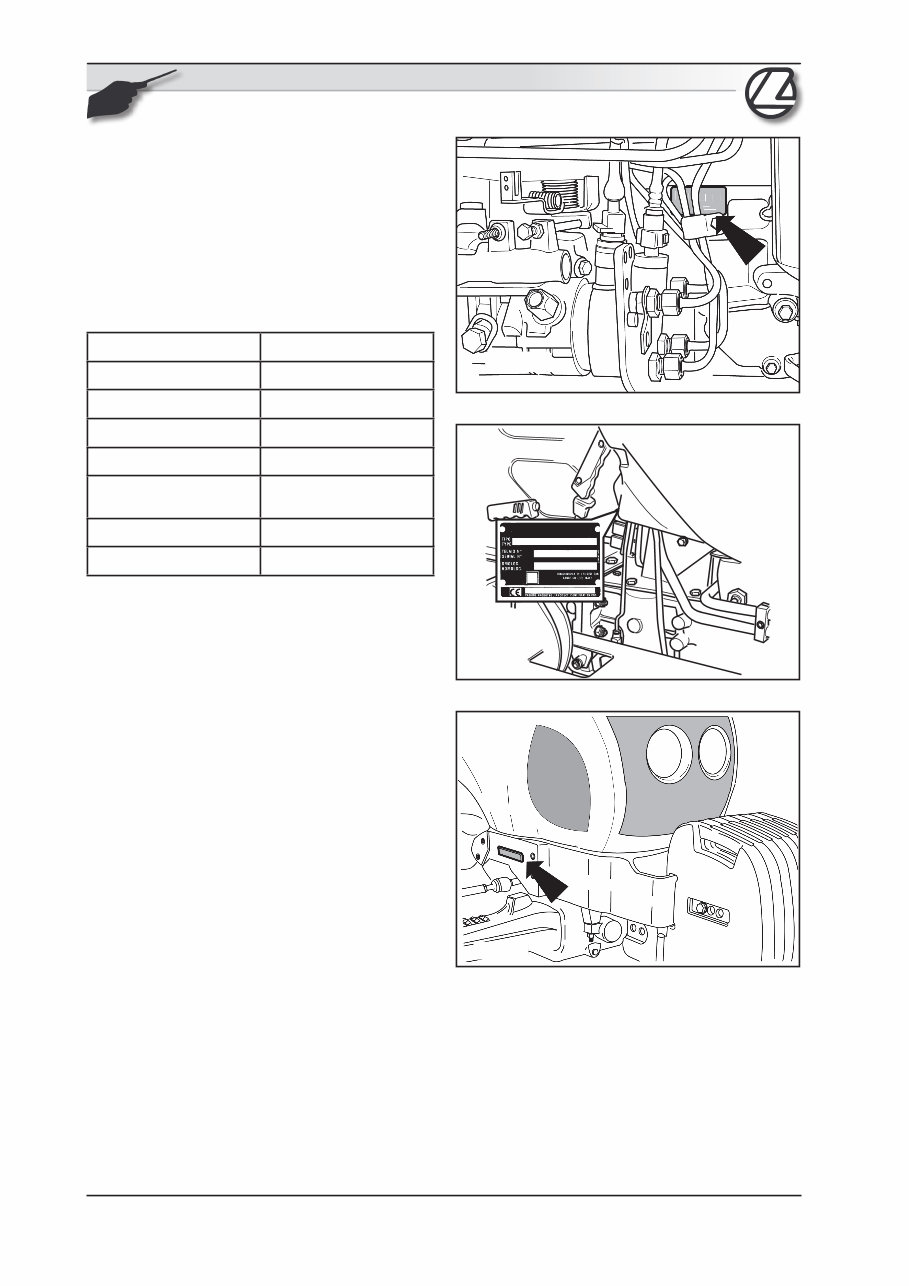

1-6 INTRODUCTION 2.1 Tractor identification The tractor is identified by a serial number stamped on the front support (ballast support) and on the bonnet. Each engine has a serial number of its own, stamped on the engine block. To ensure a quick and efficient service when ordering spare parts or asking for technical specifications or other information, always state the chassis and engine serial numbers. Chassis serial number Engine serial number Cab serial number Type of tractor Owner / Operator Dealer’s or Agent’s address Delivery date Warranty expiry date Fig. 1.1 Fig. 1.2 Fig. 1.3
