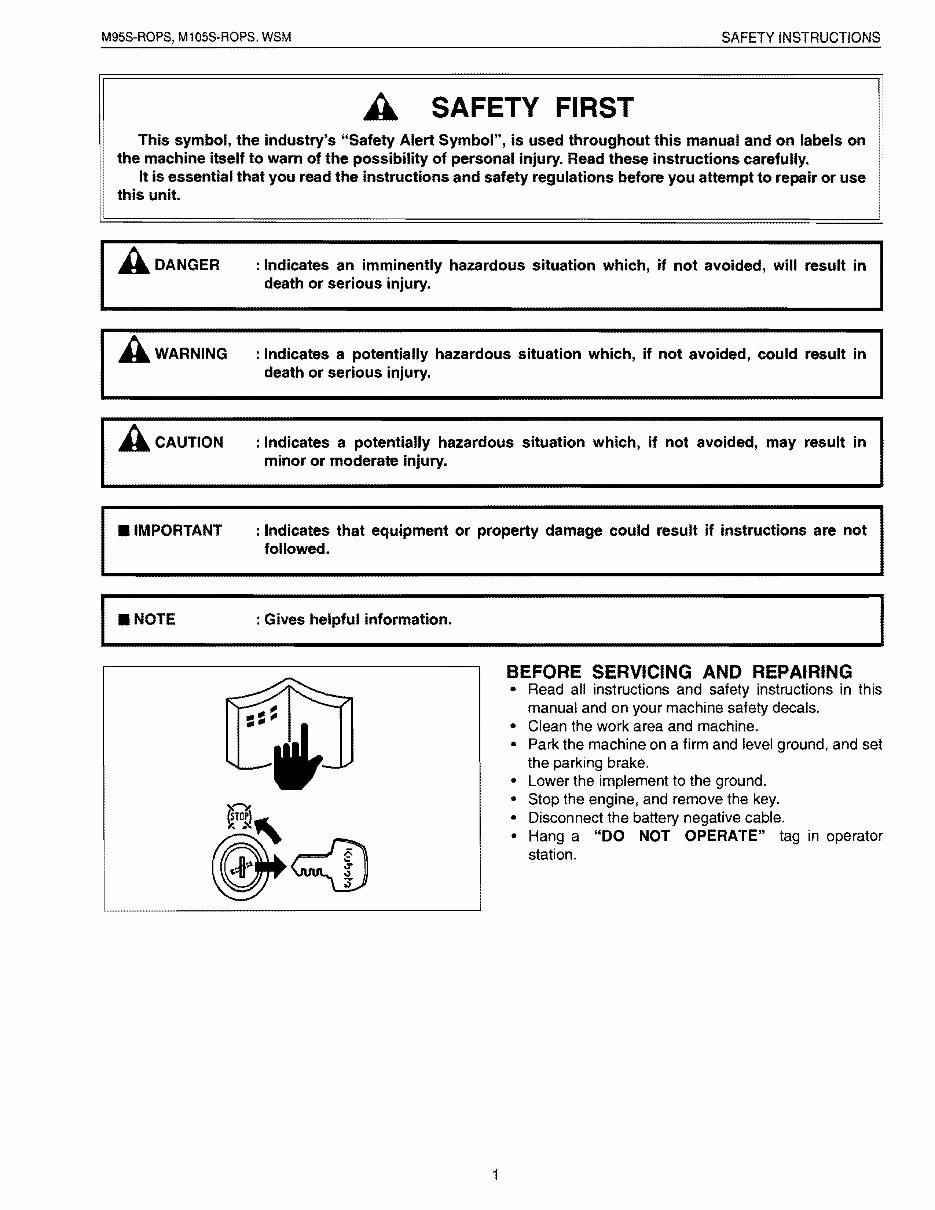

M95S-ROPS, M105S-ROPS, WSM SAFETY INSTRUCTIONS SAFETY FIRST This symbol, the industry's "Safety Alert Symbol", is used throughout this manual and on labels on the machine itself to warn of the possibility of personal injury. Read these instructions carefully. It is essential that you read the instructions and safety regulations before you attempt to repair or use this unit. • NOTE : Gives helpful information . BEFORE SERVICING AND REPAIRING • Read all instructions and safety instructions in this manual and on your machine safety decals. • Clean the work area and machine. • Park the machine on a firm and level ground, and set the parking brake. • Lower the implement to the ground. • Stop the engine, and remove the key. • Disconnect the battery negative cable. • Hang a ''~O NOT OPERATE" tag in operator station. A DANGER : Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. A WARNING : Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. A CAUTION : Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. • IMPORTANT : Indicates that equipment or property damage could result if instructions are not followed. 1

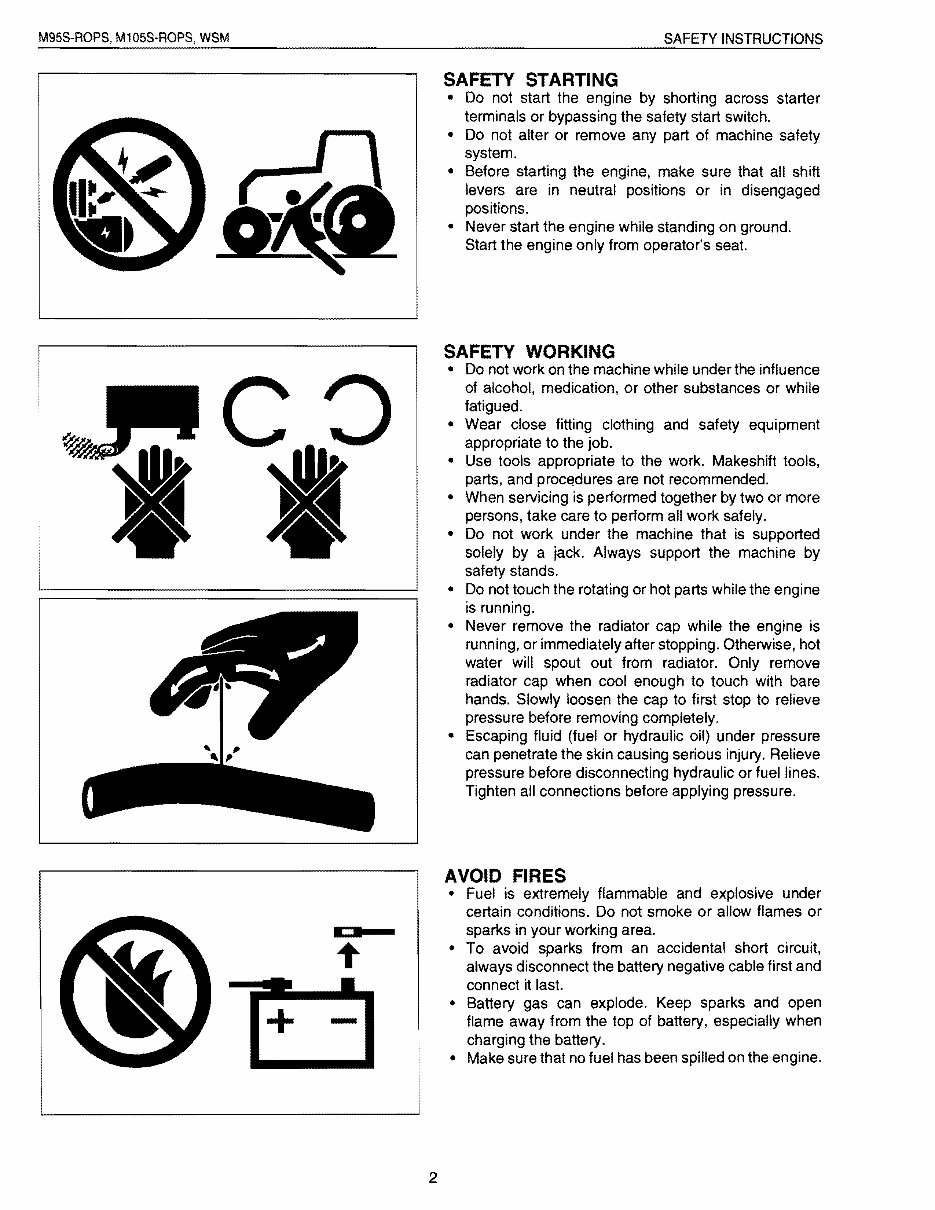

M95S-ROPS, M105S-ROPS, WSM SAFETY INSTRUCTIONS • + - SAFETY STARTING • Do not start the engine by shorting across starter terminals or bypassing the safety start switch. • Do not alter or remove any part of machine safety system. • Before starting the engine. make sure that all shift levers are in neutral positions or in disengaged positions. • Never start the engine while standing on ground. Start the engine only from operator's seat. SAFETY WORKING • Do not work on the machine while under the influence of alcohol. medication, or other substances or while fatigued. • Wear close fitting clothing and safety equipment appropriate to the job. • Use tools appropriate to the work. Makeshift tools, parts. and procE;!dures are not recommended. • When servicing is performed together by two or more persons, take care to perform all work safely. • Do not work under the machine that is supported solely by a jack. Always support the machine by safety stands. • Do not touch the rotating or hot parts while the engine is running. • Never remove the radiator cap while the engine is running, or immediately after stopping. Otherwise, hot water will spout out from radiator. Only remove radiator cap when cool enough to touch with bare hands. Slowly loosen the cap to first stop to relieve pressure before removing completely. • Escaping fluid (fuel or hydraulic oil) under pressure can penetrate the skin causing serious injury. Relieve pressure before disconnecting hydraulic or fuel lines. Tighten all connections before applying pressure. AVOID FIRES • Fuel is extremely flammable and explosive under certain conditions. Do not smoke or allow flames or sparks in your working area. • To avoid sparks from an accidental short circuit, always disconnect the battery negative cable first and connect it last. • Battery gas can explode. Keep sparks and open flame away from the top of battery, especially when charging the battery. • Make sure that no fuel has been spilled on the engine. 2

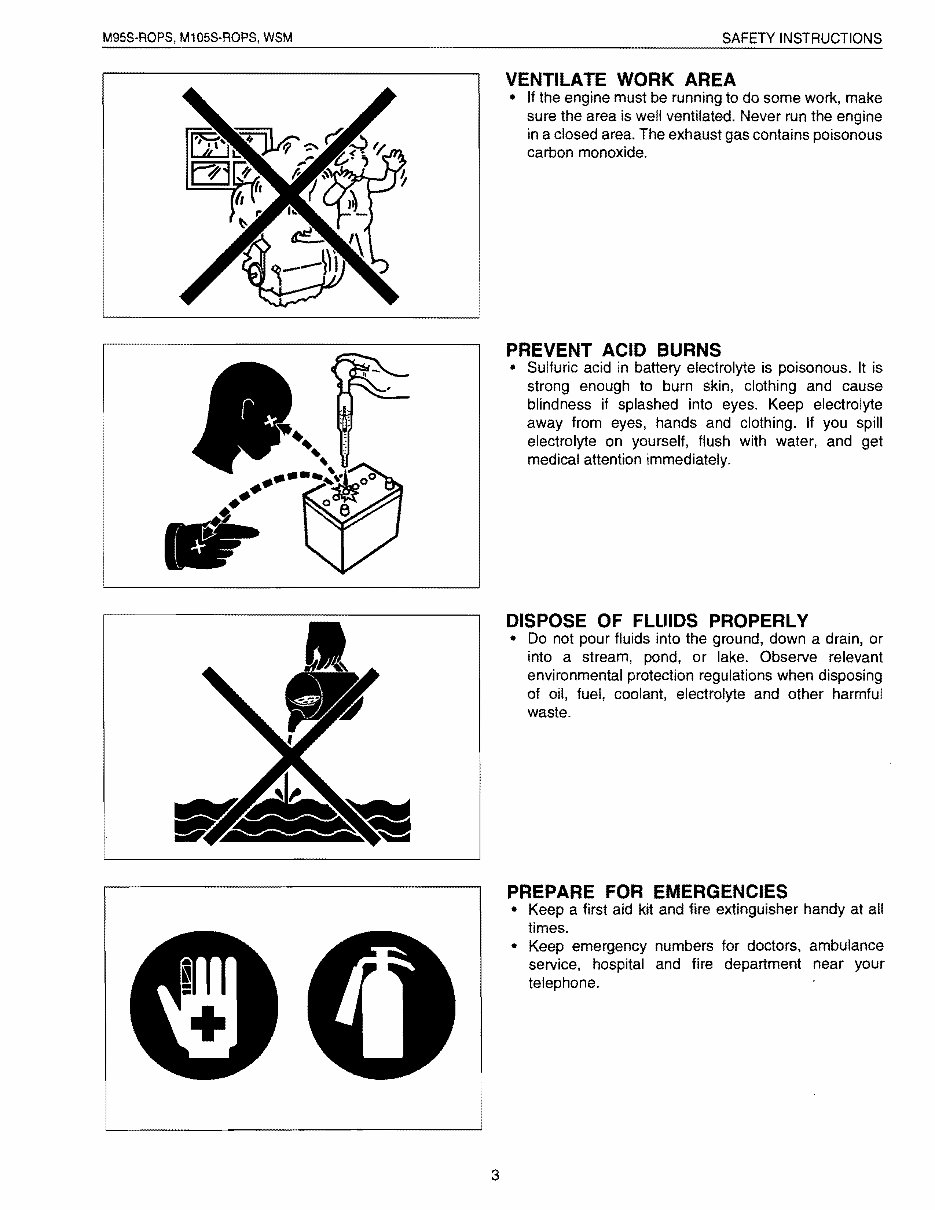

M95S-ROPS, M105S-ROPS, WSM SAFETY INSTRUCTIONS VENTILATE WORK AREA • If the engine must be running to do some work, make sure the area is well ventilated. Never run the engine in a closed area. The exhaust gas contains poisonous carbon monoxide. PREVENT ACID BURNS • Sulfuric acid in battery electrolyte is poisonous. It is strong enough to burn skin, clothing and cause blindness if splashed into eyes. Keep electrolyte away from eyes, hands and clothing. If you spill electrolyte on yourself, flush with water, and get medical attention immediately. DISPOSE OF FLUIDS PROPERLY • Do not pour fluids into the ground, down a drain, or into a stream, pond, or lake. Observe relevant environmental protection regulations when disposing of oil, fuel, coolant, electrolyte and other harmful waste. PREPARE FOR EMERGENCIES • Keep a first aid kit and fire extinguisher handy at all times. • Keep emergency numbers for doctors, ambulance service, hospital and fire department near your telephone. 3

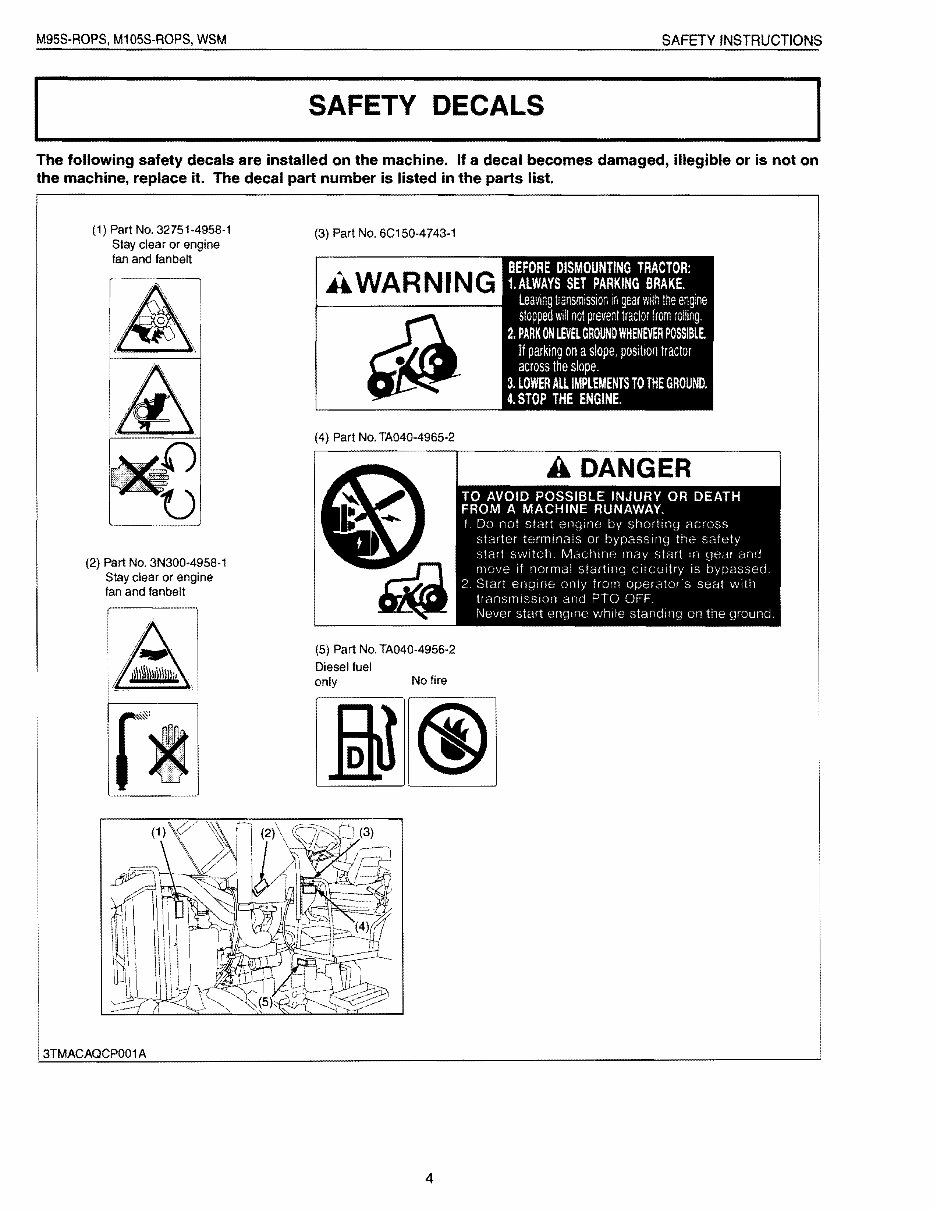

M95S·ROPS, M105S·ROPS, WSM SAFETY INSTRUCTIONS SAFETY DECALS The following safety decals are installed on the machine. If a decal becomes damaged, illegible or is not on the machine, replace it. The decal part number is listed in the parts list. (1) Part No. 32751-4958-1 Stay clear or engine fan and fanbelt (2) Part No. 3N300-4958-1 Stay clear or engine fan and fanbelt r BEFORE DISMOUNTING TRACTOR: 1.ALWAYS SET PARKING BRAKE. Leaving transmission in gear with the engine stopped will not prevent tractor from rolling. 2. PARK ON LEVEL GROUND WHENEVER POSSIBLE. If parking on aslope, position tractor across the slope. 3. LOWER ALL IMPLEMENTS TO THE GROUND, 4. STOP THE ENGINE. (5) Part No. TA040-4956-2 Diesel fuel only No fire (3) Part No. 6C150-4743·1 AWARNING (4) Part No. TA040-4965·2 13TMACAQCP001 A 4

Hello Thank you very much for your download. In the last page of this PDF document. There is a link. Please click on that link and return to our website. Then you can get the complete manual immediately. No need to wait. Thanks for continuing to read the documentation. Best wishes.

M95S-ROPS, M105S-ROPS, WSM SAFETY INSTRUCTIONS (1) Part No. 3F240-9857-1 (3) Part No. TA040-4935-1 A WARNING To avoid free wheeling when shifting the shuttle lever while on a slope: Stop completely by using the brake and by depressing ttle clutch pedal. Start off after selecting shuttle direction by releasing the clutch pedal. (2) Part No. 3P305-9856-1 ACAUTION TO AVOID INJURY FROM SEPARATION: GROOVE DO NOT EXTEND LIFT ROD i J BEYOND THE GROOVE GROOVE ON THE THREADED ROD. ~ RHI LH! (4) Part No. TA040-4959-3 A WARNING TO AVOID PERSONAL INJURY: 1 Attach pulled or towed loads to the drawbm only 2. Use the 3-polnt hitch only with equipment deSigned for 3-polnt hitch usage 3TMACAQCP002A 5

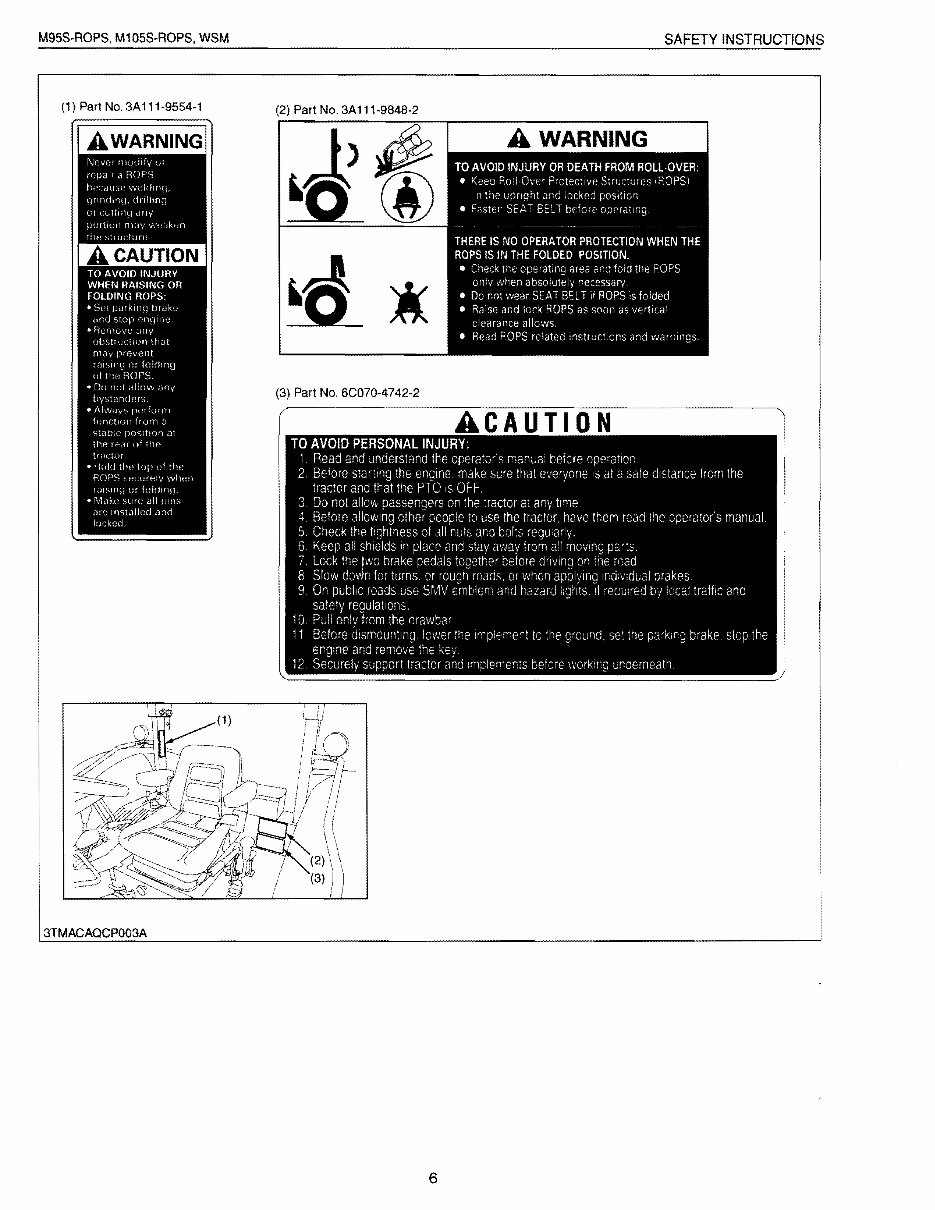

M95S-ROPS, M105S-ROPS, WSM SAFETY INSTRUCTIONS (1) Part No. 3A111-9554-1 (2) Part No. 3A111-9848-2 (3) Part No. 6C070-4742·2 3TMACAQCP003A 6

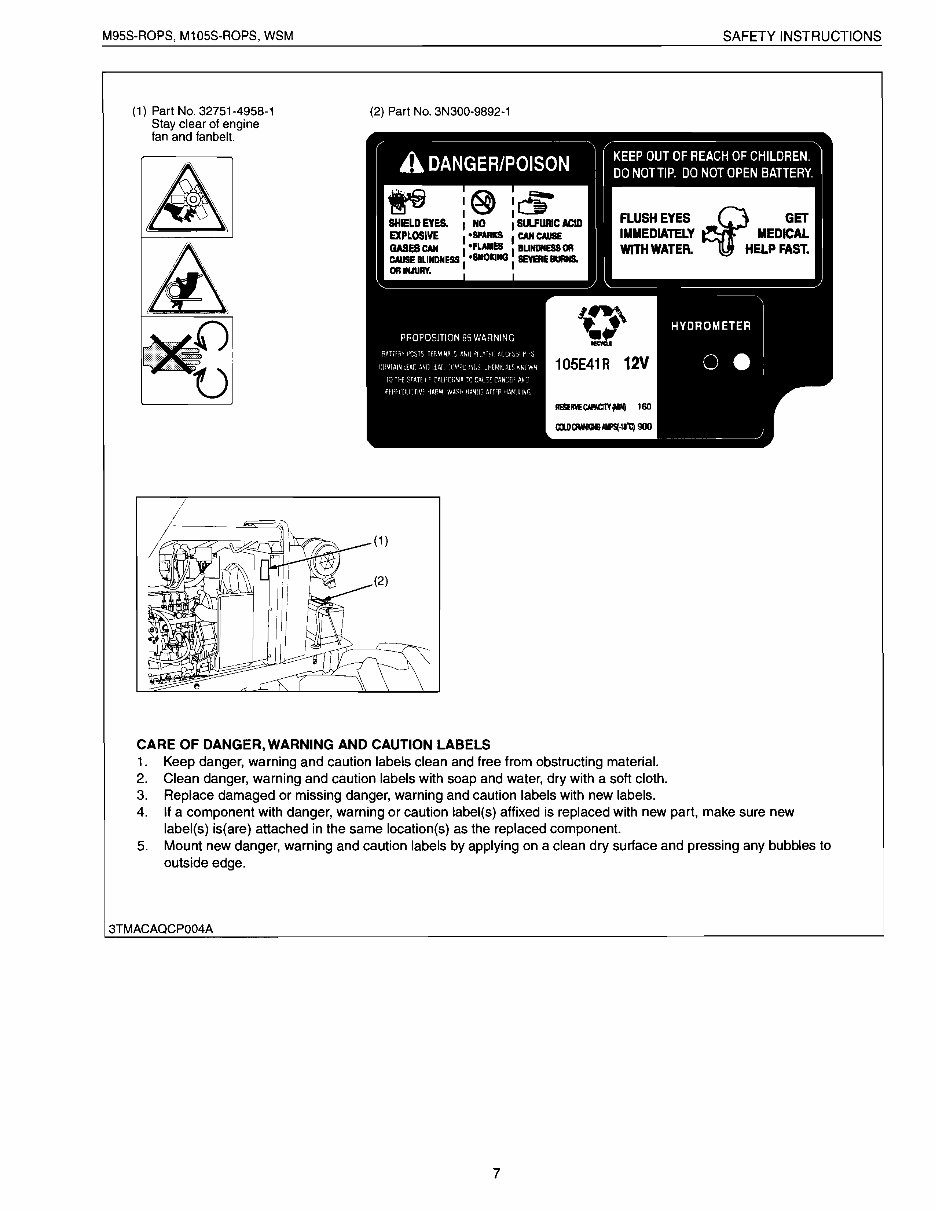

M95S-ROPS, M105S-ROPS, WSM SAFETY INSTRUCTIONS (1) Part No. 32751-4958-1 (2) Part No. 3N300-9892-1 Stay clear of engine fan and fanbell. CARE OF DANGER, WARNING AND CAUTION LABELS 1. Keep danger, warning and caution labels clean and free from obstructing material. 2. Clean danger, warning and caution labels with soap and water, dry with a soft cloth. 3. Replace damaged or missing danger, warning and caution labels with new labels. 4. If a component with danger, warning or caution label(s) affixed is replaced with new part, make sure new label(s) is(are) attached in the same location(s) as the replaced component. 5. Mount new danger, warning and caution labels by applying on a clean dry surface and pressing any bubbles to outside edge. 3TMACAQCP004A 7

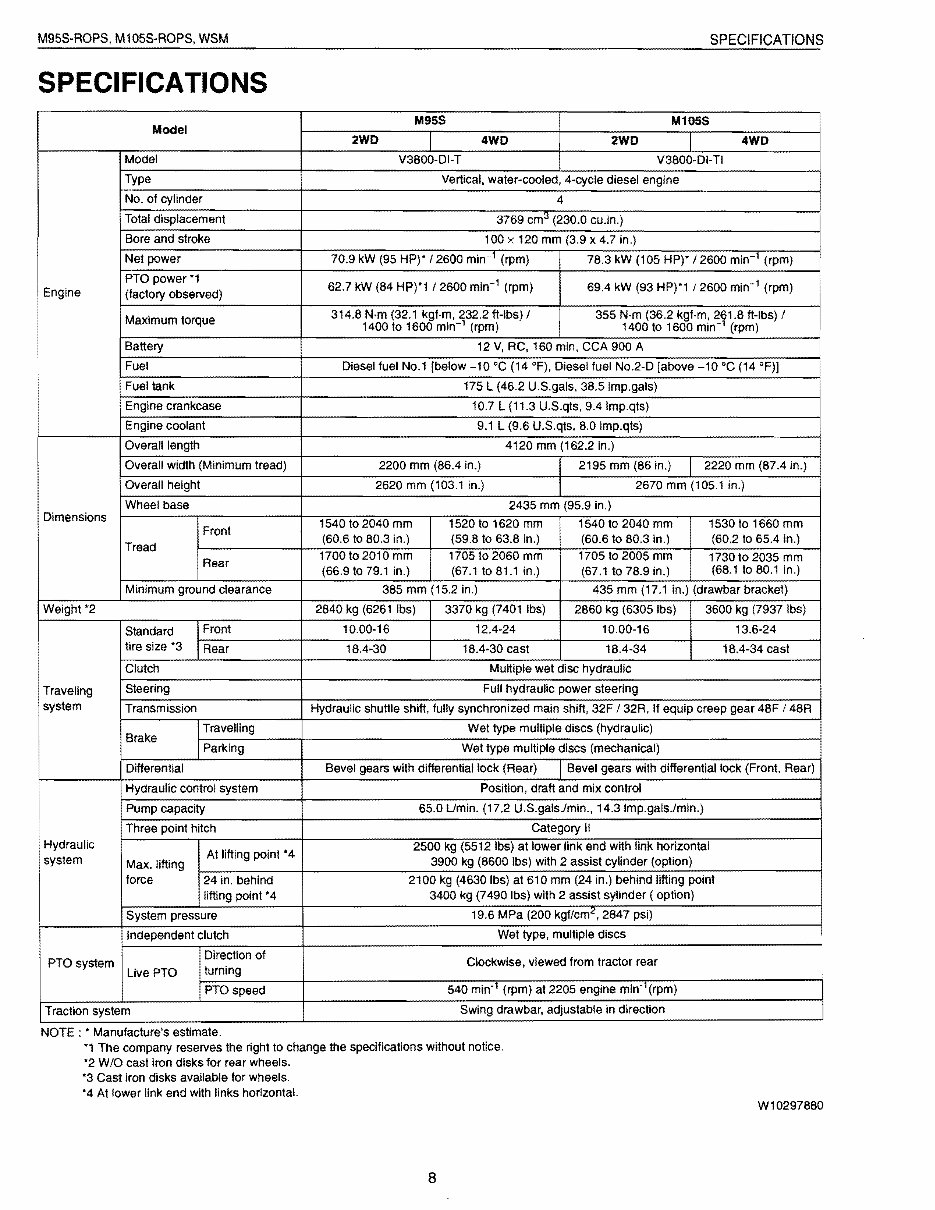

M95S-ROPS. M105S-ROPS. WSM SPECIFICATIONS SPECIFICATIONS Model M95S M105S 2WD 4WD 2WD 4WD Model V3800-DI-T V3800-DI-TI Type Vertical. water-cooled. 4-cycle diesel engine No. of cylinder 4 Total displacement 3769 cm 3 (230.0 cu.in.) Bore and stroke 100 x 120 mm (3.9 x 4.7 in.) Net power 70.9 kW (95 HPJ' / 2600 min' (rpm) 78.3 kW (105 HP)' /2600 min 1 (rpm) PTO power '1 62.7 kW (84 HP)*l /2600 min- 1 (rpm) 69.4 kW (93 HP)'l /2600 min- 1 (rpm) Engine (factory observed) Maximum torque 314.8 N·m (32.1 kgf·m. 232.2 ft-Ibs) / 355 N·m (36.2 kgf·m. 2Yl.8 ft-Ibs) I 1400 to 1600 min- 1 (rpm) 1400 to 1600 min- (rpm) Battery 12 V. RC. 160 min, CCA 900 A Fuel Diesel fuel No.1 [below -10°C (14 OF). Diesel fuel No.2-D [above -10°C (14 OF)] Fuel tank 175 L (46.2 U.S.gals, 38.5Imp.gals) Engine crankcase 10.7 L (11.3 U.S.qts. 9.4 Imp.qts) Engine coolant 9.1 L (9.6 U.S.qts. 8.0 Imp.qts) Overall length 4120 mm (162.2 in.) Overall width (Minimum tread) 2200 mm (86.4 in.) 2195 mm (86 in.) 2220 mm (87.4 in.) Overall height 2620 mm (103.1 in.) 2670 mm (105.1 in.) Wheel base 2435 mm (95.9 in.) Dimensions 1540 to 2040 mm 1520 to 1620 mm 1540102040 mm ~ 16.. mm Front (60.6 to 80.3 in.) (59.8 to 63.8 in.) (60.6 to 80.3 in.) (60.2 to 65.4 in.) Tread Rear 1700 to 201 0 mm 1705 to 2060 mm 1705 to 2005 mm 02035 mm (66.9 to 79.1 in.) (67.1 to 81.1 in.) (67.1 to 78.9 in.) to 80.1 in.) Minimum ground clearance 385 mm (15.2 in.) 435 mm (17.1 in.) (drawbar bracket) Weight '2 2840 kg (6261 Ibs) 3370 kg (7401 Ibs) 2860 kg (6305Ibs) 3600 kg (7937 Ibs) Standard Front 10.00-16 12.4-24 10.00-16 13.6-24 tire size "3 Rear 18.4·30 18.4-30 cast 18.4-34 18.4-34 cast Clutch MuHiple wet disc hydrauliC Traveling Steering Full hydraulic power steering system Transmission Hydraulic shuttle shift, fully synchronized main shift. 32F / 32R. If equip creep gear 48F 148R Brake Travelling Wet type multiple discs (hydraulic) Parking Wet type multiple discs (mechanical) Differential Bevel gears with differential lock (Rear) Bevel gears with differential lock (Front. Rear) Hydraulic control system Position. draft and mix control Pump capacity 65.0 Umin. (17.2 U.S.galsJmin., 14.3Imp.gals.lmin.) Three point hitch Category II i Hydraulic At lifting point '4 2500 kg (5512 Ibs) at lower link end with link horizontal system Max. lifting 3900 kg (8600 Ibs) with 2 assist cylinder (option) force 24 in. behind 2100 kg (4630 Ibs) at 610 mm (24 in.) behind lifting point lifting point· 4 3400 kg (7490 Ibs) with 2 assist sylinder (option) System pressure 19.6 MPa (200 kgf/cm". 2847 psi) Independent clutch Wet type. multiple discs PTO system Direction of Clockwise. viewed from tractor rear Live PTO turning PTOspeed 540 min- 1 (rpm) at 2205 engine min" (rpm) Traction system Swing drawbar. adjustable in direction NOTE: • Manufacture's estimate. '1 The company reserves the right to change the specifications without notice. '2 WIO cast iron disks for rear wheels. '3 Cast iron disks available for wheels. '4 At lower link end with links horizontal. Wl0297880 8

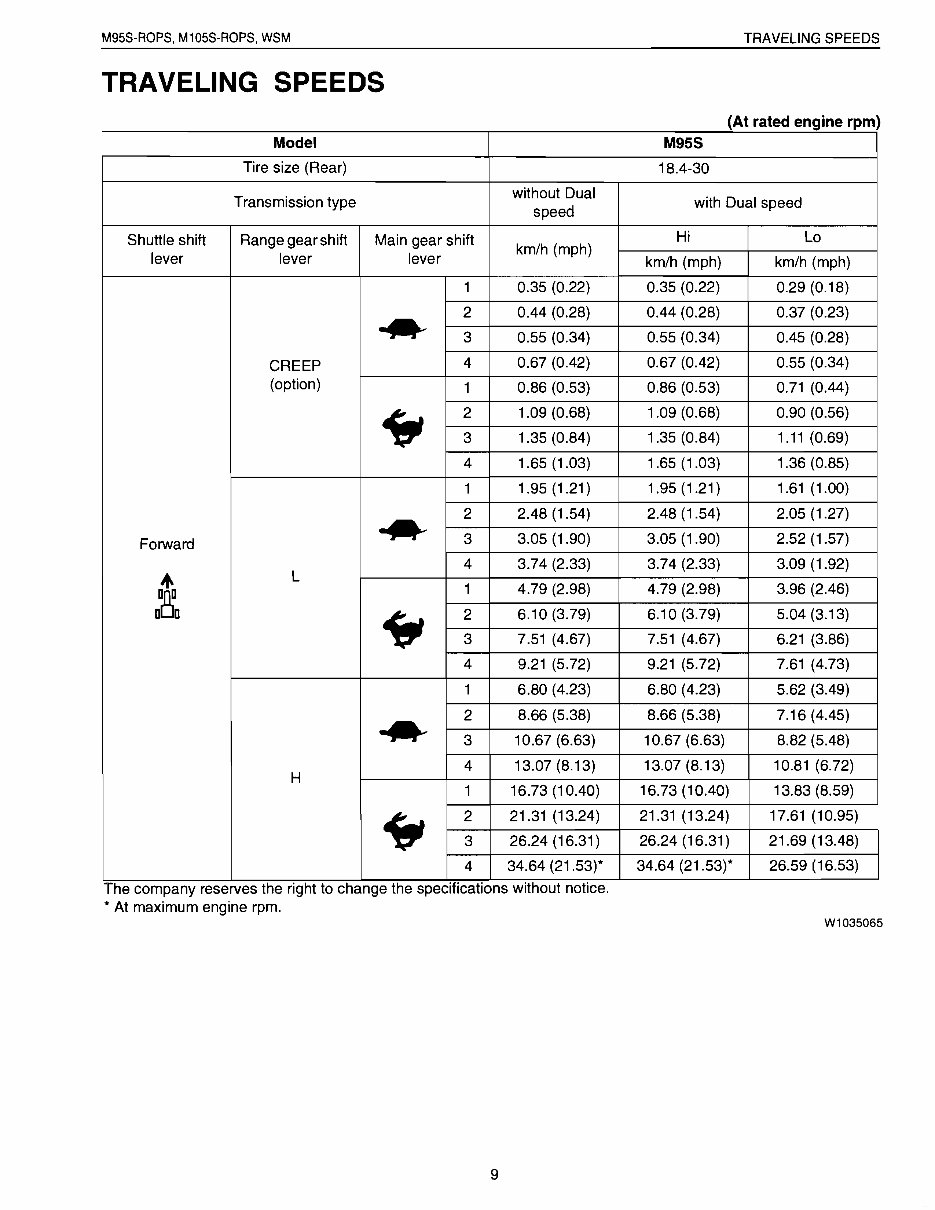

M95S-ROPS, M105S-ROPS, WSM TRAVELING SPEEDS TRAVELING SPEEDS (At rated engine rpm) Shuttle shift lever Forward ... o ~ 0 Model Tire size (Rear) Transmission type Range gear sh ift lever CREEP (option) L H Main gear shift lever 1 • 2 3 4 1 2 3 it' 4 1 2 .~ 3 4 1 2 3 it' 4 1 2 ~. 3 4 1 2 3 it' 4 .. without Dual speed km/h (mph) 0.35 (0.22) 0.44 (0.28) 0.55 (0.34) 0.67 (0.42) 0.86 (0.53) 1.09 (0.68) 1.35 (0.84) 1.65 (1.03) 1.95 (1.21) 2.48 (1.54) 3.05 (1.90) 3.74 (2.33) 4.79 (2.98) 6.10 (3.79) 7.51 (4.67) 9.21 (5.72) 6.80 (4.23) 8.66 (5.38) 10.67 (6.63) 13.07 (8.13) 16.73 (10.40) 21.31 (13.24) 26.24 (16.31) 34.64 (21.53)* M95S 18.4-30 with Dual speed Hi km/h (mph) 0.35 (0.22) 0.44 (0.28) 0.55 (0.34) 0.67 (0.42) 0.86 (0.53) 1.09 (0.68) 1.35 (0.84) 1.65 (1.03) 1.95 (1.21) 2.48 (1.54) 3.05 (1.90) 3.74 (2.33) 4.79 (2.98) 6.10 (3.79) 7.51 (4.67) 9.21 (5.72) 6.80 (4.23) 8.66 (5.38) 10.67 (6.63) 13.07 (8.13) 16.73 (10.40) 21.31 (13.24) 26.24 (16.31) 34.64 (21.53)* Lo km/h (mph) 0.29 (0.18) 0.37 (0.23) 0.45 (0.28) 0.55 (0.34) 0.71 (0.44) 0.90 (0.56) 1.11 (0.69) 1.36 (0.85) 1.61 (1.00) 2.05 (1.27) 2.52 (1.57) 3.09 (1.92) 3.96 (2.46) 5.04 (3.13) 6.21 (3.86) 7.61 (4.73) 5.62 (3.49) 7.16 (4.45) 8.82 (5.48) 10.81 (6.72) 13.83 (8.59) 17.61 (10.95) 21.69 (13.48) 26.59 (16.53) The company reserves the nght to change the specifications without notice. * At maximum engine rpm. W1035065 9
