WORKSHOP MANUAL TRACTOR M6800,M6800S, M8200,M9000 KiSC issued 03, 2008 A

TO THE READER This Workshop Manual has been prepared to provide servicing personnel with information on the mechanism, service and maintenance of KUBOTA Tractors M6800, M6800S, M8200 and M9000. It is divided into two parts, “Mechanism” and “Servicing” for each section except “ENGINE” section. Mechanism Information on the constructuion and function are included. This part should be understood before proceeding with troubleshooting, disassembling and servicing. Servicing Under the heading “General” section comes general precautions, check and maintenance and special tools. Other section, there are troubleshooting, servicing specification lists, checking and adjusting, disassembling and assembling, and servicing which cover procedures, precautions, factory specifications and allowable limits. All information illustrations and specifications contained in this manual are based on the latest product information available at the time of publication. The right is reserved to make changes in all information at any time without notice. August 2001 © KUBOTA Corporation 2001 KiSC issued 03, 2008 A

1 M6800 · M6800S · M8200 · M9000, WSM SAFETY INSTRUCTIONS BEFORE SERVICING AND REPAIRING • Read all instructions and safety instructions in this manual and on your machine safety decals. • Clean the work area and machine. • Park the machine on a firm and level ground, and set the parking brake. • Lower the implement to the ground. • Stop the engine, and remove the key. • Disconnect the battery negative cable. • Hang a “DO NOT OPERATE” tag in operator station. SAFETY FIRST This symbol, the industry’s “Safety Alert Symbol”, is used throughout this manual and on labels on the machine itself to warn of the possibility of personal injury. Read these instructions carefully. It is essential that you read the instructions and safety regulations before you attempt to repair or use this unit. DANGER : Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING : Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION : Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. IMPORTANT : Indicates that equipment or property damage could result if instructions are not followed. NOTE : Gives helpful information. KiSC issued 03, 2008 A

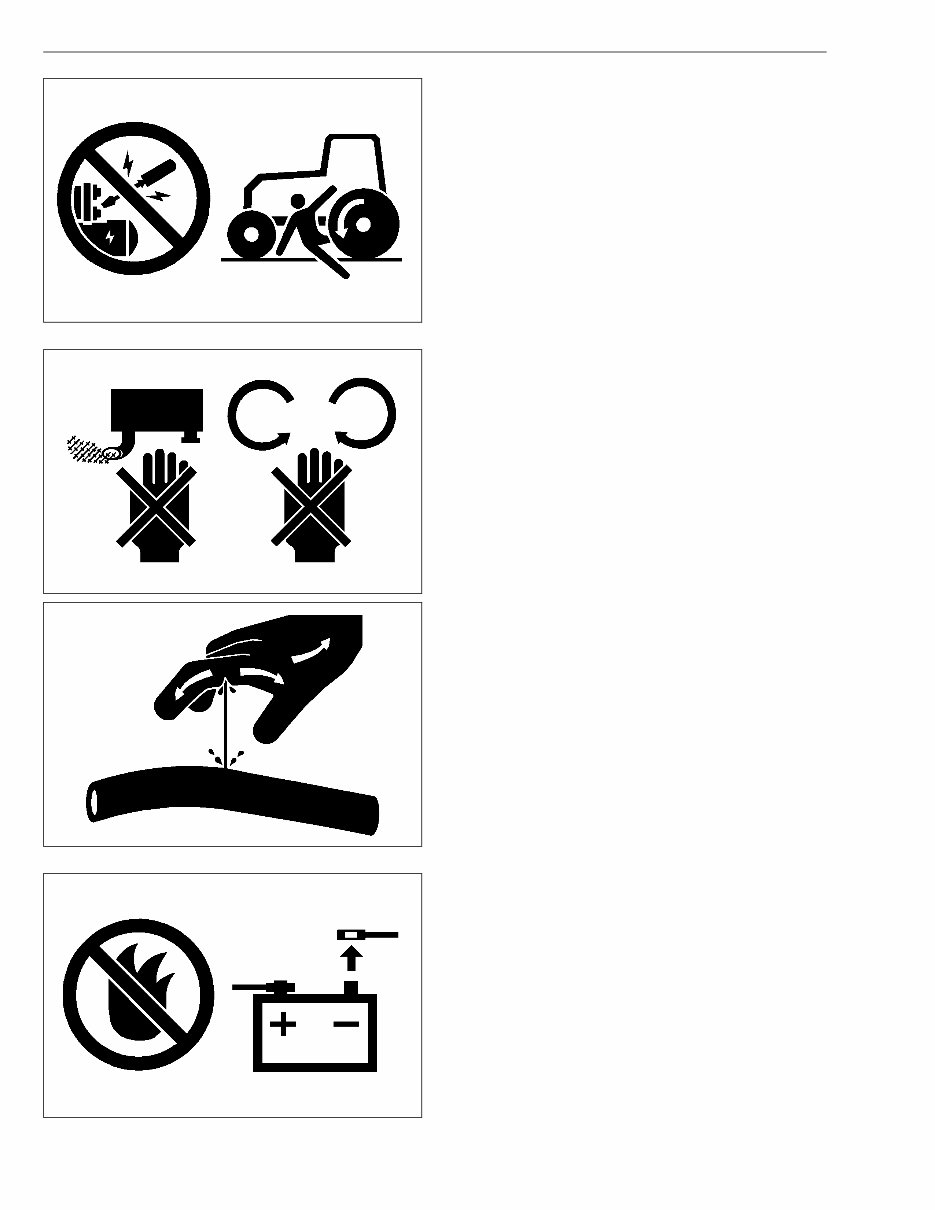

2 M6800 · M6800S · M8200 · M9000, WSM SAFETY INSTRUCTIONS SAFETY STARTING • Do not start the engine by shorting across starter terminals or bypassing the safety start switch. • Do not alter or remove any part of machine safety system. • Before starting the engine, make sure that all shift levers are in neutral positions or in disengaged positions. • Never start the engine while standing on ground. Start the engine only from operator’s seat. SAFETY WORKING • Do not work on the machine while under the influence of alcohol, medication, or other substances or while fatigued. • Wear close fitting clothing and safety equipment appropriate to the job. • Use tools appropriate to the work. Makeshift tools, parts, and procedures are not recommended. • When servicing is performed together by two or more persons, take care to perform all work safely. • Do not work under the machine that is supported solely by a jack. Always support the machine by safety stands. • Do not touch the rotating or hot parts while the engine is running. • Never remove the radiator cap while the engine is running, or immediately after stopping. Otherwise, hot water will spout out from radiator. Only remove radiator cap when cool enough to touch with bare hands. Slowly loosen the cap to first stop to relieve pressure before removing completely. • Escaping fluid (fuel or hydraulic oil) under pressure can penetrate the skin causing serious injury. Relieve pressure before disconnecting hydraulic or fuel lines. Tighten all connections before applying pressure. AVOID FIRES • Fuel is extremely flammable and explosive under certain conditions. Do not smoke or allow flames or sparks in your working area. • To avoid sparks from an accidental short circuit, always disconnect the battery negative cable first and connect it last. • Battery gas can explode. Keep sparks and open flame away from the top of battery, especially when charging the battery. • Make sure that no fuel has been spilled on the engine. KiSC issued 03, 2008 A

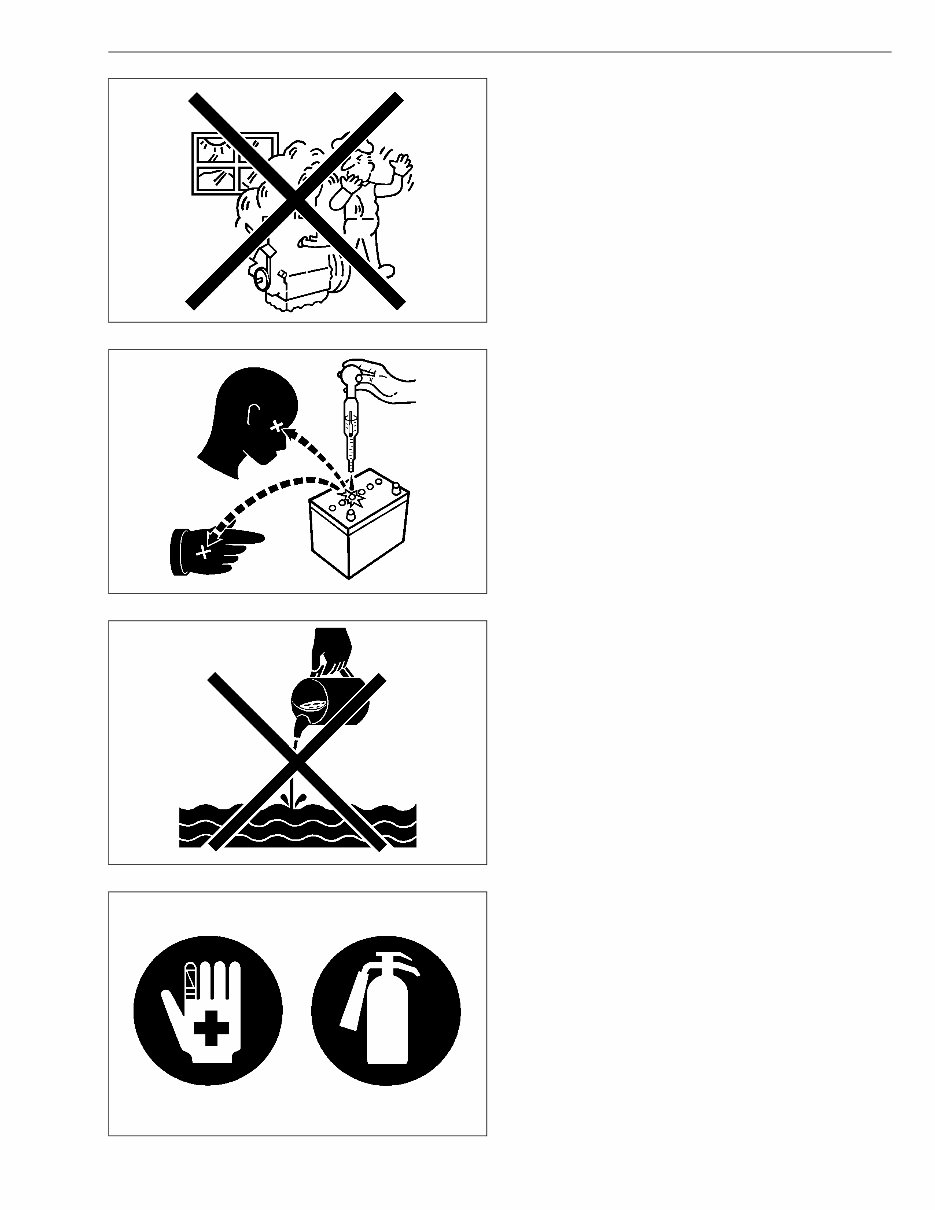

3 M6800 · M6800S · M8200 · M9000, WSM SAFETY INSTRUCTIONS VENTILATE WORK AREA • If the engine must be running to do some work, make sure the area is well ventilated. Never run the engine in a closed area. The exhaust gas contains poisonous carbon monoxide. PREVENT ACID BURNS • Sulfuric acid in battery electrolyte is poisonous. It is strong enough to burn skin, clothing and cause blindness if splashed into eyes. Keep electrolyte away from eyes, hands and clothing. If you spill electrolyte on yourself, flush with water, and get medical attention immediately. DISPOSE OF FLUIDS PROPERLY • Do not pour fluids into the ground, down a drain, or into a stream, pond, or lake. Observe relevant environmental protection regulations when disposing of oil, fuel, coolant, electrolyte and other harmful waste. PREPARE FOR EMERGENCIES • Keep a first aid kit and fire extinguisher handy at all times. • Keep emergency numbers for doctors, ambulance service, hospital and fire department near your telephone. KiSC issued 03, 2008 A

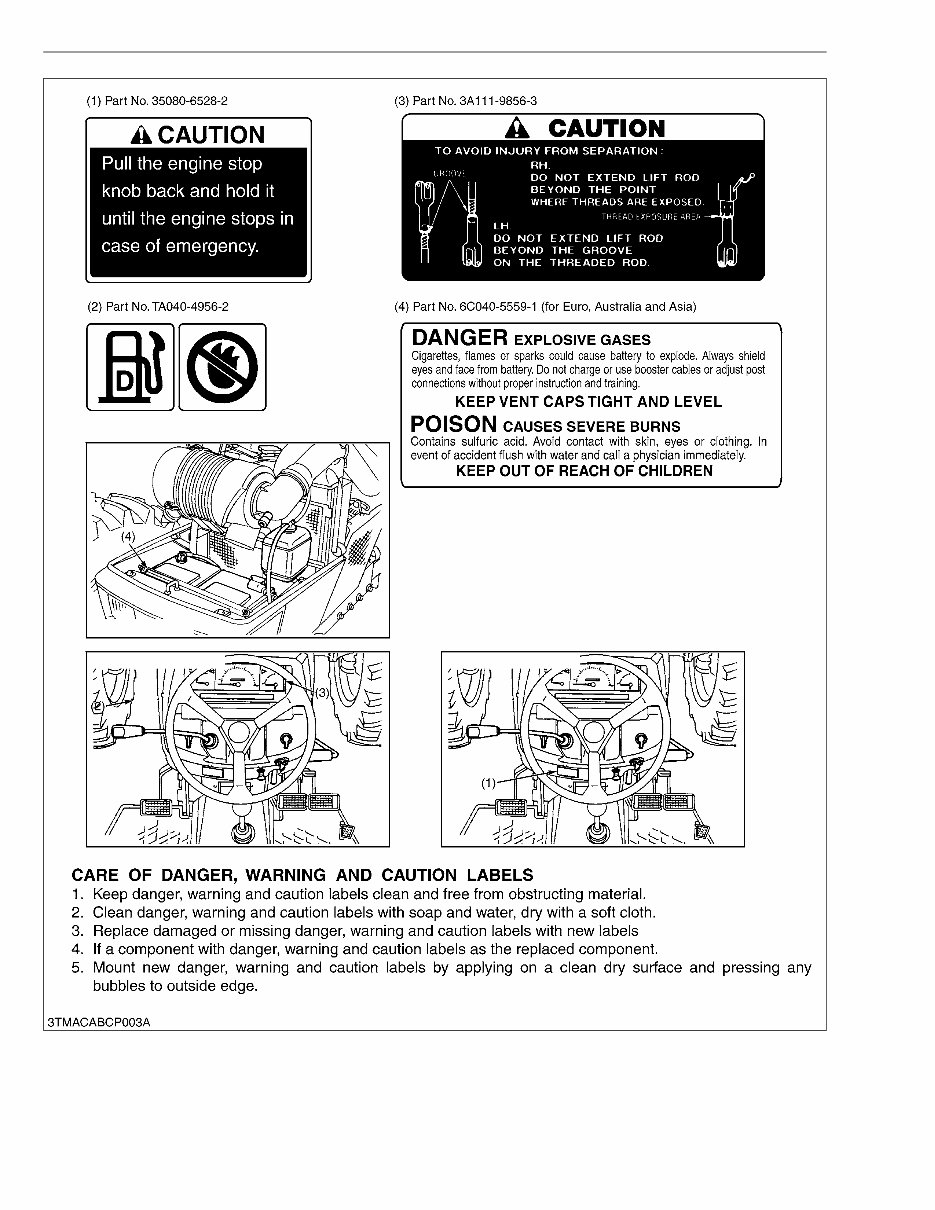

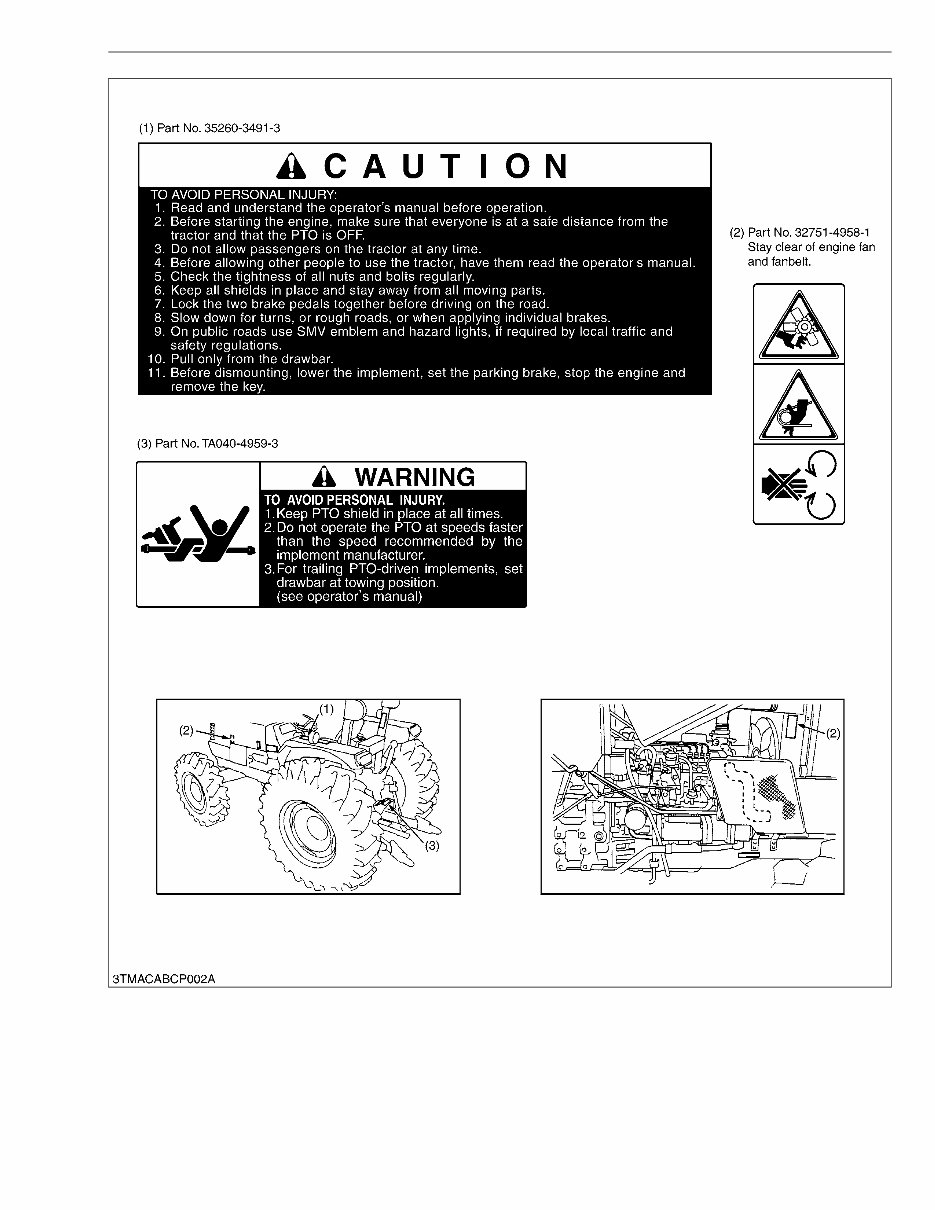

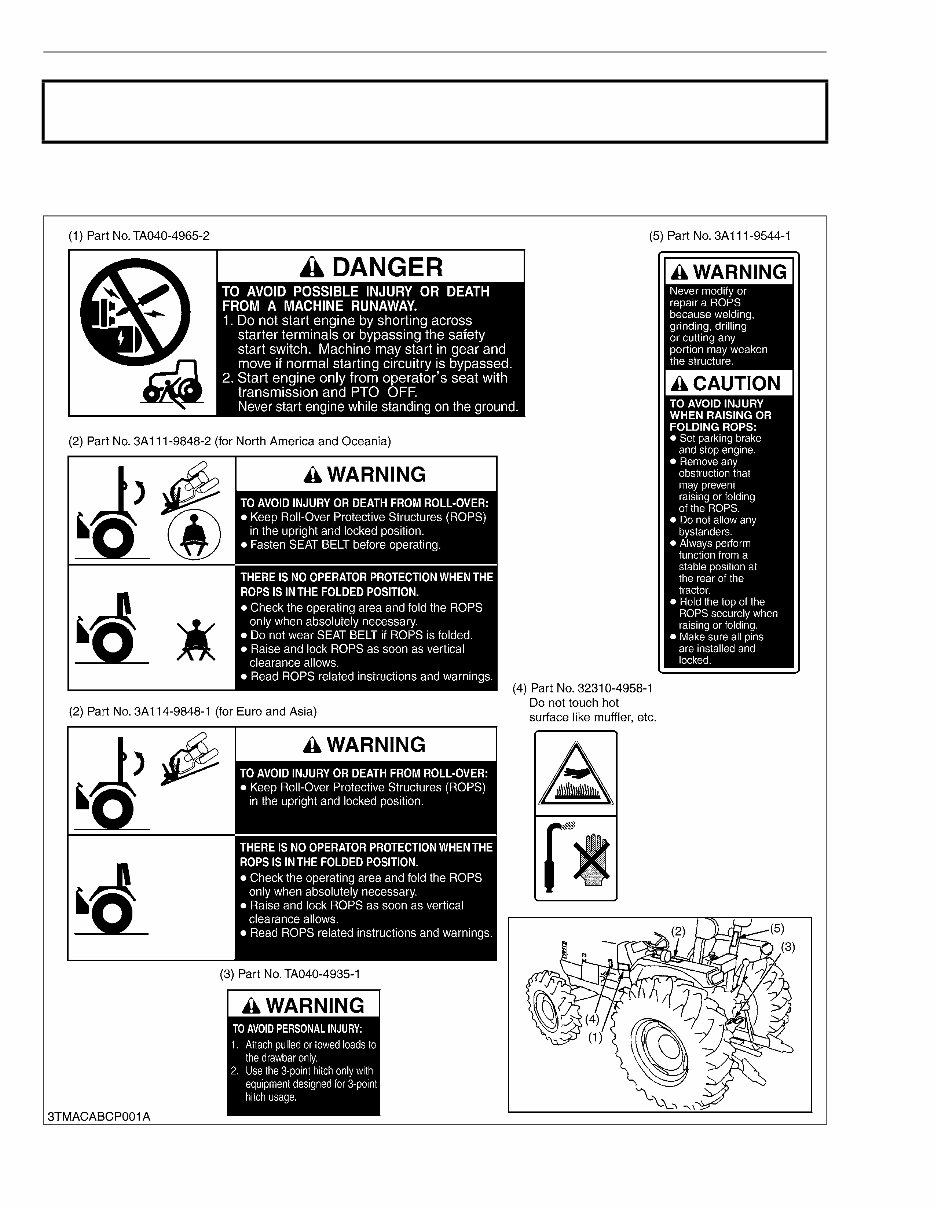

4 M6800 · M6800S · M8200 · M9000, WSM SAFETY INSTRUCTIONS The following safety decals are installed on the machine. If a decal becomes damaged, illegible or is not on the machine, replace it. The decal part number is listed in the parts list. SAFETY DECALS KiSC issued 03, 2008 A

5 M6800 · M6800S · M8200 · M9000, WSM SAFETY INSTRUCTIONS KiSC issued 03, 2008 A

6 M6800 · M6800S · M8200 · M9000, WSM SAFETY INSTRUCTIONS KiSC issued 03, 2008 A

7 M6800 · M6800S · M8200 · M9000, WSM SPECIFICATIONS SPECIFICATIONS Note : * Manufacture’s estimate ** At lower link and with links horizontal. The company reserves the right to change the specifications without notice. W10281170 Model M6800 M6800S 2WD 4WD 2WD 4WD Engine Model V3300-E / V3300-E2 Type Vertical, water-cooled, 4-cycle diesel engine Number of cylinders 4 Total displacement 3318 cm 3 (202.5 cu.in.) Bore and stroke 98 × 110 mm (3.9 × 4.3 in.) Net power 50.8 kW (68 HP)* PTO power (factory observe) 46.3 kW (62 HP)* / 2600 min −1 (rpm) Maximum torque 235 N·m (24.0 kgf·m, 173.3 ft-lbs) / 1300 to 1500 min −1 (rpm) Battery capacity 12 V, CCA : 1000 A Fuel Diesel fuel No. 1 [below −10 °C (14 °F], Diesel fuel No. 2-D [above −10 °C (14 °F)] Fuel tank capacity 65 L (17.2 U.S.gals., 14.3 Imp.gals.) Engine oil capacity 10.7 L (11.3 U.S.qts., 9.4 Imp.qts.) Coolant capacity 8.5 L (9.0 U.S.qts., 7.5 Imp.qts.) Dimensions Overall length 3530 mm (139.0 in.) 3420 mm (134.6 in.) 3560 mm (140.2 in.) 3525 mm (138.8 in.) Overall width (min. tread) 1860 mm (73.2 in.) Overall height (with ROPS) 2450 mm (96.9 in.) Wheel base 2050 mm (80.7 in.) Tread Front 1420 to 1820 mm (55.9 to 71.7 in.) 1420 to 1520 mm (55.9 to 59.8 in.) 1420 to 1820 mm (55.9 to 71.7 in.) 1420 to 1520 mm (55.9 to 59.8 in.) Rear 1420 to 1720 mm (55.9 to 67.7 in.) Minimum ground clearance 430 mm (16.9 in.) (COVER TANK) 430 mm (16.9 in.) (BRACKET DRAWBAR) Weight (with ROPS) 2030 kg (4475 lbs) 2090 kg (4608 lbs) 2030 kg (4475 lbs) 2090 kg (4608 lbs) Travelling system Standard tire size Front 9.5L-15, 7.5-16 9.5-24 9.5L-15, 7.5-16 9.5-24 Rear 16.9-30 Clutch Dry, single plate Steering Hydrostatic power steering Braking system Multiple wet disc mechanical Differential Bevel gears with differential lock (Front, Rear) Hydraulic system Hydraulic control system Position, draft and mix control Pump capacity 41.3 L (43.6 U.S.qts., 36.3 Imp.qts.) / min. 38.3 L (40.5 U.S.qts., 33.7 Imp.qts.) / min. Three point hitch SAE Category I & II Max. lifting force At lift points** 2050 kg (4520 lbs) 24 in. behind lift points 1500 kg (3307 lbs) Remote hydraulic control One remote valve System pressure 19.1 MPa (195 kgf/cm 2 , 2775.4 psi) PTO Live PTO (Indipen- dent) Direction of turning Clockwise, viewed from tractor rear Standard PTO Fixed PTO shaft type with 1 speed : 540 min −1 (rpm) at 2295 min −1 (rpm) Fixed PTO shaft type with 2 speeds : 540 min −1 (rpm) at 2307 min −1 (rpm) 1000 min −1 (rpm) at 2471 min −1 (rpm) Fixed PTO shaft type with 2 speeds : 540 min −1 (rpm) at 2307 min −1 (rpm) 540E min −1 (rpm) at 1828 min −1 (rpm) KiSC issued 03, 2008 A

8 M6800 · M6800S · M8200 · M9000, WSM SPECIFICATIONS Note : * Manufacture’s estimate ** At lower link and with links horizontal. The company reserves the right to change the specifications without notice. W10319630 Model M8200 M9000 2WD 4WD 2WD 4WD Engine Model V3300-TE / V3300-TE2 V3300-TIE / V3300-TIE2 Type Vertical, water-cooled, 4-cycle diesel engine Number of cylinders 4 Total displacement 3318 cm 3 (202.5 cu.in.) Bore and stroke 98 × 110 mm (3.9 × 4.3 in.) Net power 61.2 kW (82 HP)* 67.2 kW (90 HP)* PTO power (factory observe) 54.5 kW (73 HP)* / 2600 min −1 (rpm) 59.7 kW (80 HP)* / 2600 min −1 (rpm) Maximum torque 285 N·m (29.1 kgf·m, 210.2 ft-lbs) / 1300 to 1500 min −1 (rpm) 311 N·m (31.7 kgf·m, 229.4 ft-lbs) / 1400 to 1600 min −1 (rpm) Battery capacity 12 V, CCA : 1000 A Fuel Diesel fuel No. 1 [below −10 °C (14 °F], Diesel fuel No. 2-D [above −10 °C (14 °F)] Fuel tank capacity 90 L (23.8 U.S.gals., 19.8 Imp.gals.) Engine oil capacity 10.7 L (11.3 U.S.qts., 9.4 Imp.qts.) Coolant capacity 9.0 L (9.5 U.S.qts., 7.9 Imp.qts.) Dimensions Overall length 3915 mm (154.1 in.) 3800 mm (150.0 in.) 3915 mm (154.1 in.) 3800 mm (150.0 in.) Overall width (min. tread) 1980 mm (78.0 in.) Overall height (with ROPS) 2475 mm (97.4 in.) 2500 mm (98.4 in.) Wheel base 2250 mm (88.6 in.) Tread Front 1440 to 2040 mm (56.7 to 80.3 in.) 1420 to 1520 mm (55.9 to 59.8 in.) 1440 to 2040 mm (56.7 to 80.3 in.) 1520 to 1620 mm (59.8 to 63.8 in.) Rear 1520 to 1920 mm (59.8 to 75.6 in.) Minimum ground clearance 430 mm (16.9 in.) (BRACKET DRAWBAR) 450 mm (17.7 in.) (BRACKET DRAWBAR) Weight (with ROPS) 2270 kg (5004 lbs) 2470 kg (5445 lbs) 2310 kg (5093 lbs) 2530 kg (5578 lbs) Travelling system Standard tire size Front 7.5-18 11.2-24 7.5-18 12.4-24 Rear 18.4-28 18.4-30 Clutch Dry, single plate Steering Full hydrostatic power steering Braking system Multiple wet disc mechanical Differential Bevel gears with differential lock (Front, Rear) Hydraulic system Hydraulic control system Position, draft and mix control Pump capacity Individual flow type 41.3 L (43.6 U.S.qts., 36.3 Imp.qts.) / min. Combine flow type 64.3 L (67.9 U.S.qts., 56.6 Imp.qts.) / min. Three point hitch SAE Category II Max. lifting force At lift points** Standard : 2500 kg (5560 lbs) with assist cylinder : 3400 kg (7497 lbs) 24 in. behind lift points Standard : 2100 kg (4630 lbs) with assist cylinder : 2900 kg (6395 lbs) System pressure Individual flow type pump : 19.1 MPa (195 kgf/cm 2 , 2775.4 psi) Combine flow type pump : 19.6 MPa (200 kgf/cm 2 , 2846.6 psi) PTO Live PTO (Indipen- dent) Direction of turning Clockwise, viewed from tractor rear PTO / engine speed Fixed PTO shaft type with 1 speed : 540 min −1 (rpm) at 2205 min −1 (rpm) Fixed PTO shaft type with 2 speeds : 540 min −1 (rpm) at 2035 min −1 (rpm) 540E min −1 (rpm) at 1519 min −1 (rpm) Interchangeable PTO shaft type : 540 min −1 (rpm) at 2035 min −1 (rpm) 1000 min −1 (rpm) at 2389 min −1 (rpm) KiSC issued 03, 2008 A
