SAFETY INSTRUCTIONS M7580·M8580·M9580 WSM, 11231

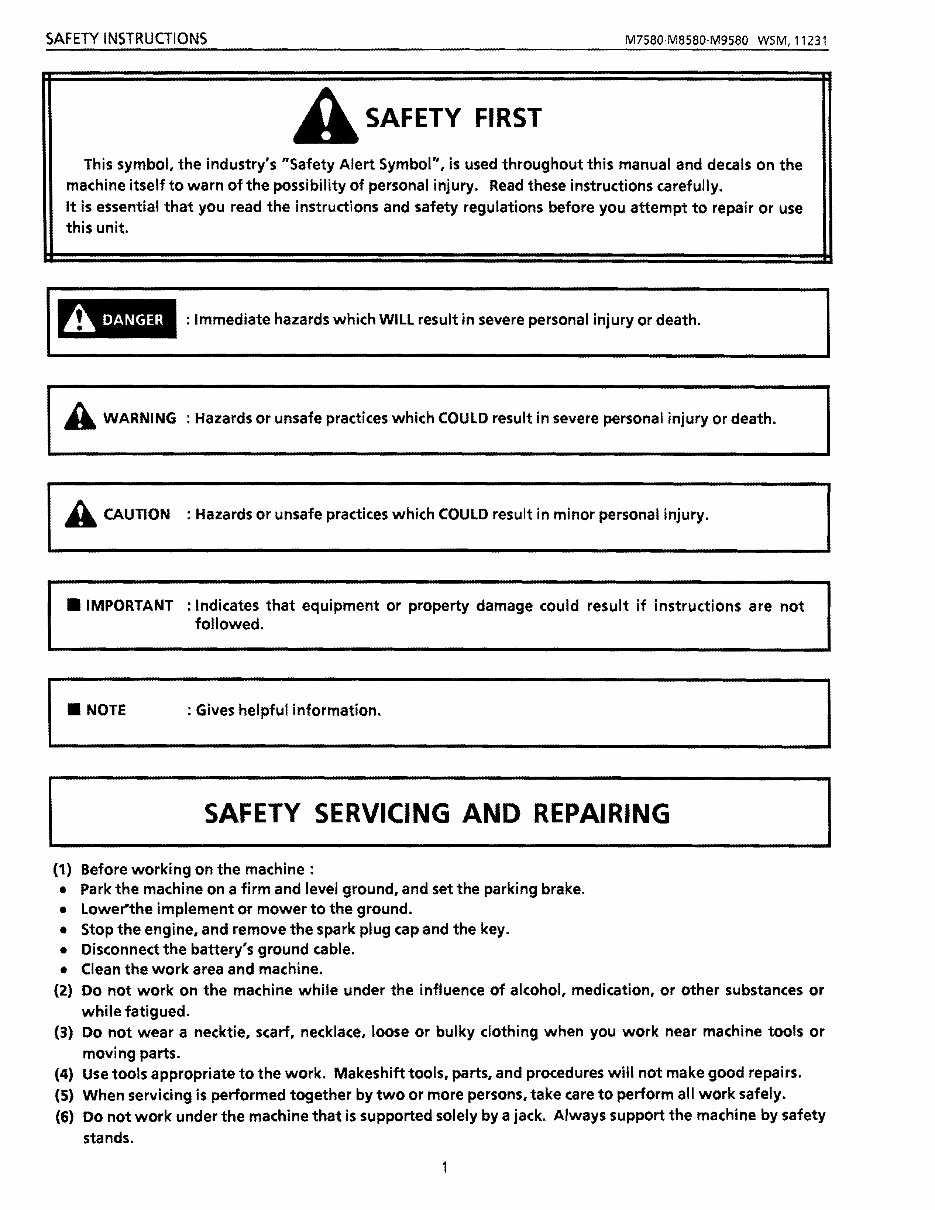

A SAFETY FIRST
This symbol, the industry's "Safety Alert Symbol", is used throughout this manual and decals on the
machine itself to warn of the possibility of personal injury. Read these instructions carefully.
It is essential that you read the instructions and safety regulations before you attempt to repair or use
this unit.
A DANGER : Immediate hazards which WILL result in severe personal injury or death.
A WARNING : Hazards or unsafe practices which COULD result in severe personal injury or death.
A CAUTION : Hazards or unsafe practices which COULD result in minor personal injury .
• IMPORTANT : Indicates that equipment or property damage could result if instructions are not
followed .
• NOTE : Gives helpful information.
SAFETY SERVICING AND REPAIRING
(1) Before working on the machine:
• Park the machine on a firm and level ground, and set the parking brake.
• Lowe ....the implement or mower to the ground.
• Stop the engine, and remove the spark plug cap and the key.
• Disconnect the battery's ground cable.
• Clean the work area and machine.
(2) Do not work on the machine while under the influence of alcohol, medication, or other substances or
while fatigued.
(3) Do not wear a necktie, scarf, necklace, loose or bulky clothing when you work near machine tools or
moving parts.
(4) Use tools appropriate to the work. Makeshift tools, parts, and procedures will not make good repairs.
(5) When servicing is performed together by two or more persons, take care to perform all work safely.
(6) Do not work under the machine that is supported solely by a jack. Always support the machine by safety
stands.
M7580·M8580·M9580 WSM,11231 SAFETY INSTRUCTIONS

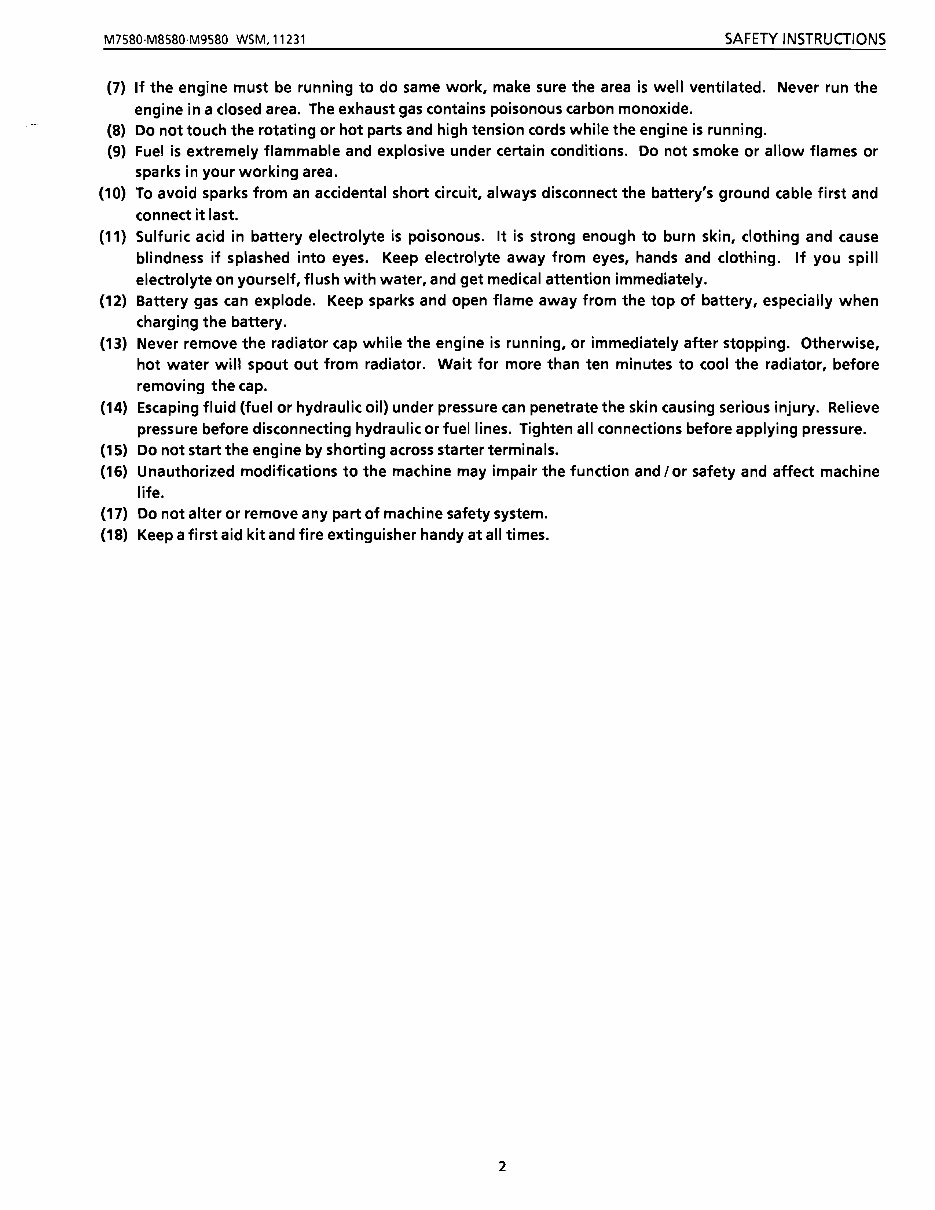

(7) If the engine must be running to do same work, make sure the area is well ventilated. Never run the
engine in a closed area. The exhaust gas contains poisonous carbon monoxide.
(8) Do not touch the rotating or hot parts and high tension cords while the engine is running.
(9) Fuel is extremely flammable and explosive under certain conditions. Do not smoke or allow flames or
sparks in your working area.
(10) To avoid sparks from an accidental short circuit, always disconnect the battery's ground cable first and
connect it last.
(11) Sulfuric acid in battery electrolyte is poisonous. It is strong enough to burn skin, clothing and cause
blindness if splashed into eyes. Keep electrolyte away from eyes, hands and clothing. If you spill
electrolyte on yourself, flush with water, and get medical attention immediately.
(12) Battery gas can explode. Keep sparks and open flame away from the top of battery, especially when
charging the battery.
(13) Never remove the radiator cap while the engine is running, or immediately after stopping. Otherwise,
hot water will spout out from radiator. Wait for more than ten minutes to cool the radiator, before
removing the cap.
(14) Escaping fluid (fuel or hydraulic oil) under pressure can penetrate the skin causing serious injury. Relieve
pressure before disconnecting hydraulic or fuel lines. Tighten all connections before applying pressure.
(15) Do not start the engine by shorting across starter terminals.
(16) Unauthorized modifications to the machine may impair the function and / or safety and affect machine
life.
(17) Do not alter or remove any part of machine safety system.
(18) Keep a first aid kit and fire extinguisher handy at all times.
2
I
SAFETY INSTRUCTIONS M7580·M8580·M9580 WSM, 11231

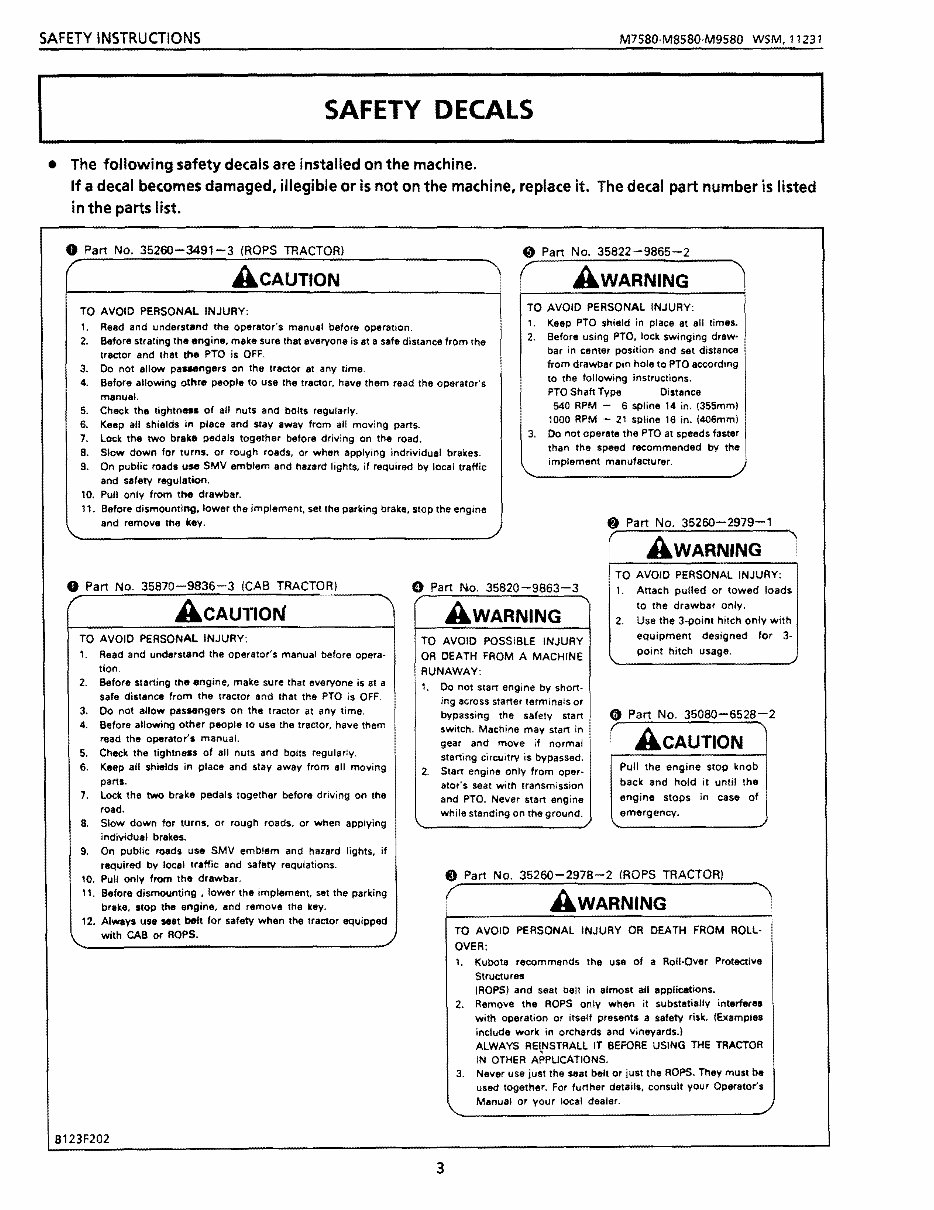

SAFETY DECALS
• The following safety decals are installed on the machine.
If a decal becomes damaged, illegible or is not on the machine, replace it. The decal part number is listed
in the parts list•
• Part No. 35260-3491-3 (ROPS TRACTOR)
ACAUTION
TO AVOID PERSONAL INJURY:
1. Read and understand the operator's manual before operation.
2. Before strating the engine, make sure that everyone is at a safe distance from the
tractor and that the PTO is OFF.
3. Do not allow pasaengers on the tractor at any time.
4. Before allowing othre people to use the tractor. have them read the operator's
manual.
5. Check the tightness of all nuts and bolts regularly.
6. Keep all shields in place and stay away from all moving parts.
7. lock the two brake pedals together before driving on the road.
8. Slow down for turns, or rough roads. or when applying indrividual brakes.
9. On public roads use SMV emblem and hazard lights. if required by local traHic
and safety regulation.
10. Pull only from the drawbar.
11. Before dismounting, lower the implement. set the parking brake. stop the engine
and remove the key.
• Part No. 35870-9836-3 (CAB TRACTOR) e Part No. 35820-9863-3
ACAU1"ION
TO AVOID PERSONAL INJURY:
1. Read and understand the operator's manual before opera·
tion.
2. Before star1ing the engine, make sure that everyone is at a
safe distance from the tractor and that the PTO is OFF.
3. 00 not allow passengers on the tractor at any time.
4. Before allowing other people to use the tractor. have them
read the operator's manual.
5. Check the tightness of all nuts and bolts regularly.
S. Keep all shields in place and stay away from all moving
parts.
7. lock the two brake pedals together before driving on the
road.
8. Slow down for turns. or rough roads. or when applying
individual brakes.
9. On public roads use SMV emblem and hazard lights, if
required by local traHic and safety requlations.
10. Pull only from the drawbar.
11. Before dismounting, lower the implement, set the parking
brake, stop the engine, and remOlle the key.
12. Always use seat belt for safety when the tractor equipped
" with CAB or RaPS. ./
8 Part No. 35822-9865-2
AWARNING
TO AVOID PERSONAL INJURY:
1. Keep PTa shield in place at all times.
2. Before using PTO, lock swinging draw·
bar in center pOSition and set distance
from drawbar pin hole to PTa according
to the following instructions.
PTa Shaft Type Distance
540 RPM 6 spline 14 in. 13SSmml
1000 RPM - 21 spline 16 in. I40Smm)
3. 00 not operate the PTO at speeds faster
than the speed recommended by the
implement manufacturer.
AWARNING
TO AVOID POSSIBLE INJURY
OR DEATH FROM A MACHINE
RUNAWAY,
1. 00 not start engine by shor1-
ing across starter terminals or
bypassing the safety start
switch. Machine may start in
gear and move if normal
starting circuitry is bypassed.
2. Start engine only from oper-
ator's seat with transmission
and PTa. Never start engine
while standing on the ground.
8 Part No. 35260-2979-1
i AWARNING
TO AVOID PERSONAL INJURY:
1. Attach pulled or towed loads
to the drawbar only.
2. Use the 3·point hitch only with
equipment designed for 3-
point hitch usage.
o Part No. 35080-6528-2
( ACAUTION
Pull the engine stop knob
back and hold it until the
engine stops in case of
emergency.
., Part No. 35260-2978-2 (ROPS TRACTOR)
AWARNING
TO AVOID PERSONAL INJURY OR DEATH FROM ROll·
OVER:
1. Kubota recommends the use of a RolI·Over Protective
Structures
IROPS) and seat belt in almost all applications.
2. Remove the RaPS only when it substatially interferes
with operation or itself presents a safety riSk. IExamplea
include work in orchards and lIineyards.)
ALWAYS REINSTRAll IT BEFORE USING THE TRACTOR
IN OTHER APPLICATIONS.
3. Neller use just the seat belt or just the ROPS. They must be
used together. For further details, consult your Operator's
Manual or your local dealer.
8123F202
3

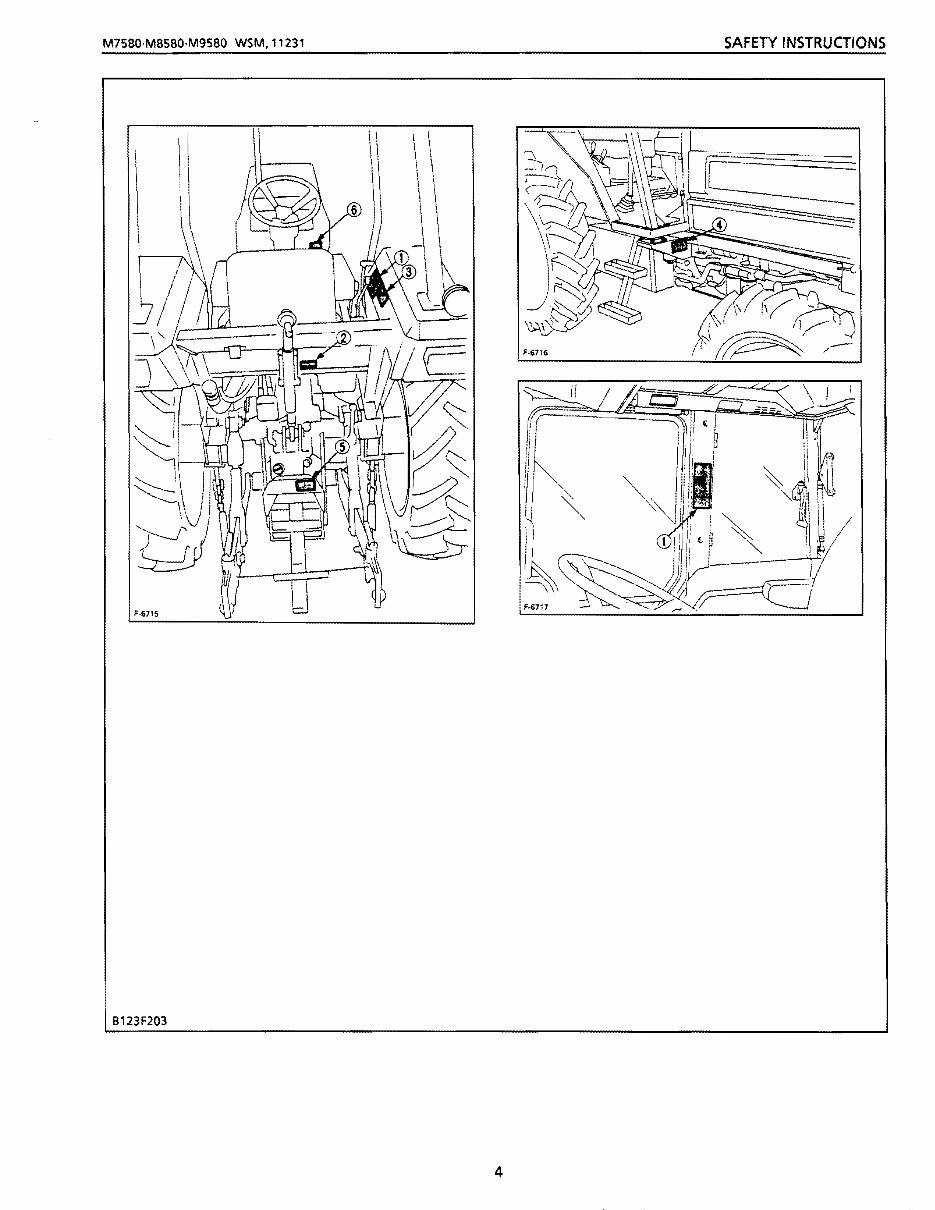

SAFETY INSTRUCTIONS
4
SPECIFICATIONS M7580'M8580'M9580 WSM,11231

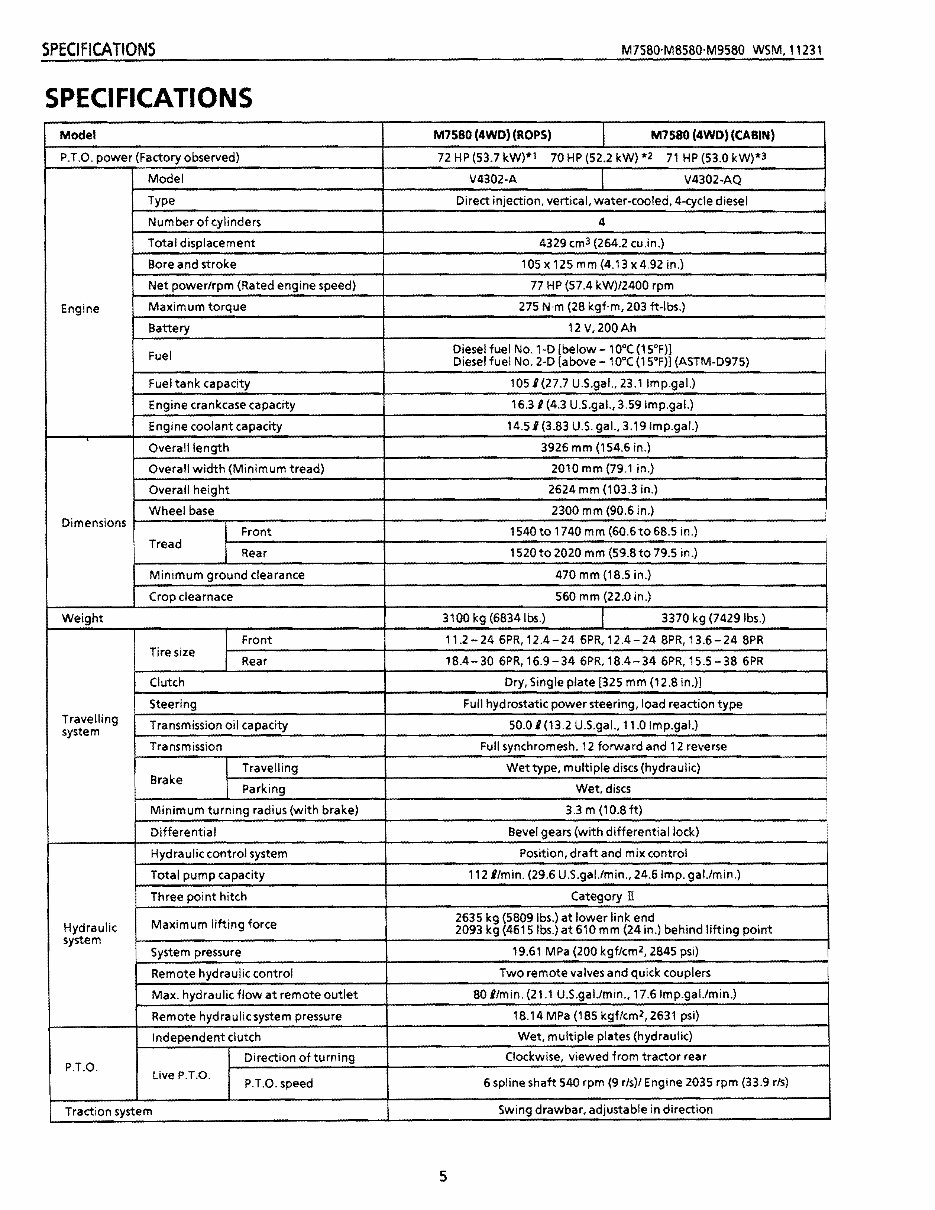

SPECIFICATIONS
Model M7580 (4WD) (ROPS)
I
M7580 (4WD) (CABIN)
P.T.O. power (Factory observed) 72 HP (53.7 kW)'" 70 HP (52.2 kW)"2 71 HP (53.0 kW)"3
Model V4302-A
I
V4302-AQ
Type Direct injection, vertical, water-cooled, 4-cyde diesel
Number of cylinders 4
Total displacement 4329 cm
3
(264.2 cu-in.)
Bore and stroke 105x 125 mm (4.13x4.92 in.)
Net power/rpm (Rated engine speed) 77 HP (57.4 kW)/2400 rpm
Engine
Maximum torque 275 N·m (28 kgf·m, 203 ft-Ibs.) I
Battery 12 V, 200Ah
,
Fuel
Diesel fuel NO.1 -D [below - 10°C (15°F)]
Diesel fuel No. 2-D [above - 10°C (15°F)j (ASTM-D975)
Fuel tank capacity 105 I (27.7 U.S.gal., 23.1 Imp.gal.)
Engine crankcase capacity 16.3 I (4.3 U.S.gal., 3.59Imp.gal.)
Engine coolant capacity 14.51 (3.83 U.S. gal., 3.19Imp.gal.)
Overall length 3926 mm (154.6 in.)
Overall width (Minimum tread) 2010mm(79.1 in.)
Overall height 2624 mm (103.3 in.)
Wheel base 2300 mm (90.6 in.)
f
Dimensions
Front 1540to 1740 mm (60.6 to 68.5 in.)
I
Tread
Rear 1520to 2020 mm (59.8 to 79.5 in.)
Minimum ground clearance 470 mm (18.5 in.)
Crop dearnace 560 mm (22.0 in.)
Weight 3100 kg (6834Ibs.)
I
3370 kg (7429Ibs.)
Front 11.2 - 24 6PR, 12.4- 24 6PR, 12.4- 24 8PR, 13.6- 24 8PR
Tire size
Rear 18.4-30 6PR, 16.9-34 6PR, 18.4-34 6PR, 15.5-38 6PR
Clutch Dry, Single plate [325 mm (12.8 in.)]
Steering Full hydrostatic power steering, load reaction type
Travelling
Transmission oil capacity 50.0 1(13.2 U.S.gal., 11.0 Imp.gal.) I
system
Tra nsm ission Full synchromesh. 12 forward and 12 reverse
J
Travelling Wet type, multiple discs (hydraulic)
I
Brake
Parking Wet,discs
I
Minimum turning radius (with brake) 3.3 m (10.8 ft)
I
Differential Bevel gears (with differential lock)
I
Hydraulic control system Position, draft and mix control
Total pump capacity 112 I/min. (29.6 U.S.gal./min., 24.6 Imp. gal./min.)
Three point hitch Category II
Hydraulic
Maximum lifting force
2635 kg (5809Ibs.) at lower link end
2093 kg (4615Ibs.) at 610 mm (24 in.) behind lifting point
system
19.61 MPa (200 kgf/cm
2
, 2845 psi) System pressure
Remote hydraulic control Two remote valves and quick couplers
Max. hydraulic flow at remote outlet 80 I/min. (21.1 U.S.galJmin., 17.6Imp.gal./min.)
Remote hydraulic system pressure 18.14 MPa (185 kgflcm
2
, 2631 psi)
Independent clutch Wet, multiple plates (hydraulic)
P.T.O.
Direction ofturning Clockwise, viewed from tractor rear
Live P.T.O.
P.T.O. speed 6 spline shaft 540 rpm (9 rls)1 Engine 2035 rpm (33.9 rls)
Traction system
Swing drawbar, adjustable in direction
5
M7580·M8580·M9580 WSM, 11231 SPECI FICATIONS
M8580 (4WD) (ROPS)
I
M8580 (4WD) (CA8IN) M9580 (4WD) (ROPS)
I
M9580 (4WD) (CABIN)
80 HP (59.7 kW)*l 78 HP (58.2 kW) *2 79 HP (58.9 kW)*3 92 HP (68.6 kW)*l 91 HP (67.9 kW)*4
V4702-A
I
V4702-AQ V4702-TA
I
V4702-TAQ
Direct injection, vertical, water-cooled, 4-cycle diesel [M9580 Turbocharger]
4
4665 cm
3
(284.7 cu.in.)
109 x 125 mm (4.29 x4.92 in.)
85 HP (63.4 kW)/2400 rpm 100 HP (74.6 kW)/2400 rpm
319 N·m (32.5 kgf·m, 235 ft-Ibs.) 369.7 N·m (37.7 kgf·m, 273 ft-Ibs.)
12 V, 200Ah
Diesel fuel No. 1-D [below - 10°C (15°F)]
Diesel fuel No. 2-D [above -10°C (15°F)] (ASTM-D975)
105/(27.7 U.S.gal., 23.1Imp.gal.) 1201 (31.7 U.S.gal., 26.4lmp.gal.)
16.31 (4.3 U.S.gal., 3.59 Imp.gal.)
14.5/(3.83 U.S.gal.,3.19Imp.gal.) 14.11 (3.72 U.S. gal., 3.10 Imp.gal.)
3965 mm (156.1 in.) 4109 mm (161.8 in.)
2020 mm (79.5 in.)
2657 mm (104.6 in.)
2300 mm (90.6 in.) 2440 mm (96.1 in.)
1640 to 1740 mm (64.6to68.5 in.)
1500to 2110 mm (59.1 to 83.1 in.)
497 mm (19.6 in.)
590 mm (23.2 in.)
3800 kg (8377 Ibs.)
I
4070 kg (8973 Ibs.) 3850 kg (8488 Ibs.)
I
4120 kg (9083 Ibs.)
11.2 - 24 6PR, 12.4 - 24 6PR, 12.4 - 24 8PR, 13.6 - 24 8PR
18.4 - 30 6PR, 16.9 - 34 6PR, 18.4 - 34 6PR, 15.5 - 38 6PR
Dry, Single plate [325 mm (12.8 in.)] Dry, Single plate [350 mm (13.8 in.)]
Full hydrostatic power steering, load reaction type
50.01 (13.2 U.S.gal., 11.0 Imp.gal.) 56.0/(14.8 U.S.gal.,12.3Imp.gal.)
Full synchromesh. 12 forward and 12 reverse Full synchromesh. 24 forward and 24 reverse
Wet type, multiple discs (hydraulic)
Wet, discs
3.7 m (12.1 ft) 3.8 m (12.4 ft) [3.86 m (12.6 ft) bi-speed turn (without brake)]
Bevel gears (with differential lock)
Position, d raft and mix control
1121/min. (29.6 U.S.gal.lmin., 24.6Imp. gaL/min.)
Category II
2635 kg (5809 Ibs.) at lower link end
2093 kg (4615Ibs.) at 610 mm (24 in.) behind lifting pOint
19.61 MPa (200 kgf/cm2, 2845 psi)
Two remote valves and quick couplers
80 I/min. (21.1 U.S.gal.lmin., 17.6Imp.gal.lmin.)
18.14 MPa (185 kgflcm
2
, 2631 psi)
Wet, multiple plates (hydrauliC)
Clockwise, viewed from tractor rear
6 spline shaft 540 rpm (9 r/s)/ Engine 2035 rpm (33.9 r/s)
21 spline shaft 1000 rpm (16.7 r/s)/ Engine 2389 rpm (39.8 r/s)
Swing drawbar, adjustable in direction
*1: "Synchro Shuttle" model, *2: "IC Shuttle" model, *3: "Dual Speed" model, *4: "IC Shuttle with Dual Speed" model
The company reserves the right to change the specifications without notice.
6
-...I
0
!XI
~
IV
W
IV "
o
..,.
M7580 2624(103.3) M7580 1540 to 1740(60.6 to 68.5)
Ma5SO 2657 (1 04.6) MB5S0 1640 to 1740(64.6 to 68.5)
M95SO 1640 to 1740(64.6 to 68.5)
s:s:;;:
"''''~
~"''''
og;~
s:s:s:
~~~
000
M95SO 2657(104.6)
~
M7580 1520 to 2020(59.8 to 79.5)
M8580 1500102110(59.11083.1)
M9580 1500102110(59.1 to 83.1)
M7580 2010(79.1)
M8580 2020 (79.5)
M9580 2020 (79.5)
Minimum tread
C
::I
rio
3
3
-=:
::I
.:....-
.....
3:
......
U"I
CD
0
...
3:
CD
U"I
CD
..
0
3:
~
U"I
CD
-
0
n
:r>
Q:'I
-
Z
.......
-
C
-
s:
'"
-
Z
m
0
Z
'"
0
~
m
Z
VI
z
!i:
'-I
VI
CO
o
~
CO
VI
CO
o
~
\0
VI
CO
o
~
oS:
IV
W

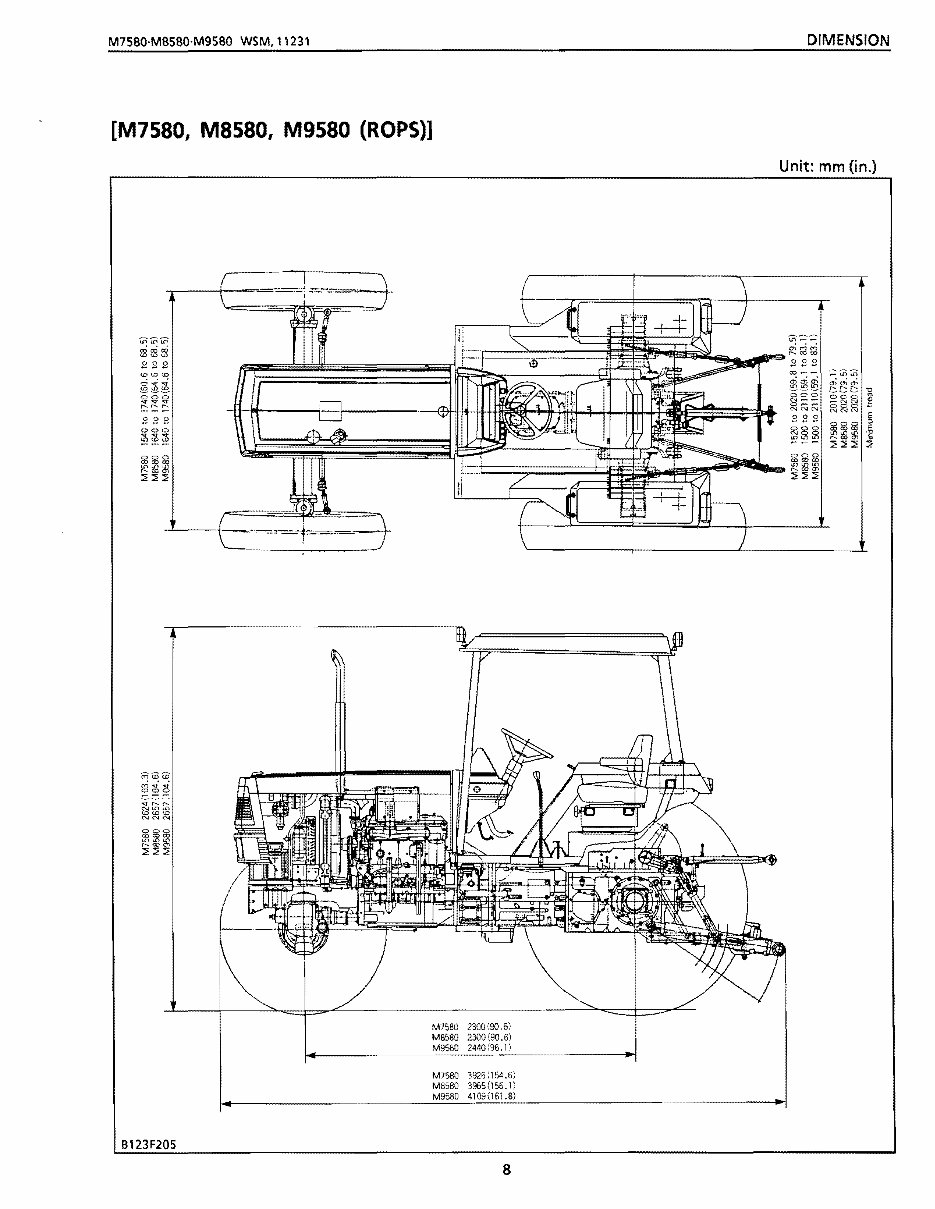

M7580·M8580·M9580 WSM,11231 DIMENSION
[M7S80, M8S80, M9S80 (ROPS))
Unit: mm (in.)
~~~
ffiffiffi
EBB
M7SBO 2300(90.6)
M8SS0 2300(90.6)
M9580 2440 (96.1)
M7580
M8580
M9580
B123F20S
8

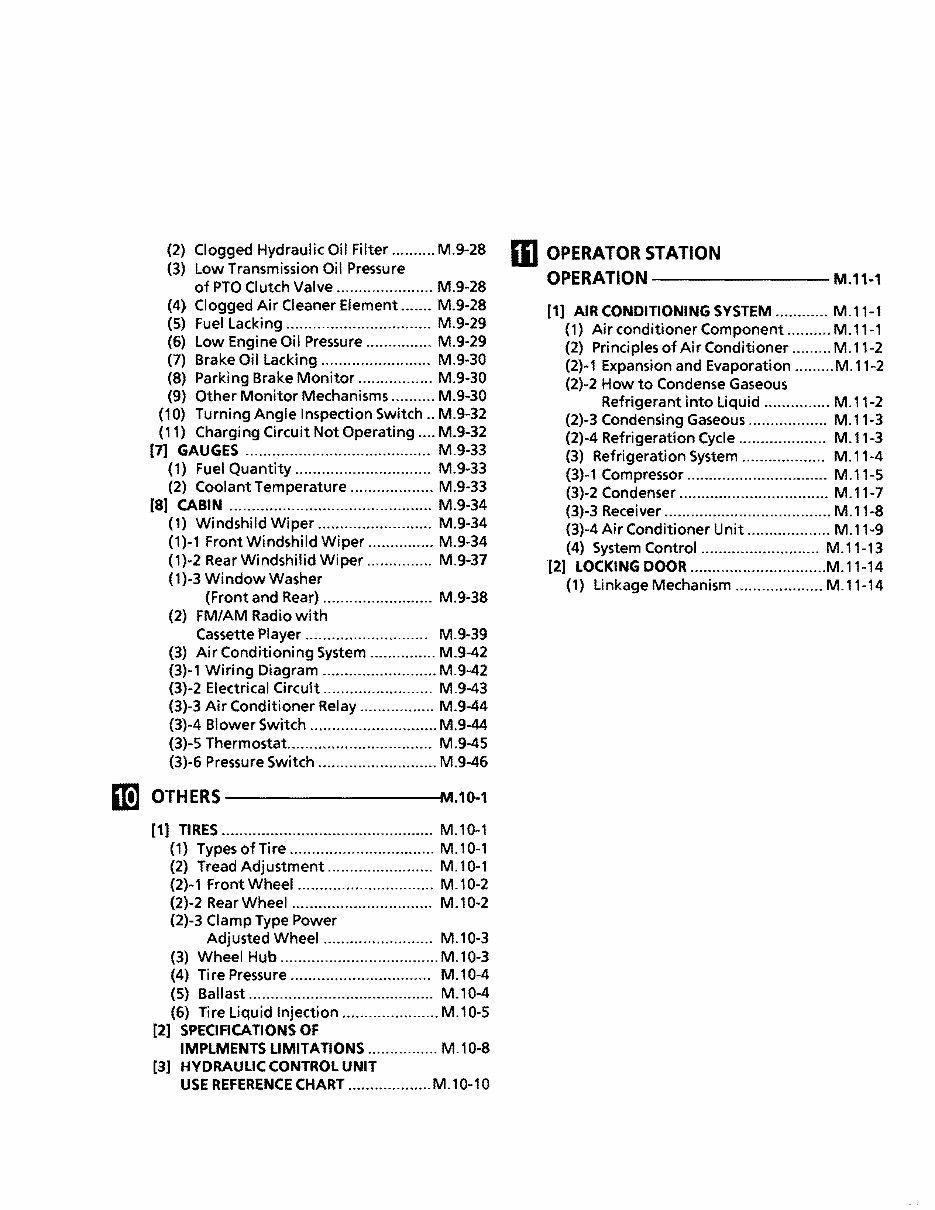

(2) Clogged Hydraulic Oil Filter .......... M.9-28
(3) Low Transmission Oil Pressure
of PTO Clutch Valve ...................... M.9-28
(4) Clogged Air Cleaner Element ....... M.9-28
(5) Fuel Lacking ................................. M.9-29
(6) low Engine Oil Pressure ............... M.9-29
(7) Brake Oil lacking ......................... M.9-30
(8) Parking Brake Monitor ................. M.9-30
(9) Other Monitor Mechanisms .......... M.9-30
(10) Turning Angle Inspection Switch .. M.9-32
(11) Charging Circuit Not Operating .... M.9-32
[7] GAUGES .......................................... M.9-33
(1) Fuel Quantity ............................... M.9-33
(2) Coolant Temperature ................... M.9-33
[8] CABIN .............................................. M.9-34
(1) Windshild Wiper .......................... M.9-34
(1)-1 Front Windshild Wiper ............... M.9-34
(1)-2 Rear Windshilid Wiper ............... M.9-37
(1)-3 Window Washer
(Front and Rear) ......................... M.9-38
(2) FM/AM Radio with
Cassette Player ............................ M.9-39
(3) Air Conditioning System ............... M.9-42
(3)-1 Wiring Diagram .......................... M.9-42
(3)-2 Electrical Circult ......................... M.9-43
(3)-3 Air Conditioner Relay ................. M.9-44
(3)-4 Blower Switch ............................. M.9-44
(3)-5 Thermostat............................. .... M. 9-45
(3)-6 Pressure Switch ........................... M.9-46
IE OTHERS---------1M.10-1
[1] TIRES ................................................ M.10-1
(1) Types of Tire ................................. M.10-1
(2) Tread Adjustment ........................ M.l0-1
(2)-1 Front Wheel ............................... M. 1 0-2
(2)-2 Rear Wheel ................................ M.l0-2
(2)-3 Clamp Type Power
Adjusted Wheel ......................... M.l0-3
(3) Wheel Hub .................................... M.l 0-3
(4) TirePressure ................................ M.10-4
(5) Ballast .......................................... M.10-4
(6) Ti re Uqu id Injection ...................... M.1 0-5
[2] SPECIFICATIONS OF
IMPLMENTS LIMITATIONS ................ M.10-8
[3J HYDRAULIC CONTROL UNIT
USE REFERENCE CHART ................... M.l0-10
m OPERATOR STATION
OPERATION ------- M.11-1
[1] AIR CONDITIONING SYSTEM ............ M.11-1
(1) Air conditioner Component .......... M.1l-1
(2) Principles of Air Conditioner ......... M.11-2
(2)-1 Expansion and Evaporation ......... M.11-2
(2)-2 How to Condense Gaseous
Refrigerant into Liquid ............... M.11-2
(2)-3 Condensing Gaseous .................. M.11-3
(2)-4 Refrigeration Cycle .................... M.ll-3
(3) Refrigeration System ................... M.11-4
(3)-1 Compressor ................................ M.11-5
(3)-2 Condenser .................................. M.ll-7
(3)-3 Receiver ...................................... M.ll-8
(3)-4 Air Conditioner Unit ................... M.11-9
(4) System Control ........................... M.11-13
[2] LOCKING DOOR ............................... M.11-14
(1) Linkage Mechanism .................... M.11-14
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$36.99
Viewed 41 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$36.99
The Kubota M7580 Tractor Factory Service Repair Manual is a comprehensive guide that covers all aspects of maintaining, repairing, and troubleshooting the Kubota M7580 Tractor. It is an official full factory service repair manual that provides detailed information for professional mechanics and DIY enthusiasts alike.
With hundreds of pages, this manual includes in-depth details on various components such as the engine, lubrication system, cooling system, fuel system, disassembly and servicing, clutch, transmission, drive chain & sprockets, rear axle, brakes, front axle, steering, shocks, body work, intake & exhaust, hydraulic system, electrical system, routine maintenance, advanced troubleshooting, wiring diagrams, and more.
The Kubota M7580 Tractor Factory Service Repair Manual contains illustrations, diagrams, and specifications to guide the mechanic through any repair procedure. It also includes an advanced troubleshooting guide to help diagnose and correct any problem.
This manual is available in .PDF format, which can be easily viewed and printed using Adobe Reader. It is compatible with all PC-based Windows operating systems and Mac. The high-resolution manual is fully printable, allowing users to print specific pages or the entire manual as needed.
Whether you are looking to repair, maintain, rebuild, refurbish, or restore your vehicle, this Kubota M7580 Tractor Factory Service Repair Manual provides detailed step-by-step instructions and photos to guide you through all service, maintenance, repairs, and tuning.
By using the search function, you can easily find the information you need and print out only the pages required. This manual is a valuable resource for any owner, offering detailed substeps, notes, cautions, warnings, numbered instructions, illustrations, and enlarged insets to help identify and examine parts in detail.
Overall, the Kubota M7580 Tractor Factory Service Repair Manual is an indispensable tool that can save both time and money on shop labor costs, making it possible for owners to perform all servicing themselves.
