Kubota M4800SU Tractor Illustrated Master Parts List Manual

Instructions for Parts Books The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part numbers. Definition of column headings on part number pages: REF.No  The number refering to the part on the picture page of the parts book. Part No.  The number assigned to this part at the time of printing the parts book. Description  Discription of part. Q'ty  Quanity of part used on that page. S.No.  Serial number range of the equipment that this part will fit. >= Your serial number should be greater than or equal to the number shown. <= Your serial number should be lesser than or equal to the serial number shown. I/C  Interchangeability of part shown.  The part shown will work for the older and later serial number. # The part shown is not interchangable with the other serial number.  new for old  old for new Remarks  Notes about this particulart part. Sometimes this may say except [FR] or [CA] Note about Country Codes: The parts books we use in the United States of America may also contain information about a part that would be different in another country. It is important that you are aware of the country codes in some instances. Symbol Country A United States of America CA Canada FR France GR Greece PO Portugal AU Australia If the remarks column says for example EXCEPT [FR] this part works in all countries except France. That means it will work here in the USA.

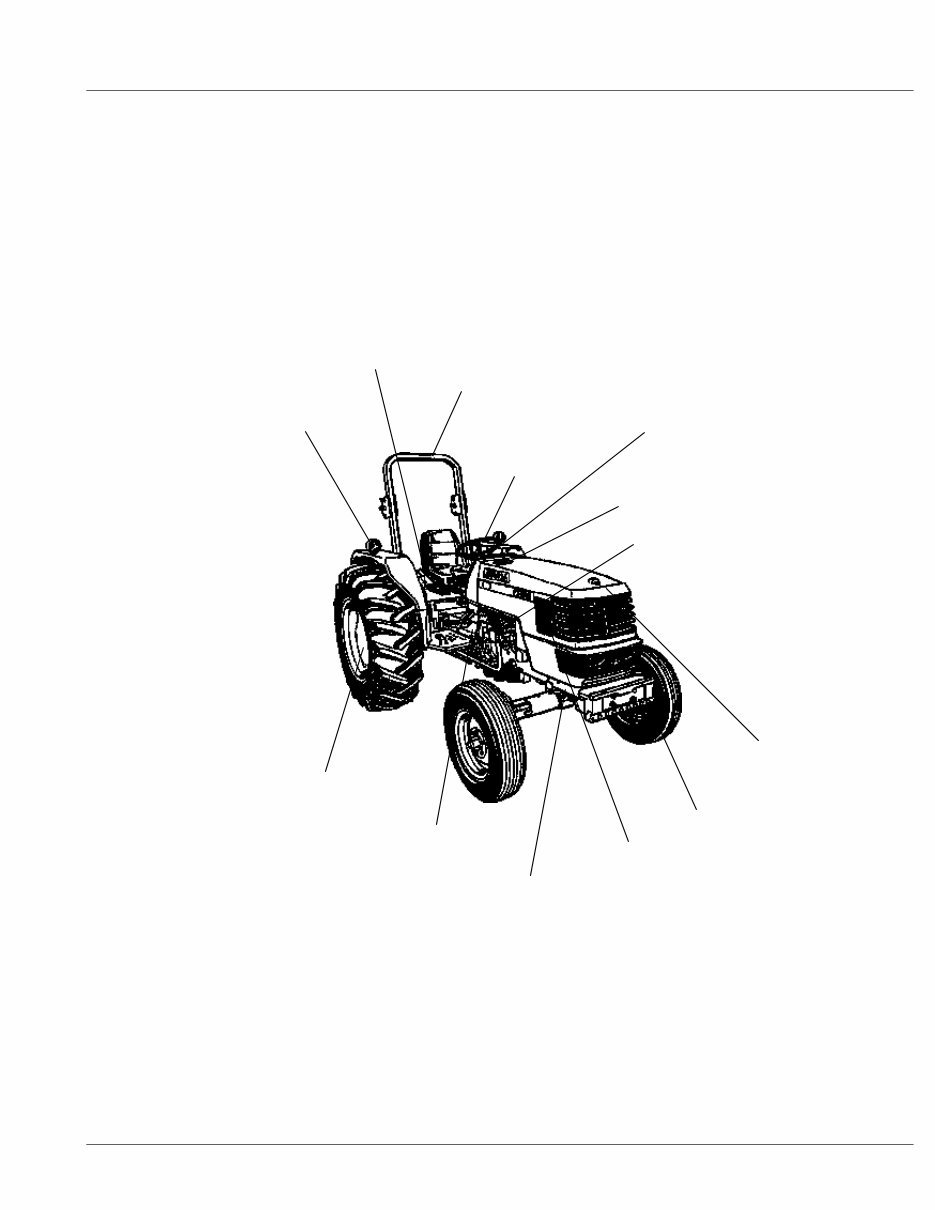

|ALL PRODUCT INDEX M4800SU Ref. M4800SU Page 13016 ENGINE FUEL SYSTEM COOLING WATER SYSTEM ELECTRICAL SYSTEM CLUTCH/TRANSMISSION SPEED CHANGE SHIFT FORK/SHIFT LEVER REAR AXLE/BRAKE FRONT AXLE/CHASSIS STEERING HYDRAULIC SYSTEM 3-POINT LINKAGE/DRAWBAR/HITCH HOOD/BONNET ROPS FRONT/REAR TIRE LABELS ACCESSORIES OPTION

Ref. M4800SU Page 13016 Item Part No. Description Book ENGINE 010001 CRANKCASE 100K0742 010002 OIL PAN 100K0742 010003 CYLINDER HEAD 100K0742 010004 GEAR CASE 100K0742 010005 HEAD COVER 100K0742 010100 MAIN BEARING CASE 100K0742 010101 CAMSHAFT AND IDLE GEAR SHAFT 100K0742 010102 PISTON AND CRANKSHAFT 100K0742 010103 FLYWHEEL 100K0742 010105 FUEL CAMSHAFT 100K0742 010106 BALANCER 100K0742 010200 ENGINE STOP LEVER 100K0742 010202 INJECTION PUMP 100K0742 010204 GOVERNOR 100K0742 010205 SPEED CONTROL PLATE 100K0742 010206 NOZZLE HOLDER AND GLOW PLUG 100K0742 010207 NOZZLE HOLDER [COMPONENT PARTS] 100K0742 010500 WATER FLANGE AND THERMOSTAT 100K0742 010501 WATER PUMP 100K0742 010600 VALVE AND ROCKER ARM 100K0742 010601 INLET MANIFOLD 100K0742 010906 UPPER GASKET KIT 100K0742 010907 LOWER GASKET KIT 100K0742 010602 EXHAUST MANIFOLD 100K0742 010603 AIR CLEANER 100K0742 010604 AIR CLEANER [COMPONENT PARTS] 100K0742 010607 MUFFLER 100K0742 01A010 HAND ACCELERATOR LEVER 100K0742 01A060 ENGINE STOP WIRE 100K0742 FUEL SYSTEM 01A110 FUEL TANK 100K0742 01A140 FUEL PIPE 100K0742 01A180 FUEL FILTER [COMPONENT PARTS] 100K0742 COOLING WATER SYSTEM 01A410 FAN 100K0742 01A420 WATER PIPE 100K0742 01A430 RADIATOR 100K0742 01A450 RESERVE TANK 100K0742 ELECTRICAL SYSTEM 01A540 ALTERNATOR 100K0742 01A550 ALTERNATOR [COMPONENT PARTS] 100K0742 01A560 STARTER 100K0742 01A570 STARTER [COMPONENT PARTS] 100K0742 01A580 BATTERY 100K0742 01B015 SWITCH/SENSOR 100K0742 01B104 SWITCH(PANEL BOARD)/RELAY 100K0742 01B140 PANEL BOARD 100K0742 01B150 PANEL BOARD [COMPONENT PARTS] 100K0742 01B320 HEAD LIGHT 100K0742 01B335 HAZARD LIGHT/TAIL LIGHT 100K0742 01B515 ELECTRICAL WIRING 100K0742 CLUTCH/TRANSMISSION 01C110 CLUTCH HOUSING 100K0742 01C115 BEARING HOLDER 100K0742 01C140 TRANSMISSION CASE 100K0742 01C150 TRANSMISSION CASE REAR COVER 100K0742 01C170 REAR AXLE CASE 100K0742 01C210 CLUTCH 100K0742 01C230 CLUTCH RELEASE FORK 100K0742 01C240 CLUTCH PEDAL 100K0742 01D215 INPUT SHAFT 100K0742 01D225 FIRST SHAFT 100K0742 01D227 SECOND SHAFT 100K0742

Ref. M4800SU Page 13016 Item Part No. Description Book CLUTCH/TRANSMISSION 01D235 THIRD SHAFT 100K0742 01D260 BEVEL GEAR 100K0742 01D262 DIFFERENTIAL REAR 100K0742 01D265 PTO PROPELLER SHAFT 100K0742 01D266 PTO CLUTCH 100K0742 01D267 PTO CLUTCH [COMPONENT PARTS] 100K0742 01D268 PTO CLUTCH VALVE 100K0742 01D269 PTO CLUTCH VALVE [COMPONENT PARTS] 100K0742 01D275 PTO SHAFT 100K0742 SPEED CHANGE SHIFT FORK/SHIFT LEVER 01D410 MAIN GEAR SHIFT FORK 100K0742 01D430 RANGE GEAR SHIFT FORK 100K0742 REAR AXLE/BRAKE 01D495 REAR AXLE 100K0742 01E110 BRAKE 100K0742 01E115 BRAKE ROD 100K0742 SPEED CHANGE SHIFT FORK/SHIFT LEVER 01F110 MAIN GEAR SHIFT LEVER 100K0742 01F135 RANGE GEAR SHIFT LEVER 100K0742 01F145 PTO CLUTCH LEVER 100K0742 REAR AXLE/BRAKE 01F210 BRAKE PEDAL 100K0742 01F230 REAR DIFFERENTIAL LOCK PEDAL 100K0742 FRONT AXLE/CHASSIS 01G105 FRONT AXLE FRAME 100K0742 01G110 FRONT AXLE BRACKET 100K0742 01G120 FRONT AXLE 100K0742 01G130 FRONT WHEEL HUB 100K0742 STEERING 01H110 STEERING HANDLE 100K0742 01H140 STEERING CONTROLLER 100K0742 01H150 STEERING CONTROLLER [COMPONENT PARTS] 100K0742 HYDRAULIC SYSTEM 01J120 STEERING LINKAGE 100K0742 01J125 STEERING CYLINDER [COMPONENT PARTS] 100K0742 01J130 HYDRAULIC PUMP 100K0742 01J210 HYDRAULIC PIPE (SUCTION) 100K0742 01J220 HYDRAULIC PIPE (DELIVERY) 100K0742 01J275 HYDRAULIC OIL LINE (STEERING/PTO) 100K0742 01J280 STEERING HOSE (DELIVERY) 100K0742 01J310 HYDRAULIC CYLINDER 100K0742 01J315 HYDRAULIC LIFT ARM 100K0742 01J320 HYDRAULIC CYLINDER COVER 100K0742 01J355 CONTROL VALVE 100K0742 01J378 POSITION CONTROL LEVER 100K0742 01J390 POSITION CONTROL SHAFT 100K0742 01J391 DRAFT CONTROL SHAFT 100K0742 01J392 FEED BACK LEVER 100K0742 01J443 AUXILIARY CONTROL VALVE COVER 100K0742 3-POINT LINKAGE/DRAWBAR/HITCH 01K105 TOP LINK BRACKET 100K0742 01K110 TOP LINK 100K0742 01K125 LOWER LINK 100K0742 01K140 LIFT ROD RH 100K0742 01K143 LIFT ROD LH 100K0742 01L110 SWINGING DRAWBAR 100K0742 01L170 PTO SHAFT PROTECTOR 100K0742 HOOD/BONNET 01M115 HOOD(BONNET) FRONT 100K0742 01M120 HOOD(BONNET) UPPER 100K0742 01M125 HOOD(BONNET) SIDE 100K0742 01M127 HOOD(BONNET) SIDE COVER 100K0742 01M155 HOOD(BONNET) REAR 100K0742 01M220 FENDER 100K0742 01M223 FLOOR SEAT 100K0742

Ref. M4800SU Page 13016 Item Part No. Description Book HOOD/BONNET 01M233 STEP 100K0742 01M235 SEAT 100K0742 ROPS 01M310 ROPS 100K0742 HOOD/BONNET 01M500 SMV EMBLEM 100K0742 FRONT/REAR TIRE 01R110 FRONT WHEEL (6.5-16) 100K0742 01R120 REAR WHEEL (14.9-28) 100K0742 LABELS 01S12001 LABEL 1 [ENGLISH] 100K0742 01S12002 LABEL 1 [FRENCH] 100K0742 01S13001 LABEL 2 [ENGLISH] 100K0742 01S13002 LABEL 2 [FRENCH] 100K0742 ACCESSORIES 01T110 ACCESSORIES AND SERVICE PARTS 100K0742 OPTION 01U130 WORKING LIGHT KIT [OPTION] 100K0742 01U151 TRAILER SOCKET KIT [OPTION] 100K0742 01U320 CREEP SPEED KIT [OPTION] 100K0742 01U520 FRONT WEIGHT BUMPER KIT [OPTION] 100K0742 01U620 DRAFT CONTROL KIT [OPTION] 100K0742 01U70001 AUXILIARY CONTROL VALVE KIT (SCD) (1ST) [OPTION] 100K0742 01U70002 AUXILIARY CONTROL VALVE KIT (SCD) (2ND) [OPTION] 100K0742 01U70003 AUXILIARY CONTROL VALVE KIT (FD) [OPTION] 100K0742 01U70501 AUXILIARY CONTROL VALVE (SCD) [COMPONENT PARTS] [OPTION] 100K0742 01U70502 AUXILIARY CONTROL VALVE (FD) [COMPONENT PARTS] [OPTION] 100K0742 01U830 DRAWBAR/HITCH [OPTION] 100K0742 01U950 TOOL BOX [OPTION] 100K0742

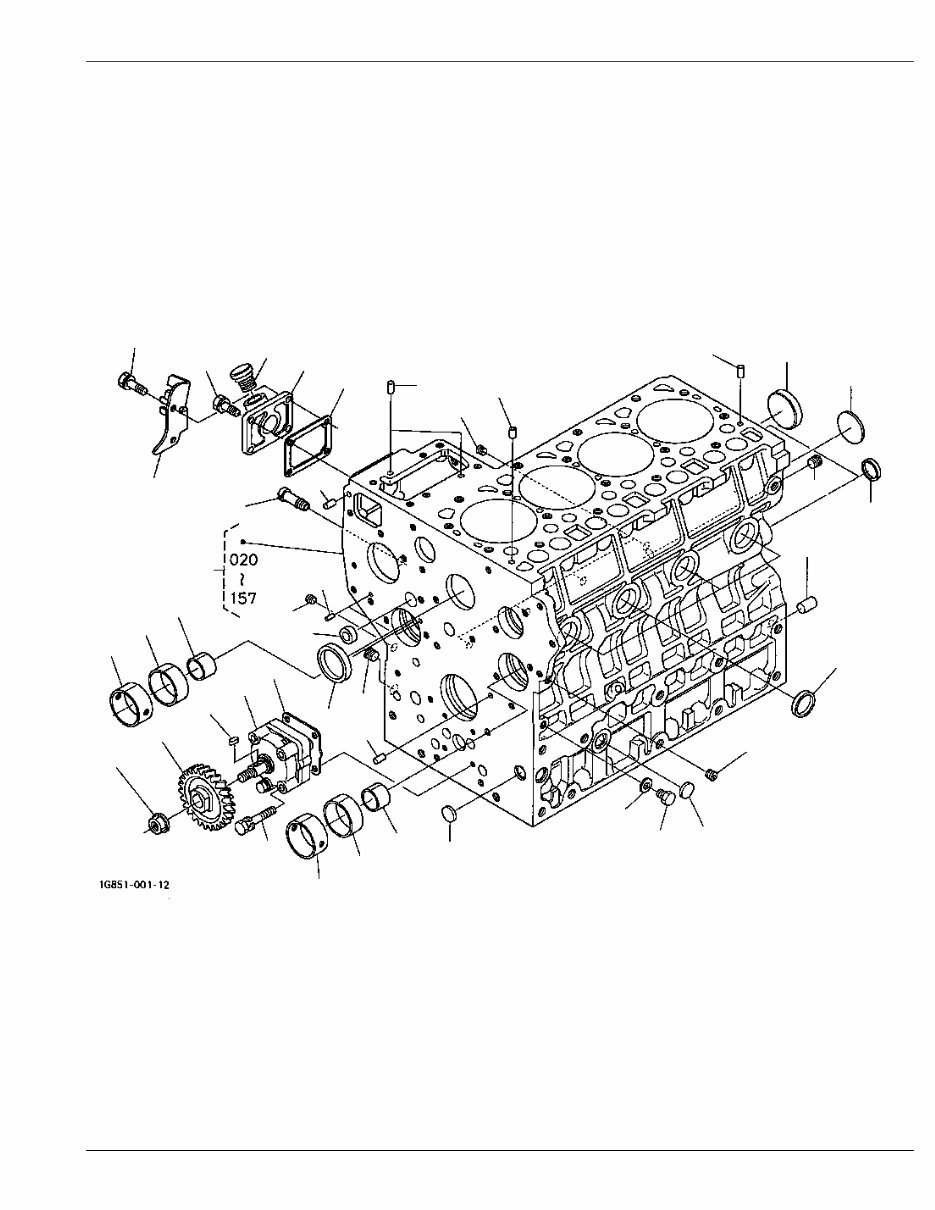

CRANKCASE Reference: 010001 Page: 1 010 020 020 020 030 030 040 040 050 060 070 070 080 090 100 110 110 120 120 130 140 150 155 155 156 156 157 157 160 170 180 190 200 210 220 230 240 250 260 270 280 290

CRANKCASE Reference: 010001 Page: 1 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 1A091-01013 COMP.CRANKCASE 1 54.5 119.9 020 15521-96020 PLUG 6 0.003 0.0066 030 15521-96030 PLUG 2 0.007 0.0154 040 17391-96160 PLUG EXPANSION 3 0.003 0.0066 050 06311-75045 PLUG EXPANSION 1 0.026 0.0572 060 15221-03380 CAP SEALING 6 0.017 0.0374 070 15221-03390 CAP SEALING 2 0.03 0.066 080 15261-03370 CAP SEALING 1 0.005 0.011 090 1A091-03380 PLUG WEIGHT SHAFT 2 0.005 0.011 100 05012-00408 PIN STRAIGHT 2 0.001 0.0022 110 05012-00609 PIN STRAIGHT 3 0.003 0.0066 120 05012-00612 PIN STRAIGHT 2 0.003 0.0066 130 05012-01018 PIN STRAIGHT 1 0.012 0.0264 140 15221-33650 PIN PIPE 1 0.004 0.0088 150 15321-73340 PIPE WATER RETURN 1 0.016 0.0352 155 1A091-26990 METAL WEIGHT SHAFT 2 0.026 0.0572 156 1A091-26980 METAL WEIGHT SHAFT 2 0.022 0.0484 157 1A091-26970 METAL WEIGHT SHAFT 2 0.012 0.0264 160 15221-33610 PLUG 1 0.009 0.0198 170 15021-33660 GASKET 1 0.001 0.0022 180 16427-33140 PLUG OIL FILLER 1 0.025 0.055 190 1A021-33110 FLANGE OIL FILLER 1 0.07 0.154 200 1A021-51660 GASKET PUMP COVER 1 0.003 0.0066 210 01023-50618 BOLT 2 0.006 0.0132 220 1E013-35010 ASSY PUMP OIL 1 0.57 1.254 230 1A021-35150 GASKET OIL PUMP 1 0.001 0.0022 240 01023-60650 BOLT 4 0.015 0.033 250 19202-35660 GEAR OIL PUMP DRIVE 1 0.23 0.506 260 05712-00410 KEY FEATHER 1 0.001 0.0022 270 15221-35682 NUT FLANGE 1 0.014 0.0308 280 1A053-57482 BRACKET ACCEL.CABLE 1 0.077 0.1694 290 01023-50622 BOLT 2 0.005 0.011

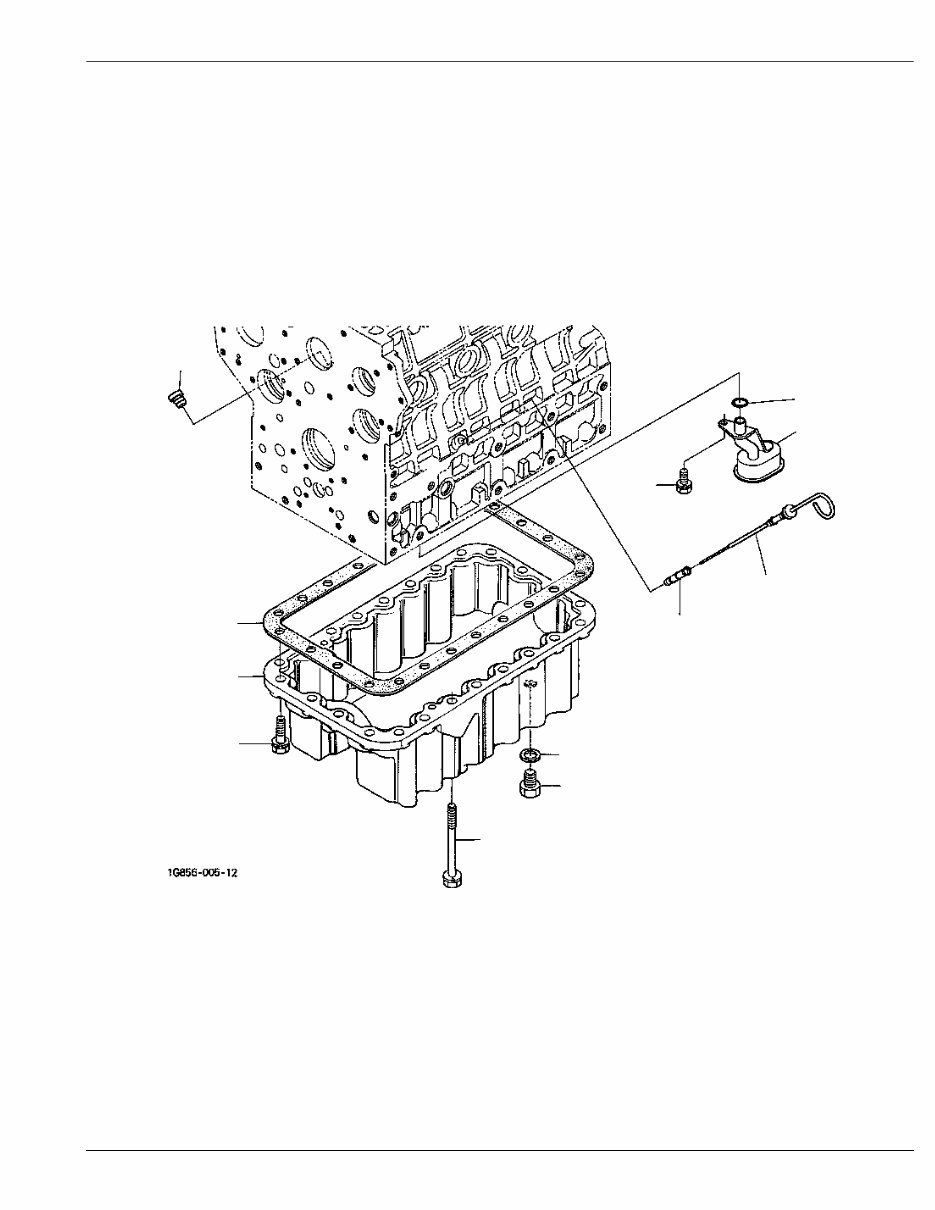

OIL PAN Reference: 010002 Page: 2 010 020 030 040 050 060 070 080 090 100 110 120

OIL PAN Reference: 010002 Page: 2 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 17341-01610 OIL PAN 1 4.1 9.02 020 1A091-01620 GASKET OIL PAN 1 0.018 0.0396 030 01133-51028 BOLT 22 0.027 0.0594 040 17377-91010 BOLT 2 0.08 0.176 050 16427-33750 PLUG DRAIN 2 0.03 0.066 060 6C090-58960 GASKET 2 0.002 0.0044 070 15411-32110 FILTER OIL 1 0.24 0.528 080 01123-60814 BOLT 1 0.01 0.022 090 04817-00160 O RING 1 0.001 0.0022 100 17456-36420 GUIDE OIL GAUGE 1 0.03 0.066 110 1G851-36410 GAUGE OIL 1 0.04 0.088 120 16414-33640 PLUG OIL GAUGE 1 0.003 0.0066

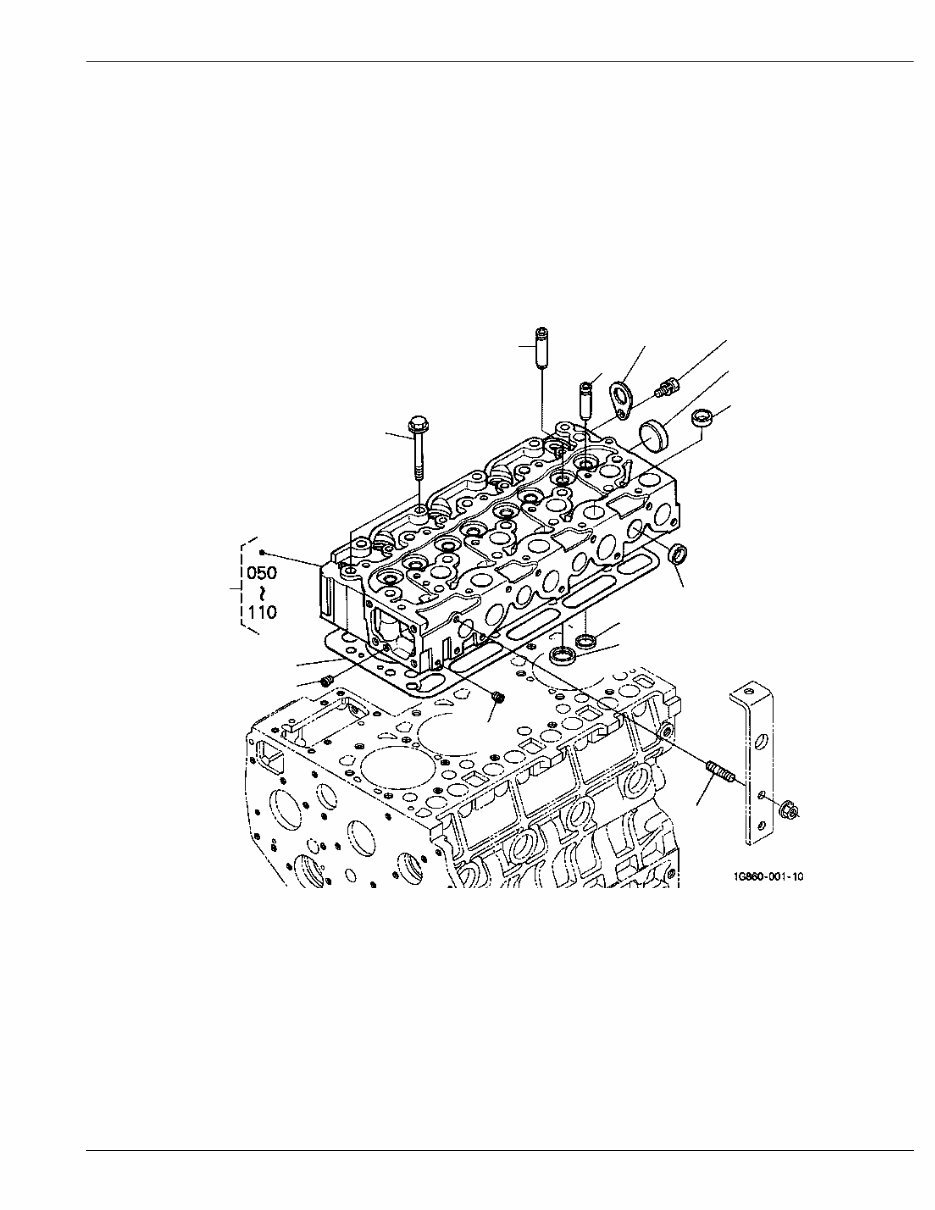

CYLINDER HEAD Reference: 010003 Page: 3 010 020 030 040 050 050 060 070 070 080 090 100 110 120 130
