KUBOTA M105S Tractor Full Parts Manual

Instructions for Parts Books The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part numbers. Definition of column headings on part number pages: REF.No  The number refering to the part on the picture page of the parts book. Part No.  The number assigned to this part at the time of printing the parts book. Description  Discription of part. Q'ty  Quanity of part used on that page. S.No.  Serial number range of the equipment that this part will fit. >= Your serial number should be greater than or equal to the number shown. <= Your serial number should be lesser than or equal to the serial number shown. I/C  Interchangeability of part shown.  The part shown will work for the older and later serial number. # The part shown is not interchangable with the other serial number.  new for old  old for new Remarks  Notes about this particulart part. Sometimes this may say except [FR] or [CA] Note about Country Codes: The parts books we use in the United States of America may also contain information about a part that would be different in another country. It is important that you are aware of the country codes in some instances. Symbol Country A United States of America CA Canada FR France GR Greece PO Portugal AU Australia If the remarks column says for example EXCEPT [FR] this part works in all countries except France. That means it will work here in the USA.

Ref. M105S Page 13005 Part No. M105S Book 01000102 CRANKCASE 100K0822 010002 OIL PAN 100K0822 010003 CYLINDER HEAD 100K0822 010004 GEAR CASE 100K0822 010005 HEAD COVER 100K0822 010101 CAMSHAFT AND IDLE GEAR SHAFT 100K0822 010102 PISTON AND CRANKSHAFT 100K0822 01010302 FLYWHEEL 100K0822 010106 BALANCER 100K0822 010202 INJECTION PUMP 100K0822 010204 GOVERNOR 100K0822 010206 NOZZLE HOLDER AND GLOW PLUG 100K0822 01020902 PUMP HOUSING 100K0822 010212 FORK LEVER (GOVERNOR) 100K0822 010215 GOVERNOR ADJUSTING BOLT 100K0822 010300 FUEL FILTER 100K0822 010500 WATER FLANGE AND THERMOSTAT 100K0822 010501 WATER PUMP 100K0822 010600 VALVE AND ROCKER ARM 100K0822 01060102 INLET MANIFOLD 100K0822 010602 EXHAUST MANIFOLD 100K0822 01060301 AIR CLEANER [A] 100K0822 010604 AIR CLEANER [COMPONENT PARTS] 100K0822 010607 MUFFLER 100K0822 01060802 TURBO CHARGER 100K0822 010611 OIL PIPE (TURBO CHARGER) 100K0822 010612 INTERCOOLER 100K0822 010705 OIL COOLER 100K0822 010906 UPPER GASKET KIT 100K0822 010907 LOWER GASKET KIT 100K0822 01A010 HAND ACCELERATOR LEVER 100K0822 01A030 ACCELERATOR PEDAL 100K0822 01A120 FUEL TANK RH 100K0822 01A130 FUEL TANK LH 100K0822 01A140 FUEL PIPE 100K0822 01A151 SEPARATOR 100K0822 01A161 SEPARATOR [COMPONENT PARTS] 100K0822 01A410 FAN 100K0822 01A420 WATER PIPE 100K0822 01A43002 RADIATOR 100K0822 01A450 RESERVE TANK 100K0822 01A54001 ALTERNATOR [A] 100K0822 01A55001 ALTERNATOR [COMPONENT PARTS] [A] 100K0822 01A560 STARTER 100K0822 01A570 STARTER [COMPONENT PARTS] 100K0822 01A580 BATTERY 100K0822 01B01502 SWITCH/SENSOR 1 [EXCEPT DUAL SPEED TYPE] 100K0822 01B030 SWITCH/SENSOR 2 100K0822 01B105 SWITCH (PANEL BOARD) 100K0822 01B11001 SWITCH [A] 100K0822 01B127 AIR CONDITIONER SWITCH / AMPLIFIER 100K0822 01B13001 RELAY [A] 100K0822 01B140 PANEL BOARD 100K0822 01B150 PANEL BOARD [COMPONENT PARTS] 100K0822 01B320 HEAD LIGHT 100K0822 01B332 HAZARD LIGHT 100K0822 01B350 WORK LIGHT 100K0822 01B360 REAR COMBINATION LIGHT 100K0822 01B370 TRAILER SOCKET 100K0822

Ref. M105S Page 13005 Part No. Description Book 01B410 ROOM LIGHT 100K0822 01B425 RADIO SPEAKER 100K0822 01B43001 WASHER TANK [A] 100K0822 01B44001 WIPER [A] 100K0822 01B51004 ELECTRICAL WIRING [EXCEPT DUAL SPEED TYPE] 100K0822 01B52001 ELECTRICAL WIRING (CAB) [A] 100K0822 01C11002 CLUTCH HOUSING 100K0822 01C111 SHUTTLE VALVE 100K0822 01C112 SHUTTLE VALVE [COMPONENT PARTS] 100K0822 01C11602 CLUTCH HOUSING COVER UPPER [EXCEPT DUAL SPEED TYPE] 100K0822 01C120 CLUTCH HOUSING COVER 100K0822 01C13002 MID CASE [EXCEPT DUAL SPEED TYPE] 100K0822 01C14002 TRANSMISSION CASE 100K0822 01C150 TRANSMISSION CASE REAR COVER 100K0822 01C170 REAR AXLE CASE 100K0822 01C220 DAMPER DISK 100K0822 01C240 CLUTCH PEDAL 100K0822 01C260 CLUTCH CABLE 100K0822 01C265 VALVE LEVER (CLUTCH/SHUTTLE) 100K0822 01D110 FRONT COVER 100K0822 01D120 GEAR SUPPORT 100K0822 01D215 INPUT SHAFT 100K0822 01D217 SHUTTLE SHAFT 100K0822 01D220 FIRST/SECOND SHIFT GEAR 100K0822 01D22502 FIRST SHAFT [EXCEPT DUAL SPEED TYPE] 100K0822 01D230 THIRD/FOURTH SHIFT GEAR 100K0822 01D240 COUNTERSHAFT 100K0822 01D24502 MAIN GEAR SHIFT SHAFT AND RANGE GEAR SHAFT [EXCEPT DUAL SPEED TYPE] 100K0822 01D24802 RANGE GEAR SHAFT [EXCEPT DUAL SPEED TYPE] 100K0822 01D25302 DRIVE SHAFT (REAR) 100K0822 01D255 TRANSMISSION CASE SIDE COVER 100K0822 01D26002 BEVEL GEAR 100K0822 01D262 DIFFERENTIAL REAR 100K0822 01D265 PTO PROPELLER SHAFT 100K0822 01D266 PTO CLUTCH 100K0822 01D267 PTO CLUTCH [COMPONENT PARTS] 100K0822 01D268 PTO CLUTCH VALVE 100K0822 01D269 PTO CLUTCH VALVE [COMPONENT PARTS] 100K0822 01D270 PTO DRIVE SHAFT 100K0822 01D275 PTO SHAFT 100K0822 01D410 MAIN GEAR SHIFT FORK 100K0822 01D430 RANGE GEAR SHIFT FORK 100K0822 01D470 REAR DIFFERENTIAL LOCK SHIFT FORK 100K0822 01D49501 REAR AXLE [A] 100K0822 01E110 BRAKE 100K0822 01F11002 MAIN GEAR SHIFT LEVER [EXCEPT DUAL SPEED TYPE] 100K0822 01F115 MAIN GEAR SHIFT ROD 100K0822 01F120 MAIN GEAR SHIFT LEVER SHAFT 100K0822 01F12501 SHUTTLE SHIFT LEVER [A] 100K0822 01F133 SHUTTLE CABLE 100K0822 01F135 RANGE GEAR SHIFT LEVER 100K0822 01F145 PTO CLUTCH LEVER 100K0822 01F160 PARKING BRAKE LEVER 100K0822 01F210 BRAKE PEDAL 100K0822 01F230 REAR DIFFERENTIAL LOCK PEDAL 100K0822 01F240 PARKING BRAKE 100K0822 01F310 BRAKE OIL TANK 100K0822 01F320 BRAKE MASTER CYLINDER [COMPONENT PARTS] 100K0822 01F330 BRAKE PIPE 100K0822

Ref. M105S Page 13005 Part No. Description Book 01G10502 FRONT AXLE FRAME 100K0822 01G11002 FRONT AXLE BRACKET 100K0822 01G120 FRONT AXLE 100K0822 01G130 FRONT WHEEL HUB 100K0822 01H11001 STEERING HANDLE [A] 100K0822 01H130 STEERING JOINT 100K0822 01H140 STEERING CONTROLLER 100K0822 01H150 STEERING CONTROLLER [COMPONENT PARTS] 100K0822 01H16002 TIE ROD 100K0822 01H16502 STEERING CYLINDER [COMPONENT PARTS] 100K0822 01J130 HYDRAULIC PUMP 100K0822 01J13501 HYDRAULIC PUMP [COMPONENT PARTS] 100K0822 01J13502 HYDRAULIC PUMP [COMPONENT PARTS] 100K0822 01J165 REGULATER VALVE [COMPONENT PARTS] 100K0822 01J210 HYDRAULIC PIPE (SUCTION) 100K0822 01J220 HYDRAULIC PIPE (DELIVERY) 100K0822 01J235 HYDRAULIC OIL LINE 100K0822 01J265 OIL COOLER 100K0822 01J27502 HYDRAULIC OIL LINE (STEERING/PTO) [EXCEPT DUAL SPEED TYPE] 100K0822 01J28002 STEERING HOSE (DELIVERY) 100K0822 01J310 HYDRAULIC CYLINDER 100K0822 01J315 HYDRAULIC LIFT ARM 100K0822 01J320 HYDRAULIC CYLINDER COVER 100K0822 01J355 CONTROL VALVE 100K0822 01J356 CONTROL VALVE [COMPONENT PARTS] 100K0822 01J380 DRAFT AND POSITION CONTROL LEVER 100K0822 01J381 DRAFT AND POSITION CONTROL LEVER BRACKET 100K0822 01J382 POSITION AND DRAFT SHAFT 100K0822 01J384 POSITION CAM 100K0822 01J386 DRAFT CAM 100K0822 01J44501 AUXILIARY CONTROL VALVE (SCD) [A] 100K0822 01J44701 AUXILIARY CONTROL VALVE (SCD) [COMPONENT PARTS] 100K0822 01J45501 AUXILIARY CONTROL VALVE LEVER [A] 100K0822 01K105 TOP LINK BRACKET 100K0822 01K110 TOP LINK 100K0822 01K125 LOWER LINK 100K0822 01K133 STABILIZER 100K0822 01K140 LIFT ROD RH 100K0822 01K143 LIFT ROD LH 100K0822 01L110 SWINGING DRAWBAR 100K0822 01L17001 PTO SHAFT PROTECTOR [A] 100K0822 01M120 HOOD(BONNET) UPPER 100K0822 01M127 HOOD(BONNET) SIDE COVER 100K0822 01M140 BONNET SUPPORT 100K0822 01N110 CAB FRAME 100K0822 01N11501 PANEL FRAME [A] 100K0822 01N120 FRONT GLASS 100K0822 01N125 DOOR RH 100K0822 01N130 DOOR LH 100K0822 01N135 DOOR LOCK RH 100K0822 01N140 DOOR LOCK LH 100K0822 01N14501 SIDE WINDOW [A] 100K0822 01N15001 REAR WINDOW [A] 100K0822 01N155 REAR WINDOW 100K0822 01N158 REARVIEW MIRROR 100K0822 01N160 INNER ROOF 100K0822 01N165 OUTER ROOF 100K0822 01N17001 SEAT [EXCEPT M105SDT [DUAL SPEED TYPE] [CA]] 100K0822 01N175 FLOOR MAT 100K0822

Ref. M105S Page 13005 Part No. Description Book 01N180 INSPECTION PLATE 100K0822 01N21003 FENDER COVER RH [EXCEPT DUAL SPEED TYPE] [A] 100K0822 01N215 FENDER COVER LH 100K0822 01N22001 PILLAR COVER [A] 100K0822 01N225 FENDER RH 100K0822 01N230 FENDER LH 100K0822 01N240 CAB BRACKET FRONT 100K0822 01N245 CAB BRACKET REAR 100K0822 01N250 TOOL BOX 100K0822 01N280 SMV EMBLEM 100K0822 01P115 AIR CONDITIONER 100K0822 01P135 DRAIN HOSE (AIR CONDITIONER) 100K0822 01P150 HEATER HOSE 100K0822 01P15502 CONDENSER 100K0822 01P157 AIR CONDITIONER HOSE / CONDENSER HOSE 100K0822 01P160 COMPRESSOR 100K0822 01P165 COMPRESSOR BRACKET 100K0822 01R11004 FRONT WHEEL(10.00-16) 100K0822 01R11005 FRONT WHEEL (9.5L-15) 100K0822 01R12001 REAR WHEEL (18.4R34) 100K0822 01R12002 REAR WHEEL (18.4R34) 100K0822 01R12003 REAR WHEEL (18.4-34) 100K0822 01R12004 REAR WHEEL (16.9-34) 100K0822 01R12005 REAR WHEEL (16.9-34) 100K0822 01S12002 LABEL (FRONT) [EXCEPT DUAL SPEED TYPE] [A] 100K0822 01S13002 LABEL (REAR) [EXCEPT DUAL SPEED TYPE] [A] 100K0822 01T110 ACCESSORIES AND SERVICE PARTS 100K0822 01U190 REAR WIPER KIT [A] [OPTION] 100K0822 01U250 FUEL TANK COVER KIT [OPTION] 100K0822 01U321 CREEP SPEED KIT 1 (GEAR CASE) [OPTION] 100K0822 01U322 CREEP SPEED KIT 2 (SHIFT FORK/LEVER) [OPTION] 100K0822 01U350 PTO(540/1000) CONVERSION KIT (GEAR CASE) [OPTION] 100K0822 01U351 PTO(540/1000) CONVERSION KIT (GEAR) [OPTION] 100K0822 01U520 FRONT WEIGHT BUMPER KIT [OPTION] 100K0822 01U70001 AUXILIARY CONTROL VALVE KIT (SCD) [OPTION] 100K0822 01U70002 AUXILIARY CONTROL VALVE KIT (FD) [OPTION] 100K0822 01U70003 AUXILIARY CONTROL VALVE KIT (SCD/FC) [OPTION] 100K0822 01U70004 AUXILIARY CONTROL VALVE KIT (FC) [OPTION] 100K0822 01U70501 AUXILIARY CONTROL VALVE (SCD) [COMPONENT PARTS] [OPTION] 100K0822 01U70502 AUXILIARY CONTROL VALVE (FD) [COMPONENT PARTS] [OPTION] 100K0822 01U70503 AUXILIARY CONTROL VALVE (SCD/FC) [COMPONENT PARTS] [OPTION] 100K0822 01U70504 AUXILIARY CONTROL VALVE (FC) [COMPONENT PARTS] [OPTION] 100K0822 01U71001 AUXILAIRY CONTROL VALVE LEVER KIT (2ND) [A] [OPTION] 100K0822 01U71002 AUXILAIRY CONTROL VALVE LEVER KIT (3RD) [OPTION] 100K0822 01U851 ASSIST CYLINDER KIT RH [OPTION] 100K0822 01U852 ASSIST CYLINDER KIT LH [OPTION] 100K0822 01U85501 ASSIST CYLINDER [COMPONENT PARTS] [OLD TYPE] [OPTION] 100K0822 01U85502 ASSIST CYLINDER [COMPONENT PARTS] [NEW TYPE] [OPTION] 100K0822 01U885 DRAWBAR/HITCH [OPTION] 100K0822

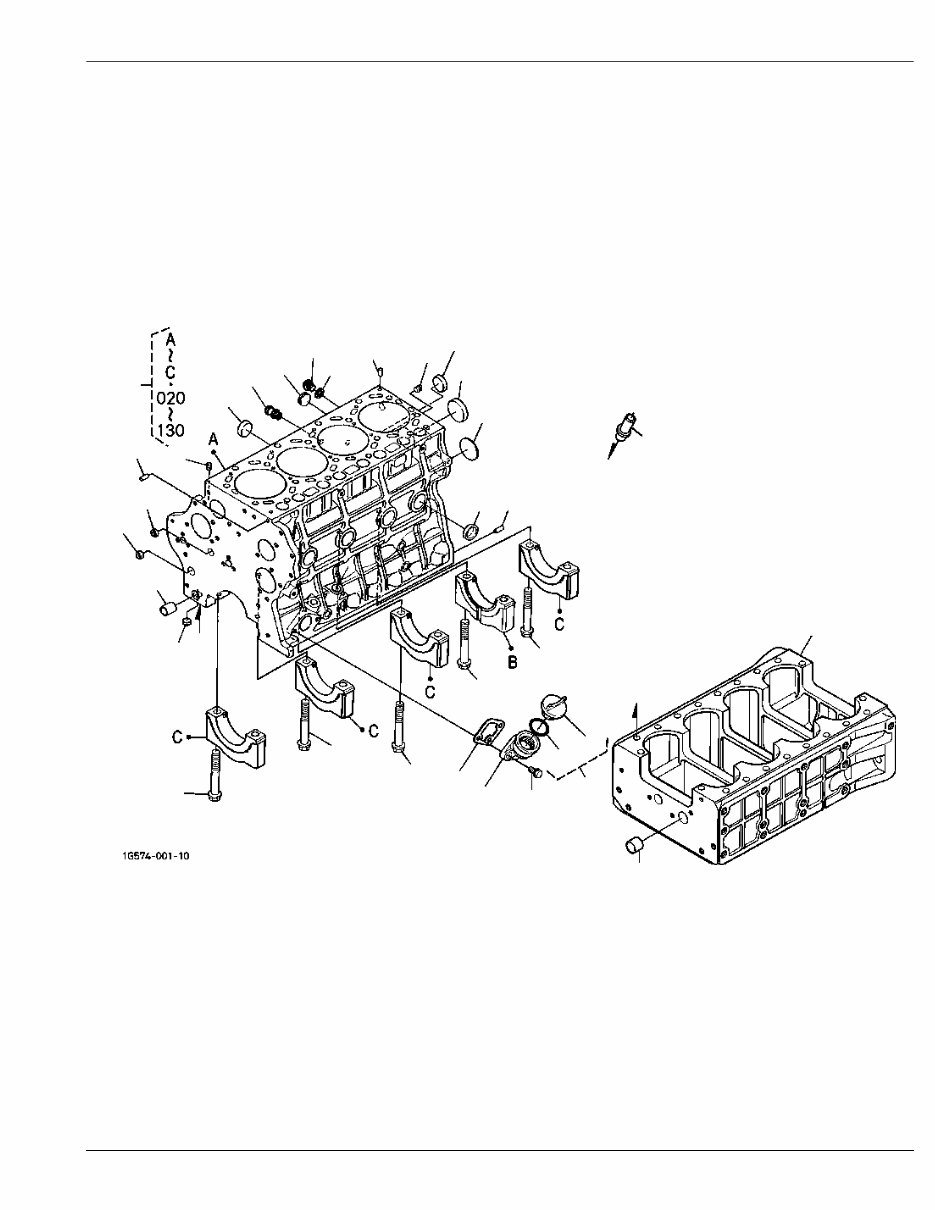

CRANKCASE Reference: 01000102 Page: 1 010 020 030 040 050 050 050 060 060 060 070 080 090 100 110 120 130 130 130 130 130 150 160 170 180 190 200 210 220 230 240 250 260

CRANKCASE Reference: 01000102 Page: 1 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 1G574-01010 COMP.CRANKCASE 1 0 0 020 15521-96020 PLUG 1 0.003 0.0066 030 1C010-96010 PLUG 1 0.012 0.0264 040 16683-96020 PLUG 1 0.07 0.154 050 15261-03370 CAP SEALING 4 0.005 0.011 060 15221-03380 CAP SEALING 9 0.017 0.0374 070 15221-03390 CAP SEALING 1 0.03 0.066 080 1C010-96160 PLUG EXPANSION 1 0.05 0.11 090 05012-00820 PIN STRAIGHT 1 0.008 0.0176 100 05012-01016 PIN STRAIGHT 2 0.01 0.022 110 15221-33650 PIN PIPE 2 0.004 0.0088 120 1C010-33640 PIN GEAR CASE 1 0.019 0.0418 130 1C010-04560 BOLT BEARING CASE 10 0.13 0.286 140 99999-99999 BLANK 0 0 0 150 1C040-33210 PIPE OIL 1 0.025 0.055 160 1C010-37114 JOINT WATER PIPE 1 0.02 0.044 170 06311-55030 PLUG 1 0.05 0.11 180 04724-00170 GASKET 1 0.005 0.011 190 1C011-01120 CRANKCASE 1 44 96.8 200 1C010-33650 PIN GEAR CASE 1 0.037 0.0814 210 1C010-33080 ASSY PLUG O/FILLER 1 0.018 0.0396 220 E9151-33140 PLUG OIL FILLER 1 0.017 0.0374 230 04817-50300 O RING 1 0.001 0.0022 240 15602-33110 FLANGE OIL FILLER 1 0.1 0.22 250 15625-32890 GASKET 1 0.001 0.0022 260 01754-50820 BOLT FLANGE 2 0.015 0.033

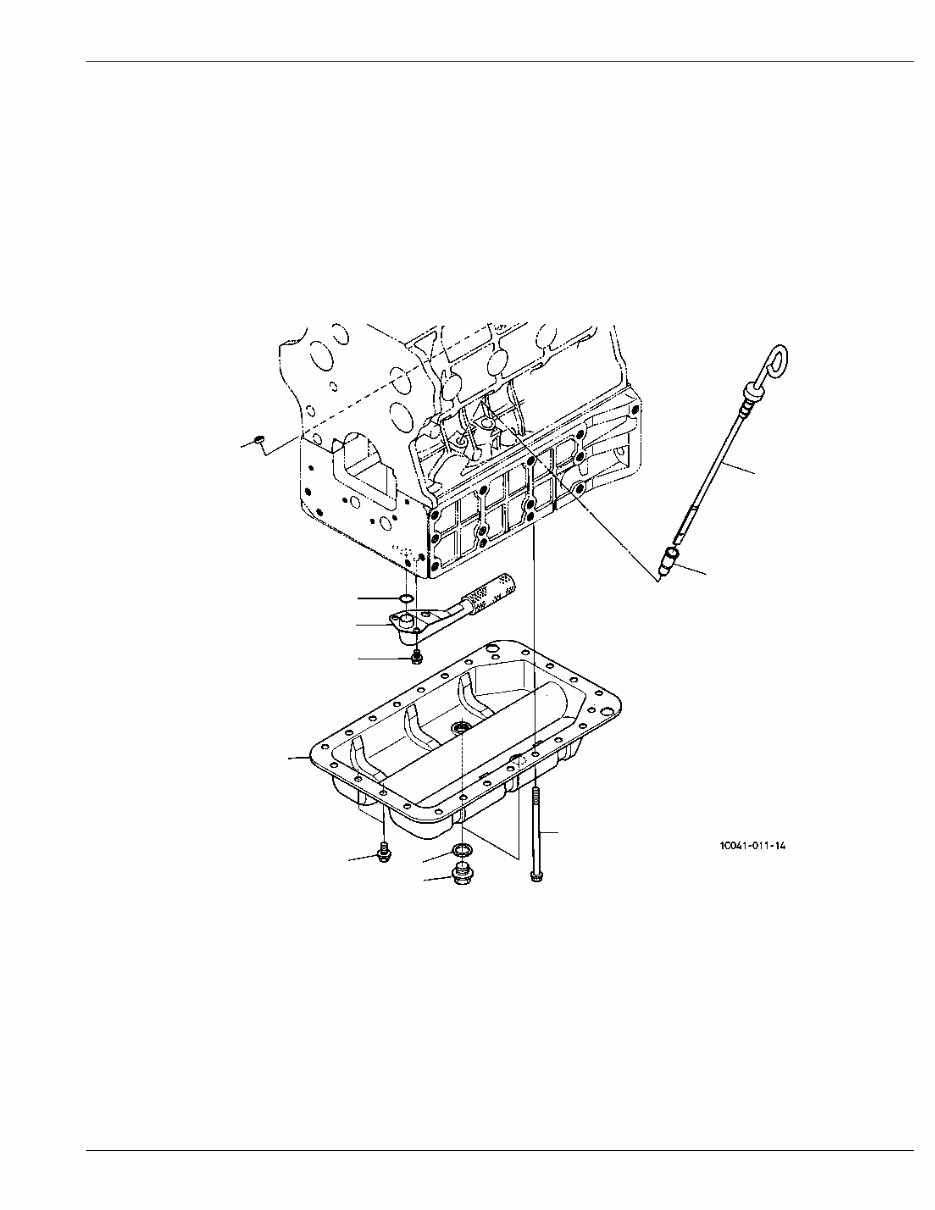

OIL PAN Reference: 010002 Page: 2 010 020 030 040 050 060 070 080 090 100 110

OIL PAN Reference: 010002 Page: 2 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 1G511-01500 COMP.OIL PAN 1 2.28 5.016 020 15707-33750 PLUG DRAIN 2 0.05 0.11 030 15451-96670 GASKET 2 0.003 0.0066 040 1C011-91010 BOLT FLANGE 20 0.1 0.22 050 1C010-91100 BOLT OIL PAN 6 0.02 0.044 060 1C011-32110 FILTER OIL 1 0.28 0.616 070 04814-00220 O RING 1 0.001 0.0022 080 01754-50814 BOLT FLANGE 2 0.005 0.011 090 1C010-36422 GUIDE OIL GAUGE 1 0.014 0.0308 100 1C010-36412 GAUGE OIL 1 0.04 0.088 110 15451-96300 CAP SEALING 1 0.002 0.0044

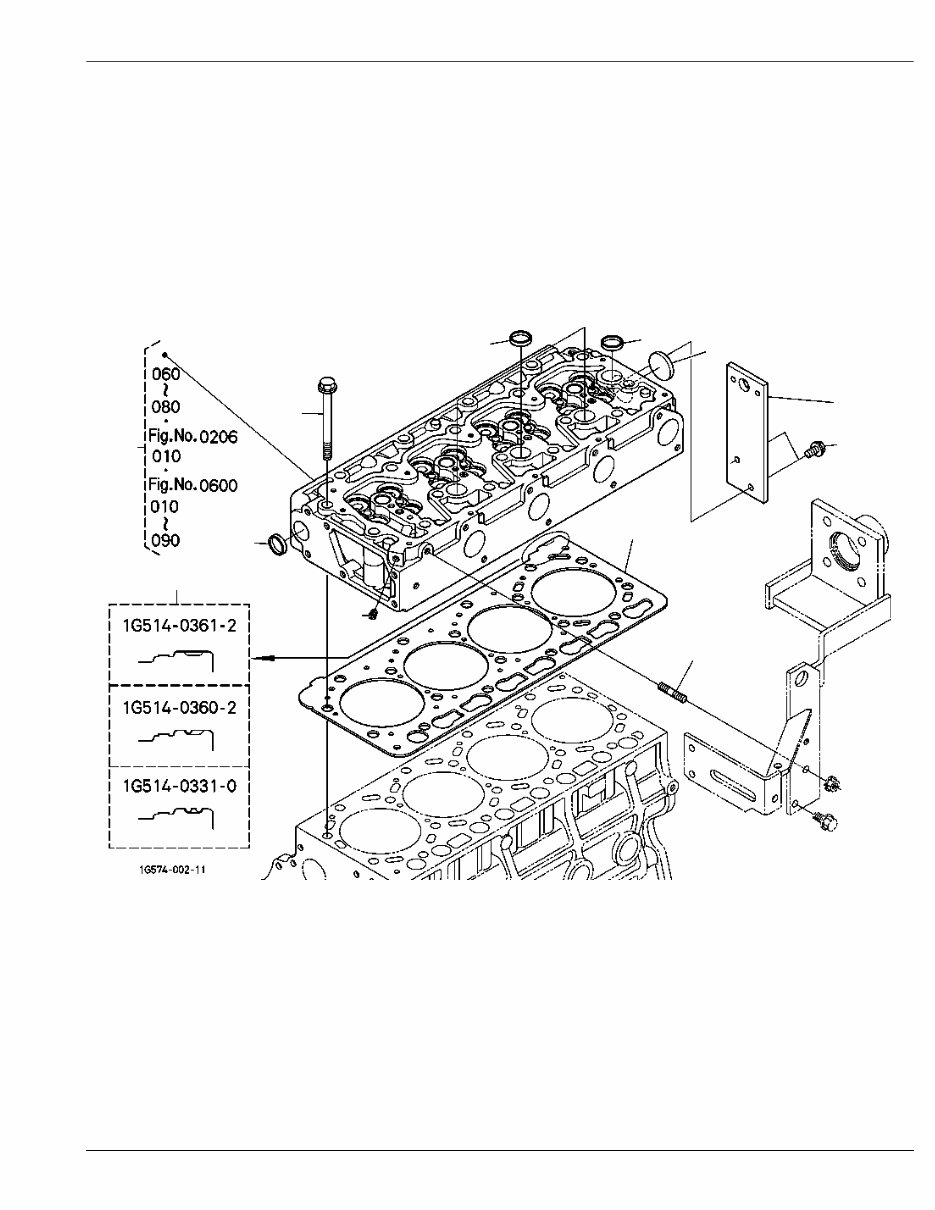

CYLINDER HEAD Reference: 010003 Page: 3 010 020 030 050 060 060 060 070 080 090 100 100
