Kubota L4300DT Tractor Illustrated Master Parts List Manual
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
Instructions for Parts Books
The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part
numbers.
Definition of column headings on part number pages:
REF.No The number refering to the part on the picture page of the parts book.
Part No. The number assigned to this part at the time of printing the parts book.
Description Discription of part.
Q'ty Quanity of part used on that page.
S.No. Serial number range of the equipment that this part will fit.
>= Your serial number should be greater than or equal to the number shown.
<= Your serial number should be lesser than or equal to the serial number shown.
I/C Interchangeability of part shown.
The part shown will work for the older and later serial number.
# The part shown is not interchangable with the other serial number.
new for old
old for new
Remarks Notes about this particulart part. Sometimes this may say except [FR] or [CA]
Note about Country Codes:
The parts books we use in the United States of America may also contain information about a part that would be
different in another country. It is important that you are aware of the country codes in some instances.
Symbol Country
A United States of America
CA Canada
FR France
GR Greece
PO Portugal
AU Australia
If the remarks column says for example EXCEPT [FR] this part works in all countries except France.
That means it will work here in the USA.
|ALL PRODUCT INDEX
L4300DT
Ref. L4300DT Page 12089
ENGINE
FUEL SYSTEM
COOLING WATER SYSTEM
ELECTRICAL SYSTEM
TRANSMISSION/CLUTCH/REAR AXLE
SPEED CHANGE LEVER/BRAKE
FRONT AXLE/CHASSIS
STEERING
HYDRAULIC SYSTEM
HITCH/DRAWBAR
HOOD(BONNET)/ROPS
FRONT WHEEL/REAR WHEEL
LABELS
ACCESSORIES
OPTION
Ref. L4300DT Page 12089
Item Part No. Description Book
ENGINE 010001 CRANKCASE 100K0654
010002 OIL PAN 100K0654
010003 CYLINDER HEAD 100K0654
010004 GEAR CASE 100K0654
010005 HEAD COVER 100K0654
010100 MAIN BEARING CASE 100K0654
010101 CAMSHAFT AND IDLE GEAR SHAFT 100K0654
010102 PISTON AND CRANKSHAFT 100K0654
01010302 FLYWHEEL [4WD] 100K0654
010105 FUEL CAMSHAFT 100K0654
010200 ENGINE STOP LEVER 100K0654
010202 INJECTION PUMP 100K0654
010203 INJECTION PUMP [COMPONENT
PARTS]
100K0654
010204 GOVERNOR 100K0654
010205 SPEED CONTROL PLATE 100K0654
010206 NOZZLE HOLDER AND GLOW PLUG 100K0654
010207 NOZZLE HOLDER [COMPONENT
PARTS]
100K0654
010500 WATER FLANGE AND THERMOSTAT 100K0654
010501 WATER PUMP 100K0654
010600 VALVE AND ROCKER ARM 100K0654
010601 INLET MANIFOLD 100K0654
010901 UPPER GASKET KIT 100K0654
010902 LOWER GASKET KIT 100K0654
010603 EXHAUST MANIFOLD/MUFFLER 100K0654
010604 AIR CLEANER 100K0654
01A003 ENGINE STOP ROD 100K0654
01A010 ACCELERATOR LEVER 100K0654
01A025 ACCELERATOR LINKAGE 100K0654
FUEL SYSTEM 01A101 FUEL TANK 100K0654
01A110 FUEL PIPE AND FUEL FILTER 100K0654
01A130 FUEL FILTER [COMPONENT PARTS] 100K0654
COOLING WATER SYSTEM 01A401 FAN 100K0654
01A410 WATER PIPE 100K0654
01A420 RADIATOR 100K0654
01A430 RESERVE TANK 100K0654
ELECTRICAL SYSTEM 01A515 ALTERNATOR 100K0654
01A520 ALTERNATOR [COMPONENT PARTS] 100K0654
01A525 STARTER 100K0654
01A530 STARTER [COMPONENT PARTS] 100K0654
01A535 BATTERY 100K0654
01B102 SWITCH 1 100K0654
01B103 SWITCH 2 100K0654
01B115 PANEL BOARD 100K0654
01B120 PANEL BOARD [COMPONENT PARTS] 100K0654
01B301 LIGHT 100K0654
01B501 ELECTRICAL WIRING 100K0654
TRANSMISSION/CLUTCH/REAR AXLE 01C101 CLUTCH 100K0654
01C201 CLUTCH LEVER 100K0654
01C301 CLUTCH PEDAL 100K0654
01C40102 CLUTCH HOUSING 100K0654
01C410 MID CASE 100K0654
01C42002 TRANSMISSION CASE 100K0654
01D101 MAIN SHAFT 100K0654
01D105 COUNTERSHAFT 100K0654
Ref. L4300DT Page 12089
Item Part No. Description Book
TRANSMISSION/CLUTCH/REAR AXLE 01D116 REVERSE SHAFT 100K0654
01D117 RANGE GEAR SHAFT 100K0654
01D12502 SPIRAL BEVEL PINION 100K0654
01D127 REAR DIFFERENTIAL 100K0654
01D130 PTO COUNTERSHAFT 100K0654
01D132 PTO CLUTCH 100K0654
01D13502 PTO SHAFT 100K0654
01D201 MAIN GEAR SHIFT FORK 100K0654
01D217 RANGE GEAR SHIFT FORK 100K0654
01D225 DIFFERENTIAL LOCK SHIFT FORK 100K0654
01D301 REAR AXLE 100K0654
SPEED CHANGE LEVER/BRAKE 01D401 BRAKE 100K0654
01D405 BRAKE ROD 1 100K0654
01D410 BRAKE ROD 2 100K0654
01E101 MAIN GEAR SHIFT LEVER 100K0654
01E110 RANGE GEAR SHIFT LEVER 100K0654
01E122 PTO CLUTCH CONTROL LEVER 100K0654
01E127 PTO CLUTCH VALVE [COMPONENT
PARTS]
100K0654
01E140 FRONT WHEEL DRIVE LEVER 100K0654
01E201 BRAKE PEDAL 100K0654
FRONT AXLE/CHASSIS 01F10502 FRONT AXLE FRAME 100K0654
01F120 PROPELLER SHAFT 100K0654
01F122 FRONT WHEEL DRIVE SHAFT 100K0654
01F125 FRONT DIFFERENTIAL CASE 100K0654
01F135 FRONT DIFFERENTIAL 100K0654
01F140 FRONT AXLE CASE 100K0654
01F145 DIFFERENTIAL GEAR SHAFT 100K0654
01F150 FRONT AXLE 100K0654
STEERING 01G101 STEERING HANDLE 100K0654
01G110 STEERING CONTROLLER 100K0654
01G12002 STEERING LINKAGE (TIE ROD) 100K0654
01H11002 STEERING CYLINDER 100K0654
01H115 STEERING CYLINDER [COMPONENT
PARTS]
100K0654
HYDRAULIC SYSTEM 01H120 HYDRAULIC PUMP 100K0654
01H125 HYDRAULIC PUMP [COMPONENT
PARTS]
100K0654
01H145 REGULATOR VALVE 100K0654
01H205 HYDRAULIC OIL LINE(INLET) 100K0654
01H210 HYDRAULIC OIL LINE(DELIVERY) 100K0654
01H215 HYDRAULIC OIL LINE (PS) 100K0654
01H230 PTO HYDRAULIC OIL LINE 100K0654
01H235 HYDRAULIC OUTLET BLOCK 100K0654
01H301 HYDRAULIC CYLINDER 100K0654
01H320 LIFT ARM 100K0654
01H330 FEED BACK LEVER 100K0654
01H405 CONTROL VALVE 100K0654
01H410 CONTROL VALVE [COMPONENT
PARTS]
100K0654
01H440 POSITION CONTROL LEVER 100K0654
01J105 TOP LINK 100K0654
01J110 3-POINT LINKAGE 1 (LOWER LINK) 100K0654
01J115 3-POINT LINKAGE 2 (LIFT ROD) 100K0654
HITCH/DRAWBAR 01K105 DRAWBAR 100K0654
01K125 PTO PROTECTOR 100K0654
Ref. L4300DT Page 12089
Item Part No. Description Book
HOOD(BONNET)/ROPS 01L101 FRONT GRILLE 100K0654
01L105 HOOD(BONNET) 100K0654
01L110 HOOD(BONNET) SIDE 100K0654
01L130 SHUTTER PLATE 100K0654
01L201 PANEL FRAME 100K0654
01L210 FENDER 100K0654
01L213 FENDER SUPPORT 100K0654
01L220 SEAT 100K0654
01L225 STEP 100K0654
01L240 TOOL BOX 100K0654
01L30101 ROPS [RIGID ROPS TYPE] 100K0654
01L30102 ROPS [FOLDABLE ROPS TYPE] 100K0654
01L501 SMV EMBLEM 100K0654
FRONT WHEEL/REAR WHEEL 01P10103 FRONT WHEEL (8.3-16) 100K0654
01P10104 FRONT WHEEL (10-16.5) 100K0654
01P10105 FRONT WHEEL (27*8.5-15) 100K0654
01P10106 FRONT WHEEL (27*10.5-15) 100K0654
01P10107 FRONT WHEEL (29*12.50-15) 100K0654
01P11001 REAR WHEEL (13.6-24) 100K0654
01P11002 REAR WHEEL (14.9-24) 100K0654
01P11003 REAR WHEEL (17.5-24) 100K0654
01P11004 REAR WHEEL (41*14.00-20) 100K0654
01P11005 REAR WHEEL (21.5L-16.1) 100K0654
LABELS 01R105 LABEL 1 100K0654
01R110 LABEL 2 100K0654
ACCESSORIES 01S105 ACCESSORIES AND SERVICE PARTS 100K0654
OPTION 01T130 POSITION CONTROL LEVER (WITH
DRAFT) [OPTION]
100K0654
01T135 DRAFT CONTROL LEVER (WITH
DRAFT) [OPTION]
100K0654
01T140 TOP LINK HOLDER (WITH DRAFT)
[OPTION]
100K0654
01T145 SWINGING DRAWBAR/CLEVIS
DRAWBAR [OPTION]
100K0654
01T15001 AUXILIARY CONTROL VALVE LEVER 1
[OPTION]
100K0654
01T15002 AUXILIARY CONTROL VALVE LEVER 2
[OPTION]
100K0654
01T15003 AUXILIARY CONTROL VALVE LEVER 3
[OPTION]
100K0654
01T15501 AUXILIARY CONTROL VALVE
COUPLER 1 [OPTION]
100K0654
01T15502 AUXILIARY CONTROL VALVE
COUPLER 2 [OPTION]
100K0654
01T15503 AUXILIARY CONTROL VALVE
COUPLER 3 [OPTION]
100K0654

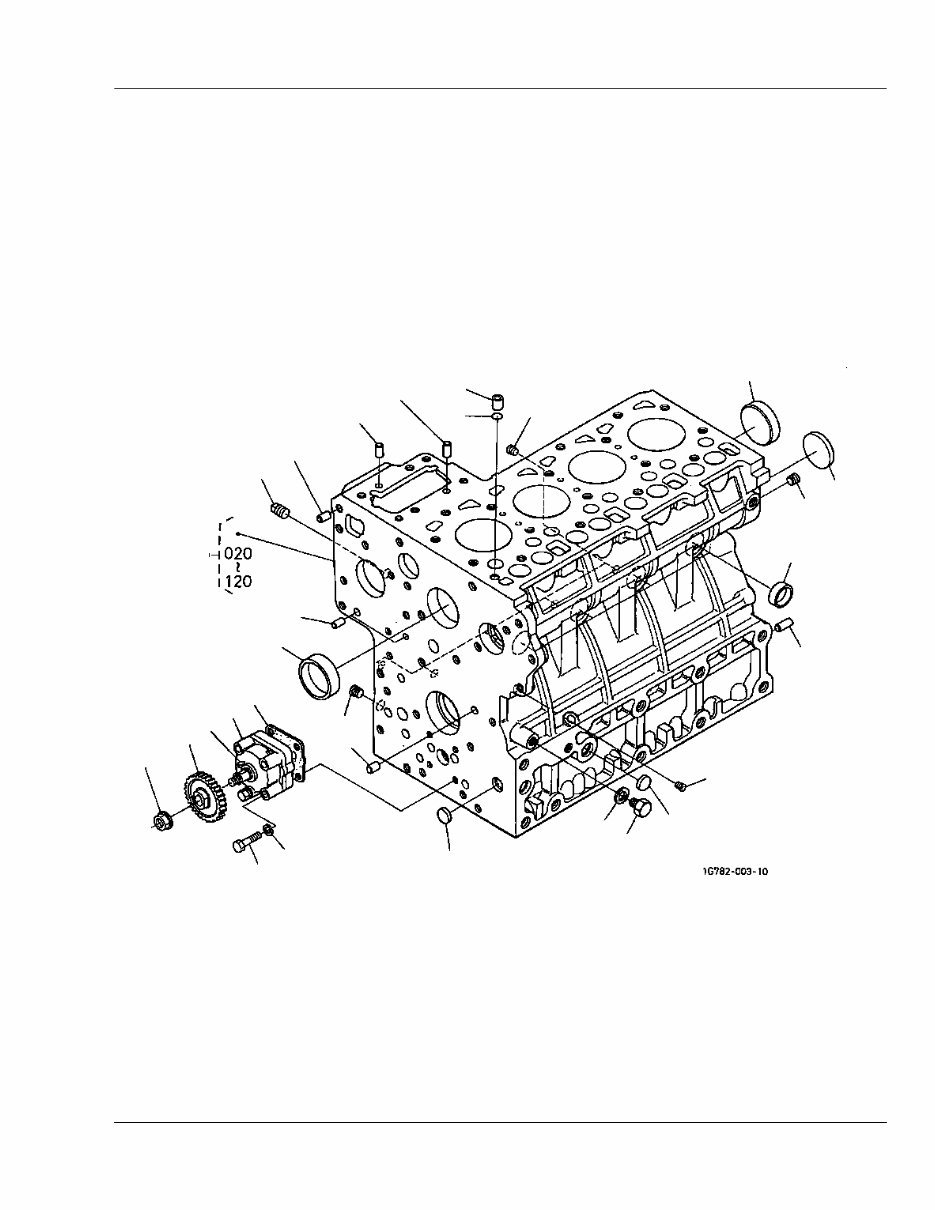

CRANKCASE
Reference: 010001 Page: 1
010
020
020
030
030
040
040
050
060
070
070
080
090
090
100
100
110
120
130
140
150
160
170
180
190
200
210
220
230
CRANKCASE
Reference: 010001 Page: 1
REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight
(kgf)
Weight
(lb)
010 16497-01012 COMP.CRANKCASE 1 0 0
020 15521-96020 PLUG 6 0.003 0.0066
030 15521-96030 PLUG 2 0.007 0.0154
040 17391-96160 PLUG EXPANSION 3 0.003 0.0066
050 06311-75045 PLUG EXPANSION 1 0.026 0.0572
060 15221-03380 CAP SEALING 6 0.017 0.0374
070 15221-03390 CAP SEALING 2 0.03 0.066
080 05012-00408 PIN STRAIGHT 2 0.001 0.0022
090 05012-00609 PIN STRAIGHT 2 0.003 0.0066
100 05012-00612 PIN STRAIGHT 2 0.003 0.0066
110 05012-01018 PIN STRAIGHT 1 0.012 0.0264
120 15221-33650 PIN PIPE 1 0.004 0.0088
130 06312-10020 PLUG 1 0.015 0.033
140 15221-33610 PLUG 1 0.009 0.0198
150 15021-33660 GASKET 1 0.001 0.0022
160 15221-33700 O RING 1 0.001 0.0022
170 15471-35012 ASSY PUMP OIL 1 0.55 1.21
180 1A021-35150 GASKET OIL PUMP 1 0.001 0.0022
190 01053-50650 BOLT 4 0.011 0.0242
200 04512-60060 WASHER SPRING 4 0.001 0.0022
210 19202-35660 GEAR OIL PUMP DRIVE 1 0.23 0.506
220 05712-00410 KEY FEATHER 1 0.001 0.0022
230 15221-35682 NUT FLANGE 1 0.014 0.0308

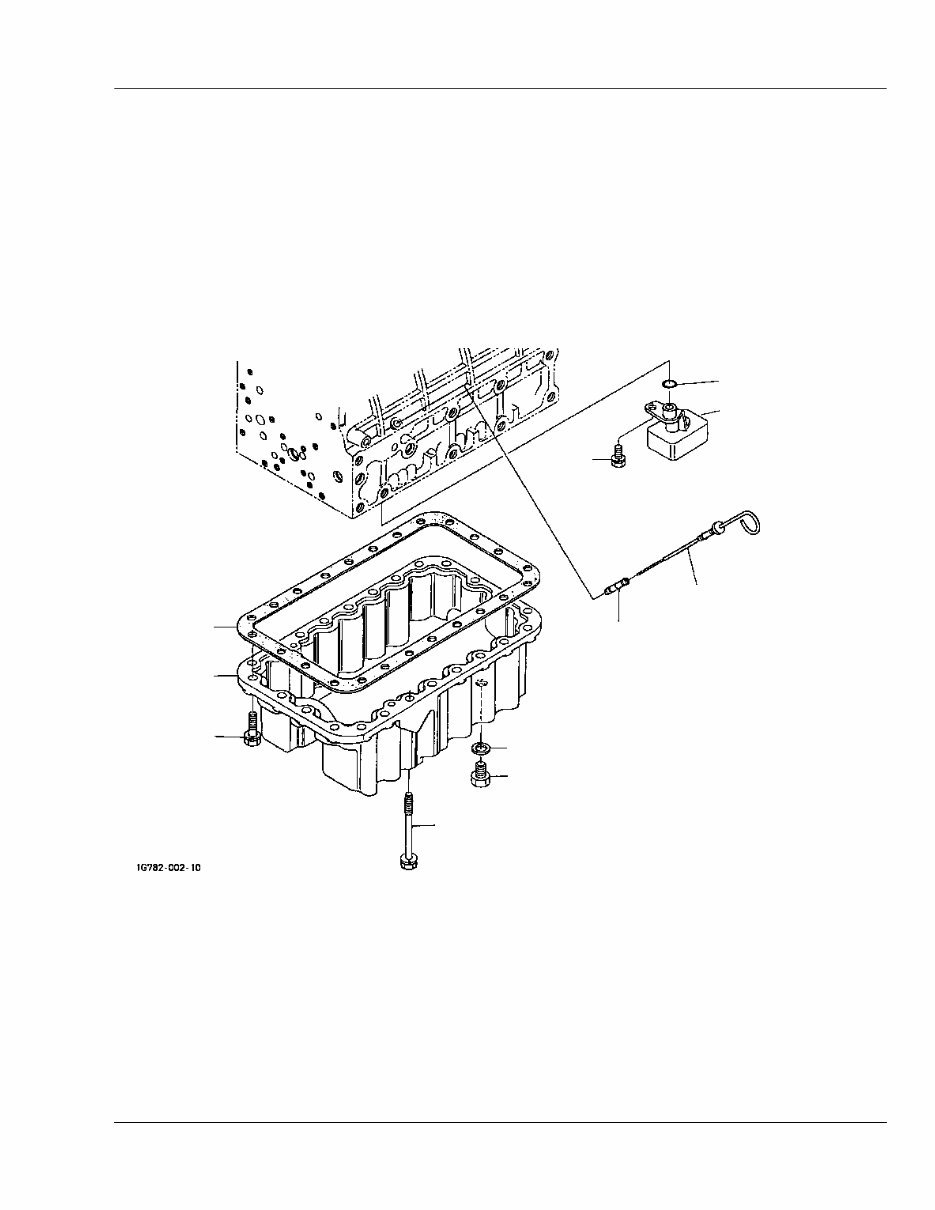

OIL PAN
Reference: 010002 Page: 2
010
020
030
040
050
060
070
080
090
100
110
OIL PAN
Reference: 010002 Page: 2
REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight
(kgf)
Weight
(lb)
010 17341-01610 OIL PAN 1 4.1 9.02
020 15815-01620 GASKET OIL PAN 1 0.03 0.066
030 01133-51028 BOLT 22 0.027 0.0594
040 17377-91010 BOLT 2 0.08 0.176
050 16427-33750 PLUG DRAIN 2 0 0
060 6C090-58960 GASKET 2 0.002 0.0044
070 15411-32110 FILTER OIL 1 0.24 0.528
080 01123-60814 BOLT 1 0.008 0.0176
090 04811-00160 O RING 1 0.001 0.0022
100 1G851-36410 GAUGE OIL 1 0.04 0.088
110 17456-36420 GUIDE OIL GAUGE 1 0.033 0.0726

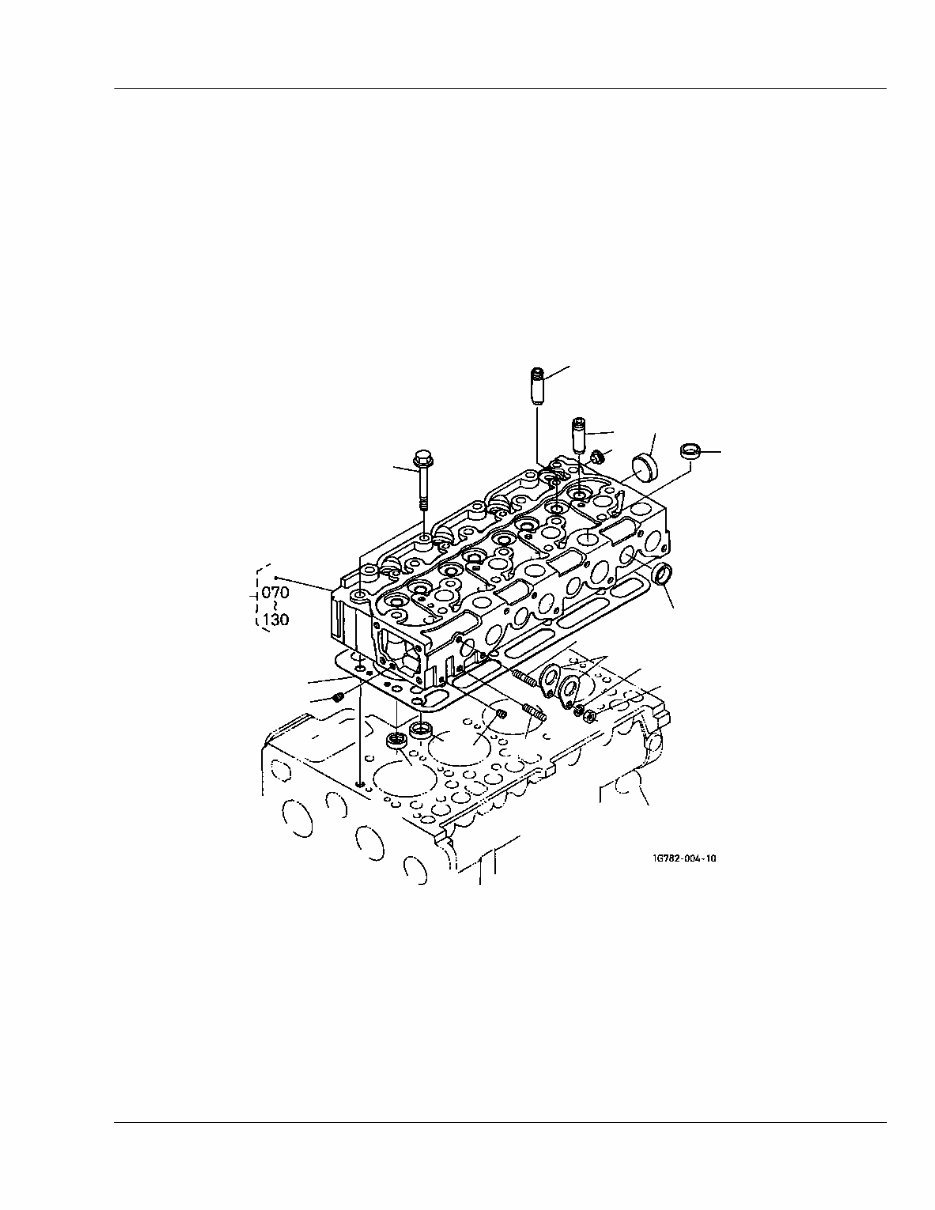

CYLINDER HEAD
Reference: 010003 Page: 3
010
020
030
030
040
050
060
070
070
080
090
090
100
110
120
130
140
150
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$41.99
Viewed 95 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$41.99
This is the illustrated parts list manual for the Kubota model L4300DT L-Series Tractor.
This parts catalog contains detailed parts explosions and exploded views, breakdowns of all part numbers for all aspects of the Kubota L4300DT Tractors, including detailed engine parts breakdowns. Parts manuals are essential for do-it-yourself tractor parts lookup, servicing, rebuilding, teardowns, overhauls, repairs, and adjustments. The easy-to-read exploded views make part number identification, accurate ordering, and correct repairs simple. This manual contains all the original parts information needed to lookup correct part numbers for the entire machine, including engine parts.
Once purchased, you will immediately receive a link in your email to view, print, and save the manual to your computer for future use. All sections are bookmarked and fully text searchable for lightning-fast and simple navigation. The manual is 288 pages long and is divided into the following sections:
- ENGINE
- FUEL SYSTEM
- COOLING WATER SYSTEM
- ELECTRICAL SYSTEM
- TRANSMISSION / CLUTCH / REAR AXLE
- SPEED CHANGE LEVER / BRAKE
- FRONT AXLE / CHASSIS
- STEERING
- HYDRAULIC SYSTEM
- HITCH / DRAWBAR
- HOOD (BONNET) / ROPS
- FRONT WHEEL / REAR WHEEL
- LABELS (DECALS)
- ACCESSORIES
- OPTION
The master parts manual provides detailed parts lookup data concerning various topics such as CRANKCASE, FUEL TANK, FAN, ALTERNATOR, CLUTCH, REVERSE SHAFT, BRAKE, FRONT AXLE FRAME, STEERING HANDLE, HYDRAULIC PUMP, DRAWBAR, FRONT GRILLE, FRONT WHEEL (8.3-16), LABEL 1, ACCESSORIES AND SERVICE PARTS, POSITION CONTROL LEVER (WITH DRAFT) [OPTION].
About Kubota Tractors:
The Kubota Corporation, established in 1890, has a long history of manufacturing agricultural machinery in Japan. In 1969, Kubota entered the North American market and formed the Kubota Tractor Corporation in 1972. Kubota also owns similar tractor companies in many countries worldwide. In 1988, Kubota opened its first American manufacturing facility in Gainesville, GA (USA) and later transferred the facility to a newer manufacturing facility near Jefferson, GA (USA). The popularity and low price of Kubota tractors led to a number of grey market imports of Japanese models into North America. These models lack safety equipment required in the US such as PTO shields and seatbelts. Kubota won a lawsuit in 1997 to make it illegal to distribute these tractors in the USA.
This is parts manual number: 100K0654. The specific Kubota L-Series Tractor model included in this manual is the L4300DT, designed specifically for Small Farm Tractor; Suitable For Landscaping, Estate Maintenance, Equestrian Operations, Horse Farm, Commercial Use.
